Bed-type variability and till (dis)continuity beneath Thwaites Glacier, West Antarctica

Published online by Cambridge University Press:  10 October 2019

Atsuhiro Muto
Affiliation:
Department of Earth and Environmental Science, Temple University, Philadelphia, PA, USA.
Richard B. Alley
Affiliation:
Department of Geosciences and the Earth and Environmental Systems Institute, The Pennsylvania State University, University Park, PA, USA
Byron R. Parizek
Affiliation:
Department of Geosciences and the Earth and Environmental Systems Institute, The Pennsylvania State University, University Park, PA, USA Geosciences and Mathematics, The Pennsylvania State University DuBois, DuBois, PA, USA
Sridhar Anandakrishnan
Affiliation:
Department of Geosciences and the Earth and Environmental Systems Institute, The Pennsylvania State University, University Park, PA, USA
Corresponding
E-mail address:
Rights & Permissions[Opens in a new window]

Abstract

Recent seismic measurements from upper Thwaites Glacier indicate that the bed-type variability is closely related to the along-flow basal topography. In high-relief subglacial highlands, stoss sides of topographic highs have a relatively higher acoustic impedance (‘hard’ bed) with lower acoustic impedance (‘soft’ till) on lee sides. This pattern is similar to observations of many deglaciated terrains. Subglacial hydraulic-potential gradient and its divergence show a tendency for water to diverge over the stoss sides and converge into the lee sides. Convergence favors a thicker or more widespread water system, which can more efficiently decouple ice from the underlying till. Under such circumstances, till deformation does occur but, fluxes are relatively small. Till carried from the lee sides onto stoss sides of downstream bumps should couple to the ice more efficiently, increasing the ability for transport by till deformation. In turn, this suggests that steady-state till transport can be achieved if the stoss-side till layer is thin or discontinuous. In addition, the large basal shear stress generated in the highlands seems too high for a bed lubricated by a continuous although thin deforming till, suggesting till discontinuity, which would allow debris-laden ice to erode bedrock on stoss sides, supplying additional till for transport.

Type
Papers
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution, and reproduction in any medium, provided the original work is properly cited.
Copyright
Copyright © The Author(s) 2019

Introduction

Ice flow is dictated to a large extent by the nature of the bed. Models exist for estimating the basal-slip law from the bed type. When the bed is rigid, made of nondeforming rock (‘hard’ bed), classical Weertman sliding (Weertman, Reference Weertman1957) is usually applied, in which the basal velocity increases with a low power of the basal shear stress, usually between 1 and 3 (perhaps limited to some maximum stress; Schoof, Reference Schoof2005; Joughin and others, Reference Joughin, Smith and Schoof2019). For a bed made of saturated, deforming till (‘soft’ bed), observations and experiments show that small strains produce strong nonlinearity (Rathbun and others, Reference Rathbun, Marone, Alley and Anandakrishnan2008), with additional strain leading to extreme nonlinearity approaching perfect plasticity (e.g. Kamb, Reference Kamb1991; Tulaczyk and others, Reference Tulaczyk, Kamb and Engelhardt2001; Rathbun and others, Reference Rathbun, Marone, Alley and Anandakrishnan2008). Experiments have also shown that till deformation is often consistent with the Coulomb-plastic rheology (e.g. Iverson and others, Reference Iverson, Hooyer and Baker1998; Tulaczyk and others, Reference Tulaczyk, Kamb and Engelhardt2000), in which the basal shear stress equals the ultimate strength of the till, which is proportional to the effective pressure (ice-overburden pressure minus the subglacial water pressure) (e.g. Cuffey and Paterson, Reference Cuffey and Paterson2010; Tsai and others, Reference Tsai, Stewart and Thompson2015).

Despite this accumulated knowledge and the ability to describe the basal-slip law for different bed types, observations of the bed types are scarce, and many glacier and ice-sheet models cannot incorporate variable bed types yet. Models are, therefore, often run with a uniform-bed slip law, most commonly a power-law rule with a low exponent consistent with Weertman sliding (e.g. Pollard and DeConto, Reference Pollard and DeConto2012; Yu and others, Reference Yu, Rignot, Seroussi and Morlighem2018). This leads to significant uncertainties in projections of future sea-level rise because the grounding-line retreat rates of marine ice sheets such as the West Antarctic Ice Sheet can be quite different for nearly plastic versus nearly viscous slip laws (Parizek and others, Reference Parizek2013; Ritz and others, Reference Ritz2015; Brondex and others, Reference Brondex, Gagliardini, Gillet-Chaulet and Durand2017).

Active-source seismic surveys can map the bed type (e.g. Smith, Reference Smith2007; Brisbourne and others, Reference Brisbourne2017; Kulessa and others, Reference Kulessa2017). Recent reflection-seismic investigations in upper Thwaites Glacier showed that along-flow variability in the bed type is closely related to the along-flow basal topography (Muto and others, Reference Muto2019; M2019 hereafter). The upstream portion of the ~40 km seismic profile revealed a ~10 km-long, relatively flat basin capped by a continuous till layer that is soft (as indicated by its low acoustic impedance Z b; ~1.5 × 106 < Z b < 3.33 × 106 kg m−2 s−1) and likely deforming, with a few isolated spots of ponded water (Fig. 1). Downstream of the basin, subglacial highlands with rugged topography continue for at least the remaining length of the survey line (~30 km). In these subglacial highlands, stoss sides of topographic highs (bumps) were found to have a relatively higher acoustic impedance (‘hard’ bed), with lower acoustic impedance (‘soft till’) on lee sides.

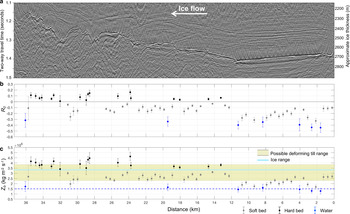

Fig. 1. (a) Stacked, migrated seismic section of the L-line profile along the ice flow. (b) Normal-incidence reflection coefficient (R 0). (c) The bed acoustic impedance (Z b). Yellow and cyan bands indicate the possible values of deforming till and ice, respectively (Atre and Bentley, Reference Atre and Bentley1993). Blue dotted line is the acoustic impedance of water. The interpreted bed type is shown with different colors for each data point. Modified from Muto and others (Reference Muto2019) and used with permission from Elsevier, Earth and Planetary Science Letters.

The reflection-seismic method, however, has some limitations; those pertaining to the interpretation of the glacier-bed type were discussed in M2019. A particular limitation of interest here in terms of till continuity is the thin-layer effect, discussed in detail by Booth and others (Reference Booth2012). Briefly, if there is a deforming till layer (‘soft’ bed) that is <~2 m thick (~1/6 of a seismic wavelength λ; in our case λ = 12 m in till at the P-wave velocity of 1800 m s−1 and the center frequency of 150 Hz) overlying a lodged, low-porosity till layer (‘hard’ bed), then the apparent reflectivity would be a composite of reflections from the top and the bottom of the deforming till layer and the normal-incidence reflection coefficient would be positive, indicating a hard bed rather than a negative value from a soft till. This leaves the possibility that the hard-bedded stoss sides of topographic highs found by M2019 are in fact covered by seismically thin (<~2 m) deforming till. Also, we cannot be certain if the seismic signal for each data point results from a uniform bed or a mix of bed types horizontally over the Fresnel-zone width of the seismic signal (the in-line distance over which the seismic response of the bed is integrated), which in the case of M2019 is ~365 m at the average bed depth of ~2600 m. The effect of the lateral distribution of bed types is yet to be explored rigorously.

Here, we argue that the regions that appear hard-bedded in the M2019 reflection-seismic data actually include hard-bedded areas, perhaps with patchy thin till, rather than suffering from the thin-layer effect. We rely on three lines of evidence, none of which is unequivocal but which we believe make a strong case together: (i) analogy to deglaciated terrains showing common stoss-side bedrock and lee side till; (ii) physical understanding of continuity of till flux informed by hydrologic calculations based on our data suggesting inadequate till flux from soft-bedded regions to cover roughness on stoss sides of bedrock; and (iii) calculations of basal shear stress supported on different regions of the bed, with large values on stoss sides suggesting interactions with bedrock.

Analogy to deglaciated terrain

Deglaciated terrains can never be perfect analogs for subglacial conditions, both because of differences in conditions during glaciation, and because the imprints of deglaciation and subsequent changes are lacking beneath active glaciers. Nonetheless, experience shows that knowledge gained from glacial geology informs glaciology (e.g. Boulton, Reference Boulton1976; Stokes and others, Reference Stokes, Margold and Creyts2016).

Deglaciated terrains commonly expose stoss-side rock with lee side till or other sediment, at many scales (e.g. Evans and Hansom, Reference Evans and Hansom1996; Ives and Iverson, Reference Ives and Iverson2019). Figure 2a shows the stoss side of a bump, ~6 to 7 m tall, on Danmark Island, east Greenland. The stoss side of the bump is visible, and ice went up this slope away from the camera, striating and polishing (rockfall from the face has occurred postglacially). The lee side of this bump is soft sediment, probably till, filled almost to the level of the top of the bump. Figure 2b shows a smaller-scale bedrock bump that was exposed within the last couple of years in front of the rapidly retreating Sólheimajökull in Iceland. Although not shown in the photo, the lee side of this bump has a slope gentler than the stoss side and is made of sediment, indicating sediment accumulation there.

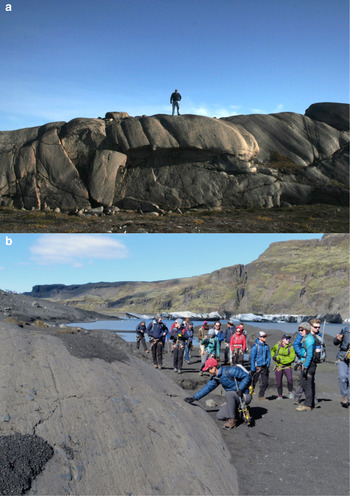

Fig. 2. (a) A stoss-side bedrock exposure in till fields on Danmark Island in east Greenland. Inferred ice flow was into and slightly towards the left of the page. (b) Stoss side of a bedrock bump within a till field in front of Sólheimajökull in Iceland. The ice flow was into the page. Person kneeling down is A. Muto. Both photos were taken by R. Alley.

In light of such widespread occurrence of stoss-side bedrock and lee side sediment, it is reasonable to surmise that similar conditions will exist in the subglacial environment.

Till continuity

The data of M2019 show regions of seismically thick till with the acoustic impedance less than that for ice, indicating high porosity and high basal-water pressure (e.g. Peters and others, Reference Peters2006). Under such conditions, prior work (some of which we summarize below) suggests that the till is deforming, but primarily in a narrow zone close to the base of the ice, and that increasing water supply will decrease till deformation by decoupling the ice from the till.

Thwaites Glacier is within the West Antarctic Rift System and is underlain by thin, stretched crust, likely resulting in elevated geothermal flux (Damiani and others, Reference Damiani, Jordan, Ferraccioli, Young and Blankenship2014; Schroeder and others, Reference Schroeder, Blankenship, Young and Quartini2014), and there is abundant subglacial water supply (Joughin and others, Reference Joughin2009; Schroeder and others, Reference Schroeder, Blankenship, Young and Quartini2014; Smith and others, Reference Smith, Gourmelen, Huth and Joughin2017). Seismic data of M2019 indicate a thawed bed with abundant water, consistent with these studies.

On Whillans Ice Stream (formerly Ice Stream B), boreholes near where seismic measurements earlier indicated water-saturated deforming till at the bed (Blankenship and others, Reference Blankenship, Bentley, Rooney and Alley1986, Reference Blankenship, Bentley, Rooney and Alley1987) showed water pressures within 2% of flotation, with a few measurements above flotation (Engelhardt and Kamb, Reference Engelhardt and Kamb1997; Kamb, Reference Kamb, Alley and Bindschadler2001). Below one of the boreholes, till deformation was limited to a 3–25 cm layer at the top of the till package, and accounted for only 17% of the total basal motion (Engelhardt and Kamb, Reference Engelhardt and Kamb1998; Kamb, Reference Kamb, Alley and Bindschadler2001). It should be borne in mind, however, that this is a single observation and some large water-pressure fluctuations (up to 1 MPa) were recorded during the observational period (Engelhardt and Kamb, Reference Engelhardt and Kamb1998; Alley, Reference Alley2000), perhaps helping maintain dilatancy to greater depth in the till to produce the seismically thick soft layer (Leeman and others, Reference Leeman, Valdez, Alley, Anandakrishnan and Saffer2016). Adding water from the boreholes floated the ice off the bed (Kamb, Reference Kamb, Alley and Bindschadler2001), thus reducing deformation. The weak fabrics within the sediments recovered from beneath Subglacial Lake Whillans, located ~200 km downstream, suggest that the till deformation was within the uppermost 10 cm of the till layer (Hodson and others, Reference Hodson, Powell, Brachfeld, Tulaczyk and Scherer2016), supporting the earlier observations.

Similar relations between the basal-water pressure and ice-till coupling are observed beneath mountain glaciers. Transient observations of water pressure in boreholes and shear strain rate in till beneath Trapridge Glacier in Canada (Fischer and Clarke, Reference Fischer and Clarke2001; Kavanaugh and Clarke, Reference Kavanaugh and Clarke2006) and Storglaciären in Sweden (Iverson and others, Reference Iverson, Hanson, Hooke and Jansson1995) showed reduced shear strain rate when the water pressure rose. Even negative shear strain rates were recorded during some water-pressure peaks (Iverson and others, Reference Iverson, Hanson, Hooke and Jansson1995; Fischer and Clarke, Reference Fischer and Clarke2001), indicating that the till decoupled from the bed locally and stopped shearing under high water pressure (low effective pressure), responding elastically to reduced shear stress (Iverson and others, Reference Iverson, Hanson, Hooke and Jansson1995, Reference Iverson, Baker, Hooke, Hanson and Jansson1999). These changes beneath small alpine glaciers mainly result from water input from the glacier surface, which does not occur on Whillans Ice Stream nor Thwaites Glacier. Nevertheless, reduced ice-till coupling under higher basal-water pressure was consistently recorded and is physically almost inevitable.

We hypothesize that this time-varying behavior also applies to spatial variations along flow in our survey region. As discussed above, increase in water flux is observed to cause a rise in the basal-water pressure, increasing the thickness or area of linked cavities or other features that store and transmit water to balance the greater water flux, and in turn leading to a larger mean thickness of water separating ice and till (Iverson, Reference Iverson1999; Iverson and others, Reference Iverson2007; see review by Alley, Reference Alley1996). In turn, this may focus stress on a few large clasts that plough the upper part of the till, rather than the ice coupling more widely and driving deeper deformation (Iverson, Reference Iverson1999; Iverson and others, Reference Iverson2007). Therefore, areas of greater water convergence should exhibit greater decoupling between ice and till, and thus less till flux from deformation. This implies that regions of along-ice flow convergence of water have small till flux, whereas along-ice flow divergence of water favors greater till flux. Transitions from water convergence to divergence along ice flow then should increase potential sediment flux, leading to till evacuation, exposing bedrock. A thin deforming layer from soft-bed regions, with deformation, largely occurring over a thickness of order 0.1 m and only where ice and till are not separated by water, would then thin as it was carried into the hard-bed regions, where it would deform more rapidly. Such a layer would be unlikely to bury bedrock topography, and thus likely would be discontinuous in space and perhaps also in time.

We calculated the glaciological hydraulic potential (ϕ) along the main M2019 L-line (Fig. 1), assuming ϕ depends on surface and bed elevations, and that the basal-water pressure is equal to the ice overburden pressure (Shreve, Reference Shreve1972),

(1)$$\phi \, = \,\; \rho _{\rm w}gz_{\rm b}\, + \,\; \rho _{\rm i}g\,(z_{\rm s}-z_{\rm b})$$

where ρ w and ρ i are the densities of water and ice, respectively, g is the gravitational acceleration, and z s and z b are the surface and bed elevations, respectively. Surface elevation (z s) is from the differential GPS data collected concurrently with the seismic data, and bed elevation (z b) is from the M2019 seismic data. We then calculated the gradient of the hydraulic potential (/dx, the first derivative of the hydraulic potential) and its divergence (d 2ϕ/dx 2, the second derivative of the hydraulic potential) along the line to find locations where the subglacial water is likely to converge (positive d 2ϕ/dx 2) or diverge (negative d 2ϕ/dx 2). The result is shown in Figure 3, with the cross plot of the acoustic impedance (Z b) and d 2ϕ/dx 2 in Figure 4.

Fig. 3. (a) Surface (blue solid line, left vertical axis) and bed (red solid line, right vertical axis) elevation profiles with the bed-elevation uncertainty (36 m) in red dotted lines. Note that the scale is different for the two profiles and the uncertainty of the surface elevation (10 cm) is negligible. (b) Glaciological hydraulic potential (ϕ). (c) Hydraulic-potential gradient (/dx). (d) Divergence of the hydraulic-potential gradient (d 2ϕ/dx 2). (e) The bed acoustic impedance (Z b) and interpreted bed type (same as Fig. 1c).

Fig. 4. Cross plot of the acoustic impedance (Z b) and the divergence of the hydraulic-potential gradient (d 2ϕ/dx 2). The color scale indicates the location of the acoustic-impedance measurements along the seismic survey line. Spearman's rank correlation coefficient (ρ) of Z b and d 2ϕ/dx 2 and its p-value are shown.

The pattern of water convergence/divergence and the bed types show a reasonable match with our expectations based on the surface and bed elevations and our current knowledge of the basal slip (e.g. Cuffey and Paterson, Reference Cuffey and Paterson2010; Iverson, Reference Iverson2010), supporting our hypothesis above. In the subglacial highlands (Figs 1a and 3a), d 2ϕ/dx 2 fluctuates rapidly over several hundred meters to a kilometer along flow, as expected from the more variable surface and bed topographies (Fig. 3d). Negative d 2ϕ/dx 2 are found over hard-bedded stoss sides (e.g. 23.5–24.2 km, 28.5–29.1 km and 33.9–34.5 km), seen as a cluster of points with higher Z b and negative d 2ϕ/dx 2 in the cross plot (Fig. 4). Positive d 2ϕ/dx 2 mostly corresponds to soft-bedded lee sides (e.g. 19.5–22 km and 25.5–26.5 km). In the upstream soft-bedded basin, the magnitude of d 2ϕ/dx 2 is smaller but mostly positive, indicating water convergence, with some of the local maxima corresponding to locations where seismic data indicated water ponding (4 and 11.5 km). The Spearman's rank correlation coefficient (ρ) of the Z b and d 2ϕ/dx 2 is −0.48 with the p-value close to 0 (Fig. 4), indicating a weak but significant negative correlation, further supporting our expectation that the hard (soft) bed is associated with water divergence (convergence). We note, however, that the uncertainties of d 2ϕ/dx 2 include both positive and negative values across this upstream region, suggesting that the correlation of water convergence/divergence with the bed type over the basin may not be as robust as in the downstream highlands.

The acoustic-impedance data were collected at sites spaced mostly ~480 m apart and have the Fresnel-zone width of ~365 m. However, there are data gaps up to ~2-km long, arising because of the relatively steep bed slopes where incidence angles of the bed reflections exceeded 10° and the normal-incidence approximation does not hold. This introduces some uncertainty to the interpretation (e.g. 23.2, 28.3 and 33.6 km). We also find regions that are not consistent with our hypothesis (e.g. 13.3–17 km and 29.5–31 km) where d 2ϕ/dx 2 is negative, indicating water divergence although the seismic data showed soft bed. We cannot tell whether this arises from inadequacies in data, in our assumptions (e.g. out-of-plane water flow), or whether additional processes are active.

Despite these data shortcomings and some mismatches, our results overall suggest that ice will couple more strongly to till on stoss sides than on lee sides, so more till can be carried across stoss sides than is supplied from lee sides. Unless rapid erosion occurs to generate more till (which we discount in part because the stoss sides are still there and have not been worn away), the till then must thin from lee to stoss sides, making it less able to bury small-scale bumps on the stoss sides and favoring a hard-bedded sliding law on the stoss sides alternating with the soft-bedded sliding law on lee sides.

Basal shear stress

If a thin, deforming till layer was present on stoss sides, it could bury bumps at the sub-meter scale that may be most important in limiting basal sliding (Weertman, Reference Weertman1957) and prevent friction between bedrock and rocks carried in basal ice. In such a case, we would expect relatively low dynamic drag at the bed. In contrast, bedrock not covered by till can support higher dynamic drag.

We performed a simple inversion for the basal shear stress along the M2019 L-line, which is aligned close to the ice flow direction, using observed surface and bed elevations and the surface speed. We used the Pennsylvania State University 2-D higher-order, finite element model (PSU2D, Parizek and others, Reference Parizek, Alley, Dupont, Walker and Anandakrishnan2010; Koellner and others, Reference Koellner, Parizek, Alley, Muto and Holschuh2019) as the forward model to simulate outlet glacier flow. Within PSU2D, the basal-slip law is represented by a power law:

(2)$$\tau _{\rm b} = \; B_{\rm b}u\lpar b \rpar^{\textstyle{1 \over m}}$$

where τ b and B b are the shear stress and drag coefficient, respectively, at the basal interface. The bed exponent m was held constant across the domain with values of either 1 (linear viscous) or 3 (weakly nonlinear) to represent hard bed and 8 (effectively plastic) to represent soft bed. Total basal traction along the ice/bed interface is composed of both form drag arising from variations in bed elevation and dynamic drag associated with the basal shear stress that is supported by the subglacial material.

Surface elevation used here is from the Airborne Topographic Mapper (ATM; Studinger, Reference Studinger2014, updated, 2018) and bed elevation is from the Multi-channel Coherent Radar Depth Sounder (MCoRDS; Paden and others, Reference Paden, Li, Leuschen, Rodriguez-Morales and Hale2010, updated, 2018) of NASA's Operation IceBridge. A survey line along the ice flow, including over the M2019 L-line, was flown on 11 November 2011. We used these OIB surface and bed elevation data here rather than in situ data from the seismic survey as was done for the hydraulic-potential calculation in order to minimize boundary effects by extending the model domain ~85 km upstream and ~5 km downstream of the ~40 km seismic line. For the surface speed, we used the MEaSUREs InSAR-based velocity (Rignot and others, Reference Rignot, Mouginot and Scheuchl2017) interpolated along the OIB data. All of these datasets were interpolated at a 250-m interval along the flowline. This is spatially coarse compared to the individual linked cavities or other features generally envisioned to transmit basal water (e.g. Iverson, Reference Iverson1999), so the inversion provides a spatial average across such sub-meter to few-meter features.

We inverted for the basal drag by determining the pattern of the basal drag coefficient (B b) that reduces the misfit between observed and modeled surface speeds. For each rheology tested, we first looked for a uniform B b value that gives the approximate mean observed surface speed (~125 m a−1) within the seismic-survey subdomain. We then iteratively adjusted the B b field along the entire flowline, followed by additional fine-tuning iterations along the subdomain such that the modeled surface speed closely approximated the observed values along the seismic line (within ~7% on average, with misfits as low as ~0.004% and as high as ~24% across the broad region (6–14 km Figs 3a and 5a) of surface-slope reversal). We thereby recover variations of interest in B b and subsequently τ b.

Fig. 5. (a) Observed (red solid line) and modeled (blue, black and orange solid lines) surface speeds. Note that colors for different m values apply to panels b and c. (b) Basal drag coefficient (B b). (c) Basal shear stress (τ b). (d) Driving stress (τ d). (e) The bed acoustic impedance (Z b) and bed type (same as Fig. 1c).

The observed and modeled surface speeds, the resulting basal drag coefficient (B b), and the calculated basal shear stress (τ b) are displayed for each basal-slip law (m) in Figures 5a–c, respectively. We also plot Z b and τ b for each seismic-data location as cross plots for each basal-slip law (Fig. 6). At the broad scale for each m, τ b shows the expected pattern; basal shear stress is low in the soft-bedded basin, high overall in the highlands with mixed-bed conditions, and increases when bumps are encountered, and Z b and τ b have weak, but positive correlation (Fig. 6). Furthermore, τ b varies more (less) with sharper (gentler) transitions between low and high values for lower (higher) m, reflecting the nature of the nearly viscous (nearly plastic) slip law to concentrate stresses locally (distribute stresses over a larger distance) (Parizek and others, Reference Parizek2013; Koellner and others, Reference Koellner, Parizek, Alley, Muto and Holschuh2019).

Fig. 6. Cross plots of the acoustic impedance (Z b) and the basal shear stress (τ b) for different bed exponent: (a) m = 1, (b) m = 3 and (c) m = 8. The color scale indicates the location of the acoustic-impedance measurements along the seismic survey line. The Spearman's rank correlation coefficient (ρ) of Z b and τ b and its p-value for each case of m are shown.

Within the basin and the initial upslope into the highlands (between 4 and 16.5 km; Fig. 3a), the basal shear stress is essentially zero (Fig. 5c) where the seismic data showed continuous soft bed with a few locations with ponded water (Fig. 5e). Due to positive surface slopes (negative driving stresses; Fig. 5d) across this broad zone, PSU2D underestimates surface speed over this region despite the lack of dynamic drag. This warrants further investigation of transverse flow effects.

Just prior to entering this soft zone, τ b is elevated within a region where local driving stress reaches ~270 kPa (Fig. 5d) as ice flows over a ~5-km-long, ~45-m-high bump that begins ~2 km upstream of the seismic line. Relatively high basal shear stress here is consistent with the higher acoustic impedance values among the soft-bedded regions, suggestive of deforming but likely lower-porosity soft bed.

In the highlands, sharp increases in τ b correspond to seismically hard, stoss sides of bumps (e.g. 18.5–19, and 23.5–24 and 28.5–29 km). Also, the longest stretch of high driving stress and τ b near the downstream end coincides with the longest section of seismically hard bed between 32 and 35.5 km with relatively high acoustic impedance values (except a long data gap at ~33–34 km), supporting our hypothesis. However, there are localized sections such as 19.5–22 km, 25–26.5 km and 30–31 km where τ b remains high on the lee side of bumps with soft beds. As previously discussed, these may arise from data inadequacies, out-of-plane effects, additional processes or some combination of these; however, we cannot tell at this point which of these possibilities is at play.

Discussion and conclusions

Prior modeling (e.g. Parizek and others, Reference Parizek2013; Koellner and others, Reference Koellner, Parizek, Alley, Muto and Holschuh2019) has shown that the stability of the West Antarctic Ice Sheet may depend on the form of the basal-slip law, not just on the magnitude of the basal drag, with nearly linear, nearly plastic and mixed beds giving often significantly different thresholds for onset of retreat and for subsequent rates of retreat. To a greater extent than most other outlet glaciers such as Siple Coast ice streams (e.g. Anandakrishnan and others, Reference Anandakrishnan, Blankenship, Alley and Stoffa1998; Peters and others, Reference Peters2006) and neighboring Pine Island Glacier (Jordan and others, Reference Jordan2010; Smith and others, Reference Smith, Jordan, Ferraccioli and Bingham2013), Thwaites Glacier flows across the dominant topography rather than along it, giving strongly contrasting basal conditions along flow lines. The simplest interpretation of the seismic data from M2019 indicates that hard and soft beds alternate, with hard stoss sides of elevated bedrock and soft-till lee sides. Prior work, some of which are summarized above, then suggests that basal velocity on stoss and lee sides will obey quite different slip laws that have unique influences on outlet-glacier dynamics in spite of the comparable surface velocities that are observed across these regions (cf. Joughin and others, Reference Joughin, Smith and Schoof2019).

The resolution of seismic data is high but still limited, and it may be physically possible to have a dynamically significant sub-resolution layer of deforming till in regions mapped as hard bed. Whether such a layer can fully bury bedrock roughness has not been studied extensively, but cannot be excluded based on current understanding. Pending such studies, the data indicate that hard and soft beds alternate along flow, suggesting that the exponent of the basal-slip law alternates along flow, but a continuous soft bed cannot be entirely excluded by the seismic data.

Three lines of evidence presented here suggest that the seismic data accurately capture the basal character. First, the seismic pattern of hard stoss sides and soft lee sides of topography is similar to many deglaciated terrains.

Second, physical understanding and analogy to other subglacial sites indicate that convergence of subglacial water should decouple ice from till, reducing sediment flux by subglacial deformation, whereas divergence of subglacial water should increase ice/bed coupling and till-deformation flux. Our data indicate water convergence over soft-bedded regions and divergence over seismically hard regions. This, in turn, suggests that the sediment flux from soft to hard regions is less than the potential sediment flux across the hard regions. In steady state, a relatively thin (order of 0.1 m) deforming layer from the soft regions overlies a much thicker layer of weakly deforming till. The most-active deforming layer would thin onto the hard regions as coupling to the ice and thus deformation increased, likely becoming discontinuous in space or time, and almost surely would be insufficient to generate a widespread, continuous soft till layer.

Third, our inversions indicate basal drag in the highlands, especially focused on the stoss sides of the topography that is much higher than can be easily explained by the form drag of the resolved basal topography, indicating large dynamic drag. A soft layer is unlikely to generate such a large, localized drag (note smoothing of the basal shear stress across broader regions for higher bed exponents in Fig. 5c), pointing to interactions between ice or clasts in ice and (rough) bedrock, which requires that soft till be discontinuous or absent on stoss sides.

We note that none of these lines of evidence is unequivocal. Deglaciated bedrock is not a perfect proxy for active subglacial conditions, and there are situations in which stoss-side sediments are observed. We calculated the hydraulic-potential gradient and its divergence only along the ice flow. However, a new high-resolution 3-D basal topographic map created from swath-radar data shows topographic variability across the ice flow; hence the hydraulic-potential gradient may contain a significant across-ice flow component (Holschuh and others, Reference Holschuh, Christianson, Paden, Alley and Anandakrishnan2019). This may explain mismatches between d 2ϕ/dx 2 and the expected bed type at some locations. Our datasets were not collected in a perfectly synchronous way (seismic data were collected between December 2008 and January 2009 and IceBridge data were collected in November 2011), and time-evolution may have affected interpretations. More sophisticated inversions for basal drag (e.g. Joughin and others, Reference Joughin2009; Morlighem and others, Reference Morlighem, Seroussi, Larour and Rignot2013; Sergienko and Hindmarsh, Reference Sergienko and Hindmarsh2013) could be conducted. Important along-flow transitions in bed type are observed at a spatial scale that is near the effective resolution of our combined surveys, introducing some uncertainty. Along-flow variations in slope of the ice-air surface likely affect snow accumulation and firn density (e.g. Arcone and others, Reference Arcone, Spikes and Hamilton2005; Medley and others, Reference Medley2013), influencing detailed calculations of subglacial hydraulic potential and the local driving stress for viscous ice flow that is ultimately balanced by regional basal drag, lateral drag, and/or ice front conditions.

These and additional considerations are guiding the strategy for planned collection of co-located synchronous reflection-seismic, swath- and snow-radar and surface-velocity data to accurately map 3-D hydraulic potential and its gradient and divergence by the GHOST (Geophysical Habitat of Subglacial Thwaites) project as part of the ongoing ITGC (International Thwaites Glacier Collaboration). The pending success of that effort (currently planned to begin in the 2020–21 Antarctic field season), our results indicate that stoss faces of subglacial topography along Thwaites Glacier are hard-bedded, with soft-bedded lee faces. A full modeling strategy should include a variety of basal-slip laws, but we recommend using the subglacial topography and the results here to specify spatially variable basal-slip laws.

Acknowledgement

This work was supported by the US National Science Foundation under grants NSF-NERC-PLR-1738934 (A.M., R.B.A., B.R.P., S.A.) and PLR-1443190 (B.R.P.), and by the Heising-Simons Foundation under grant 2018-0769 (R.B.A., B.R.P., S.A.). We thank Alex Brisbourne, an anonymous reviewer and Neal Iverson, the scientific editor, for their constructive reviews that improved the manuscript. This work is from the GHOST project, a component of the International Thwaites Glacier Collaboration (ITGC). Support from National Science Foundation (NSF: Grant NSF-NERC-PLR- 1738934) and Natural Environment Research Council (NERC: Grant NE/S006672/1). ITGC Contribution No. ITGC-004.

References

Alley, RB (1996) Towards a hydrological model for computerized ice-sheet simulations. Hydrol. Process., 10, 649660 (doi: 10.1002/(SICI)1099-1085(199604)10:4<649::AID-HYP397>3.0.CO;2-1)3.0.CO;2-1>CrossRefGoogle Scholar
Alley, RB (2000) Continuity comes first: recent progress in understanding subglacial deformation. Geol. Soc. London, Special Pub., 176(1), 171179 (doi: 10.1144/GSL.SP.2000.176.01.13)CrossRefGoogle Scholar
Anandakrishnan, S, Blankenship, DD, Alley, RB and Stoffa, PL (1998) Influence of subglacial geology on the position of a West Antarctic ice stream from seismic observations. Nature, 394, 6265 (doi: 10.1038/27889)CrossRefGoogle Scholar
Arcone, SA, Spikes, VB and Hamilton, GS (2005) Stratigraphic variation in polar firn caused by differential accumulation and ice flow: interpretation of a 400-MHz shortpulse radar profile from West Antarctica. J. Glaciol., 51(7), 407422 (doi: 10.3189/172756505781829151)CrossRefGoogle Scholar
Atre, SR and Bentley, CR (1993) Laterally varying basal conditions beneath Ice Streams B and C, West Antarctica. J. Glaciol, 39(133), 507514CrossRefGoogle Scholar
Blankenship, DD, Bentley, CR, Rooney, ST and Alley, RB (1986) Seismic measurements reveal a saturated, porous layer beneath an active Antarctic ice stream. Nature, 322, 5457 (doi: 10.1038/322054a0)CrossRefGoogle Scholar
Blankenship, DD, Bentley, CR, Rooney, ST and Alley, RB (1987) Till beneath ice stream B: 1. Properties derived from seismic travel times. J. Geophys. Res., 92(B9), 89038911 (doi: 10.1029/JB092iB09p08903)CrossRefGoogle Scholar
Booth, AD and 6 others (2012) Thin-layer effects in glaciological seismic amplitude-versus-angle (AVA) analysis: implications for characterising a subglacial till unit, Russell Glacier, West Greenland. Cryosphere, 6(4), 909922 (doi: 10.5194/tc-6-909-2012)CrossRefGoogle Scholar
Boulton, GS (1976) The origin of glacially fluted surfaces—observations and theory. J. Glaciol., 17(76), 287309 (doi: 10.3189/S0022143000013605)CrossRefGoogle Scholar
Brisbourne, AM and 8 others (2017) Bed conditions of Pine Island Glacier, West Antarctica. J. Geophys. Res.: Earth Surf., 122, 419433 (doi: 10.1002/2016JF004033)CrossRefGoogle Scholar
Brondex, J, Gagliardini, O, Gillet-Chaulet, F and Durand, G (2017) Sensitivity of grounding line dynamics to the choice of the friction law. J. Glaciol., 63(241), 854866 (doi: 10.1017/jog.2017.51)CrossRefGoogle Scholar
Cuffey, KM and Paterson, WSB (2010) The physics of glaciers, 4th edn.Butterworth-Heinemann, Oxford.Google Scholar
Damiani, TM, Jordan, TA, Ferraccioli, F, Young, DA and Blankenship, DD (2014) Variable crustal thickness beneath Thwaites Glacier revealed from airborne gravimetry, possible implications for geothermal heat flux in West Antarctica. Earth Planet. Sci. Lett., 407(C), 109122 (doi: 10.1016/j.epsl.2014.09.023)CrossRefGoogle Scholar
Engelhardt, H and Kamb, B (1997) Basal hydraulic system of a West Antarctic ice stream: constraints from borehole observations. J. Glaciol., 43(144), 207230 (doi: 10.3189/S0022143000003166)CrossRefGoogle Scholar
Engelhardt, H and Kamb, B (1998) Basal sliding of ice stream B, West Antarctica. J. Glaciol., 44(147), 223230 (10.3189/S0022143000002562)Google Scholar
Evans, DJA and Hansom, JD (1996) The Edinburgh Castle crag-and-tail. Scott. Geogr. Mag., 112(2), 129131 (doi: 0.1080/14702549608554461)Google Scholar
Fischer, UH and Clarke, GKC (2001) Review of subglacial hydro-mechanical coupling: Trapridge Glacier, Yukon Territory, Canada. Quatern. Intern., 86(1), 2943 (doi: 10.1016/S1040-6182(01)00049-0)CrossRefGoogle Scholar
Hodson, TO, Powell, RD, Brachfeld, SA, Tulaczyk, S and Scherer, RP and WISSARD Science Team (2016) Physical processes in Subglacial Lake Whillans, West Antarctica: inferences from sediment cores. Earth Planet. Sci. Lett., 444(C), 5663 (doi: 10.1016/j.epsl.2016.03.036)CrossRefGoogle Scholar
Holschuh, N, Christianson, K, Paden, J, Alley, R and Anandakrishnan, S (2019) Linking postglacial landscapes and subglacial processes through swath radar imaging at Thwaites Glacier, West Antarctica. in International Symposium on Glacial Erosion and Sedimentation, Abstract Number 80A2910, Madison, WI, USA, 12-17 June.CrossRefGoogle Scholar
Iverson, NR (1999) Coupling between a glacier and a soft bed: II Model results. J. Glaciol., 45(14), 4153 (doi: 10.3189/S0022143000003026)CrossRefGoogle Scholar
Iverson, NR and 7 others (2007) Soft-bed experiments beneath Engabreen, Norway: regelation infiltration, basal slip and bed deformation. J. Glaciol., 53(182), 323340 (doi: 10.3189/002214307783258431)CrossRefGoogle Scholar
Iverson, NR (2010) Shear resistance and continuity of subglacial till: hydrology rules. J. Glaciol., 56(200), 11041114 (doi: 10.3189/002214311796406220)CrossRefGoogle Scholar
Iverson, NR, Baker, RW, Hooke, RL, Hanson, B and Jansson, P (1999) Coupling between a glacier and a soft bed: I. A relation between effective pressure and local shear stress determined from till elasticity. J. Glaciol., 45(149), 3140 (doi: 10.3189/S0022143000003014)CrossRefGoogle Scholar
Iverson, NR, Hanson, B, Hooke, RL and Jansson, P (1995) Flow mechanism of glaciers on soft beds. Science, 267(5194), 8081 (doi: 10.1126/science.267.5194.80)CrossRefGoogle ScholarPubMed
Iverson, NR, Hooyer, TS and Baker, RW (1998) Ring-shear studies of till deformation: Coulomb-plastic behavior and distributed strain in glacier beds. J. Glaciol., 44(148), 634642CrossRefGoogle Scholar
Ives, LRW and Iverson, NR (2019) Genesis of glacial flutes inferred from observations at Múlajökull, Iceland. Geology, 47(5), 387390 (doi: 10.1130/G45714.1)CrossRefGoogle Scholar
Jordan, TA and 6 others (2010) Aerogravity evidence for major crustal thinning under the Pine Island Glacier region (West Antarctica) Geol. Soc. Am. Bull., 122(5–6), 714726 (doi: 10.1130/B26417.1)CrossRefGoogle Scholar
Joughin, I and 6 others (2009) Basal conditions for Pine Island and Thwaites Glaciers, West Antarctica, determined using satellite and airborne data. J. Glaciol., 55(190), 245257 (doi: 10.3189/002214309788608705)CrossRefGoogle Scholar
Joughin, I, Smith, BE and Schoof, CG (2019) Regularized Coulomb friction laws for ice sheet sliding: application to Pine Island Glacier, Antarctica. Geophys. Res. Lett., 46, 47644771 (doi: 10.1029/ 2019GL082526)CrossRefGoogle ScholarPubMed
Kamb, B (1991) Rheological nonlinearity and flow instability in the deforming bed mechanism of ice stream motion. J. Geophys. Res., 96(1310), 16,58516,595 (doi: 10.1029/91JB00946)CrossRefGoogle Scholar
Kamb, B (2001) Basal zone of the West Antarctic ice streams and its role in lubrication of their rapid motion. In Alley, RB and Bindschadler, RA eds. The West Antarctic ice sheet: behavior and environment. Antarctic Research Series 77, American Geophysical Union, Washington, DC, 157199 (doi: 10.1029/AR077p0157)Google Scholar
Kavanaugh, JL and Clarke, GKC (2006) Discrimination of the flow law for subglacial sediment using in situ measurements and an interpretation model. J. Geophys. Res., 111(F1), F01002 (doi: 10.1029/2005JF000346)CrossRefGoogle Scholar
Koellner, S, Parizek, BR, Alley, RB, Muto, A and Holschuh, N (2019) The impact of spatially-variable basal properties on outlet glacier flow. Earth Planet. Sci. Lett., 515, 200208 (doi: 10.1016/j.epsl.2019.03.026)CrossRefGoogle Scholar
Kulessa, B and 10 others (2017) Seismic evidence for complex sedimentary control of Greenland Ice Sheet flow. Sci. Adv., 3, e1603071 (doi: 10.1126/sciadv.1603071)CrossRefGoogle ScholarPubMed
Leeman, JR, Valdez, RD, Alley, RB, Anandakrishnan, S and Saffer, DM (2016) Mechanical and hydrologic properties of Whillans Ice Stream till: implications for basal strength and stick-slip failure. J. Geophys. Res.: Earth Surf., 121(7), 12951309 (doi: 10.1002/2016JF003863)CrossRefGoogle Scholar
Medley, B and 12 others (2013) Airborne-radar and ice-core observations of annual snow accumulation over Thwaites Glacier, West Antarctica confirm the spatiotemporal variability of global and regional atmospheric. Geophys. Res. Lett., 40, 36493654 (doi: 10.1002/grl.50706)CrossRefGoogle Scholar
Morlighem, M, Seroussi, H, Larour, E and Rignot, E (2013) Inversion of basal friction in Antarctica using exact and incomplete adjoints of a higher-order model. J. Geophys. Res.: Earth Surf., 118(3), 17461753 (doi: 10.1002/jgrf.20125)CrossRefGoogle Scholar
Muto, A and 7 others (2019) Relating bed character and subglacial morphology using seismic data from Thwaites Glacier, West Antarctica. Earth Planet. Sci. Lett., 507, 199206 (doi: 10.1016/j.epsl.2018.12.008)CrossRefGoogle Scholar
Paden, J, Li, J, Leuschen, C, Rodriguez-Morales, F and Hale, R (2010, updated 2018) IceBridge MCoRDS L2 Ice Thickness, Version 1. Boulder, Colorado, USA, NASA National Snow and Ice Data Center Distributed Active Archive Center (doi: 10.5067/GDQ0CUCVTE2Q) [Accessed on 26 February 2019].CrossRefGoogle Scholar
Parizek, BR and 10 others (2013) Dynamic (in)stability of Thwaites Glacier, West Antarctica. J. Geophys. Res., Earth Surf., 118 (doi: 10.1002/jgrf.20044)CrossRefGoogle Scholar
Parizek, BR, Alley, RB, Dupont, TK, Walker, RT and Anandakrishnan, S (2010) Effect of orbital-scale climate cycling and meltwater drainage on ice sheet grounding line migration. J. Geophys. Res., 115, F01011 (doi: 10.1029/2009JF001325)CrossRefGoogle Scholar
Peters, LE and 6 others (2006) Subglacial sediments as a control on the onset and location of two Siple Coast ice streams, West Antarctica. J. Geophys. Res., 111(B1), B01302, (doi: 10.1029/2005JB003766)CrossRefGoogle Scholar
Pollard, D and DeConto, RM (2012) Description of a hybrid ice sheet-shelf model, and application to Antarctica. Geosci. Model Dev., 5(5), 12731295 (doi: 10.5194/gmd-5-1273-2012)CrossRefGoogle Scholar
Rathbun, AP, Marone, C, Alley, RB and Anandakrishnan, A (2008) Laboratory study of the frictional rheology of sheared till. J. Geophys. Res.: Earth Surf., 113, F02020 (doi: 10.1029/2007JF000815)CrossRefGoogle Scholar
Rignot, E, Mouginot, J and Scheuchl, B (2017) MEaSUREs InSAR-Based Antarctica Ice Velocity Map, Version 2. Boulder, Colorado, USA. NASA National Snow and Ice Data Center Distributed Active Archive Center (doi: 10.5067/D7GK8F5J8M8R) [Accessed on 26 February 2019]CrossRefGoogle Scholar
Ritz, C and 5 others (2015) Potential sea-level rise from Antarctic ice-sheetinstability constrained by observations. Nature, 528, 115118 (doi: 10.1038/nature16147)CrossRefGoogle ScholarPubMed
Schoof, C (2005) The effect of cavitation on glacier sliding. Proc. Royal Soc. A: Math. Phys. Eng. Sci., 461(2055), 609627 (doi: 10.1098/rspa.2004.1350)CrossRefGoogle Scholar
Schroeder, DM, Blankenship, DD, Young, DA and Quartini, E (2014) Evidence for elevated and spatially variable geothermal flux beneath the West Antarctic Ice Sheet. Proc. Nat. Acad. Sci., 111(25), 90709072 (doi: 10.1073/pnas.1405184111)CrossRefGoogle ScholarPubMed
Sergienko, OV and Hindmarsh, RCA (2013) Regular patterns in frictional resistance of ice-stream beds seen by surface data inversion, Science, 342(6162), 10861089 (doi: 10.1126/science.1243903)CrossRefGoogle ScholarPubMed
Shreve, RL (1972) Movement of water in glaciers. J. Glaciol., 11(62), 205214 (doi: 10.3189/S002214300002219X)CrossRefGoogle Scholar
Smith, AM (2007) Subglacial bed properties from normal-incidence seismic reflection data. J. Environ. Engin. Geophys., 12(1), 313 (doi: 10.2113/JEEG12.1.3)CrossRefGoogle Scholar
Smith, BE, Gourmelen, N, Huth, A and Joughin, I (2017) Connected subglacial lake drainage beneath Thwaites Glacier, West Antarctica. Cryosphere, 11, 451467 (doi: 10.5194/tc-11-451-2017)CrossRefGoogle Scholar
Smith, AM, Jordan, TA, Ferraccioli, F and Bingham, RG (2013) Influence of subglacial conditions on ice stream dynamics: seismic and potential field data from Pine Island Glacier, West Antarctica. J. Geophys. Res.: Solid Earth, 118(4), 14711482 (doi: 10.1029/2012JB009582)CrossRefGoogle Scholar
Stokes, CR, Margold, M and Creyts, TT (2016) Ribbed bedforms on palaeo-ice stream beds resemble regular patterns of basal shear stress (“traction ribs”) inferred from modern ice streams. J. Glaciol., 62(234), 696713 (doi: 10.1017/jog.2016.63)CrossRefGoogle Scholar
Studinger, M (2014, updated 2018) IceBridge ATM L2 Icessn Elevation, Slope and Roughness, Version 2. Boulder, Colorado, USA, NASA National Snow and Ice Data Center Distributed Active Archive Center (doi: 10.5067/CPRXXK3F39RV) [Accessed on 26 February 2019].CrossRefGoogle Scholar
Tsai, VC, Stewart, AL and Thompson, AF (2015) Marine ice-sheet profiles and stability under Coulomb basal conditions. J. Glaciol., 61(226), 205215 (doi: 10.3189/2015JoG14J221)CrossRefGoogle Scholar
Tulaczyk, S, Kamb, B and Engelhardt, HF (2000) Basal mechanics of Ice Stream B, West Antarctica: 1. Till mechanics. J. Geophys. Res., 105(B1), 463481 (doi: 10.1029/1999JB900329)CrossRefGoogle Scholar
Tulaczyk, S, Kamb, B and Engelhardt, HF (2001) Estimates of effective stress beneath a modern West Antarctic ice stream from till preconsolidation and void ratio. Boreas, 30(2), 101114 (doi: 10.1080/030094801750203134)CrossRefGoogle Scholar
Weertman, J (1957) On the sliding of glaciers. J. Glaciol., 3(21), 3338CrossRefGoogle Scholar
Yu, H, Rignot, E, Seroussi, H and Morlighem, M (2018) Retreat of Thwaites Glacier, West Antarctica, over the next 100 years using various ice flow models, ice shelf melt scenarios and basal friction laws. Cryosphere, 12(12), 38613876 (doi: 10.5194/tc-12-3861-2018)CrossRefGoogle Scholar
