Finds from the Tollense Valley in north-eastern Germany represent the first archaeological evidence of a large violent conflict dated to the Nordic Bronze Age (c. 2000–1200 cal BC) (Jantzen et al. Reference Jantzen, Brinker, Orschiedt, Heinemeier, Piek, Krüger, Lidke, Lübke, Lampe, Lorenz, Schult and Terberger2011; Terberger et al. Reference Terberger, Dombrowsky, Dräger, Jantzen, Krüger, Lidke, Link and Peter-Röcher2014; Lidke et al. Reference Lidke, Terberger, Jantzen, Meller and Schefzik2015, Reference Lidke, Jantzen, Lorenz, Terberger, Fernández-Götz and Roymans2018). Since 2008, a research team has recovered human bones, weapons and many other bronze objects through a combination of diving, excavation and metal detecting. The finds come from different locations along a 2.5km-stretch of the Tollense River (Figure 1). The most important of these sites are Weltzin 20, where the battlefield finds layer is preserved on the Bronze Age riverbank, approximately 1–1.5m below present ground level, and Weltzin 32, representing the Bronze Age riverbed, with finds 2.5m or more below ground level. Most of the bronze finds, including many arrowheads, were collected from dredged river sediments. Some arrowheads, both of flint and of bronze, were recovered during excavation, demonstrating their relationship to the battlefield finds layers. Several radiocarbon dates on fragments of wooden arrowshafts assign the finds to the early thirteenth century cal BC (1300–1250 cal BC; period III of the northern Bronze Age) (Terberger & Heinemeier Reference Terberger, Heinemeier, Jantzen, Orschiedt, Piek and Terberger2014; Terberger et al. Reference Terberger, Jantzen, Krüger, Lidke, Hansen and Krause2018).

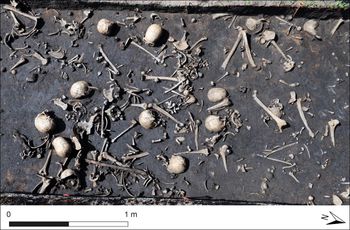

The recovery of more than 12 000 pieces of human bone from the valley enables the identification of more than 140 individuals. Most of these remains were not preserved in their anatomically correct positions, having been moved by water action following decomposition (Figure 2) (Brinker et al. Reference Brinker, Flohr, Piek, Orschiedt, Link and Peter-Röcher2014). Most of the individuals represent young adult males in good physical condition (Brinker et al. Reference Brinker, Flohr, Piek, Orschiedt, Link and Peter-Röcher2014). The unusual age and sex profiles, combined with evidence for trauma on some bones indicating the use of close- and long-range weapons, support the hypothesis that the remains are those of combat victims. Furthermore, evidence for a number of healed traumatic lesions may suggest that these individuals were trained for, and accustomed to, fighting. The first results of aDNA and isotope (strontium, carbon and nitrogen) analyses indicate a heterogeneous group composition, with at least some non-locals present (Terberger & Heinemeier Reference Terberger, Heinemeier, Jantzen, Orschiedt, Piek and Terberger2014; Price et al. Reference Price, Frei, Brinker, Lidke, Terberger, Frei and Jantzen2017).
The battlefield finds-layer in general starts upstream at a nineteenth century cal BC causeway across the river valley (sites Weltzin 13/Kessin 12), which probably became an important focus for trade routes (Figure 1) (Jantzen et al. Reference Jantzen, Lidke, Dräger, Krüger, Rassmann, Lorenz and Terberger2017). We suggest that the causeway was the starting point of the battle, c. 1300–1250 cal BC, which perhaps involved more than 2000 combatants (Lidke et al. Reference Lidke, Terberger, Jantzen, Meller and Schefzik2015, Reference Lidke, Jantzen, Lorenz, Terberger, Fernández-Götz and Roymans2018; Terberger et al. Reference Terberger, Jantzen, Krüger, Lidke, Hansen and Krause2018). The multiple findspots of skeletal remains downstream of the causeway are probably the result of warrior groups killed in action as they moved along the riverbank. At Weltzin 20, many human bones have been recovered (minimum number of individuals = 83), but the dearth of personal equipment and bronze objects suggests that such items may have been looted from the corpses after the battle. At other locations, such as Weltzin 32, corpses probably ended up in the river, thereby explaining the presence of valuable objects within fluviatile sediments (Krüger et al. Reference Krüger, Nagel, Nagel, Jantzen, Lampe, Dräger, Lidke, Mecking, Schüler and Terberger2012; Jantzen & Terberger Reference Jantzen, Terberger, Wemhoff and Rind2018). Post-battle offerings must also be taken into consideration, even though differentiating these from unintentional losses remains difficult. We can thus interpret the many metal objects recovered as the result of activities that occurred before, during and after the battle. The dominance of bronze finds from period III and the cluster of radiocarbon dates from fragments of arrowshafts suggest the close chronological connection of all of these activities. In 2016, a new assemblage of bronze finds was discovered in situ in the Tollense Valley. Here, we present the material for the first time, arguing that the assemblage may represent a small toolbox, containing the personal belongings of a warrior who fell during the battle, and providing new insights into the wider battlefield site.
Materials and methods
The assemblage was located in the riverbed at Weltzin 28, about 300m downstream of the causeway, where the river is about 12m wide and 2–2.5m deep (Figure 1). A number of bronze objects, such as tools, dress-pins and a socketed bronze arrowhead, had been previously discovered at this site (Ulrich Reference Ulrich2008; Dombrowsky Reference Dombrowsky, Jantzen, Orschiedt, Piek and Terberger2014). In 2016, we made new finds in the riverbed during diving surveys (Figure 3)—the most important being the discovery of a small scrap metal assemblage of 31 bronze objects located above a layer of peat and sand (Figure 4). The tightly grouped objects were probably originally packed within an organic container.

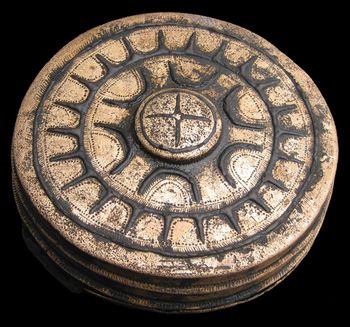

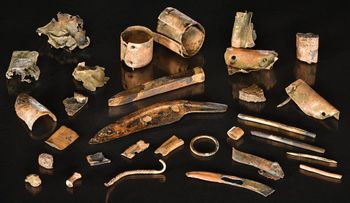

At the top of the deposit was a bronze awl with a wooden (birch) handle and a knife. Below, were a chisel, fragments of bronze sheet, three cylindrical objects, at least three ingot fragments and an array of small bronze pieces, such as casting waste and scraps. In addition, a decorated belt box (type Dabel, after Hundt Reference Hundt, Lüth and Schoknecht1997) (Figures 3 & 5), as well as three dress pins, a bronze spiral, a human cranium and a rib, were recovered from the same findspot. Approximately 3–4m away, we discovered a bronze arrowhead, a bronze knife with a bone handle, a dress pin with a spiral head and a second socketed bronze arrowhead with part of its wooden shaft attached (Figure 3). In 2018, the discovery of a third socketed bronze arrowhead indicates the continuation of the finds layer some 12m farther west. This is also corroborated by the discovery of more human remains, including two skulls, another 12m farther west. Taken together, this evidence indicates that Weltzin 28 was part of the wider Bronze Age battlefield.
All of the metal objects were subject to macro- and microscopic examination and were assigned, where possible, to typologies. Use-wear analysis was conducted with a digital microscope and elementary analyses undertaken with a portable XRF analyser (Niton ThermoScientific XL3t) to provide preliminary alloy determinations. Wood species were identified by M. Schult, and four samples were obtained for AMS dating.
A sample of the birch awl handle was AMS dated to 1275–1180 cal BC (MAMS 29473: 2988±24 BP), corresponding to the (late) period III. AMS dates on the dogwood arrow shaft and the wood remains inside the socket of the arrowhead—which probably belong to the same arrow—correspond well with dates of 1310–1225 cal BC (MAMS 29471: 3010±25 BP) and 1380–1285 cal BC (POZ 84545: 3055±35 BP), respectively. The wooden remains within another arrowhead are of a similar date, 1370–1270 cal BC (MAMS 29472: 3038±29 BP). These new AMS dates are in close agreement with earlier results, confirming a date for the battlefield and related activities c. 1300–1250 cal BC (Terberger & Heinemeier Reference Terberger, Heinemeier, Jantzen, Orschiedt, Piek and Terberger2014; Terberger et al. Reference Terberger, Jantzen, Krüger, Lidke, Hansen and Krause2018).
Analysis of the deposit
Three tools were identified: a knife, a chisel and an awl. The curved knife is of an unusual type (Figures 7.8); the upper side is reinforced with a 5mm-wide fin, which is more typically associated with sickles. The manufacture of knives from recycled sickles is known from other sites in northern and central Germany, as well as Bohemia (Prüssing Reference Prüssing1982; Hohlbein Reference Hohlbein2016). A parallel for this knife comes from the Wodarg 31 site in the Tollense Valley (Dombrowsky Reference Dombrowsky, Jantzen, Orschiedt, Piek and Terberger2014).
The chisel has a square cross section (Figures 7.9 & Table 1) and shows clear use-marks on its top. A similar chisel, made of pure copper, was found in the Tollense River near Altentreptow (Kunkel Reference Kunkel1940). A further parallel is a punch found in a hoard at Golchen, 6km farther downstream, and dated to the transition from periods II–III (c. 1300 cal BC) (Schmidt Reference Schmidt, Jantzen, Orschiedt, Piek and Terberger2014). Simple bronze chisels of this type are rare in the older Nordic Bronze Age (2000–1200 cal BC) (Schubart Reference Schubart1972; Willroth Reference Willroth1985) and more common in Central Europe. A few examples are known from large scrap metal hoards of the Middle Bronze Age (c. 1600–1300 cal BC) in Bohemia (Kibbert Reference Kibbert1984; Říhovský Reference Říhovský1992; Kytlicová Reference Kytlicová2007). The same applies to three tools made from bronze bars (length: 33mm, 60mm and 64mm), cut from strands of thick bronze wire (Figure 7.1–2 & 7.4), also commonly associated with scrap metal hoards.
The awl, with a birch wood handle (Figure 7.7), is a typical item of personal equipment of the Bronze Age. Examples with a similar handle are known from oak-coffin burials of both sexes in Southern Scandinavia (Ille Reference Ille1991; Willroth Reference Willroth, Becker, Dunkelmann, Metzner-Nebelsick, Peter-Röcher, Roder and Terzan1998). The decoration with rows of suspended triangles and ladder motifs is common for bronze objects of period III (Schubart Reference Schubart1972; Schmidt & Jantzen Reference Schmidt and Jantzen1999). The typological dating of the decoration is confirmed by the AMS date on the handle (see above).
In addition to complete objects, the deposit contained a number of smaller and mostly fragmented items. A small broken segment of twisted bronze wire that ends in a hook (Figure 7.3) might have belonged to a body ornament; twisted needles or brackets are typical of several types of fibulae (Kersten Reference Kersten1936). A fragment of a socketed lance head and part of an intentionally broken blade are also present (Figures 7.6 & 8.4). Two bladed objects, with air pockets indicating that they are failed casts, were probably broken up for recycling or exchange (Figure 8.11 & 8.14). Two further bronze fragments represent waste from casting channels (Figure 8.6–8.7).
Two small, flat fragments and a third loaf-shaped fragment are made of pure copper (>98 per cent) and are probably parts of ingots (Figure 8.1–8.3). Loaf-shaped bronze ingots are known from Urnfield Culture graves (Jockenhövel Reference Jockenhövel1973, Reference Jockenhövel1982); they came into use during the Middle Bronze Age and might have served as pre-monetary currency (Modl Reference Modl2010). The two flat fragments display rough fracture planes and resemble the remains of bronze casting cakes. A short bronze rod (Figure 7.5) may also have been an ingot. Further fragments of blades or knifes were probably scrap ready for recycling or exchange (Figure 8.8–8.10).
Sheet metal and cylindrical objects
Twelve objects in the assemblage are made of hammered sheet bronze (Figure 7.10–11; Figure 8.9–10, 8.12–13 & 8.15–19). Most of the pieces are folded or deformed; in two cases, signs of heat alteration may be visible. A group of three thin bronze sheet metal cylinders (approximately 1mm thick and 240–290mm in diameter) deserves special attention (Figure 7.10–7.11). These cylinders are made of rolled bronze sheets, and bear two perforations at each end with bronze nails still attached (Figure 9.3); the perforations were made by hammering the nails directly into the sheet. The sides of the cylinders are decorated with lines of punch marks. One of the folded pieces shows similar punch marks, but is completely deformed (Figure 8.18). The preservation of the cylindrical shape of these fragile sheet metal objects and the presence of the nails suggest that these were metal fittings for an object of organic material that perished following deposition. Groups of three to five cylindrical objects (without perforations) are also found in Bronze Age D (thirteenth century cal BC) burials in southern Germany and eastern France (Figures 9.1 & 10). Where similar cylinders are preserved in situ, they have been interpreted as fittings for wooden boxes or organic bags that contained personal equipment, such as tools, scrap metal and balance weights (Pare Reference Pare1999; Knöpke Reference Knöpke2009; Roscio et al. Reference Roscio, Delor and Muller2011). The three cylinders from Weltzin 28 would have allowed the bag or box to be closed with a small wooden stick (Figure 9.2).
The arrowheads and the human remains from Weltzin 28 are typical of the Tollense battlefield finds layer. The dress pins and the belt box, although not common for other parts of the excavated finds layer, have parallels in finds previously recovered from the valley (Jantzen et al. Reference Jantzen, Brinker, Orschiedt, Heinemeier, Piek, Krüger, Lidke, Lübke, Lampe, Lorenz, Schult and Terberger2011; Dombrowsky Reference Dombrowsky, Jantzen, Orschiedt, Piek and Terberger2014). The typology of these objects dates them firmly to period III, and it is possible that they are the personal equipment of combat victims. Dress pins, for example, were the most common ornament in graves at the all-male burial site of Neckarsulm, southern Germany (Knöpke Reference Knöpke2009: 84). Deliberate deposition, however, might also explain these finds. The key question, therefore, is: are we dealing with an intentionally deposited hoard, or with the lost personal equipment of a warrior, perhaps represented by the human remains found nearby?
There is a long-standing debate on prehistoric metal depositions; the rigid distinction of early models between profane and sacred depositions was clearly too simplistic (e.g. Bradley Reference Bradley, Fokkens and Harding2013; Hansen Reference Hansen, Hansen and Meyer2013; Dietrich Reference Dietrich2014; Hansen et al. Reference Hansen, Neumann, Vachta, Hansen, Neumann and Vachta2016). Scrap metal hoards and other types of depositions in Bohemia and southern Germany from the Bronze Age B (c. 1600 cal BC) onwards formed part of a tradition shared with the Carpathian Basin (Kytlicová Reference Kytlicová2007; Dietrich Reference Dietrich2014). Characteristic hoard compositions in these regions (fragmented bronze objects, casting waste, lumps of raw bronze) have led to their initial interpretation as recycling deposits of traders or craftsmen (e.g. Stein Reference Stein1976; Levy Reference Levy1982; Huth Reference Huth1997). The fact that scrap metal hoards from Bohemia contain objects spanning over 200 years favours the idea that they could be offerings of larger social groups (Vachta Reference Vachta, Hansen, Neumann and Vachta2016). The steady increase in the circulation of bronze fragments at the expense of finished objects, during the course of the second millennium BC, suggests that bronze was exchanged as a commodity (e.g. Hänsel Reference Hänsel, Menghin and Hänsel1997; Primas Reference Primas1997; Earle et al. Reference Earle, Ling, Uhnèr, Stos-Gale and Melheim2015).
If we compare our Tollense Valley assemblage with contemporaneous and earlier scrap hoards from southern Central Europe, such as Bühl (6.5kg) or Lažany 2 (42kg), it becomes clear that the find from Weltzin 28 is much smaller. Pure scrap metal hoards are not known from the early Nordic Bronze Age. Scrap metal is sometimes found in later hoards, combined with tools and casting moulds (so-called ‘founders’ hoards’; Hundt Reference Hundt, Lüth and Schoknecht1997; Willroth Reference Willroth, Becker, Dunkelmann, Metzner-Nebelsick, Peter-Röcher, Roder and Terzan1998). The tools and scrap metal in the Weltzin 28 assemblage reflect those of the founder hoards of the Nordic Bronze Age, although no moulds are present. In conclusion, the scrap finds from Weltzin 28 clearly differ from the pattern of contemporaneous scrap hoards from both northern Central Europe and Southern Scandinavia.
Further finds connected to metalworking, including scrap metal, have been discovered in the Tollense Valley. At Golchen 18, approximately 6km to the north, a scatter of bronze finds was recovered from dredged sediments on the riverbank. The assemblage contains an unfinished short-bladed sword, a socketed hammer, a small bronze anvil and a punch, as well as broken tools identified as scrap for recycling. The finds, typologically dated to the early period III, have been interpreted as belonging to a bronze metallurgist (Schmidt Reference Schmidt, Jantzen, Orschiedt, Piek and Terberger2014). A similar assemblage, also containing a socketed object, perhaps a hammer, as well as scrap metal and bracelet fragments, comes from a disturbed context close to the causeway (Kessin 12/Weltzin 13, Figure 1; Jantzen et al. Reference Jantzen, Lidke, Dräger, Krüger, Rassmann, Lorenz and Terberger2017). Both assemblages reflect known hoard composition patterns and contain tools used for metalworking. In these cases, the interpretation as intentional depositions seems reasonable.
The situation around the few scrap metal finds at Weltzin 12 and the small metal objects at Weltzin 32 is different (Figure 1). At Weltzin 32, two tin rings and four small bronze spiral rolls were found in direct association with human bone. It is very probable that they were the personal belongings of a participant in the battle (Krüger et al. Reference Krüger, Nagel, Nagel, Jantzen, Lampe, Dräger, Lidke, Mecking, Schüler and Terberger2012). We suggest the same interpretation for the scrap metal finds from Weltzin 12. We also suggest that the finds from Weltzin 28 are the remains of an organic bag or box containing the personal equipment of a warrior, which he lost during the battle or which was deposited during post-battle activities (e.g. Vandkilde Reference Vandkilde and Ralph2013).
As previously mentioned, the remains of organic containers in graves of the Bronze Age D in southern Central Europe provide a parallel for the cylindrical bronze fittings and other elements of the Weltzin 28 assemblage (Figures 9.1 & 10). These boxes are well known for containing personal equipment such as weights and balances, often displaying a combination of chisel and/or blade and awl (Pare Reference Pare1999; Roscio et al. Reference Roscio, Delor and Muller2011). All known boxes appear to be associated with the graves of males and are often combined with swords. One container with cylindrical fittings is known from the all-male cemetery of Neckarsulm, a site interpreted as the burial ground of a warrior group (Knöpke Reference Knöpke2009).
The fact that the best comparisons for the Weltzin 28 assemblage are found in the male (warrior) burials of southern Central Europe may indicate the possible origin of at least some of the warriors involved in the Tollense Valley battle. Typological similarities indicate connections to this region, including the socketed bronze arrowheads that are similar to those from sites in south-eastern Germany and Bohemia (Dombrowsky Reference Dombrowsky, Brandherm and Nessel2017). Different types of dress pins, a palstave of Bohemian type and a sword of Riegsee type are also typical objects from these southern regions (Figure 10; Dombrowsky Reference Dombrowsky, Jantzen, Orschiedt, Piek and Terberger2014; Jantzen & Terberger Reference Jantzen, Terberger, Wemhoff and Rind2018). Some of the dress pins (types Mostkovice, Platĕnice, Pleszów; cf. Essen Reference Essen1985: 58) found in the Tollense Valley are outliers of their main distributions, which makes trade a less probable explanation for their presence. Strontium isotope studies also support a non-local origin of some of the Tollense individuals (Price et al. Reference Price, Frei, Brinker, Lidke, Terberger, Frei and Jantzen2017). In summary, it seems very possible that at least some of the combatants originated from southern Germany or Bohemia.
How can we conclusively interpret the composition of the Weltzin 28 assemblage? As described above, the unusual context of the find does not allow the precise reconstruction of the container. There are objects, such as the awl and chisel, which are probably utilitarian tools; some of the metal objects show evidence of intentional breaking, and the chisel was probably used for cutting bronze fragments. It has been proposed that the value of bronze was increasingly important during the Middle Bronze Age (e.g. Pare Reference Pare, Fokkens and Harding2013). The association of boxes from Bronze Age D graves, exclusively male, with scale beams and weighting set, metalworking tools and metal fragments (Figure 9.1; Roscio et al. Reference Roscio, Delor and Muller2011; Ialongo Reference Ialongo2019), suggests that they may have belonged to individuals dealing in the trade of metals, possibly as a form of currency (Pare Reference Pare1999). The Weltzin 28 box may therefore represent the first discovery of evidence of this practice found in a non-funerary context.
The archaeological record of the European Bronze Age is dominated by settlement finds, hoards and funerary evidence. The battlefield site at the Tollense River is very different: no formal burials and no traces of settlement are present in the valley. The many bronze finds suggest that offerings took place in the valley during period III, most probably connected to post-battle rituals. It is also probable, however, that some of the battle participants lost personal equipment in the river, saving it from the looting that inevitably followed the battle. We interpret the small bronze assemblage recovered from Weltzin 28 as a unique find of the typical personal belongings of a warrior who probably originated from southern Central Europe. In turn, this further supports the interpretation that the finds in the Tollense Valley testify to a large violent conflict of supra-regional scale. This conflict should be interpreted in the framework of the social and economic development that characterised Central Europe in the thirteenth century cal BC.
We thank Ronald Borgwardt as well as Frank and Sonja Nagel for their ongoing support of the project in the form of voluntary work in the valley. We also thank Manuela Schult for her identification of the wood species, and Knut Rassmann for his support in the use-wear analysis. Finally, we would like to thank the anonymous reviewers for their valuable comments. The project was financially supported by the German Science Foundation. N. Ialongo was supported by ERC-2014-CoG ‘WEIGHTANDVALUE’.
To view supplementary material for this article, please visit https://doi.org/10.15184/aqy.2019.137
