2.1. ICESat-2 mission overview

The ATLAS instrument on ICESat-2 has two lasers, of which one is operational and the other is reserved as a backup. ATLAS laser energy is split with a diffractive element into six beams, which are grouped into three pairs with pair centers 3.3 km apart (see Fig. 1-1 in Neumann and others, Reference Neumann2022). Each beam pair contains one weak and one strong beam that are 90 m apart. During normal operations over the ice sheets, the central beam pair straddles each reference ground track (RGT; see Table 1 for a complete list of acronyms used in this paper), which is the central of three reference pair tracks (RPTs) associated with each RGT. The RPTs define paths following the centers of the beam pairs when the central beam pair is aligned with the RGTs. Each laser footprint is $\sim$11 m in diameter (Magruder and others, Reference Magruder, Brunt, Neumann, Klotz and Alonzo2021) with a center-to-center separation of 0.7 m in the along-track direction. The paired-beam design resolves both the along-track and across-track components of the surface slope. The use of two different beam strengths allocates the available laser energy to improve the chances that, under cloudy conditions, at least one beam would collect enough photons to allow estimation of the surface height for each pair, while allowing the surface slope to be measured under clear conditions. The relative position of the strong and weak beams reverses approximately every 8 months as the spacecraft is rotated to maintain optimal orientation to the sun, so at times the strong beam in each pair is to the left of the weak beam (when looking in the direction of motion) and at times the reverse. The secondary instrumentation onboard ICESat-2 includes two Global Positioning System receivers, two star tracking cameras and a laser reference system, which provide information for orbit (Thomas and others, Reference Thomas, Luthcke, Pennington, Nicholas and Rowlands2021) and pointing (Bae and others, Reference Bae2021) determination. The estimated horizontal geolocation accuracy for the ICESat-2 footprints is generally 3–4 m (Luthcke and others, Reference Luthcke2021); this has been confirmed by identifying the returns of the retroreflective targets in the ICESat-2 returns (Magruder and others, Reference Magruder, Brunt, Neumann, Klotz and Alonzo2021) and by comparisons between the elevation of ICESat-2 and the surface topography precisely surveyed (Csatho and others, Reference Csatho, Schenk and Neumann2024).

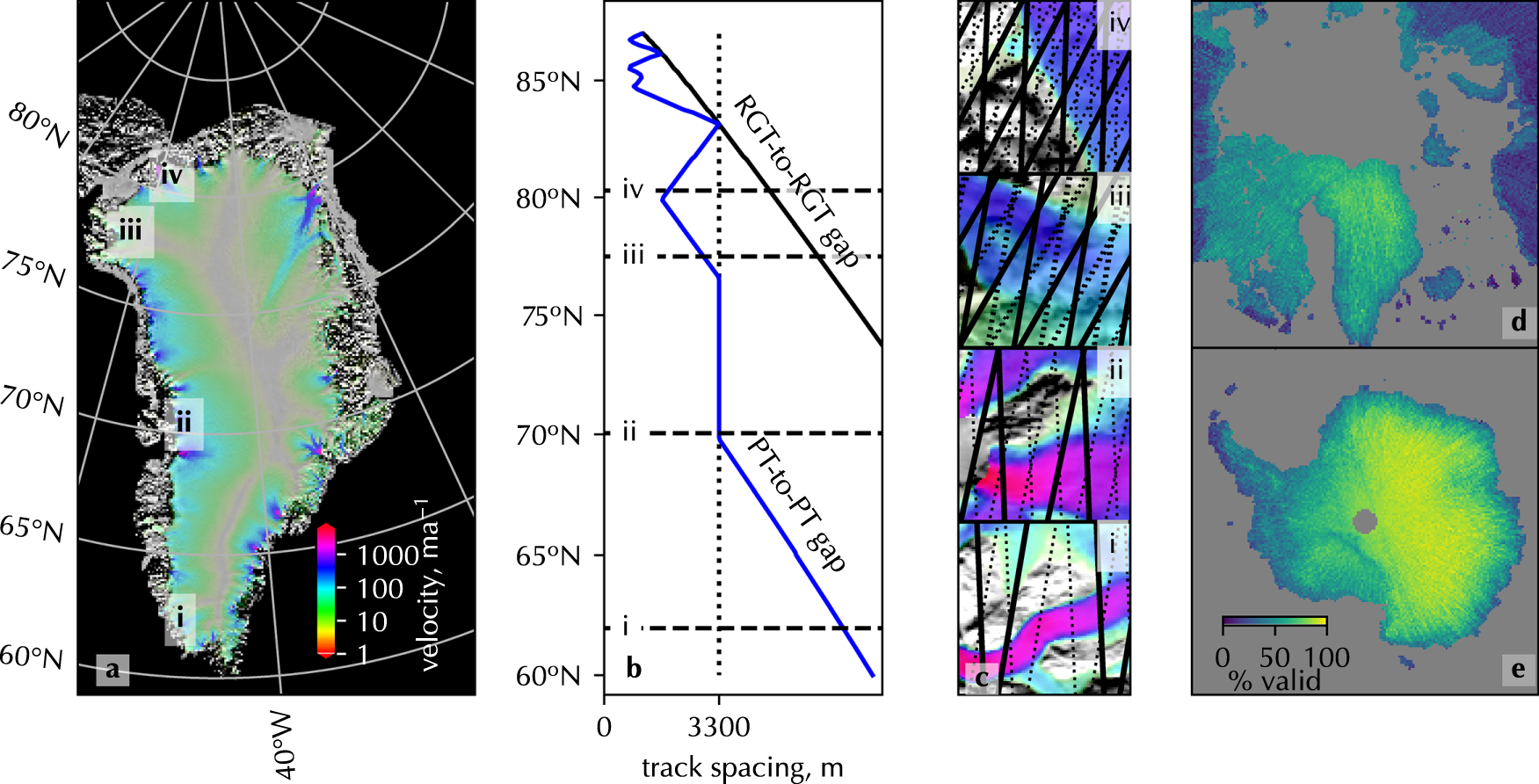

Figure 1.

Location map (a) shows ice speed (colors, Joughin, Reference Joughin2023) superimposed over an image mosaic of Greenland (grayscale, Haran and others, Reference Haran, Bohlander, Scambos, Painter and Fahnestock2018). ICESat-2 RPT sampling across Greenland (b) is expressed as the largest gap between adjacent RPTs for any latitude. The RGT-to-RGT spacing is shown for reference. 10 $\times$ 10 km maps for four select locations (c) show the pattern of tracks, with RGTs shown in solid lines and RPTs shown in dashed lines. Maps of the fraction of repeat tracks for which surface returns were observed, for the (d) Arctic and (e) Antarctic from April 2019 to September 2025. Repeat counts are derived from the number of valid measurements in the ATL11 product (see Section 3.1). Over Greenland, the Arctic ice caps and northeastern Canada, the repeat fraction is related to the loss of returns due to clouds. In other parts of the Arctic, the repeat fraction is driven largely by the number of measurements targeted at the repeat tracks.

Figure 1 Long description

A) Map of Greenland displaying ice velocity in meters per annum, with a gradient from 1 to 1000. Regions i to iv are marked, showing varying speeds. B) Graph of track spacing in meters versus latitude, highlighting RGT-to-RGT and RGT-to-PT gaps. C) Four 10 km by 10 km maps of Greenland locations i to iv, illustrating track patterns with solid and dashed lines. D) Arctic map showing the fraction of valid surface returns from 0 to 100 percent. E) Antarctic map with similar data, indicating surface return validity. The maps and graphs collectively depict ice movement and measurement accuracy across polar regions.

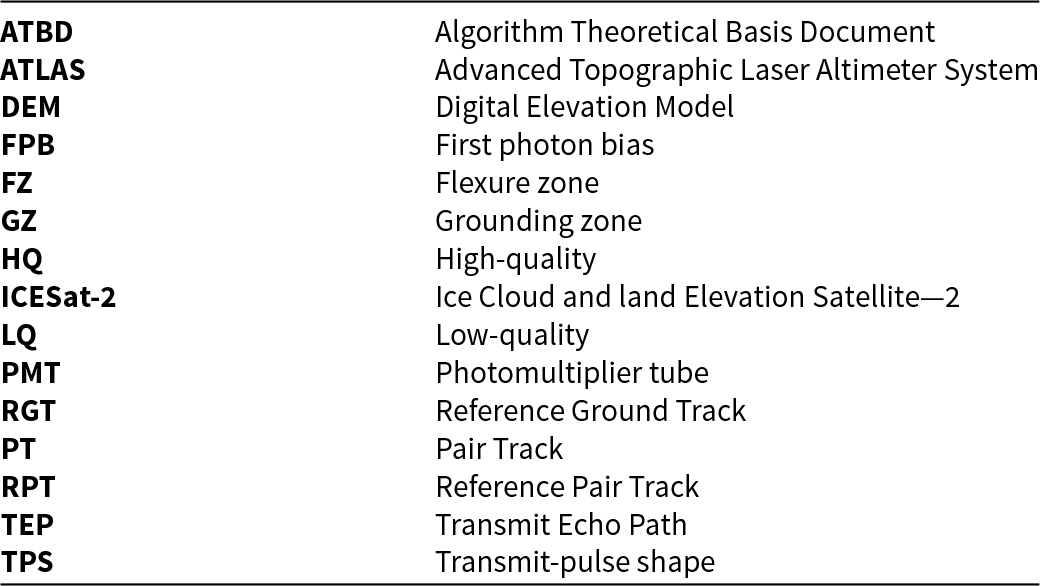

Table 1.

List of technical acronyms used in this paper.

Table 1 Long description

List intended to define technical acronyms used in the paper by pairing each acronym with its full term or explanation. No rows or columns were provided with the table data, so specific acronyms, definitions, counts, or ordering cannot be described. Because the content is missing, comparisons such as which acronyms appear most often or how they are grouped cannot be confirmed. Provide the table entries to generate accurate that reflects the actual acronyms and definitions.

ATLAS directly measures heights along 1387 unique RGTs that extend to ±88º latitude. Each ‘cycle’ of ICESat-2 measurements repeats the collection along these RGTs approximately every 91 days (90.8193 solar days, Luthcke and others, Reference Luthcke, Pennington, Loomis, Rebold and Thomas2019) in an exact-repeat orbit. For the Greenland and Antarctic ice sheets, the mission has mostly sampled the same ground tracks on each cycle to provide seasonal resolution of height change. Since ICESat-2 began pointing to the planned RGTs in late March 2019, just after the start of cycle 3 (see Table 2), the deviation of ICESat-2 ground tracks over the ice sheets relative to the reference tracks has been about 20–30 m (Magruder and others, Reference Magruder2025). This variability, on a typical ice-sheet surface with a 1º slope, introduces decimeter-scale apparent height variations from cycle to cycle that can be corrected based on the beam-pair geometry. For sampling specific ‘Targets of Opportunity’, the laser can be off-pointed by up to 10º ∼90 km across-track), and over mid-latitudes it is routinely off-pointed by 1º–2º for vegetation mapping.

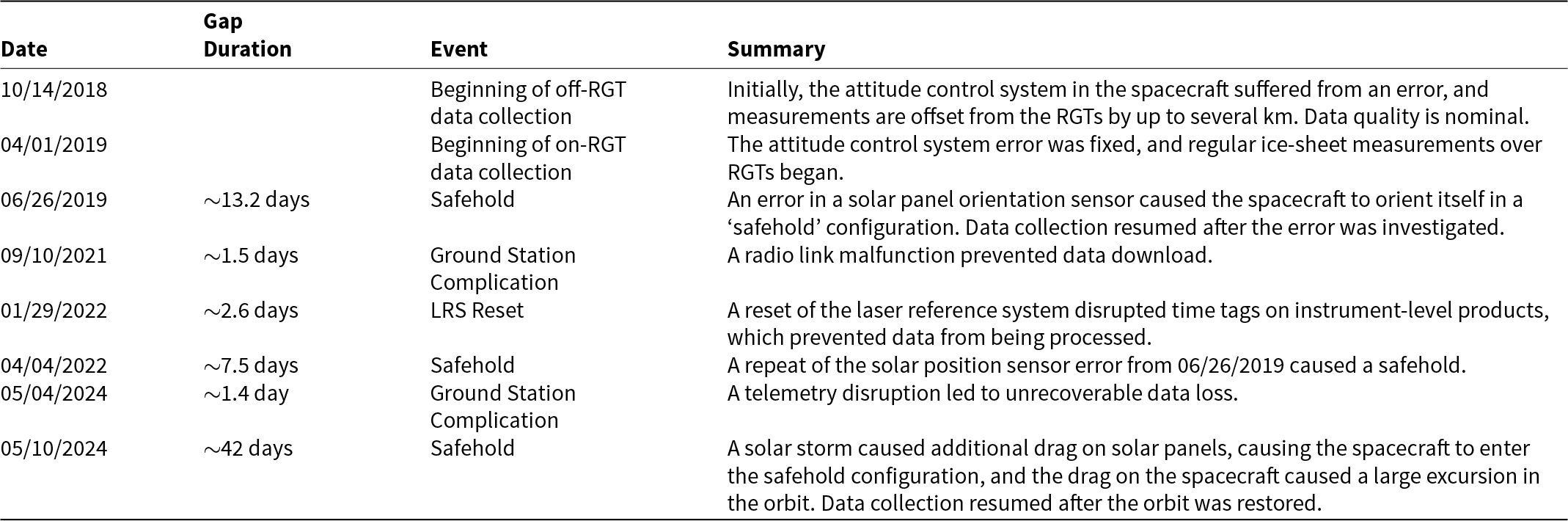

Table 2.

ICESat-2 major events and data gaps.

Table 2 Long description

ICESat-2 mission milestones and periods of missing data are intended to be listed, typically with event names and associated dates or time ranges. No table entries were provided, so specific events, gap durations, frequencies, or comparisons cannot be described. Without the underlying rows and columns, trends such as clustering of outages or changes over time cannot be assessed. Provide the table values to generate that names the key events, identifies the largest gaps, and summarizes any patterns or caveats.

Because ICESat-2 makes dense measurements along its ground tracks, the strongest limitation on the spatial resolution of the mission datasets comes from the across-track distance between adjacent tracks. If ATLAS were a single-beam instrument, this distance would be equal to the distance between adjacent RGTs; however, the left and right PTs (Pair Tracks) in ATLAS’s 6.6 km-wide three-pair beam layout partially fill the spaces between adjacent RGTs. As the RGT spacing decreases toward higher latitudes, the size of the largest gap between measurements varies nonlinearly with latitude (Fig. 1b). Equatorwards of 70º, the largest gaps are between the outer beam pairs on adjacent RGTs (i.e., between pair 3 on one RGT and pair 1 on the next), varying from 3.3 km near 70º to ∼7 km at the equatorward limits of Greenland and Antarctica (60º N and 62º S, respectively). Between 70º and ∼76.5º, the gap between the outrigger pairs on adjacent RGTs is smaller than the 3.3 km gap between ICESat-2’s RPTs, so the largest gap size stays constant at 3.3 km. Poleward of ∼76.5º, the largest gap size fluctuates as the beams interlace, with a prominent maximum at ∼83º where outrigger beams on adjacent RGTs exactly overlap.

ICESat-2 has, to date, operated almost entirely in repeat-track mode over Antarctica, Greenland and the Arctic Basin, with its central beam pair straddling the RGTs. Occasional tracks have been off-pointed to obtain data inside the Antarctic ‘pole hole’, that is, poleward of  88º S latitude. The track sampling transitions to non-repeat-track mode over much of the global land areas outside of the poles to improve the one-time spatial sampling over vegetated areas. For all regions, some data are lost due to sufficiently thick clouds. Maps of the number of repeat measurements over each RPT (Fig. 1d, e) shows nearly 100% coverage (i.e., minimal data lost due to clouds since March 2019) over central Antarctica where thick clouds are rare, with 50–70% coverage (i.e., 30–50% data lost due to clouds since March 2019) over West Antarctica, coastal regions of East Antarctica and much of Greenland. The adjacent part of northern Canada that falls within the repeat mask has rates of data loss due to clouds similar to those of southern Greenland. The rim of the Arctic Basin, where ICESat-2 makes its transitions to and from repeat-track mode, has 30–40% repeat-track coverage, but most tracks farther south have 10–20% coverage, as determined by the vegetation-sampling plan.

2.2. ATL03 Level-2 geolocated photon height data

The full-resolution ICESat-2 data is ATL03, Global Geolocated Photons (described in full by Neumann and others, Reference Neumann2019, Reference Neumann2022, Reference Neumann2025). ATL03 provides time-tagged heights for photons telemetered from ATLAS, along with assessments of the confidence that each is a signal photon, geophysical and atmospheric corrections, and instrument parameters. As ATLAS is a green laser (532 nm) in the visible part of the electromagnetic spectrum, high numbers of ‘background’ photons from the sun are present in the data stream during daytime acquisitions. ATL03 provides assessments of the confidence with which photons can be identified as signal photons from two different sets of algorithms: (i) a surface-specific classification method, adapted for land ice, bare earth, and ocean, and (ii) a surface-independent method based on $k$-nearest neighbors (kNN, Release-06) (Neumann and others, Reference Neumann2022) or radial basis functions (RBF, Release-07) (Herzfeld and others, Reference Herzfeld, Trantow, Harding and Dabney2017; Neumann and others, Reference Neumann2025). Geophysical corrections, such as for ocean and solid earth tides, are provided at 20 m spacing along-track. Instrument parameters, such as estimates of the transmit pulse shape as provided by photons collected through the Transmitter Echo Path (TEP), are provided to allow users to derive potential bias corrections for photon aggregates.

In ATL03, every photon and parameter is included, allowing for detailed analysis across all surface types. ATL03 is ideal for examining surfaces and processes that higher-level products do not resolve. Examples of land-ice features that are best investigated with ATL03 are: supraglacial melt ponds, where multiple return surfaces are present (Arndt and Fricker, Reference Arndt and Fricker2024); crevasses (Herzfeld and others, Reference Herzfeld, Lawson, Trantow and Nylen2022); and icebergs, which have rough or sharply edged surfaces. However, ATL03 is a large-volume product (Table 3) and typically requires the use of high-performance or cloud computing to access and process data for large (glacier- to ice-sheet scale) regions. Using ATL03 for scientific purposes also requires expert knowledge about the instrumentation and potential measurement biases that have been routinely accounted for in producing the higher-level products.

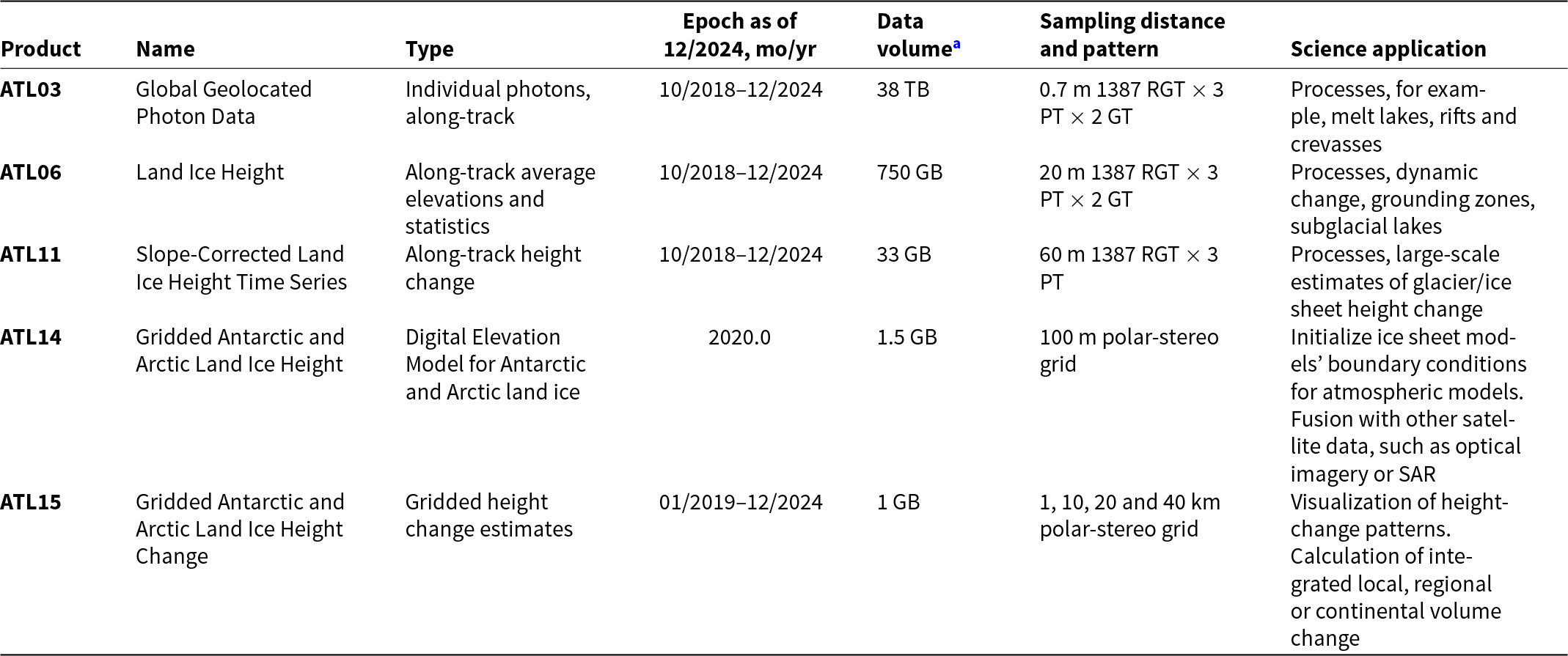

Table 3.

ICESat-2 ATLAS data products with their attributes and applications.

Table 3 Long description

ICESat-2 ATLAS data products are intended to be listed alongside their key attributes and common applications. The content would typically map each product name to what it measures or provides, such as elevation, surface characteristics, or derived summaries, and indicate how researchers use it. No rows or columns are included in the provided input, so individual product names, attribute fields, and application examples cannot be described or compared. Any notes about geographic coverage and time limits may affect which products or values apply, but the exact scope cannot be verified without the table entries. Provide the table data to generate precise that summarizes the main products, highlights differences among attributes, and notes any coverage caveats.

^a for the area covering the Greenland Ice Sheet, through 12/2024

2.3. ATL06 Level-3A land ice height data

The along-track Level-3A Land Ice Height data product, ATL06, is described in detail by Smith and others (Reference Smith2019). Here, we summarize its characteristics to provide continuity in our discussion of the complete set of land ice products.

ATL06 (version 6 at time of writing; Smith and others, Reference Smith2023a, Reference Smith2023e), contains reduced-resolution estimates of surface height derived from ATL03, with height error and measurement quality estimates. ATL06 is a much lower-volume data product than ATL03 (Table 2) and offers the user estimated surface heights with cm-level uncertainties. ATL06 applies an iterative linear fit to photon elevations within 40 m along-track segments to estimate the local surface height and along-track surface slope (see Section 3 and Fig. 3 in Smith and others, Reference Smith2019). Each iteration progressively isolates the photons within a vertical ‘window’ above and below the sloping surface that spans the assumed linear surface until the selected photons are consistent between iterations. Because the TPS (transmit-pulse shape) bias becomes increasingly large for photons selected from small windows, the algorithm does not allow the window to converge to less than 3 m, bottom to top, limiting the TPS correction to 1–2 cm. After the iterations have converged, the histogram of surface-height residuals around the surface fit is used to estimate both the FPB and TPS bias corrections. For segments in a beam pair that both have valid values, the across-track slope is estimated from the difference between heights. For each ATL06 segment, product variables describe the statistics of photons that contributed to the segment, including the misfit between the photons and the segment, the size of the window, the number of photons in the window, and an estimate of the probability that the observed statistics would result from the algorithm with random-noise inputs. The atl06_quality_summary variable combines these parameters into a binary value that can easily be used to separate high-quality segments from lower-quality segments.

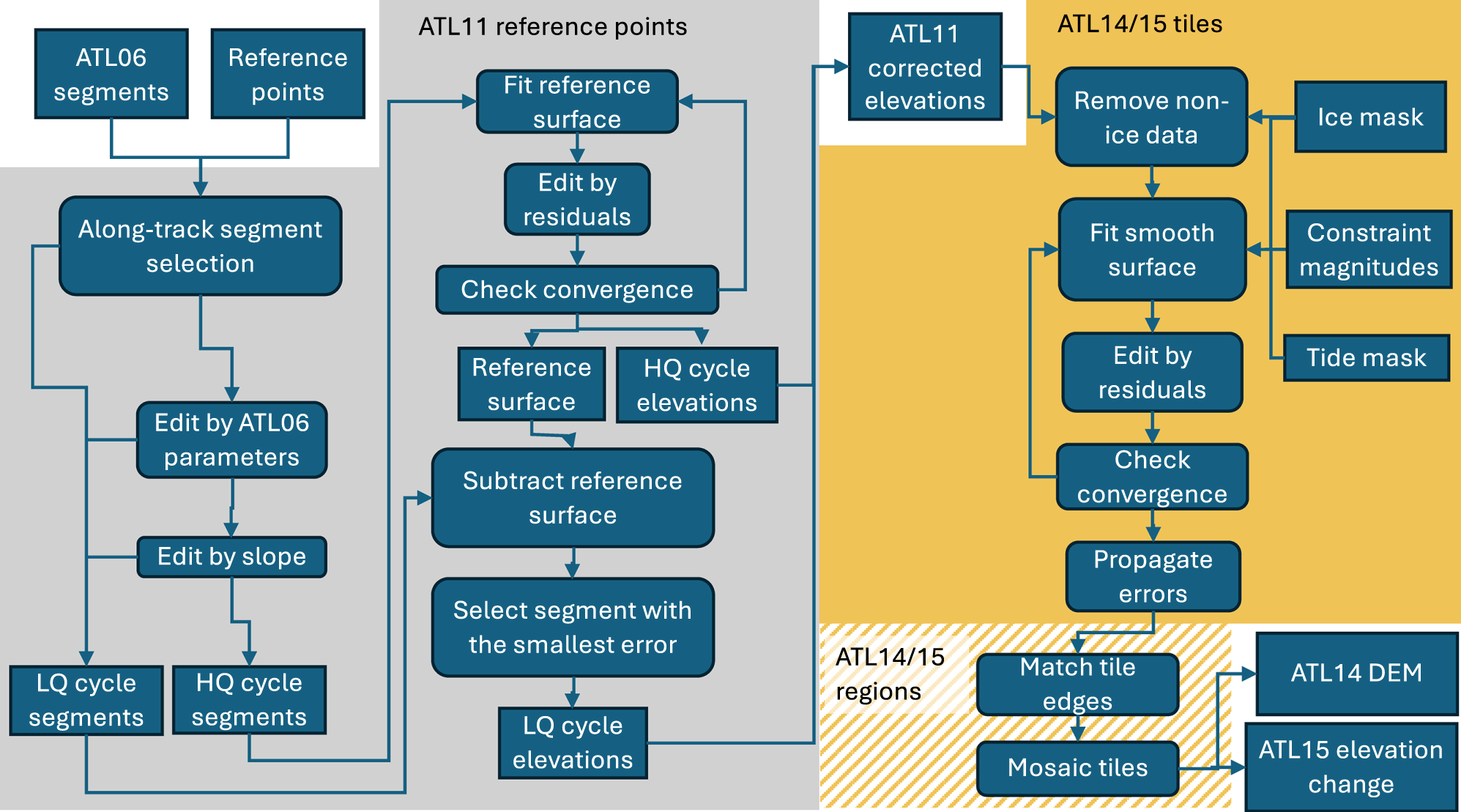

3.1. ATL11 Level-3B slope-corrected land ice height data

The Level-3B ICESat-2 Slope-Corrected Land-ice Height Time Series product, ATL11, provides time-varying height estimates for reference points spaced every 60 m along each RPT. Each ATL11 height estimate is derived from ATL06 measurements collected over overlapping 120 m along-track segments, corrected for the small-scale topography within the segment based on a polynomial fit to the ATL06 data. This approach is similar to surface-fitting strategies that have been applied to laser-altimetry data (e.g., Csatho and others, Reference Csatho2014; Schenk and others, Reference Schenk, Csatho, van der Veen C and McCormick2014), radar-altimetry data (e.g., Nilsson and others, Reference Nilsson, Gardner and Paolo2022; Khan and others, Reference Khan2025) or a combination of the two (e.g., Ravinder and others, Reference Ravinder, Shepherd, Otosaka, Slater, Muir and Gilbert2024a), but is adapted to take advantage of the repeat geometry of ICESat-2 measurements. Although similar results might be achieved by correcting ATL06 data based on surface slopes derived from a reference ice-sheet digital elevation model (DEM), ATL11 provides height and height-change data that are independent of the quality or availability of external datasets, using a reference surface derived at a scale consistent with the ICESat-2 measurements.

ATL11 includes height estimates derived from both beams in each pair, distributed across all cycles of the mission, and so it provides the height-change history of a $\sim$120 m $\times$ $\sim$90 m area of the ice sheet for each along-track reference point. Where RPTs from different RGTs cross one another, the product also contains measurements from the crossing track, which are similarly corrected for the small-scale surface topography (i.e., ATL11 is both an along-track and a crossover product; Felikson and others, Reference Felikson2017). ATL11 estimates are accompanied by quality flags and error estimates to assist users in assessing data accuracy and reliability. A detailed description of ATL11 processing is provided with the data archive (Smith and others, Reference Smith2023d) and the algorithm theoretical basis document (ATBD; Smith and others, Reference Smith2023b). Processing includes three main steps, which are shown as a flow-chart in Fig. 2.

(i) Data selection and editing: ATL11 is generated for ICESat-2 tracks that fall within the ATL03 land mask (Neumann and others, Reference Neumann2025), for latitudes of $\pm$60º. For each reference point on each RPT, the ATL11 algorithm collects all ATL06 measurements whose centers fall within a $\pm$60 m search window along the track, and for which the ATL06 algorithm indicates high-quality data (with the atl06_quality_summary parameter). The algorithm then checks the data for self-consistency based on the along-track slope (for each segment) and the across-track slope (for each pair of segments at the same along-track location from the same cycle). We characterize the range of measured slopes around each reference point by calculating the median and robust spread (defined as half the difference between the 16th and 84th percentiles of the distribution (Smith and others, Reference Smith2019)) for all segments within $\pm$60 m of the reference point. Segments that have along- or across-track slopes that are significantly different from the median (i.e., different by more than three times the robust spread for either slope component and more than the segment’s estimated slope error) are marked as invalid. After this check, the algorithm separates the available cycles into two groups: high-quality (HQ) cycles that contain enough consistent measurements to define the across-track slope (i.e., those containing at least two valid segments at the same along-track location), and low-quality (LQ) cycles that do not. Typically, LQ cycles happen when clouds prevent the weak beam in a pair from making usable measurements, so LQ cycles often contain multiple strong-beam measurements.

(ii) Surface Fitting: The ATL11 algorithm applies a least-squares fitting procedure to the data from HQ cycles to determine a polynomial reference surface that describes the slope and curvature of the surface around the reference points. This surface is defined in a coordinate system centered on the reference point, with the $x$-coordinate parallel to the track and the $y$-coordinate perpendicular. The polynomial degree is chosen based on the number and distribution of available measurements, with a maximum degree of 3 in $x$ and 2 in $y$. However, due to the small variability in across-track offsets between cycles, the degree in $y$ is almost always limited to 1. This fitting procedure produces a reference-surface polynomial, an error estimate for the reference-surface polynomial, and reference-surface-corrected heights for all HQ cycles.

(iii) Reference-surface correction: The ATL11 algorithm uses the reference surface from (ii) to correct the data from each valid segment from each LQ cycle and for data from any crossing tracks that intersect the RPT. The algorithm then calculates a formal error for each segment, incorporating the error estimates from the segment and the formal errors in the polynomial coefficients. For each LQ cycle, the algorithm chooses the segment with the smallest error and uses its corrected height to represent the height for that cycle. A similar procedure is applied to obtain reference-surface-corrected heights for data from other RGTs that cross the RGT being processed.

The resulting ATL11 product provides reduced-resolution estimates of changing surface height, with one surface-height estimate for each 91 day cycle, and formal errors for each estimate. By averaging up to 12 ATL06 segments for each estimate and by correcting for the effects of surface shape on cycle-to-cycle differences, ATL11 produces a less noisy estimate of ice-sheet change than can be obtained from direct differencing of ATL06 measurements.

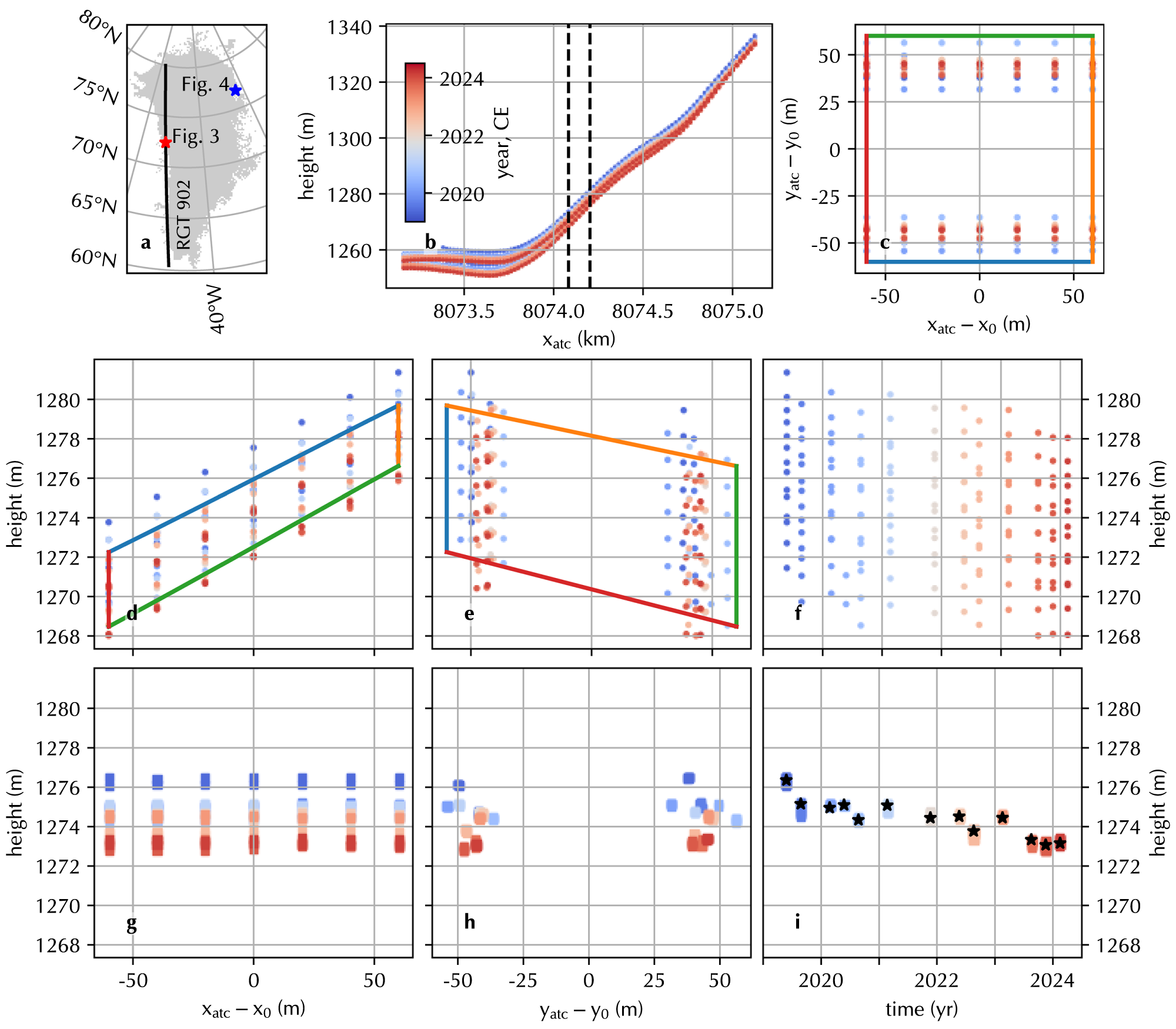

Figure 3.

Example of generation of ATL11 from ATL06. (a) track 902 in Greenland. (b) ATL06 measurements for a section of track 902, color-coded by acquisition date. (c) Spatial layout of the measurements as a function of along-track and across-track distance around a reference point with coordinates ( $x_0$, $y_0$). Solid lines show the outline of a 120 m square around the reference point; colors are replicated in (d) and (e) to show the orientation of the reference surface. (d) Uncorrected ATL06 points and the reference surface (line colors matching panel b, shifted vertically to match the mean ATL06 height) plotted against along-track distance. (e) The same uncorrected measurements as panel d, but now plotted against the across-track distance. (f) Uncorrected elevations plotted as a function of time. Finally, ATL06 elevations corrected to the reference surface and shown as a function of (g) relative along-track location, (h) relative across-track location and (i) time, with the ATL11 time series plotted in black on panel i.

Figure 3 Long description

Panel A shows a map of Greenland with track 902 marked. Panel B displays height (m) versus xatc (km) from 8073.5 to 8075.0, showing an increase from approximately 1260 to 1340 meters over time, with a color scale indicating years 2020 to 2024. Panel C presents a layout plot of xatc minus x0 (m) versus yatc minus y0 (m), showing two bands around positive and negative 50 meters. Panel D shows height (m) versus xatc minus x0 (m), with heights ranging from 1268 to 1280 meters, indicating a positive slope. Panel E displays height (m) versus yatc minus y0 (m), showing a tilted quadrilateral pattern. Panel F shows height (m) versus an unlabeled axis, with scattered points indicating variability. Panel G presents height (m) versus xatc minus x0 (m), showing consistent height bands. Panel H shows height (m) versus yatc minus y0 (m), with two distinct clusters. Panel I displays height (m) versus time (yr) from 2020 to 2024, showing a slight decline from 1276 to 1273 meters. The panels collectively illustrate different views of the same measurement set, highlighting spatial and temporal variations in height data.

We demonstrate the slope correction using the central beam pair from RGT 902 in northeast Greenland (Fig. 3a). We start by showing the height profile for a 2 km section of the track (Fig. 3b), color-coded by acquisition date. We then highlight the layout of measurements around the reference point at x_atc = 8074.16 km in along-track coordinates (Fig. 3c), and we plot a 120 m square around the reference point, with different colors for each side of the square to aid readers in visualizing the shape of the reference surface. There is a ∼3.5º slope in the along-track direction (Fig. 3d) and a ∼2º slope in the across-track direction (Fig. 3e), which leads to apparent scatter in the ATL06 heights when viewed in either direction and also produces substantial scatter when the heights are plotted as a function of time (Fig. 3f). Correcting for the shape of the reference surface reduces the scatter in the heights in both the along-track (Fig. 3g) and across-track (Fig. 3h) direction, leaving most of the substantial remaining variation related to temporal height change (Fig. 3i). The ATL11 corrected height (black stars in Fig. 3i) shows seasonal variations, with large height losses over the summers of 2019 and 2023.

3.2. ATL14 and 15 Level-3B gridded land ice height data

The ICESat-2 gridded land-ice products provide comprehensive estimates of land ice surface height (ATL14; Smith and others, Reference Smith, Jelley, Dickinson, Sutterley, Neumann and Harbeck2024b) and height changes (ATL15; Smith and others, Reference Smith2024c) for the Arctic and Antarctic regions, generated from ATL11 (Section 3.1). ATL14 provides a DEM that represents the surface height on 1 January 2020 with 100 m grid spacing that provides a spatially continuous view of the ice surface height and height uncertainty. This DEM can be used for initializing large-scale ice-sheet models and setting boundary conditions for atmospheric models. ATL15 provides quarterly height-change maps relative to the ATL14 reference DEM, evaluated at a coarser resolution of 1 km and also provided at reduced resolutions of 10, 20 and 40 km. These maps are designed to easily visualize height-change patterns, facilitate calculations of integrated regional volume changes, and validate and constrain time-varying numerical ice-sheet models. One advantage of the 10-, 20- and 40-km resolution products is that their error estimates reflect the propagation of correlated (typically per-RPT) errors to these larger spatial scales; the same error propagation cannot be achieved by, for example, smoothing the error estimates on the 1 km products.

The ATL14/15 algorithm (Smith, Reference Smith2024a) estimates surface height by minimizing a functional that combines the weighted squared misfit between the ATL14/15 model and ATL11 data, the squared magnitudes of estimated data biases and a term penalizing model complexity. This approach balances fidelity to the input observations with smoothness of the resulting height field:

(1)\begin{equation} R = \sum_{i \in data}{\left(\frac{d_i - d_{est, i}}{\sigma_i}\right)^2} + \sum_{j \in biases}\left(\frac{b_j}{\sigma_{b,j}}\right)^2 + F_0(z_0) + F_\delta(\delta z) \end{equation}

Here $d_i$ are the ATL11 heights, $\sigma_i$ are the ATL11 error estimates and $d_{est,i}$ are the ATL14/15 estimates of the elevations at each data point plus any biases associated with that data point. For each cycle in the mission, each PT for each RGT is associated with a bias value, $b_j$, whose expected value, $\sigma_{b, j}$, is calculated based on the product of the median ATL11 slope for that PT, and the geolocation uncertainty in the measurements. Because the data do not uniquely specify heights for each node in ATL14 and ATL15, the two regularization terms, $F_\delta(\delta z)$ and $F_0(z_0)$, are included to penalize rougher surfaces as $R$ is minimized, so that for points that are not well constrained by the data, the ATL14 and ATL15 surfaces are smooth (Parker, Reference Parker1994). The regularization term for ATL14 ( $z_0$) is a finite-difference approximation of the integral of the squared second derivatives of the ATL14 DEM plus the squared integral of the DEM gradient:

(2)\begin{align} F_0(z_0) \approx \iint & \frac{1}{\sigma_{xx}^2}\bigg[(\partial_{xx} z_0)^2 + 2 (\partial_{xy} z_0)^2 + (\partial_{yy} z_0)^2 \nonumber\\ & + \frac{1}{L^2} \left[(\partial_xz_0)^2 + (\partial_y z_0)^2\right]\bigg]dA \end{align}

In Eqn (2), $\sigma_{xx}$ is an adjustable parameter that controls the importance of the ATL14 roughness relative to the data-model misfit as $R$ is minimized: Large values of $\sigma_{xx}$ lead to a rougher solution, while small values of $\sigma_{xx}$ lead to a smoother solution. $L$ is a parameter that controls the relative weighting of the first and second derivatives of the solution.

The regularization term for ATL15 is a finite-difference approximation of the integral of the squared second derivatives of the rate of height change plus the squared integral of the gradient of the rate of height change and the second time derivative of the height change:

(3)\begin{align} F_\delta(\delta_z) \approx \iint & \frac{1}{\sigma_{xxt}^2}\bigg[(\partial_{xxt} \delta z)^2 + 2 (\partial_{xyt} \delta z)^2 + (\partial_{yyt} \delta z)^2 \nonumber\\ & + \frac{1}{L^2} \left[(\partial_{xt} \delta z)^2 + (\partial_{yt} \delta z)^2\right]\bigg] + \frac{(\partial_{tt}\delta z)^2}{\sigma_{tt}^2}dA \end{align}

In Eqn (3), $\sigma_{xxt}$ and $\sigma_{tt}$ are adjustable parameters that control the importance of the roughness of the height-change field and the variability in the rate of change. Two of the adjustable parameters, $\sigma_{xx}$ and $\sigma_{xxt}$, were determined based on an analysis of the horizontal scales of features that should appear in the ATL14 and ATL15 solutions. $L$ was chosen so that gradients in the ATL14 and ATL15 are not extrapolated over long distances (i.e., so that unless trends in $z_0$ or $\partial_t \delta z$ are present in the data, these fields will be flat), and $\sigma_{tt}$ was chosen primarily to improve the numerical stability of the solution without significantly limiting the variability in $\delta z$. The details of these fields are described in the ATL14/15 ATBD (Smith, Reference Smith2024a). Note that we minimize the derivatives of $z_0$ and $\delta z$ rather than the fields themselves because we do not want to artificially bias the solution toward, for example, small rates of estimated height change; minimizing the derivatives allows us to find smooth solutions that still capture the large-scale features of the ice sheets and their temporal variations. Similar to the ATL11 algorithm, the ATL14/15 algorithm uses an iterative fitting strategy to remove data points that are not statistically consistent with a smooth height variation in space and time. The iteration process is summarized in Fig. 2 and described in detail in the ATL14/15 ATBD (Smith, Reference Smith2024a).

ICESat-2 only began collecting data over its RGTs at the start of Cycle 3 (29 March 2019); therefore, data from Cycles 1 and 2 are available to the ATL14/15 algorithm only in places where the ground tracks from those cycles cross the RGTs. This results in a sparse sampling of height differences and weak constraints on the spatial pattern of height differences, particularly for Cycle 1 (ending 28 December 2018). Consequently, while elevation measurements from Cycle 1 are ingested to help constrain the surface fit, height differences from Cycle 1 are not included in the final product, and the ATL15 time series begins with Cycle 2. Error estimates for the first surface in ATL15 reflect the increased uncertainty associated with the sparse data coverage in Cycle 2.

We demonstrate ATL11-to-ATL15 processing using Storstrømmen Glacier, northeast Greenland (Fig. 4), a surging glacier currently in its quiescent phase (Andersen and others, Reference Andersen, Meyer, Huiban, Dømgaard, Millan and Bjørk2025) that flows into a small floating ice shelf and so provides a spatially varying height change signal. At this latitude (∼79º N), ICESat-2’s RGTs are $\sim$6.6 km apart (Fig. 1b), so the left and right beam pairs for adjacent orbits approximately overlap, and ICESat-2 samples the surface approximately every 30–60 days. Height measurements from ATL11 tracks show that the ice-shelf surface is flat but rough, and that the grounded glacier surface rises gradually to the north (Fig. 4c). For the southernmost 40 km of this profile, surface heights from the early part of the mission are lower than heights from the later part of the mission, implying that the surface is rising over time; northward of 40 km, this pattern is reversed. To demonstrate the spatial variability in the ATL11 data, we removed the large-scale topography from ATL11 by subtracting the ATL14 DEM, leaving height differences that show notable point-to-point scatter (Fig. 4d) that reflect both errors in the ATL11 data and spatial variability in the height change. The recovered quarterly height-differences (Fig. 4e) provide a smoother representation of height change than the ATL11 transects. A map of the mean ATL15 height-change rate (Fig. 4b) shows small surface-lowering rates on the floating ice shelf, much larger lowering rates over a 15–20 km region of the lower trunk of the glacier, and a lobe of thickening ice farther upstream. This likely reflects an actively flowing portion of the glacier moving ice into the stagnant lower trunk of the glacier (Mouginot and others, Reference Mouginot, Bjørk, Millan, Scheuchl and Rignot2018).

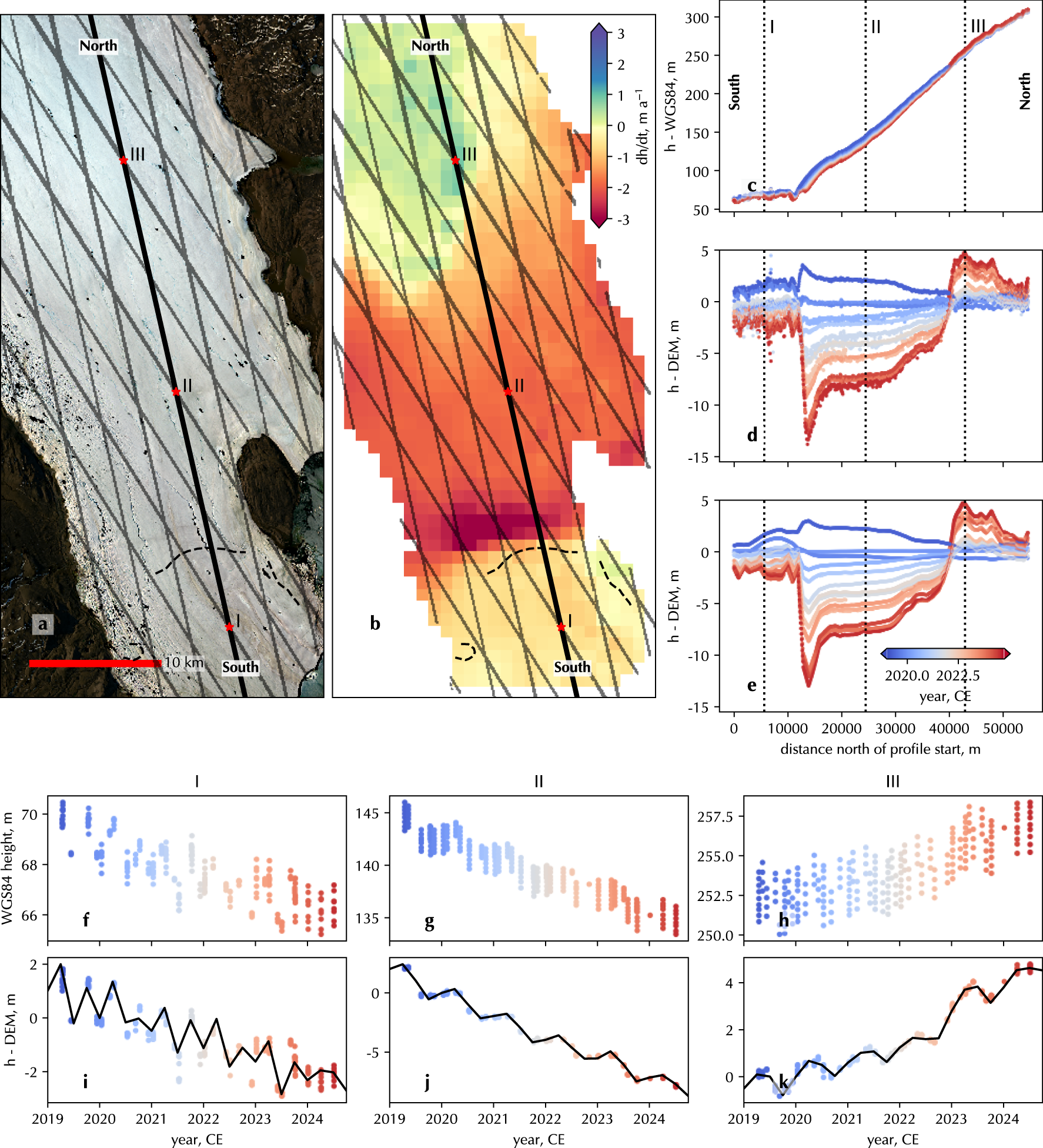

Figure 4.

ATL11 to ATL14 and ATL15 processes illustrated at Storstrømmen, Northeast Greenland. (a) Landsat-9 image (LC90542382024199LGN00, 17 July 2024) for a portion of Storstrømmen, Northeast Greenland (see Figure 3a for location), with ATL11 track locations (thin lines) and the 2017 grounding line location (Mouginot and others, Reference Mouginot, Bjørk, Millan, Scheuchl and Rignot2018, dashed line). (b) Mean rate of height change from ATL15 between 1 January 2019 and 1 April 2024. (c) ATL11 heights from Cycles 3 to 21, color-coded by acquisition year for the profile shown in (a), running south to north. (d) ATL11 heights plotted relative to the 2020 DEM and (e) quarterly ATL15 height differences relative to the 2020 DEM. ATL11 heights collected within 200 m of points (f) I, (g) II and (h) III (see (b) for location) and the corresponding ATL15 time series (black lines) for points (i) I, (j) II and (k) III with ATL11 heights (colored circles) corrected for ATL14 topography.

Figure 4 Long description

Map with a north arrow near the top and the word South near the bottom. Several thin diagonal lines cross the map. One thicker diagonal line runs from near the top toward the bottom. Three red points on the thick line are labeled I, II and III. A scale bar reads 10 km. Gridded map with several thin diagonal lines and one thicker diagonal line. Three red points on the thick line are labeled I, II and III. The word North appears near the top and the word South near the bottom. A vertical color scale is labeled dh dt in m a superscript minus 1, with tick labels 3, 2, 1, 0, minus 1, minus 2, minus 3. Line plot divided into three sections by vertical dotted lines, with section labels I, II and III. The left side is labeled South and the right side is labeled North. The y-axis label is h minus WGS84, m, with tick labels 50, 100, 150, 200, 250, 300. The x-axis label is distance north of profile start, m, with tick labels 0, 10000, 20000, 30000, 40000, 50000. Multiple colored lines rise from near 50 to near 300 across the distance axis. Line plot divided into three sections by vertical dotted lines, with section labels I, II and III. The y-axis label is h minus DEM, m, with tick labels minus 15, minus 10, minus 5, 0, 5. The x-axis label is distance north of profile start, m, with tick labels 0, 10000, 20000, 30000, 40000, 50000. Multiple colored lines include values near 0 to 5 in section I, values reaching near minus 15 in section II and values rising toward 0 to 5 in section III. Line plot divided into three sections by vertical dotted lines, with section labels I, II and III. The y-axis label is h minus DEM, m, with tick labels minus 15, minus 10, minus 5, 0, 5. The x-axis label is distance north of profile start, m, with tick labels 0, 10000, 20000, 30000, 40000, 50000. Multiple colored lines are shown. A horizontal color bar is labeled 2020.0, 2022.5 and year, CE. Scatter plot labeled I. The y-axis label is WGS84 height, m, with tick labels 66, 68, 70. The x-axis label is year, CE, with tick labels 2019, 2020, 2021, 2022, 2023, 2024. Colored points form a downward pattern from near 70 toward near 66. Scatter plot labeled II. The y-axis label is WGS84 height, m, with tick labels 135, 140, 145. The x-axis label is year, CE, with tick labels 2019, 2020, 2021, 2022, 2023, 2024. Colored points form a downward pattern from near 145 toward near 135. Scatter plot labeled III. The y-axis label is WGS84 height, m, with tick labels 250.0, 252.5, 255.0, 257.5. The x-axis label is year, CE, with tick labels 2019, 2020, 2021, 2022, 2023, 2024. Colored points form an upward pattern from near 250.0 toward near 257.5. Time series plot labeled I. The y-axis label is h minus DEM, m, with tick labels minus 2, 0, 2. The x-axis label is year, CE, with tick labels 2019, 2020, 2021, 2022, 2023, 2024. A black line varies around 0 early and trends downward to near minus 2 by 2024. Colored points are plotted along the time axis. Time series plot labeled II. The y-axis label is h minus DEM, m, with tick labels minus 5, 0. The x-axis label is year, CE, with tick labels 2019, 2020, 2021, 2022, 2023, 2024. A black line trends downward from near 0 to near minus 5 by 2024. Colored points are plotted along the time axis. Time series plot labeled III. The y-axis label is h minus DEM, m, with tick labels 0, 2, 4. The x-axis label is year, CE, with tick labels 2019, 2020, 2021, 2022, 2023, 2024. A black line trends upward from near 0 to near 4 by 2024. Colored points are plotted along the time axis.

To emphasize the differences between the ATL11 and ATL15 data products, we selected three points along the ATL11 transect (I, II and III, on Fig. 4a). Sampling the ATL11 height time series within 250 m of the three points shows slow surface lowering at I on the floating ice shelf (Fig. 4f), faster lowering at II on the lower part of the grounded ice (Fig. 4g) and slow thickening at point III on the upper grounded ice (Fig. 4h). We corrected ATL11 heights with the ATL14 DEM at I (Fig. 4i), II (Fig. 4j) and III (Fig. 4k), which reduces apparent scatter in the ATL11 heights around each point. For point I on the ice shelf, the ATL15 time series (black line on Fig. 4i) shows substantial scatter, likely because of a combination of errors in the tide correction and topography advecting along the ice shelf. Time series for points II (Fig. 4j) and III (Fig. 4k) each show smaller temporal scatter in ATL15 compared to the raw ATL11 time series (Fig. 4g, h, respectively), which allows separate resolution of the long-term secular height-change rate and the seasonal cycle of height change.

3.2.2. ATL14/15 limitations

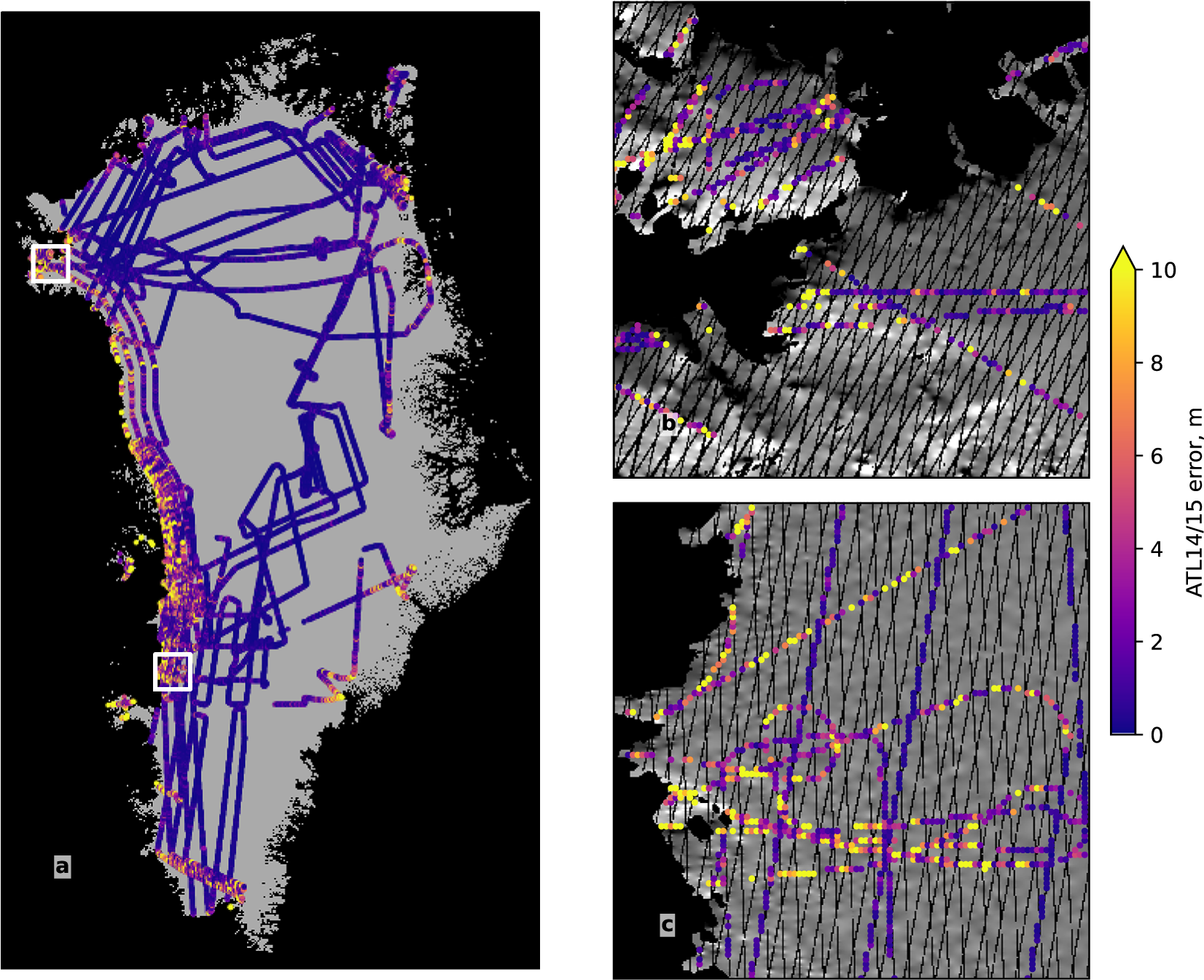

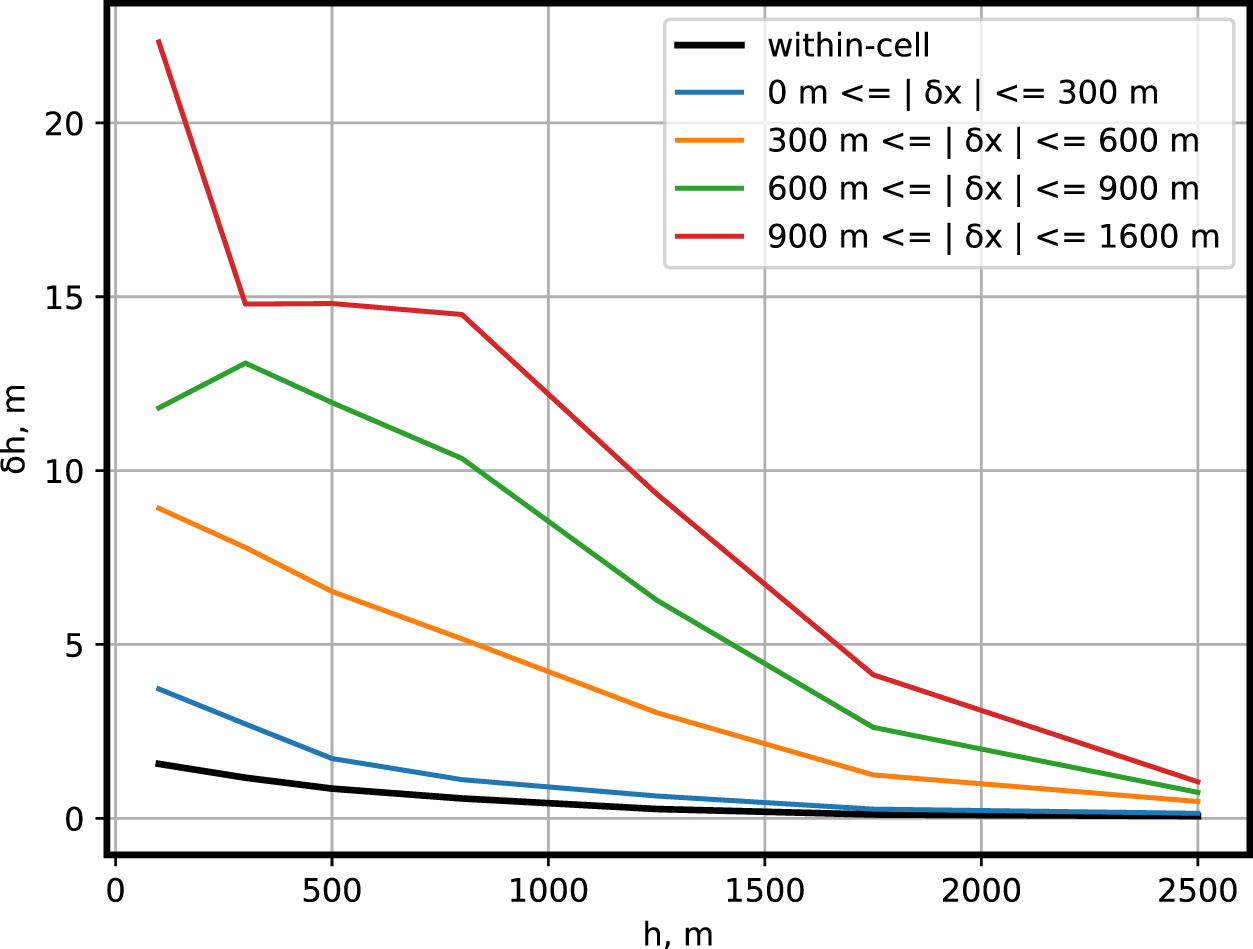

The ATL14 data product is posted at 100 m resolution, but it only resolves features at this scale along RPTs. In the gaps between RPTs, which can be as large as 8 km (Fig. 1b) the resolution of surface features is coarser. The product includes a data_count field that indicates whether each pixel is constrained directly by ATL11 data; those pixels with a data_count value of zero are determined by interpolation of ATL11 observations and should be used with caution. In Appendix B, we evaluate the accuracy of ATL14 by comparing it against scanning laser altimetry data collected by the Operation IceBridge project in 2019 (MacGregor and others, Reference MacGregor2021). The product’s accuracy varies with the ruggedness of the surface it is measuring, and with the distance to the nearest ICESat-2 measurement. The 3 month temporal resolution of ATL15 may be insufficient for certain applications, such as measurement of snowfall in ‘atmospheric-river’ events (e.g., Adusumilli and others, Reference Adusumilli, Fish, M and Medley2021). For these applications, the user may wish to create their own grids from ATL06 or ATL11 data, sacrificing spatial sampling (e.g., Ravinder and others, Reference Ravinder, Shepherd, Otosaka, Slater, Muir and Gilbert2024b) or data independence between time slices (e.g., Siegfried and Fricker, Reference Siegfried and Fricker2021) for increased temporal resolution.

For both dynamic grounded ice and ice shelves, lateral advection of features with large vertical amplitudes (e.g., surface crevasses, through-cutting rifts, and roughness features downstream of ice rises and rumples) provides an additional source of temporal height change that can obscure changes in ice volume due to basal and surface mass balance, and strain thinning/thickening. Advection is not accounted for in any ICESat-2 ATLxx data products. The effects of advection could be partially mitigated by processing altimetry data in ice-following (‘Lagrangian’) coordinates (e.g., Moholdt and others, Reference Moholdt, Padman and Fricker2014), but Lagrangian methods tend to be limited to analyses of track crossovers, losing the high along-track density and repeat-track capability of data from the ICESat-2 mission. Potential future work might include using multi-satellite datasets to incorporate Lagrangian processing into gridded products similar to ATL14/15; however, at the time of writing, gridded surface height changes in these products are calculated in an Eulerian (geographically static) reference frame.

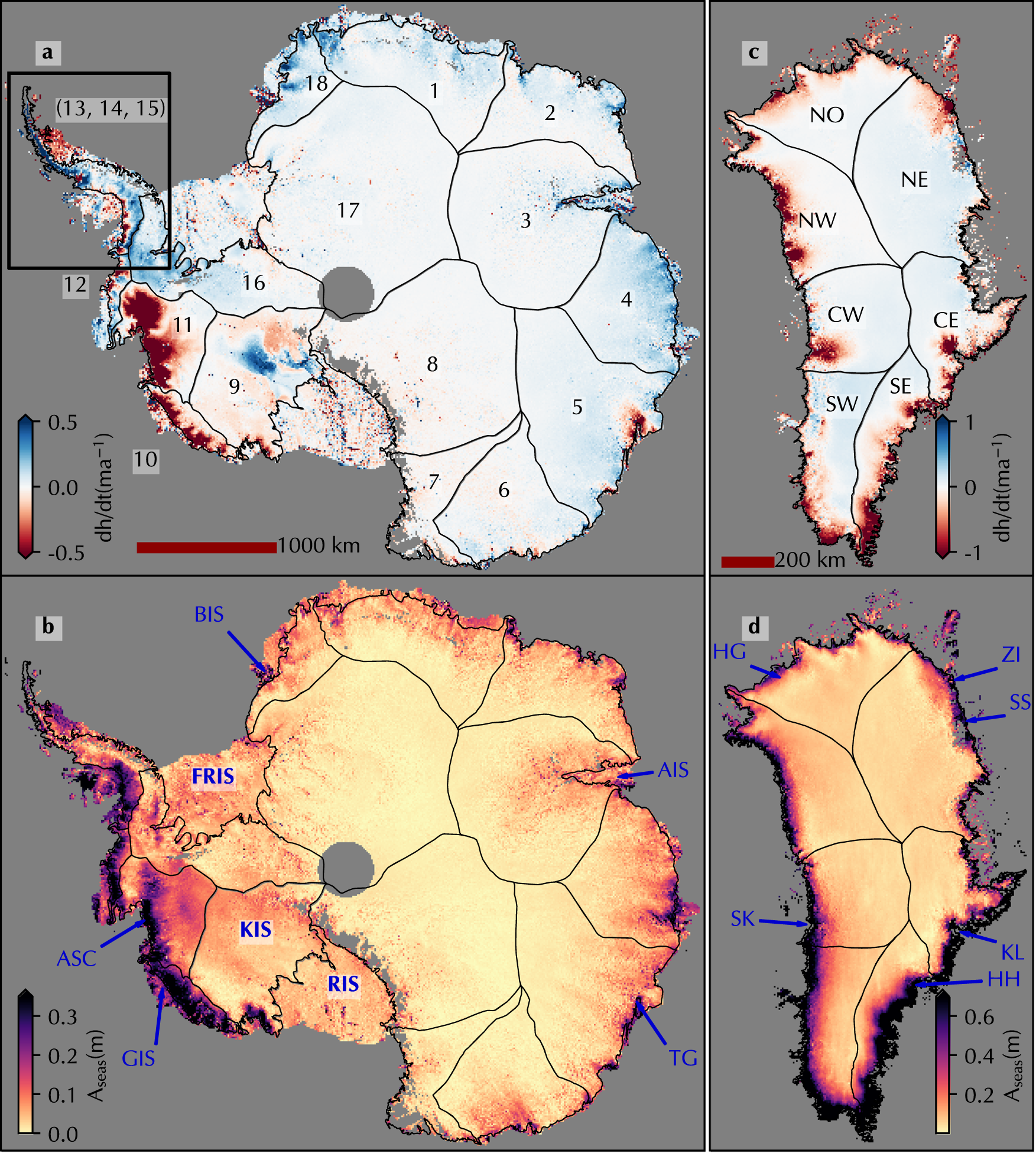

Figure 5.

Mean rate of height change and seasonal amplitude for Antarctica and Greenland, January 2019 to December 2024. Panels (a, b) show the rate of height change derived from seasonal models fit to 1 km ATL15 data (Eqn (4) for Antarctica and Greenland, with drainage basin outlines (Mouginot and others, Reference Mouginot, Scheuchl and Rignot2017; Mouginot and Rignot, Reference Mouginot and Rignot2019, respectively). Panels (c, d) show the seasonal amplitude derived from the same models. The box in (a) shows the location for Figure 6. Labeled features in (b) are FRIS: Filchner-Ronne Ice Shelf; BIS: Brunt Ice Shelf; AIS: Amery Ice Shelf; RIS: Ross Ice Shelf; GIS: Getz Ice Shelf; ASC: Amundsen-Sea Coast; KIS: Kamb Ice Stream and TG: Totten Glacier. Labeled features in (d) are SK: Sermeq Kujalleq; HG: Humboldt Glacier; ZI: Zachhariae Isstrøm; SS: Storstrømmen glacier; KL: Kanderdlugssuaq Glacier and HH: Helheim Glacier.

Figure 5 Long description

A) Map of Antarctica showing the rate of height change in decimeters per year, with values ranging from -0.5 to 0.5. The map is divided into numbered drainage basins. Notable features include the Filchner-Ronne Ice Shelf (FRIS), Brunt Ice Shelf (BIS), Amery Ice Shelf (AIS), Ross Ice Shelf (RIS), Getz Ice Shelf (GIS), Amundsen-Sea Coast (ASC), Kamb Ice Stream (KIS) and Totten Glacier (TG). B) Map of Antarctica showing seasonal amplitude in meters, with values from 0.0 to 0.3. The same drainage basins and features are labeled. C) Map of Greenland showing the rate of height change in decimeters per year, with values from -1 to 1. Regions are labeled as NO, NE, NW, CW, CE, SE and SW. D) Map of Greenland showing seasonal amplitude in meters, with values from 0.0 to 0.6. Labeled features include Sermeq Kujalleq (SK), Humboldt Glacier (HG), Zachhariae Isstrøm (ZI), Storstrømmen glacier (SS), Kanderdlugssuaq Glacier (KL) and Helheim Glacier (HH).

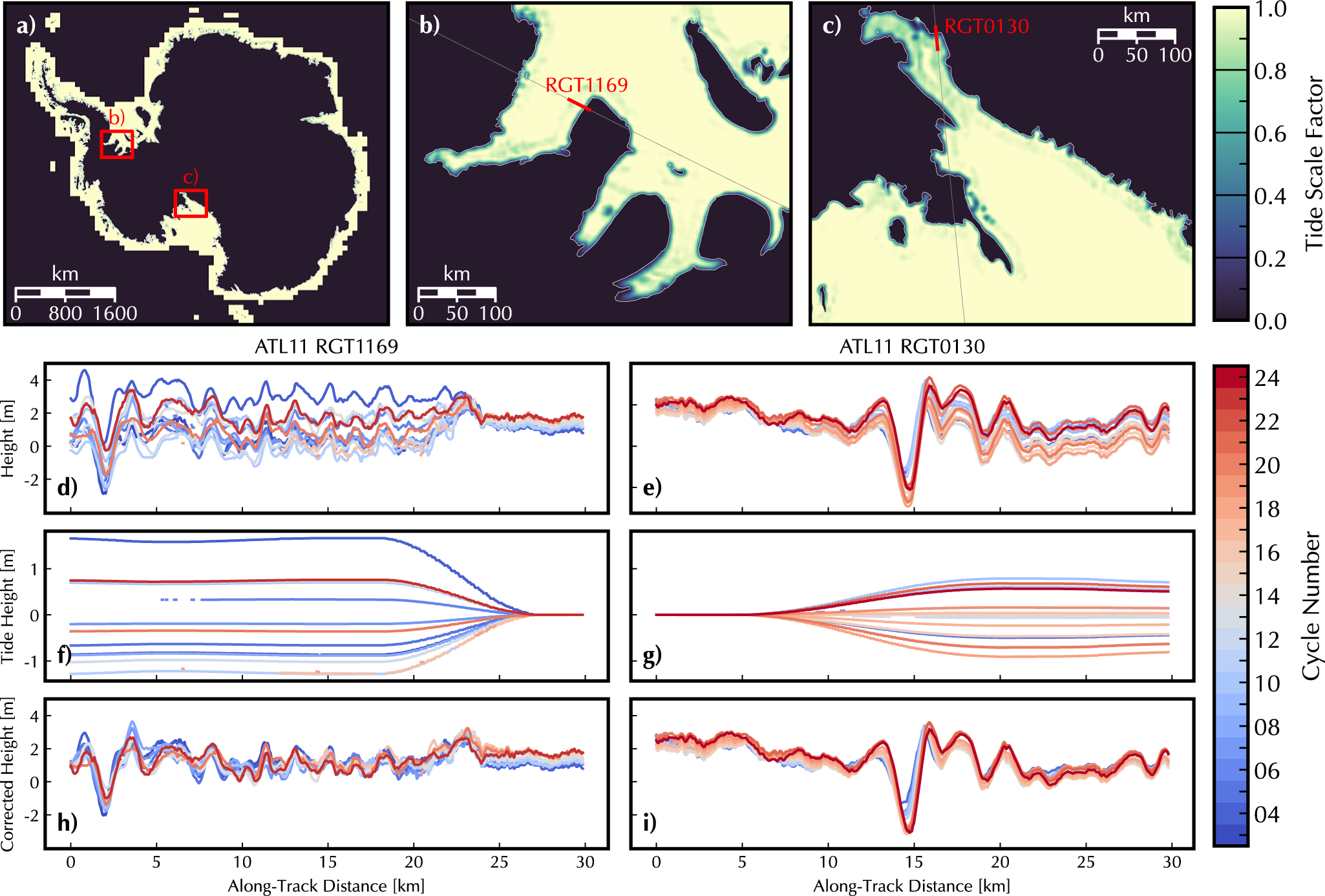

Further complications arise in the flexure zone (FZ) of ice shelves near the grounding line (GL), where ice is subject to bending due to tides (Fricker and Padman, Reference Fricker and Padman2006; Rignot and others, Reference Rignot, Mouginot, Morlighem, Seroussi and Scheuchl2014). For regions where there are low bed slopes and the ice is only lightly or ephemerally grounded, such as on portions of the Ross and Filchner-Ronne ice shelves in Antarctica, the GL, and therefore also the FZ, can migrate several kilometers laterally over the tidal cycle (e.g., Brunt and others, Reference Brunt, Fricker, Padman, Scambos and O’Neel2010, Reference Brunt, Fricker and Padman2011; Li and others, Reference Li, Dawson, Chuter and Bamber2022). Larger tidal range and shallower bed slopes lead to more migration, but migration may also display hysteresis; that is, there may be a different GL location depending on whether the tide is rising or falling (Freer and others, Reference Freer, Marsh, Hogg, Fricker and Padman2023). There are also areas across Antarctica, such as glaciers draining into the Amundsen Sea, that have experienced substantial, multi-km scale retreat of grounding line position in the observational record (e.g., Scheuchl and others, Reference Scheuchl, Mouginot, Rignot, Morlighem and Khazendar2016; Verboncoeur and others, Reference Verboncoeur2025). For both of these situations, the applied flexure correction (see Appendix A) will be a poor representation of actual ocean-induced height change.

4.1. Six-year trends and seasonal amplitudes for Antarctica and Greenland

We summarize some of the most prominent signals in ATL15 by fitting a combined seasonal cycle and linear secular-change model to each 1 km ATL15 pixel in a least-squares sense:

(4)\begin{equation} dh_{tot} = h_t(t - t_0) + A_c\cos{(2\pi t)} + A_s\sin{(2\pi t)} + \varepsilon . \end{equation}

Here, $h_t$ is the mean rate of height change, $A_c$ and $A_s$ are amplitudes of the sine and cosine components of the seasonal cycle, $t$ is the time in years, $t_0$ is the reference epoch equal to 2020.0 and $\varepsilon$ is a residual that is minimized by the least-squares fitting process. For both Antarctica and Greenland, we consider both the long-term signal from the 6 year trends for 2019–25 inclusive (Fig. 5a, b) and seasonal variability, represented by the amplitude of the seasonal cycle; $\sqrt{A_c^2 + A_s^2}$ (Fig. 5c, d). Note that Fig. 5b, d include locations for geographic features mentioned in the text.

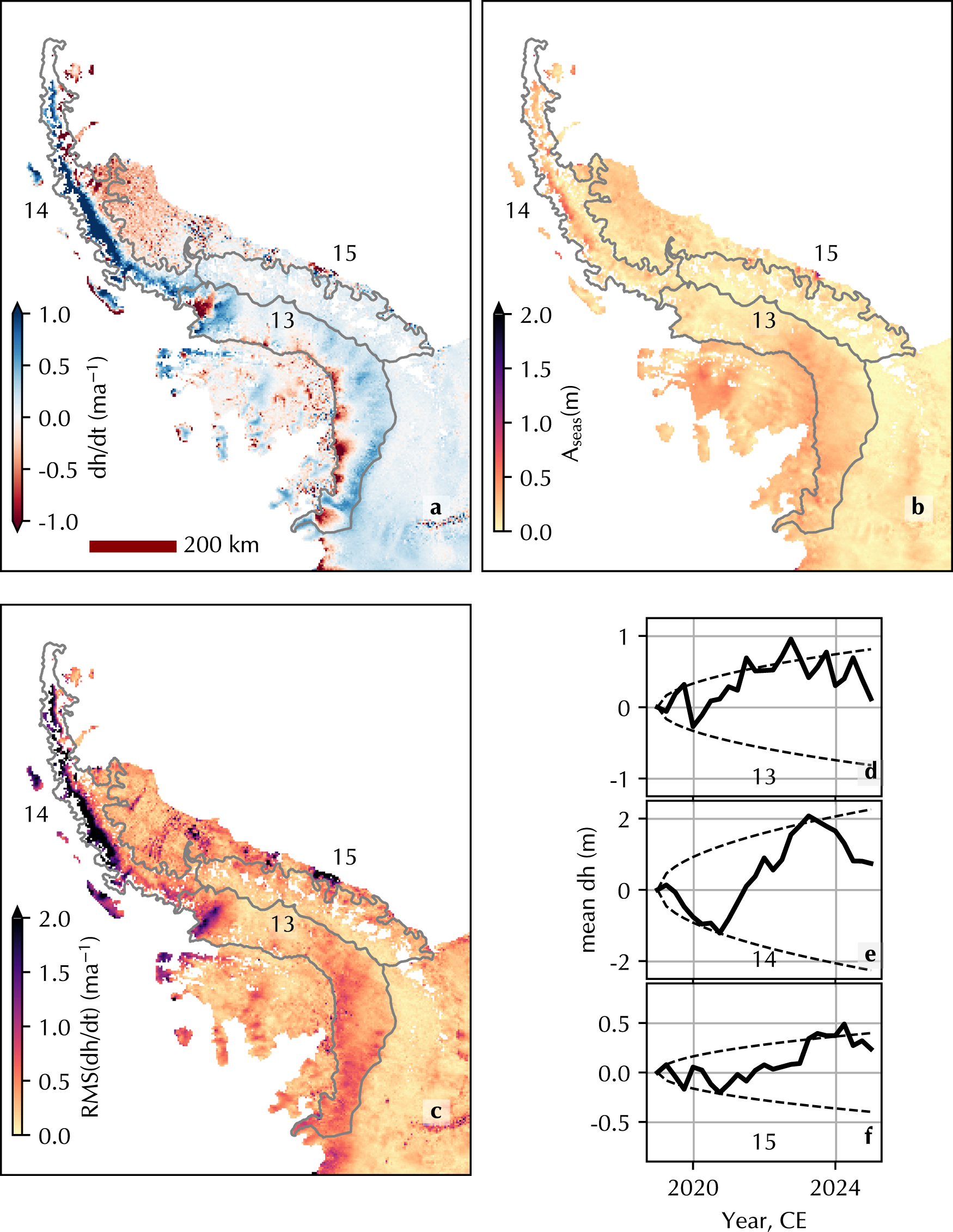

Figure 6.

Height change on the Antarctic Peninsula. (a) The mean rate of height change ranges from $-$2.5 m a $^{-1}$ near the grounding line of Wordie Glacier at the north end of basin 13 to as much as 2.7 m a $^{-1}$ on the western slope of region 14 (region outlines from Mouginot and others (Reference Mouginot, Scheuchl and Rignot2017)). (b) Seasonal amplitudes are commonly greater than 0.5 m and have peak values as large as 1.9 m in region 14. (c) Interannual height-change variability is also large, with values approaching 2.5 m in region 14. Panels (d–f) show mean height changes and expected random-walk changes for basins 13–15. Note that the vertical scale is not the same for (d–f).

Figure 6 Long description

Three maps fill the left of the figure, each showing the same long, narrow, curving peninsula from the same angle but shaded by a different measure. Panel (a) uses a blue to red diverging scale from minus 1.0 to 1.0 for the rate of height change, with a red 200 km scale bar. Panel (b) uses a yellow to purple scale from 0 to 2.0 for seasonal amplitude. Panel (c) uses a similar yellow to purple scale from 0 to 2.0 for the RMS of the height change rate. All three carry outlined regions numbered 13, 14 and 15. On the right, three small line plots (d, e and f) share a horizontal time axis from about 2020 to 2024. Each pairs a solid line for mean height change with a dashed curve for an expected random walk, one plot each for basins 13, 14 and 15, and their vertical scales differ.

For Antarctica, the 6-year trend (Fig. 5a) reveals the effect of sustained surface lowering along the ice sheet margins that flow into the Bellingshausen and Amundsen seas (basins 10–12), attributed to ocean-driven basal melting of ice shelves and consequent acceleration of grounded-ice loss through reduced buttressing (Gardner and others, Reference Gardner, Adusumilli and Fricker2021; Adusumilli and others, Reference Adusumilli, Fricker and Gardner2022; Reference Adusumilli, Fricker and Gardner2023; Fricker and others, Reference Fricker, Galton-Fenzi, Walker, Freer, Padman and DeConto2025). In East Antarctica, thinning occurred in the Totten Glacier catchment (basin 5), consistent with thinning driven by loss of buttressing and grounding line retreat driven by ice-shelf melt (Li and others, Reference Li, Dawson, Chuter and Bamber2023). Widespread thickening in East Antarctica is associated with increased precipitation starting in 2022, including contributions from landfalling ‘atmospheric river’ events (Adusumilli and others, Reference Adusumilli, Fricker and Gardner2023; Wille and others, Reference Wille2024). The largest height increases over the west side of the Antarctic Peninsula locally exceeded 2 m a $^{-1}$ (detailed in Fig. 6a), consistent with model-based predictions of large mean accumulation rates (Noël and others, Reference Noël, van Wessem, Wouters, Trusel, Lhermitte and van den Broeke2023) and of SMB-driven height change (Medley and others, Reference Medley, Neumann, Zwally, Smith and Stevens2022; Gardner and others, Reference Gardner, Schlegel and Larour2023).

Seasonal amplitude across Antarctica is largest at the coastlines ( $\sim$0.3 m), decaying to centimeter levels over 100–200 km toward the continental interior (Fig. 5c). Seasonal amplitudes are particularly large along the Amundsen and Bellingshausen coasts (basins 10–12), on the Antarctic Peninsula (basins 13–15), and in parts of coastal East Antarctica (basins 4–6). Seasonal height changes in Antarctica are primarily driven by seasonal variations in snowfall balanced by compaction of fallen snow into firn and ice and by gravity-driven ice flow. Therefore, the patterns of seasonal amplitude likely reflect spatial variations in the rate and seasonality of snow accumulation, and, to a lesser extent, variations in the compaction rate driven by temperature variations. In several areas, seasonal amplitudes show strong orographic control on snowfall; for example, the distinct gradient across north-south-oriented ice ridges in Queen Maud Land (basin 1), where the larger amplitudes on the eastern sides of the ridges likely reflect orographic enhancement of precipitation along the dominant northeasterly storm tracks (Simon and others, Reference Simon, Turner, Meloth, Deb, Gorodetskaya and Lazzara2024). The apparently large localized seasonal signals of height change in the 1 km ATL15 product on the Ross, Filchner-Ronne and Brunt ice shelves are associated with Eulerian height variability owing to the advection of rifts and crevasses.

For Greenland, the main long-term trend is sustained height loss around the margins (Fig. 5b), with strong thinning along the central and southern sectors of the east coast (CE and SE, respectively) and along the Northwest coast (NW). Large rates of surface lowering were also observed for Sermeq Kujalleq (Jakobshavn Isbræ) in the CW sector, for Humboldt Glacier in the NO sector and for Zachariæ Isstrøm in the NE sector. The observed patterns are consistent with a mixture of SMB-driven change and dynamic-driven change associated with accelerating ice discharge through outlet glaciers. The interior of the ice sheet near the flow divide experienced small net thickening, with the largest rates around 0.15 m a⁻¹ in SW, consistent with previous observations (e.g., Thomas and others, Reference Thomas, Frederick, Krabill, Manizade and Martin2006) and likely associated with a decadal imbalance between precipitation and ice flow in the Greenland interior (Colgan and others, Reference Colgan2015; Kuipers Munneke and others, Reference Kuipers Munneke2015).

Greenland seasonal amplitudes decay rapidly with distance from the coast in the northern and central parts of the ice sheet, but remain relatively high (0.1 m) at the ice divide in the southern sections (SE and SW; Fig. 5d). The largest seasonal amplitudes approach 0.85 m in the SE, and are much smaller in the NO and NE where the largest amplitudes are around 0.3 m. Unlike in Antarctica, where surface melting makes up a small portion of the surface mass balance, coastal Greenland experiences substantial mass loss due to ice melt and runoff during the summer, and much of the interior experiences summer melt that produces height change by increasing the density of near-surface layers (Medley and others, Reference Medley, Neumann, Zwally, Smith and Stevens2022). Further, many Greenlandic outlet glaciers also exhibit seasonal velocity variations that can drive surface height changes (Moon and others, Reference Moon2014; King and others, Reference King2018). These processes, together with the larger total accumulation rates in Greenland (Lenaerts and others, Reference Lenaerts, Medley, van den Broeke and Wouters2019), help explain the larger seasonal amplitudes in Greenland compared to Antarctica.

4.2. Volume-change rates

We estimated basin-wide and regional volume-change rates (Table 4) from the 6 year trends (2019–25) shown in Fig. 5. For each basin, we estimated the uncertainty in the volume-change rate by propagating the residuals from the seasonal-change fit (Eqn (4)) to determine the uncertainty in the height-change rate for each pixel, then integrating these per-pixel uncertainties to obtain the basin-wide uncertainty. This method provides a conservative (i.e., likely too large) estimate of the basin-wide uncertainty because the per-pixel uncertainties are likely not correlated at the basin scale. We also calculated regional volume-change rates (i.e., for the East Antarctic Ice Sheet (EAIS), West Antarctic Ice Sheet (WAIS), Antarctic Peninsula Ice Sheet (APIS) and Greenland Ice Sheet (GrIS)), and estimated their uncertainty based on the root sum of squares of the basin uncertainties.

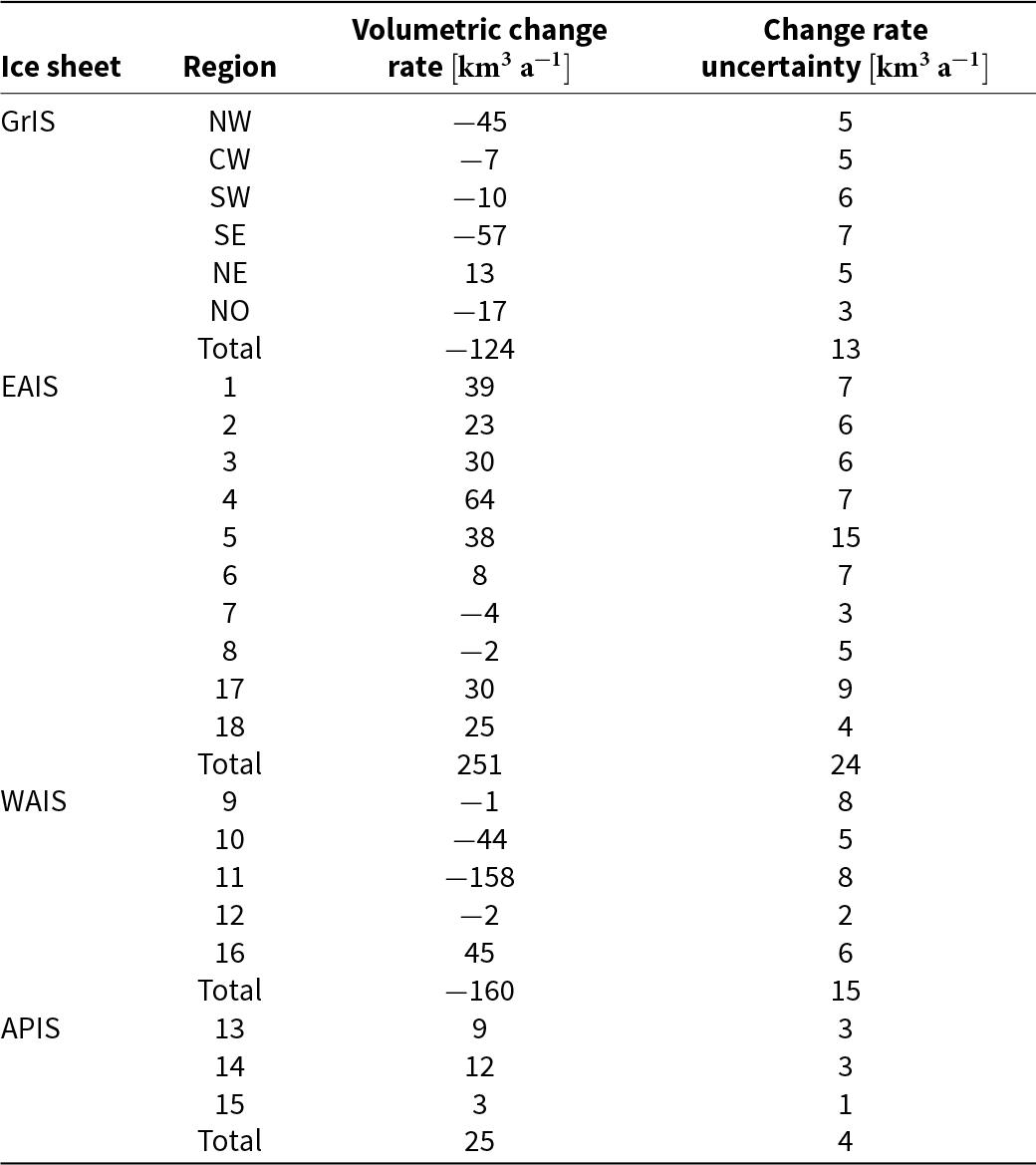

Table 4.

Volume change rate and change rate uncertainties for regions of the Greenland (GrIS) and Antarctic (EAIS, WAIS, APIS) ice sheets.

Table 4 Long description

Volume change rates and their associated uncertainties are reported for the Greenland Ice Sheet and for East Antarctica, West Antarctica, and the Antarctic Peninsula. Each region has a numeric rate of volume change along with an uncertainty value, allowing readers to judge both magnitude and confidence. The layout supports direct comparison among the four regions to see which areas are changing fastest and which estimates are most uncertain. Interpretation depends on the sign convention used in the table to indicate loss versus gain, which is not provided here. No specific numbers are available in the supplied data, so relative rankings and exact differences cannot be summarized.

We emphasize that these volume-change rates are strongly driven by changes in the volume of near-surface firn layers (Medley and others, Reference Medley, Neumann, Zwally, Smith and Stevens2022) and are thus at best roughly proportional to ice-sheet mass-change rates; our volume-change rates are also not corrected for glacial isostatic adjustment or elastic changes in bedrock elevation. Nevertheless, we can use them to examine overall ice sheet change patterns. On the regional scale, GrIS lost volume at a rate of 124 ± 14 km³ a⁻¹ between 2019 and 2025, with losses concentrated in the NW and SE basins, with small gains in the NE. Over the same time period, EAIS had a substantial volume gain of 251 ± 24 km³ a⁻¹, with small losses in basins 7 and 8; these basins are notable for having little to no inland height change, in contrast to the other EAIS basins that have inland height gains. WAIS had overall losses at −160 ± 15 km³ a⁻¹, which are driven primarily by basins 10 and 11, which include the glaciers draining into the Getz Ice Shelf and the Amundsen Sea coast ice streams; this is partially balanced by gains in basin 16, which includes the glaciers draining into the Ronne Ice Shelf. APIS showed small net volume gains in all of its basins.

4.3. Short and long-term variability

The volume gain and loss observed for Antarctica and Greenland is the net result of complex seasonal variations in surface height. ICESat-2’s 3 month repeat-track sampling resolves these variations at scales of a few km or less. The RMS annual variability in the height-change rate (i.e., the standard deviation among the five annual rates of height change calculated at each pixel) for Antarctica and Greenland (Figs. 7 and 8, respectively; details for the Antarctic Peninsula shown in Fig. 6), gives an estimate of the height-change variability not captured by the mean height-change rate (Fig. 5). For the large-scale drainage basins (Mouginot and others, Reference Mouginot, Scheuchl and Rignot2017; Mouginot and Rignot, Reference Mouginot and Rignot2019), the regionally averaged quarterly height changes reveal the temporal patterns of this variability. To account for differences in the sign of the change rate and the magnitude of the spatial variability between the ice sheet edges and interior, we divide each basin into a coastal region, within 100 km upstream of the grounding line along flow, and an inland region, more than 100 km upstream. We exclude the ice shelves since the advection of surface features likely obscures changes driven by dynamics and mass balance.

The regional-average height changes show a mixture of seasonal and interannual changes. Some of these changes are likely due to systematic imbalances between surface accumulation and ice flow that lead to sustained height loss or gain, and others are likely due to short-term fluctuations in surface processes at annual and subannual timescales. To help illustrate the statistical difference between these changes, we calculated the standard deviation in the annual rate of mean height change for each region of each ice sheet (i.e., separating each basin into its coastal and inland regions) and calculated the random envelope of change (relative to the start of the mission) that would be expected from an accumulation of random annual changes of this magnitude:

(5)\begin{equation} dh_{random} = \pm(t - 2019)^{1/2}\sigma_{1yr} . \end{equation}

Here, $\sigma_{1yr}$ is the standard deviation among the five annual rates of height change observed for each region, and $(t-2019)$ is the time since the first epoch in ATL15. Height changes substantially larger than $dh_{random}$ suggest a multi-year imbalance between mean height gain (primarily snow accumulation) and loss (primarily due to melt, compaction and ice flow). This imbalance may be a result of large episodic events such as the 2019 melt event in Greenland (e.g., Tedesco and Fettweis, Reference Tedesco and Fettweis2020) or atmospheric river events in Antarctica (e.g., Adusumilli and others, Reference Adusumilli, Fish, M and Medley2021). Alternatively, the imbalance may result from a sustained imbalance between accumulation and ice flow, such as thinning along the Amundsen Coast (e.g., Sutterley and others, Reference Sutterley2014; Davison and others, Reference Davison, Hogg, Slater and Rigby2023b) or thickening of the upstream Kamb Ice Stream (e.g., Price and others, Reference Price, Bindschadler, Hulbe and Joughin2001). Note that in Figs. 6 and 7, we do not divide the basins in the Peninsula into coastal and inland regions because almost the entirety of the Peninsula is less than 100 km upstream of the grounding line.

In Antarctica (Fig. 7), the interannual variability in height change ( $\sigma_{1yr}$) rate is typically 1–2 times smaller than the amplitude of the seasonal cycle (Fig. 5). The interannual variability is stronger in coastal regions than in interior regions, although the interior-coastal gradients are not as strong as those seen in the seasonal amplitude. Interannual variability is notably larger in West Antarctica and on the Antarctic Peninsula than in East Antarctica, although coastal parts of basins 4, 5 and 6 show substantial variability.

Comparing regionally averaged net height change (2019–25) to the random envelope calculated from the interannual variability (Eqn (5); sub panels in Figs. 6 and 7) shows that height changes are broadly consistent with the random envelope for both coastal and inland divisions of East Antarctic basins 5, 6, 7, 8 and 17, as well as West Antarctic basins 9 and 12. In basin 5, the 2019–22 height change in the coastal region commonly exceeded the random envelope, but later drifted closer to zero; this pattern shows the value of longer time series of height-change measurements in developing better statistical sampling of interannual signals.

Several basins, particularly in their coastal regions, show net height increases that are clearly in excess of the random envelope. These include East Antarctic basins 1–4 and basin 16 in West Antarctica. The gains are particularly strong in calendar years 2021–23, and may be associated with an enhanced accumulation trend observed starting in 2021 (Adusumilli and others, Reference Adusumilli, Fricker and Gardner2022, Reference Adusumilli, Fricker and Gardner2023). East-Antarctic basin 18 also shows a large gain in excess of the random envelope, although the bulk of this increase came later, in 2023–24. There are also several inland regions where the net height increases exceed the random envelope. These include basins 1–4 and 17–18 in East Antarctica and basins 12 and 16 in West Antarctica.

In contrast to these gains, the entirety of basin 11 (the Amundsen Sea coast, including Pine Island, Thwaites, Smith and Pope glaciers) and, to a lesser extent, the coastal portion of basin 10 (including the glaciers draining into the Getz Ice Shelf) exhibit strong height decreases, well outside their random envelope. Although these basins are known to have large snow accumulation with substantial interannual accumulation variability (Medley and others, Reference Medley2014; Davison and others, Reference Davison2023a), the dynamic mass loss, potentially associated with marine ice sheet instability at the grounding lines of these glaciers (Joughin and others, Reference Joughin, Smith and Medley2014; Rignot and others, Reference Rignot, Mouginot, Morlighem, Seroussi and Scheuchl2014), appears to dominate the observed height changes. Basin-averaged height changes for the Antarctic Peninsula basins show large interannual variability, which means that even the 3 m height gain over 2021–23 in basin 14 (Fig. 6) falls within the random envelope.

Greenland (Fig. 8) exhibits moderate (0.2–0.5 m a $^{-1}$) interannual variability in its coastal region, with smaller inland variability, particularly in the NO and NE regions. The interannual variability in coastal regions is typically a few times smaller than the seasonal amplitude, although the two are often of similar magnitude in the ice-sheet interior.

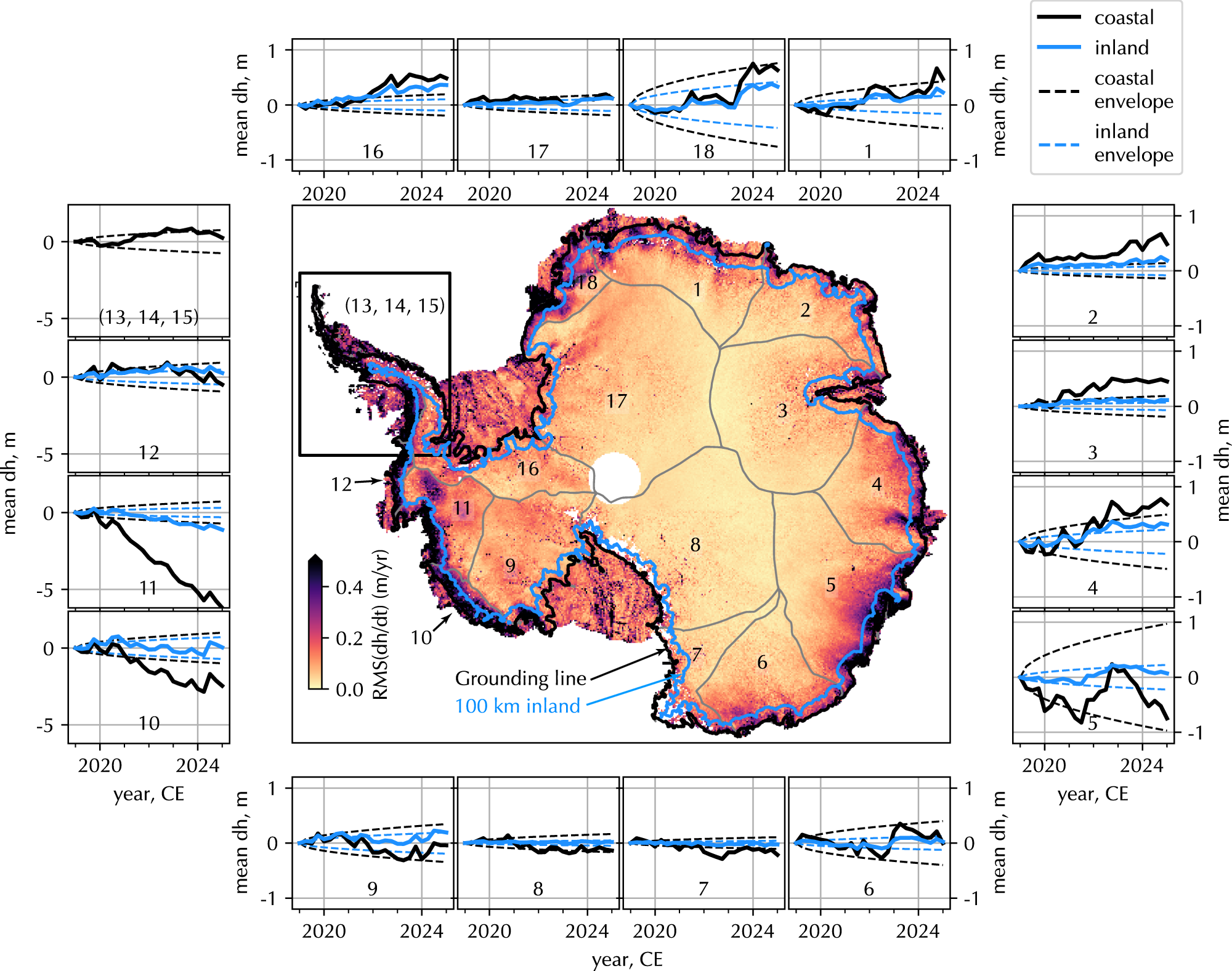

Figure 7.

Antarctica seasonal change. Seasonal height-change-rate variability, with time series of height changes for drainage basins around Antarctica (Mouginot and others, Reference Mouginot, Scheuchl and Rignot2017). The central panel shows the standard deviation of the height-change rate, calculated on a quarterly basis. Panels around the edge of the figure show the mean height change for individual drainage basins, where we have divided each basin into a coastal band (<100 km from the grounding line measured along flowlines) and the inland remainder of the basin (> 100 km).

Figure 7 Long description

The central map of Antarctica displays the RMS height-change rate in meters per year, with a gradient indicating variability. Drainage basins are numbered 1 to 18. A blue line marks the grounding line and a dashed line indicates 100 km inland. Surrounding the map are time series graphs for each basin, showing mean height change (mean dh, m) from 2020 to 2024. Each graph has two lines: coastal (black) and inland (blue), with envelopes (dashed lines) representing variability. The x-axis is labeled ′year, CE′ and the y-axis ′mean dh, m′. Basins 1 to 18 are individually graphed, showing variations in height change over time. Coastal and inland trends are distinct, with some basins showing more variability than others. The legend explains the line types: solid for coastal and inland, dashed for envelopes. The map and graphs together illustrate spatial and temporal patterns of height change across Antarctica′s drainage basins.

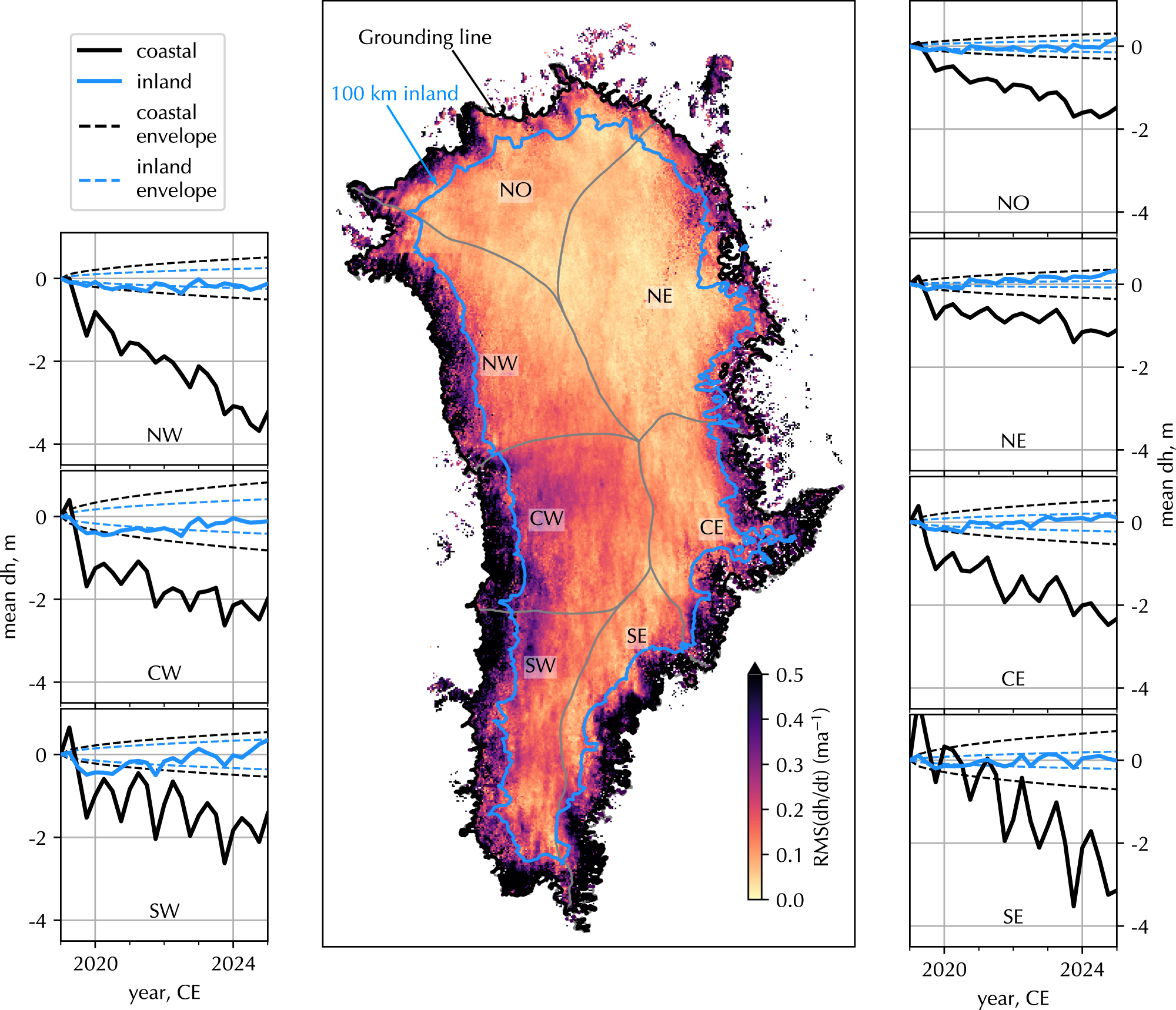

Figure 8.

Greenland seasonal change. Seasonal height-change-rate variability, with time series of height changes for drainage basins around Greenland (Mouginot and Rignot, Reference Mouginot and Rignot2019). The central panel shows the standard deviation of the height-change rate, calculated on a quarterly basis. Panels around the edge of the figure show the mean height change for individual drainage basins, where we have divided each basin into a coastal band (<100 km from the grounding line measured along flowlines) and the inland remainder of the basin (> 100 km).

Figure 8 Long description

Map of Greenland displaying seasonal height-change rate variability with a central panel showing the RMS change rate in meters per year. The map is divided into drainage basins labeled NO, NE, NW, CW, CE, SW and SE. A grounding line and a 100 km inland boundary are marked. The legend indicates RMS change rates from 0.0 to 0.5 meters per year. Surrounding graphs show mean height changes from 2020 to 2024 for each basin, with separate lines for coastal (black) and inland (blue) regions. Solid lines represent actual data, while dashed lines indicate envelopes. The x-axis is labeled ′year, CE′ and the y-axis ′mean dh, m′. Coastal and inland trends are shown for each basin, highlighting differences in height change over time.

For Greenland regions, comparing net changes to the random envelope shows small height increases in the inland portions of all basins except CW and NW. These increases are, in most cases, close to the top of the random envelope. In the NW basin, the inland height loss slightly exceeds the random envelope, and in the CW, the loss is very close to zero. The behavior of the coastal regions is sharply different from that of the inland regions. All coastal regions exhibit height decreases far outside the random envelope, with the largest in the NW and SE. Five regions, NW, NE, CW, CE and SW, saw the largest annual height decreases in 2019, corresponding to the 2019 melt event, but the height decreases in other years continue to exceed the lower extent of the random envelope.
