Unexpected circular radio objects at high Galactic latitude

Published online by Cambridge University Press:  18 January 2021

Ray P. Norris*
Affiliation:
Western Sydney University, Locked Bag 1797, Penrith, NSW2751, Australia CSIRO Astronomy & Space Science, P.O. Box 76, Epping, NSW1710, Australia
Huib T. Intema
Affiliation:
International Centre for Radio Astronomy Research, Curtin University, GPO Box U1987, Perth, WA6845, Australia Leiden Observatory, Leiden University, PO Box 9513, Leiden, NL-2300RA, The Netherlands
Anna D. Kapińska
Affiliation:
National Radio Astronomy Observatory, PO Box 0, Socorro, NM87801, USA
Bärbel S. Koribalski
Affiliation:
Western Sydney University, Locked Bag 1797, Penrith, NSW2751, Australia CSIRO Astronomy & Space Science, P.O. Box 76, Epping, NSW1710, Australia
Emil Lenc
Affiliation:
CSIRO Astronomy & Space Science, P.O. Box 76, Epping, NSW1710, Australia
L. Rudnick
Affiliation:
University of Minnesota, 100 Church St SE, Minneapolis, MN55455, USA
Rami Z. E. Alsaberi
Affiliation:
Western Sydney University, Locked Bag 1797, Penrith, NSW2751, Australia
Craig Anderson
Affiliation:
National Radio Astronomy Observatory, PO Box 0, Socorro, NM87801, USA
G. E. Anderson
Affiliation:
International Centre for Radio Astronomy Research, Curtin University, GPO Box U1987, Perth, WA6845, Australia
E. Crawford
Affiliation:
Western Sydney University, Locked Bag 1797, Penrith, NSW2751, Australia
Roland Crocker
Affiliation:
Australian National University, Canberra, ACT2600, Australia
Jayanne English
Affiliation:
University of Manitoba, Winnipeg, Manitoba R3T 2N2, Canada
Miroslav D. Filipović
Affiliation:
Western Sydney University, Locked Bag 1797, Penrith, NSW2751, Australia
Tim J. Galvin
Affiliation:
International Centre for Radio Astronomy Research, Curtin University, GPO Box U1987, Perth, WA6845, Australia
Andrew M. Hopkins
Affiliation:
Australian Astronomical Optics, Macquarie University, 105 Delhi Rd, North Ryde, NSW2113, Australia
Natasha Hurley-Walker
Affiliation:
International Centre for Radio Astronomy Research, Curtin University, GPO Box U1987, Perth, WA6845, Australia
Susumu Inoue
Affiliation:
iTHEMS, RIKEN, 2-1 Hirosawa, Wako, Saitama 351-0198, Japan
Kieran Luken
Affiliation:
Western Sydney University, Locked Bag 1797, Penrith, NSW2751, Australia CSIRO Astronomy & Space Science, P.O. Box 76, Epping, NSW1710, Australia
Peter J. Macgregor
Affiliation:
Western Sydney University, Locked Bag 1797, Penrith, NSW2751, Australia CSIRO Astronomy & Space Science, P.O. Box 76, Epping, NSW1710, Australia
Pero Manojlović
Affiliation:
Western Sydney University, Locked Bag 1797, Penrith, NSW2751, Australia
Josh Marvil
Affiliation:
National Radio Astronomy Observatory, PO Box 0, Socorro, NM87801, USA
Andrew N. O’Brien
Affiliation:
Western Sydney University, Locked Bag 1797, Penrith, NSW2751, Australia CSIRO Astronomy & Space Science, P.O. Box 76, Epping, NSW1710, Australia Center for Gravitation, Cosmology and Astrophysics, Department of Physics, University of Wisconsin-Milwaukee, PO Box 413, Milwaukee, WI53201, USA
Laurence Park
Affiliation:
Western Sydney University, Locked Bag 1797, Penrith, NSW2751, Australia
Wasim Raja
Affiliation:
CSIRO Astronomy & Space Science, P.O. Box 76, Epping, NSW1710, Australia
Devika Shobhana
Affiliation:
Western Sydney University, Locked Bag 1797, Penrith, NSW2751, Australia
Tiziana Venturi
Affiliation:
Istituto di Radioastronomia, INAF, Via Gobetti 101, Bologna40129, Italy
Jordan D. Collier
Affiliation:
Western Sydney University, Locked Bag 1797, Penrith, NSW2751, Australia The Inter-University Institute for Data Intensive Astronomy (IDIA), Department of Astronomy, University of Cape Town, Private Bag X3, Rondebosch 7701, South Africa
Catherine Hale
Affiliation:
CSIRO Astronomy & Space Science, P.O. Box 76, Epping, NSW1710, Australia
Aidan Hotan
Affiliation:
CSIRO Astronomy & Space Science, P.O. Box 76, Epping, NSW1710, Australia
Vanessa Moss
Affiliation:
CSIRO Astronomy & Space Science, P.O. Box 76, Epping, NSW1710, Australia
Matthew Whiting
Affiliation:
CSIRO Astronomy & Space Science, P.O. Box 76, Epping, NSW1710, Australia
*
Author for correspondence: Ray P. Norris, E-mail: raypnorris@gmail.com
Rights & Permissions [Opens in a new window]

Abstract

We have found a class of circular radio objects in the Evolutionary Map of the Universe Pilot Survey, using the Australian Square Kilometre Array Pathfinder telescope. The objects appear in radio images as circular edge-brightened discs, about one arcmin diameter, that are unlike other objects previously reported in the literature. We explore several possible mechanisms that might cause these objects, but none seems to be a compelling explanation.

Type
Research Article
Copyright
© The Author(s), 2021. Published by Cambridge University Press on behalf of the Astronomical Society of Australia

1. Introduction

Circular features are well known in radio astronomical images and usually represent a spherical object such as a supernova remnant, a planetary nebula, a circumstellar shell, or a face-on disc such as a protoplanetary disc or a star-forming galaxy. They may also arise from imaging artefacts around bright sources caused by calibration errors or inadequate deconvolution. Here we report the discovery of a class of circular feature in radio images that do not seem to correspond to any of these known types of object or artefact. For brevity, and lacking an explanation for their origins, we dub these objects ‘Odd Radio Circles’, or ORCs.

These objects were first discovered in the Pilot Survey (Norris et al. Reference Norris2020) of the Evolutionary Map of the Universe (EMU: Norris et al. Reference Norris2011), which is an all-sky continuum survey using the newly completed Australian Square Kilometre Array Pathfinder telescope (ASKAP) (Johnston et al. Reference Johnston2007, Reference Johnston2008; McConnell et al. Reference McConnell2016).

Three ORCs (ORCs 1–3) were discovered by visual inspection of the images from the survey. Their rarity, together with their low surface brightness, makes it unlikely that they could have been discovered in previous radio surveys.

We discovered a further ORC (ORC 4) in archival data taken with the Giant MetreWave Radio Telescope (GMRT) (Ananthakrishnan & Pramesh Rao Reference Ananthakrishnan and Pramesh Rao2001) in March 2013. In most respects, it is very similar to ORCs 1–3, but differs in having a central radio continuum source.

We observed three of the ORCs with the Array (ATCA: Wilson et al. Reference Wilson2011) and the Murchison Widefield Array (MWA: Tingay et al. Reference Tingay2013) to provide independent confirmation of the reality of these objects and to provide spectral index information.

The EMU Pilot Survey area is covered by Data Release 1 of the Dark Energy Survey (DES: Abbott et al. Reference Abbott2018), and we use DES data throughout this paper, together with infrared data from the Wide-field Infrared Survey Explorer (WISE) (Wright et al. Reference Wright2010), and, for ORC 4, optical data from the Sloan Digital Sky Survey SDSS (Aguado et al. Reference Aguado2019).

In Sections 2 and 3 of this paper, we describe the observations and results. In Section 4, we present the observational properties of the ORCs, and in Section 5 we discuss possible causes of this phenomenon.

Throughout this paper, we assume a flat $\Lambda$CDM cosmology, based on Planck Collaboration et al. (2018), with the following parameters: $\text{H}_0 = 67.36$. $\Omega_m = 0.3153$, $\Omega_\Lambda = 0.6847$. For a source with flux density S at frequency $\nu$, we define spectral index $\alpha$ as $S \propto \nu^\alpha$.

2. Observations

2.1. ASKAP observations

ASKAP consists of $36 \times 12$-m antennas, each of which is equipped with a chequerboard Phased Array Feed (PAF), giving a field of view of about $30\ \mathrm{deg}^2$ of the sky, resulting in a high survey speed. A full description of ASKAP may be found in Hotan et al. (2020, in preparation).

The EMU Pilot Survey (Norris et al. Reference Norris2020) (hereafter EMU-PS) consists of ten observations, each lasting 10–12 h, in the period 2019 15 July to 24 November. Between 32 and 36 ASKAP antennas were used in each observation, always including the outer four, with baselines up to 6.4 km, with the remaining antennas within a region of 2.3 km diameter. We used 36 PAF beams, with the beam centres separated by $0.9^{\circ}$, arranged in the ‘Closepack36’ configuration (Norris et al. Reference Norris2020). Specifications of the observations are given in Table 1.

Table 1. EMU pilot survey specifications

We processed the data using the ASKAPsoft pipeline (Norris et al. Reference Norris2020; Whiting et al. Reference Whiting, Voronkov, Mitchell and Askap2017), including w-projection multifrequency synthesis imaging, multiscale clean, and self-calibration.

2.2. ATCA observations

We observed ORC 1 and ORCs 2–3 (Project code C3350) with the ATCA on 2020 April 9–10, at 1.1–3.1 GHz (weighted central frequency after the removal of radio frequency interference = 2 121 MHz), over a period of 2 $\times$ 12 h using the 6A configuration. The data were processed using miriad, using the standard ATCA multi-frequency synthesis process, and cleaned with a robustness of +0.5. The observations were affected by radio frequency interference, resulting in a relatively high rms of $\sim$10–15 $\upmu\text{Jy beam}^{-1}$, with a synthesised beamsize of 5.0 $\times$ 4.3 arcsec.

2.3. GMRT observations

ORC-4 was found in archival 325 MHz GMRT data taken on the cluster source project (ID 23 017) (Venturi et al. Reference Venturi2017) on the cluster Abell 2142. The data were reprocessed with the SPAM pipeline (Intema et al. Reference Intema, Jagannathan, Mooley and Frail2017) yielding a sensitivity of 47 $\upmu\text{Jy beam}^{-1}$ at the field center and a resolution of 9.4 $\times$ 7.9 arcsec. At the location of the ORC, the sensitivity is 66 $\upmu\text{Jy beam}^{-1}$, mainly due to primary beam attenuation.

2.4. MWA observations

The observations with the Murchison Widefield Array (Tingay et al. Reference Tingay2013) in its ‘Phase II’ extended configuration (MWA–2: Wayth et al. Reference Wayth2018) were taken as part of project G0045 which aims to image diffuse, non-thermal radio emission in galaxy clusters across five frequency bands of $\Delta\nu = 30$ MHz centered on 88, 118, 154, 185, and 216 MHz. As these observations have a large field of view, ORC1 and ORC2 fall within the primary beam main lobe half power point in one of the observed fields: ‘FIELD4’. MWA observations of this form are taken in a 2-min snapshot mode due to a fixed primary beam. All data undergo radio frequency interference flagging using AOFlagger (Offringa et al. Reference Offringa2015). To increase integration time on a source, large numbers of 2-min snapshots are independently calibrated with the full-Jones Mitchcal algorithm (Offringa et al. Reference Offringa2016), independently imaged, and finally stacked in the image plane as a linear mosaic.

MWA-2 data reduction for this work follows the process described in detail by Duchesne et al. (Reference Duchesne, Johnston-Hollitt, Zhu, Wayth and Line2020), using a purpose-written MWA-2 pipeline (piip).Footnote a

2.5. Measurement of flux density and spectral index

To measure flux densities, we used the measure_source.py tool,Footnote b in which a polygon is drawn around the source (Hurley-Walker et al. Reference Hurley-Walker2019). Estimated uncertainties include a noise term and also the uncertainty in the flux density scale for each measurement.

Spectral indices were derived by weighted least-squares fitting to the flux densities listed in the Tables, assuming a power-law spectral energy distribution. The uncertainty on the spectral index was estimated using the leastsq algorithm in scipy.optimize.Footnote c

2.6. Optical/IR properties

Photometry for the galaxies that may be associated with the ORCs were taken from the DES (Abbott et al. Reference Abbott2018), WISE (Wright et al. Reference Wright2010), and GALEX (Morrissey et al. Reference Morrissey2007) surveys and are listed in Tables 23.

Table 2. Properties of the optical/IR sources near ORCs 1–2

Redshifts are taken from a Bilicki et al. (2016), b Drlica-Wagner et al. (2018), c Zou et al. (2019).

Table 3. Properties of the optical/IR source at the centre of ORC 4

The photometric redshifts listed in Tables 23 typically have quoted uncertainties of $\sigma_z \sim$ 0.01–0.02, but on the other hand, we have found that independent photometric redshifts by different authors of radio sources in the EMU-PS field typically differ by 0.1–0.2, and so we regard this as being a more realistic uncertainty.

Galaxy classification was estimated using the WISE colours, following the WISE colour-colour diagram (Wright et al. Reference Wright2010), and also using the DES and GALEX colours in a colour-magnitude diagram (e.g. Masters et al. Reference Masters2011; Schawinski et al. Reference Schawinski2014). However, these classifications are quite uncertain because they are redshift-dependent and most of the galaxies do not have a spectroscopic redshift.

3. Results

Figure 1 shows the radio and optical images of the ORC 1 (top), ORCs 2 & 3 (middle), and ORC 4 (bottom), and their positions are listed in Table 4. Measured flux densities and spectral indices are shown in Table 5.

Figure 1. ASKAP radio continuum images at 944 MHz of ORCs 1–3 from the EMU Pilot Survey (Norris et al. Reference Norris2020) and at 325 MHz of ORC 4 from GMRT archival data. On the left are greyscale images, with the synthesized beam shown in the bottom left corner, and radio contours overlaid onto DES optical images on the right, as described in the text. The contour levels for ORC 1 and ORC 2 are 45, 90, 135, 180, 225, and $270\ \upmu\text{Jy\,beam}^{-1}$, and contour levels for ORC 4 are 150, 250, 400, 600, and $800\ \upmu\text{Jy\,beam}^{-1}$. Sources of interest are labelled (see Tables 3 and 4).

Table 4. The new circular objects (‘ORCs’)

Table 5. Integrated flux densities (in mJy) and spectral indices of the radio sources associated with ORCs 1–3. The quoted uncertainties include a contribution from the systematic uncertainty in the flux density scale. Measurements at 88, 118, and 154 MHz are made with MWA. Measurements at 944 MHz are made with ASKAP. Measurements at 2 121 MHz are made with ATCA. MWA measurements of ORC 1 include the flux density of source S, and MWA measurements of ORC 2 include the flux density of source C. However, these will have a negligible effect on the fitted spectral indices

It is difficult to appreciate the structure of these sources in a simple greyscale image with a linear transfer function, so in Figures 2 and 3 we show images that have been modified to bring out features of interest that may not be apparent in Figure 1. The details of the transformation applied are shown in the figure captions.

Figure 2. An image of ORC 1 based on the same data as shown in Figure 1, at native resolution, but enhanced to show faint features, particularly the internal structure or ‘spokes’ of the ORC. We made two images of the radio data using kvis: (a) an image using a square root transfer function to trace finer structure over the ORC region and assigned the colour turquoise and (b) an image using a logarithmic transfer function and assigned the colour blue-green. These two radio images were combined using the screen algorithm. For the optical data, the DES bands g, r, i, and z were assigned turquoise, magenta, yellow and red, respectively, and combined using GIMP. The optical/NIR image and the radio image were then combined using a masking technique.

Figure 3. An image of ORCs 2–3 based on the same data as shown in Figure 1, but enhanced to emphasise the diffuse emission. The green image is the original EMU-PS image at native resolution. The red image and contours were produced by filtering out the small-scale emission using the multi-resolution technique described by Rudnick (Reference Rudnick2002) with a filter size of 38 arcsec and then convolving the residual with a Gaussian kernel of 40 $\times$ 40 arcsec full-width half-maximum (shown as the circle in the lower left of the image).

None of the ORCs has obvious optical, infrared, or X-ray counterparts to the diffuse emission, although in two cases there is an optical galaxy near the centre of the radio emission.

ORCs 1–2 were subsequently observed at 2.1 GHz with the Australia Telescope Compact Array (ATCA) resulting in the images shown in Figure 4 and were also found in previously observed data at 88–154 MHz with the MWA.

Figure 4. ATCA radio continuum images of ORCs 1–3 at a frequency of 2.1 GHz. The image rms is about 12 $\upmu\text{Jy beam}^{-1}$ in both images. ORCs 1 and 2 are only faintly visible in these higher frequency images because of their steep spectral index and higher resolution, while ORC 3 is below the rms noise level. This image shows that sources A and B in ORC 2 are the two halves of an FRI radio galaxy.

Our current radio data do not enable the measurement of polarisation or in-band spectral index for such faint diffuse objects.

4. Properties of the ORCs

4.1. ORC 1: EMU PD J210357.9–620014

This radio source (diameter $\sim$80 arcsec) has a near circular, edge-brightened filled morphology with brighter spots around its periphery. Figure 5 shows the radio contours overlaid on the DES 3-color (gri) optical image. There is no optical emission corresponding to the ring. The typical radio brightness over ORC 1 in the ASKAP image is $\sim$130 $\upmu\text{Jy beam}^{-1}$, with an integrated flux density of 6.26 mJy. By comparing our data from all the radio observations, we derive a spectral index of the diffuse emission of $-1.17 \pm 0.04$. Such a steep spectral index may indicate an ageing electron population, as often found in SNRs, cluster haloes, and dying radio galaxies (Murgia et al. Reference Murgia, Fanti, Fanti, Gregorini, Klein, Mack and Vigotti2002).

Figure 5. ASKAP radio continuum image of ORC 1 (contours; see Figure 1) overlaid onto a DES 3-color composite image; DES gri-bands are colored blue, green, and red, respectively. We identify two galaxies of interest: ‘C’ lies near the centre of ORC 1 and ‘S’ coincides with the southern radio peak (see Table 3).

On the southern edge of the ring is a bright radio source (labelled ‘S’ in Figure 1) which is associated with a galaxy detected both by WISE (WISE J210257.88–620046.3) (Wright et al. Reference Wright2010) and by GALEX (GALEXASC J210257.91–620045.4) (Morrissey et al. Reference Morrissey2007). The WISE colours indicate that this is a star-forming galaxy, and possibly a starburst or LIRG (luminous infrared galaxy). Zou et al. (2019) measure a photometric redshift of 0.228 for this galaxy.

The radio observations listed in Table 5 show that source S has a spectral index of $\sim-1.71\pm0.35$, making it more likely to be an active galactic nucleus (AGN) than a star-forming galaxy. The space density of radio sources in the EMU-PS at least as bright as source S is $\sim 390\ \text{per \,deg}^2$, giving a $\sim$15% probability that an unrelated source may be located within the ${\sim}1.4\ \text{arcmin}^2$ area of ORC 1. It is therefore possible that this is an unrelated object, physically unconnected to the diffuse object.

At the centre of the ring is a faint optical object (WISE J210258.15–620014.4), labelled ‘C’ in Figure 1, with no detectable radio emission in any of our observations. The enlarged DES gri-band image in Figure 5 shows that this central object is extended E-W with a total extent of about 6 arcsec, (c.f. the $\sim$1 arcsec resolution of DES) and is probably a galaxy.

The WISE colours for the central object (W1–$W2 = 0.081$, W2–$W3 < 2.045$) do not enable us to distinguish between a star-forming galaxy or a quiescent galaxy, but the optical colours suggest a quiescent galaxy. Zou et al. (2019) measure a photometric redshift of 0.551 for this galaxy.

At $z=0.551$, 6 arcsec corresponds to a diameter of 39 kpc, making it unlikely to be a normal star-forming galaxy at high redshift. The local space density of galaxies ($6\,333\ \text{per deg}^2$ at $W1<15$) mean that there is a 15% probability of there being a source brighter than 15 mag within 10 arcsec of the centre. We therefore consider it possible that this is an unrelated object.

One arcmin to the south-east of the radio source is a 16-mag galaxy (WISE J210308.23–620055.0) which is very elongated north-south in the optical image, and also appears as an elongated radio source. The WISE colours of this source are that of a spiral, so we consider it likely to be an edge-on spiral galaxy. It appears to be unconnected to the diffuse radio object and will not be discussed further.

4.2. ORC 2: EMU PD J205842.8–573658

Like ORC 1, this unusual radio source (diameter $\sim$80 arcsec) has a near circular, edge-brightened filled morphology with brighter spots around its periphery. Figure 6 shows the radio contours overlaid on the DES 3-color (gri) optical image.

Figure 6. ASKAP radio continuum image of ORC 2 (contours; see Figure 1) overlaid onto a DES 3-color composite image; DES gri-bands are colored blue, green, and red, respectively. We identify three sources of interest, annotated A, B, and C (see Table 4).

The typical brightness over the diffuse object is $\sim$100–200 $\upmu\text{Jy beam}^{-1}$, and the integrated flux density over the object (excluding sources A, B, and C) is $\sim$6.97 mJy at 944 MHz.

To the north-east of ORC 2 in the ASKAP image is a pair of strong radio components. The ATCA image (Figure 4) shows a flat-spectrum source between them which is not visible on the ASKAP image, but which appears to be the central component of a double-lobed radio source, and which is within $\sim$1 arcsec of the nearby optical galaxy labelled ‘B’, which is a 2.5 arcsec extended galaxy, at a redshift of 0.311.

The space density of components in the EMU-PS at least as strong as source B is about $219\ \text{per \,deg}^2$, so the probability of finding B within 1 arcmin of the ORC is about 19%, and so while it is tempting to consider that this source is associated with the ORCs, it is also possible that this source is an unrelated object. We discuss a possible role for this source is Section 5.8.

Within the eastern limb of ORC 2 in the ASKAP image is a compact radio source which is coincident with the galaxy labelled C in Table 2, which appears in the DES image to resemble an edge-on disk galaxy. Its colour of $g-r=0.43$ confirms that it is a star-forming galaxy, and so we classify this galaxy as an edge-on spiral (e.g. Masters et al. Reference Masters2011). The space density of components in the EMU-PS at least as strong as source C is about $1\,000\, \text{per}\,\text{deg}^2$, so the probability of finding B within 1 arcmin of the ORC is about 90%, and so we consider it likely that this source is an unrelated object.

4.3. ORC 3: EMU PD J205856.0–573655

Immediately to the east of ORC 2 is a another faint circular patch, which is visible in two independent observations with ASKAP, but is too faint to be seen in ATCA or MWA data. This faint diffuse patch, which we call ORC-3, has a typical brightness of $\sim$50–80 $\upmu\text{Jy beam}^{-1}$, and the integrated flux density over the object is $\sim$1.86 mJy at 944 MHz. It has a spectral index of $\sim -0.50$, although this is quite uncertain because it depends on one detection bracketed by two upper limits.

ORC 3 appears to be a fainter example of the ORC phenomenon exhibited by ORCs 1 and 2, but it is puzzling that it is so close to ORC 2. Within the EMU-PS, there are two very obvious ORCs (ORCs 1 and 2) and about six fainter ‘candidate ORCs’, found during a careful visual inspection of the area of the EMU-PS. While this is not a rigorously defined statistical sample, it enables us to estimate a space density of ${\lesssim}0.03\ \mathrm{per \,deg}^2$. The probability of one of these lying within 2 arcmin is therefore $\lesssim$$10^{-4}$. We therefore consider it unlikely that this is a chance association, but instead deduce that ORC 2 and ORC 3 are in some way related.

Assuming that ORC2 and 3 are driven by the same mechanism as the other ORCs, this militates against the ORCs being caused by a transient event.

4.4. ORC 4

ORC 4 was discovered serendipitously by Intema in archival observations (Venturi et al. Reference Venturi2017) of the cluster Abell 2142 taken at 325 MHz with the Giant MetreWave Radio Telescope (GMRT: Ananthakrishnan & Pramesh Rao Reference Ananthakrishnan and Pramesh Rao2001) in March 2013. Note that Abell 2142 is 14 arcmin away from ORC4, at a redshift of 0.091, so is unlikely to be physically associated. Intema viewed hundreds of GMRT images before finding ORC4, suggesting these sources are rare. In most respects ORC 4 is very similar to ORCs 1–3, but differs in having a central radio continuum source.

ORC 4 is marginally detected at 150 MHz in TGSS (Intema et al. Reference Intema, Jagannathan, Mooley and Frail2017) and at 1.4 GHz in NVSS (Condon et al. Reference Condon, Cotton, Greisen, Yin, Perley, Taylor and Broderick1998), but in both cases, the image quality is poor because of poor sensitivity, UV coverage, and low resolution. The measured total flux densities are given in Table 6.

Table 6. Measured flux densities (in mJy) of the radio sources associated with ORC 4. 150 MHz data are from TGSS (Intema et al. Reference Intema, Jagannathan, Mooley and Frail2017), 325 MHz data are from the observations described in the text, and 1 400 MHz data are from the NVSS survey (Condon et al. Reference Condon, Cotton, Greisen, Yin, Perley, Taylor and Broderick1998). The flux densities for the ring are the total flux densities (including source G) measured in a 2 arcmin diameter aperture and that for source G is from a fitted Gaussian component

Combining all aperture flux measurements, we fit a single spectral index $\alpha = -0.92 \pm 0.18$.

ORC 4 differs from the other ORCs in having a central radio source, labelled ‘G’ in Figure 1, which is listed in the NVSS catalogue (Condon et al. Reference Condon, Cotton, Greisen, Yin, Perley, Taylor and Broderick1998) as NVSS J155524+272629. It is coincident with a red galaxy seen in both SDSS and Pan-Starrs images and detected by WISE. The compact source has an unambiguous optical/IR counterpart in SDSS (SDSS J155524.63+272634.3) and WISE (WISEA J155524.65+272633.7) with a photometric redshift of 0.39 (Bilicki et al. Reference Bilicki2016) implying a linear size of the ring of 410 kpc $\times$ 350 kpc.

4.5. Summary of ORC properties

The four ORCs discussed here are similar in displaying a strong circular symmetry. They are also similar in (a) having a diameter about 1 arcmin, (b) having a steep spectral index $\alpha \sim -1\,$ (c) being at high Galactic latitude. They differ in that (a) two of them have a central galaxy while two do not and (b) three of them (ORCs 1, 2, and 4) consist of a partly filled ring while one (ORC 3) seems to be a uniform disc. The radial profiles of the ORCs are shown in Figure 8. ORC 1, ORC 2, and ORC 4 are similar in having a filled but edge-brightened disc, while ORC 3 decreases monotonically from the centre.

Figure 7. GMRT radio continuum image of ORC 4 (contours; see Figure 1) overlaid onto a SDSS 3-color composite image; SDSS gri-bands are colored blue, green, and red, respectively.

Figure 8. Radial profiles of the diffuse emission of the ORCs, measured from the ASKAP and GMRT data and integrated radially around the ORC, assuming circular symmetry, after removing compact sources A and B in ORC 2. Error bars are $\sigma$/sqrt (number of independent beam volumes), where $\sigma=25\,{\upmu}\text{Jy beam}^{-1}$ for the EMU data (ORCs 1, 2, and 3), and $60\,\upmu\text{Jy beam}^{-1}$ for the uGMRT data (ORC 4).

There is also the puzzling fact that two of them (ORCs 2 and 3) are very close together, implying that these two ORCs have a common origin. No such counterpart is visible for ORCs 1 and 4 above the noise in the image, implying that any such counterpart must be weaker than $\sim$10% of the visible ORC. A counterpart similar to ORC 3 would be visible in both cases. We cannot of course exclude a counterpart hidden behind the visible ORC, and note the faint extended emission slightly to the east of ORC4 in Figure 1, which might be interpreted as a second ring behind the first.

If the central galaxy in ORC 4 is associated with the ring, then the ring is at a redshift of 0.39 and has a size of 410 $\times$ 350 kpc.

We estimated proper motion by comparing the positions of ORCs 1 and 2 in the ASKAP (taken in November 2019) and ATCA observations (taken in March 2020). This is difficult because of their diffuse nature and the low SNR of the ATCA observations, but we estimate an upper limit of about 4 arcsec on any spatial shift of the diffuse emission between the two sets of observations, which rules out a solar system object.

5. Discussion

Our argument that these are new types of object naturally provokes two questions: (a) Are they real? and (b) are they new?

We propose that at least ORCs 1 and 2 are certainly real because they have been independently detected by two different telescopes using different software, which produce images of rings with the same diameter.

We propose that they are new because nowhere in the literature can we find an example of an object with the striking circularity of the ORCs, except for starburst rings and the Galactic objects which we argue below are not the cause of the ORCs.

We now consider whether these objects might be explained by known phenomena. For the purposes of this discussion, we assume that all four to have a similar cause, although we acknowledge that it is possible that we may have more than one type of object represented in the class of ORCs. For example, it could be that the single ORCs are produced by a transient event in a galaxy, while the double ORC is produced by a binary phenomenon such as the two jets from an AGN, even though no previously known double-radio-lobed AGN resembles ORC 2 and 3.

5.1. Imaging artefact

Circular artefacts are well known in radio images and are often caused by imperfect deconvolution of a strong source, resulting in some fraction of the telescope point spread function appearing in the final image. However, ORCs 1 and 2 are clearly imaged with two different telescopes, at different times, with different processing software, and all ORCs have been detected by more than one telescope. We therefore consider artefacts to be a very improbable explanation.

5.2. Supernova remnant

The morphology of the ORCs is remarkably similar to some typical supernova remnants (SNRs) (Anderson et al. Reference Anderson2017; Bozzetto et al. Reference Bozzetto2017; Green Reference Green2019; Joseph et al. Reference Joseph2019; Maggi et al. Reference Maggi2019). We calculate the probability that the ORCs are SNRs as follows.

First, we note that the 294 known SNRsFootnote d (Green Reference Green2019) have a Galactic latitude distribution, as shown in Figure 9, which is strongly peaked at $ b \sim 0$, but with outliers extending out to $\textit{b} = -21.5^{\circ} $ and $\textit{b} = +15^{\circ} $. The Galactic latitude of the four ORCs discussed here are $-39.0^{\circ} $, $-39.5^{\circ} $, $-39.6^{\circ} $, and $+49.4^{\circ} $, all of which are well outside the range of known SNRs, and so it seems unlikely that these four objects are members of this population.

Figure 9. The probability density of the Galactic latitudes of known SNRs. The lines at the bottom show the measured latitudes, taken from (Green Reference Green2019), and the solid curve above shows them convolved with a Gaussian kernel density estimator, to show the distribution more clearly. A SNR at a Galactic latitude of $-39.5^{\circ} $ would be well outside the range of all known SNRs and outside the range of this plot. The grey band shows the 95% confidence interval of probability density predicted by our model, which can be seen to be a good fit to the data.

To quantify this, we use a subset of SNRs with measured distances (Vukotić et al. Reference Vukotić, Ćiprijanović, Vučetić, Onić and Urošević2019) to construct a model of the SNR distribution in the Galaxy. The distribution of z values (the distance from the mid-plane) of these SNRs is roughly Gaussian with a mean of 3.7 pc and a standard deviation of 127 pc. We then simulate a population with this distribution of z values and a uniform distribution of x and y coordinates, within the cylinder of the Galaxy bounded by the solar circle which has a radius of 8.2 kpc (Gravity Collaboration et al. 2019). We then measure the Galactic latitude of this population as observed from Earth and show the resulting distribution overlaid on the real data in Figure 9. From these simulations, we can calculate the probability of obtaining SNRs within the solar circle at latitudes $-39.0 ^{\circ} $, $-39.5^{\circ} $, $-39.6^{\circ} $.

We find that the probability that at least one of these is a member of the parent population of SNRs is 0.055, and that the probability of all three belonging to the parent population of SNRs is $2.1 \times 10^{-5}$. We therefore consider it unlikely that these are SNRs, although we cannot rule out the possibility that we have discovered a new population of high-latitude SNRs.

5.3. Galactic Planetary Nebula

Planetary nebulae (PNe) can also appear as diffuse disks of radio emission (Meixner et al. Reference Meixner, Skinner, Keto, Zijlstra, Hoare, Arens and Jernigan1996).

3 709 candidate PNe are currently listed in the HASH catalog (Parker, Bojičić, & Frew Reference Parker, Bojičić, Frew, Liu, Stanghellini and Karakas2017), of which 2 627 are ‘true’ PNe (i.e. PNstat=T), of which 2 226 lie within the solar circle. Unfortunately, very few reliable distances are known, precluding the construction of a model as we used for SNRs. Instead we model the angular distribution of the 2 226 PNe. At the Galactic latitude of the ORCs ($-30^{\circ} < \textit{b} < -50^{\circ} $), the HASH catalog lists 3 PNe, giving a sky density of one PNe per 919 square degrees, so that the expected number of PNe in the 270 deg$^2$ EMU-PS is $\sim 0.3$, giving a probability of $\sim$0.3 of finding one in the EMU-PS field, or $\sim$0.1 of finding three in the EMU-PS field. Thus, PNe seem unlikely as a possible mechanism for ORCs, but cannot be completely excluded on the basis of the latitude distribution alone.

The radio emission of PNe is generated by thermal-free emission and is therefore expected to have a positive spectral index $\alpha$ (Hajduk et al. Reference Hajduk, van Hoof, Śniadkowska, Krankowski, Błaszkiewicz, Dbrowski and Zijlstra2018), which might vary from $\alpha \sim$–0.1, in the optically thin case to $\alpha \sim$ +2 in the optically thick case. Gruenwald & Aleman (Reference Gruenwald and Aleman2007) and Hajduk et al. (Reference Hajduk, van Hoof, Śniadkowska, Krankowski, Błaszkiewicz, Dbrowski and Zijlstra2018) show a good fit between these calculated spectral indices and observations. This is quite different from the steep spectral indices for the ORCs listed in Tables 5 and 6.

A wider range of spectral indices are reported in two surveys (Bojičić et al. Reference Bojičić, Parker, Filipović and Frew2011; Wang et al. Reference Wang2018). However, both these surveys suffer from large uncertainties because of poor frequency coverage and mismatched instrumentation.

We therefore consider it unlikely that the ORCs are PNe.

5.4. Ring around Wolf-Rayet star

Wolf-Rayet (WR) stars can eject bubbles of material that appear at both radio and optical wavelengths as a ring of emission (Cichowolski et al. Reference Cichowolski, Pineault, Arnal, Testori, Goss and Cappa2001). 667 WR stars are known in our GalaxyFootnote e (Rosslowe & Crowther Reference Rosslowe and Crowther2015), although it is estimated that there could be as many as 2 000. However, the radio emission associated with WR stars is typically of size a few arcsec or less (Abbott et al. Reference Abbott, Beiging, Churchwell and Torres1986), and they generally have a flatter spectral index than the ORCs (Dougherty & Williams Reference Dougherty and Williams2000). The 667 known WR stars have Galactic latitudes ranging from $-10.1^{\circ} $ to $+6.5^{\circ} $ so the probability of finding one at a latitude of $\sim-39.5$ is very small. We therefore consider WR stars to be an unlikely cause of the ORCs.

5.5. Face-on star-forming galaxy or ring galaxy

Ring-shaped star-forming galaxies such as the Cartwheel galaxy are well known (Higdon Reference Higdon1996), and some nearby, nearly face-on spiral galaxies have star-forming rings, typically detected in the H$\alpha$ emission line and in radio continuum (Pogge & Eskridge Reference Pogge and Eskridge1993; Forbes et al. Reference Forbes, Norris, Williger and Smith1994). An example detected by ASKAP is shown in Figure 10. However, in all known cases, these ring galaxies and starburst rings are bright at optical wavelengths, which contrasts with the lack of measurable optical emission from the ORCs on a similar scale to the radio emission. If the ORC emission corresponded to the size of a typical disk galaxy ($\sim$10–20 kpc) it would lie at a distance of about 25–50 Mpc ($z\sim 0.01$). The emission from such a large, nearby face-on disk galaxy would be easily detectable in the DES imaging. We therefore do not consider these to be a likely explanation for ORCs.

Figure 10. ASKAP 944 MHz radio continuum image of the face-on, star-forming galaxy NGC 6935 ($v = 4\,543\,\text{km\,s}^{-1}$), as observed in the EMU-PS. The ring is about 2 kpc in diameter.

5.6. Galactic wind termination shock

The winds from star-forming galaxies create a bubble surrounded by a termination shock. For a Milky Way-like galaxy forming $\sim$few $\ifmmode{{\rm M}_\odot}\else{ M_\odot}\fi$/year in an isotropic environment, a roughly spherical galactic wind termination shock at a distance of $\sim$ (few - 10) $\times$ 10 kpc is predicted (Jokipii & Morfill Reference Jokipii and Morfill1987; Völk & Zirakashvili Reference Völk and Zirakashvili2004); to reproduce the observed $\sim$1 arcmin angular diameter scale of an ORC, a galaxy with a termination shock at 30 kpc would then need to be located at an angular diameter distance of $\sim 100\ \text{Mpc}$ or $z \sim 0.02$.

This shock at velocity v will accelerate cosmic ray electrons to an energy limited by inverse Compton cooling of

\begin{equation*}E_{e,\max} \sim 10^{13} \ {\rm eV} \ \left(\frac{B}{0.1 \ \upmu {\rm G}} \right)^{-1/2}\left(\frac{v}{500 \ {\rm km\,s^{-1}}} \right)\end{equation*}

where we have normalised v to a conservatively small characteristic flow speed and a 0.1 $\upmu$G field (Crocker et al. Reference Crocker, Bicknell, Taylor and Carretti2015) This implies that the termination shock associated with a star-forming galaxy should be easily capable of accelerating CR electrons to the $\sim$ few $\times$ 10 GeV energies at which they would produce synchrotron radiation at $\sim$1 GHz.

The energetics of this scenario are also reasonable: assuming that non-thermal electrons account for 1% of the mechanical power dissipated at the putative shock, a mJy source located at $z \sim 0.02$ requires a shock dissipating $\sim 10^{36-37} \text{erg s}^{-1}$ which can be easily energised by a host with a star formation rate of a few solar masses per year.

While this is a theoretical possibility, such a shock has not yet been observed elsewhere.

5.7. A bent-tail radio galaxy

In a bent-tail radio galaxy, the two jets are bent/curved by their relative motion through the intra-cluster medium. In the case of the source shown in Figure 11, the bending is so severe as to form almost a circle, and its formation would require additional forces or jet variations over and above relative motion. In the case of ORC 1, it could be argued that source S is the host galaxy. However, jets from SF galaxies are rare, and bent ones have not yet been seen. Similar to the ORCs, there is faint central emission between the bent tails, approximately 30% as bright as the tails. However, no bent-tail galaxy, including the source shown in Figure 11, shows the striking circular symmetry of the ORCs, and so we do not consider this to be a likely cause of the ORCs.

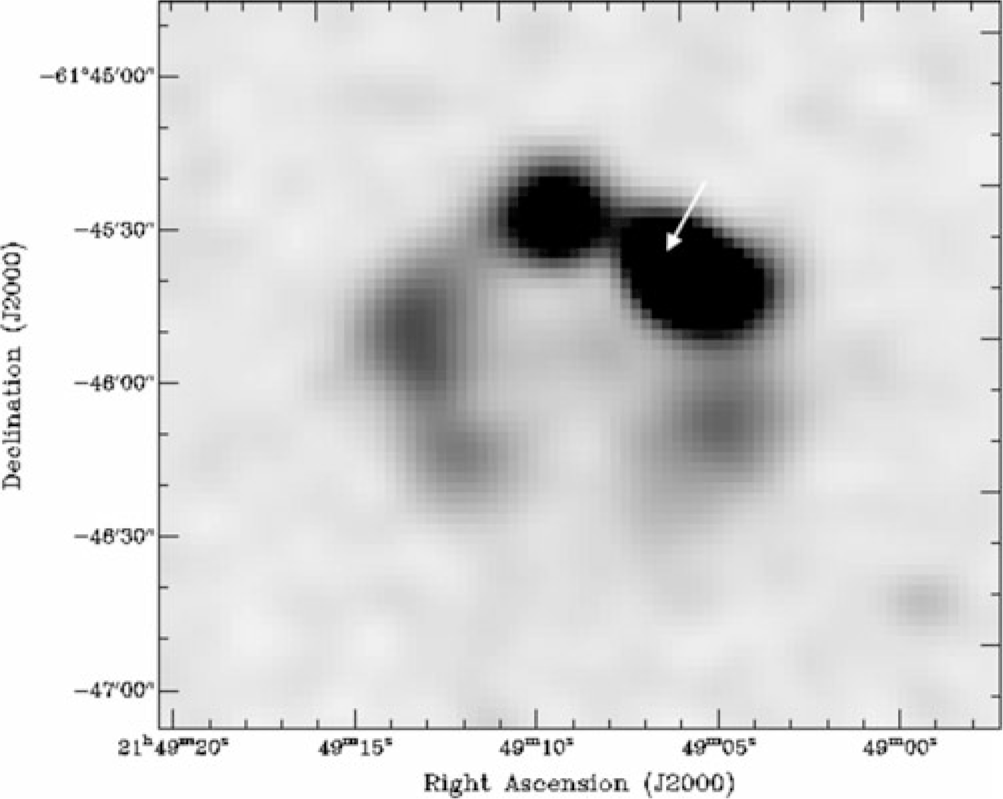

Figure 11. EMU-PS image of the bent-tail radio galaxy EMU PD J214905.4-614542. The position of the host galaxy is indicated by an arrow. No redshift is available for this source.

5.8. Lobe from a double-lobed radio galaxy, viewed side-on

The ORCs might, in principle, be one lobe of a double-lobed radio galaxy. For example, the radio galaxy Fornax A has two near-circular radio lobes, shown in Figure 12. However, we consider this unlikely primarily because the ORCs are strikingly circular, and in most cases edge-brightened, unlike the morphology typically seen in double-lobed radio galaxies.

Figure 12. ASKAP 944 MHz radio continuum image of the double-lobe radio galaxy Fornax A, from unpublished ASKAP data.

ORCs 1 and 4 also have no corresponding lobe, although it is possible that a corresponding lobe may be below our sensitivity threshold.

Because ORCs 2 and 3 are close together, it is tempting to consider them as the lobes of a radio galaxy. However, there is no sign of a central optical or radio host source between the two lobes. Source C in the limb of ORC 2 could potentially be a host, but it is an edge-on star-forming galaxy, which rarely host double-lobed radio sources.

A possible host is the double-lobed AGN (sources A and B in Figure 1) close to ORCs 2 and 3. However, although the AGN points roughly at ORC2, it does not point at ORC3, and it is not located between them, but to the north.

5.9. Lobe from a double-lobed radio galaxy, viewed end-on

If a radio-loud AGN is viewed ‘down the barrel’ of the jet, the end-on radio lobe can appear as a roughly circular object, as seen in some BL Lac sources (Ulvestad, Johnston, & Weiler Reference Ulvestad, Johnston and Weiler1983). If the central radio source were precessing, then the central spot could in principle be a circle, although this has not yet been observed. However, such sources are accompanied by (in the case of a BL Lac source) a bright, blue, unresolved (sub-arcsec) optical counterpart, or (in the case of a radio galaxy) by a quiescent galaxy. In such sources, the central radio emission is brighter than the fainter halo, and this is not seen in the ORCs.

This model is also inconsistent with the inferred physical sizes. If the ORCs are at redshifts at $z \sim$ 0.3, which is consistent with faint optical counterpart galaxies and with the measured redshift of source G in ORC 4, then the transverse sizes would be of order of 400 kpc, which is about an order of magnitude greater than observed in other radio galaxies.

Another possibility is that a population of radio galaxies with edge-brightened lobes, such as the one in Figure 13, could provide the parent population. This source has a total extent of 150” and a width of 40”, with an edge on the southern lobes that is 30–50% brighter than the central regions of the lobe. Such extremely faint sources would be detected more easily when viewed end-on, where they would appear ORC-like. However, such sources would still have a bright central AGN, which is not seen in all ORCs, and this model suffers from the same problem as the previous model: the inferred transverse sizes of the lobes of hundreds of kpc is an order of magnitude greater than is observed in other radio galaxies.

Figure 13. EMU-PS image of the edge-brightened double-lobe radio galaxy EMU PD J210931.3-602806. No redshift is available for this source.

ORC-like structures could also appear from the end-on view of bubbles or tori from buoyantly rising old lobes of radio galaxies in a cluster atmosphere (Churazov et al. Reference Churazov, Brüggen, Kaiser, Böhringer and Forman2001; Randall et al. Reference Randall, Clarke, Nulsen, Owers, Sarazin, Forman and Murray2010). In a later stage of evolution, these could even be re-energized and become visible through collisions with shocks (Kang Reference Kang2018) and be responsible for elliptical ring-like radio ‘relics’ produced during cluster mergers (Bagchi et al. Reference Bagchi, Durret, Neto and Paul2006; Paul et al. Reference Paul, Iapichino, Miniati, Bagchi and Mannheim2011; Kale et al. Reference Kale, Dwarakanath, Bagchi and Paul2012), if seen edge on. However, these suffer from the problems that (a) such relics do not have the strong circular symmetry of the ORCs and (b) as discussed in Section 5.10, no known cluster is associated with the ORCs.

Another possibility is that a radio galaxy can leave behind a blob of plasma, which can then form a vortex ring if it encounters a shock. Although the initial shape of the ring is likely to be irregular, reflecting the irregular intersection cross section, the vortex ring is self-propagating and tends to circularize with time (Nolting et al. Reference Nolting, Jones, O’Neill and Mendygral2019a,b). Such a blob/shock encounter was proposed to explain the large ring at the end of NGC 1265 (Pfrommer & Jones Reference Pfrommer and Jones2011). After the AGN has turned off, the re-energized synchrotron-emitting ring may not show any obvious connection to its parent galaxy. We consider this to be a possible, although unproven, mechanism to explain the ORCs.

5.10. Cluster halo

Clusters of galaxies often show diffuse radio halos about an arcmin or more in diameter (Feretti et al. Reference Feretti, Giovannini, Govoni and Murgia2012; van Weeren et al. Reference van Weeren, de Gasperin, Akamatsu, Brüggen, Feretti, Kang, Stroe and Zandanel2019). However, their morphology is typically irregular and punctuated by radio emission from their constituent galaxies, and sometimes with a diffuse relic towards the edge. Radio halo brightness profiles typically peak at the centre and decrease radially without any ring-like structures. They are often observed as patchy, but none, to the best of our knowledge, shows the circularly symmetric edge-brightening seen in the ORCs. Furthermore, cluster halo emission is generally accompanied by a cluster of galaxies, and no cluster of galaxies is seen within the ORCs, nor listed in any of the cluster catalogues covering this area (listed by Manojlović et al. 2020, in preparation).

We therefore consider it unlikely that the ORCs are cluster halos. The possibility that ORCs are related instead to radio ‘relics’ seen at the peripheries of merging clusters is discussed in Section 5.9.

5.11. Einstein ring

Gravitational lensing of background sources can produce arcs of emission. If the source, lens, and observer are aligned, then the lensed image can take the form of a so-called Einstein ring, typically detected in the optical (e.g. Belokurov et al. Reference Belokurov2007). For example, the radio gravitational (compound) lens PKS 1830–211, consists of a $\sim$1 arcsec diameter radio ring (Jauncey et al. Reference Jauncey1991). However, such Einstein rings are rarely more than a few arcsec in diameter. Much larger gravitational lenses are known (Zitrin et al. Reference Zitrin, Broadhurst, Rephaeli and Sadeh2009) but the lensed image in such cases is irregular, consisting of a number of sub-images, because neither the lensing source nor the background source is sufficiently smooth and axisymmetric to produce a circle. A ring similar to the ORCs could in principle be produced by a lensing cluster of mass $2 \times 10^{15}\,{\rm M}_\odot$ at a redshift of 1, but (a) there is no sign of a visible cluster within the rings, and (b) it is unlikely that such a lens would be sufficiently symmetric, and perfectly aligned with the background source, to produce the observed circular symmetry.

6. Conclusion

In this paper, we report a potentially new class of radio-astronomical object, consisting of a circular disc seen only at radio wavelengths, which in some cases is limb-brightened, and sometimes contains a galaxy at its centre. We know they are real because they have been detected using three different telescopes using different software.

A careful search of the literature has found no previous report of such circular radio objects, other than the well-known objects, such as supernova remnants and starburst rings, which we have shown above can not explain our observations. We therefore propose that they are a new class of radio source.

Such a discovery is not unexpected when a new telescope such as ASKAP observes the sky in a relatively unexplored part of the observational parameter space (Norris Reference Norris2017a,b). In particular, no previous telescope was able to survey large areas of sky with the low-surface-brightness sensitivity, combined with good spatial resolution, of ASKAP.

In this paper, we have shown that none of the known types of radio object seems able to explain the ORCs as a class.

For example, if the ORCs are Galactic SNRs, which they strongly resemble, then this implies a population of SNRs in the Galaxy several orders of magnitude larger than the currently accepted figure, or else a new class of SNR which has not previously been reported. If the ORCs are starburst rings, which they also strongly resemble, then we would be able to see the stellar ring counterpart in optical observations.

We speculate that the edge-brightening in some ORCs suggests that this circular image may represent a spherical object, which in turn suggests a spherical wave from some transient event. Several such classes of transient events, capable of producing a spherical shock wave, have recently been discovered, such as fast radio bursts (Bannister et al. Reference Bannister2019), gamma-ray bursts (Ayal & Piran Reference Ayal and Piran2001), and neutron star mergers (Hotokezaka & Piran Reference Hotokezaka and Piran2015). However, because of the large angular size of the ORCs, any such transients would have taken place in the distant past. It also seems unlikely that such an event could cause two ORCs together, as seen in ORCs 2 and 3.

It is also possible that the ORCs represent a new category of a known phenomenon, such as the jets of a radio galaxy or blazar when seen end-on, down the ‘barrel’ of the jet. Alternatively, they may represent some remnant of a previous outflow from a radio galaxy. However, no existing observations of this phenomenon closely resemble the ORCs in features such as their striking circularity, the edge-brightening in most cases, or the absence of a visual blazar or radio galaxy at the centre.

We also acknowledge the possibility that the ORCs may represent more than one phenomenon, and that they have been discovered simultaneously because they match the spatial frequency characteristics of the ASKAP observations, which occupy a part of the observational parameter space which has hitherto been poorly studied. For example, if ORCs 2 and 3 are explained in terms of an unusual radio galaxy, then a spherical wave from a transient event may explain ORCs 1 and 4.

Finally, we note that Kirillov & Savelova (Reference Kirillov and Savelova2020) have proposed that an ORC may represent the throat of a wormhole.

Further work is continuing to investigate the nature of these objects.

Acknowledgements

We thank Heinz Andernach, Paul Nulsen, Tom Jones, Chris Nolting, and many EMU members for valuable comments on a draft of this paper, and Stefan Duchesne for helping with the MWA data. We thank Robert Becker and an anonymous PASA referee for helpful comments. Partial support for LR comes from U.S. National Science Foundation grant AST17-14205 to the University of Minnesota. The Australian SKA Pathfinder is part of the Australia Telescope National Facility which is managed by CSIRO. Operation of ASKAP is funded by the Australian Government with support from the National Collaborative Research Infrastructure Strategy. ASKAP uses the resources of the Pawsey Supercomputing Centre. Establishment of ASKAP, the Murchison Radio-astronomy Observatory and the Pawsey Supercomputing Centre are initiatives of the Australian Government, with support from the Government of Western Australia and the Science and Industry Endowment Fund. We acknowledge the Wajarri Yamatji people as the traditional owners of the Observatory site.

Data availability

All EMU-PS data (tables and images, and uv data) are available from CASDA on http://hdl.handle.net/102.100.100/164555?index=1 or from https://data.csiro.au/dap/public/casda/casdaSearch.zul under project code AS101. A zoomable image of the EMU-PS survey is available on http://emu-survey.org. A listing of observations is on https://apps.atnf.csiro.au/OMP/index.jsp.

References

Abbott, D. C., Beiging, J. H., Churchwell, E., & Torres, A. V. 1986, ApJ, 303, 239CrossRefGoogle Scholar
Abbott, T. M. C., et al. 2018, ApJS, 239, 18CrossRefGoogle Scholar
Aguado, D. S., et al. 2019, ApJS, 240, 23Google Scholar
Ananthakrishnan, S., & Pramesh Rao, A. 2001, in 2001 Asia-Pacific Radio Science Conference AP-RASC’01, 237Google Scholar
Anderson, L. D., et al. 2017, A&A, 605, A58Google Scholar
Ayal, S., & Piran, T. 2001, ApJ, 555, 23CrossRefGoogle Scholar
Bagchi, J., Durret, F., Neto, G. B. L., & Paul, S. 2006, Sci, 314, 791CrossRefGoogle Scholar
Bannister, K. W., et al. 2019, Sci, 365, 565Google Scholar
Belokurov, V., et al. 2007, ApJ, 671, L9CrossRefGoogle Scholar
Bilicki, M., et al. 2016, ApJS, 225, 5CrossRefGoogle Scholar
Bojičić, I. S., Parker, Q. A., Filipović, M. D., & Frew, D. J. 2011, MNRAS, 412, 223CrossRefGoogle Scholar
Bozzetto, L. M., et al. 2017, ApJS, 230, 2CrossRefGoogle Scholar
Churazov, E., Brüggen, M., Kaiser, C. R., Böhringer, H., & Forman, W. 2001, ApJ, 554, 261CrossRefGoogle Scholar
Cichowolski, S., Pineault, S., Arnal, E. M., Testori, J. C., Goss, W. M., & Cappa, C. E. 2001, AJ, 122, 1938Google Scholar
Condon, J. J., Cotton, W. D., Greisen, E. W., Yin, Q. F., Perley, R. A., Taylor, G. B., & Broderick, J. J. 1998, AJ, 115, 1693Google Scholar
Crocker, R. M., Bicknell, G. V., Taylor, A. M., & Carretti, E. 2015, ApJ, 808, 107Google Scholar
Dougherty, S. M., & Williams, P. M. 2000, MNRAS, 319, 1005CrossRefGoogle Scholar
Drlica-Wagner, A., et al. 2018, ApJS, 235, 33Google Scholar
Duchesne, S. W., Johnston-Hollitt, M., Zhu, Z., Wayth, R. B., & Line, J. L. B. 2020, arXiv e-prints, p. arXiv:2007.15199Google Scholar
Feretti, L., Giovannini, G., Govoni, F., & Murgia, M. 2012, AAR, 20, 54CrossRefGoogle Scholar
Forbes, D. A., Norris, R. P., Williger, G. M., & Smith, R. C. 1994, AJ, 107, 984CrossRefGoogle Scholar
Gaia Collaboration et al. 2018, A&A, 616, A1Google Scholar
Gravity Collaboration et al. 2019, A&A, 625, L10Google Scholar
Green, D. A. 2019, JAA, 40, 36Google Scholar
Gruenwald, R., & Aleman, A. 2007, A&A, 461, 1019CrossRefGoogle Scholar
Hajduk, M., van Hoof, P. A. M., Śniadkowska, K., Krankowski, A., Błaszkiewicz, L., Dbrowski, B., & Zijlstra, A. A. 2018, MNRAS, 479, 5657CrossRefGoogle Scholar
Higdon, J. L. 1996, ApJ, 467, 241CrossRefGoogle Scholar
Hotokezaka, K., & Piran, T. 2015, MNRAS, 450, 1430CrossRefGoogle Scholar
Hurley-Walker, N., et al. 2019, PASA, 36, e048Google Scholar
Intema, H. T., Jagannathan, P., Mooley, K. P., & Frail, D. A. 2017, A&A, 598, A78CrossRefGoogle Scholar
Jauncey, D. L., et al. 1991, Natur, 352, 132CrossRefGoogle Scholar
Johnston, S., et al. 2007, PASA, 24, 174CrossRefGoogle Scholar
Johnston, S., et al. 2008, EA, 22, 151CrossRefGoogle Scholar
Jokipii, J. R., & Morfill, G. 1987, ApJ, 312, 170CrossRefGoogle Scholar
Joseph, T. D., et al. 2019, MNRAS, 490, 1202Google Scholar
Kale, R., Dwarakanath, K. S., Bagchi, J., & Paul, S. 2012, MNRAS, 426, 1204CrossRefGoogle Scholar
Kang, H. 2018, JKAS, 51, 185CrossRefGoogle Scholar
Kirillov, A. A., & Savelova, E. P. 2020, EPJC, 80, 810CrossRefGoogle Scholar
Maggi, P., et al. 2019, A&A, 631, A127CrossRefGoogle Scholar
Masters, K. L., et al. 2011, MNRAS, 418, 1055Google Scholar
McConnell, D., et al. 2016, PASA, 33, e042Google Scholar
Meixner, M., Skinner, C. J., Keto, E., Zijlstra, A., Hoare, M. G., Arens, J. F., & Jernigan, J. G. 1996, A&A, 313, 234Google Scholar
Morrissey, P., et al. 2007, ApJS, 173, 682Google Scholar
Murgia, M., Fanti, C., Fanti, R., Gregorini, L., Klein, U., Mack, K. H., & Vigotti, M. 2002, NAR, 46, 307CrossRefGoogle Scholar
Nolting, C., Jones, T. W., O’Neill, B. J., & Mendygral, P. J. 2019a, ApJ, 876, 154CrossRefGoogle Scholar
Nolting, C., Jones, T. W., O’Neill, B. J., & Mendygral, P. J. 2019b, ApJ, 885, 80CrossRefGoogle Scholar
Norris, R. P. 2017a, NA, 1, 671Google Scholar
Norris, R. P. 2017b, PASA, 34, e007Google Scholar
Norris, R. P., et al. 2011, PASA, 28, 215Google Scholar
Norris, R. P., et al. 2020, PASA, p. in preparationGoogle Scholar
Offringa, A. R., et al. 2015, PASA, 32, e008Google Scholar
Offringa, A. R., et al. 2016, MNRAS, 458, 1057Google Scholar
Parker, Q. A., Bojičić, I., & Frew, D. J. 2017, in IAU Symposium, Vol. 323, Planetary Nebulae: Multi-Wavelength Probes of Stellar and Galactic Evolution, ed. Liu, X., Stanghellini, L., & Karakas, A., 36 (arXiv:1612.00167), doi:10.1017/S1743921317000904CrossRefGoogle Scholar
Paul, S., Iapichino, L., Miniati, F., Bagchi, J., & Mannheim, K. 2011, ApJ, 726, 17CrossRefGoogle Scholar
Pfrommer, C., & Jones, T. W. 2011, ApJ, 730, 22CrossRefGoogle Scholar
Planck Collaboration et al. 2018, arXiv e-prints, p. arXiv:1807.06209Google Scholar
Pogge, R. W., & Eskridge, P. B. 1993, AJ, 106, 1405Google Scholar
Randall, S. W., Clarke, T. E., Nulsen, P. E. J., Owers, M. S., Sarazin, C. L., Forman, W. R., & Murray, S. S. 2010, ApJ, 722, 825CrossRefGoogle Scholar
Rosslowe, C. K., & Crowther, P. A. 2015, MNRAS, 447, 2322CrossRefGoogle Scholar
Rudnick, L. 2002, PASP, 114, 427Google Scholar
Schawinski, K., et al. 2014, MNRAS, 440, 889CrossRefGoogle Scholar
Tingay, S. J., et al. 2013, PASA, 30, e007Google Scholar
Ulvestad, J. S., Johnston, K. J., & Weiler, K. W. 1983, ApJ, 266, 18CrossRefGoogle Scholar
van Weeren, R. J., de Gasperin, F., Akamatsu, H., Brüggen, M., Feretti, L., Kang, H., Stroe, A., & Zandanel, F. 2019, SSR, 215, 16CrossRefGoogle Scholar
Venturi, T., et al. 2017, A&A, 603, A125CrossRefGoogle Scholar
Völk, H. J., & Zirakashvili, V. N. 2004, A&A, 417, 807CrossRefGoogle Scholar
Vukotić, B., Ćiprijanović, A., Vučetić, M. M., Onić, D., & Urošević, D. 2019, SAJ, 199, 23CrossRefGoogle Scholar
Wang, Y., et al. 2018, A&A, 619, A124Google Scholar
Wayth, R. B., et al. 2018, PASA, 35Google Scholar
Whiting, M., Voronkov, M., Mitchell, D., & Askap, Team 2017, Early Science Pipelines for ASKAP, 431Google Scholar
Wilson, W. E., et al. 2011, MNRAS, 416, 832Google Scholar
Wright, E. L., et al. 2010, AJ, 140, 1868Google Scholar
Zitrin, A., Broadhurst, T., Rephaeli, Y., & Sadeh, S. 2009, ApJ, 707, L102CrossRefGoogle Scholar
Zou, H., Gao, J., Zhou, X., & Kong, X. 2019, ApJS, 242, 8CrossRefGoogle Scholar
Figure 0

Table 1. EMU pilot survey specifications

Figure 1

Table 2. Properties of the optical/IR sources near ORCs 1–2

Figure 2

Table 3. Properties of the optical/IR source at the centre of ORC 4

Figure 3

Figure 1. ASKAP radio continuum images at 944 MHz of ORCs 1–3 from the EMU Pilot Survey (Norris et al. 2020) and at 325 MHz of ORC 4 from GMRT archival data. On the left are greyscale images, with the synthesized beam shown in the bottom left corner, and radio contours overlaid onto DES optical images on the right, as described in the text. The contour levels for ORC 1 and ORC 2 are 45, 90, 135, 180, 225, and $270\ \upmu\text{Jy\,beam}^{-1}$, and contour levels for ORC 4 are 150, 250, 400, 600, and $800\ \upmu\text{Jy\,beam}^{-1}$. Sources of interest are labelled (see Tables 3 and 4).

Figure 4

Table 4. The new circular objects (‘ORCs’)

Figure 5

Table 5. Integrated flux densities (in mJy) and spectral indices of the radio sources associated with ORCs 1–3. The quoted uncertainties include a contribution from the systematic uncertainty in the flux density scale. Measurements at 88, 118, and 154 MHz are made with MWA. Measurements at 944 MHz are made with ASKAP. Measurements at 2 121 MHz are made with ATCA. MWA measurements of ORC 1 include the flux density of source S, and MWA measurements of ORC 2 include the flux density of source C. However, these will have a negligible effect on the fitted spectral indices

Figure 6

Figure 2. An image of ORC 1 based on the same data as shown in Figure 1, at native resolution, but enhanced to show faint features, particularly the internal structure or ‘spokes’ of the ORC. We made two images of the radio data using kvis: (a) an image using a square root transfer function to trace finer structure over the ORC region and assigned the colour turquoise and (b) an image using a logarithmic transfer function and assigned the colour blue-green. These two radio images were combined using the screen algorithm. For the optical data, the DES bands g, r, i, and z were assigned turquoise, magenta, yellow and red, respectively, and combined using GIMP. The optical/NIR image and the radio image were then combined using a masking technique.

Figure 7

Figure 3. An image of ORCs 2–3 based on the same data as shown in Figure 1, but enhanced to emphasise the diffuse emission. The green image is the original EMU-PS image at native resolution. The red image and contours were produced by filtering out the small-scale emission using the multi-resolution technique described by Rudnick (2002) with a filter size of 38 arcsec and then convolving the residual with a Gaussian kernel of 40 $\times$ 40 arcsec full-width half-maximum (shown as the circle in the lower left of the image).

Figure 8

Figure 4. ATCA radio continuum images of ORCs 1–3 at a frequency of 2.1 GHz. The image rms is about 12 $\upmu\text{Jy beam}^{-1}$ in both images. ORCs 1 and 2 are only faintly visible in these higher frequency images because of their steep spectral index and higher resolution, while ORC 3 is below the rms noise level. This image shows that sources A and B in ORC 2 are the two halves of an FRI radio galaxy.

Figure 9

Figure 5. ASKAP radio continuum image of ORC 1 (contours; see Figure 1) overlaid onto a DES 3-color composite image; DES gri-bands are colored blue, green, and red, respectively. We identify two galaxies of interest: ‘C’ lies near the centre of ORC 1 and ‘S’ coincides with the southern radio peak (see Table 3).

Figure 10

Figure 6. ASKAP radio continuum image of ORC 2 (contours; see Figure 1) overlaid onto a DES 3-color composite image; DES gri-bands are colored blue, green, and red, respectively. We identify three sources of interest, annotated A, B, and C (see Table 4).

Figure 11

Table 6. Measured flux densities (in mJy) of the radio sources associated with ORC 4. 150 MHz data are from TGSS (Intema et al. 2017), 325 MHz data are from the observations described in the text, and 1 400 MHz data are from the NVSS survey (Condon et al. 1998). The flux densities for the ring are the total flux densities (including source G) measured in a 2 arcmin diameter aperture and that for source G is from a fitted Gaussian component

Figure 12

Figure 7. GMRT radio continuum image of ORC 4 (contours; see Figure 1) overlaid onto a SDSS 3-color composite image; SDSS gri-bands are colored blue, green, and red, respectively.

Figure 13

Figure 8. Radial profiles of the diffuse emission of the ORCs, measured from the ASKAP and GMRT data and integrated radially around the ORC, assuming circular symmetry, after removing compact sources A and B in ORC 2. Error bars are $\sigma$/sqrt (number of independent beam volumes), where $\sigma=25\,{\upmu}\text{Jy beam}^{-1}$ for the EMU data (ORCs 1, 2, and 3), and $60\,\upmu\text{Jy beam}^{-1}$ for the uGMRT data (ORC 4).

Figure 14

Figure 9. The probability density of the Galactic latitudes of known SNRs. The lines at the bottom show the measured latitudes, taken from (Green 2019), and the solid curve above shows them convolved with a Gaussian kernel density estimator, to show the distribution more clearly. A SNR at a Galactic latitude of $-39.5^{\circ} $ would be well outside the range of all known SNRs and outside the range of this plot. The grey band shows the 95% confidence interval of probability density predicted by our model, which can be seen to be a good fit to the data.

Figure 15

Figure 10. ASKAP 944 MHz radio continuum image of the face-on, star-forming galaxy NGC 6935 ($v = 4\,543\,\text{km\,s}^{-1}$), as observed in the EMU-PS. The ring is about 2 kpc in diameter.

Figure 16

Figure 11. EMU-PS image of the bent-tail radio galaxy EMU PD J214905.4-614542. The position of the host galaxy is indicated by an arrow. No redshift is available for this source.

Figure 17

Figure 12. ASKAP 944 MHz radio continuum image of the double-lobe radio galaxy Fornax A, from unpublished ASKAP data.

Figure 18

Figure 13. EMU-PS image of the edge-brightened double-lobe radio galaxy EMU PD J210931.3-602806. No redshift is available for this source.
