1 Introduction
Improving healthcare requires good design at multiple levels and stages. In 2017, Royal Academy of Engineering’s report, Engineering Better Care – A Systems Approach to Health and Care Design and Continuous Improvement,Reference Clarkson, Bogle and Dean1 highlighted design as one of four ‘key perspectives’ necessary for delivery of effective care (the others are people, systems, and risk). Design is especially important in answering three key questions:
What are the needs?
How can the needs be met?
How well are the needs met?
Answering any or all of these questions may require creativity. In this Element, we focus on design creativity. Though it is sometimes mistakenly understood as the process for developing novel and useful ideas, solutions, or products,Reference Sarkar and Chakrabarti2 design creativity can be defined more broadly to encompass the wider process of understanding the problem as well as solving it. With its origins in design thinking and design process, design creativity can be thought of as both the means to explore needs for improvement and the means to create new concepts in response to those needs. So, design creativity refers to the process of designing (‘design’ as a verb) rather than just the output of design (‘design’ as a noun).
SimonReference Simon3 has defined design broadly by saying that to design is to devise ‘courses of action aimed at changing existing situations into preferred ones’. Design science is the study of the principles, practices, and procedures of design:Reference Cross4, Reference Cross5 it aims to understand and improve how designers work and think, it establishes an appropriate structure for the design process, and it develops new design methods, techniques, and procedures for various design problems. These problems are often ill-defined, ill-structured, or ‘wicked’,Reference Rittel and Webber6 similar to many quality and safety issues in healthcare. Many design studies have looked at how the design process is managed to deliver consistently successful results and what methods and tools are applied.
We begin by outlining the characteristics of design thinking, the key status of the Double Diamond model, and the role of design creativity on healthcare improvement. We then review a range of tools that may be used to support design creativity.
In order to fully appreciate creativity as the process that enables teams to define the right problem and provide the best solution, this Element should be read alongside Elements on systems mappingReference Komashie, Kotiadis, Lamé, Clarkson, Dixon-Woods, Brown and Marjanovic7 and risk assessment.Reference Card, Ward, Risk, In Dixon-Woods, Brown and Marjanovic8
1.1 Characteristics of Design Thinking
The history of design is almost as long as that of human history: people have either crafted objects (artefacts) or have found someone to do it for them. During the Industrial Revolution of the eighteenth and nineteenth centuries, rapid innovation led to the separation of design and making (manufacturing).Reference King and Chang9 In contrast to the artisans of the past, post-Industrial Revolution designers had to meet the needs of large populations. They had to consider functionality, aesthetics, and usability, and balance the needs of manufacturers, including manufacturability, cost, and marketability. By the middle of the twentieth century, the need to combine engineering design and psychology had become more apparent – for example, in improving the design of aircraft controls and displays based on an understanding of human (e.g. pilot) and environmental factors.Reference Waterson and Eason10 This recognition led to the development of human factors/ergonomics as its own field of study and, in 1949, to the formation of the Ergonomics Society UK (now the Chartered Institute of Ergonomics and Human Factors). Human factors/ergonomics focus on designing the systems with which people interact in physical, organisational, and social environments in order to improve human well-being and system performance.Reference Hignett, Carayon, Buckle and Catchpole11
Human factors and ergonomics were important in the development of user-centred design philosophy and processes. These processes aim to make the needs, wants, and limitations of the end user the priority focus, and offer a range of methods and techniques to ensure this focus is sustained through the various stages of design. Inclusive design, which emerged in the mid-1990s, encourages designers to create products and services that ‘address the needs of the widest possible audience, irrespective of age or ability’.Reference Clarkson and Coleman12 It is defined as ‘design of mainstream products and/or services that are accessible to, and usable by, people with the widest range of abilities within the widest range of situations without the need for special adaptation or design’.13
Designers rely on a distinctive way of thinking: design has its own way of problem-solving that is different from humanities and science.Reference Cross4, Reference Archer14 Research into understanding design thinking began in the 1970s by looking at how designers form images in their minds and then manipulate and evaluate those ideas before, during, and after expressing them.Reference Archer14 Design thinking has been described as applying a designer’s sensibility and methods to problem-solving, no matter what the problem is.Reference Lockwood15 Alluding to earlier work by Rittel and Webber on ‘wicked’ problems,Reference Rittel and Webber6 Cross has characterised design thinking in the following way: ‘The designer’s task is to produce ‘the solution’ in order to cope with ill-defined problems. The designer has to learn to have the self-confidence to define, redefine and change the problem-as-given in the light of the solution that emerges from their mind and hand’.
Developing creative ideas is one of the strengths of this way of thinking. Over the years, researchers have attempted to identify influences on creativity and how to support creativity in the design process. Some of the interesting questions explored by different design researchers have included: ‘How do designers develop new ideas?’, ‘How do their ideas evolve?’, and ‘How do they move from one idea to the next?’.Reference Crilly16
What design research has found so far is still very limited, but some findings are relevant to the development of improvement ideas in healthcare. When generating ideas, designers use their background experiences and skills, as well as different types of internal and external stimuli.Reference Gonçalves, Cardoso and Badke-Schaub17 Internal stimuli are drawn from a person’s working and long-term memories and may take the form of mental imagery or verbal information. External stimuli, on the other hand, are drawn from a person’s surroundings and may include pictorial, verbal, audible, or tangible objects, for example.Reference Eastman, Eastman, Newstetter and McCracken18 External stimuli can be the result of actively seeking information (deliberately searching for particular information via the internet or in books, for example) or of a passive encounter (randomly encountering relevant information).
Research has also shown that exposing people to previous ideas can have a dual effect on new idea development:Reference Cai, Do and Zimring19 it can be both positive, with inspirational sources stretching the potential pool of creative solutions,Reference Cai, Do and Zimring19 and negative, limiting ideas to the replication of aspects of existing ideas and examples. This negative impact is called fixation.Reference Crilly16 Professional designers may try to prevent fixation by adopting some or all of the following approaches: promoting teamwork to avoid isolated individual work; use of systematic design methods; use of expert facilitation during idea-generation sessions (to control any negative effects of group behaviour); making and testing models and prototypes; and expecting concept variety.Reference Crilly20
As designers and those not trained in design work increasingly alongside each other in co-design processes,Reference Sanders and Stappers21 the importance of scaling up from individual to collective creativity is now recognised, with new definitions of design thinking emerging. For instance, Tim Brown, CEO of the global design and innovation company IDEO, has described design thinking as a human-centred approach to innovation that draws from the designer’s toolkit to integrate the needs of people, the possibilities of technology, and the requirements for business success.Reference Brown22 He also highlights that design thinking can be used by anyone to create breakthrough ideas.Reference Brown22
1.2 The Double Diamond Model
An especially important innovation in design thinking is the Double Diamond model (Figure 1),23 which offers a framework for the design and delivery of products, services, and systems. Developed by the UK Design Council in 2005, and describing a holistic process of creativity, it was originally derived from the observation of a wide range of real design processes. The research on which the Double Diamond is based focuses on those attributes of design thinking that had led to significant commercial success, rather than identifying and avoiding those that led to failure. It is widely cited as a model for capturing the essence of good design practice.
The Double Diamond design process model23
The Double Diamond design process model (Figure 1) identifies four core activities:
Discover: explore current needs and solutions, and gather insights into the challenge.
Define: balance the range of needs and articulate a clear statement of the challenge to be resolved.
Develop: generate and evaluate solutions to the challenge.
Deliver: launch the new organisation, product, or service.
The shape of the model has a particular meaning: it highlights the importance of translating need into a statement of challenge before developing solutions. It illustrates the value of exploration (or divergent thinking) before refinement (or convergent thinking). Each activity is a key element of the overall creative process, and each requires real creativity to deliver meaningful results. This underlines the importance of exploring the full range of stakeholder needs for improvement before balancing and refining those (often conflicting) needs into a clear statement of the challenge. It also emphasises the importance of exploring a wide range of possible concepts and potential solutions before committing to a particular solution and the means to deliver it into practice.
Improvement practitioners in healthcare may use a range of improvement methods and tools, including, as described throughout this Elements series, the Model for Improvement, Lean, Six Sigma, total quality management, business process reengineering, supply chain management, and many others. All of these methods require effective approaches to ensure effective problem-understanding and problem-solving. The importance of understanding the real needs for a system before delivering new solutions is illustrated by the challenges faced when introducing a new computerised command and control system for the London Ambulance Service (Box 1).
Following an earlier failure in the 1980s, a comprehensive effort began in 1990 to define the requirements for a new and ambitious, state-of-the-art, and computerised command and control system for the London Ambulance Service.Reference Clarkson, Bogle and Dean1 The concept behind the design was that most calls would automatically be allocated to the most appropriate ambulance without the need for a human allocator. The new service was delivered in 1992 and immediately failed. Lessons learnt were that the particular geographical, social, and political environment in which the service operated, and the cultural climate within the service itself, required ‘a more measured and participative approach’ from management and staff. After several further attempts, a new system successfully went live in March 2012. While the fully automated allocation system met its operational expectations, contributory factors to earlier failures were thought to include poor understanding of paramedic behaviour, limited understanding of whole system performance, and inadequate preparation and risk assessment for system roll-out.Reference Clarkson, Bogle and Dean1
Despite the value of design thinking for improvement, it has been relatively slow to penetrate healthcare – apart from areas such as medical devices. This means that the design creativity required for optimising improvement approaches may not always be clearly stated. For instance, one of the three questions in the Model for Improvement is, ‘What change can we make that will result in improvement?’. To answer this effectively, the needs for change (and their context) must be fully understood and change ideas that can lead to improvement must be generated. The Institute for Healthcare Improvement proposes that specific changes can be developed from a limited number of what it calls ‘change concepts’: general notions or approaches to change that have been found to be useful in developing more specific ideas for changes that can lead to improvement.Reference Langley, Moen and Nolan24 An example of a change concept is error proofing, which involves designing or re-designing systems to make it less likely for people in the system to make errors.Reference Langley, Moen and Nolan24 Other tools for developing change ideas widely used in healthcare include driver diagrams,25 which offer a visual illustration of how specific change ideas or activities are connected with structures, processes, goals, and outcomes of the overall system. However, neither change concepts nor driver diagrams typically make enough use of creativity methods to fully understand the needs for change or to generate new change ideas that will result in improvement. In the next section, we describe tools that can be used to support design creativity in healthcare improvement.
2 Tools for Design Creativity
Design creativity plays a crucial role both in understanding an existing system and in the development of new systems. In the former, often referred to as re-design, the objective is to understand and enhance what already exists (‘as is’). In the latter, often known as original design, the goal is to create what is intended to exist (‘to be’) and document the final outcome. The creative elements of design processes underlying both design and re-design have developed over many years, as have the tools that have emerged to support them. This section presents a selection of these tools, including:
ethnographic/observational studies
personas and scenarios
needs identification and requirements analysis
brainstorming, Disney, and six thinking hats
the nine windows technique
morphological charts and product architecting
concept evaluation.
The tools described here are a small selection of the many available; they are chosen to provide a useful starting point for anyone with limited design experience and to cover all stages of the Double Diamond model.
2.1 Ethnographic Studies or Observational Studies
Ethnography is a research method for social sciences and anthropology which investigates customs, social behaviour, and human culture in specific settings. The methods of ethnography have been evolving to reflect the changing demands of health research,Reference Waring and Jones26 but traditional ethnography in cultural anthropology requires the researcher to observe a culture for enough time (perhaps several months or years) to learn about the norms and values of the people in that setting.Reference Hammersley27
Design ethnography often starts with a series of observations in a specific setting before a new product, service, or system is developed. Observational methods can be casual (unstructured), semi-structured, or structured and systematic. Semi-structured and casual observations are typically used in the exploratory phase of the design process to collect baseline information through immersion; structured and systematic observations, on the other hand, typically use pre-structured worksheets, checklists, or codes to guide the observation. A variety of methods can be used to guide structured observations – for example, the AEIOU (Activities, Environments, Interactions, Objects, and Users) framework (Table 1) helps to structure observations by offering a classification system along with relevant questions as described in the table.Reference Lewrick, Link and Leifer28 The AEIOU framework can be used in creative workshops with stakeholders to converge relevant information onto a large worksheet for data synthesis and design ideation.

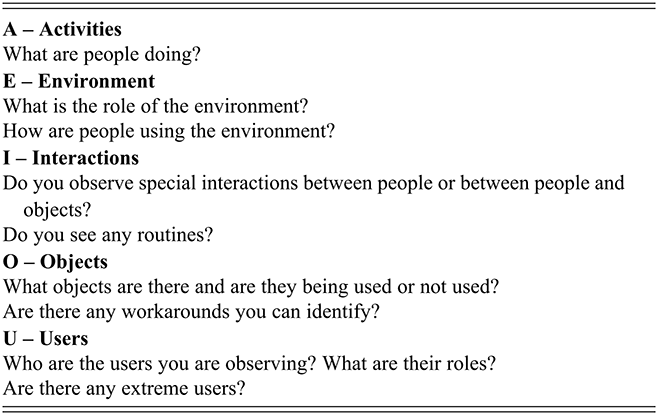

Data for design ethnography are collected using qualitative research methods – interviews, observations, note-taking, video, and photography. They are analysed using a qualitative approach, such as open-ended discovery of patterns within discourse or by mapping data to categories of interest to the design inquiry.Reference Martin and Hanington29 A method like affinity diagramming (Figure 2) is often used to organise and structure data.Reference Martin and Hanington29
Affinity diagram for structuring/clustering random ideas
Another method that can be used with structured observations is link analysis (Figure 3). This method aims to analyse physical interactions – human to human, human to machine/environment, and machine to machine/environment – as components within a system or product as structured observations. Link analysis can be used to identify problems and to improve the layout of a working environment or a control panel, for example. It uses a data (event) recording method to input interactions of human behaviour with their environment. A link occurs when an individual shifts attention or physically moves from one part of the system to another.Reference Kirwan and Ainsworth30 Link analysis enables understanding of how different parts of the interface or system are linked to each other.Reference Shepherd31 The case study in Box 2 describes how the method was applied in the development of a national specification for emergency ambulances within the UK National Health Service (NHS), while Figure 3 illustrates the use of link analysis to show the movements of a paramedic within an ambulance.
In 2003, a programme of human factors and ergonomics research began with the aim of standardising the design of emergency ambulances. The project was a response to the challenge that different NHS ambulance trusts were using individual vehicle specifications, resulting in over 40 different designs of emergency ambulances in the UK. This presented an increased risk to patient safety, as the interior layout and the location of equipment and consumables varied between vehicles, with the resulting impact on safe systems of work and efficiency of clinical care.
The research included observations and link analysis to compare ambulance loading systemsReference Jones and Hignett32 and an evaluation of vehicle and equipment risks for both paramedics and bariatric (obese) patients.Reference Hignet and Griffiths33 The findings provided an evidence base for a national specification for emergency ambulances, with nine areas of design recommendations: access/egress (exit), space and layout, securing people and equipment in transit, communication, security, violence and aggression, hygiene, vehicle engineering, and patient experience.Reference Hignet and Griffiths33 The national specification for emergency ambulances in 2006 was able to draw on this evidence base and incorporated 80 per cent of the recommendations.
The nine design criteria were used in 2023 by the London Ambulance Service NHS Trust with professional human factors specialists from Loughborough University to review the integration of new ambulance technologies (a powered stretcher and powered chair).
Link analysis showing movements of a paramedic technician (bulkhead door layout)Reference Thorne34
2.2 Personas and Scenarios
Personas are fictitious representations of target usersReference Pruitt and Adlin35 created from information collected from real users through field research such as ethnographic studies. Personas describe archetypal (rather than actual) people and their common behaviour patterns in meaningful and relatable profiles. As a technique, personas can provide useful design targets and facilitate empathy and communication during the ideation phase of the design process, when ideas and concepts are formed. Personas are typically presented in one or two pages, and feature a fictitious name for the person, a photograph, and a narrative that describes in detail key aspects of his or her life situation, goals, and behaviour relevant to the design inquiry.Reference Lewrick, Link and Leifer28
Personas can be used to support designers’ ideation and co-designing in stakeholder workshops. For example, a persona called Jeff, a 77-year-old man, was created for co-design workshops with 30 stakeholders (clinicians, social care workers, pharmacists, and commissioners) that aimed to develop safer integrated medicine management systems.Reference Jun, Canham, Altuna-palacios, Ward and Bhamra36 Jeff was developed from interviews with 10 stakeholders (before the workshop) and presented at the workshop to help participants stand in the shoes of users and focus on resolving real user needs. Box 3 sets out some of the key information created about Jeff.
Jeff lives alone in North London on the second floor of a tower block that has no lift. Jeff quit smoking a few years ago but has reduced mobility (he uses a scooter), and he spends most of his time watching TV. Jeff has two grown-up children who live in Manchester and visit once or twice a year. His medical history includes chronic obstructive pulmonary disease, type 2 diabetes, hypertension, and mild depression. Jeff currently takes eight different medications at different times of the day. A local community pharmacy arranges repeat prescriptions for Jeff and delivers medications to his home each month.Reference Jun, Canham, Altuna-palacios, Ward and Bhamra36
Another example is a set of five dementia personas developed and validated with clinicians, care providers, and designers (architects). The personas represent the symptoms, care needs, and design needs of people at different stages of dementia:Reference Jais, Hignett and Halsall37 Alison (new diagnosis), Barry (thinking about moving into a care facility), Christine (living in a care facility), Chris and Sally (living at home), and David (end of life, living in a care facility).
These five personas were created through an iterative development and review process. Initial versions were created from a systematic literature review and scoping study (n = 113) to consider activities of daily living that might be relevant to or important for people with dementia (eating, toileting, social interaction, and physical activity), and to recommend design solutions to support these activities. This was followed by an iterative cycle of interviews, focus groups, and care environment observations with clinicians, care providers, and designers (architects) to create, review, and evaluate the personas. The final five personas were created in three formats: 2D matrix, 3D wheel, and five short films with actors playing the patients.
The five personas were used in the design process for adapting a two-up two-down Victorian terraced house to support independent living for people with different stages of dementia. By highlighting symptoms, care needs, and design needs (see Figures 4 and 5), the personas helped to create a shared mental model that the multidisciplinary team could use to consider design options and review decisions when assessing whether or not a design was likely to be suitable and whether future changes may be needed to maintain a supportive environment. The five personas supported the creation of an adaptable environment that is suitable for people at different stages of dementia and on good, average, and bad days.Reference Jais, Hignett and Halsall37 Aspects of the design approach, layout, colour scheme, product, furniture selection, and so on are explained and illustrated in five short films of the personas with patient actors.39
David persona: later stage of vascular dementia through to end of lifeReference Jais, Hignett, Galindo and Hogervorst38
Chris and Sally (couple) personas for the dementia houseReference Jais, Hignett, Galindo and Hogervorst38
2.3 Needs Identification and Requirements Analysis
The design process starts with the identification of users’ needs. Designers commit themselves to truly understanding those needs by employing methods such as observations (see Section 2.1) and the creation of user personas (see Section 2.2). In contrast to designers, it is worth noting that many traditional innovation consultants often rely on so-called user interviews, which are often conducted by market researchers rather than the consultants themselves. This approach sometimes leads to the potential for selective information gathering, aligning more with their existing beliefs and expectations.Reference Jais, Hignett and Halsall37 Designers, on the other hand, try to embody a mindset characterised by pure curiosity during the process of needs identification. Once this crucial phase of needs identification is firmly established, designers can go on to specify the objectives that the proposed solutions should fulfil, a step known as requirements analysis.
TizaniReference Tizani, Aouad, Lee and Wu40 has described design as a prolonged process of checking and pondering what may be often quite contradictory requirements, and making a series of compromises on those requirements until the design is achieved – as the end product of numerous associations of ideas (‘a network of ideas’).
The requirements specification is a detailed description and translation of the user needs into technical language. It explains what the solutions need to accomplish without delving into how they will achieve it. Later in the design process, we use this specification as a benchmark to measure and evaluate potential solutions. It covers various aspects, including functionality, performance, user-friendliness, reliability, safety, and compliance with regulations.
2.3.1 House of Quality
The house of quality diagram is a visual tool to show in a matrix format how user needs can be translated into system requirements. It provides a means of communication between designers, engineers, and various stakeholders.Reference Hauser and Clausing41
Figure 6 shows a house of quality diagram for a private healthcare setting where a survey had been conducted to measure service quality.Reference Camgöz‐Akdağ, Tarım, Lonial and Yatkın42 In this example, the lower part of the diagram highlights the relationships between patient needs (‘Whats’) and the functional requirements (‘Hows’) of the service, while the upper part (roof) shows the correlations between these functional requirements (‘Hows’). It is apparent from the first row of the matrix (shaded in dark grey in Figure 6) that there is a strong relationship between the skills of doctors, the behaviour and attitude of staff, having modern equipment available, and patients’ requirement for modern equipment to be used. There is a weaker relationship between the attitudes of doctors and the use of modern equipment, which reflects that the modernisation of equipment has a slight effect on doctor attitude. The correlations between the technical requirements indicate, for example (as shaded in light grey in Figure 6), that doctor attitudes towards patients have a strong positive relationship with attitude and behaviour of nurses, attitude and behaviour of other staff, and availability of visitor parking. It might be argued that these relationships and correlations are obvious (which may be the case), but the fact that they are made explicit in the house of quality highlights their importance in understanding the problem and in developing requirements and ideas for improvement.
House of quality for a hospital
2.4 Brainstorming, Disney, and Six Thinking Hats
Brainstorming is a widely used method for generating ideas in a group situation. Alex Osborn originally developed it and first coined the term brainstorming. In his 1953 book, Applied Imagination,Reference Osborn43 he attempted to codify the creative process. By researching the environment in which his advertising teams worked, Osborn found that their creativity was most stimulated when the following rules were followed:
Don’t edit what’s said and remember not to criticise ideas.
Go for quantity of ideas at this point; narrow down the list later.
Encourage wild or exaggerated ideas (creativity is the key).
Build on the ideas of others – for example, one team member might say something that sparks another’s idea.Reference Osborn43
Teams can use brainstorming when determining possible causes and/or solutions to a problem, when planning out the steps of a project, and when deciding which problem (or opportunity) to work on. A brainstorming session typically has a 30-minute time limit but ends when everyone has had a chance to participate, and no more ideas are being offered.
Techniques to support brainstorming include the Disney method. Developed by Robert Dilts,Reference Dilts44 it was inspired by the innovative thinking that Walt Disney (1901–66) used in his strategic business development and film-making. When Disney had an idea for a film, he looked at the idea from at least three perspectives and adapted them as appropriate: producer (how to produce the film), director (how the film will come across on the screen), and audience (what aspects the audience will like or dislike). The method helps a team to look at problems from different perspectives and generate ideas accordingly. The Disney method uses the following three perspectives and roles for ideation:
Dreamer: being creative and imaginative, seeing limitless opportunities
Realist: looking at the practical possibilities to find out whether an idea is really feasible, considering the resources available
Critic: looking at a plan, identifying any barriers and filtering out all crucial mistakes rather than criticising the initial dreams.
The perspectives and roles can be used at the same time or in sequence. For example, the brainstorming session can be run with an assumption that the roles of dreamer, realist, and critic will each be adopted in turn.
Six thinking hats is a variant of the Disney method. Created by Edward de Bono,Reference De Bono45 and based on the principle of parallel thinking, it aims to help those involved in the design process to adopt different ways of thinking by taking off their normal hat and wearing another. The process works best when a time limit (a maximum of 4 or 5 minutes) is imposed for wearing each hat. The six hats and relevant questions are as follows:
White hat (data needs): what data do we have or need?
Black hat (risk): what could go wrong?
Yellow hat (benefits): what are the benefits?
Green hat (ideas): how could the idea be developed further?
Red hat (emotion): what do you feel about this?
Blue hat (thinking process): what are the findings so far, and what needs to happen next?
2.5 Nine Windows Technique
The nine windows technique is an ideation tool for examining problems, exploring potential solutions, and identifying available resources in the dimensions of time and system. It does this by examining the past, present, and future at different system levels, including super-system level and related subsystems. The technique was developed by Genrich Altshuller,Reference Altshuller46 creator of the TRIZ methodology (TRIZ is the Russian acronym for TIPS, Theory of Inventive Problem Solving).
Instead of only thinking about a problem and potential solution in terms of the present and at system level, the nine windows technique also prompts teams to explore a problem in the past and possible future and at both super-system and subsystem levels (see Figure 7). The team can zoom in to the product/service at the subsystem level or zoom out and consider the super-system. The team can consider changes from what happened in the past to what might happen in the future. This approach helps overcome barriers and see the product and service from a different point of view.Reference Lewrick, Link and Leifer28
Nine windows technique
2.6 Morphological Charts and Product Architecting
Creativity can take many forms – from an inspired idea for a whole product to the choice of material for a component within a complex system, or the novel teaming of people in the delivery of a new service. All have their place. But when product and service needs (and solutions) become more complicated, designers and design teams may need the support of a structured approach to concept generation. Not only will this help to widen the search for potential solutions, but it also provides a framework for informing the early stages of concept evaluation.
Morphological chartsReference Zwincky, Zwicky and Wilson47 are a visual way of representing possible design solutions by mapping design ideas against the core features or functions that a product or service is required to deliver. Designers are encouraged to identify as many alternative ideas as possible and then, by selecting combinations of those ideas, to form design concepts that are most likely to meet the requirements. This allows for exploration of alternative product architectures that may be appropriate in realising the product. The visual nature of morphological charts also encourages user involvement at an early stage of the design process when their influence can be most effective.
The process of building a morphological chart begins with identifying a moderate number (6–12) of key features or functions that a product must have but in a form that does not limit the nature of the design solution (so, for example, ‘dose entry’ rather than ‘keypad’). These can be arranged in groups (providing some structure or architecture to the product) where they are likely to share common elements of a solution. Ideas are then sought to make each feature or function happen, taking care to list a range of possibilities rather than variations on a theme, and arranged in rows alongside the features and functions. Design concepts are then formed when viable combinations of ideas (one from each row) are selected.
The morphological chart in Figure 8 shows an example of the output of a brainstorming activity focused on the specific functional needs of face mask design. Any one of the approaches described previously could have been used to help generate this sort of idea.
An example of a morphological chart for face mask designReference Carter, Lyle, Watt, Hogg and Melville48
Morphological charts have been applied to a wide range of domains over the years, from engineering design to policy analysis,Reference Álvarez and Ritchey49 and they have a long history of application to healthcare planning, for example, in the design and evaluation of healthcare systems for a large metropolitan community.Reference Turley, Richardson and Hansen50
2.7 Concept Evaluation
Concept evaluation involves checking that a proposed concept (or concepts) not only meets the requirements of an improvement intervention but also meets the underlying needs of the patients or care providers. Concept evaluation can take different forms, reflecting the stage of the design process and the level of description of the concept at that point in time. But in all cases, its purpose is to judge the quality of the concept in terms of its match to the needs and requirements of the design solution.51
In broad terms, the purpose of evaluation may be thought of as testing the concept against defined requirements (often known as verification) or measuring its fitness for purpose in meeting real needs (known as validation).51 For example, verification of an asthma inhaler tests its fit to documented device requirements, whereas validation measures its ability to deliver an appropriate dose of drug to the patient under typical conditions of use. Verification and validation may be summarised as respectively asking, ‘Are we doing the thing right?’ and ‘Are we doing the right thing?’. Both are essential for product and service development and improvement, but verification is best suited to concept evaluation when it is assumed that some definition of requirements has already been completed.
Evaluation takes place at multiple levels. For example, there are things a new product or service must be able to do, and evaluation is needed to determine whether an individual concept is able to meet those demands and, therefore, whether it is viable. There may also be other things that may be desirable for a new product or service to do, and evaluation is then focused on the extent to which it is able to do so.
Several tools are available to assist with concept evaluation. One is the MoSCoW prioritisation technique (Figure 9), which uses four categories – must have, should have, could have, and will not haveReference Clegg and Barker52 – as a means of comparing the relative merits of competing concepts. As before, the first of these provides a ‘gate’ or minimum standard for a concept, while the next two provide potential for comparing concepts and their ability to maximise delivery of the requirements. However, these comparisons aren’t meant to provide a specific preferred formula for a concept. Instead, they point out the relative strengths and weaknesses between competing concepts. Evaluation methods have become more visible in health and care service design with the formation of the Health Product People53 community in 2018 to bring together people working on digital services across the health and care space to share ideas, collaborate, and work together to solve problems. The community builds on the good work of the cross-government product and service community, which was formed to ensure that government products and services meet user needs. The blog referenced 53 presents a variety of narratives describing methods, such as human-centred design and design evaluation, and their relevance to improvement of digital health services.
MoSCoW prioritisation of needs
3 Critiques of Design Creativity
The Royal Academy of Engineering, the Royal College of Physicians, and the Academy of Medical Sciences have all highlighted how design creativity can be showcased for those involved in healthcare improvement.Reference Clarkson, Bogle and Dean1 The advent of experience-based design approaches has also emphasised the role of users and stakeholders in co-understanding improvement challenges and co-designing solutions. However, formal evidence to demonstrate the effectiveness and cost-effectiveness of these approaches is lacking, since this is not an area known for its use of formal evaluation methods, such as randomised control trials to evidence success. Case studies, user feedback, and testimonials or expert opinions are often used to present the effectiveness of design creativity approaches, but providing concrete evidence is challenging. This is due to issues including the subjectivity and complexity of design outcomes, the diverse objectives of applying approaches, and the high level of context dependency of the findings. Instead, creativity in systems and product design has a long history of relevance in engineering design, which is typically evidenced by commercial success. As a result, literature of this form is scarce, with publications normally more narrative in form. The same is true for the application of creativity techniques in health and care improvement, and further research is needed to better evidence the value of creativity in improvement. However, design thinking has gained widespread acceptance and has been adopted by numerous organisations in various industries. It is important to note that the effectiveness of these design creativity approaches can vary depending on the context, project goals, and the skill of the team applying them.
Nonetheless, a systematic review of the impact of a systems approach to health and care improvement has been undertaken and suggests that a systems approach to healthcare design and delivery results in a statistically significant improvement to both patient and service outcomes.Reference Komashie, Ward and Bashford54 In this context, a systems approach is defined as one that integrates perspectives on people, systems, design, and risk in a way that is applicable to healthcare systems across all scales from local service systems through to organisational, cross-organisational, and national policy levels. A further study found little evidence of understanding within the health service of the value and significance of design – especially in relation to managing and implementing design improvements to improve patient safety.Reference Clarkson, Buckle and Coleman55 The authors found cause to question not simply the design of medical devices, products, packaging, and information but the way the health service as a whole uses, or rather fails to use, design in an effective way, and also fails to understand what design thinking can bring to an organisation.
There is much to be done to introduce creativity, in its broadest sense, to improvement practice, in particular by bringing a new perspective to enable more effective improvement. Some methods, such as observational studies, personas, and brainstorming, are already used to a limited extent in healthcare improvement, but a wider and more systematic application would likely be valuable. There is far less evidence of application within healthcare of some other methods, such as house of quality (see Section 2.3.1), morphological charts (Section 2.6), and MoSCoW prioritisation charts (Section 2.7), all of which will require the collaboration of experienced design practitioners.
3.1 Making Exploration Explicit
Improvement practices and design practices have each influenced the other, and both have adopted some methods that originated with the other. But healthcare can benefit even further by embracing the design thinking methods introduced in this Element. Some research suggests that the ‘explore’ stage of the design process (i.e. exploring the ill-defined problem space before generating concept solutions – the first diamond in the Double Diamond model in Figure 1) should be conducted more explicitly in the healthcare improvement process.Reference Hignett, Jones and Miller56, Reference Jun, Morrison and Clarkson57 Observation studies in combination with the AEIOU framework, affinity diagram and link analysis (see Section 2.1), and personas (see Section 2.2) can support this stage in particular. These methods can enable multiple stakeholders, including patients and healthcare providers, to explore potential issues and conflicts.
3.2 Idea Generation and Organisational Culture
The ‘idea generation’ stage in improvement uses change principles and process maps, but further use of a broad range of divergent thinking methods (the divergent part of the second diamond in the Double Diamond model – Figure 1), such as brainstorming, Disney, and six thinking hats (see Section 2.4), nine windows (see Section 2.5), and morphological charts (see Section 2.6), can help to generate a wider range of options.
However, such idea-generating methods only work in organisations that develop and nurture a culture of creativity and innovation. Considerable evidence shows that intrinsic motivation is more powerful in driving up levels of creativity than external motivators, such as competition, expected evaluation, or rewards.Reference Amabile, Schatzel, Moneta and Kramer58
Nurturing a culture of idea generation (and possibly innovation) in a target-driven, performance-managed healthcare system is a major challenge,Reference Massey and Munt59 not least because a top-down approach may undervalue stakeholder involvement and decrease intrinsic motivation. Divergent thinking can also be difficult to encourage in organisations that prioritise action and don’t allow much time (or where little time is available) to explore a problem before implementing a solution, or where the challenge spans multiple departments or organisations. So, healthcare organisations should think carefully not only about how to exploit divergent thinking methods but also how to develop and nurture an innovative culture in the long term. Healthcare managers, while attending to policy changes, can also consider what they might do to support an innovative culture. Organisational support (e.g. time, resources, training, skills) and management support (e.g. attentiveness, coaching, giving useful feedback, being open to criticism) are all critical to the enhancement of innovative culture in healthcare.Reference Cramm, Strating, Bal and Nieboer60
3.3 Evaluation
The ‘evaluation’ stage in design process (the convergent part of the second diamond in the Double Diamond model – Figure 1) involves assessing a wide range of ideas against goals and constraints to decide on the most appropriate final concept. Small-scale and short-term piloting (i.e. new ideas are quickly tested, adjusted, and implemented into practice) is widely used in healthcare improvement. But while rapid piloting may be appropriate for some interventions, it is not the only approach to evaluation – and it can be problematic in some circumstances, particularly where there is uncertainty as to the risks that may be introduced by change.
Using MoSCoW prioritisation (see Section 2.7) to evaluate new ideas and concept solutions before piloting and implementation can help staff to identify and address issues before they emerge. Various physical, virtual, and conceptual evaluations can also be carried out in the design process before implementation – for example, types of system analysis, such as fault tree analysis, worst case analysis, what-if analysis, and failure mode and effect analysis (see the Element on risk assessmentReference Card, Ward, Risk, In Dixon-Woods, Brown and Marjanovic8). Computer-based scenario simulation approaches may also be useful in evaluating potentially high-risk concepts before they are implemented.Reference Jun, Morris and Eldabi61, Reference Ibrahim Shire, Jun, Moon and Robinson62
3.4 Incorporating Design into Improvement
Introducing designers and design principles into the health and care environment has the potential to accelerate the adoption of creativity methods and tools. Many of the design methods and tools introduced in this Element are most likely to be most effective when multidisciplinary teams, including designers themselves, are involved in their application. An example of such practice is the Helix Centre63 (a research lab for design and health co-founded by Imperial College London and the Royal College of Art) located at St Mary’s Hospital in London, which describes itself as ‘a studio space for designers, clinicians and patients to come together to explore and develop new ideas that positively impact healthcare delivery’. This immersion approach captures the essence of the Double Diamond model, where as much effort is spent in understanding the problem as finding the right solution. Other hospitals are turning to their clinical engineering teams to provide a similar design service, for example, the Clinical Engineering Innovation team and Cambridge University Hospitals64 that aim to identify novel, unmet clinical needs and translate these into innovative medical technologies and processes to benefit patients, staff, and the wider health economy. Whilst much narrative evidence exists on the value of design-led approaches in improvement, further research is required to directly link improved or altered outcomes to design creativity interventions.
4 Conclusions
Creativity is needed for exploring needs for improvement, creating novel and workable solutions for improvement, and evaluating their success. Activities and tools developed and applied by design researchers and practitioners have the potential to add considerable value in improving healthcare. When appropriately used, the design methods and tools introduced in this Element can support development of human-centred, innovative, and sustainable solutions.
Design creativity is more than a way of thinking: it’s also a set of structured principles and approaches. The Double Diamond model presented in this Element is an example of a framework that emphasises the importance of exploration, creativity, and evaluation in contributing to the successful delivery of change or improvement. A toolkit of design methods, a sample of which has been shown here, then facilitates the delivery of creativity within the improvement process. This way of thinking is relevant to all improvement and is intended to complement and supplement existing methods and approaches to improvement.
5 Further Reading
Buckle et al.Reference Buckle, Clarkson and Coleman65 – outlines a view of the NHS from a fresh standpoint, applying the design approach and experience of other safety-critical industries to deliver a clear message: that the NHS needs to think in broad design and system terms much more so than it does at present.
Brown and MartinReference Brown and Martin66 – explains the beginning of design thinking to improve the process of designing tangible products. The Intercorp story presented in this review shows that design thinking principles have the potential to be even more powerful when applied to managing the intangible challenges involved in getting people to engage with and adopt innovative new ideas and experiences.
Burns et al.Reference Burns, Cottam, Vanstone and Winhall67 – introduces RED, a ‘do tank’ that challenges accepted thinking. It designs new public services, systems, and products that address social and economic problems. These problems are increasingly complex and traditional public services are ill-equipped to address them. Innovation is required to reconnect public services to people and the everyday problems that they face.
Clarkson et al.Reference Clarkson, Bogle and Dean1 – this report, co-produced with engineers, clinicians, and healthcare leaders, explores how an engineering approach could be applied in health and social care to develop systems that meet the needs of patients, carers, and NHS staff. It presents a new framework to support ongoing work in service design and improvement in health and care.
Cottam and LeadbeaterReference Cottam and Leadbeater68 – a guide to the Design Council–established RED, a new unit challenging accepted thinking on economic and social issues through design innovation. It ran rapid live projects to develop new thinking and practical design solutions in the form of systems, services, and products.
Design Council69 – an in-depth study of the design processes used in 11 global brands. The results give an insight into the way design operates in these firms and delivers usable lessons for all designers and managers.
KolkoReference Kolko70 – covers principles that include a focus on users’ experiences, especially their emotional ones; the creation of physical models, such as diagrams and sketches, to explore problems; the use of prototypes to experiment with solutions; a tolerance for failure; and thoughtful restraint in product features so that even a complex piece of technology can be easy to use.
