Basal conditions at Engabreen, Norway, inferred from surface measurements and inverse modelling

  • ANNE M. SOLGAARD (a1) (a2), ALEXANDRA MESSERLI (a1) (a3), THOMAS SCHELLENBERGER (a4), CHRISTINE S. HVIDBERG (a1), ASLAK GRINSTED (a1), MIRIAM JACKSON (a5), THOMAS ZWINGER (a6), NANNA B. KARLSSON (a2) (a7) and DORTHE DAHL-JENSEN (a1)...
Abstract

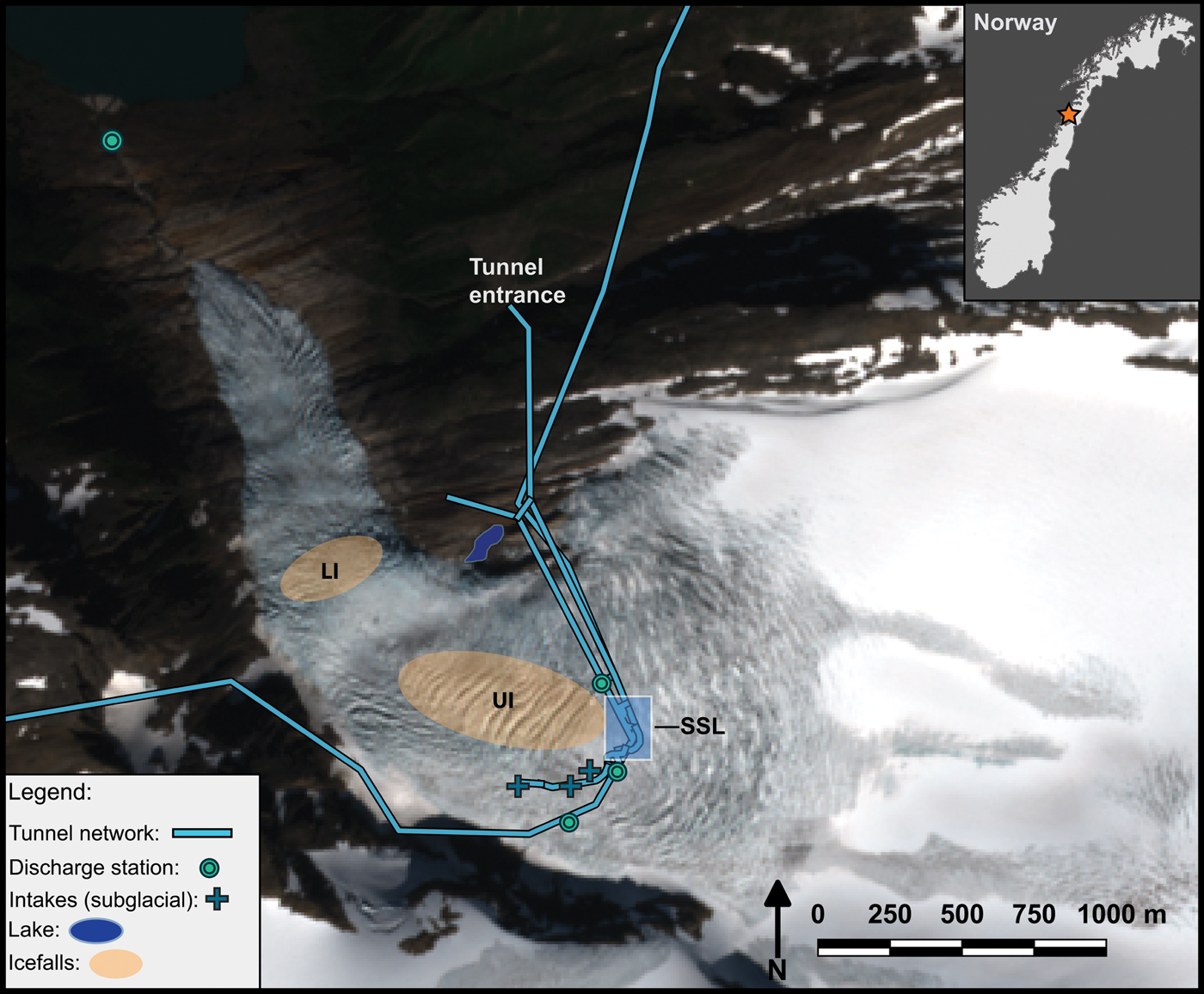

Engabreen is an outlet glacier of the Svartisen Ice Cap located in Northern Norway. It is a unique glacier due to the Svartisen Subglacial Laboratory which allows direct access to the glacier bed. In this study, we combine both sub- and supraglacial observations with ice-flow modelling in order to investigate conditions at the bed of Engabreen both spatially and temporally. We use the full-Stokes model Elmer/Ice and satellite-based surface-velocity maps from 2010 and 2014 to infer patterns of basal friction. Direct measurements of basal sliding and deformation of lower layers of the ice are used to adjust the ice viscosity and provide essential input to the setup of our model and influence the interpretation of the results. We find a clear seasonal cycle in the subglacial conditions at the higher elevation region of the study area and discuss this in relation to the subglacial hydrological system. Our results also reveal an area with an overdeepening where basal friction is significantly lower than elsewhere on the glacier all year round. We attribute this to either water pooling at the base, or saturated sediments and increased strain heating at this location which softens the ice further.

  • View HTML
    • Send article to Kindle

      To send this article to your Kindle, first ensure no-reply@cambridge.org is added to your Approved Personal Document E-mail List under your Personal Document Settings on the Manage Your Content and Devices page of your Amazon account. Then enter the ‘name’ part of your Kindle email address below. Find out more about sending to your Kindle. Find out more about sending to your Kindle.

      Note you can select to send to either the @free.kindle.com or @kindle.com variations. ‘@free.kindle.com’ emails are free but can only be sent to your device when it is connected to wi-fi. ‘@kindle.com’ emails can be delivered even when you are not connected to wi-fi, but note that service fees apply.

      Find out more about the Kindle Personal Document Service.

      Basal conditions at Engabreen, Norway, inferred from surface measurements and inverse modelling
      Available formats
      ×
      Send article to Dropbox

      To send this article to your Dropbox account, please select one or more formats and confirm that you agree to abide by our usage policies. If this is the first time you use this feature, you will be asked to authorise Cambridge Core to connect with your <service> account. Find out more about sending content to Dropbox.

      Basal conditions at Engabreen, Norway, inferred from surface measurements and inverse modelling
      Available formats
      ×
      Send article to Google Drive

      To send this article to your Google Drive account, please select one or more formats and confirm that you agree to abide by our usage policies. If this is the first time you use this feature, you will be asked to authorise Cambridge Core to connect with your <service> account. Find out more about sending content to Google Drive.

      Basal conditions at Engabreen, Norway, inferred from surface measurements and inverse modelling
      Available formats
      ×
Copyright
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution, and reproduction in any medium, provided the original work is properly cited.
Corresponding author
Correspondence: Anne M. Solgaard <aso@geus.dk>
References
Hide All
Andreassen, LM, Elvehøy, H, Jackson, M, Kjøllmoen, B and Giesen, RH (2011) Glaciological investigations in Norway in 2010. Tech. Rep. NVE Rapport 3. Norwegian Water Resources and Energy Directorate
Andreassen, LM, Huss, M, Melvold, K, Elvehøy, H and Winsvold, SH (2015) Ice thickness measurements and volume estimates for glaciers in Norway. J. Glaciol., 61(228), 763775
Aschwanden, A and Blatter, H (2005) Meltwater production due to strain heating in Storglaciären, Sweden. J. Geophys. Res., 110(F04024)
Bogen, J and Bønsnes, TE (2000) The impact of a hydroelectric power plant on the sediment load in downstream water bodies, Svartisen, northern Norway. Sci. Tot. Env., 266, 273280
Borstad, CP and 6 others (2012) A damage mechanics assessment of the Larsen B ice shelf prior to collapse: Toward a physically-based calving law. Geophys. Res. Lett., 39
Church, JA and 13 others (2013) Sea level change. Cambridge University Press, Cambridge, UK and New York, NY, USA, 11371216, book section 13, ISBN 978-1-107-66182-0
Cohen, D (2000) Rheology of ice at the bed of Engabreen, Norway. J. Glaciol., 46(155), 611621
Cohen, D, Hooke, RL, Iverson, NR and Kohler, J (2000) Sliding of ice past an obstacle at Engabreen, Norway. J. Glaciol., 46(155), 599610
Cohen, D and 5 others (2005) Debris-bed friction of hard-bedded glaciers. J. Geophys. Res., 110(F02007)
Colgan, W and 6 others (2015) Glacier crevasses: Observations, models, and mass balance implications. Rev. Geophys., 54
Cuffey, KM and Paterson, WSB (2010) The physics of glaciers, 4th edn. Pergamon
Elvehøy, H (2016) Reanalysing of a mass balance record, Engabreen 1970–2014. Tech. Rep. NVE Rapport 29. Norwegian Water Resources and Energy Directorate
Frey, PJ and Alauzet, F (2005) Anisotropic mesh adaptation for CFD computations. Comput. Methods Appl. Mech. Engrg., 194, 50685082
Gagliardini, O and 13 others (2013) Capabilities and performance of Elmer/Ice, a new-generation ice sheet model. Geosci. Model Dev., 6, 12991318
Gillet-Chaulet, F and 8 others (2012) Greenland ice sheet contribution to sea-level rise from a new-generation ice-sheet model. Cryosphere, 6, 15611576
Gillet-Chaulet, F and 6 others (2016) Assimilation of surface velocities acquired between 1996 and 2010 to constrain the form of the basal friction law under Pine Island Glacier. Geophys. Res. Lett., 43, 1031110321
Hansen, P (2001) The L-curve and its use in the numerical treatment of inverse problems. Computational inverse problems electrocardiol., 5, 119142
Huss, M and Farinotti, D (2012) Distributed ice thickness and volume of all glaciers around the globe. J. Geophys. Res., 117, F04010
Iken, A (1981) The effect of the subglacial water pressure on the sliding velocity of a glacier in an idealized numerical model. J. Glaciol., 27(97), 407421
Iken, A, Röthlisberger, H, Flotron, A and Haeberli, W (1983) The uplift of Unteraargletscher at the beginning of the melt season – a consequence of water storage at the bed? J. Glaciol., 29(101), 2847
Jackson, M, Brown, IA and Elvehøy, H (2005) Velocity measurements on Engabreen, Norway. Ann. Glaciol., 42, 2933
Jansson, P, Kohler, J and Pohjola, VA (1996) Characteristics of basal ice at Engabreen, northern Norway. Ann. Glaciol., 22, 114120
Jay-Allemand, M, Gillet-Chaulet, F, Gagliardini, O and Nodet, M (2011) Investigating changes in basal conditions of Variegated Glacier prior to and during its 1982-1983 surge. Cryosphere, 5, 659672
Kennett, M and Laumann, T (1993) Helicopter-borne radio-echo sounding of Svartisen, Norway. Ann. Glaciol., 17, 2326
Kjøllmoen, B, Andreassen, LM, Elvehøy, H, Jackson, M and Giesen, RH (2011) Glaciological investigations in Norway in 2010. Tech. Rep. NVE Rapport 2. Norwegian Water Resources and Energy Directorate
Kohler, J (1998) The effect of subglacial intakes on ice dynamics at Engabreen. Tech. Rep. NVE Rapport 12. Norwegian Water Resources and Energy Directorate
Lappegard, G, Kohler, J, Jackson, M and Hagen, JO (2006) Characteristics of subglacial drainage systems deduced from load-cell measurements. J. Glaciol., 52(176), 137148
Lefeuvre, PM, Jackson, M, Lappegard, G and Hagen, JO (2015) Interannual variability of glacier basal pressure from a 20 year record. Ann. Glaciol., 56, 3334
Lüthi, MP and 7 others (2015) Heat sources within the Greenland Ice Sheet: dissipation, temperate paleo-firn and cryo-hydrologic warming. Cryosphere, 9, 245253
MacAyeal, D (1993) A tutorial on the use of control methods in ice-sheet modeling. J. Glaciol., 39(131), 9198
MacGregor, JA and 11 others (2015) Radar attenuation and temperature within the Greenland Ice Sheet. J. Geophys. Res. Earth Surf., 120, 9831008
Mair, D and 5 others (2003) Hydrological controls on patterns of surface, internal and basal motion during three “spring events”: Haut Glacier dÁrolla, Switzerland. J. Glaciol., 49(167), 555567
Matsuoka, K, MacGregor, JA and Pattyn, F (2012) Predicting radar attenuation across Antarctica. Earth Plan. Sci. Lett., 359–360, 173183
Messerli, A (2015) Surface velocities and hydrology at Engabreen: observations from feature tracking and hydro-meteorological measurements. (PhD thesis, University of Copenhagen)
Messerli, A and Grinsted, A (2015) Image georectification and feature tracking toolbox: ImGRAFT. Geosci. Instrum. Method. Data Syst., 4(1), 2334
Moore, PL and 7 others (2013) Glacier slip and seismicity induced by surface melt. Geology, 41(12), 12471250
Morlighem, M and 5 others (2010) Spatial pattern of basal drag inferred using control methods from a full-Stokes and simpler models for Pine Island Glacier, West Antarctica. Geophys. Res. Lett., 37, L14502
Murray, T, Stuart, GW, Fry, M, Gamble, NH and Crabtree, MD (2000) Englacial water distribution in a temperate glacier from surface and borehole radar velocity analysis. J. Glaciol., 46(154), 389397
Nesje, A, Bakke, J, Dahl, SO, Lie, Ø and Matthews, JA (2008) Norwegian mountain glaciers in the past, present and future. Glob. Planet. Change, 60(1–2), 1027
Nye, JF (1951) The flow of glaciers and ice-sheets as a problem in plasticity. Proc. R. Soc. Lond. A, 207(1091), 554572
Paterson, WSB (1991) Why ice-age ice is sometimes “soft”. Cold. Reg. Sci. Technol., 20(1), 7598, ISSN 0165232X
Rignot, E, van den Broeke, MR, Monaghan, A and Lenaerts, J (2011) Acceleration of the contribution of the Greenland and Antarctic ice sheets to sea level rise. Geophys. Res. Lett., 38, L2011
Schäfer, M and 8 others (2012) Sensitivity of basal conditions in an inverse model: Vestfonna ice cap, Nordaustlandet/Svalbard. Cryosphere, 6, 771783
Shapero, DR, Joughin, IR, Poinar, K, Morlighem, M and Gillet-Chaulet, F (2016) Basal resistance for three of the largest Greenland outlet glaciers. J. Geophys. Res. Earth Surf., 121, 168180
Shreve, J (1972) Movement of water in glaciers. J. Glaciol., 11(62)
Strozzi, T, Luckman, A, Murray, T, Wegmuller, U and Werner, CL (2002) Glacier motion estimation using SAR offset-tracking procedures. IEEE Trans. Geosci. Remote. Sens., 40(11), 23842391, ISSN 0196-2892
WGMS (2013) Glacier mass balance bulletin no. 12 (2010–2011). In Zemp, M, Nussbaumer, SU, Naegeli, K, Gärtner-Roer, I, Paul, F, Hoelzle, M and Haeberli, W, eds. ICSU(WDS)/IUGG(IACS)/UNEP/UNESCO/WMO, World Glacier Monitoring Service, Zurich, Switzerland, 106 p
