Inter-satellite Ranging Augmented GPS Relative Navigation for Satellite Formation Flying

  • Yang Yang (a1) (a2), Yong Li (a2), Chris Rizos (a2), Andrew G. Dempster (a3) and Xiaokui Yue (a1)...

Abstract

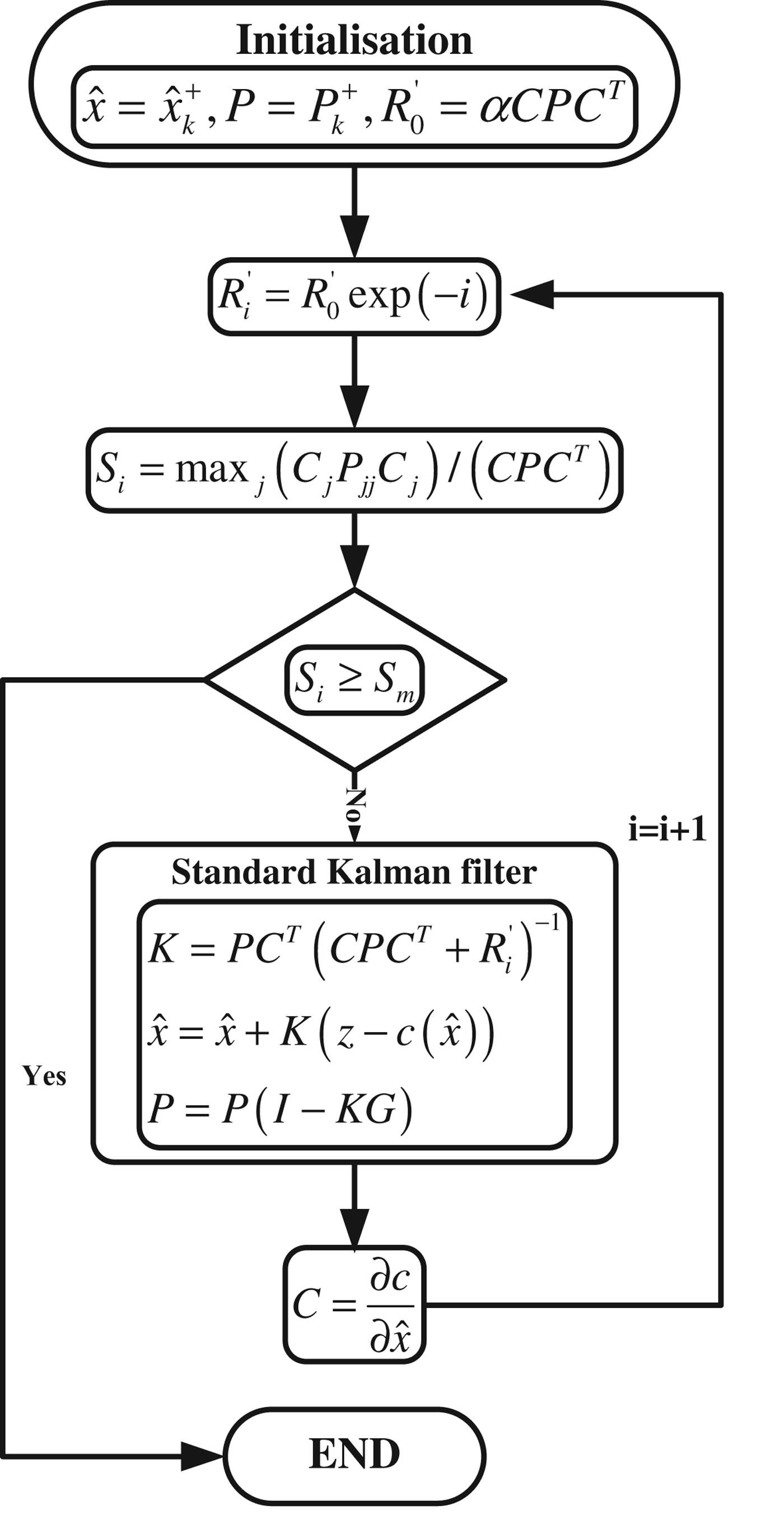

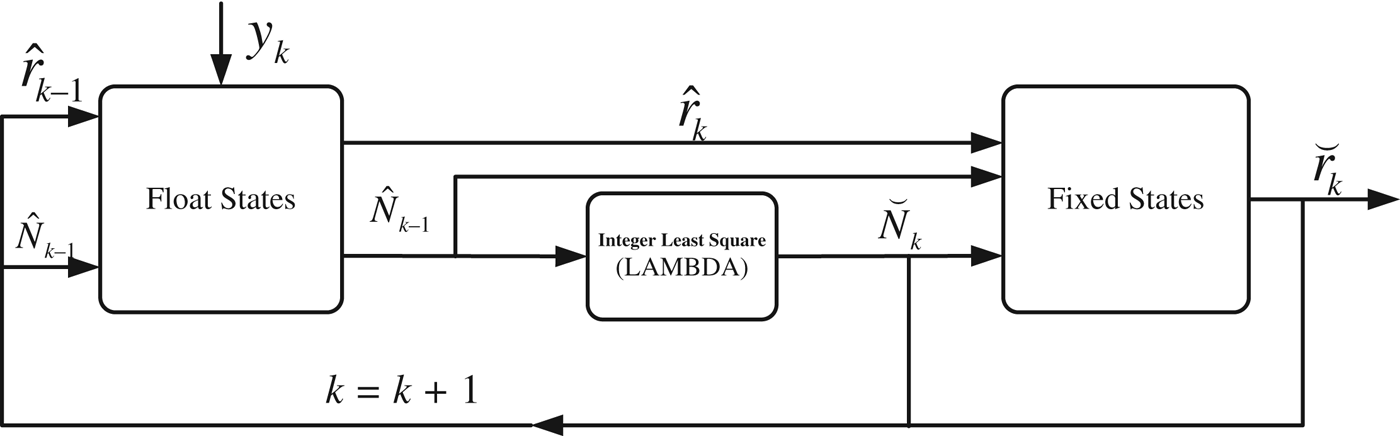

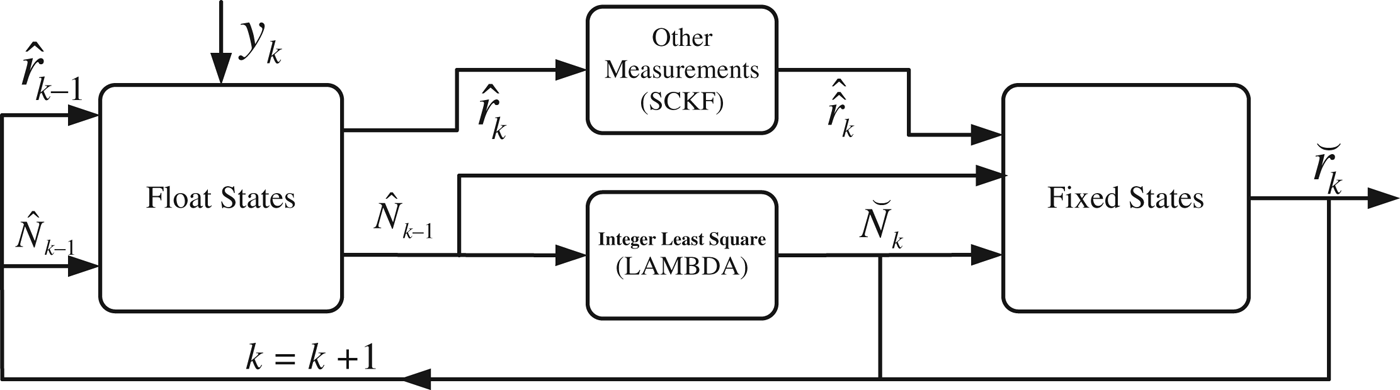

An Augmented Relative Navigation System (ARNS) is proposed for autonomous satellite formation flying in low-Earth-orbit (LEO). Inter-satellite ranging systems such as those based on radio frequency transmissions can provide additional observation information, e.g. inter-satellite distance measurement, which can be used to increase the Global Positioning System (GPS) stand-alone observation dimension, or treated as a non-linear equality constraint within a smoothly-constrained Kalman filter. Both approaches are implemented in the proposed ARNS described in this paper. An innovative phase integer ambiguity fixing and feedback scheme is implemented to increase the ambiguity fix rate of the GPS carrier phase measurements. A set of Gravity Recovery and Climate Experiment (GRACE) flight data is used to test and validate the relative navigation performance of the proposed methods. Results indicate that the augmented system can improve relative positioning accuracy by an order of magnitude.

  • View HTML
    • Send article to Kindle

      To send this article to your Kindle, first ensure no-reply@cambridge.org is added to your Approved Personal Document E-mail List under your Personal Document Settings on the Manage Your Content and Devices page of your Amazon account. Then enter the ‘name’ part of your Kindle email address below. Find out more about sending to your Kindle. Find out more about sending to your Kindle.

      Note you can select to send to either the @free.kindle.com or @kindle.com variations. ‘@free.kindle.com’ emails are free but can only be sent to your device when it is connected to wi-fi. ‘@kindle.com’ emails can be delivered even when you are not connected to wi-fi, but note that service fees apply.

      Find out more about the Kindle Personal Document Service.

      Inter-satellite Ranging Augmented GPS Relative Navigation for Satellite Formation Flying
      Available formats
      ×

      Send article to Dropbox

      To send this article to your Dropbox account, please select one or more formats and confirm that you agree to abide by our usage policies. If this is the first time you use this feature, you will be asked to authorise Cambridge Core to connect with your <service> account. Find out more about sending content to Dropbox.

      Inter-satellite Ranging Augmented GPS Relative Navigation for Satellite Formation Flying
      Available formats
      ×

      Send article to Google Drive

      To send this article to your Google Drive account, please select one or more formats and confirm that you agree to abide by our usage policies. If this is the first time you use this feature, you will be asked to authorise Cambridge Core to connect with your <service> account. Find out more about sending content to Google Drive.

      Inter-satellite Ranging Augmented GPS Relative Navigation for Satellite Formation Flying
      Available formats
      ×

Copyright

Corresponding author

References

Hide All
Busse, F.D. (2003). Precise Formation-state Estimation in Low Earth Orbit Using Carrier Differential GPS. Ann Arbor, Stanford University. 3085166, 192.
Case, K., Kruizinga, G. and Wu, S. (2002). “GRACE Level 1B Data Product User Handbook.” JPL Publication D-22027.
D'Amico, S., Ardaens, J.S. and De Florio, S. (2013). “Autonomous formation flying based on GPS — PRISMA flight results.” Acta Astronautica. 82(1), 6979.
De Geeter, J., Van Brussel, H., De Schutter, J. and Decreton, M. (1997). “A Smoothly Constrained Kalman Filter.” IEEE Transactions on Pattern Analysis and Machine Intelligence, 19(10), 11711177.
Jäggi, A., Montenbruck, O., Moon, Y., Wermuth, M., König, R., Michalak, G., Bock, H. and Bodenmann, D. (2012). “Inter-agency Comparison of TanDEM-X Baseline Solutions.” Advances in Space Research. 50(2), 260271.
Kroes, R. (2006). Precise Relative Positioning of Formation Flying Spacecraft Using GPS. Ann Arbor, Technische Universiteit Delft (The Netherlands). C824361, 184.
Kroes, R., Montenbruck, O., Bertiger, W. and Visser, P. (2005). “Precise GRACE Baseline Determination Using GPS.” GPS Solutions 9(1): 2131.
Leung, S. and Montenbruck, O. (2005). “Real-Time Navigation of Formation-flying Spacecraft Using Global Positioning System Measurements.” Journal of Guidance, Control, and Dynamics. 28(2), 226235.
Mohiuddin, S. and Psiaki, M.L. (2005). Satellite Relative Navigation Using Carrier-phase Differential GPS with Integer Ambiguities. AIAA guidance, navigation, and control conference, San Francisco.
Montenbruck, O. and D'Amico, S. (2013). GPS Based Relative Navigation. Distributed Space Missions for Earth System Monitoring. M. D'Errico, Springer New York. 31, 185223.
Montenbruck, O., Delpech, M., Ardaens, J.S., Delong, N., D'Amico, S. and Harr, J. (2008). Cross-validation of GPS and FFRF-based Relative Navigation for the PRISMA Mission. 4th ESA workshop on satellite navigation user equipment technologies. NAVITEC.
Renga, A., Grassi, M. and Tancredi, U. (2013). “Relative Navigation in LEO by Carrier-Phase Differential GPS with Intersatellite Ranging Augmentation.” International Journal of Aerospace Engineering. 2013, 11.
Sheard, B.S., Heinzel, G., Danzmann, K., Shaddock, D.A., Klipstein, W.M. and Folkner, W.M. (2012). “Intersatellite Laser Ranging Instrument for the GRACE Follow-on Mission.” Journal of Geodesy. 86(12), 10831095.
Simon, D. (2010). “Kalman Filtering with State Constraints: a Survey of Linear and Nonlinear Algorithms.” Control Theory & Applications, IET. 4(8), 13031318.
Tancredi, U., Renga, A. and Grassi, M. (2010). GPS-based Relative Navigation of LEO Formations with Varying Baselines. AIAA Guidance, Navigation, and Control Conference, American Institute of Aeronautics and Astronautics.
Tancredi, U., Renga, A. and Grassi, M. (2013). “Validation on Flight Data of a Closed-loop Approach for GPS-based Relative Navigation of LEO Satellites.” Acta Astronautica. 86, 126135.
Tapley, B.D., Bettadpur, S., Ries, J.C., Thompson, P.F. and Watkins, M.M. (2004). GRACE Measurements of Mass Variability in the Earth System. Science. 305(5683), 503505.
van Barneveld, P., Montenbruck, O. and Visser, P. (2008). Differential Ionospheric Effects in GPS Based Navigation of Formation Flying Spacecraft. Proceedings of 3rd international symposium on formation flying, missions and technology, ESA/ESTEC, Noordwijk.
