2.1 Methods for extractive summarization

In extractive summarization, the most salient units of text from the original document are concatenated to form a shorter version of the document. This is different from abstractive summarization, where the text is rewritten (abstracted) into a shorter text. The identification of the most salient text units in extractive summarization can be approached as a selection problem, a classification problem, or a ranking problem (Das and Martins Reference Das and Martins2007). In the selection approach (Carbonell and Goldstein Reference Carbonell and Goldstein1998; Nallapati, Zhou, and Ma Reference Nallapati, Zhou and Ma2016), units are selected one by one in descending order of relevance, while taking into account the previously selected units. In the classification approach (Kupiec, Pedersen, and Chen Reference Kupiec, Pedersen and Chen1995; Nallapati, Zhou, and Ma Reference Nallapati, Zhou and Ma2016), each unit is classified independently of the other units as either relevant or non-relevant. In the ranking approach (Gong and Liu Reference Gong and Liu2001; Svore, Vanderwende, and Burges Reference Svore, Vanderwende and Burges2007; Toutanova et al. Reference Toutanova, Brockett, Gamon, Jagarlamudi, Suzuki and Vanderwende2007; Metzler and Kanungo Reference Metzler, Kanungo, Li, Liu and Zhai2008; Amini and Usunier Reference Amini and Usunier2009; Shen and Li Reference Shen and Li2011; Sipos, Shivaswamy, and Joachims Reference Sipos, Shivaswamy and Joachims2012; Dlikman and Last Reference Dlikman and Last2016) each unit is assigned a relevance score, then the units are ranked by this score, and the most relevant units are selected based on a threshold or a fixed cutoff (a predefined number of units or words). In this paper, we evaluate both a selection approach (selecting posts one by one in descending order of relevance) and a ranking approach (scoring all posts, rank them by the score and evaluate the ranking).

For most document types, the summarization units are sentences (Gupta and Lehal Reference Gupta and Lehal2010). In the case of conversation summarization, the units are utterances (Murray, Renals, and Carletta Reference Murray, Renals and Carletta2005; Liu and Liu Reference Metzler, Kanungo, Li, Liu and Zhai2008; Penn and Zhu Reference Penn and Zhu2008; Marge, Banerjee, and Rudnicky Reference Marge, Banerjee and Rudnicky2010), and for discussion thread summarization the units typically are posts (Bhatia, Biyani, and Mitra Reference Bhatia, Biyani and Mitra2014; Verberne et al. Reference van Oortmerssen, Raaijmakers, Sappelli, Boertjes, Verberne, Walasek and Kraaij2017). Most methods for extractive summarization select sentences based on human-engineered features. These include surface features such as sentence position and length (Radev et al. Reference Radev, Jing, Sty´s and Tam2004), the presence of title words, the presence of proper nouns, content features such as word frequency (Nenkova and McKeown Reference Nenkova, McKeown, Aggarwal and Zhai2012), and the presence of prominent terms (Lin and Hovy Reference Lin and Hovy2000). Recently, deep neural network (DNN)-based approaches have become popular for extractive summarization. The motivation is that creating unit representations with the use of DNNs can “avoid the intensive labor in feature engineering” (Zhang et al. Reference Zhang, Er, Zhao and Pratama2016: 1) by using low-dimensional vector representations (Cheng and Lapata Reference Cheng and Lapata2016; Zhang et al. Reference Zhang, Er, Zhao and Pratama2016).

Most DNN-based methods for extractive summarization use convolutional neural nets (CNN) to create abstract unit representations in the form of word embeddings (Denil et al. Reference Denil, Demiraj, Kalchbrenner, Blunsom and de Freitas2014). Some methods use word embeddings together with position information to represent units (Zhang et al. Reference Zhang, Er, Zhao and Pratama2016). These unit representations are then used for calculating document centrality (sometimes called salience or representativeness), measuring how well the unit represents the information in the complete document. A number of methods combine salience with diversity in order to reduce redundancy (Yin and Pei Reference Yin and Pei2015; Tsai et al. Reference Tsai, Hung, Chen and Chen2016). Fewer works use recursive neural networks (Cao et al. Reference Cao, Wei, Li, Li, Zhou and Wang2015 b) or recurrent neural networks (RNNs) (Nallapati, Zhai, and Zhou Reference Nallapati, Zhai and Zhou2016; Nallapati, Zhou, and Ma Reference Nallapati, Zhou and Ma2016), or a combination of CNNs and RNNs (Cheng and Lapata Reference Cheng and Lapata2016).

The most important findings of the work with DNNs are (a) that word embeddings are successful text representations for the estimation of document salience (Denil et al. Reference Denil, Demiraj, Kalchbrenner, Blunsom and de Freitas2014; Nallapati, Zhai, and Zhou Reference Nallapati, Zhai and Zhou2016; Nallapati, Zhou, and Ma Reference Nallapati, Zhou and Ma2016), but (b) the improvements over traditional methods are small and only significant for some datasets (Tsai et al. Reference Tsai, Hung, Chen and Chen2016); (c) when increasing the number of layers in the network (which is only sensible for large datasets), the performance increases marginally and might even decrease because of overfitting (Zhang et al. Reference Zhang, Er, Zhao and Pratama2016); and (d) the models suffer from domain adaptation issues when tested on a different corpus (Nallapati, Zhou, and Ma Reference Nallapati, Zhou and Ma2016). Following up on those findings in this paper, we experiment with the use of word embeddings for the estimation of document centrality (representativeness) and query relevance.

2.2 Query-based summarization

Many previous methods for query-based summarization are directed at multi-document summarization (Li and Li Reference Li and Li2014; Cao et al. Reference Cao, Wei, Dong, Li and Zhou2015 a). In the literature on automatic summarization, two distinct motivations are given for query-based summarization. The first is information finding: query-based document summaries make the result list of a search engine more tailored toward the information needs of the user (Park et al. Reference Park, Lee, Ahn, Hong and Chun2006; Pembe and Güngör Reference Pembe and Güngör2007). It was shown that users of search engines perform relevance judgments more accurately and more quickly when they are presented with a summary of the retrieved documents (Tombros and Sanderson Reference Tombros and Sanderson1998; Nenkova and McKeown Reference Nenkova and McKeown2011).

The second motivation is the development of higher quality reference summaries: the idea is that having a question to focus the summary can help to improve agreement in content between reference summaries (Dang Reference Dang and Vancouver2005). In the context of the DUC, query-based summarization was part of a shared task in 2005 with 32 participating automatic summarization systems (Dang Reference Dang and Vancouver2005). The systems had to answer a list of complicated questions, compiling the answer from collections of 25 to 50 texts. For each topic, four human-written summaries were created as reference (Hovy et al. Reference Hovy, Lin, Zhou and Fukumoto2006). In 2006, the goal of the shared task moved to real-world complex question answering. The task was to compose a “fluent, well-organized summary such that the target length does not exceed 250-words and that the summary of the documents should answer the questions in the topic statement” (Mohamed and Rajasekaran Reference Mohamed and Rajasekaran2006: 1).

The most-referenced method for query-based summarization is MMR (Carbonell and Goldstein Reference Carbonell and Goldstein1998). MMR combines query-relevance with information novelty (diversity). The goal is to minimize redundancy while maximizing query relevance when selecting text units for extractive summarization. Text units are chosen according to a weighted combination of their relevance to the query and their novelty with respect to the text units that have already been selected. MMR is defined as

(1) $${\rm{MMR}} = \mathop {{\rm{arg}} \ {\mkern 1mu} {\rm{max}}}\limits_{{T_i} \in T \setminus S} \left[ {{\rm{\lambda }} \ (Sim({T_i},Q)) - (1 - {\rm{\lambda }})\mathop {\max }\limits_{{T_j} \in S} Sim({T_i},{T_j})} \right]$$

where T is the set of all text units in the document that might be selected for the extractive summary, S is the set of previously selected units, and Q is the query. Sim(T_i, Q) and Sim(T_i, T_j ) are both similarity measures, possibly computed in the same way (e.g., cosine similarity). λ defines the relative weight of both similarity components. Thus, MMR optimizes the weighted linear combination between the similarity of a text unit to a query (positively) and the similarity between the text unit and the most similar previously selected text unit (negatively), the latter component being a measure of diversity. MMR has been shown to be a successful method for query-based conversation summarization in previous work (Murray, Renals, and Carletta Reference Murray, Renals and Carletta2005).

There is some previous work addressing query-based summarization of user-generated content. Schilder and Kondadadi (Reference Schilder and Kondadadi2008) present a method for query-based summarization of customer reviews, where the query refers to a specific product. One previous paper addresses query-based summarization of discussion forums (Hussain, Prakadeswaran, and Prakash Reference Hussain, Prakadeswaran and Prakash2014). Like us, they approach the problem as a post-ranking task, but the main difference is that they propose a two-step approach, where the first step is the retrieval of relevant posts and the second step is further summarizing the retrieved posts. For the summarization, they identify relevant word features by applying latent semantic analysis (LSA) and latent dirichlet allocation (LDA). The authors do not provide an experimental evaluation, only showing precision scores for four queries, ranging from 62% to 78%.

2.3 Summarization for discussion forum threads

Over the last decade, some research has been directed at the summarization of forum threads (Zhou and Hovy Reference Zhou and Hovy2005, Reference Hovy, Lin, Zhou and Fukumoto2006; Tigelaar, op den Akker, and Hiemstra Reference Bhatia, Mitra, Fox and Poole2010). The majority of the recent work addressed summarization of comment threads on news websites (Ren et al. Reference Ren, Ma, Wang and Liu2011; Llewellyn, Grover, and Oberlander Reference Llewellyn, Grover and Oberlander2014; Giannakopoulos et al. Reference Giannakopoulos, Kubina, Conroy, Steinberger, Favre, Kabadjov, Kruschwitz and Poesio2015; Kabadjov et al. Reference Kabadjov, Steinberger, Barker, Kruschwitz and Poesio2015; Aker et al. Reference Aker, Paramita, Kurtic, Funk, Barker, Hepple and Gaizauskas2016; Barker et al. Reference Aker, Paramita, Kurtic, Funk, Barker, Hepple and Gaizauskas2016). In the past decade, abstractive summarization techniques have been successfully applied to tasks related to discussion thread summarization, such as summarizing email threads (Zajic, Dorr, and Lin Reference Zajic, Dorr and Lin2008), summarizing spoken and written conversations and meetings (Mehdad, Carenini, and Ng Reference Mehdad, Carenini and Ng2014; Oya et al. Reference Oya, Mehdad, Carenini and Ng2014), and Twitter topic summarization (Zhang et al. Reference Zhang, Li, Gao and Ouyang2013). In our work, we choose to use extractive summarization, because in the retrieval of discussion threads we consider it to be of importance that the individual opinions of the forum members are not rephrased or aggregated.

The work that is most related to our work are the papers by Krishnamani, Zhao, and Sunderraman (Reference Krishnamani, Zhao and Sunderraman2013) and Bhatia and Mitra (2014). Krishnamani et al. use topic models for representing forum posts, combined with post clustering on the basis of proper nouns, author, and date. They evaluate their method on both the DUC 2007 benchmark for multi-document summarization and on their own forum data and compare their results to the results of centroid-based summarization (MEAD; Radev et al. Reference Radev, Jing, Sty´s and Tam2004). While on the DUC data their method outperforms MEAD, it is not consistently better on the forum data: for short summaries the centroid-based baseline gives better results than their experimental setting (Krishnamani, Zhao, and Sunderraman Reference Krishnamani, Zhao and Sunderraman2013).

Bhatia et al. take a feature-based approach in selecting the most relevant posts from a thread, thereby particularly investigating the use of dialog acts in thread summarization. They evaluate their method on two forums: ubuntuforums.org and tripadvisor.com, and find that for both datasets incorporating dialog act information as features improves results (Bhatia, Biyani, and Mitra Reference Bhatia, Biyani and Mitra2014).

More recently, Condori and Pardo (Reference Condori and Pardo2017) have compared extractive and abstractive methods for opinion summarization, focusing on product reviews. They found that summaries produced by extractive summarization methods have better informativeness than summaries produced by abstractive methods, although the extractive methods led to more redundancy in the summaries. Evaluation with human judges showed that in terms of the utility of the opinion summaries, the extractive methods were better than the abstractive ones (Condori and Pardo Reference Condori and Pardo2017).

2.4 Supervised learning using multiple reference summaries

Reference summaries created by humans are commonly used for the evaluation of summarization systems (Dang Reference Dang and Vancouver2005). Summarization is an inherently subjective task: human summarizers tend to disagree to some extent on the information that should be included in the summary (Liu and Liu Reference Metzler, Kanungo, Li, Liu and Zhai2008; Penn and Zhu Reference Penn and Zhu2008; Marge, Banerjee, and Rudnicky Reference Marge, Banerjee and Rudnicky2010). The agreement between human raters on the content of an extractive summary can be measured using the proportions of selected and non-selected units, and the percentage of common decisions (selected/non-selected). Agreement is then calculated in terms of Cohen’s κ (Radev et al. Reference Radev, Teufel, Saggion, Lam, Blitzer, Qi, Celebi, Liu and Drabek2003) for two raters or Fleiss’ κ for multiple (more than two) raters (Landis and Koch Reference Landis and Koch1977). In related work, κ scores between 0.1 and 0.3 are reported for the summarization of conversations (Liu and Liu Reference Metzler, Kanungo, Li, Liu and Zhai2008; Penn and Zhu Reference Penn and Zhu2008; Marge, Banerjee, and Rudnicky Reference Marge, Banerjee and Rudnicky2010) and a κ of 0.219 for discussion thread summarization specifically, which indicates fair agreement (Verberne et al. Reference van Oortmerssen, Raaijmakers, Sappelli, Boertjes, Verberne, Walasek and Kraaij2017).

The way we approach the problem of low inter-rater agreement is by having multiple raters create reference summaries. This was also done in the context of DUC, where multiple reference summaries per topic (at least four and up to nine) were created (Dang Reference Dang and Vancouver2005). With five human summarizers per thread, we use voting as a measure for relevance: a post selected by (almost) all summarizers is more relevant than a post selected by zero or few summarizers. We use the number of votes for a post as dependent variable in a linear regression model (LRM) predicting the relevance of that post in a thread. The approach taken by Parthasarathy and Hasan (Reference Parthasarathy and Hasan2015) on extractive speech summarization is similar to our method in that respect: they make use of multiple different reference summaries by assuming that text units that are selected by more raters are of higher importance than text units selected by fewer raters (Parthasarathy and Hasan Reference Parthasarathy and Hasan2015).

3.1 The Viva forum dataset

In this study, we used data from the Viva forum,Footnote ^a a Dutch discussion forum with a predominantly female user community. The Viva forum has 2.8 million registered users and 12 million page views per month, which makes it one of the largest Dutch-language web forums.Footnote ^b Figure 1 illustrates what messages on the forum look like.

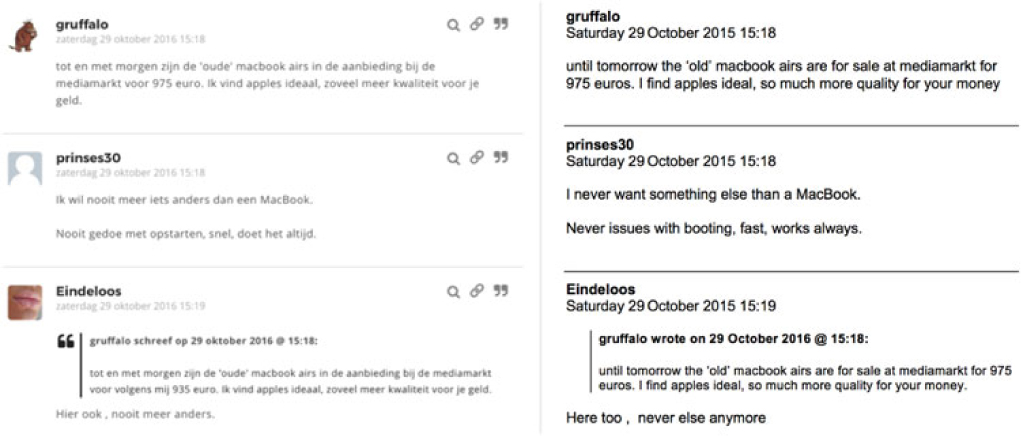

Figure 1.

A screenshot of three messages in a thread on the Viva forum (left) with the translation to English (right). The bottom message contains a quote of an earlier post.

We created a reference data set for query-based thread summarization based on a sample of threads summarized in a previous summarization study (Verberne et al. Reference van Oortmerssen, Raaijmakers, Sappelli, Boertjes, Verberne, Walasek and Kraaij2017).Footnote ^c In that study, we presented human raters from the Viva target group with a discussion thread of between 20 and 50 posts (median length: 34 posts) and asked them to select the most important posts. Each thread was summarized by 10 different raters. We also asked the raters how useful it would be for this thread to have the possibility to see only the most important posts (scale 1–5). A total of 106 threads were summarized: 100 randomly selected threads that have at least 20 posts, and 8 additional threads from category “Digi”—comprising technical questions—that have at least 20 posts, to be sure that our sample included problem-solving threads.

For the current follow-up study with query-based summarization, we obtained the query logs of the Viva forum search functionality.Footnote ^d The query log contains over 1.5 million queries entered between May and December 2015. The average query length in the log data is 1.5 words, which is shorter than written queries in web search engines (3.2 words, according to Guy Reference Guy2016) and comparable to queries in Twitter search (1.6 words, according to Teevan, Ramage, and Morris Reference Teevan, Ramage and Morris2011).

There are 546,949 clicks on pages in the Viva query log. 329,653 of these lead to forum threads; the others are other pages in the Viva domain, such as blog posts and articles. From the 106 threads that were summarized in our previous study, we only kept the threads for which at least half of the participants had given a usefulness score of ≥ 3, indicating that it would be useful for a thread to have the possibility to see only the most important posts. From the selected threads, we removed the threads without clicks in the query log. The result is a set of 42 threads with at least one unique query. Most threads had multiple queries connected to them in the query log; the total number of unique thread–query combinations is 120. We included all these combinations in our sample. Although this sample seems small at first sight, it is large in comparison to other manually created reference data sets for automatic summarization, especially because each thread–query pair is summarized by five human summarizers. Table 1 shows a number of example query–thread combinations.

Table 1.

Example queries with titles of clicked threads in the Viva query log. The queries and titles have been translated to English for the reader’s convenience. “peach1990” is a forum user name

3.2 Reference summaries by human raters

We recruited raters in the Viva forum target group (female, 18–45 years old) via the research participant system of Radboud University as a form of targeted crowdsourcing.Footnote ^e All raters were familiar with the Viva forum. Each query–thread combination was summarized by five different raters. The raters decided themselves how many threads they wanted to summarize. At their first login they were presented with one example thread to get used to the interface. After that, they were presented with a randomly selected thread from our sample. They were paid a gift certificate if they completed at least ten threads. Figure 2 shows a screenshot of the post-selection interface. On top of the screen the query is shown in a search box-like format with the word “Zoekvraag” (search query) on the left. The left column of the screen shows the complete thread; the right column shows an empty table. By clicking on a post in the thread on the left it is added to the column on the right (in the same position); by clicking it in the right column it disappears again. The opening post of the thread was always selected.

Figure 2.

A screenshot of the post-selection interface. The query (“Zoekvraag”) is on top of the screen and stays visible when scrolling. The left column (“Volledige topic”) shows the full thread while the right column (“Jouw selectie”) shows the rater”s selected threads (with the first post always selected). In the blue header, the category and title of the thread are given. Each cell is one post, starting with the author name and the timestamp.

The instructions in the left column read: “Please select the pieces of text (by clicking them one by one) that you think are the most important for the thread, given the search query. You can determine the number of selected posts yourself, but try to create a concise summary in which there is not too much redundant information.” The instruction text in the right column reads: “By reading your selection of posts you can check whether you created a good summary of the topic. You can remove posts from your selection by clicking on them. Click on the “Submit selection” button if your selection is final. If you did not select any posts, please explain in the comments field why.”

It is possible that the thread is not relevant to the query, because a click on a result does not necessarily indicate its relevance (Dupret and Liao Reference Dupret and Liao2010). Therefore, we also asked the raters to assess the relevance of the thread for the query, with the following explanation (in Dutch, below the search box with the query): “This query was entered in the search engine of the Viva forum by a forum visitor. The thread you see below was clicked by her. It could be that the thread was not as relevant as the visitor thought; for that reason we ask you to indicate the relevance of the thread for the query at the bottom of the screen.” The relevance was assessed by the raters on a scale of 1–5, 1 meaning “completely irrelevant” and 5 meaning “highly relevant.” This is similar to how relevance assessments are traditionally created in the context of evaluating information retrieval systems (Kekäläinen and Järvelin Reference Kekäläinen and Järvelin2002; Alonso and Baeza-Yates Reference Alonso, Baeza-Yates, Clough, Foley, Gurrin, Jones, Kraaij, Lee and Mudoch2011). One caveat is that it is sometimes difficult for raters to judge the relevance of the results if they were not the original poster of the query; the raters can only rely on the surface form of the query, without any context.

5.1 Relation between query and post selection

The average relevance score assigned to a thread given the query was 2.8 on a 5-point scale, with an average standard deviation per thread of 0.9. Half of the query–thread combinations (59 out of 120) received a mean relevance score of at least 3 from the raters. This indicates that for half of the queries, the clicked thread was considered irrelevant, which confirms previous research that a click on a result is not necessarily an indicator for relevance (Dupret and Liao Reference Dupret and Liao2010), and that it is sometimes difficult for raters to judge the relevance of results for someone else’s query.

There is a significant positive relationship between the relevance score assigned by a user and the number of posts selected by that user (Kendall τ = 0.234, P =< 0.0001). Thus, the more relevant the thread is for the query, the more posts are selected for the summary.

Posts that contain the literal query get selected significantly more often than posts that do not contain the query: χ²(1, N = 25056) = 123.19, P < 0.0001, but the association is weak: Cramer’s V = 0.07, where 0 means that there is no association between variables.Footnote ^k

5.2 Inter-rater agreement (RQ1)

We investigated the agreement between human raters on which posts should be included in the summary given a query. In previous work, we reported inter-rater agreement in terms of Cohens κ, Fleiss’ κ, the Jaccard similarity coefficient (Verberne et al. Reference van Oortmerssen, Raaijmakers, Sappelli, Boertjes, Verberne, Walasek and Kraaij2017).Footnote ^l In order to calculate Cohen’s κ in a pairwise fashion, we computed the agreement between each pair of raters for each thread. If both raters selected 0 posts, we set κ = 1. We also report the Jaccard similarity coefficient, which is calculated as the size of the intersection divided by the size of the union of the two sets of selected posts. If both raters selected 0 posts, we set Jaccard = 1. The three previously used agreement metrics all measure agreement on the granularity level of complete posts. One problem of that approach is that it does not take the content of a post into account. Two raters might select two different posts, but the two posts might be very similar. Both κ and Jaccard result in 0 for the selection of two distinct but highly similar posts. We therefore added ROUGE-2 as an additional agreement metric, computing the overlap between two human summaries on the granularity level of word bigrams instead of complete posts (see Section 6.1 for a more elaborate explanation of ROUGE-2).

The results for the four metrics are in Figure 3. Four different samples are compared (bars from left to right): (1) all threads summarized without query in previous work (Verberne et al. Reference van Oortmerssen, Raaijmakers, Sappelli, Boertjes, Verberne, Walasek and Kraaij2017); (2) the subset from those threads that also are present in the sample for query-based summarization; (3) the same threads summarized with query; and (4) the subset from those threads for which the human summarizers gave a mean relevance assessment of at least 3.

Figure 3.

Inter-rater agreement in terms of Fleiss κ, Cohen’s κ, Jaccard similarity coefficient, and ROUGE-2, for four thread sets: the data published in Verberne et al. (Reference van Oortmerssen, Raaijmakers, Sappelli, Boertjes, Verberne, Walasek and Kraaij2017) (post selection without query), a subset from that data that contains only the threads that are also in the query sample; the current data with queries; and the current data for the threads with a mean relevance score of at least 3 for the given query according to the human summarizers.

One problem with the κ measures for inter-rater agreement is that they are ill-suited for data with a large class imbalance (Powers Reference Powers2012; Xu and Lorber Reference Xu and Lorber2014). In post selection, we observe a large class imbalance because the majority of posts is not selected. This effect is the most visible in the results for Fleiss’ κ. In computing the chance agreement, Fleiss’ κ uses the total number of post selections (by all raters) and the total number of non-selections (by all raters). These numbers are 9239:28971 for the query-independent post selection data from the previous study. With a chance agreement of 0.633 and a measured agreement of 0.713, Fleiss’ κ was 0.219. In the query-dependent case, the class imbalance becomes worse, that is, 3673:45654, giving a chance agreement of 0.862. With a measured agreement of 0.873, Fleiss’ κ is only 0.075. If we only consider the threads that were judged as relevant to the given query (the rightmost bar) then the agreement is slightly better, but Cohen’s κ = 0.191 at the most.

The class imbalance effect causes the κ statistics to be less suited. Therefore, we will further focus on the results in terms of the Jaccard coefficient and ROUGE-2. Jaccard is a measure for the size of the overlap between the summaries of the two raters, on the post level; a coefficient of 0.25 means that on average 25% of the posts selected by the two raters overlap. ROUGE-2 is a measure for the size of the overlap on the word bigram level; a score of 0.25 means that on average 25% of the word bigrams overlap between two raters. The results for both metrics indicate that adding a query to the summarization task does not lead to a higher agreement between the human summarizers. The direct comparison between the second and third bar, which include the same set of threads without and with query, shows that the agreement for the with-query setting is not higher—in fact, it is lower—than the agreement for the without-query setting.

We investigate this in more detail by analyzing the dispersion of Jaccard values between pairs of summaries (recall that Jaccard is a pairwise overlap measure, between two individual summaries). We compare three sets of Jaccard values:

• the Jaccard values between pairs of summaries created for the same thread by different raters, without a query given

• the Jaccard values between pairs of summaries for the same thread by different raters, with the same query given

• the Jaccard values between pairs of summaries for the same thread by different raters, one with query and one without query

The dispersions of these three sets of Jaccard values are in Figure 4. The mean Jaccard for between_query_and_noquery is almost equal to the mean Jaccard for with_query. This suggests that the differences between two individual summaries cannot be explained by the presence of the query; the individual differences between human raters are larger. On the other hand, we see that the mean Jaccard for without_query is higher than for with_query. A paired t-test on mean Jaccard values per thread indicates that this difference is significant with P = 0.01.Footnote ^m

Figure 4.

Dispersion of the Jaccard similarity index between individual summaries for the same thread, either both without query, both with query, or one with and one without query.

It is surprising that the agreement between human summarizers decreases when a query is added to the task. It could be that the query has a different effect for different raters: some raters might be influenced more by the query than others. Another cause could be that the query confuses the raters because many queries are short and underspecified (e.g., “pregnant”, “toddler”): some raters might have summarized the thread independently of the query because they judged the query as irrelevant, whereas others might have tried to summarize the aspects covered by the query.

It was argued in the context of DUC that having a question to focus the summary can help to improve agreement in content between the model summaries (Dang Reference Dang and Vancouver2005), but unfortunately, none of the previous work on query-based summarization reports inter-rater agreement scores. Our findings contradict the assumption that the addition of a query will improve inter-rater agreement. This is most likely related to the nature of our query data compared to the DUC topics: we have short queries (mostly 1 or 2 words) from a query log, while DUC involves well-formed explicit questions, consisting of a title and a narrative, formulated by the task organizers.

5.3 Analysis of post features for human-created summaries

5.3.1 Comparison of representativeness models

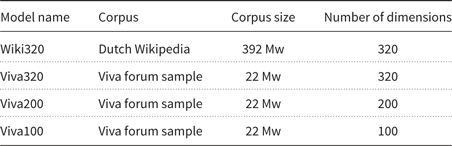

We compared word vectors and word embeddings from several word2vec models as representations of posts and threads in the representativeness feature, with 2 different similarity metrics. The results of this comparison are in Table 5. The models all significantly correlate with the human post ranking, and they all significantly correlate with each other. The correlation with the human post ranking is stronger for the word embeddings models than for the standard word vectors, and cosine similarity gives stronger correlations than word mover’s distance. The results indicate that it is possible to get better representativeness models with word embeddings compared to standard word vectors. Table 5 also shows that the Viva models outperform the larger pre-trained Wikipedia model, which indicates that domain is more important than corpus size in training meaningful word2vec models.

Table 5.

Evaluation of models for representativeness: 5 different representations for posts and threads (words or word embeddings trained on two different corpora) and 2 different similarity metrics (cosine similarity or 1 minus the word mover’s distance).

All correlations are significant with P < 0.0001

The best performing models are the 200-dimensional and the 320-dimensional Viva forum model. We will use Word2vec_Viva320 in our summarization experiments. The differences between the models as listed in Table 5 do not necessarily translate to significantly different summaries. We will investigate the effect of using the best word2vec model compared to standard word vectors in Section 6.2.

5.3.2 Analysis of the LRM

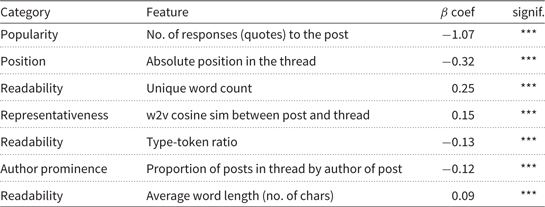

Table 6 shows the ranking of the post features that significantly predict the number of votes for a post, according to the linear regression analysis. As representativeness feature, we used the cosine similarity between the word2vec representations from Word2vec_Viva320. The feature ranking is mostly similar to the feature ranking previously found in Verberne et al., (Reference van Oortmerssen, Raaijmakers, Sappelli, Boertjes, Verberne, Walasek and Kraaij2017) for query-independent summarization. This suggests that the characteristics of the selected posts are independent of the presentation of a query: posts in the beginning of the thread, posts that are relatively long, and posts that are representative of the thread tend to be selected more often.

Table 6.

Post features that are significant predictors for the number of selected votes, sorted by the absolute value of the regression coefficient β; the independent variable with the largest effect (either positive or negative) is on top of the list.

^*** indicates a P < 0.001

One coefficient that stands out negatively is the number of responses (quotes) to the post. The number of responses for a post is counted as the number of later posts that literally quote part of the post (using the quote function of the forum). In the data for query-independent summarization, this coefficient was also negative, but much smaller (0.08). We had a more detailed look at our sample in order to find out what types of posts are quoted in later posts. Only 176 out of the 1571 posts (11%) in our data are quoted at least once, most of them exactly once. The majority of the quoted posts is relatively short, and quoted as a whole. 73 contain a question mark (e.g., “Maybe it is much more busy in a group practice?”); 40 contain an emoticon (e.g.,”Ahhhhhh, please let me get my crystal ball?! ;)”), and 48 quote a previous post themselves. Questions and jokes are typically not the type of posts that are relevant for a (query-based) summary because the implicit goal of the summary is to answer the query. “Responses being responded to” constitute a form of conversation (discourse) that is not effective to select for the summary because the messages are meaningless without context. Thus, these types of messages that get quoted in the forum are typically messages that are not relevant for the (query-based) summary, and therefore the coefficient for the number of responses is negative.

6.1 Evaluation method

Since our methods generate a score per post, we can consider our extractive summarization approach as a ranking problem (see also Section 2.1). Transforming the ranking of posts into a summary requires the setting of a cutoff point, either after a fixed number of posts or threshold-based using the output score of the algorithm. The disadvantage of both approaches is that they require the tuning of the threshold parameter. Therefore, we now choose to first evaluate the ranking using a Precision–Recall curve, increasing the number of selected posts from 1 to 20. We compare our methods to an oracle ranking: the ranking of the posts on the basis of the number of votes they received from the human summarizers when creating the reference summaries. We can consider this oracle ranking the upper limit for our automated summarizers.

Note that use of precision and recall for the evaluation of extractive summarization is a rather strict evaluation method: if the model selects a post that was not included in the reference summary, then this post is considered a false positive, even if the content of other posts in the reference summary is largely overlapping with this model-selected post. This effect is more severe in the case of texts with much redundancy. The common evaluation metric ROUGE-N adopts a more flexible approach to measuring the overlap between the automatic summary and the human reference summary by counting the textual overlap (on the n-gram or word level) between both summaries (Lin Reference Lin, Moens and Szpakowicz2004; Murray, Renals, and Carletta Reference Murray, Renals and Carletta2005; Tsai et al. Reference Tsai, Hung, Chen and Chen2016). ROUGE-N is recall-oriented: the number of overlapping n-grams is divided by the number of n-grams in the reference summary. This means that longer summaries tend to have a higher ROUGE-N score. For that reason, ROUGE is commonly used to evaluate summaries of the same length (Dang Reference Dang and Vancouver2005). Since the methods we compare do not necessarily generate summaries of the same length (because posts are of diverse lengths), we not only report ROUGE-N recall but also ROUGE-N precision. We set N = 2.

We report ROUGE-2 for summaries with a fixed number of posts selected by each method. As cutoff for this fixed number of posts we use the number of posts that gives the maximum F1-score in the oracle ranking—this point (k) denotes the optimal balance between Precision and Recall according to the human summarizers.Footnote ⁿ For this cutoff point, we also add four baselines:

• a position baseline (selecting the k first posts of a thread)

• a length baseline (selecting the k longest posts from a thread)

• a centroid-based baseline (selecting the k posts that are the most representative for the thread in terms of cosine similarity)

• Lexrank (Erkan and Radev Reference Erkan and Radev2004)Footnote ^o

The centroid-based baseline as well as Lexrank are commonly used strong baselines in extractive summarization, among others by Krishnamani et al. (Reference Krishnamani, Zhao and Sunderraman2013) for discussion forum summarization.

6.2 Comparison of the methods (RQ2 and RQ4)

6.2.1 Precision–Recall curves

The Precision–Recall curves for the methods are in Figure 5. The oracle ranking shows a monotonically decreasing line: precision decreases from 75.2% to 28.6% while recall increases from 14.9% to 97.1%. The maximum F1 that is reached for the oracle ranking is 57.4%, at a cutoff of 9 posts. Therefore, we set k = 9 for evaluation in terms of ROUGE-2.

Figure 5.

Precision-Recall curve for all methods on query–based post selection. For the MMR methods, λ = 1.0. The word2vec model is Word2vec_Viva320. “Oracle ranking” is the ranking of the posts based on the number of votes by the human summarizers. Iso-F1 = 0.5 denotes the curve for all combinations of Precision and Recall for which F1 = 0.5.

The curves for PF (query-independent post features) are monotonically decreasing, almost parallel to the oracle ranking, but a large margin below it. The two dashed curves with and without word2vec almost fall together. This indicates that although the Word2vec_Viva320 model performed better in the model evaluation than the standard word vectors (Table 5), the effect of this difference on the quality of the summarizations is negligible (RQ4). The curves for Lexrank and MMR are far below those for PF, and only slightly decreasing. With word2vec, MMR does not structurally improve: For a small number of posts (fewer than 9), MMR without word2vec works slightly better, while for a larger number of posts (9 and higher), MMR word2vec yields slightly better results. Although MMR and Lexrank are reported as good methods for extractive summarization in the literature, they are not successful for our data.

6.2.2 Optimizing MMR

We investigated the importance of the diversity component relative to the query similarity component in MMR by varying λ (see equation 1) between 0.0 (only the diversity component) and 1.0 (only the query similarity component) in steps of 0.1 for all five partitions in a cross-validation setting. The results (over all partitions) in terms of ROUGE-2 and F1 for a summary length of 9 posts are in Figure 6.

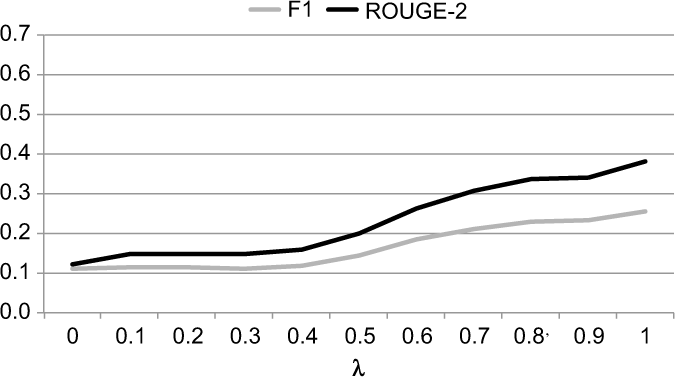

Figure 6.

The effect of the parameter λ in MMR on the quality of the query-based summaries, in terms of F1 and ROUGE-2, at an cutoff of 9 posts. λ = 0.0 means only the diversity component is used; λ = 1.0 means that only the query similarity component is used.

The curves indicate that the best ROUGE-score (38.2%) and the best F1 (25.6%) are obtained at λ = 1.0. This means that query similarity alone, without the diversity component, gives the best results. This is surprising, for two reasons: (a) since the raters were explicitly instructed to create a summary in which redundancy was avoided, it would have made sense if the diversity component would select good posts, and (b) since we found that the influence of the query on the summaries is relatively small (see Section 5), we would not expect the query similarity component to select good posts. On the other hand, the quality of the created summaries with optimal λ value is still relatively low; thus, the success of the query similarity component is limited. Below, we will report the results for MMR with λ = 1.0.

6.2.3 Detailed results for a fixed summary length

The results in terms of Precision, Recall, F1 and ROUGE-2 for a summary length of nine posts are in the upper half of Table 7. The position baseline gives the best results in terms of ROUGE-2 precision, while the length baseline outperforms the position baseline in terms of ROUGE-2 recall—an effect of the longer summaries having an advantage with recall-oriented metrics. The centroid-based baseline gives better results than the length and position baseline on almost all metrics, indicating that of the three important features length, position and representativeness, the latter is the most informative.

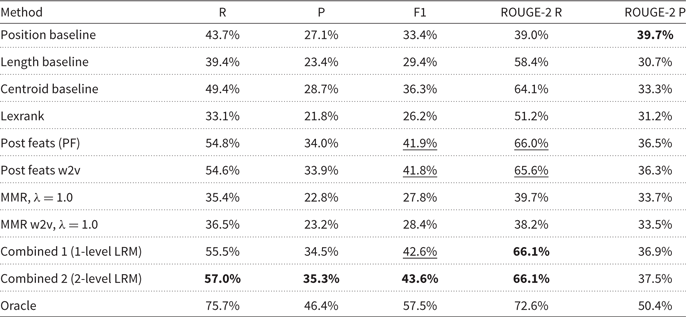

Table 7.

Precision, Recall, F1, ROUGE-2 Recall and ROUGE-2 Precision scores for all methods, with a summary length of 9 posts. All scores are means over the 5 reference summaries and the thread–query combinations.

Boldface indicates the highest scoring method per evaluation metric. Underlined scores are not significantly different from the highest score (only measured for F1 and ROUGE-N R)

Lexrank and the MMR methods perform worse than any of the three baselines. According to a paired t-test on individual ROUGE-2 scores for thread–query–rater tuples, the difference between MMR and MMR word2vec is not significant (P = 0.38).

The F1 for the query-independent post features on the query-based data is 41.9%, which is close to the F1 in Verberne et al. (Reference van Oortmerssen, Raaijmakers, Sappelli, Boertjes, Verberne, Walasek and Kraaij2017) for the query-independent summarization task (45.2%). The recall is 54.8% (stdev = 10.3 %) and the precision is 34.0% (stdev = 19.1%) This confirms the finding in Section 5.3 that the posts that are selected with and without query have similar characteristics. We also see that PF performs reasonably well in terms of ROUGE-2, compared to the oracle ranking: 66.0% Recall and 36.5% Precision. This indicates that, on average, two-thirds of the word bigrams from a reference summary are also contained in the automatic summary, and more than one third of the word bigrams from the automatic summary are also part of the reference summary. The difference between post features and post features with word2vec is not significant (P = 0.82 according to a paired t-test on individual ROUGE-2 scores for thread–query– rater tuples).

In summary, the method using query-independent post features clearly outperforms Lexrank and MMR. Both Lexrank and MMR are outperformed by the informed baselines based on position, length, and centrality of the posts. There is definitely room for improvement, which we address in the next subsection.

6.3 Combining post features with query information (RQ3)

We saw in the previous section that MMR with query similarity as only component (λ = 1.0) gives better results than the position and length baselines. Thus, we reason that adding query relevance to the post selection model might lead to improved summaries for a subset of the threads. We implemented three different query–post similarity metrics for incorporating query relevance in the post ranking:

1. a) the cosine similarity between word vectors (tf-idf term weights) (“query similarity”);

2. b) the cosine similarity between the average vectors over the word embeddings (“query similarity word2vec”);

3. c) the cosine similarity between the query vector expanded with the 5 most similar terms from the word2vec model for each query word and the word-based post vectors (“expanded query similarity”).Footnote ^p

We again used the best-performing word2vec model from Section 5.3 to generate the word embeddings (Word2Vec_Viva320).

Now we have the LRM with query-independent post features as baseline method, and three additional features that operationalize query–post relevance: “query similarity”, “query similarity word2vec,” and “expanded query similarity.” We investigate two methods for incorporating these query relevance metrics in the post ranking:

1. 1. Expanding the LRM from Section 4.1 with the three query relevance metrics (“Combined 1”: first-level LRM);

2. 2. Learning four independent ranking functions: the ranking based on query-independent post features, and three rankings for the three query relevance metrics. Then training a second LRM for optimally combining the four scores in one ranking (“Combined 2”: second-level LRM).

6.3.1 Generic results

The results for the two combination methods are in the bottom half of Table 7. The table shows that the two combination methods perform almost equally to Centroid, as well as PF and PF w2v in terms of ROUGE. The small differences between Combined 1, Combined 2, Centroid, PF, and PF w2v are not significant according to a paired t-test on individual ROUGE-2 scores for thread– query–rater tuples (P > 0.7 for all pairs of methods). Combined 2 seems to be slightly better than PF in terms of F1, but this difference is also not significant (P = 0.218 according to a paired t-test on individual F1 scores for thread–query–rater tuples between PF and Combined 2).

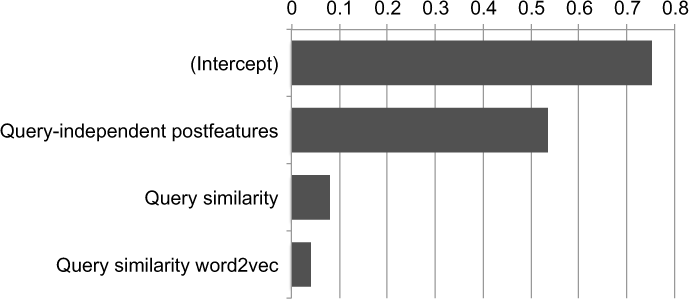

Figure 7 shows the trained LRM for Combined 2. Three of the four variables are significant predictors of the post score: the query-independent post features, query similarity and query similarity word2vec, with the query-independent post features having the largest effect. The contribution of expanded query similarity is not significant (P = 0.109 according to the LRM).

Figure 7.

Variables are significant predictors (P < 0.05) for the post score (number of votes) in the second-level LRM for the query-dependent data, with their beta coefficients.

6.3.2 Effects for individual threads

We investigated the effect of adding query relevance to individual thread–query pairs. Figure 8 shows the difference between PF and Combined 2 for individual thread–query combinations. Each thread–query combination is a tick on the horizontal axis, and they have been sorted by the size of the difference. The bars represent the relative improvement, the grey area represents the F1 for PF, and the black line represents the F1 for Combined 2.

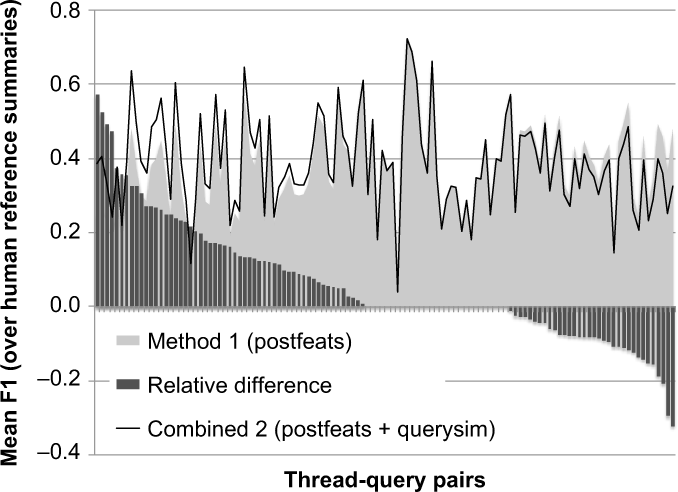

Figure 8.

The mean F1 scores for summaries consisting of nine posts per thread–query combination, comparing PF (query-independent postfeatures) to Combined 2 (post features with query similarity).

For 29 threads (in the middle), the difference between the two methods is zero. For 21 thread– query combinations (the leftmost bars of the graph), adding the query similarity information gives an improvement larger than 0.2 in F1. A detailed look at these cases shows that they generally have no or little overlap between the query and the thread title. This leads us to hypothesizing that the query might play a larger role for creating the summary in cases where the query asks for a one particular aspect of the thread. Examples are the query “adoption” for the thread “Afraid for the future after second miscarriage (long IVF trajectory),” and the query “fez” for the thread “Istanbul or Marrakech?” However, the individual differences between the raters are too large to draw a general conclusion on the subset of thread–query pairs for which combining the methods is profitable.

In the next section, we discuss our results by addressing the four research questions from the introduction.
