Deep learning-based automated speech detection as a marker of social functioning in late-life depression

Published online by Cambridge University Press:  16 January 2020

Bethany Little
Affiliation:
Institute of Neuroscience, Newcastle University, Newcastle upon Tyne, UK
Ossama Alshabrawy
Affiliation:
Interdisciplinary Computing and Complex BioSystems (ICOS) group, School of Computing, Newcastle University, Newcastle upon Tyne, UK Faculty of Science, Damietta University, New Damietta, Egypt
Daniel Stow
Affiliation:
Institute of Health and Society, Newcastle University, Newcastle upon Tyne, UK
I. Nicol Ferrier
Affiliation:
Institute of Neuroscience, Newcastle University, Newcastle upon Tyne, UK
Roisin McNaney
Affiliation:
Faculty of Engineering, Bristol University, Bristol, UK
Daniel G. Jackson
Affiliation:
Open Lab, School of Computing, Newcastle University, Newcastle upon Tyne, UK
Karim Ladha
Affiliation:
Open Lab, School of Computing, Newcastle University, Newcastle upon Tyne, UK
Cassim Ladha
Affiliation:
Cascom Ltd, Newcastle upon Tyne, UK
Thomas Ploetz
Affiliation:
School of Interactive Computing, Georgia Institute of Technology, Atlanta, GA, USA
Jaume Bacardit
Affiliation:
Interdisciplinary Computing and Complex BioSystems (ICOS) group, School of Computing, Newcastle University, Newcastle upon Tyne, UK
Patrick Olivier
Affiliation:
Faculty of Information Technology, Monash University, Melbourne, Australia
Peter Gallagher
Affiliation:
Institute of Neuroscience, Newcastle University, Newcastle upon Tyne, UK
John T. O'Brien
Affiliation:
Institute of Neuroscience, Newcastle University, Newcastle upon Tyne, UK Department of Psychiatry, University of Cambridge, Cambridge, UK
Corresponding
Rights & Permissions[Opens in a new window]

Abstract

Background

Late-life depression (LLD) is associated with poor social functioning. However, previous research uses bias-prone self-report scales to measure social functioning and a more objective measure is lacking. We tested a novel wearable device to measure speech that participants encounter as an indicator of social interaction.

Methods

Twenty nine participants with LLD and 29 age-matched controls wore a wrist-worn device continuously for seven days, which recorded their acoustic environment. Acoustic data were automatically analysed using deep learning models that had been developed and validated on an independent speech dataset. Total speech activity and the proportion of speech produced by the device wearer were both detected whilst maintaining participants' privacy. Participants underwent a neuropsychological test battery and clinical and self-report scales to measure severity of depression, general and social functioning.

Results

Compared to controls, participants with LLD showed poorer self-reported social and general functioning. Total speech activity was much lower for participants with LLD than controls, with no overlap between groups. The proportion of speech produced by the participants was smaller for LLD than controls. In LLD, both speech measures correlated with attention and psychomotor speed performance but not with depression severity or self-reported social functioning.

Conclusions

Using this device, LLD was associated with lower levels of speech than controls and speech activity was related to psychomotor retardation. We have demonstrated that speech activity measured by wearable technology differentiated LLD from controls with high precision and, in this study, provided an objective measure of an aspect of real-world social functioning in LLD.

Type
Original Articles
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution, and reproduction in any medium, provided the original work is properly cited.
Copyright
Copyright © The Author(s) 2020

Introduction

Late-life depression (LLD) is a common disorder associated with pervasive impairments in daily functioning (Fiske, Wetherell, & Gatz, Reference Fiske, Wetherell and Gatz2009). Compared to depression in younger adults, LLD is associated with an increased burden of physical illness, more impaired functioning, more severe neuropsychological impairment, particularly in executive and psychomotor functioning and a poorer clinical outcome (Fiske et al., Reference Fiske, Wetherell and Gatz2009; Thomas et al., Reference Thomas, Gallagher, Robinson, Porter, Young, Ferrier and O'Brien2009). Compared to healthy controls, LLD is associated with reduced social functioning, including lower social activity and social integration, lower instrumental and emotional support, smaller social networks and poorer quality of relationships (Chao, Reference Chao2011; Mechakra-Tahiri, Zuzunegui, Preville, & Dube, Reference Mechakra-Tahiri, Zuzunegui, Preville and Dube2009; Santini, Koyanagi, Tyrovolas, Mason, & Haro, Reference Santini, Koyanagi, Tyrovolas, Mason and Haro2015). Social functioning appears to have an important role in illness onset, course and outcome (Schwarzbach, Luppa, Forstmeier, König, & Riedel-Heller, Reference Schwarzbach, Luppa, Forstmeier, König and Riedel-Heller2014).

Social functioning is typically measured by patient or carer self-report, which is prone to error and biases from memory, mood and cognition (Hodgetts, Gallagher, Stow, Ferrier, & O'Brien, Reference Hodgetts, Gallagher, Stow, Ferrier and O'Brien2017). Since depression is associated with a negative bias in memory and cognition (Romero, Sanchez, & Vazquez, Reference Romero, Sanchez and Vazquez2014), and since memory typically declines with age (Thomas et al., Reference Thomas, Gallagher, Robinson, Porter, Young, Ferrier and O'Brien2009), it is likely that self-report measures from patients with LLD are particularly prone to these biases. Further, the various published methods on social functioning in depression are heterogeneous and often measure different aspects of social functioning that are independent and difficult to compare (Santini et al., Reference Santini, Koyanagi, Tyrovolas, Mason and Haro2015). Thus, more objective, replicable measures of social functioning in LLD are needed.

Previous research has demonstrated the utility of wearable technology (e.g. actigraphs) to objectively measure physical activity in participants with LLD, with these methods producing more accurate measures than self-report scales (O'Brien et al., Reference O'Brien, Gallagher, Stow, Hammerla, Ploetz, Firbank and Olivier2017; Prince et al., Reference Prince, Adamo, Hamel, Hardt, Gorber and Tremblay2008). Consequently, it has been suggested that wearable technology could be useful in more objectively quantifying social activity in participants with LLD and, specifically, that wearable devices could detect speech activity that an individual is exposed to and engages in, as an ecologically valid measure of social interaction (Hodgetts et al., Reference Hodgetts, Gallagher, Stow, Ferrier and O'Brien2017). The continuous monitoring of daily functioning in participants' natural environment would facilitate automated transmission and analysis of data, providing a more timely and accurate assessment of depressive symptoms. Such improvements in assessment could help alleviate the large social and economic impact of depression (Hirschfeld et al., Reference Hirschfeld, Montgomery, Keller, Kasper, Schatzberg, Möller and Bourgeois2000; Kessler et al., Reference Kessler, Berglund, Demler, Jin, Koretz, Merikangas and Wang2003).

Depression is associated with atypical language patterns, such as more single-clause sentences, incomplete phrases and reduced utterances (Smirnova et al., Reference Smirnova, Cumming, Sloeva, Kuvshinova, Romanov and Nosachev2018; Tackman et al., Reference Tackman, Sbarra, Carey, Donnellan, Horn, Holtzman and Mehl2019). Patients with depression show quieter speech, reduced variation of volume and pitch and reduced prosody (Alpert, Pouget, & Silva, Reference Alpert, Pouget and Silva2001; Yang, Fairbairn, & Cohn, Reference Yang, Fairbairn and Cohn2013). Listeners who were naïve to the depressive state of a speaker can perceive the severity of depression from vocal recordings of people with depression (Yang et al., Reference Yang, Fairbairn and Cohn2013). Changes in depressive symptoms are associated with differences in speech patterns and features (Cummins, Sethu, Epps, Schnieder, & Krajewski, Reference Cummins, Sethu, Epps, Schnieder and Krajewski2015; Mundt, Vogel, Feltner, & Lenderking, Reference Mundt, Vogel, Feltner and Lenderking2012), and depression-related speech features can be found across different languages (Özkanca, Demiroglu, Besirli, & Celik, Reference Özkanca, Demiroglu, Besirli and Celik2018). Such abnormal speech is thought to be related to psychomotor retardation in depression, a central feature of the disorder (Flint, Black, Campbell-Taylor, Gailey, & Levinton, Reference Flint, Black, Campbell-Taylor, Gailey and Levinton1993; Quatieri & Malyska, Reference Quatieri and Malyska2012; Scherer, Lucas, Gratch, Rizzo, & Morency, Reference Scherer, Lucas, Gratch, Rizzo and Morency2016). Speech could therefore be a key component in developing an accurate biomarker for depression and there has been recent interest in analysing depressed speech automatically (He & Cao, Reference He and Cao2018; Jiang et al., Reference Jiang, Hu, Liu, Wang, Zhang, Li and Kang2018; Li, Fu, Shao, & Shang, Reference Li, Fu, Shao and Shang2018; Williamson et al., Reference Williamson, Young, Nierenberg, Niemi, Helfer and Quatieri2019). Automated analyses of specific acoustic features of speech can distinguish participants with depression from controls with accuracy levels of 75–80%, with the former showing shortened voice onset time, decreased second formant transition and increased spirantisation (Flint et al., Reference Flint, Black, Campbell-Taylor, Gailey and Levinton1993; Jiang et al., Reference Jiang, Hu, Liu, Yan, Wang, Liu and Li2017; Scibelli et al., Reference Scibelli, Roffo, Tayarani, Bartoli, De Mattia, Esposito and Vinciarelli2018; Yang et al., Reference Yang, Fairbairn and Cohn2013). Acoustic speech analysis has been used to predict depression in at-risk participants 2 years before diagnosis with up to 74% accuracy (Ooi, Lech, & Allen, Reference Ooi, Lech and Allen2014). Similarly, automated analysis of language features can differentiate patients with schizophrenia and bipolar disorder from controls with 96% accuracy (Voleti et al., Reference Voleti, Woolridge, Liss, Milanovic, Bowie and Berisha2019).

Most of the studies to date measure speech in controlled settings (e.g. recording participants reading passages aloud in quiet rooms) and focus on detecting specific features of speech (He & Cao, Reference He and Cao2018; Jiang et al., Reference Jiang, Hu, Liu, Wang, Zhang, Li and Kang2018; Li et al., Reference Li, Fu, Shao and Shang2018). An alternative approach would be to use wearable devices to objectively detect how much speech participants encounter and produce in their natural environment. Detecting speech this way could serve as a proxy for social interaction, encompassing numerous factors of social functioning that are often independently measured with different self-report scales (Santini et al., Reference Santini, Koyanagi, Tyrovolas, Mason and Haro2015). The recognition rate of depression has been shown to be higher in spontaneous speech compared to read speech (Alghowinem et al., Reference Alghowinem, Goecke, Wagner, Epps, Breakspear and Parker2013). Recent advances in technology, such as deep learning based speech detection, allow the accurate detection and analysis of speech in a way that protects the privacy of all participants (Cummins, Baird, & Schuller, Reference Cummins, Baird and Schuller2018).

We tested the utility of a novel wrist-worn device and deep learning algorithms to detect speech as an objective indicator of social interaction in LLD and healthy controls. This programme of research had two main aims: the development and evaluation of the methodology and the application of the optimal method to explore its utility in older adults with and without depression. Only details of the latter are reported here. Our primary hypothesis was that LLD would show a lower mean level of total speech detected than controls. We also predicted that, out of all speech detected, LLD would produce a smaller proportion of speech themselves, compared to controls. As exploratory hypotheses, we tested whether groups differed in speech activity at different times of day and investigated whether speech would correlate with self-reported social functioning, severity of depression, cognitive functioning and motor activity.

Methods

Participants

Twenty-nine community-dwelling participants aged >60 with current major depression were recruited from secondary care services in the North East of England. Depression was diagnosed using DSM-IV criteria, as assessed by the Mini-International Neuropsychiatric Interview (MINI). Twenty-nine aged-matched healthy controls with no history of depression (self-report) or current depression (MINI) were recruited from a local volunteer database. Exclusion criteria for both groups included: severe or unstable physical illness (e.g. recent cardiac events, diabetes and cancer); cognitive impairment or dementia; Mini Mental State Examination (MMSE) score <24; acquired brain injury or stroke; recent history or current substance abuse; uncorrected visual or auditory deficits and history of electroconvulsive therapy (<6 months for LLD, any history for controls). All participants had English as a first language. The study was approved by the National Research Ethics Service Committee for the North East of England. Written informed consent was obtained from each participant after the procedure had been fully explained.

Materials and measures

The wearable device

The acoustic environment was measured using a custom-designed wrist-mounted device (Fig. 1; device repository available at www.github.com/digitalinteraction/openmovement). The device also measured physical activity, which we reported previously (O'Brien et al., Reference O'Brien, Gallagher, Stow, Hammerla, Ploetz, Firbank and Olivier2017). The device incorporated a lithium ion battery, solid-state memory, a tri-axial accelerometer and a low fidelity (mono 8 kHz) microphone. All components, including internal storage, were encased in a thermoplastic cover. An injected resin compound ensured water-resistance. The device was attached to the wrist using a custom-designed, adjustable, hypoallergenic silicone band.

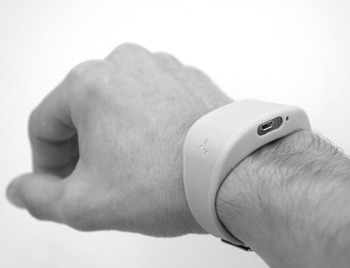

Fig. 1. The wearable device.

Clinical, functional and social assessments

The Montgomery-Asberg Depression Rating Scale (MADRS) and the 15-item Geriatric Depression Scale (GDS-15) measured severity of depression (Montgomery & Asberg, Reference Montgomery and Asberg1979; Sheikh & Yesavage, Reference Sheikh and Yesavage1986). Short-Form Health Survey (SF-36) measured overall health and quality of life (Ware & Sherbourne, Reference Ware and Sherbourne1992). The Instrumental Activities of Daily Living (IADL) Scale measured ADL (Lawton & Brody, Reference Lawton and Brody1969). Social support, social network and loneliness were measured using the Duke Social Support Index (DSSI), the Lubben Social Network Scale-Revised (LSNS-R) and the UCLA Loneliness Scale (UCLA-LS; 10-item version), respectively (George, Blazer, Hughes, & Fowler, Reference George, Blazer, Hughes and Fowler1989; Knight, Chisholm, Marsh, & Godfrey, Reference Knight, Chisholm, Marsh and Godfrey1988; Lubben, Gironda, & Lee, Reference Lubben, Gironda and Lee2002). These scales were chosen to measure social functioning on the basis of a previous review (Hodgetts et al., Reference Hodgetts, Gallagher, Stow, Ferrier and O'Brien2017).

Neuropsychological assessment

Cognitive ability was assessed with a comprehensive neuropsychological assessment reported previously (O'Brien et al., Reference O'Brien, Gallagher, Stow, Hammerla, Ploetz, Firbank and Olivier2017), consisting of: Digit Span Forwards and Backwards, Digit Symbol Substitution Task (DSST), a facial emotion processing task (FERT), Trail Making Task A and B, Rey Auditory Verbal Learning task, FAS verbal fluency task and the Rivermead Behavioural Memory Test (Adams et al., Reference Adams, Pounder, Preston, Hanson, Gallagher, Harmer and McAllister-Williams2016; Strauss, Sherman, & Spreen, Reference Strauss, Sherman and Spreen2006). Also included were four tasks from the Cambridge Neuropsychological Test Automated Battery (CANTAB): paired associates learning, spatial span, spatial working memory and affective go/no-go. The National Adult Reading Test (NART) estimated premorbid intelligence. Tasks were administered according to standardised instructions and manuals. All tasks were pen-and-paper, except CANTAB and FERT, which were carried out on a laptop with a 12.5-inch colour touchscreen and keyboard.

Procedure

A baseline assessment involved collection of demographic information, self-report of medication, physical and mental health and completion of the MINI, MMSE, MADRS, GDS-15, NART, Digit Span, DSST and FERT. Three home visits then took place: on day one, the device was fitted and SF-36, IADL, DSSI, LSNS-R and UCLA-LS were conducted. Since the device battery lasted for less than 7 days, a second visit occurred between days two and six, when the initial device was swapped for a fully charged device. After seven days, the device was collected and remaining cognitive tasks were completed.

Analysis of speech data

We developed two deep learning models to detect speech. The first model classified speech v. non-speech using the whole acoustic recording. The second model classified speech produced by the wearer (i.e. participant) v. speech of others, using the acoustic data that were originally classified as speech by the first model. Both classifiers were blind to the group status of each participant and this information was never used as part of each training process. Our methods of automatic analysis allowed speech to be objectively detected while maintaining the privacy of participants. We previously reported a high level of compliance with the device protocol (92% for each group; O'Brien et al., Reference O'Brien, Gallagher, Stow, Hammerla, Ploetz, Firbank and Olivier2017).

Classifying speech v. non-speech

Device changeover days were ‘stitched’ together to form a single day. Acoustic data were pre-processed by uniformly rescaling the speech signals to the range (−1,1) and then split into frames of 32 ms length. The frames were normalised (zero mean and unit variance) and fed into our deep learning architecture for speech prediction in naturalistic environments (see online Supplementary Textbox S1 for details).

The classifier was trained using an independent set of acoustic recordings (training dataset) that were previously created from a separate group of healthy controls in a pilot study (N = 15; ~20 h in total). Pilot participants wore the device in a variety of settings in which naturalistic speech can occur (e.g. indoors, outdoors, in busy shopping centres) and consented to the research team listening to the recordings so that they could be annotated to denote segments of speech and non-speech. This allowed the predictive performance of the classifier to be evaluated. The evaluation was done using Leave One Session Out cross-validation, where we left one of the recordings out for validation and trained a model with all the others. The resulting model could classify speech in these recordings with an accuracy of 93.8% (sensitivity 94.6% and specificity 87.4%). Online Supplementary Figs S1 and S2 illustrate the technical process.

The classifier developed on the training dataset was then applied to the recordings of the current sample. The classifier detected any speech in the environment, i.e. it did not discriminate participants' speech from the speech of other people. It was trained to exclude speech from other sources such as television, radio and any other device-generated speech. Therefore, our measure of speech reflects the speech of all humans in the environment.

The output of the classifier was the probability of speech being detected in each processed frame. Each minute was considered to contain speech if the average probability of its frames was above a threshold of 0.5. For each day of recording, the number of minutes of speech was divided by the total number of minutes in that epoch (i.e. 1440 for 24 h), to produce a percentage of speech for that day. The average percentage for 7 days was then calculated for each participant. The average percentage of speech was also calculated for morning (6 am–12 pm), afternoon (12 pm–6 pm) and evening (6 pm–12 am) periods in the same way.

Classifying wearer speech v. other speech

A second deep learning model was developed using the training dataset to differentiate the wearer's speech from the speech of others. This model followed the same pre-processing procedure as the previous model with a different architecture (see online Supplementary Textbox S1). The same evaluation method was used; this model achieved an accuracy of 89.95% (sensitivity 90.3% and specificity 86.2%).

The trained classifier was applied to the minutes of speech classified by the first model (i.e. excluding data that was previously classified as non-speech). The output was the probability of wearer's speech being detected in each speech frame. We calculated the percentage of wearer speech in each minute by counting frames considered as wearer speech (i.e. probability >0.5) and dividing by the total number of speech frames in that minute. We then averaged this per-minute value across all speech minutes for each participant. This resulted in an average percentage of speech that was produced by the wearer, out of all data that was initially classified as speech.

Outputs from the two models are not directly comparable: since the input to the models differ (all frames v. speech frames only), they require different procedures to compute the measures. We compared the performance of our model on the discussion dataset against the performance of a variety of existing methods used for voice activity detection (see online Supplementary textbox S1 for details) and found that our model resulted in the highest performance evaluation (F1) measure.

Statistical analysis

Scores from neuropsychological tests were standardised based on control group mean and standard deviation and organised into five cognitive domains: Executive Working Memory; Attention and Psychomotor Speed; Short-Term Memory; General Memory; Emotional Processing and Grand cognitive score (as reported previously (O'Brien et al., Reference O'Brien, Gallagher, Stow, Hammerla, Ploetz, Firbank and Olivier2017); see online Supplementary Textbox S2). Group differences on all variables were assessed using two-tailed independent t tests; Mann–Whitney U tests were used for skewed data. Two-tailed Pearson's correlations were used to test linear relationships between speech measures and key variables; Spearman's rank order correlations were used for skewed data.

Results

Table 1 displays group demographics, clinical characteristics, self-reported social functioning, speech data and group differences. Groups did not differ in sex, living status, handedness, age or premorbid IQ. LLD had fewer years of education and lower MMSE scores than controls. LLD scored higher than controls on UCLA-LS, reflecting higher self-reported loneliness, and on both depression scales (MADRS and GDS-15). LLD scored lower than controls on general health and functioning (SF-36 and IADL), and self-reported social interaction and social network (DSSI and LSNS-R). We reported neuropsychological scores previously: after NART IQ was added to the model as a covariate, LLD showed significantly poorer performance compared to controls on domains of Executive Working Memory, Attention and Psychomotor Speed, General Memory and grand cognitive performance (O'Brien et al., Reference O'Brien, Gallagher, Stow, Hammerla, Ploetz, Firbank and Olivier2017). Given that groups differed in years of education, we repeated this analysis after adding education to the model as a covariate and the results were the same (see online Supplementary Table S1). Since our a priori predictions did not include this variable, we focus on analysis without controlling for education.

Table 1. Demographic information, clinical and social characteristics, speech measures and group comparisons

LLD, Late-Life Depression; s.d., Standard Deviation; df, Degrees of Freedom; NART, National Adult Reading Test; MMSE, Mini Mental State Exam; MADRS, Montgomery-Asberg Depression Rating Scale; GDS-15, Geriatric Depression Scale; SF-36, Short-Form Health Survey; IADL, Instrumental Activities of Daily Living; DSSI, Duke Social Support Index; LSNS-R, Lubben Social Network Scale-Revised; UCLA-LS, UCLA Loneliness Scale.

Note: *Significant at 0.05 level.

Figure 2 illustrates the speech data for each group. Groups differed in average speech activity over a 24-h period, U = 0.0, z = −6.541, p < 0.001. On average, speech was detected for 2% (±1%) of the day in LLD, whereas in controls, speech was detected for 13% (±3%) of the day. This difference was highly significant and strikingly there was no overlap between groups. Groups also differed in the proportion of speech they produced themselves out of all speech detected, t (32.477) = 38.562, p < 0.001. In the LLD group, 3% (±0.3%) of all speech detected was produced by the wearer, whereas, in the control group, 11% (±1%) of all speech detected was produced by the wearer.

Fig. 2. (a) Mean proportion of speech detected in a 24-h period (averaged over 7 days) and (b) mean proportion of speech produced by the wearer themselves (out of all speech detected) for LLD and healthy controls. Dots represent individual participants and are randomly spread across the x-axis within each group. Groups differed significantly in the proportion of speech detected in 24 h, such that all participants with LLD showed lower levels of speech detected than all healthy controls (U = 0.0, z = −6.541, p < 0.001). Of all speech detected, LLD produce a smaller proportion of speech themselves, compared to healthy controls (t (32.477) = 38.562, p < 0.001).

Figure 3 shows the mean speech activity levels for LLD and control groups over a 24-h period. Groups differed in the proportion of speech detected at each time of day (morning, afternoon and evening; see Table 1). Figure 4 displays correlations of each speech measure with key variables for each group. For LLD, both the proportion of all speech detected and the proportion of speech produced by the wearer were significantly correlated with Attention and Psychomotor Speed (r s(27) = 0.428, p = 0.021 and r s(27) = 0.474, p = 0.009, respectively), where more speech detected was associated with a higher Attention and Psychomotor Speed score. No other correlation was significant (see online Supplementary Table S2). In exploratory analysis, neither of the two speech measures correlated with any of the movement measures in LLD, but all correlations between speech and movement measures were significant in the control group (see online Supplementary Table S3).

Fig. 3. Mean probability of speech being detected for participants with LLD and healthy controls across a 24-h period (averaged over 7 days).

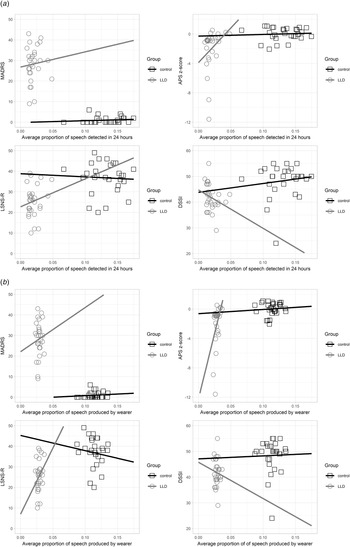

Fig. 4. Relationships between key variables and: (a) mean proportion of total speech detected across 24-h (averaged over 7 days); and (b) mean proportion of speech produced by the wearer (out of all speech detected), for participants with LLD (N = 29) and healthy controls (N = 29). MADRS, Montgomery-Asberg Depression Rating Scale; APS, Attention and Psychomotor Speed; DSSI, Duke Social Support Index; LSNS-R, Lubben Social Network Scale-Revised.

Discussion

This study is the first to utilise a novel wearable device to objectively detect speech in the naturalistic environment of participants with LLD and healthy controls over a 7-day period. The initial speech activity measure, which was developed on an independent training dataset, differentiated LLD and controls with 100% accuracy, with speech detection in LLD being greatly diminished compared to controls. This difference was apparent across the course of the day. The second speech activity measure, which detected the device wearer's speech specifically, showed that, out of all data that was initially classified as speech, LLD participants spoke much less than controls, and also differentiated groups with 100% accuracy. Cognitive performance and self-reported social and general functioning were lower in LLD than in controls, in line with previous research (Fiske et al., Reference Fiske, Wetherell and Gatz2009; Thomas et al., Reference Thomas, Gallagher, Robinson, Porter, Young, Ferrier and O'Brien2009).

Exploratory analysis revealed that the percentage of speech detected in a 24-h period and the percentage of speech produced by the wearer were both associated with attention and psychomotor speed in the LLD group. Considering that abnormal speech in depression has been linked to psychomotor retardation, a central feature of the disorder (Flint et al., Reference Flint, Black, Campbell-Taylor, Gailey and Levinton1993; Quatieri & Malyska, Reference Quatieri and Malyska2012), these results could be interpreted as some support for the development of speech measures as a biomarker for depression. However, further validation of this is needed, since we did not correct for multiple comparisons in the exploratory analysis. Speech activity and motor activity were not correlated in the LLD group, which may be expected because of the particularly marked reduction in speech that was seen in this group.

Since participants with LLD and controls differed so markedly in speech activity that they encountered and speech that they produced, it is perhaps surprising that speech activity did not correlate with the clinical scales of depression in the LLD group. Similarly, it is unexpected that speech activity did not correlate with the self-report scales of social functioning. It could be that our measures of speech reflect a more accurate measure of social interaction than the self-report scales, which are influenced by bias. Indeed, previous research has highlighted that a discrepancy between subjective and objective measures of social functioning may be due to a bias towards pessimism in participants with depression (Santini et al., Reference Santini, Koyanagi, Tyrovolas, Mason and Haro2015). Discrepancies between objective and self-report measures of physical activity have also been found (Prince et al., Reference Prince, Adamo, Hamel, Hardt, Gorber and Tremblay2008). These results could also be explained by a floor effect in the speech data of the LLD group: there may have been insufficient variation to produce significant correlations. It is also possible that these measures of speech represent a depression-related construct that is independent of any of the other variables measured and that is not included in either depression scale.

Another consideration is whether lower speech activity reflects the current depressive state or whether it reflects something that distinguishes those who are prone to depression from those who are not (i.e. depressive trait). Previous research suggests that changes in some aspects of speech patterns have been found to be related to changes in the depressed state in participants with depression, while others are related to a depressive trait (Alpert et al., Reference Alpert, Pouget and Silva2001; Mundt et al., Reference Mundt, Vogel, Feltner and Lenderking2012). If our speech measures reflect a trait of LLD, this may explain why speech did not correlate with MADRS or GDS-15, which measure the depressive state.

Limitations to our study include cross-sectional design and small sample sizes. While the classifier was accurate in detecting speech and non-speech in the training dataset, which consisted of healthy controls, we could not directly generate the accuracy of the classifier with the study participants' data since listening to and annotating the recordings was not ethically possible. Therefore, we cannot conclude exactly how accurate the speech measures are for people with LLD. Since depression has been associated with abnormalities in specific acoustic features of speech and depressed speech appears to contain more noise (Alpert et al., Reference Alpert, Pouget and Silva2001; Flint et al., Reference Flint, Black, Campbell-Taylor, Gailey and Levinton1993; Taguchi et al., Reference Taguchi, Tachikawa, Nemoto, Suzuki, Nagano, Tachibana and Arai2018), it is possible that the classifier may perform differently with the LLD group than controls. This requires further investigation and future research should validate measures of speech by comparing the output of different speech classifiers in patients with LLD.

Since groups did not differ in living status, we did not control for this in our analysis. Some studies suggest that living status can predict depression, while others suggest it is unrelated to depressive symptoms (Alexandrino-Silva, Alves, Tófoli, Wang, & Andrade, Reference Alexandrino-Silva, Alves, Tófoli, Wang and Andrade2011; Schwarzbach et al., Reference Schwarzbach, Luppa, Forstmeier, König and Riedel-Heller2014). This factor may be particularly important with our measure of speech, since living alone may directly influence the speech activity detected. Other factors that we did not control for that may influence the association between social functioning and depression include gender, culture, socio-economic status and whether participants live in rural, urban or metropolitan areas (Jiang et al., Reference Jiang, Hu, Liu, Yan, Wang, Liu and Li2017; Mechakra-Tahiri et al., Reference Mechakra-Tahiri, Zuzunegui, Preville and Dube2009; Santini et al., Reference Santini, Koyanagi, Tyrovolas, Mason and Haro2015; Schwarzbach et al., Reference Schwarzbach, Luppa, Forstmeier, König and Riedel-Heller2014). Similarly, we did not take into account whether LLD was early-onset or late-onset; these appear to be two distinct types of LLD that may have different associations with social functioning (Sachs-Ericsson et al., Reference Sachs-Ericsson, Corsentino, Moxley, Hames, Rushing, Sawyer and Steffens2012).

Our objective speech measures do not capture qualitative or subjective factors of social interaction, such as satisfaction with social support, which have been shown to be powerful, consistent predictors of depression in older people (Chao, Reference Chao2011; Schwarzbach et al., Reference Schwarzbach, Luppa, Forstmeier, König and Riedel-Heller2014). Neither do they discriminate the type of social interactions that may be important in LLD, such as emotional and instrumental support. Measuring speech also has pragmatic limitations, as it excludes people with verbal communication difficulties. Finally, this measure may vary in accuracy for different cohorts, due to changes in the way people socialise and communicate (i.e. verbally v. non-verbally via technology).

Nevertheless, the methods presented here can accurately distinguish depressed participants from controls and may be a useful marker for LLD. A particular strength of the study was that the device was unobtrusive and we found high adherence with wearing the device (O'Brien et al., Reference O'Brien, Gallagher, Stow, Hammerla, Ploetz, Firbank and Olivier2017), demonstrating the feasibility of using such devices with older participants. If developed further, this measure has the potential to be used in screening for LLD, facilitating early diagnosis, and has implications for monitoring long-term health and recovery. The methods presented here provide a starting point for further research using raw sensor recordings and automatic analysis to investigate speech and social functioning in LLD.

Future research should replicate our findings to test external validity and should control for potential confounds such as living status, gender and culture. Further research is needed to investigate whether this measure reflects social functioning, as we intended, or whether it captures another LLD-related factor. It would also be of interest to investigate whether speech activity detected reflects a trait marker of the depression or current depressive state. Longitudinal research should measure changes in speech over the onset, course and remission of depression, and investigate causality and the direction of the relationship between speech and LLD. Methods of detecting more specific variables from this speech data should also be developed, such as measuring acoustic characteristics of the wearer's speech (e.g. prosody) and modelling the wearer's speech against the speech of other people. The development of multi-modal assessments, for example, analysing speech and movement characteristics together should be developed to produce a more holistic and ecologically valid measure of daily functioning in LLD.

Supplementary material

The supplementary material for this article can be found at https://doi.org/10.1017/S0033291719003994.

Acknowledgements

The authors would like to acknowledge the support of the North East Mental Health and Dementia and Neurodegenerative diseases research networks in recruitment to this study. This research made use of the Rocket High Performance Computing service and the School of Computing HPC Cluster at Newcastle University.

Author contributions

This research was funded by a grant awarded to JOB, PG, INF and PO. DS, supervised by PG and JOB, managed and carried out recruitment and assessment of participants. DJ, KL and CL, supervised by PO, designed and developed the novel device. RM and DS collected data for the training dataset. OA, supervised by TP and JB, designed, developed and evaluated the deep learning classifier to detect speech. BL analysed the data and wrote the first draft of the paper, with support from PG, JOB, INF, OA and JB. All contributed to drafts of the manuscript and gave final approval of the version to be published.

Financial support

This work was supported by the Medical Research Council (grant number G1001828/1), the EPSRC (Inclusion through the Digital Economy grant number EP/G066019/1) and Northumberland, Tyne and Wear NHS Foundation Trust Research Capability Funding. JOB was supported by the NIHR Cambridge Biomedical Research Centre. OA was supported by the Newton-Mosharafa fund. JB was supported by the Engineering and Physical Sciences Research Council (grant numbers EP/M020576/1, EP/N031962/1).

Conflict of interest

None.

Ethical standards

The authors assert that all procedures contributing to this work comply with the ethical standards of the relevant national and institutional committees on human experimentation and with the Helsinki Declaration of 1975, as revised in 2008.

Footnotes

*

Joint first authorship – these authors contributed equally.

Joint senior authorship – these authors contributed equally.

References

Adams, T., Pounder, Z., Preston, S., Hanson, A., Gallagher, P., Harmer, C. J., & McAllister-Williams, R. H. (2016). Test–retest reliability and task order effects of emotional cognitive tests in healthy subjects. Cognition and Emotion, 30, 12471259.CrossRefGoogle ScholarPubMed
Alexandrino-Silva, C., Alves, T. F., Tófoli, L. F., Wang, Y.-P., & Andrade, L. H. (2011). Psychiatry: Life events and social support in late life depression. Clinics, 66, 233238.CrossRefGoogle ScholarPubMed
Alghowinem, S., Goecke, R., Wagner, M., Epps, J., Breakspear, M., & Parker, G. (2013). Detecting depression: A comparison between spontaneous and read speech. In ICASSP, IEEE International Conference on Acoustics, Speech and Signal Processing, pp. 75477551.CrossRefGoogle Scholar
Alpert, M., Pouget, E. R., & Silva, R. R. (2001). Reflections of depression in acoustic measures of the patient's speech. Journal of Affective Disorders, 66, 5969.CrossRefGoogle ScholarPubMed
Chao, S. F. (2011). Assessing social support and depressive symptoms in older Chinese adults: A longitudinal perspective. Aging and Mental Health, 15, 765774.CrossRefGoogle ScholarPubMed
Cummins, N., Baird, A., & Schuller, B. W. (2018). Speech analysis for health: Current state-of-the-art and the increasing impact of deep learning. Methods, 151, 4154.CrossRefGoogle ScholarPubMed
Cummins, N., Sethu, V., Epps, J., Schnieder, S., & Krajewski, J. (2015). Analysis of acoustic space variability in speech affected by depression. Speech Communication, 75, 2749.CrossRefGoogle Scholar
Fiske, A., Wetherell, J. L., & Gatz, M. (2009). Depression in older adults. Annual Review of Clinical Psychology, 5, 6389.CrossRefGoogle ScholarPubMed
Flint, A. J., Black, S. E., Campbell-Taylor, I., Gailey, G. F., & Levinton, C. (1993). Abnormal speech articulation, psychomotor retardation, and subcortical dysfunction in major depression. Journal of Psychiatric Research, 27, 309319.CrossRefGoogle ScholarPubMed
George, L. K., Blazer, D. G., Hughes, D. C., & Fowler, N. (1989). Social support and the outcome of major depression. The British Journal of Psychiatry, 154, 478485.CrossRefGoogle ScholarPubMed
He, L., & Cao, C. (2018). Automated depression analysis using convolutional neural networks from speech. Journal of Biomedical Informatics, 83, 103111.CrossRefGoogle ScholarPubMed
Hirschfeld, R. M. A., Montgomery, S. A., Keller, M. B., Kasper, S., Schatzberg, A. F., Möller, H.-J., … Bourgeois, M. (2000). Social functioning in depression: A review. Journal of Clinical Psychiatry, 61, 268275.CrossRefGoogle ScholarPubMed
Hodgetts, S., Gallagher, P., Stow, D., Ferrier, I. N., & O'Brien, J. T. (2017). The impact and measurement of social dysfunction in late-life depression: An evaluation of current methods with a focus on wearable technology. International Journal of Geriatric Psychiatry, 32, 247255.CrossRefGoogle ScholarPubMed
Jiang, H., Hu, B., Liu, Z., Wang, G., Zhang, L., Li, X., & Kang, H. (2018). Detecting depression using an ensemble logistic regression model based on multiple speech features. Computational and Mathematical Methods in Medicine, 2018, 19.CrossRefGoogle ScholarPubMed
Jiang, H., Hu, B., Liu, Z., Yan, L., Wang, T., Liu, F., … Li, X. (2017). Investigation of different speech types and emotions for detecting depression using different classifiers. Speech Communication, 90, 3946.CrossRefGoogle Scholar
Kessler, R. C., Berglund, P., Demler, O., Jin, R., Koretz, D., Merikangas, K. R., … Wang, P. S. (2003). The epidemiology of major depressive disorder. JAMA-Journal of the American Medical Association, 289, 30953105.CrossRefGoogle ScholarPubMed
Knight, R. G., Chisholm, B. J., Marsh, N. V., & Godfrey, H. P. (1988). Some normative, reliability, and factor analytic data for the revised UCLA Loneliness Scale. Journal of Clinical Psychology, 44, 203206.3.0.CO;2-5>CrossRefGoogle ScholarPubMed
Lawton, M. P., & Brody, E. M. (1969). Assessment of older people: Self-maintaining and instrumental activities of daily living. The Gerontologist, 9, 179186.CrossRefGoogle ScholarPubMed
Li, J., Fu, X., Shao, Z., & Shang, Y. (2018). Improvement on Speech Depression Recognition Based on Deep Networks. In 2018 Chinese Automation Congress (CAC), pp. 27052709.CrossRefGoogle Scholar
Lubben, J., Gironda, M., & Lee, A. (2002). Refinements to the Lubben social network scale: The LSNS-R. Behavior Measurement Letter, 7, 211.Google Scholar
Mechakra-Tahiri, S., Zuzunegui, M. V., Preville, M., & Dube, M. (2009). Social relationships and depression among people 65 years and over living in rural and urban areas of Quebec. International Journal of Geriatric Psychiatry, 24, 12261236.CrossRefGoogle Scholar
Montgomery, S. A., & Asberg, M. (1979). A new depression scale designed to be sensitive to change. British Journal of Psychiatry, 134, 382389.CrossRefGoogle ScholarPubMed
Mundt, J. C., Vogel, A. P., Feltner, D. E., & Lenderking, W. R. (2012). Vocal acoustic biomarkers of depression severity and treatment response. Biological Psychiatry, 72, 580587.CrossRefGoogle ScholarPubMed
O'Brien, J. T., Gallagher, P., Stow, D., Hammerla, N., Ploetz, T., Firbank, M., … Olivier, P. (2017). A study of wrist-worn activity measurement as a potential real-world biomarker for late-life depression. Psychological Medicine, 47, 93102.CrossRefGoogle ScholarPubMed
Ooi, K. E. B., Lech, M., & Allen, N. B. (2014). Prediction of major depression in adolescents using an optimized multi-channel weighted speech classification system. Biomedical Signal Processing and Control, 14, 228239.Google Scholar
Özkanca, Y., Demiroglu, C., Besirli, A., & Celik, S. (2018). Multi-Lingual Depression-Level Assessment from Conversational Speech Using Acoustic and Text Features. In Interspeech 2018, pp. 33983402.CrossRefGoogle Scholar
Prince, S. A., Adamo, K. B., Hamel, M. E., Hardt, J., Gorber, S. C., & Tremblay, M. (2008). A comparison of direct versus self-report measures for assessing physical activity in adults: A systematic review. International Journal of Behavioral Nutrition and Physical Activity, 5, 124.CrossRefGoogle ScholarPubMed
Quatieri, T. F., & Malyska, N. (2012). Vocal-source biomarkers for depression: A link to psychomotor activity. In 13th Annual Conference of the International Speech Communication Association, pp. 10581061.Google Scholar
Romero, N., Sanchez, A., & Vazquez, C. (2014). Memory biases in remitted depression: The role of negative cognitions at explicit and automatic processing levels. Journal of Behavior Therapy and Experimental Psychiatry, 45, 128135.CrossRefGoogle ScholarPubMed
Sachs-Ericsson, N., Corsentino, E., Moxley, J., Hames, J. L., Rushing, N. C., Sawyer, K., … Steffens, D. C. (2012). A longitudinal study of differences in late- and early-onset geriatric depression: Depressive symptoms and psychosocial, cognitive, and neurological functioning. Aging & Mental Health, 17, 111.CrossRefGoogle ScholarPubMed
Santini, Z. I., Koyanagi, A., Tyrovolas, S., Mason, C., & Haro, J. M. (2015). The association between social relationships and depression: A systematic review. Journal of Affective Disorders, 175, 5365.CrossRefGoogle ScholarPubMed
Scherer, S., Lucas, G. M., Gratch, J., Rizzo, A., & Morency, L. P. (2016). Self-reported symptoms of depression and PTSD are associated with reduced vowel space in screening interviews. IEEE Transactions on Affective Computing, 7, 5973.Google Scholar
Schwarzbach, M., Luppa, M., Forstmeier, S., König, H. H., & Riedel-Heller, S. G. (2014). Social relations and depression in late life – A systematic review. International Journal of Geriatric Psychiatry, 29, 121.CrossRefGoogle ScholarPubMed
Scibelli, F., Roffo, G., Tayarani, M., Bartoli, L., De Mattia, G., Esposito, A., & Vinciarelli, A. (2018). Depression Speaks: Automatic discrimination between depressed and non-depressed speakers based on non-verbal speech features. In 2018 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), pp. 68426846.CrossRefGoogle Scholar
Sheikh, J. I., & Yesavage, J. A. (1986). Geriatric Depression Scale (GDS) recent evidence and development of a shorter version. Clinical Gerontologist, 5, 119136.Google Scholar
Smirnova, D., Cumming, P., Sloeva, E., Kuvshinova, N., Romanov, D., & Nosachev, G. (2018). Language patterns discriminate mild depression from normal sadness and euthymic state. Frontiers in Psychiatry, 9, 105.CrossRefGoogle ScholarPubMed
Strauss, E., Sherman, E. M. S., & Spreen, O. (2006). A compendium of neuropsychological tests: Administration, norms, and commentary (3rd Ed). New York, NY: Oxford University Press.Google Scholar
Tackman, A. M., Sbarra, D. A., Carey, A. L., Donnellan, M. B., Horn, A. B., Holtzman, N. S., … Mehl, M. R. (2019). Depression, negative emotionality, and self-referential language: A multi-lab, multi-measure, and multi-language-task research synthesis. Journal of Personality and Social Psychology, 116, 817.CrossRefGoogle ScholarPubMed
Taguchi, T., Tachikawa, H., Nemoto, K., Suzuki, M., Nagano, T., Tachibana, R., … Arai, T. (2018). Major depressive disorder discrimination using vocal acoustic features. Journal of Affective Disorders, 225, 214220.CrossRefGoogle ScholarPubMed
Thomas, A. J., Gallagher, P., Robinson, L. J., Porter, R. J., Young, A. H., Ferrier, I. N., & O'Brien, J. T. (2009). A comparison of neurocognitive impairment in younger and older adults with major depression. Psychological Medicine, 39, 725733.CrossRefGoogle ScholarPubMed
Voleti, R., Woolridge, S., Liss, J. M., Milanovic, M., Bowie, C. R., & Berisha, V. (2019). Objective Assessment of Social Skills Using Automated Language Analysis for Identification of Schizophrenia and Bipolar Disorder. arXiv preprint arXiv:1904.10622.Google Scholar
Ware, J. E., & Sherbourne, C. D. (1992). The MOS 36-ltem Short-Form Health Survey (SF-36). Medical Care, 30, 473483.CrossRefGoogle Scholar
Williamson, J. R., Young, D., Nierenberg, A. A., Niemi, J., Helfer, B. S., & Quatieri, T. F. (2019). Tracking depression severity from audio and video based on speech articulatory coordination. Computer Speech and Language, 55, 4056.CrossRefGoogle Scholar
Yang, Y., Fairbairn, C., & Cohn, J. F. (2013). Detecting depression severity from vocal prosody. IEEE Transactions on Affective Computing, 4, 142150.CrossRefGoogle ScholarPubMed
