2.1 Bi-factor model structure and a constrained optimization formulation

For the ease of exposition and simplification of the notation, we focus on the linear bi-factor model, while noting that the constraints that we derive for the bi-factor loading matrix below can be combined with the likelihood function of other bi-factor models (e.g., Cai et al., Reference Cai, Yang and Hansen2011; Gibbons et al., Reference Gibbons, Bock, Hedeker, Weiss, Segawa, Bhaumik, Kupfer, Frank, Grochocinski and Stover2007; Gibbons & Hedeker, Reference Gibbons and Hedeker1992) for their exploratory analysis. We focus on the extended bi-factor model, also known as the oblique bi-factor model, as considered in Jennrich and Bentler (Reference Jennrich and Bentler2012) and Fang et al. (Reference Fang, Guo, Xu, Ying and Zhang2021). This model is more general than the standard bi-factor model, in the sense that the latter assumes all the factors to be uncorrelated while the former allows the group factors to be correlated. As established in Fang et al. (Reference Fang, Guo, Xu, Ying and Zhang2021), this extended bi-factor model is identifiable under mild conditions. We also point out that the proposed method can be easily adapted to the standard bi-factor model.

Consider a dataset with N observation units from a certain population and J observed variables. The extended bi-factor model assumes that there exists a general factor and G group factors. The group factors are loaded by independent clusters of variables, where each variable belongs to only one cluster. The model further assumes that the population covariance matrix of the observed variables can be decomposed as

$$ \begin{align*}\Sigma = \Lambda \Phi \Lambda^\top + \Psi,\end{align*} $$

where $\Lambda = (\lambda _{jg})_{J \times (G+1)}$ is the loading matrix, $\Phi = (\phi _{gg'})_{(G+1)\times (G+1)}$ is the correlation matrix of the factors, which is assumed to be strictly positive definite, and $\Psi $ is a $J \times J$ diagonal matrix with diagonal entries $\psi _1$ , …, $\psi _J$ . Let $\mathcal B_g \subset \{1, \dots , J\}$ denote the cluster of variables loading on the gth group factor. Then the bi-factor model assumption implies that $\mathcal B_g \cap \mathcal B_{g'} = \emptyset $ , $g\neq g'$ , and $\cup _{g=1}^G \mathcal B_g = \{1, \dots , J\}$ . The following zero constraints on the loading matrix $\Lambda $ hold:

$$ \begin{align*}\lambda_{j,g+1} = 0\ \mbox{for all}\ j \notin \mathcal B_g.\end{align*} $$

In addition, the correlation matrix $\Phi $ satisfies $\phi _{1k} = 0$ for all $k\neq 1$ , meaning that all the group factors are uncorrelated with the general factor. This constraint on $\Phi $ is necessary to ensure that the extended bi-factor model is identifiable (Fang et al., Reference Fang, Guo, Xu, Ying and Zhang2021), as otherwise, there will be a rotational indeterminacy issue.

Now suppose that the number of group factors G is known, while the clusters $\mathcal B_g, g = 1, \dots , G$ , are unknown. Section 2.3 considers the selection of G when it is unknown. The bi-factor structure means that for each j, there is at most one nonzero element in $(\lambda _{j,2}, \dots , \lambda _{j,G+1})^\top $ . Consequently, the loading matrix $\Lambda $ should satisfy the following $J(G-1)G/2$ constraints:

(1) $$ \begin{align} \lambda_{jk}\lambda_{jk'} = 0, \mbox{~for all~} k,k' = 2, \dots, G+1, k\neq k', j = 1, \dots, J. \end{align} $$

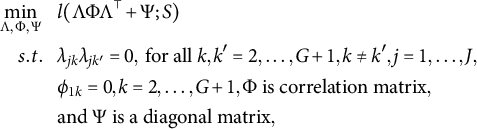

Therefore, the exploratory bi-factor analysis problem can be translated into the following constrained optimization problem:

(2) $$ \begin{align} \begin{aligned} \min_{\Lambda, \Phi, \Psi}~~~ & l( \Lambda \Phi \Lambda^\top + \Psi; S) \\ s.t. ~~~ & \lambda_{jk}\lambda_{jk'} = 0, \mbox{~for all~} k,k' = 2, \dots, G+1, k\neq k', j = 1, \dots, J,\\ & \phi_{1k} = 0, k = 2, \dots, G+1, \Phi \mbox{~is correlation matrix},\\ &\mbox{and~} \Psi \mbox{~is a diagonal matrix}, \end{aligned} \end{align} $$

where l is a loss function and S is the sample covariance matrix of observed data. We focus on the case when l is the fit function based on the normal likelihood

$$ \begin{align*} l( \Lambda \Phi \Lambda^\top + \Psi;S) = N\big(\log(\text{det}(\Lambda \Phi \Lambda^\top + \Psi)) + \textrm{tr}(S (\Lambda \Phi \Lambda^\top + \Psi)^{-1}) -\log(\text{det}(S)) - J\big), \end{align*} $$

while noting that this loss function can be replaced by other loss functions for factor analysis (see, e.g., Chen et al., Reference Chen, Moustaki and Zhang2023), including the Frobenius norm of $ \Lambda \Phi \Lambda ^\top + \Psi -S$ that is used in the least square estimator for factor analysis. We can also replace the sample covariance matrix in (2) with the sample correlation matrix, which is equivalent to performing exploratory bi-factor analysis based on variance-standardized variables.

The following theorem shows that the proposed method can perfectly recover the true bi-factor loading structure in the best case when $S = \Sigma ^{*}$ , where $\Sigma ^{*}$ is the true covariance matrix of data. Note that the rotation method proposed in Jennrich and Bentler (Reference Jennrich and Bentler2012) completely fails in this case. Before giving the statement of the theorem, we introduce some additional notations. For any matrix $A=(a_{i,j})_{i=1,\ldots ,m,j=1,\ldots ,n}$ , $\mathcal {S}_1\subset \{1,\ldots ,m\}$ and $\mathcal {S}_{2}\subset \{1,\ldots ,n\}$ , let $A[\mathcal {S}_1,\mathcal {S}_2] = (a_{i,j})_{i\in \mathcal {S}_1, j\in \mathcal {S}_2}$ be the submatrix of A consisting of elements that lie in rows belonging to set $\mathcal {S}_1$ and columns belonging to set $\mathcal {S}_2$ . For example, consider a matrix A with more than two rows and three columns. With index sets $\mathcal S_1 = \{1,2\}$ and $\mathcal S_2 = \{1,3\}$ , the submatrix $A[\mathcal {S}_1,\mathcal {S}_2]$ is a two-by-two matrix, taking the form

$$ \begin{align*}A[\mathcal{S}_1,\mathcal{S}_2] = A[\{1,2\},\{1,3\}] = \left(\begin{array}{cc} a_{11} & a_{13} \\ a_{21} & a_{23} \end{array}\right).\end{align*} $$

For any set $\mathcal {S}$ , let $\vert \mathcal {S}\vert $ be the cardinality of $\mathcal {S}$ .

Let $\{\mathcal {B}_{g}^{*}, g=1, \ldots , G\}$ be the true nonoverlapping clusters of the J variables, satisfying for each $j\in \mathcal {B}_{g}^*$ , $\lambda ^{*}_{j,g+1} \neq 0$ , $g = 1,\ldots ,G$ . Further, let $\mathcal {H}^{*} = \{g | \Lambda ^{*}[B^{*}_{g},\{1,1+g\}] \mbox {~has column rank~} 2\}$ be the set of group factors for which the group loadings are linearly independent of the corresponding common loadings. Let $\mathcal {D}$ be the set of diagonal matrix with its diagonal entries taking values either $1$ or $-1$ , and let $\mathcal {P}$ be the set of permutation matrix P such that each row and column of P has exactly one nonzero entry of value 1 and $P_{11} = 1$ . Each matrix in $\mathcal {D}$ corresponds to a simultaneous sign flip of certain factors and the corresponding loading parameters. Each matrix in $\mathcal {P}$ corresponds to a swapping of certain columns in the loading matrix associated with the group factors or, equivalently, a relabeling of the group factors. They are introduced to account for the sign-indeterminacy of the $G+1$ factors and the label indeterminacy of the group factors, respectively. See Theorem 1 and Remark 1 for more explanations.

Let $\Lambda ^*$ , $\Phi ^*$ , and $\Psi ^*$ be the true values of the corresponding parameter matrices. The following conditions are sufficient for the identifiability of the bi-factor structure and its parameters.

The proof of Theorem 1 is given in Section G.1 of the Supplementary Material.

2.2 Proposed ALM

Following the previous discussion, we see that we can perform exploratory bi-factor analysis by solving the optimization problem with some equality constraints and the constraint that $\Phi $ is a correlation matrix. To deal with the constraints in $\Phi $ , we consider a reparameterization of $\Phi $ based on a Cholesky decomposition, where the explicit form of the reparameterization is given in Section A of the Supplementary Material. With slight abuse of notation, we reexpress the covariance matrix as $\Phi (\boldsymbol \gamma )$ , where $\boldsymbol \gamma $ is a $G(G-1)/2$ dimensional unconstrained parameter vector. In addition, we use $\boldsymbol \psi = (\psi _1, \dots , \psi _{J})^\top $ to denote the vector of diagonal entries of $\Psi $ and reexpress the residual covariance matrix as $\Psi (\boldsymbol \psi )$ . Thus, the optimization problem (2) is now simplified as

(3) $$ \begin{align} \begin{aligned} \min_{\Lambda, \boldsymbol{\gamma}, \boldsymbol \psi}~~~ & l( \Lambda \Phi(\boldsymbol \gamma) \Lambda^\top + \Psi(\boldsymbol{\psi}); S) \\ s.t. ~~~ & \lambda_{jk}\lambda_{jk'} = 0, \mbox{~for all~} k,k' = 2, \dots, G+1, k\neq k', j = 1, \dots, J, \end{aligned} \end{align} $$

which is an equality-constrained optimization problem.

The standard approach for solving such a problem is the ALM (e.g., Bertsekas, Reference Bertsekas2014). This method aims to find a solution to (3) by solving a sequence of unconstrained optimization problems. Let t denote the tth unconstrained optimization problem in the ALM. The corresponding objective function, also known as the augmented Lagrangian function, takes the form

(4) $$ \begin{align} \min_{\Lambda, \boldsymbol \gamma, \boldsymbol \psi}~~~ l( \Lambda \Phi(\boldsymbol \gamma) \Lambda^\top + \Psi(\boldsymbol{\psi}); S) + \left(\sum_{j=1}^J \sum_{k=2}^G \sum_{k'=k+1}^{G+1} \beta_{jkk'}^{(t-1)} \lambda_{jk}\lambda_{jk'} \right)+ \frac{1}{2}c^{(t-1)} \left(\sum_{j=1}^J \sum_{k=2}^G \sum_{k'=k+1}^{G+1} (\lambda_{jk}\lambda_{jk'})^2 \right), \end{align} $$

where $c^{(t-1)}> 0$ and $\beta _{jkk'}^{(t-1)}$ s are auxiliary coefficients of the ALM determined by the initial values when $t=1$ and the previous optimization when $t\geq 2$ . Details of the ALM are given in Algorithm 1, in which the function h returns the second-largest value of a vector.

The ALM can be seen as a penalty method for solving constrained optimization problems. It replaces a constrained optimization problem with a series of unconstrained problems. It adds a penalty term, that is, the third term in (4), to the objective to enforce the constraints. The tuning parameter $c^{(t-1)}$ can be seen as the weight of the penalty term. In fact, as $c^{(t)}$ goes to infinity while $\beta _{jkk'}^{(t)}$ s remain bounded, the solution has to converge to one satisfying the equality constraints in (3), as otherwise, the objective function value in (4) will diverge to infinity. However, the ALM is not purely a penalty method in the sense that it also adds the second term in (4) to mimic a Lagrange multiplier (see, e.g., Chapter 12, Nocedal & Wright, Reference Nocedal and Wright1999), for which $\beta _{jkk'}^{(t-1)}$ s are the weights. An advantage of the ALM is that, with the inclusion of the Lagrangian term (i.e., the second term), the method is guaranteed to converge to a local solution satisfying the equality constraints without requiring $c^{(t)}$ to go to infinity. This is important, as when $c^{(t)}$ is very large, the optimization problem (4) becomes ill-conditioned and thus hard to solve.

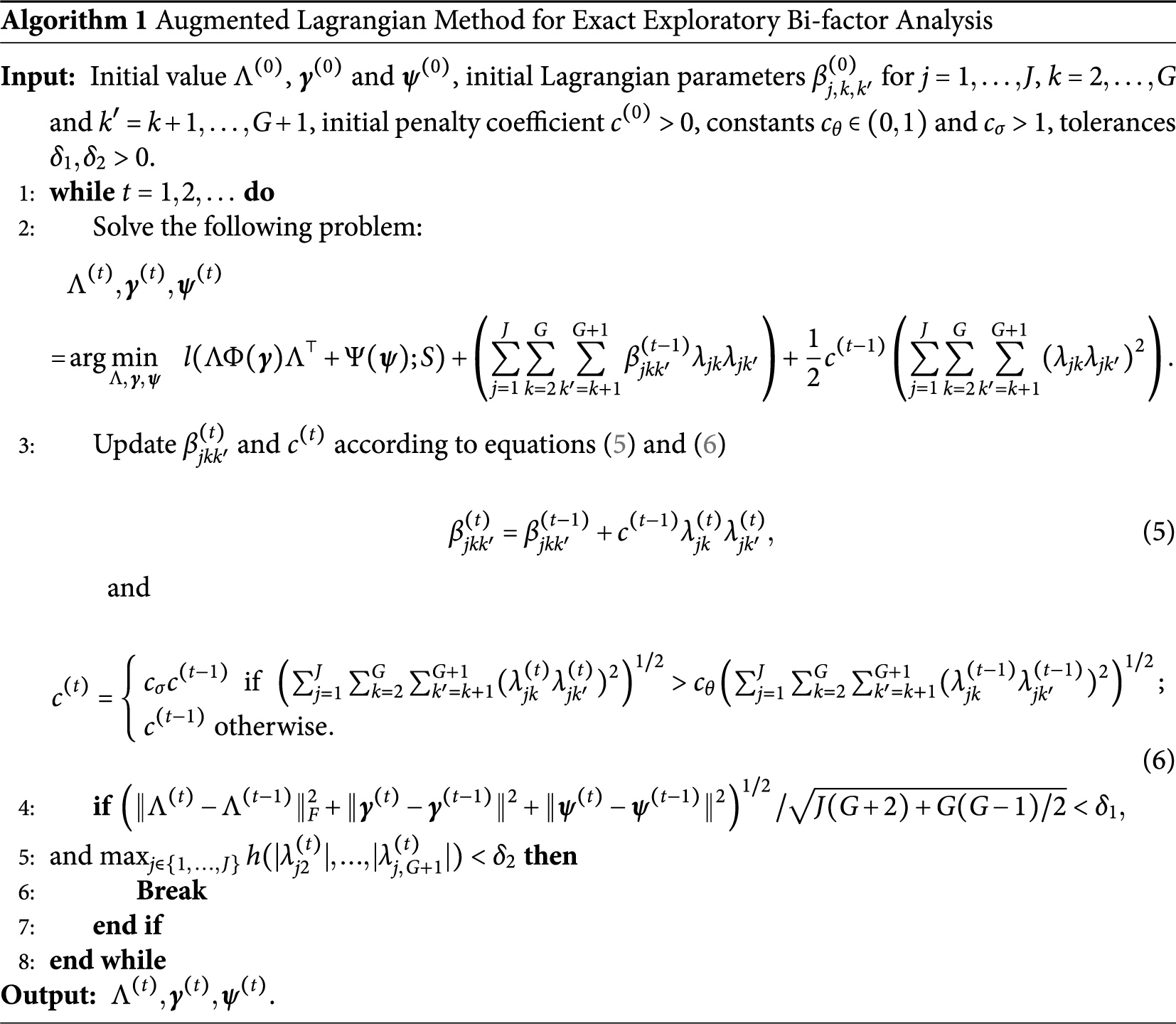

The updating rule of $\beta ^{(t)}_{jkk'}$ and $c^{(t)}$ follows equations (1) and (47) in Chapter 2.2 of Bertsekas (Reference Bertsekas2014). The updating rule for $\beta _{jkk'}^{(t)}$ follows the first-order optimality condition based on optimizations (3) and (4). The updating rule for $c^{(t)}$ ensures that it will become sufficiently large, which is necessary to guarantee the solution of the algorithm to converge to the feasible region defined by the zero constraints. On the other hand, it also prevents $c^{(t)}$ from growing too quickly with which the optimization (4) is ill-conditioned. As shown in Chapter 2.2 of Bertsekas (Reference Bertsekas2014), as long as the sequences $\{\beta _{jkk'}^{(t)}\}$ remain bounded, the sequence $\{c^{(t)}\}$ remains bounded. We follow the recommended choices of $c_{\theta } = 0.25$ and $c_{\sigma } = 10$ in Bertsekas (Reference Bertsekas2014), while pointing out that the performance of Algorithm 1 is quite robust against the choices of these tuning parameters (see Section C of the Supplementary Material for a sensitivity analysis). The convergence of Algorithm 1 is guaranteed by Proposition 2.7 of Bertsekas (Reference Bertsekas2014).

We remark on the stopping criterion in the implementation of Algorithm 1. We monitor the convergence of the algorithm based on two criteria: (1) the change in parameter values in two consecutive steps, measured by

$$ \begin{align*}\left(\Vert \Lambda^{(t)} - \Lambda^{(t-1)} \Vert_{F}^{2} + \Vert \boldsymbol \gamma^{(t)} - \boldsymbol \gamma^{(t-1)} \Vert^{2} + \Vert \boldsymbol \psi^{(t)} - \boldsymbol \psi^{(t-1)} \Vert^{2}\right)^{1/2}/ \sqrt{J(G+2) + G(G-1)/2},\end{align*} $$

where $\Vert \cdot \Vert _F$ denotes the Frobenius norm of a matrix and $\Vert \cdot \Vert $ denotes the standard Euclidian norm, and (2) the distance between the estimate and the space of bi-factor loading matrices measured by

$$ \begin{align*}\max_{j \in \{1, \dots, J\}} h(|\lambda_{j2}^{(t)}|, \dots, |\lambda_{j,G+1}^{(t)}|).\end{align*} $$

We stop the algorithm when both criteria are below their pre-specified thresholds, $\delta _1$ and $\delta _2$ , respectively. The first criterion is a standard criterion for monitoring parameter convergence. This criterion being sufficiently small suggests the convergence of the algorithm. The second criterion is used to ensure that the solution is sufficiently close to the feasible set of optimization defined by the equality constraints. This criterion being below $\delta _2$ means that for each variable j, there can only be one group loading whose absolute value is above the threshold $\delta _2$ , and all the rest have absolute values below the threshold. Based on this, we can obtain an estimate of the bi-factor structure. More specifically, let T be the last iteration number. Then the estimated bi-factor model structure is given by

$$ \begin{align*}\widehat{\mathcal B}_g = \{j: |\lambda_{j,g+1}^{(T)}|> \delta_2\}.\end{align*} $$

By our choice of the stopping criterion, the resulting $\widehat {\mathcal B}_g$ , $g=1, \dots , G$ , gives a partition of all the variables, and thus, the bi-factor structure is satisfied. For simulation studies in Section 3, we choose ${\delta _1 = \delta _2 = 10^{-2}}$ . For real data analysis in Section 4, we choose $\delta _1 = \delta _2 = 10^{-4}$ to get a more accurate and reliable result.

The optimization problem (4) is non-convex and can get stuck in a local minimum. Thus, we recommend running the proposed algorithm multiple times with random starting points and choosing the solution with the smallest objective function value. The algorithm can also suffer from slow convergence, especially when the penalty term becomes large. When the algorithm does not converge within $T_{\max }$ iterations, we suggest using the estimated parameters at the $T_{\max }$ th iteration as the initial parameters and restarting the optimization until a good proportion of them converge. In the simulation study in Section 3, the estimated parameters obtained using 50 random starting points are close to the global minimum in most cases in the simulation study. For the real data example in Section 4, 200 random starting points are used to ensure a reliable result. We set $T_{\max } = 100$ in all of our numerical studies.

2.3 Selecting the number of group factors

In Sections 2.1 and 2.2, the number of group factors G is treated as known. In practice, we can select its value based on the BIC (Schwarz, Reference Schwarz1978). Let $l_G$ denote the minimum loss function value in (2) when the number of group factors is G. As $l_G$ differs from twice the negative log-likelihood of the bi-factor model with G group factors by a constant, and the numbers of nonzero parameters in $\Lambda $ and $\Psi $ do not depend on G, it is not difficult to see that the BIC of the bi-factor model with G group factors differs from $l_G + ({(G-1)G} \log (N))/2$ by a constant. Note that $(G-1)G/2$ is the number of free parameters in the correlation matrix $\Phi $ . Thus, we write

$$ \begin{align*}\text{BIC}_G = l_G + ({(G-1)G} \log(N))/2.\end{align*} $$

In practice, we choose the number of group factors G from a candidate set $\mathcal G$ . For each value of $G\in \mathcal G$ , we run the ALM described in Section 2.2 to obtain the value of $l_G$ . We then compute $\text {BIC}_G$ and choose $\widehat G$ with the smallest BIC value, that is,

3.1 Study I

In this study, we compare the proposed method with the oblique bi-factor rotation in Jennrich and Bentler (Reference Jennrich and Bentler2012) regarding their performance in the estimation accuracy of parameters and the recovery of the bi-factor structure. We consider two different settings for the data generation mechanism: (1) the observed data are generated from an exact bi-factor model, and (2) the observed data are generated from an approximate bi-factor model, where the loading matrix is generated by adding small perturbations to an exact bi-factor loading matrix.

The oblique bi-factor rotation method first estimates the loading matrix $\widehat {\Lambda }$ under the exploratory factor analysis setting by the optimization problem

(7)

We restrict $\lambda _{ij} = 0$ for $i = 2,\ldots ,G$ and $j = i+1,\ldots ,G+1$ to avoid the rotational indeterminacy of $\widehat {\Lambda }$ , as suggested in Anderson and Rubin (Reference Anderson and Rubin1956). Then the rotated solutions $\widehat {\Lambda }^{oblq}$ and $\widehat {\Phi }^{oblq}$ are obtained by finding a rotation matrix that solves the optimization problem for oblique bi-factor rotation (Jennrich & Bentler, Reference Jennrich and Bentler2012). The implementation in the R package GPArotation (Bernaards & Jennrich, Reference Bernaards and Jennrich2005) is used for solving this optimization problem, which is based on a gradient projection algorithm. The optimization problem for rotation is also non-convex and thus may converge to local solutions. For a fair comparison, we also use 50 random starting points for the initial rotation matrix, which is the same as the number of random starting points that are used when running Algorithm 1.

We first examine the accuracy in estimating the loading matrix. We calculate the mean squared error (MSE) for $\widehat {\Lambda }$ , after adjusting for the label and sign indeterminacy as considered in Theorem 1 and further discussed in Remark 1. More specifically, let $\mathcal {P}$ and $\mathcal D$ be the sets of permutation and sign flip matrices, respectively, as defined in Theorem 1. We define the MSE for $\widehat \Lambda $ as

$$ \begin{align*}\text{MSE}_{\widehat \Lambda} = \min_{P\in\mathcal{P}, D\in \mathcal D}\Vert \widehat{\Lambda} - \Lambda^{*}PD\Vert_{F}^{2}/(J(1+G)).\end{align*} $$

Note that when data are generated from an approximate bi-factor model, $\Lambda ^*$ does not have an exact bi-factor structure. This MSE is calculated for the loading matrix estimates from both methods.

To compare the two methods in terms of their performance in recovering the bi-factor structure, we derive a sparse loading structure from the rotated solution by hard thresholding, a procedure also performed in Jennrich and Bentler (Reference Jennrich and Bentler2012) for examining structure recovery. We let

$$ \begin{align*}\widehat{\mathcal B}_{g}^{oblq} = \{j: |\lambda_{j,g+1}^{oblq}|> \delta\},\end{align*} $$

for $g = 1,\ldots ,G$ and some hard thresholding parameter $\delta>0$ . In the analysis below, we consider three choices of hard thresholding parameter $\delta \in \{0.1,0.2,0.3\}$ . We note that $\widehat {\mathcal B}_{g}^{oblq}$ , $g = 1, \dots , G$ , may not yield an exact bi-factor structure as it is not guaranteed to return only one nonzero group loading parameter for each variable.

Let $\{\mathcal {B}_{g}^{*}, g=1, \ldots , G\}$ be the true nonoverlapping clusters of the J variables, and let $\{\mathcal {B}_{g}, g = 1,\ldots ,G\}$ be their estimates, either from the proposed method or the rotation method. When data are generated from an approximate bi-factor model, the true group clusters $\{\mathcal {B}_{g}^{*}, g=1, \ldots , G\}$ are based on the corresponding bi-factor loading matrix before the perturbation. As the group factors can only be recovered up to label swapping, as Theorem 1 suggests, we measure the matching between the true and estimated structure up to a permutation of the factor labels. Specifically, the following two evaluation criteria are considered:

• • Exact Match Criterion (EMC): $\max _{\sigma \in \widetilde {\mathcal {P}}}\prod _{g=1}^{G}\mathbf {1}(\mathcal {B}_{\sigma (g)} = \mathcal {B}_{g}^{*})$ , which equals 1 when the bi-factor structure is correctly learned and 0 otherwise. Here, $(\sigma (1), \dots , \sigma (G))$ is a permutation of $1, \dots , G$ , and $\widetilde {\mathcal {P}}$ is the set of all such permutations.

• • Average Correctness Criterion (ACC): $\max _{\sigma \in \widetilde {\mathcal {P}}}\sum _{g=1}^{G}(\vert \mathcal {B}_{\sigma (g)}\cap \mathcal {B}_{g}^{*}\vert + \vert \mathcal {B}_{\sigma (g)}^{C} \cap \mathcal {B}_{g}^{*C}\vert ) / (JG)$ , which is the proportion of correctly identified zero and nonzero group loadings. Here, for any set $\mathcal {B}$ , $\mathcal {B}^{C} = \{1,\ldots ,J\} \setminus \mathcal {B}$ is the complement of set $\mathcal {B}$ .

Here, the EMC measures the perfect recovery of the true bi-factor structure, while the ACC can be viewed as a smooth version of EMC that measures the level of partial recovery. EMC = 1 when ACC = 1 and, EMC = 0 when ACC $< 1$ . A larger value of ACC indicates a higher level of partial recovery of the true bi-factor structure. More specifically, for a given permutation $\sigma \in \widetilde {\mathcal {P}}$ , the quantity $\vert \mathcal {B}_{\sigma (g)}\cap \mathcal {B}_{g}^{*}\vert + \vert \mathcal {B}_{\sigma (g)}^{C} \cap \mathcal {B}_{g}^{*C}\vert $ computes the number of correctly identified nonzero and zero loadings for group factor g. For example, consider a case with $J = 15$ items and $\mathcal {B}_{1}^{*} = \{1,4,7,10,13\}$ for the first group factor. If $\mathcal {B}_{\sigma (1)} = \mathcal {B}_{1}^{*}$ , then for the first group factor, we have $\vert \mathcal {B}_{\sigma (1)}\cap \mathcal {B}_{1}^{*}\vert + \vert \mathcal {B}_{\sigma (1)}^{C} \cap \mathcal {B}_{1}^{*C}\vert = J = 15$ , that is, all the nonzero and zero loadings have been correctly identified. If, instead, $\mathcal {B}_{\sigma (1)} = \{1,2,7,10,13\}$ , then $\vert \mathcal {B}_{\sigma (1)}\cap \mathcal {B}_{1}^{*}\vert + \vert \mathcal {B}_{\sigma (1)}^{C} \cap \mathcal {B}_{1}^{*C}\vert = 13$ , that is, 13 out of the 15 nonzero and zero loadings have been correctly identified. The quantity $\sum _{g=1}^{G}(\vert \mathcal {B}_{\sigma (g)}\cap \mathcal {B}_{g}^{*}\vert + \vert \mathcal {B}_{\sigma (g)}^{C} \cap \mathcal {B}_{g}^{*C}\vert ) / (JG)$ thus computes the proportion of correctly identified zero and nonzero group loadings under the given permutation $\sigma $ . The ACC considers all possible permutations of the group factor labels to account for the label indeterminacy.

To examine the recovery of the bi-factor structure, we consider $(J,G) \in \{(15,3),(30,5)\}$ and ${N \in \{500,2,000\}}$ . These choices, combined with the two settings for the data generation mechanism, lead to eight simulation settings. For each setting, we let $\mathcal {B}_{g}^{*} = \{g,g+G ,\ldots ,g + G(J/G-1)\}$ for $g = 1,\ldots , G$ , $\Psi ^* = \mathbb {I}_{J\times J}$ , and $\Phi ^* = \Phi ^{*}(\boldsymbol \gamma ^{*})$ follow the reparameterization in Section 2.2, where the entries of $\boldsymbol \gamma ^{*}$ are i.i.d., following a Uniform $(-0.5,0.5)$ distribution. Under the settings where data are generated from an exact bi-factor model, we generate the true loading matrix $\Lambda ^*$ by

(8) $$ \begin{align} \begin{aligned} \lambda_{jk}^{*} = \left\{ \begin{array}{l} u_{jk}, \mbox{~if~} k=1, \\ 0, \mbox{~if~} k>1 ,j \notin \mathcal{B}_{k-1}^{*}, \\ {(1-2x_{jk})u_{jk}}, \mbox{~if~} k>1, j\in\mathcal{B}_{k-1}^{*}, \end{array} \right. \end{aligned} \end{align} $$

for $j = 1,\ldots ,J$ and $k = 1,\ldots , G+1$ . In (8), $u_{jk}$ s are i.i.d., following a Uniform $(0.2,1)$ distribution, and $x_{jk}$ s are i.i.d., following a Bernoulli $(0.5)$ distribution. Under the settings where data are generated from an approximate bi-factor model, we generate the true loading matrix $\Lambda ^*$ by

(9) $$ \begin{align} \begin{aligned} \lambda_{jk}^{*} = \left\{ \begin{array}{l} u_{jk}, \mbox{~if~} k=1, \\ (1-2x_{jk})w_{jk}, \mbox{~if~} k>1 ,j \notin \mathcal{B}_{k-1}^{*}, \\ (1-2x_{jk})u_{jk}, \mbox{~if~} k>1, j\in\mathcal{B}_{k-1}^{*}, \end{array} \right. \end{aligned} \end{align} $$

for $j = 1,\ldots ,J$ and $k = 1,\ldots , G+1$ . Here, $u_{jk}$ s and $x_{jk}$ s are generated in the same way as those in the exact bi-factor model, and $w_{jk}$ are i.i.d., following a Uniform $(0,0.1)$ distribution. In (9), the nonzero values of $\lambda _{jk}^{*}$ when $k>1$ and $j \notin \mathcal {B}_{k-1}^{*}$ represent the perturbation of $\Lambda ^*$ from an exact bi-factor structure.

For each setting, we first generate $\Lambda ^{*}$ and $\Phi ^{*}$ once and use them to generate 100 datasets. The true parameter values for these simulations are given in Section B of the Supplementary Material. The results about the estimation of the loading matrix are shown in Table 1. When data are generated from an exact bi-factor model, the proposed method outperforms the rotation method in terms of the MSE of the estimated loading matrix, as shown in Table 1(a). When data are generated from an approximate bi-factor model, as shown in Table 1(b), the proposed method is slightly better under the small-sample settings when $N=500$ but slightly worse under the large-sample settings when $N = 2,000$ . The disadvantage of the proposed method under the large-sample settings is due to the bias brought by model misspecification. That is, the data generation model is not an exact bi-factor model, while the proposed method restricts its estimates in the space of exact bi-factor models.

Table 1

Simulation results of the MSE of $\widehat {\Lambda }$ estimated by the proposed ALM method and the exploratory bi-factor rotation method

The results about the recovery of the bi-factor structure based on the EMC and ACC metrics are shown in Tables 2 and 3, respectively. For the rotation method, the threshold $\delta = 0.2$ yields the best results among the three threshold choices under all the simulation settings and for both performance metrics. However, even the results of the rotation method under this choice of threshold are not as good as those from the proposed method, especially when we look at the EMC metric. For example, when $J = 30$ , $G=5$ , and $N=500$ , the rotation method with $\delta = 0.2$ can only correctly recover the entire bi-factor structure 15 times among 100 simulations, while the proposed method can correctly recover it 85 times.

Table 2

Simulation results of the EMC of the proposed ALM method and the exploratory bi-factor rotation method with three choices of hard thresholding parameter $\delta $

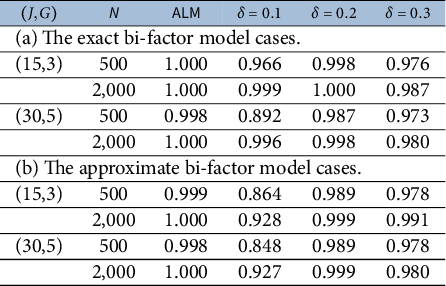

Table 3

Simulation results of the ACC of the proposed ALM method and the exploratory bi-factor rotation method with three choices of hard thresholding parameter $\delta $

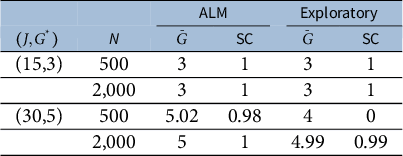

Table 4

Simulation results of the selection of the number of factors by BIC

3.2 Study II

In this study, we examine the selection of the number of factors by $\text {BIC}_{G}$ in Section 2.3. We compare it with selecting the number of factors under the exploratory factor analysis model without assuming a bi-factor structure. For the proposed method, we set the candidate set $\mathcal G = \{G^{*}-1, G^{*}, G^{*}+1\}$ , where $G^*$ is the true number of group factors. For exploratory factor analysis, we also use the BIC for determining the number of factors, which is defined as

$$ \begin{align*}\text{BIC}_{K}^{e} = l_{K}^{e} + (JK - K(K-1)/2)\log(N), \end{align*} $$

where K is the number of factors in the exploratory factor analysis model, and $l_{K}^{e} = l(\widehat \Lambda \widehat \Lambda ^{\top }+\Psi (\widehat \psi );S)$ with $\widehat \Lambda $ and $\widehat \psi $ from (7). As the number of factors in the exploratory factor analysis model equals the number of group factors plus one, we choose K from the candidate set $\mathcal K = \{G+1: G\in \mathcal G\}$ . Let Then the estimate of G by exploratory factor analysis is $\widehat G = \widehat K-1$ . The selection accuracy is evaluated by the selection correctness (SC) criterion, defined as $\mathbf {1}(\widehat {G} = G^*)$ , where $\widehat G$ is obtained using the proposed method in Section 2.3 or under the exploratory factor analysis model described above.

We conduct simulations under four settings, with $(J,G^*) \in \{(15,3),(30,5)\}$ and $N \in \{500,2,000\}$ and the data generation models being the same exact bi-factor models in Study I. For each setting, 100 independent simulations are performed. The results are given in Table 4, where the column indicated by $\bar G$ reports the average value of $\widehat G$ . We see that both methods can select the number of factors reasonably well, with their accuracy being 100% when $G^* = 3$ for both sample sizes. When $G^* = 5$ and the sample size $N=2,000$ , the proposed method achieves an accuracy of 100%, and the exploratory factor analysis method achieves an accuracy of 99%. This is not surprising, given that the BIC has asymptotic consistency in selecting the number of factors under both models. It is worth noting that, when $G^* = 5$ and for the smaller sample size $N=500$ , which is the most challenging setting, the proposed method achieves an accuracy of 98%, while that of the exploratory factor analysis method is zero. More precisely, the exploratory factor analysis method selects $G =4$ in all the replications. It suggests that the proposed method has an advantage in smaller sample settings. This result is expected, as the exploratory factor analysis method doesn’t utilize the information about the bi-factor structure. Consequently, it overestimates the number of parameters, which leads to a larger penalty term and, subsequently, a tendency to under-select G.
