A Census of Southern Pulsars at 185 MHz

Published online by Cambridge University Press:  20 December 2017

Mengyao Xue
Affiliation:
International Centre for Radio Astronomy Research (ICRAR), Curtin University, Bentley, WA 6102, Australia ARC Centre of Excellence for All-sky Astrophysics (CAASTRO)
N. D. R. Bhat
Affiliation:
International Centre for Radio Astronomy Research (ICRAR), Curtin University, Bentley, WA 6102, Australia ARC Centre of Excellence for All-sky Astrophysics (CAASTRO)
S. E. Tremblay
Affiliation:
International Centre for Radio Astronomy Research (ICRAR), Curtin University, Bentley, WA 6102, Australia ARC Centre of Excellence for All-sky Astrophysics (CAASTRO)
S. M. Ord
Affiliation:
CSIRO Astronomy and Space Science, Australia Telescope National Facility, PO Box 76, Epping, NSW 1710, Australia
C. Sobey
Affiliation:
International Centre for Radio Astronomy Research (ICRAR), Curtin University, Bentley, WA 6102, Australia CSIRO Astronomy and Space Science, 26 Dick Perry Avenue, Kensington, WA 6151, Australia
N. A. Swainston
Affiliation:
International Centre for Radio Astronomy Research (ICRAR), Curtin University, Bentley, WA 6102, Australia ARC Centre of Excellence for All-sky Astrophysics (CAASTRO)
D. L. Kaplan
Affiliation:
Department of Physics, University of Wisconsin-Milwaukee, Milwaukee, WI 53201, USA
Simon Johnston
Affiliation:
CSIRO Astronomy and Space Science, Australia Telescope National Facility, PO Box 76, Epping, NSW 1710, Australia
B. W. Meyers
Affiliation:
International Centre for Radio Astronomy Research (ICRAR), Curtin University, Bentley, WA 6102, Australia ARC Centre of Excellence for All-sky Astrophysics (CAASTRO) CSIRO Astronomy and Space Science, Australia Telescope National Facility, PO Box 76, Epping, NSW 1710, Australia
S. J. McSweeney
Affiliation:
International Centre for Radio Astronomy Research (ICRAR), Curtin University, Bentley, WA 6102, Australia ARC Centre of Excellence for All-sky Astrophysics (CAASTRO)
Corresponding
Rights & Permissions[Opens in a new window]

Abstract

The Murchison Widefield Array, and its recently developed Voltage Capture System, facilitates extending the low-frequency range of pulsar observations at high-time and -frequency resolution in the Southern Hemisphere, providing further information about pulsars and the ISM. We present the results of an initial time-resolved census of known pulsars using the Murchison Widefield Array. To significantly reduce the processing load, we incoherently sum the detected powers from the 128 Murchison Widefield Array tiles, which yields ~10% of the attainable sensitivity of the coherent sum. This preserves the large field-of-view (~450 deg2 at 185 MHz), allowing multiple pulsars to be observed simultaneously. We developed a WIde-field Pulsar Pipeline that processes the data from each observation and automatically folds every known pulsar located within the beam. We have detected 50 pulsars to date, 6 of which are millisecond pulsars. This is consistent with our expectation, given the telescope sensitivity and the sky coverage of the processed data (~17 000 deg2). For 10 pulsars, we present the lowest frequency detections published. For a subset of the pulsars, we present multi-frequency pulse profiles by combining our data with published profiles from other telescopes. Since the Murchison Widefield Array is a low-frequency precursor to the Square Kilometre Array, we use our census results to forecast that a survey using the low-frequency component of the Square Kilometre Array Phase 1 can potentially detect around 9 400 pulsars.

Type
Research Article
Copyright
Copyright © Astronomical Society of Australia 2017

1. INTRODUCTION

Pulsars were discovered through observing their pulsed emission at a very low radio frequency of 81.5 MHz (Hewish et al. Reference Hewish, Bell, Pilkington, Scott and Collins1968). Although low-frequency observations (<300 MHz) played a considerable role in early pulsar science (e.g. Taylor & Manchester Reference Taylor and Manchester1977; Taylor & Stinebring Reference Taylor and Stinebring1986), the vast majority of the 2 536 pulsars now cataloguedFootnote 1 (Manchester et al. Reference Manchester, Hobbs, Teoh and Hobbs2005) were discovered and studied at higher frequencies, between 300 MHz and a few GHz. This is due to a compromise between three frequency-dependent effects: (1) the greater broadening of pulsed signals towards lower frequencies due to interstellar medium (ISM) propagation effects, particularly multipath scattering, which is a strong function of the observing frequency (∝ν−4, e.g. Bhat et al. Reference Bhat, Cordes, Camilo, Nice and Lorimer2004), (2) the increase in telescope system temperature towards lower frequencies due to the diffuse Galactic continuum emission (∝ν−2.6; Lawson et al. Reference Lawson, Mayer, Osborne and Parkinson1987), and (3) the decrease in flux densities towards higher frequencies due to pulsars’ steep intrinsic spectral indices (∝ν−1.4, on average; Bates, Lorimer, & Verbiest Reference Bates, Lorimer and Verbiest2013).

Pulsars are once again being routinely observed and studied at low frequencies due to advances in instrumentation and computing. This includes recently upgraded or constructed telescopes operating below 300 MHz and their associated computing facilities: the Giant Metrewave Radio Telescope (GMRT; Swarup et al. Reference Swarup, Ananthakrishnan, Kapahi, Rao, Subrahmanya and Kulkarni1991; Roy et al. Reference Roy, Gupta, Pen, Peterson, Kudale and Kodilkar2010), the Long Wavelength Array (LWA; Taylor et al. Reference Taylor2012; Stovall et al. Reference Stovall2015), the Low-Frequency Array (LOFAR; van Haarlem et al. Reference van Haarlem2013; Stappers et al. Reference Stappers2011), and the Murchison Widefield Array (MWA; Tingay et al. Reference Tingay2013; Tremblay et al. Reference Tremblay2015). Besides the MWA, all of these facilities are located in the Northern Hemisphere. Consequently, 22% of the known pulsar population can only be observed at low frequencies using the MWA (−90°⩽δ ≲ −50°). Moreover, the sensitivity of aperture array telescopes decreases rapidly for lower elevation pointings (≲30°; Noutsos et al. Reference Noutsos2015; Stovall et al. Reference Stovall2015), corresponding to declinations below approximately −10° for LOFAR and −30° for the LWA and above approximately +30° for the MWA. However, these telescopes are also situated over a range of longitudes, and there is a significant overlap in the area of observable sky, as shown in Figure 1. This is particularly useful for monitoring observations and verifying results (e.g. Hermsen et al. Reference Hermsen2013; Dolch et al. Reference Dolch2014; Mereghetti et al. Reference Mereghetti2016).

Figure 1. The locations of catalogued pulsars in Galactic coordinates (blue points; using version 1.54 of the pulsar catalogue). The observable sky from the MWA telescope (δ ≲ +30°) and the area where the MWA can exclusively observe pulsars below 300 MHz (δ ≲ −50°) are indicated by the light and dark shaded regions, respectively. The grey dashed line indicates the declination limit of the observable sky from LOFAR (δ ≳ −10°). We note that for aperture arrays like the MWA and LOFAR, observations can be made at any zenith angle, the sensitivity falls off with the zenith angle, and is significantly reduced when pointed to elevations ≲ 30° (Noutsos et al. Reference Noutsos2015). In this figure, we use hard limits purely for illustration. The positions of the pulsars detected at 185 MHz in this work, using the MWA in incoherent-sum mode, are also shown (red circles).

Low-frequency observations of pulsars provide insights into the physics of the radio emission mechanism and the ISM (e.g. Stappers et al. Reference Stappers2011), especially in a multi-frequency context. For example, the widths of integrated pulse profiles generally widen with decreasing observing frequencies (e.g. Johnston et al. Reference Johnston, Karastergiou, Mitra and Gupta2008). This behaviour is often explained by the radius-to-frequency mapping (RFM) model, whereby lower frequency emission arises from higher altitudes in the pulsar magnetosphere (e.g. Cordes Reference Cordes1978; Mitra & Rankin Reference Mitra and Rankin2002). Therefore, we assume that pulse profiles observed at a range of frequencies allow us to trace the open dipolar field line region of the pulsar magnetosphere, which increases in size towards higher altitudes. The simplest pulse profiles often show the clearest examples of RFM, while multi-component profiles often show more complex behaviour (Johnston et al. Reference Johnston, Karastergiou, Mitra and Gupta2008). Furthermore, pulse profiles are often observed to show an increasingly rapid evolution towards lower frequencies (e.g. Bhat et al. Reference Bhat2014; Pilia, et al. Reference Pilia2016). This is possibly due to the frequency dependence of the emission beam opening angle (Thorsett Reference Thorsett1991; Xilouris et al. Reference Xilouris, Kramer, Jessner, Wielebinski and Timofeev1996), which also depends on the pulsar spin period and spin-down (Kijak & Gil Reference Kijak and Gil1998, Reference Kijak and Gil2003). Therefore, comparing low-frequency observations to those at higher frequencies for a representative sample of pulsars can enable us to understand the beam geometry better and provide further insights into the enigmatic radio emission mechanism from pulsar magnetospheres.

Low-frequency pulsar observations also provide precise measurements of properties of the ionised ISM, including electron densities (e.g. Hassall et al. Reference Hassall2012; Bilous et al. Reference Bilous2016) and magnetic fields (e.g. Noutsos et al. Reference Noutsos2015; Howard et al. Reference Howard, Stovall, Dowell, Taylor and White2016), due to the steep power-law dependence on frequency of the propagation effects. For example, Stovall et al. (Reference Stovall2015) were able to study the ISM propagation effects using 44 pulsars detected at frequencies less than 100 MHz with the LWA.

A major motivation for the Square Kilometre Array (SKA) is the science facilitated using pulsar observations. The MWA is the low-frequency precursor telescope to the SKA. Therefore, pulsar observations using the same observing environment and frequencies are necessary to prepare for pulsar science with the SKA-Low.

In this work, we present an initial low-frequency census of known (catalogued) pulsars in the Southern Hemisphere. The descriptions of our MWA observations and data processing methods are outlined in Section 2. In Section 3, we provide a summary of the 50 pulsars detected to date. We discuss our results in Section 4, including the investigation of the population of pulsars observable using SKA-Low, and summarise our work in Section 5.

2. OBSERVATIONS AND ANALYSIS

2.1. The MWA and the voltage capture system

The MWA is located at the Murchison Radio-Astronomy Observatory (MRO) in Western Australia. The remote, radio-quiet environment minimises radio frequency interference (RFI). The MWA consists of an array of 128 tiles, distributed with baselines up to ~3 km, where each tile comprises 16 dual-polarisation dipole antennas arranged in a regular 4 × 4 grid. Since the array has no moving parts, tile beams are formed by electronic manipulation of the dipole signals in an analogue beamformer (Tingay et al. Reference Tingay2013). A bandwidth of 30.72 MHz can be flexibly recorded over a frequency range of 80–300 MHz.

Although the MWA was originally designed as an imaging interferometer, the Voltage Capture System (VCS; Tremblay et al. Reference Tremblay2015) has extended the capabilities of this telescope, allowing it to record high-time and frequency resolution voltage data. VCS observations are channelised to a frequency resolution of 10 kHz and a time resolution of 100 μs, allowing the MWA to provide phase-resolved observations of pulsars (e.g. Bhat et al. Reference Bhat2014). Commissioning of the MWA–VCS was completed in 2014.

VCS data recorded from each MWA tile can be reduced in different ways, providing its user with maximum flexibility. The least compute-intensive method is to perform an incoherent sum: voltages from each tile are multiplied by their complex conjugate to form the power, and then summed together. This incoherent sum preserves the full single tile field-of-view (FoV; ~450 deg2 at 185 MHz) and increases the sensitivity by a factor of $\sqrt{N}$ over a single tile theoretically, where N is the number of tiles summed. The VCS raw data can also be processed to generate a coherent sum of the tile signals by applying a phase rotation to each voltage stream and then summing to increase the sensitivity over a single tile by a factor of N theoretically, and reducing the FoV to ~2 arcmin in diameter. Forming a single coherent tied-array beam requires 2–3 times more compute time, in addition to manually generated calibration solutions (e.g. Bhat et al. Reference Bhat, Ord, Tremblay, McSweeney and Tingay2016). We therefore conducted an initial pulsar census using the incoherently summed data. Pulsars detected using the coherently beamformed data will be reported in a future publication.

2.2. Observations

Approximately 84 h of observations were made at a frequency of 185 MHz during the first 2 yrs of MWA–VCS operationsFootnote 2 . These data are from 104 observing sessions, ranging from 5 min to 1.5 h in duration, and were collected for a variety of scientific projects, e.g. pulsar emission studies, millisecond pulsar (MSP) monitoring, and searches for Fast Radio Bursts (e.g. Thornton et al. Reference Thornton2013). These observations are drift scans, i.e. the elevation and azimuth were fixed throughout the pointing instead of tracking a particular source. Each observation is identified by the GPS start time (‘OBS ID’ hereafter). The VCS system records data at a rate of 28 TB h−1, and the total size of the entire data set is approximately 2.6 PBFootnote 3 . These raw data are archived at the Pawsey Supercomputing Centre.

We processed 37 h of VCS data from 46 individual observing sessions that cover the sky efficiently, i.e. we have excluded duplicate sky pointings. These observations amount to ~17 000 deg2 of the sky (albeit with varying sensitivity), which corresponds to ~55% of the whole δ ≲ 30° sky (see Figure 2).

Figure 2. The sky coverage of the MWA–VCS observations processed in this work. Grey contour lines represent the beam pattern (for beam powers greater than 25% of that at zenith); blue points indicate all known pulsars (catalogue v1.54); red stars show the pulsars detected in this work.

2.3. Pre-processing

As described in Tremblay et al. (Reference Tremblay2015), the channelised raw voltage data are recorded in 32 files, each being a fine polyphase filter bank (PFB) output per tile per polarisation per second. We generate an incoherent beam (as described in Section 2.1) for each second of the observation, and write out every 200 s of data to a file in the PSRFITS format (Hotan, van Straten, & Manchester Reference Hotan, van Straten and Manchester2004), retaining a frequency resolution of 10 kHz and a time resolution of 100 μs. Therefore, each observation typically consists of multiple PSRFITS files. These PSRFITS files are then processed by the WIde-field Pulsar Pipeline (WIPP), described in Section 2.4.

2.4. Processing pipeline

The incoherently summed MWA data preserves the large FoV and, therefore, multiple pulsars may be located within the tile beam in each observation. We developed a WIPP that automatically identifies and folds all known pulsars positioned within the beam out to an established threshold.

2.4.1. Sample selection

For each observation, the WIPP automatically generates a list of pulsars to fold using the pulsar catalogue (v1.54) and information about the telescope pointing direction (taking into account that during drift scans pulsars may enter and leave the beam), the beam model, and the dispersion measures (DMs) of the pulsars. Since each MWA tile is a regularly distributed aperture array, the resulting beam pattern is complex, changing as a function of azimuth, elevation, and frequency (Sutinjo et al. Reference Sutinjo, O’Sullivan, Lenc, Wayth, Padhi, Hall and Tingay2015). An example is shown in Figure 3. We used the MWA beam model to identify known pulsars located within the beam out to 25% of the beam power towards zenith, at any time during the observations, and include even those located within a grating lobe in some cases.

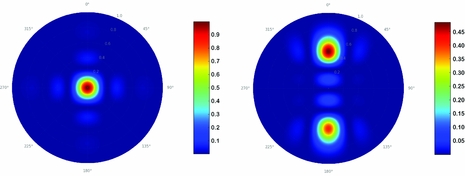

Figure 3. The MWA tile beam model at 185 MHz, indicating the power relative to pointing at zenith, see colour bars for scale. Left: an example of a pointing towards the zenith (observation ID 1088850560). Right: an example of the main beam and a grating lobe (upper and lower part of the figure, respectively; observation ID 1140972392; 0° azimuth, 45° elevation).

According to the NE2001 Galactic electron density model (Cordes & Lazio Reference Cordes and Lazio2002), the scattering time associated with lines-of-sight towards the Galactic plane with a DM greater than 300 cm−3 pc is typically more than 3 s. Since we are unlikely to detect pulsars with such long scattering times at 185 MHz, we limited our selection of pulsars to those with a DM of less than 300 cm−3 pc. This excluded a substantial fraction (~40%) of the pulsars located near the Galactic plane. Moreover, we did not make any assumptions regarding the pulsars’ expected flux densities and included all pulsars, whether or not they have a catalogued flux density measurement. Typically, a source list of ~10–200 pulsars was generated per observation, with larger numbers for pointings near the Galactic plane.

2.4.2. Pulsar folding

The WIPP attempts to detect every pulsar in the source list generated for each observation. The pipeline uses the prepfold function of the presto Footnote 4 software package (Ransom Reference Ransom2001) to dedisperse and fold the data using ephemerides from the pulsar catalogue.

We folded the data twice: with and without searching in DM, period, and period-derivative space. This identified changes in the ephemeris values and prevented the algorithm from locking on to the RFI. We also applied an RFI mask output obtained from rfifind in presto, but this did not significantly alter the results which is likely due to the pristine RFI environment (Offringa et al. Reference Offringa2015; Sokolowski, Wayth, & Lewis Reference Sokolowski, Wayth and Lewis2017). For pulsars with rotational periods <6.4 ms, we retained the 100 μs time resolution of the data. Otherwise, 64 or 100 pulse phase bins were used for the initial detections. A flow chart of the processing procedure is shown in Figure 4. After automatically folding the known pulsars in the source lists, each presto output was inspected by eye to identify those successfully detected.

Figure 4. The data processing flow: from downloading MWA–VCS archival data (from the Pawsey Supercomputing Centre) to detecting catalogued pulsars. Automatic processing procedures included in the WIPP are shown within the grey dashed line. The WIPP processes multiple pulsars in each observation. This is different from the type of processing generally employed for most traditional pulsar-capable telescopes, where there is typically only one pulsar per pointing.

2.4.3. Calculation of flux densities

For each pulsar detected, we determined the peak signal-to-noise ratio, (S/N)peak, and calculated the flux density using the MWA system performance parameters, including the system temperature, T sys, and the telescope gain, G. The mean flux density, S mean, was calculated using the radiometer equation, as applied to pulsar observations (e.g Lorimer & Kramer Reference Lorimer and Kramer2005):

(1) $$\begin{equation} S_{\text{mean}}=\frac{(\text{S/N})_{\text{peak}}T_{\text{sys}}}{G\sqrt{n_{\text{p}}t_{\text{int}}\Delta f}} \sqrt{\frac{W}{P-W}}, \end{equation}$$

where t int is the integration time, Δf = 30.72 MHz is the observation bandwidth, and n p = 2 is the number of polarisations summed. The quantity P indicates the pulse period and W represents the equivalent pulse width.

Assuming 100% antenna efficiency, the system temperature includes the contributions from the antenna temperature and the receiver temperature: T sys = T ant + T rec. Measurements of T rec for the MWA are available at different frequencies in 1.28 MHz steps (e.g. 23 K at 184.96 MHz and 50 K at 87.68 MHz; Prabu et al. Reference Prabu2015). The antenna temperature, T ant, for a given pointing direction in azimuth, θ, and elevation, ϕ, was determined by integrating the sky temperature T sky(θ, ϕ) over the modelled MWA beam. An all-sky survey at 408 MHz (Haslam et al. Reference Haslam, Klein, Salter, Stoffel, Wilson, Cleary, Cooke and Thomasson1981; Haslam et al. Reference Haslam, Salter, Stoffel and Wilson1982), scaled to our observing frequency, was used to estimate T sky. For our observations, the T sys ranges roughly from 150 to 1 000 K, with a median value of 284 K.

The incoherent gain G(θ, ϕ) of the MWA for a given pointing direction can be calculated using the beam power pattern P(θ, ϕ) and the offset of the target source from the zenith. Following Oronsaye et al. (Reference Oronsaye2015), we rewrite the expression of the incoherent gain as

(2) $$\begin{equation} G(\theta ,\phi ) = G_{\text{zenith}} \times \frac{P(\theta ,\phi )}{P_{\text{zenith}}} = \frac{\frac{\lambda ^2}{2\pi }(16\sqrt{N})}{2k_{\rm B}}\times \frac{P(\theta ,\phi )}{P_{\text{zenith}}}, \end{equation}$$

where λ is the observing wavelength, N is the number of MWA tiles, and k B is the Boltzmann constant. The gain value for our detections ranges from 0.003 to 0.024 K Jy−1, with a median value of 0.013 K Jy−1.

3. RESULTS

In total, we processed 37 h of VCS data, and folded 1 227 catalogued pulsars using our pipeline. We successfully detected 50 pulsars with (S/N)peak ≳ 4, after manually inspecting the presto outputs. The detection and telescope parameters at 185 MHz are summarised in Table 1. The quoted errors on the flux densities (S 185) are essentially the uncertainties from our estimation of S/N and hence largely reflect the quality of our detections. However, these errors do not account for large flux density variations arising from other substantial sources of error such as the calibration technique we adopted (see Section 2.4.3), or those due to scintillation effects. In particular, long-term (refractive) scintillation effects can lead to flux variability of a factor of ~2–3 at the MWA’s frequencies (e.g. Gupta, Rickett, & Coles Reference Gupta, Rickett and Coles1993; Bhat, Rao, & Gupta Reference Bhat, Rao and Gupta1999). The average pulse profiles of the 50 pulsars are shown in Figure 5. For ten pulsars, with declination δ < −50°, these are the lowest frequency detections published.

Figure 5. Average pulse profiles for the 50 catalogued pulsars successfully detected using MWA–VCS incoherently summed data at 185 MHz, including six MSPs. The period, DM, and number of phase bins for each pulsar are also shown. For high-S/N pulsars that we selected to present multi-frequency profiles (Figure 6), we have adopted pulse profiles of higher time resolution than as described in Section 2.4.2.

Table 1. Flux density and other parameters for the 50 catalogued pulsars successfully detected in MWA–VCS archival data.

a Best period from our processing.

b Best DM calculated from the data by maximising S/N in frequency vs. pulse phase. The effects of scattering and intrinsic profile evolution with frequency were not accounted for.

c DM catalogued in PSRCAT.

d As an aperture array, MWA’s gain varies with pointing direction.

e At our observing frequency, T sys is dominated by T sky which is, in turn, dominated by the synchrotron radiation from free electrons in the Galactic magnetic field.

f Flux densities calculated from MWA–VCS detections. The quoted errors are the uncertainties from our estimation of S/N. They are from single epoch measurements and thus do not account for large flux density variations arisings from effects such as scintillation. By comparing the pulsars common to both this survey and Murphy et al. (Reference Murphy2017), the difference in flux density ranges from 1.5 to 84.5%.

h Murphy et al. (Reference Murphy2017) calculated 60 catalogued pulsars’ flux densities from MWA continuum images.

i Flux densities catalogued in PSRCAT.

†We cannot calculate the flux density for the Crab and Vela because of the significant scattering tails.

The detected pulsars have a wide range of periods (1.74 ms–1.96 s), DMs (2.64–180 cm−3 pc), and estimated flux densities at 185 MHz (~30–2 400 mJy). We detected six MSPs: PSRs J0034–0534, J0437–4715, J1022+1001, J1902–5105, J2145–0750, and J2241–5236. Four of these are regularly monitored as part of the pulsar timing array project at Parkes (Manchester et al. Reference Manchester2013). MSPs J1902–5105 and J2241–5236 were discovered by observing unidentified Fermi Large Area Telescope (LAT) sources using the Parkes radio telescope (Keith et al. Reference Keith2011; Kerr et al. Reference Kerr2012), and have flux density measurements at 1.4 GHz. The low-frequency flux density of PSR J2241–5236 has also been measured using continuum imaging studied with the MWA (60 mJy at 200 MHz; Murphy et al. Reference Murphy2017). For J1902–5105, there are no low-frequency flux density measurements in the literature. Using MWA–VCS observations, we estimate a flux density of 362 ± 55 mJy at 185 MHz. Using the pulsar’s flux density measured with Parkes at 1.4 GHz (1.2 mJy), we calculated the spectral index α (assuming a single power law S ν∝να) to be approximately −2.8.

We also detected two non-recycled pulsars which are in binary systems, PSRs J0823+0159 and J1141–6545. The latter is in an eccentric, relativistic 4.74 h orbit that shows no evidence of being recycled (Kaspi et al. Reference Kaspi2000) and is an excellent laboratory for testing theories of gravity (Bhat, Bailes, & Verbiest Reference Bhat, Bailes and Verbiest2008). PSR J0823+0159, on the other hand, is in a wide-orbit (1 232-d period) binary system, with a relatively low mass companion (Hobbs et al. Reference Hobbs, Lyne, Kramer, Martin and Jordan2004).

We were unable to obtain meaningful estimates of the mean flux density for PSRs J0534+2200 and J0835–4510 (i.e. the Crab and Vela pulsars) because their pulse profiles are severely scattered (the scattering tail extends over the entire pulsar period), and consequently the off-pulse RMS noise could not be determined reliably. PSRs J0742–2822, J1534–5334, and J1820–0427 also show some degree of scattering; however, their pulses are not broadened as significantly, and we were able to estimate their flux densities. More detailed analyses of scattering will be reported in a forthcoming paper (Kirsten et al. in preparation).

4. DISCUSSION

Our discussion is focused on three main points. First, for a subset of our pulsars, we compare our MWA profiles to those from observations made at multiple frequencies. Second, we estimate detection limits of this census. Finally, we review the prospects for detecting pulsars with the full sensitivities of MWA and SKA1-Low.

4.1. Multi-frequency pulse profiles

We have selected 16 pulsars with relatively high signal-to-noise (S/N > 15) for comparison with pulse profiles across different frequencies. The higher frequency profiles are obtained from observations using Parkes and GMRT (Johnston et al. Reference Johnston, Karastergiou, Mitra and Gupta2008, Johnston, Reference Johnston and Kerr2017), Effelsberg 100 m (von Hoensbroech, Kijak, & Krawczyk Reference von Hoensbroech, Kijak and Krawczyk1998; Kijak et al. Reference Kijak, Kramer, Wielebinski and Jessner1998), and Lovell telescopes (Gould & Lyne Reference Gould and Lyne1998). Lower frequency profiles are from recent LOFAR work (Pilia, et al. Reference Pilia2016) and the Pushchino telescope (Kuz’min & Losovskii Reference Kuz’min and Losovskii1999) retrieved from the EPN databaseFootnote 5 .

Figure 6 shows the evolution of the profiles with observing frequency. For pulsars located north of δ = −28°, our MWA profiles bridge the gap between observations using LOFAR and Pushchino and those at higher frequencies. For nine pulsars located south of δ = −28°, the MWA provides the lowest frequency detections, extending the frequency range available for those pulsars by a factor of 1.3–7.4.

Figure 6. Multi-frequency pulse profiles for 16 pulsars. MWA detections (at 185 MHz) are shown in red. The range in pulse phase (x-axis) is chosen to suit the pulse structure and width. The profiles are normalised to the maximum value and nominally aligned based on their measured peak strengths or a suitable fiducial point. The references for the other pulse profiles in black are described in the text.

Examples of pulsars with profiles that support the RFM model include PSRs J1136+1551, J1752–2806, and J2048–1616. For example, the two-component profile of PSR J1136+1551 shows a systematic increase in pulse width and the separation of profile components towards lower frequencies. Our MWA observations are well in accordance with this trend. PSR J2048–1616 has a profile with three significant components at low frequencies and the pulse width becomes narrower at higher frequencies; our MWA detection follows this trend. PSR J1752–2806’s pulse profile has a single component that becomes narrower with increasing frequency, although this trend does not hold at the highest observing frequency, 8.4 GHz, due to the appearance of a post-cursor component.

There are also examples of pulsars which do not follow expectations based on the RFM model. PSR J0630–2834 has a single, broad component profile across all frequencies that does not show a significant change in pulse width. Another pulsar with a two-component pulse profile, PSR J0837+0610, shows the components narrowing towards lower frequencies.

The multi-frequency pulse profiles for PSR J1456–6843 show a more complex profile evolution. The MWA profile is narrower than those at higher frequencies, possibly due to the pre- and post-cursor components moving away from the main pulse and becoming less significant. The MWA has the ability to carry out multi-band observations (80–300 MHz) by taking advantage of its flexible design, and this capability has been used for detailed profile and spectral studies (Meyers et al. Reference Meyers2017). Future MWA observations at frequencies below and above 185 MHz can therefore provide further information towards investigating the profile evolution in such pulsars.

PSR J0953+0755 also shows a rapid profile evolution towards lower frequencies. A single component is apparent at high frequency, while a precursor evolves away from, and increases in brightness relative to, the main pulse, becoming a two-component profile below 200 MHz. There are few published pulse profiles for PSR J1534–5334. Interestingly, scattering tails are apparent at the Parkes 1.4 and 3.1 GHz frequencies, as well as at 185 MHz.

MSPs J0437–4715 and J2145–0750 are detected with high S/N using the MWA. PSR J0437–4715 is known to show a complex profile evolution across frequencies, where the outer components have significantly different spectra from the central components and become almost as strong as the central component at 200 MHz (Bhat et al. Reference Bhat2014). PSR J2145–0750 has also been detected with LOFAR (Kondratiev et al. Reference Kondratiev2016a). Further detailed study of these two MSPs will be published in an upcoming paper (Bhat et al. in preparation). The other four MSPs detected using the incoherently summed MWA data have limited time resolution or S/N; therefore, we do not comment further on their profiles.

4.2. Detection limits

To further investigate MWA’s pulsar detection prospects, we summarise all our detections, as well as non-detections, in Figure 7. We used the mean flux density at 400 MHz (S 400) as an indicator of each pulsar’s brightness because these measurements are the closest in frequency most widely available from the pulsar catalogue.

Figure 7. (a). Catalogued pulsars that were folded and were or were not detected (red stars and blue points, respectively) shown in DM and S 400 parameter space. Here, we use the S 400 value from the pulsar catalogue and exclude four detected pulsars that do not have a published S 400. The red dashed line shows the sensitivity limit of incoherently summed MWA data; the grey dashed line shows the current MWA sensitivity for coherently beamformed data. (b). The predicted S/N against DM for pulsars that we did and did not detect (using the same symbols as in (a)). The mean S/Npredicted was calculated using Eq. (4). (c). The predicted S/N vs. the actual S/N for pulsars we detected. Consistent with the S/Npredicted, the S/Nactual is also the mean S/N calculated using Eq. (5). The grey dashed line represent $\frac{(\text{S/N})_{\text{{predicted}}}}{(\text{S/N})_{\text{{actual}}}}=1$ .

As described in Tingay et al. (Reference Tingay2013), the effective collecting area over system temperature (A eff/T sys) for a single MWA tile is around 0.1 m2 K−1 at 185 MHz. The noise level, σ, of MWA–VCS incoherently summed data can be expressed as

(3) $$\begin{equation} \sigma =\frac{2k_{\text{B}}}{\sqrt{n_{\text{p}}t_{\text{int}}\Delta f N}} \frac{T_{\text{sys}}}{A_{\text{eff}}}, \end{equation}$$

where t int is the integration time (typically 1 h), and N is the number of MWA tiles incoherently summed (usually 128). Thus, the 1-σ noise level is 5 mJy. Recently, Murphy et al. (Reference Murphy2017) carried out a pulsar spectral study using the MWA imaging data. Their 1-σ RMS is 15 mJy beam−1. The lower noise level of our data is partly due to the lack of confusion as we are using the time variability to negate the confusion noise that limits MWA continuum imaging observations (Condon Reference Condon1974; Franzen et al. Reference Franzen2016). Of the 50 detections in this work, PSR J0855–3331 has the lowest S 400, which is 7.7 mJy. Therefore, we estimate a detection limit of ≈7 mJy for incoherently summed MWA data.

The predicted mean S/N in Figure 7(b) is calculated using the following equation:

(4) $$\begin{equation} (\text{S/N})_{\text{predicted}}=S_{400}\left(\frac{185}{400}\right)^{-1.4}\frac{G\sqrt{n_{\text{p}}t_{\text{int}}\Delta f}}{T_{\text{sys}}}. \end{equation}$$

To obtain the predicted S/N at 185 MHz using the catalogue value for S400, we assumed a spectral index of −1.4 (the mean value calculated in Bates et al. Reference Bates, Lorimer and Verbiest2013). This value was found to have a rather large standard deviation (0.96), and introduces additional uncertainty for pulsars whose spectral indices depart from this value. To compare the measured S/N with the (S/N)predicted, calculated using Eq. (4), we scaled our measured (S/N)peak to the equivalent mean S/N:

(5) $$\begin{equation} (\text{S/N})_{\text{actual}}= (\text{S/N})_{\text{peak}}\sqrt{\frac{W}{P-W}}. \end{equation}$$

Figure 7(c) shows the comparison of (S/N)predicted and (S/N)actual for pulsars we detected. There is a noticeable scattering of data points from the grey dashed line that represents $\frac{(\text{S/N})_{\text{{predicted}}}}{(\text{S/N})_{\text{{actual}}}}=1$ . Possible reasons for this may include (1) the spectral index deviation from −1.4, (2) the error of equivalent pulse width and the pulse width difference between 185 and 400 MHz, (3) the flux density fluctuation caused by long-term (refractive) scintillation, and (4) uncertainty in the calibration technique we adopted. For instance, PSR J1921+2153 which has a (S/N)predicted of 1.6 and a (S/N)actual of 20 has a very steep spectral index (~−3) while the PSR J0437–4715 which has a (S/N)predicted of 27 and a (S/N)actual of 85 has a significantly large pulse width at 185 MHz.

Of the 1 227 pulsars we attempted to detect, there are 254 pulsars above the MWA incoherent sensitivity limit (i.e. S 400 >7 mJy). The large number of non-detected pulsars may be due to several reasons. For very short period pulsars, like PSR J1939+2134 (P = 1.56 ms, DM = 71 cm−3 pc), the DM smearing within each 10 kHz channel is 1.20 ms (at our lowest frequency channel), which is a substantial fraction (77%) of the pulse period. Furthermore, the pulse profile is expected to be highly scattered at our observing frequency (see Kondratiev et al. Reference Kondratiev2016b). Similarly, for PSR J1810+1744 (P = 1.66 ms, DM = 40 cm−3 pc), the DM smearing within one fine channel is 0.68 ms (41% of the pulse period). This makes detection of these pulsars difficult since we have not coherently dedispersed our data. PSR J1902–5105 has the lowest P/DM value of all the pulsars we detected (P/DM=0.048 ms cm3 pc−1) which corresponds to a DM smearing of 35% of the pulse period. However, the DM smear within a 10 kHz fine channel can only explain a small fraction of our non-detections.

We assumed a spectral index of −1.4, even though it has a significant standard deviation (0.96) (Bates et al. Reference Bates, Lorimer and Verbiest2013). Furthermore, some pulsars tend to have a flatter spectral index, or show a turn over at low frequencies, or even a broken power law spectra (e.g. Maron et al. Reference Maron, Kijak, Kramer and Wielebinski2000; Murphy et al. Reference Murphy2017). All of these can potentially lead to non-detection. Low-frequency pulsar observations are therefore very useful in constraining the spectral behaviour of such pulsars.

Other factors influencing non-detection include the effects of scattering and scintillation. For high DM pulsars, pulse profiles become broader at lower observing frequencies, making their detection more difficult. Scintillation effects may also lead to non-detectability at low frequencies, particularly for low to moderate DM pulsars (DM < 50 cm−3 pc), whose apparent fluxes can vary by factor of ~2–3, and can thus sometimes appear to be fainter than their true fluxes.

Of the 60 pulsars detected by Murphy et al. (Reference Murphy2017) using MWA imaging data, 26 were also detected in our observations and a further 11 were not observed in VCS mode (see Table 1). Six of the 23 pulsars not detected in this work have DM > 200 cm−3 pc and consequently their profiles may be significantly scattered at 185 MHz. The Murphy et al. (Reference Murphy2017) detections also include the MSP J1810+1744 with P = 1.66 ms and DM = 40 cm−3 pc, for which DM smearing over the 10 kHz channel may degrade its S/N. For the remaining 16, it is possible that long-term (refractive) scintillation effects may be a plausible reason, as such effects can give rise to flux variations of a factor of ~2–3 at low frequencies (Gupta et al. Reference Gupta, Rickett and Coles1993; Bhat et al. Reference Bhat, Rao and Gupta1999). For most pulsars in both our sample and Murphy et al. (Reference Murphy2017) (with the exceptions of PSRs J0835–4510 and J0034–0534), the measured flux densities tend to agree within a factor of three (the flux variation that can be caused by scintillation). In the case of MSP J0034–0534, the measured flux density differs by a factor of six, and in the case of PSR J0835–4510, its long scattering tail prevented us from obtaining a meaningful estimate of its flux.

4.3. Future detection prospects

We use the results from our initial census to examine the prospects of detecting pulsars using the full sensitivity of MWA (coherently beamformed data) as well as using the SKA1-Low, i.e. Phase I of SKA-Low. As discussed in Section 4.2, the estimated sensitivity limit for the incoherent beam is ≈7 mJy at 400 MHz. The sensitivity is expected to improve by a factor of $\sqrt{N_{\text{tile}}}\approx$ 11 for coherently beamformed MWA–VCS data. However, in reality, this will depend on a number of factors such as calibration accuracy, the number of tiles included, the source and background temperature, and potentially even correlated noise between adjacent tiles. For example, Bhat et al. (Reference Bhat, Ord, Tremblay, McSweeney and Tingay2016) report a factor of 10 improvement for their observations of MSP J0437–4715. This is nearly 90% of the theoretical expectation. We therefore assume the theoretical sensitivity limit for the incoherently summed data to be 7 mJy, and that for the coherently beamformed data to be 10 times more sensitive, 0.7 mJy, as shown in Figures 7 and 8.

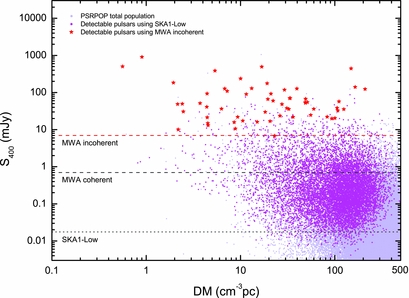

Figure 8. An example of a simulated pulsar population and predicted pulsar detections using the MWA (incoherent sum) and SKA1-Low. The light grey points indicate the total pulsar population generated by PsrPopPy using MWA incoherent-sum parameters and a detection number of 57. The red stars indicate the predicted detections from an MWA incoherent survey. The magenta dots indicate the predicted detections from an SKA1-Low survey. The red and grey dashed lines indicate the sensitivity limits for the incoherently and coherently summed MWA data, respectively (identical to Figure 7a). The grey dotted line shows the estimated sensitivity limit of SKA1-Low.

SKA1-Low is planned to consist of around 130 000 log-periodic dual-polarised antenna elements, designed for sensitivity from 50 to 350 MHz. From Figure 19 of the SKA Baseline Design document v2, A eff/T sys for SKA1-Low is around 600 m2 K−1 at 200 MHz (towards zenith) and the corresponding T sys is 170 K. Thus, the gain at 200 MHz can be calculated as G = A eff/2k B ≈ 37 m2K−1. We compare the sensitivity limit for SKA1-Low with that for the incoherently summed MWA (see Figure 8). A eff/T sys for SKA1-Low is approximately 600 times better than the MWA incoherent array (which has A eff/T sys ~ 1 m2 K−1; Tingay et al. Reference Tingay2013). The sensitivity will further improve by a factor of $\sqrt{3}$ assuming a bandwidth of 100 MHz for SKA1-LowFootnote 6 . By factoring in shorter integration times (600 s, i.e. 1/6 of that used for the MWA sensitivity calculation), we estimate the sensitivity limit of SKA1-Low to be around 400 times lower than that of the MWA incoherently summed data.

To gain further insight into the pulsar detection prospects of SKA1-Low, we simulated pulsar populations using the PsrPopPy (Bates et al. Reference Bates, Lorimer, Rane and Swiggum2014) code. New functionality has been implemented in PsrPopPy, which calculates the telescope gain as a cosine-square function of the zenith distance, providing more realistic pulsar yields for an aperture array. Using our MWA incoherent census as an input survey with zenith gain G = 0.025 (maximum gain value in Table 1) and considering only pulsars with (S/N)peak >5, the corresponding detection count is 57. This includes nine more detections from recent observations (whose profiles are not reported here as the data are still within the proprietary period and will be published separately)Footnote 7 . We simulated 120 realisations of pulsar populations to span a wide range of population characteristics (e.g. luminosity distribution, spatial distribution, etc.). For each realisation, we performed 120 survey simulations at a frequency of 200 MHz assuming a bandwidth of 100 MHz and an integration time of 600 s. Thus, we ran 14 400 simulated SKA1-Low surveys in total. The mean value of pulsars detected in this simulated SKA1-Low survey is 9431 ± 1279, which is over 3.5 times the number of known pulsars to date. We note that the spectral turnover at low frequencies will also affect the pulsar detection prospects for SKA1-Low, though it is not well characterised for most pulsars.

The predicted SKA1-Low yields from one randomly chosen PsrPopPy simulation (10 409 pulsars detected in this simulation) are plotted in Figure 8. To cross-check these results, we ran a simulation of an MWA survey on this specific population model, which predicted 56 detections (also shown in Figure 8). We note that the PsrPopPy detections have a very similar S 400 distribution while the DM distribution extends to lower DM values when compared with the pulsar catalogue. Our results are comparable to those from Keane et al. (Reference Keane2015), who also found the optimum frequency for pulsar searching is 250 MHz for SKA1-Low. For comparison, they predict SKA1-Low will be able to detect ~7 000 normal pulsars and ~900 MSPs.

5. SUMMARY

We have carried out a census of known southern pulsars using 37 h of MWA–VCS archival data from observations at 185 MHz. This is a relatively shallow census as the data from all 128 MWA tiles were combined incoherently, yielding ~10% of the sensitivity achievable with the MWA. However, this preserves the large FoV (~450 deg2 at 185 MHz) and thus facilitates an expedited initial census. We successfully detected 50 pulsars, 6 of which are MSPs. For 10 pulsars, we present the lowest frequency detections available in the literature. For a subset of the pulsars, we also present their multi-frequency pulse profiles by combining our data with those from other telescopes, demonstrating a number of profile evolution behaviours with frequency. We use our results to forecast a pulsar survey yield of ~9 400 using SKA1-Low.

ACKNOWLEDGEMENTS

This scientific work makes use of the Murchison Radio-astronomy Observatory, operated by CSIRO. We acknowledge the Wajarri Yamatji people as the traditional owners of the Observatory site. Support for the operation of the MWA is provided by the Australian Government (NCRIS), under a contract to Curtin University administered by Astronomy Australia Limited. We acknowledge the Pawsey Supercomputing Centre which is supported by the Western Australian and Australian Governments. We thank Tara Murphy for her thorough reading and valuable suggestions of this paper. This research was conducted by the Australian Research Council Centre of Excellence for All-sky Astrophysics (CAASTRO), through project number CE110001020. M. Xue is funded by China Scholarship Council through the SKA PhD Scholarship project. N. D. R. B. acknowledges the support from a Curtin Research Fellowship (CRF12228). B.W.M and S.J.M. acknowledge the support from Australian Government Research Training Program Scholarship. D.L.K. is additionally supported by NSF grant AST-1412421.

Footnotes

1 Version 1.54 of the pulsar catalogue retrieved from www.atnf.csiro.au/people/pulsar/psrcat

2 This frequency was chosen because the beam is comparatively well understood and the band is nearly free from RFI.

3 1 petabyte (PB) = 1 024 terabytes (TB).

6 Pulsar flux densities, dispersion smearing, scattering broadening, and T sky all vary across the large observing frequency range and we do not explicitly account for these effects.

7 Of the 50 detections we report in this paper, two have (S/N)peak ~4 and therefore excluded from this analysis.
