2. THE PLAN

The plan was simple: to lead a sailing expedition from Kirkwall in the Orkney Islands into the Arctic Circle, with the sole aim of noting the natural clues to the proximity of land. The idea was to route via the Faroe Islands, without stopping, as this would give a good sample of rising and falling distances from land (see Figure 1). As the Orkney and Shetland Islands receded, in turn the Faroes and Iceland would draw nearer. The boat chosen was my own Contessa 32 ‘Goldeneye’, and it was to be a short-handed sail, the only other crewmember being my Mate, John Pahl.

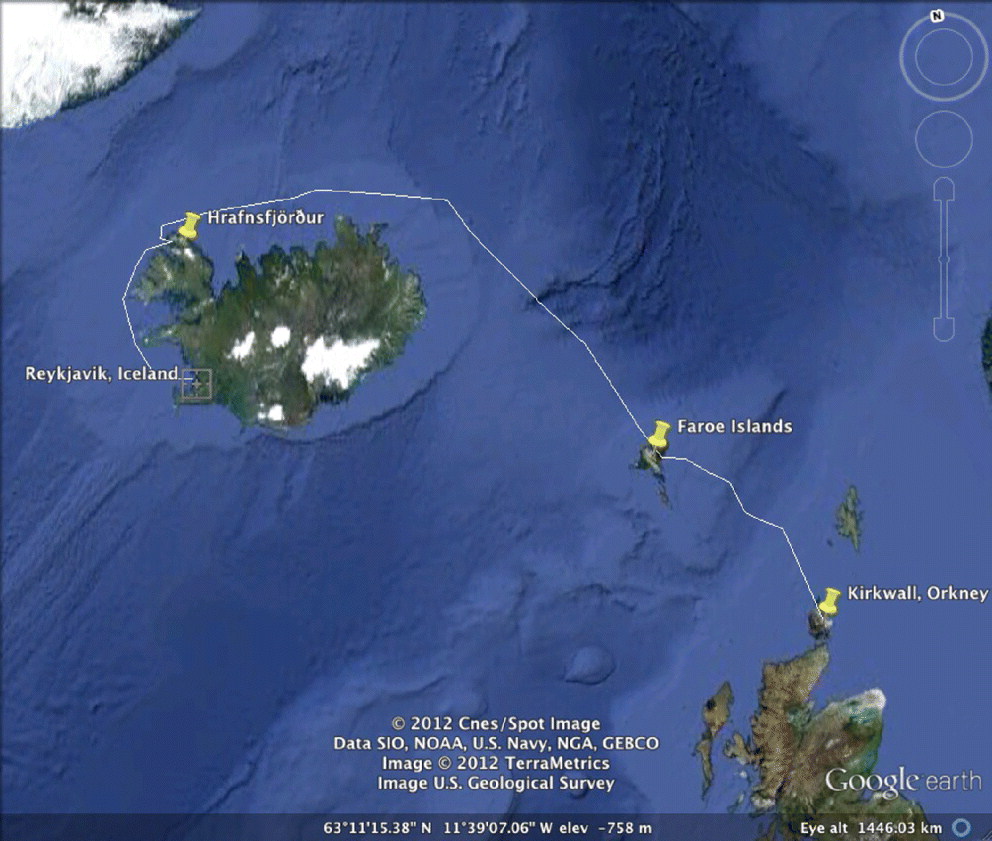

Figure 1.

Route of Voyage (courtesy of Data SIO, NOAA, US Navy, NGA, GEBCO).

3. THE METHOD

Our navigation methods would be conventional as the aim of the voyage was to conduct observations safely and to be as certain as possible of our position at all times for reference purposes. For this reason a typical collection of instruments were available and used, including compasses, paper charts, electronic charts, Global Positioning System (GPS), Automatic Identification System (AIS) and radar.

I did not set out with a formal plan for collecting data as I knew it would not survive contact with the sea. The initial loose plan was as simple as keeping an hourly log and note any of the following observations, together with their exact positions:

• • Bird numbers and species.

• • Cetacean sightings.

• • Other marine life.

• • Flotsam.

• • Seaweed.

• • Anomalous clouds.

• • Water behaviour and colour.

Fairly quickly a formal system did evolve, largely in response to the number of birds. It would be a full time business to note all birds sighted and it was a busy boat, so we settled on the following system.

All extraordinary sightings of the items above would be noted, but a bird count would only be undertaken during a formal scan that occupied the final five minutes of each hour and then noted in that hour's log entry.

Part of the method was for us to use a common sense level of ornithological knowledge. We used Tony Soper's excellent book ‘Wildlife of the North Atlantic’ (Soper, Reference Soper2008) to fill in any obvious gaps. But the aim was discover what it was possible for a navigator with average natural history knowledge levels to glean from their senses, not what a specialist could discern.

Inevitably on a short-handed small boat there were occasions when our workload precluded any formal count. There were also several instances when it was not possible due to fog.

For the purposes of this paper, 118 sightings were formally taken and the range was between 0·3 and 129·4 nautical miles (nm) from land.

4. THE VOYAGE

The voyage from Kirkwall in the Orkney Islands, North into the Arctic Circle and then West and South down to Reykjavik is described here. Some context is given so that the reader can sample some of the experience of the voyage, not merely the observations.

During final preparations, I happened to notice a commercial vessel slipping her lines from the harbour wall at Kirkwall. My eye had been drawn to familiar shapes in a very unfamiliar place: there were cardinal mark buoys on the aft deck, one East mark and one South. Anyone conditioned to the familiar security of seeing these marks at sea cannot help but register some surprise on seeing them in such an unusual situation. I noted the name of this vessel: Pole Star (Figure 2). Seeing a vessel with such a name, and one that was venturing out to lay out navigation buoys, seemed a positive omen for a voyage in a much smaller boat that was itself shortly setting out to study natural navigation methods.

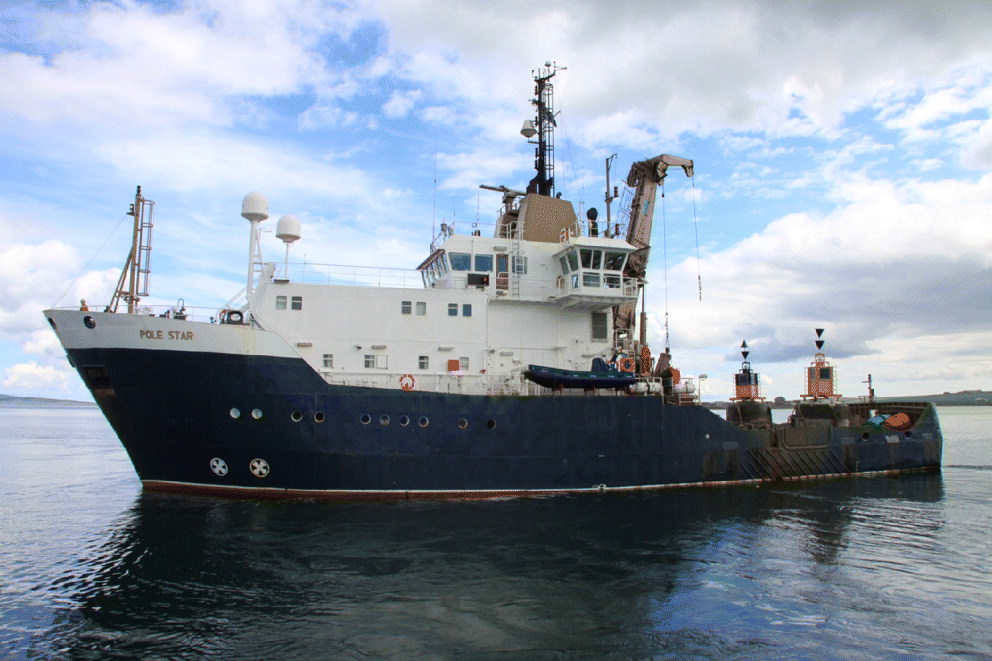

Figure 2.

The Pole Star.

We slipped from Kirkwall at 1325 British Summer Time (BST) on the 19^th June 2012, under grey skies and occasional showers. The priority in the earliest part of the voyage was not noting observations of nature, but a safe exit of the Orkney archipelago. Previous experience in the Canary Islands had taught me that short-handed departures from an island chain are times of intense concentration and high workload. My mind was focused on the lumps of rock that emerged, to varying degrees, from the water to the West of Shapinsay. One was of particular concern, the Skerry of Vasa. As we passed down the narrow channel to the East of it, we were rewarded for keeping a keen eye on this particular form with the sight of seals enjoying a rare afternoon sunbeam. My Mate and I conferred and concluded that the sight of seals basking on a rocky beach was a sure-fire indicator that land was not far away.

Pilot books, charts and local knowledge all concurred that my chosen exit route, the Westray Firth, was not a patch of water to be navigated lightly in the wrong conditions, namely a North Westerly gale. The chart was teeming with the squiggles of overfalls.

The value of these warnings became all too clear, even in light northerly winds, as the sea bumped and boiled and fair wrestled with the vessel. The art of tea-making in such conditions must be relearned at the start of each voyage.

As land slipped astern to the South, the sea state settled gradually from moderate to slight. A few hours later it was evening and bright still. The sky became filled with the most extraordinary display of cirrus clouds. These were not merely mares' tails, but a sky full with tails and long lines of cirrus that stretched from overhead to the horizon and which resembled contrails in their straightness. Aside from the beauty they were not a welcome sight. I will not have been the first sailor to look at a blue sky scratched with cirrus and worried that a front was approaching. Knowledge that the forecast was good and that cirrus in isolation is not normally a cause for concern, if not followed by a progression of other clouds, such as cirrostratus and altostratus, allowed me to remain optimistic.

The first night at sea, if its feeble darkness could be called that, allowed the first and, it would transpire, only, view of the stars. The summer or navigator's triangle of Altair, Deneb and Vega were clear and the orange Arcturus shone brightly in the western sky. The Plough and Polaris were just visible, noticeably higher in the sky than I am accustomed to seeing them. Within an hour, at 0200 BST, light levels had risen enough to hide the stars. Not long before they disappeared, a flare from what I presumed to be the International Space Station lit the sky.

Early the following morning the wind died altogether and the sails came down. To conserve precious fuel I decided to prefer drifting to motoring at the start of the voyage.

The wind soon returned, this time from the South South East at about ten knots. The sails went back up; it was as good a way as we could think of to mark the summer solstice. The day passed without great event until a vessel we had been monitoring on our western horizon called us on channel 16. The survey vessel Ramform Viking was conducting seismic surveys and we needed to keep clear. Being told where to go by a ‘Viking’ seemed appropriate given the nature of our voyage.

Several hours of course changes ensued, during which we honed our nature sighting techniques and finally settled on the final five minutes of the hour becoming the formal sighting time.

By this point it had already become clear that one of our dependable companions for the voyage would be the ‘Northern Fulmar’. The Fulmar is a friendly bird, made less than beautiful by its nasal passages. But far more significant for our purposes than its appearance were the birds’ habits and habitat. The Fulmar returns to land to breed, laying an egg in mid-May and incubating it for about 50 days. Outside of this period they are pelagic, spending very long periods, often several years, at sea. For navigation purposes this is valuable knowledge, as pelagic species are no guarantee of the proximity of land. Hence we found Fulmars at each stage of the journey, albeit in wildly varying numbers.

Wherever possible we identified the species of birds we saw, but where distance or other factors made an identification impossible, the key thing was for us to note whether the bird in question was a Fulmar or not.

So we settled into our hourly discipline of scanning all around the boat for 5 minutes at the end of each hour, counting and then noting the birds we saw during this period. We also noted any other nature observations of significance from the preceding 55 minutes, but bird sightings from this greater period were not included in the formal count.

A Fulmar sighting became a test as to whether either of us watch-keepers was actually alert or not and a failure to see any at all was a warning sign of drowsiness or carelessness – there was nearly always one or more to be found in close proximity to the yacht or somewhere in the distance. In 118 sightings there were only five occasions when a Fulmar failed to make an appearance. And there was not one single occasion when no birds could be seen, which I believe is significant for reasons I shall return to.

There are times when a skipper earns his keep and the decision of whether to proceed to route through the Faroe Islands became one of those moments. As we closed land we had a tidal gate we needed to make and we were running early. The tidal streams that run through the Faroe Islands have a reputation and they are not to be trifled with in a small yacht. My decision was to heave-to when we still had about 20 nm to run. I did not want us to be forced to claw our way from much closer if the decision was to leave the Islands to our West and go around. After heaving-to, the wind backed a little, becoming an easterly, and picked up to a Force 5. A Force 5 in sheltered waters is near-idyllic, but it felt much more like a Force 8 in this water and the sea state rose to ‘moderate’ very quickly. With a second reef in the mainsail and the boat pitching at each wave, the notorious tidal streams of the Faroes, that would welcome us if we proceeded, seemed foreboding.

However, the Faroes were part of the limited original plan, so I was hesitant to cancel them. Initially I felt there would be little choice, but it all boiled down to whether the weather change was the start of something more serious, or just a squall. It was the clearing sky that answered that and within four hours we were at the mouth of Kalsoyfjord and heading into one of the eeriest sailing channels I have had the pleasure of encountering.

For those planning this same route in a small boat, a word of warning may be warranted: no amount of cross-checking or cross-referencing our three sources of tidal flow information, before, during or after our passage, could make sense of the tidal streams we actually experienced. Despite timing our entrance to the exact minute we wanted and expecting at various stages to experience a following tidal stream of several knots, we did not experience one minute of tidal stream flowing with us, and plenty of strong flow against us. My suspicion is that this is one of those places where local knowledge is worth more than a dozen publications, as the truth gets lost somewhere between the two.

North of the Faroes we experienced another period of moderate seas and a few waves made their presence felt. One slightly roguish individual sent the boat a fair way over. The wind then died away and we were shrouded in a fog that plagued us for 24 hours. The fog did eventually lift and at 0400 on 25^th June 2012 we crossed the Arctic Circle about 65 nm East North East of Iceland. Shortly after entering the Arctic we saw our first cetacean, a Long-Finned Pilot Whale (Figure 3). The log soon began to reflect our latitude and one entry the following evening read, “Idyllic pottering in the night-time sun”; Figure 4 illustrates this.

Figure 3.

Long-Finned Pilot Whales sighted north of Iceland.

Figure 4.

Heeled over in the middle of the night, looking North, off the West coast of Iceland.

At 0800 on 26^th June 2012 the mist lifted and we saw seaweed, rubbish and jellyfish in the water. One hour later a piece of driftwood was spotted and one hour after that the snow-covered mountains of Iceland became visible to the South. It was shortly after this that we reached our most northerly latitude, 67° 01′ North.

The 2200 BST log entry on 26^th June 2012 contains the most mysterious episode in our voyage. During my formal 5 minute scan at the end of the hour, I noticed a vessel on the horizon. My only recollection of its shape was that it definitely had a vertical tower of some sort.

To conserve battery power, the chart-plotter, radar and AIS systems were kept off for most of the time and only switched on periodically, typically in poor visibility and once an hour for a safety and position check prior to each log entry. Switching on the systems, the vessel appeared very clearly on radar. It was closer than it had appeared, only 2·8 nm South West of our position, 66° 51′ North 18° 18′ West. It did not register on our basic AIS system, but that was not unusual, as many vessels failed to register or registered sporadically for unknown reasons.

One thing was unusual, however, my boat is fitted with an active radar reflection system, made by SeaMe. The power panel for this includes a red LED light which activates whenever the system detects another vessel's radar. This was as dependable as any electronic system we had on the boat for alerting us to the presence of other vessels in our vicinity, and yet on this occasion it did not show us being ‘swept’ by radar. Approximately five minutes after sighting this vessel it disappeared completely, off radar and out of sight, and did not return. We had VHF Channel 16 selected and I raised the volume on this and upped my vigilance levels for any other clues to distress, but there were none.

Exactly the same thing happened 13 hours later. More experienced sailors than I may be able to explain this, our only guess was that it may have been a submarine.

Between these two ‘sightings’ something less mysterious and more magisterial took place during the early hours of the 27^th June. Dolphins came to play off the bow wave. This was especially generous of them as a Contessa 32 does not cut much of a bow wave at any time and certainly not under sail in a Force 3.

Our course took us to the North West tip of Iceland, a stark, beautiful and largely uninhabited region. We cut inside an area of overfalls, made our way around the headland and then prepared ourselves for a small adventure. We headed East up a long fjord, towards a glacier, and then continued further into one of the fjords extremities. Here the charts, both paper and electronic, turned white as we were now in uncharted waters with no soundings shown. Not for long, barely an hour, but anyone with a passion for navigation will understand the strange thrill that comes from sailing in water that is blank on the chart.

I took the tiller and John stood at the bow ready to report any rocks in the clear water of Hrafnsfjörður. Our depth dropped to just under 5 metres at times, but the fjord released us unscathed. As one pilot book has already noted (Ker, Reference Ker2004) and we can confirm, safe passage was possible by following a line just South of the centre line.

From there we made our way down the West coast of Iceland. At times we contended with tidal rips that threw the boat around and fierce katabatic winds that turned light winds into a Force 7. But it was all enjoyable.

At midday on 30^th June 2012 we moored in Reykjavik. There were a collection of other yachts moored in the yacht club marina. It was the first time we had seen a sailing vessel of any description since leaving Kirkwall.

5. THE BIRDS

It was clear very early on in the voyage that the number of birds we counted bore some relationship to our proximity to land. Occasional sightings were anomalous, but a trend was discernible at sea, even before looking at the detailed data shown in Figure 5. After analysing all the observation data, the relationship became clearer still. On 39 occasions our total bird count, Fulmars and others, reached double figures. On only 2 of these 39 occasions were we more than 40 nm from land (62·8 nm and 60·7 nm). Based on these figures, a skipper in these waters at this time of year, denied all instruments, could hazard a guess, as demonstrated by Figure 6, that if they counted 10 or more birds in a random 5 minute period there is a near 95% probability of land within 40 nm.

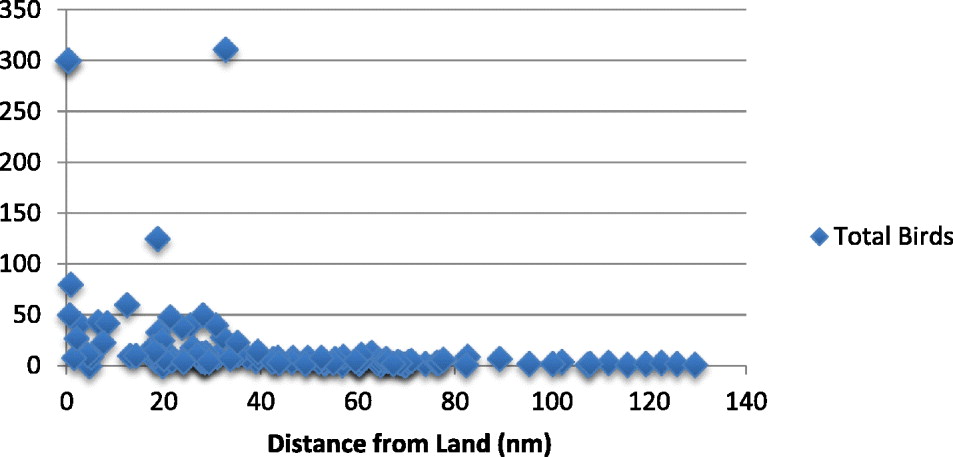

Figure 5.

The total number of birds counted in 5 minute scan plotted against distance from land.

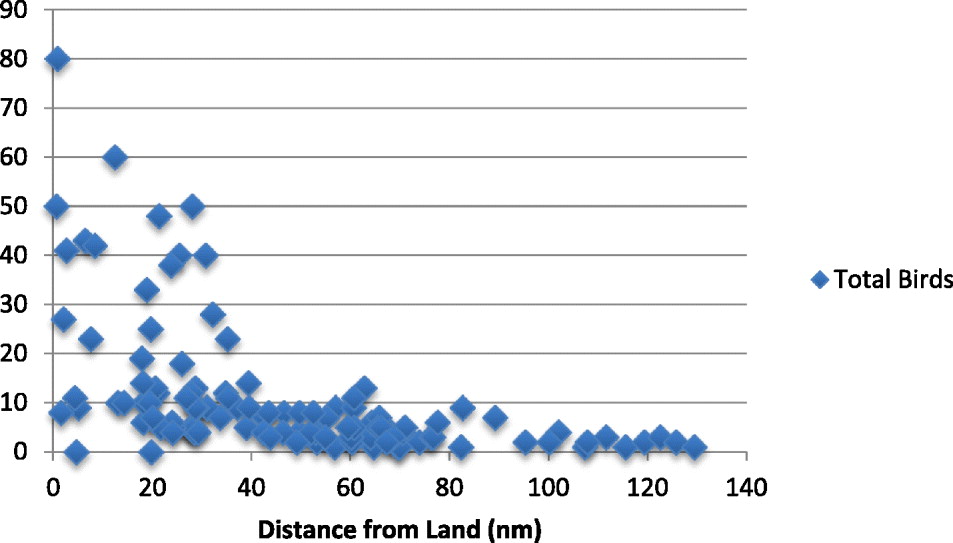

Figure 6.

The number of birds counted in 5 minute scan plotted against distance from land. Bird counts of more than 100 excluded.

Conversely there were 27 occasions when we counted an ‘all species’ total, of three or fewer birds. On only two of these 27 occasions were we less than 50 nm from land (49·2 nm and 43·8 nm). These figures would suggest that a count of three or fewer birds in a random five minute period would allow a guess that there is a greater than 90% likelihood that land is more than 50 nm away.

The beauty of grouping the birds together, pelagic and non-pelagic, is that the skill, knowledge and time necessary to do the exercise is greatly reduced, making it of interest and value to a greater number hopefully.

However, the Pacific Island navigators certainly and doubtless the Vikings too, became adept at the lessons each species were offering. Since all non-pelagic birds have their own comfortable range from land, the Pacific navigators were able to use this knowledge to their advantage. Frigate birds range further than boobies, which will typically venture further from land than terns. This method can be used as a means of target-enlargement by any navigator with the local knowledge. We were not sailing the same waters for long enough to build substantial insight into this particular method, with two exceptions, the puffin and the Guillemot.

The Atlantic Puffin is pelagic, like the Fulmar, and only comes ashore to breed in April. However, it thrives in Icelandic waters and sure enough the numbers of puffins we saw when were we were within 40 nm of Iceland was remarkable.

The Guillemot is non-pelagic and so unsurprisingly, the seven recorded sightings we made were all within 40 nm of land. We were not able to verify a rather wonderful natural navigation clue that we read in Soper (Reference Soper2008). Guillemots are brown in colour at the southern end of their range, but grow darker as you head North.

The other species of bird that we saw during the voyage included various gulls, including the Black Backed and Kittiwake, Arctic Skuas, Arctic Terns, Young Gannets and Northern Gannets. None of these led us to any individual conclusions, although they all played their part admirably as constituents of the aggregated counts.

If we exclude the three occasions when more than 100 birds were sighted, not because they fail to fit the trend (they clearly do), but solely because it makes a visual presentation of the data slightly easier to interpret, the importance of the 40 nm range from land becomes clearer (Figure 6).

6. THE CLOUDS

At 1800 BST on 21^st June 2012 we saw unusual cloud formations to the West and North West. While clouds in all other directions were of the stratified variety, in the distance to our North West and West we could see cumulus that was bubbling up substantially. The clouds were too large to be of the fair weather variety of cumulus, and not vertical enough to be categorized as towering cumulus. At this stage we were at 61° 52′ North 5° 33′ West, and land was not visible. According to the chart, we knew it to be 31 nm in the direction of these clouds. Two hours later and 12 miles closer to the Faroe Islands, we sighted their dark cliffs; these anomalous clouds were indeed found to be amassed only over the land.

By contrast, I should point out that at 1300 BST on 24^th June 2012 I noticed another bank of similar anomalous clouds to the North West. We were at 65° 49′ North 11° 8′ West, which is 64 nm East of Iceland. These clouds proved to have no obvious relationship to the land to the West of us.

The only other clouds of navigational interest were the low ones in the form of fog, which we encountered regularly and which made both safe navigation and observations much more challenging.

Finally, there were man-made clouds in the form of contrails. The few contrails we observed (only two during the formal sighting period) generally conformed to the trend for that part of the Atlantic, that is that they traced a line approximately North West/South East in the sky.

7. THE WATER

The natural navigators of the Pacific relied heavily on an understanding of swell patterns, especially when there was cloud cover. There were occasions on our voyage when the swell patterns were very easy to read and many more when it was challenging to confusing. In the middle of the day on 21^st June 2012 there were two distinct swells that were very easy to read, one coming from the South and one from the South East. It would have been easy to set a course by these, such was the ease of reading them. At most other times it may have been possible, but I would not have wanted to rely on the swell for direction for long periods, without a lot more practice.

An interesting clue to our location came in the abrupt and dramatic change in water colour that we could not help but notice off the North coast of Iceland. At 1500 on 27^th June 2012 at 66° 52′ North 20° 54′ West, some 44 nm off the North West coast of Iceland, the colour of the water changed completely from a typical dull and dark grey/blue to a much lighter greener colour that approached turquoise. Five hours and 29 nm West South West of that position, the colour reverted back to the duller, darker grey/blue. Not being very familiar with the exact current patterns in that part of the world, we could not make any firm conclusions about our location from those observations, but we did think that regular sailors of those waters probably could have done.

The pilot book (Ker, Reference Ker2004) revealed that we were probably temporarily leaving the Irminger current and cutting across a section of the East Greenland Current. One possibility, which I cannot confirm, is that since this current has a lot of melted ice water in it, and consequently lower salinity, microorganisms can flourish and add a greener colour. The logbook also reveals that we felt a serious chill at this time too and we noted “This N wind has a bite to it”.

Perhaps the strongest clues to location, with reference to the proximity of land at least, came not in the water itself, but in the things we found in the water.

8. FLOTSAM, SEAWEED AND JELLYFISH

We noted four instances of man-made rubbish in the water, the greatest distance from land was 42·4 nm. We saw driftwood in the water on two occasions, at distances from land of 28·7 nm and 20·6 nm. Seaweed and jellyfish sightings followed a comparable pattern to flotsam. We counted six instances of seeing seaweed in the water, the greatest distance from land was 39·5 nm. Jellyfish were sighted on four occasions, all between 19 nm and 30 nm from land.

Individually not much weight can be attached to any one of these sightings, but as a group pattern it is interesting. 40% (i.e., 47) of all our formal recorded observations were more than 45 nm from land and yet none of our sightings of rubbish, driftwood, seaweed or jellyfish were found in that group (see Figure 7).

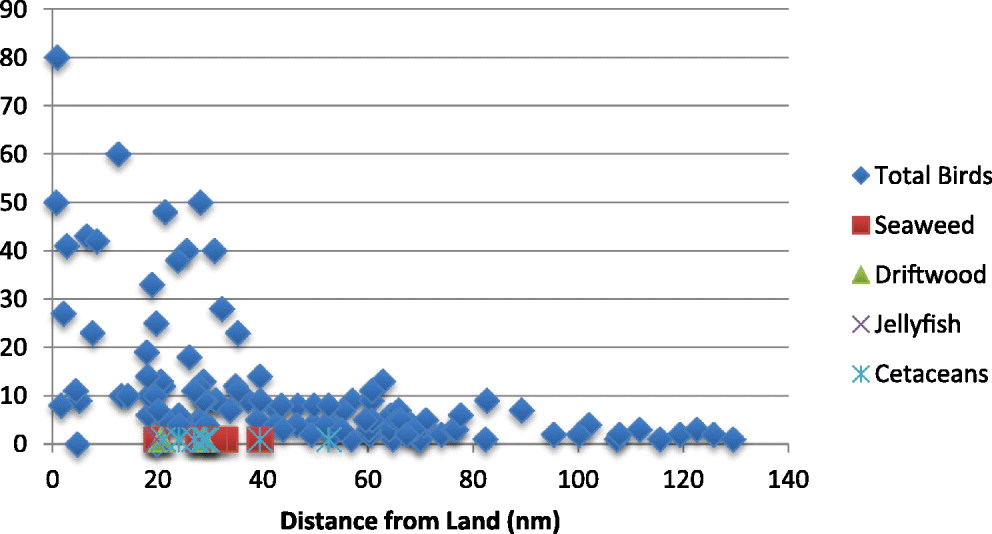

Figure 7.

Total birds (excluding sightings of more than 100), cetaceans, driftwood, jellyfish and seaweed sightings plotted against distance from land.

9. CETACEANS

We saw four instances of Long-Finned Pilot Whales, a school of dolphins and an individual Humpback whale. All these sightings took place in the range of 21·0 nm to 52·5 nm from land (see Figure 7).

10. THE SURPRISE

The simple aims of this expedition were fairly clear: to observe and note nature's clues to location, with emphasis on distance from land. However, there was one result which came as a pleasant surprise. It transpired that the act of scanning for natural clues, and birds in particular, led to substantially better watch-keeping in general.

I believe that the Fulmar played an important role in this, since we were almost guaranteed to be able to find something to note, even if on occasion this required patience and concentration during a 5 minute period. This meant that we started to notice things that would otherwise have gone unspotted. It was uncanny the number of times that we spotted a vessel on the horizon during the last 5 minutes of each watch. Since the probability of vessels appearing on the horizon can be assumed to be as likely at any point during the first 55 minutes of the hour as the final 5, the only logical conclusion is that this act of searching for birds allowed us to spot many more vessels. There was a distinct improvement in safety that resulted from looking for birds.

This may offer food for thought for skippers on vessels of all sizes who want their crew to be at their most alert. A bland instruction to ‘keep a good lookout’ may or may not lead to the desired result. An instruction to note the numbers and species of birds before each log entry, may possibly do more to achieve this aim.

11. CAVEAT

It is necessary for me to underline that I am not in any way advocating any of these methods for primary navigation. I am merely presenting this limited data and the message within it: patterns in nature are not random and the distance from land is one factor that influences what we see.
