2. Research approach

To address the two preliminary questions, we conducted a systematic literature review, drawing inspiration from the works of Yang et al. Reference Yang, Cormican and Yu(2019), Michalides et al. Reference Michalides, Bursac, Nicklas, Simon, Weiss and Paetzold(2023), Qaswar et al. Reference Qaswar, Rahmah, Raza, Noraziah, Alkazemi, Fauziah, Hassan and Sharaf(2023), and Nicklas et al. Reference Nicklas, Simon, Michalides, Gadzo and Koch(2023) for developing our selection process. We employed the six-step process methodology outlined by Machi & McEvoy Reference Machi and McEvoy(2016) as our methodological framework.

A search string comprising the keywords “Ontology”, “satellites”, “satellite missions”, and “satellite development” was formulated and applied to the Scopus database. Scopus was chosen due to its rigorous quality control for indexed content, wide availability in academic institutions, and extensive coverage of technical and engineering literature particularly relevant to our field of research. The scope was delimited to Computer Science, Engineering, and Earth and Planetary Sciences, with no constraints imposed on publication dates. This initial search yielded 674 articles, which were subsequently evaluated for relevance to the preliminary questions through a multi-step selection process, as illustrated in Figure 2. Articles were considered eligible if they pertained to one or more of the following subject domains, documented in Figure 1.

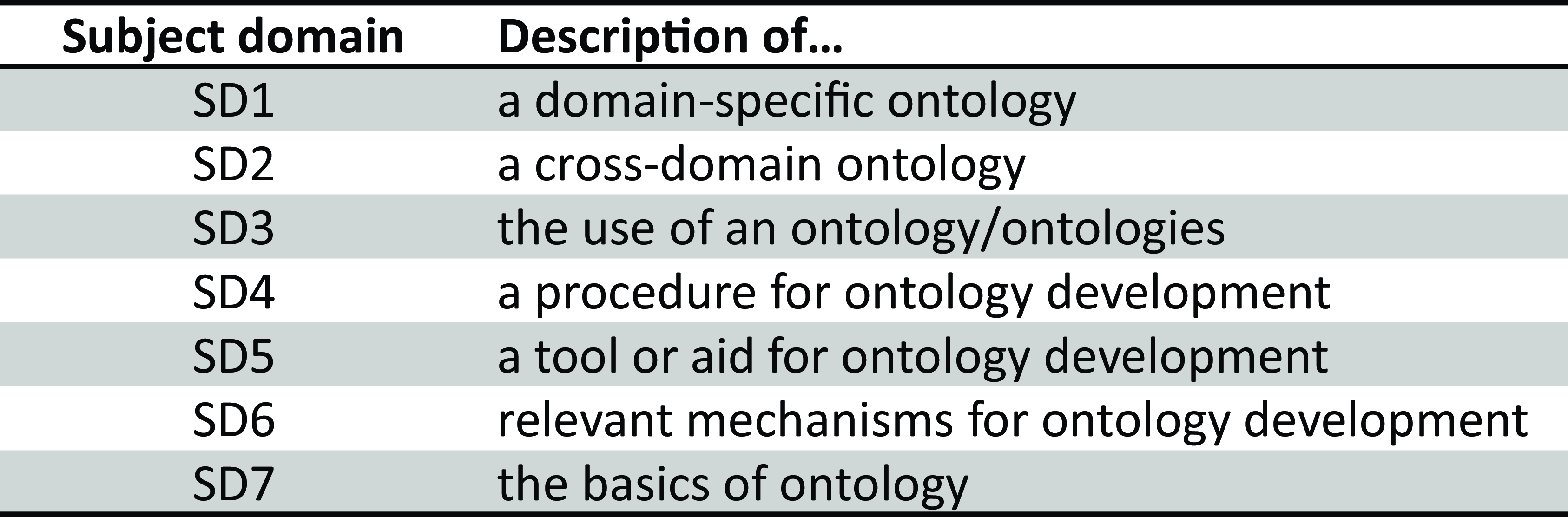

Figure 1.

Subject domains for the Literature review

In the final step, we expanded the literature search to include an in-depth, recursive tracing of sources. This broadening of the source pool resulted in the identification of 72 literature sources, all of which were analyzed in detail to address the preliminary questions.

The outcomes of the literature review are delineated in Section 4, serving as the foundational input for shaping the preliminary study presented in Section 5, which in turn forms the basis for the development of an ontological concept to answer the research question.

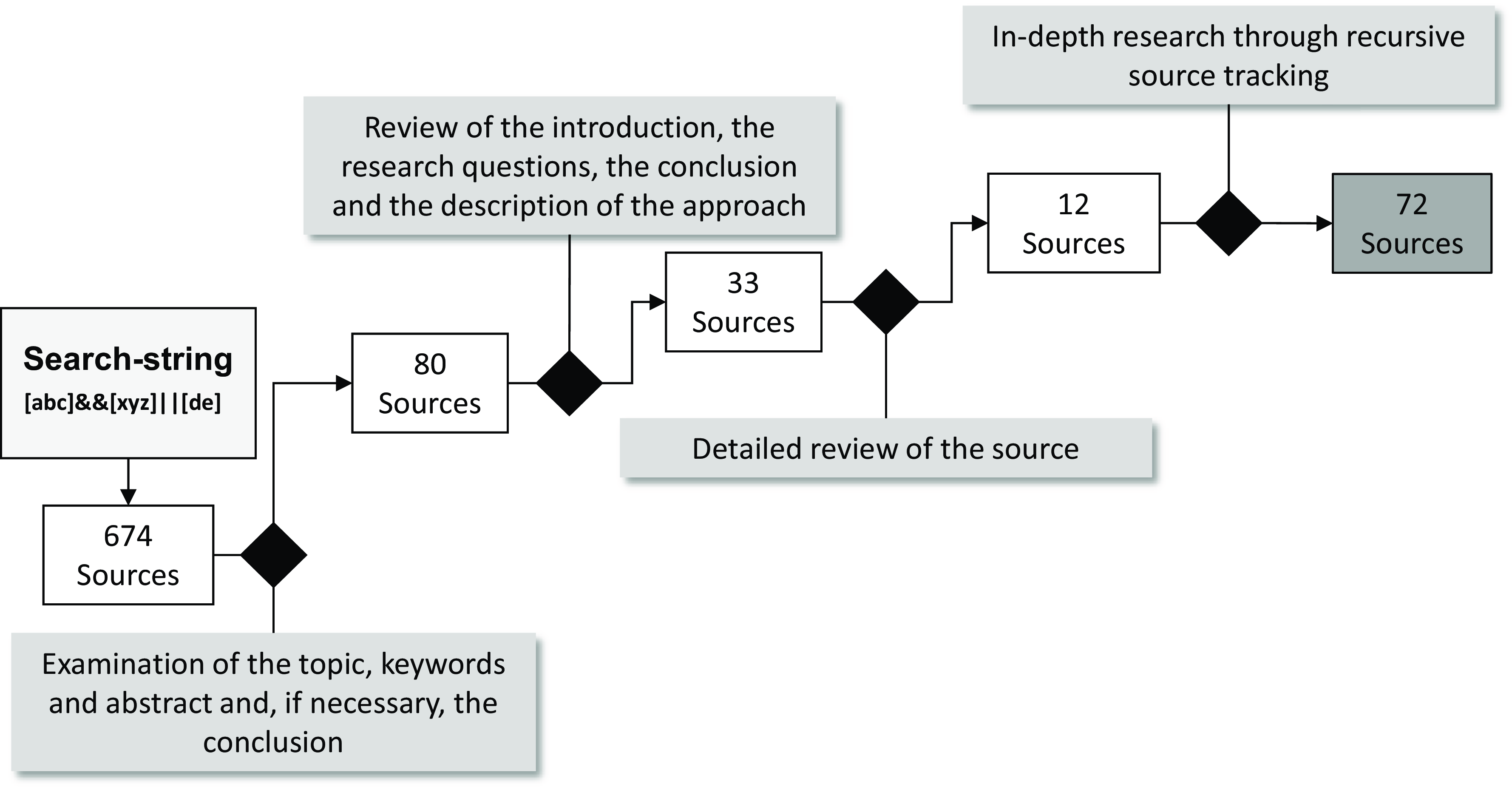

Figure 2.

Literature selection process

3. Background

4. State of the art

In the field of ontology research, numerous studies have engaged in literature reviews focused on ontologies. These efforts are often motivated by task- or domain-specific objectives, as exemplified by studies from Qaswar et al. Reference Qaswar, Rahmah, Raza, Noraziah, Alkazemi, Fauziah, Hassan and Sharaf(2023) and Yang et al. Reference Yang, Cormican and Yu(2019), or works such as that of Karabulut et al. Reference Karabulut, Pileggi, Groth and Degeler(2024), which illuminate ontologies in the context of digital twins. The presentation and analysis of results vary from categorizing literature sources by domains to engineering-oriented examinations of the ontologies themselves. This paper concentrates on identifying and analyzing existing ontologies in the domain of satellite development. To this end, the literature sources were categorized into the seven thematic areas introduced in Section 2. Within the scope of this paper, only a reduced portion of the research results is elaborated upon, as a comprehensive presentation would exceed the frame of this paper. The following discussion focuses solely on the state of the art in relation to the development of space objects and systems engineering, along with the associated modeling languages of MBSE, as these serve as a foundation and source of inspiration for the development of the ontological concept.

Zhao et al. Reference Zhao, Wang, Cui and Zheng(2020) present an ontological system that encapsulates satellite domain knowledge, as well as a method for accessing knowledge to execute task plans. This is accompanied by an architecture for configuring satellite clusters based on derived knowledge. Halvorson et al. Reference Halvorson, Moyers and Thomas(2022) present an ontology for prognostic health management in spacecraft avionics. Their work offers insights into the history of ontology, concept definitions, and elucidates the use of the Space Object Ontology (SOO) by Alexander P. Cox et al. Reference Alexander, Christopher, Ronald, William, John and Barry(2016) in characterizing relationships between various spacecraft components and their functions. Given the relevance of SOO to this work, the results of Halvorson’s study are pertinent. Further elaboration on SOO follows in section 5. Furthermore, Hening et al. Reference Hening, Viehl, Kämpgen, Eisenmann and Groth(2016) describe the development and application of an ontology for space system design, serving as an OWL 2 (Ontology Web Language) complement to existing system databases. They advocate for a combined use of SysML and OWL models, with the former employed for model-based systems engineering and the latter for enhancing semantic precision in the application of operational knowledge. Huang et al. Reference Huang, Zhang, Li, Wang, Fang and Jiang(2023) provide an illustrative example of a domain-specific ontology developed using the Ontology 101 method by Noy & McGuiness Reference Noy and McGuiness(2001), aimed at recommending virtual constellations in remote sensing. Methods for ontology development are discussed in more detail in Section 5. (Reference van Ruijvenvan Ruijven, 2015) presents an ontology for systems engineering as a foundation for MBSE, utilizing so-called RDF-named graphs to integrate individual sub-models into a cohesive ontology. RDF (Resource Description Framework), based on subject-predicate-object triples that resemble simple sentences in natural language, is extensively explained in van Ruijven’s contribution. Another relevant ontology, which is further discussed in section 5, is the MBSE ontology by Holt & Perry Reference Holt and Perry(2019) . The authors aim to provide a comprehensive and practice-oriented guide for the successful implementation of MBSE using SysML. They offer practical instructions for applying SysML in MBSE projects on one hand, and address advanced concepts for requirements management, architecture modeling, and competency management on the other. The MBSE ontology described therein is an integral part of the framework, which represents one of the three key elements of the presented MBSE approach.

Finally, the contributions of Cranefield & Purvis Reference Cranefield and Purvis(1999), Wang et al. Reference Wang, Johnston and Patel(2001), and Iribarne et al. Reference Iribarne, Padilla, Asensio, Criado, Ayala, Almendros and Menenti(2011) are noteworthy for their focus on the use of UML in ontology modeling. Cranefield & Purvis Reference Cranefield and Purvis(1999) explore the potential of object-oriented standards for ontology modeling, particularly UML and the associated OCL (Object Constraint Language), presenting a formalism for ontology representation as a UML subset in conjunction with OCL. Wang et al. Reference Wang, Johnston and Patel(2001) propose a modeling approach for ontologies in UML that facilitates the mapping of knowledge to software models.

5. Preliminary study

Regarding the first preliminary question, it can be observed that while ontologies exist for the domain of space objects, they are not explicitly designed to support the task of identifying uncertainties in data and information, as well as their flows in the development process of a satellite project. The objective for the ontology approach is derived from this task and demonstrates the necessity to develop a domain-specific ontology with a corresponding focus. Although no ontology directly addresses this subject matter, existing ontologies have been identified that can serve as a foundation for developing a targeted ontology. In this context, it is essential to define goals (G) that this foundation should fulfill. Against this background, the following objectives were formulated and documented in Figure 3.

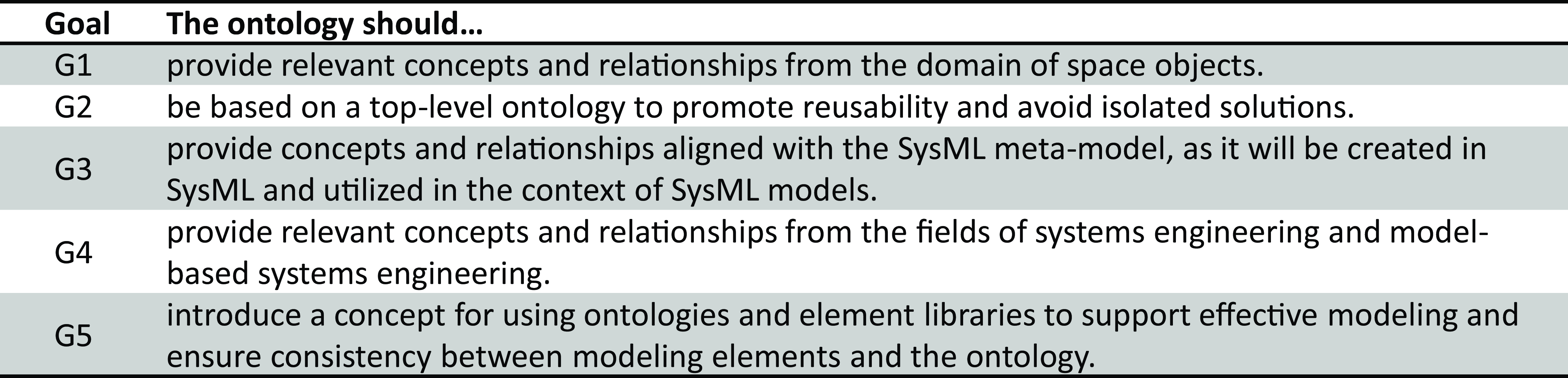

Figure 3.

Goals for development fundamentals

As a result, four ontologies have been identified that collectively fulfill the determined goals. The Space Object Ontology (SOO) by Alexander P. Cox et al. Reference Alexander, Christopher, Ronald, William, John and Barry(2016) is the first ontology identified as a foundation, as it fulfills G-1 and G-2. The SOO was developed to improve the characterization of space objects, integrate diverse datasets from various sources within an extensible framework, and facilitate entity tracking (G-1). The SOO is based on the Basic Formal Ontology (BFO) at the upper level and the Common Core Ontologies (CCO) at the middle level, thus extending a top-level ontology (G-2). It comprises over 700 classes representing diverse space entities, from natural and artificial resident space objects (RSOs) to spacecraft components and spatial regions. The SOO provides a standardized annotation language, enabling comprehensive representation of space objects, their processes, environments, and interactions. Furthermore, the SOO offers the necessary flexibility for extensions and adaptations to meet specific task requirements. This ontology will be utilized as a fundamental resource for domain-specific aspects in the ontology development process. In the course of investigating the state of the art, two ontologies were identified that can fulfill goals G-3 and G-4: the MBSE ontology by Holt & Perry Reference Holt and Perry(2019) and the Systems Engineering ontology by van Ruijven (Reference van Ruijven2012a, Reference van Ruijven2012b, Reference van Ruijven2015). Van Ruijven’s ontology is based on ISO 15926-11 and encompasses various information models for defining stakeholder requirements, system requirements analysis, operation and maintenance, verification processes, and risk management (G-4). The MBSE ontology, on the other hand, aims to represent system concepts and relationships in a standardized and formal manner. This is intended to enable consistent communication and a unified understanding between engineers and stakeholders, serving as a domain-specific language for MBSE activities (G-4). According to Holt & Perry Reference Holt and Perry(2019), the MBSE ontology is essential for MBSE endeavors and is applied in various activities, such as defining concepts and terms. It serves as a starting point for creating and adapting ontologies for individual MBSE activities, thus supporting the goal of integrating aspects from multiple ontologies. As both ontologies were specifically developed for MBSE, they are fundamentally compatible with the SysML meta-model (G-3). Extensions and adaptations can be realized through mechanisms such as stereotypes and profiles to represent specific requirements or areas not directly covered by standard SysML elements and relationships. For further work, the MBSE ontology is preferred, as it is comprehensively defined and explained in (Reference Holt and PerryHolt & Perry, 2019), thus providing valuable guidance in developing an application-specific ontology. To address G-5, (Reference Borst and AkkermansBorst et al., 1997) and the cross-domain ontology PhysSys described therein were identified as a source of inspiration. PhysSys forms the foundation for OLMECO, a library of reusable technical model components for simulating physical systems. The PhysSys ontology describes the composition of models from components of the OLMECO library. This interaction with the element library promotes the reuse of model components and increases efficiency in modeling, thereby fulfilling G-5. To address the second preliminary question, the works of Fernández-López & Gómez-Pérez Reference Fernández-López and Gómez-Pérez(2002), Gomez-Perez et al. Reference Gomez-Perez, Fernandez-Lopez and Corcho(2003), and Jones et al. Reference Jones, Bench-Capon and Visser(2007) were consulted, each containing a description and summary of methods for ontology development. The following seven criteria were defined to evaluate the identified methods for ontology development. Results are presented in Figure 4:

• C1: Existing ontologies should be considered

• C2: The method should be suitable for novices in ontology development

• C3: The method should not have a language dependency

• C4: The method should consider the use of element libraries

• C5: The method should be structured in a comprehensible manner

• C6: The focus should not only be on extending or enhancing an existing ontology

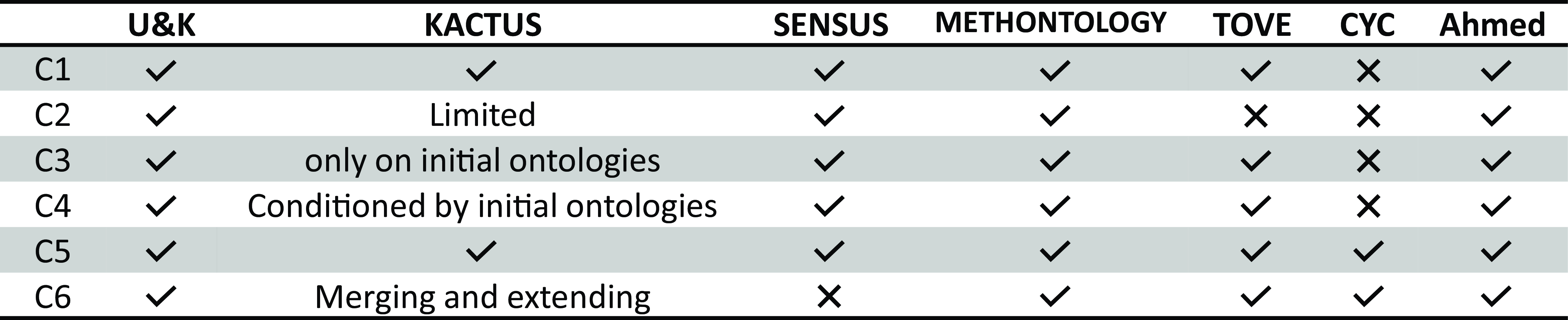

Figure 4.

Evaluation of the methods

To maintain the scope of the paper, the following presents just a concise summary of the evaluation results, considering the findings in figure 4: Novices in ontology development should initially apply METHONTOLOGY or the U&K method of Uschold & King Reference Uschold and King(1995) to achieve positive outcomes. Experienced developers can significantly accelerate development using the KACTUS approach; however, expertise is required to implement adaptations professionally. Therefore, we will primarily utilize METHONTOLOGY and the U&K method as methodological guidance for developing an ontological concept. Further information on these methods can be found in the aforementioned sources.

6. The ontological concept

Before presenting the structure of the ontological concept we briefly address its role within the framework of the methodology. The methodology currently under development consists of four building blocks. The first is a procedural model that, among other things, describes the fundamental role of system modeling in solving the task at hand. A detailed description of this process model can be found in (Reference Gadzo, Michalides and KochGadzo et al., 2024). The second building block is a method collection that provides descriptions of how models can be created using the SysML language for specific analytical purposes. Further information on these methods is contained in (Reference Gadzo, Mehlstäubl, Nicklas, Simon, Paetzold, Chakrabarti and SinghGadzo et al., 2023). The third component is an element library containing standardized modeling elements available to the modeler during model construction. Finally, based on the ideas of Borst et al. Reference Borst and Akkermans(1997) and the PhySys ontology, this approach serves both as the foundation for the element library and as a structured knowledge representation. Figure 5 visually summarizes the different roles of these building blocks.

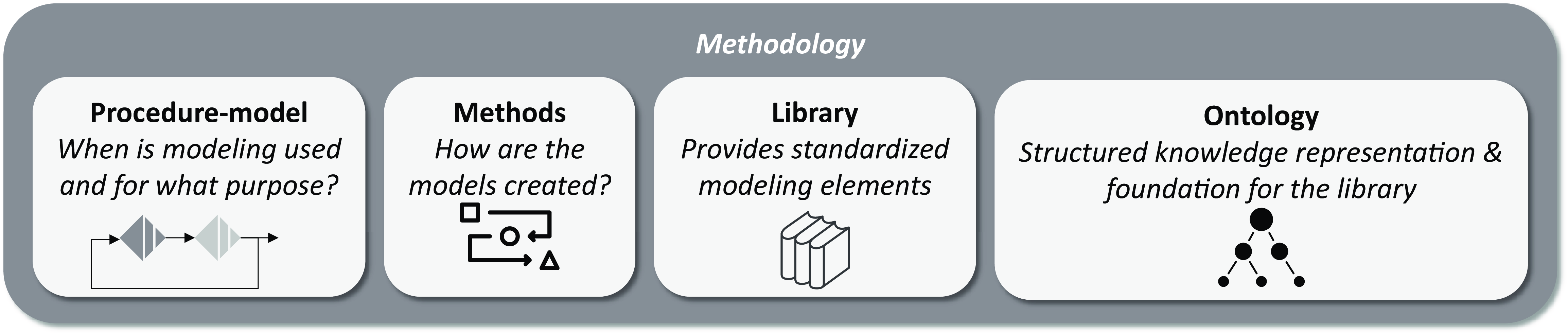

Figure 5.

Overview of the methodological components

The concept’s modular structure, developed using the Systems Modeling Language (SysML), comprises three main components, as illustrated in Figure 8: the General Ontology, the Structure Ontology, and the Uncertainty Ontology, complemented by the Element Library. The General Ontology (Figure 6) serves as the central element, providing a formal specification of concepts and their relationships for analyzing uncertainties in document-based data and information. It contributes to the reduction of inconsistencies, inaccuracies, discrepancies and ambiguities, and helps to mitigate them in model creation through clear definition of requirements satisfaction, precise specification of architectures, and explicit representation of system contexts. Inspired by the MBSE ontology of Holt & Perry Reference Holt and Perry(2019) the General Ontology presents a novel ontological approach, divided into the sections of requirements, behavior, and system of interest, with function acting as the central linking element. The color differentiation within the sections illustrates the hierarchical levels of the ontology. A crucial technical aspect is the definition of multiplicities, which specify the interactions between concepts in a precise way. For example (see Figure 6), a functional requirement shall be satisfied by at least one function (1), while multiple functions (1..*) can be realized by the System of Interest (1). This System of Interest (1) is represented by functional, logical, and physical architectures (1) and interacts within one or more defined System Contexts (1..*). This precise specification contributes to the development of meaningful analytical models. When combined with the methodology’s analytical methods and procedural model, this creates a comprehensive framework that guides modelers in creating models for the task at hand.

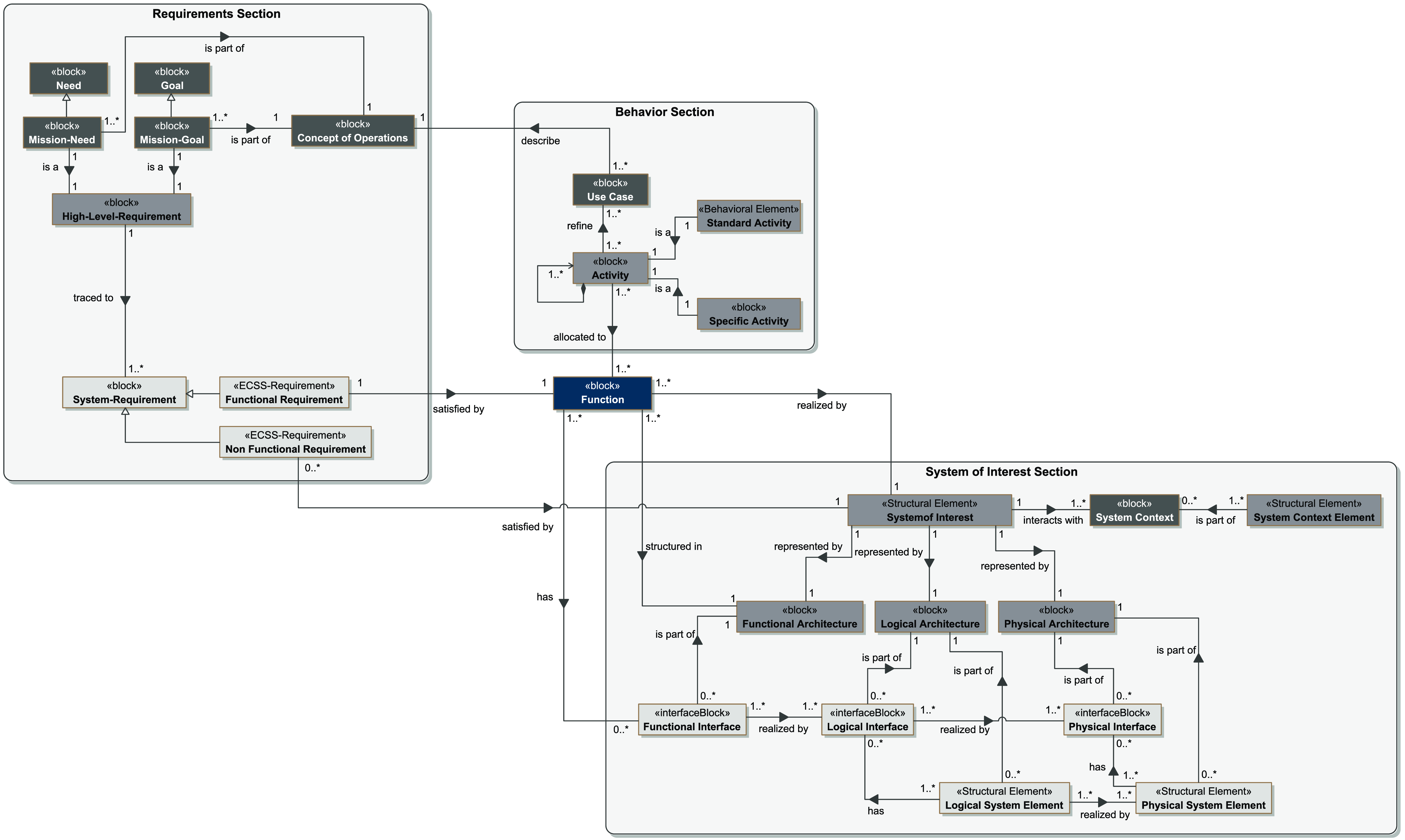

Figure 6.

The General Ontology

As part of the ontological concept, the Structure Ontology extends the General Ontology with domain-specific components and information, creating a flexible tool for model creation applicable to both subsystems of the satellite system and the entire space segment. Each element is equipped with relevant attributes representing properties significant for analysis, with concrete values defined project-specifically and maintained in the element library. The development of the Structure Ontology followed the METHONTOLOGY guideline through an iterative process involving domain experts for reviews of the artefacts, according to a support evaluation in the Design Research Methodology (DRM) of Blessing & Chakrabarti (Reference Blessing and Chakrabarti2009, p. 176-177). An analogous methodological approach was applied to the general ontology, though with reduced scope. The SOO by Alexander P. Cox et al. Reference Alexander, Christopher, Ronald, William, John and Barry(2016) served as a foundational reference for the Structure Ontology. Figure 7 shows a small section of the domain specific Structure Ontology and, for this purpose, contains only the top-level concepts and relationships. The ontology, however, extends down to the component level of satellite projects. Since this ontology is very extensive, a holistic representation is not possible within the scope of this article.

Figure 7.

Top levels of the structure ontology

The Element Library contains all concepts defined in the Structure Ontology and provides modelers with relevant domain-specific elements. Information about their relationships is available through the ontologies. The Structure Ontology thus contributes significantly to the identification and mitigation of uncertainties, as the modeler can recognize incomplete information during model construction. This transforms unknown unknowns into defined known unknowns. The Uncertainty Ontology enables these identified uncertainties to be categorized and considered in the further development process. The visualization of the Uncertainty Ontology in Figure 8 illustrates the various categories of uncertainties considered within the methodology. Both the General Ontology and the other ontologies are fundamentally expandable and can be refined independently of each other, underscoring the flexibility and adaptability of the entire concept. The modular structure provides a defined separation between domain information and the relationships relevant for analysis, which fundamentally enables a broad domain-independent application of the concept. This only requires the development and provision of an appropriate Structure Ontology for the domain under consideration. The application and success validation of the ontological concept is carried out within the framework of the methodology validation. The DRM of Blessing & Chakrabarti Reference Blessing and Chakrabarti(2009) builds the methodological frame for the initial validation, as part of the descriptive study II phase of the development of the methodology. For this purpose, a subsystem of the SeRANIS small satellite project, as described by Kinzel et al. Reference Kinzel, Bachmann, Jaiswal, Karnal, Novo, Porcelli, Schmidt, Schwarz, Hofmann, Förstner and Knopp(2022), is utilized. It’s existing document-based data and information will be analyzed for the uncertainties defined in the Uncertainty Ontology. The aim is twofold: firstly, to demonstrate the applicability and effectiveness of the methodology, and secondly, to reduce the entry barrier and promote the acceptance of MBSE in development projects through this targeted, task-specific application of MBSE. The validation will include collaboration with systems engineering engineers and domain-specific developers, thus providing broad insights into the applicability and success of the development support.

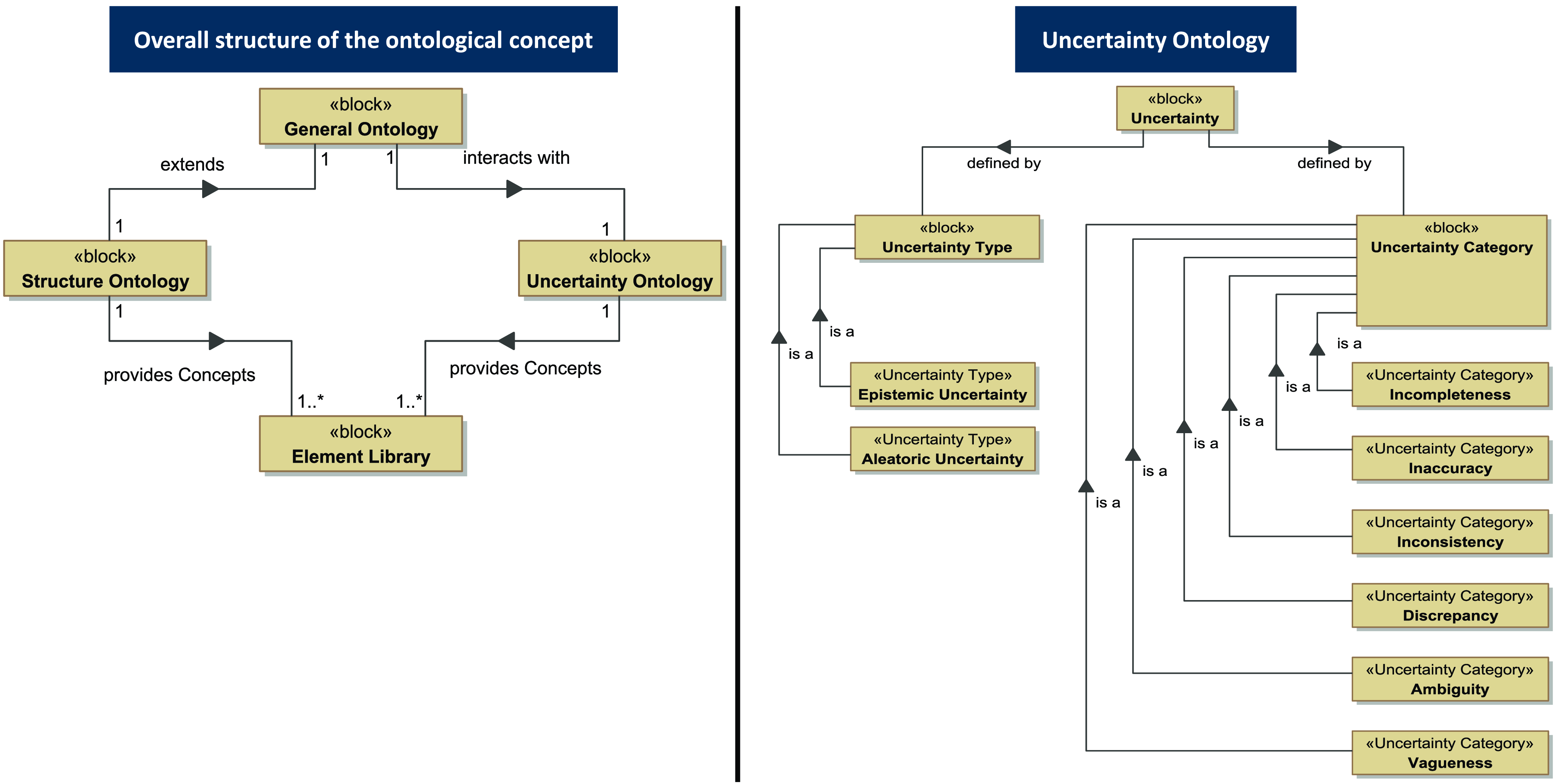

Figure 8.

Overall structure of the ontological concept & the Uncertainty Ontology

7. Summary and outlook

This paper introduces an ontological concept, developed using the SysML, aimed at facilitating the identification and mitigation of uncertainties in data and information within a methodology framework for model-based support of satellite development projects. The work outlines the results of preceding preliminary studies, which form the foundation for the development of this ontological concept. The proposed approach encompasses an overarching ontology, the General Ontology which contains the concepts and relationships relevant to the methodology and its associated analytical methods. Furthermore, two sub-ontologies are introduced: the Uncertainty Ontology which describes the concepts of the uncertainties under consideration, and the Structure Ontology which comprises a comprehensive collection of domain-specific concepts and their relationships. Future work will focus on refining the General Ontology and further refinement of the Structure Ontology through the specification of attributes for the concepts and the development of the element library. The next critical phase involves validating the approach and incorporating insights derived from the validation of the presented concept.
