What is already known?

• • Traditional meta-analysis (MA) is resource-intensive, struggles with scalability, and suffers from reproducibility issues, limiting its efficiency and reliability.

• • Automated MA (AMA) has advanced with machine learning and specialized tools, improving data extraction, statistical synthesis, and expanding beyond medical research.

• • Integration challenges remain, including workflow fragmentation, analytical limitations, and interoperability barriers, hindering full automation.

What is new?

• • This study presents a timely systematic and comparative analysis of AMA research progress and applications across medical and non-medical domains to reveal distinct patterns in implementation challenges and opportunities.

• • This study introduces a structured analytical framework to systematically evaluate the alignment between technological solutions and specific meta-analytical tasks, ensuring more effective automation implementation.

• • This study identifies gaps in current AMA capabilities and presents a roadmap for advancement, taking recent progress in AI, and specifically breakthroughs in large language models, into account.

Potential impact for RSM readers

• • For researchers, it maps AI-enhanced AMA tools, boosting efficiency in MA and inspiring cross-disciplinary innovation through AI’s transformative power.

• • For tool developers, it highlights gaps in AI-driven heterogeneity and bias assessment, urging advanced AI integration for scalable, interdisciplinary tools.

• • For policymakers, it emphasizes the vitality of AI-powered AMA for evidence-based decisions and the need for standardization and investment in comprehensive systems.

2.1 History and evolution of meta-analysis

MA originated from the pioneering work by GlassReference Glass and Smith ²⁵ in the late 1970s, who developed a statistical framework for synthesizing research findings across educational and psychological studies, formally coining the term “MA.”Reference Glass and Smith ²⁵ The methodology expanded significantly into medicine and other scientific domains during the 1980s–1990s, particularly for analyzing randomized controlled trials (RCTs). This expansion was driven by the growing demand for evidence-based decision-making, enabling researchers to address contradictory results and overcome limitations of small sample sizes.Reference Egger, Smith and Altman ²⁶ One landmark application in cardiovascular medicine evaluated statin use in reducing cholesterol levels by pooling data from numerous clinical trials to demonstrate clear benefits in lowering heart disease risks, which ultimately provided compelling evidence. ²⁷ The field advanced further through more sophisticated statistical models and refined effect size estimation techniques,Reference Hedges and Olkin ²⁸ enhancing the robustness of quantitative synthesis. The development of Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines,Reference Takkouche and Norman ^{29 –} Reference Page, McKenzie and Bossuyt ³² with its most recent 2020 update, established rigorous reporting standards that minimize bias and improve finding reliability. MA has become instrumental in healthcare research, and as the highest level of evidence synthesis,Reference Sackett ³³ MA provides critical insights for clinical guidelines and public health policies.

However, the exponential growth in published research—exemplified by ScienceDirect (https://www.sciencedirect.com/) with 16 million papers from 2,500 journals serving 25 million monthly researchers—has challenged traditional MA approaches. The growing volume of literature has necessitated the development of automation tools to streamline and expedite the review process. Scholars anticipate that automated systematic reviews will revolutionize evidence-based medicine through real-time analysis capabilities and optimized workflows.Reference Tsafnat, Glasziou, Choong, Dunn, Galgani and Coiera ^{5 ,} Reference Van Dinter, Tekinerdogan and Catal ⁸ While various software packages (RevMan,Footnote ¹ Comprehensive Meta-Analysis,Footnote ² Stata,Footnote ³ and SPSSFootnote ⁴ ) support MA through features like effect size calculation and heterogeneity assessment, they are better characterized as “computer-assisted” rather than truly automated. For instance, RevMan, despite its user-friendly interface for MA, still requires substantial manual data extraction. Similarly, while Comprehensive Meta-Analysis offers advanced statistical modeling, and Stata and SPSS provide flexible analysis capabilities, they all demand significant user intervention and statistical expertise. In addition, the commercial nature and high licensing costs of them limit accessibility for researchers with limited funding.

Recent advancements in AI-driven techniques, including NLP, ML, and LLMs, have markedly improved the efficiency of MA. Automated processes now condense tasks—once requiring months and multiple authors—into days, leveraging enhanced computational methods. For instance, LLMs have demonstrated sensitivity approaching human performance in the initial screening of systematic reviews,Reference Matsui, Utsumi, Aoki, Maruki, Takeshima and Yoshikazu ³⁴ illustrating their potential to streamline early AMA stages. Despite these improvements, full deployment of AMA remains in development, with current efforts limited in scope. Research has primarily focused on clinical trialsReference Christopoulou ²³ and SAMA,Reference Ajiji, Cottin and Picot ²⁴ where SAMA reducing timelines while relying on human oversight for rigor. This narrow emphasis restricts AMA’s broader deployment across diverse domains, highlighting an ongoing challenge in achieving comprehensive automation. Emerging AI “thinking models,”Reference Brown, Mann, Ryder, Larochelle, Ranzato, Hadsell, Balcan and Lin ^{35 –} Reference Huang and Chang ³⁷ capable of performing complex reasoning, offer a promising avenue to bridge this gap. These models could automate sophisticated synthesis tasks, such as heterogeneity assessment and statistical integration, thereby enhancing AMA’s precision and scalability. For instance, their ability to adapt reasoning to varied research contexts holds potential for wider application, which points to a critical opportunity to advance evidence synthesis automation.Reference Ofori-Boateng, Aceves-Martins, Wiratunga and Moreno-Garcia ²²

2.2 Analytical frameworks for technology evaluation

Having a robust analytical framework is crucial to synthesizing data drawn from pertinent studies and in drawing meaningful conclusions. The choice of framework for technology evaluation depends on the relevancy of data collected and the research questions that have been posed to analyse this data for understanding aspects related to technology’s usage and its overall performance. Two analytical frameworks that can provide us with a comprehensive assessment on the usage of various information systems (ISs)/information technology (IT) systems are unified theory of acceptance and use of technology (UTAUT), proposed by Venkatesh et al.Reference Venkatesh, Morris, Davis and Davis ^{38 ,} Reference Venkatesh, Thong and Xu ³⁹ (for explaining user attitudes, their behavioral intentions, and overall acceptance of the technology in use) and task–technology fit (TTF), proposed by Goodhue and ThompsonReference Goodhue and Thompson ⁴⁰ (for interpreting technology alignment with the proposed tasks that can lead to high-performance impacts). However, a key element missing in UTAUT is the disposition of the users, namely, users’ computer self-efficacy or their innovativeness in making best use of the technology; therefore, user expectancy (performance expectancy and effort expectancy) and contextual factors (facilitating conditions and social influences) have been proposed as extensions to UTAUT.Reference Dwivedi, Rana, Jeyaraj, Clement and Williams ⁴¹ TTF, on the other hand, posits that the effectiveness of technology adoption and its usage depends on how well the technology supports the specific needs of a given task. It emphasizes on characteristics of both the task and the technology to make a statement on task–technology fitness. If there is a good fit between task and technology, it increases the likelihood of technology utilization and leads to increased performance impact.

TTF explains technology adoption (e.g., data locatability, data quality, data accessibility, timeliness, technology reliability, and ease of use) by focusing on the actual usage of the technology which can in turn offer valuable insights on technology design and improvement strategies. We can delve deeper into the functional match between technology and tasks, which is particularly relevant for complex, multistage process like AMA, where task demands vary significantly at different stages. It lays a strong foundation to understand how technology characteristics would influence task behaviors and consequently the utilization of that technology for the given purpose, and finally to provide a measure of the performance impacts. These impacts could lead to further development of more tools and services already in the marketplace or lead to redesigning of tasks to take better advantage of the technology or to further embark on training programs to better engage users in using the technologies.Reference Goodhue and Thompson ⁴⁰

In this study, TTF is applied at the task level, focusing on concrete AMA tasks at each phase rather than abstract task attributes.Reference D’Ambra, Wilson and Akter ^{42 ,} Reference Ali, Romero, Morrison, Hafeez and Ancker ⁴³ By applying TTF to AMA, we can evaluate the suitability of automation tools across various stages of AMA and assess how well available technologies support the specific tasks and user needs at each stage.

• • Task demands and technology support across AMA stages: The distinct stages of AMA involve different types of tasks with varying demands and levels of complexity. For instance, in the data extraction phase, automation tools must handle unstructured data from diverse sources, ensuring accuracy in identifying relevant studies and variables. In the synthesis stages, the technology needs to support complex statistical computations while ensuring methodological rigor. In the reporting phase, automation tools must generate clear, interpretable results that comply with reporting standards. At each stage, TTF is applied to examine how effectively technologies meet these task requirements.

• • TTF across AMA stages: TTF emphasizes the alignment of technology with the specific tasks to be performed. In AMA, this approach ensures that automation technologies remain well-suited to the requirements of each task, leading to improved performance and greater user satisfaction.

The application of TTF in AMA allows for a richer understanding of how automation technologies can improve efficiency, accuracy, and user satisfaction. For instance, while UTAUT may evaluate whether researchers will intend to use automated tools in MA, TTF assesses whether these tools will improve accuracy and reduce time and labor requirements. Specifically, TTF in AMA helps enable evaluation across three critical dimensions: data quality assessment (reliability of automated extraction), system effectiveness (enhancement of the MA process), and user satisfaction (accessibility across expertise levels). This analytical framework has therefore been used in this study to share insights for optimizing AMA tools, advancing task–technology research, and improving user experience and performance outcomes.

2.3 Research questions

Having laid out the background of history and evolution of MA, this article applies TTF constructs to better inform on aspects related to AMA deployment, such as the current approaches in use, challenges being faced, future trends, and the overall impact on evidence synthesis. We provide a comprehensive review of the development of AMA over the past decade. Our review highlights how various tools are being applied across different disciplines and how they have developed over time to provide a comprehensive understanding of AMA in evidence synthesis. Accordingly, we have posed four research questions that will be addressed in this review. These are:

• • RQ1 (Descriptive): What are the current landscape and key characteristics of AMA approaches?

• • RQ2 (Analytical): How does our analytical framework illuminate the strengths and limitations of current AMA approaches within each information processing stage?

• • RQ3 (Comparative): What are the distinct patterns in AMA implementation, effectiveness, and challenges observed across medical and non-medical domains?

• • RQ4 (Future-oriented): What are the critical gaps and future directions for AMA development, and what obstacles need to be addressed to realize its full potential for evidence synthesis?

3.1 PRISMA process

Our investigation of automation in MA followed PRISMA guidelines, employing a systematic search strategy. The database search was restricted to “MA” terms to enhance precision. Broader terms, such as “systematic review,” were not included, as pilot testing indicated they mainly retrieved irrelevant records. Accordingly, the initial search employed the string (“meta-analysis” OR “meta analysis”) AND (automation OR automated OR “machine learning” OR “artificial intelligence” OR AI OR “natural language processing” OR “large language model” OR LLM), with title, abstract, and keyword field filters applied where available (e.g., TITLE-ABS-KEY in Scopus; [Title/Abstract] in PubMed), across PubMed, Scopus, Google Scholar, IEEE Xplore, and ACM Digital Library databases. This presented a preliminary overview of research activities within the stated field of interest, offering a broad yet comprehensive summary of the general characteristics of MA prevalent in existing literature. Next, we established clear inclusion criteria and practical constraints: (1) published from January 2014 to August 2024; (2) focus on explicitly MA-specific automation tools; (3) full-text availability with sufficient methodological detail (e.g., at least four pages with technical descriptions); and (4) shorter records (e.g., abstracts and posters) were excluded due to insufficient information and empirical or quantitative evaluations in automation techniques of MA. Table 1 details the eligibility criteria. Furthermore, to enhance coverage and overcome potential oversights from database-centric searches, we conducted bidirectional citation chaining “snowball” methods.Reference Goodman ^{44 ,} Reference Parker, Scott and Geddes ⁴⁵ This involved both backward tracing (reviewing references cited in the retrieved studies) and forward tracing (identifying later works citing the selected papers) through Scopus and Google Scholar, expanding our temporal scope to 2006–2024. This approach not only expanded coverage by incorporating relevant gray literature and emerging frameworks but also established thematic linkages between foundational methodologies and their contemporary implementations.

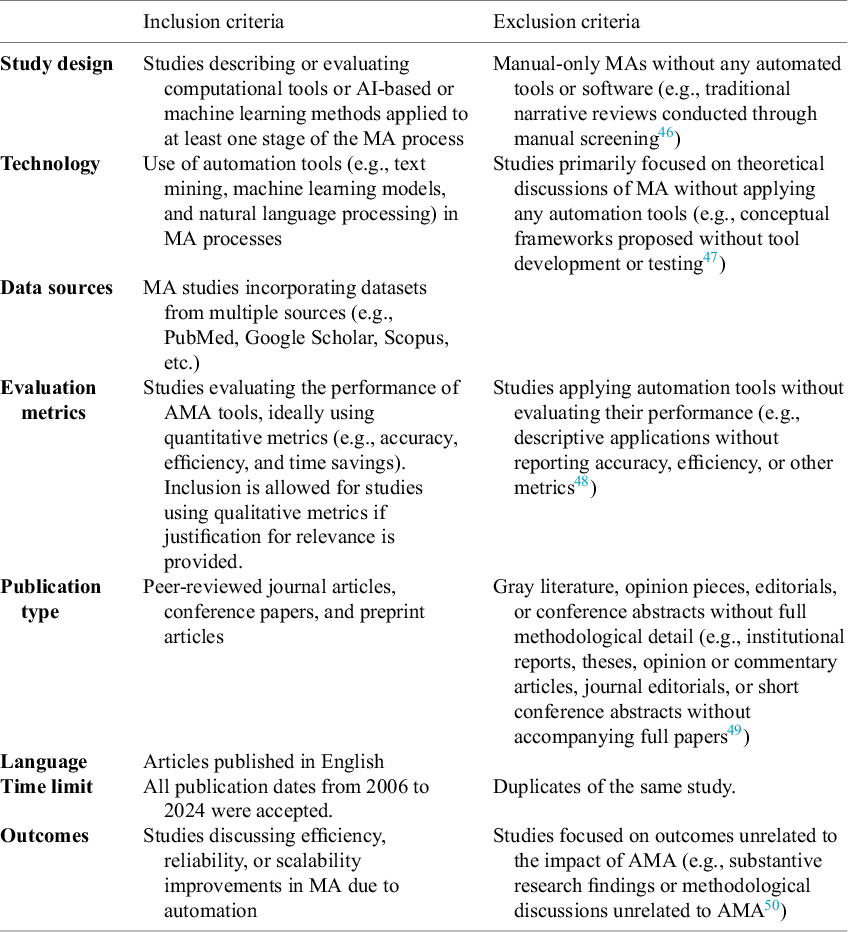

Table 1 Criteria for study selection using PRISMA

The systematic review process, managed through Zotero 7, began with duplicate removal followed by a two-phase screening. One reviewer (L.L.) conducted the initial screening of titles and abstracts to exclude irrelevant records, while two additional reviewers (A.M. and T.S.) independently checked and confirmed the results. The same procedure was applied for the full-text review and any discrepancies in selection were resolved through consensus discussions among the reviewers. The PRISMA flowchart (shown in Figure 1) details the selection process. Data were analyzed and narratively summarized, with descriptive statistics presented in tables or graphs based on each study’s aim. This process identified 13,145 initial studies (2,200 PubMed, 6,204 Scopus, 4,574 Google Scholar, 132 IEEE Xplore, 35 ACM Digital Library, and 71 snowball), which were refined to 61 studies (see the Supplementary Material) after removing 3,363 duplicates and excluding 9,708 studies through screening. The whole visual illustration of our systematic review (shown in Figure 2) outlines the key steps, addresses four research questions, highlighting key contributions, current challenges, and future trends in AMA.

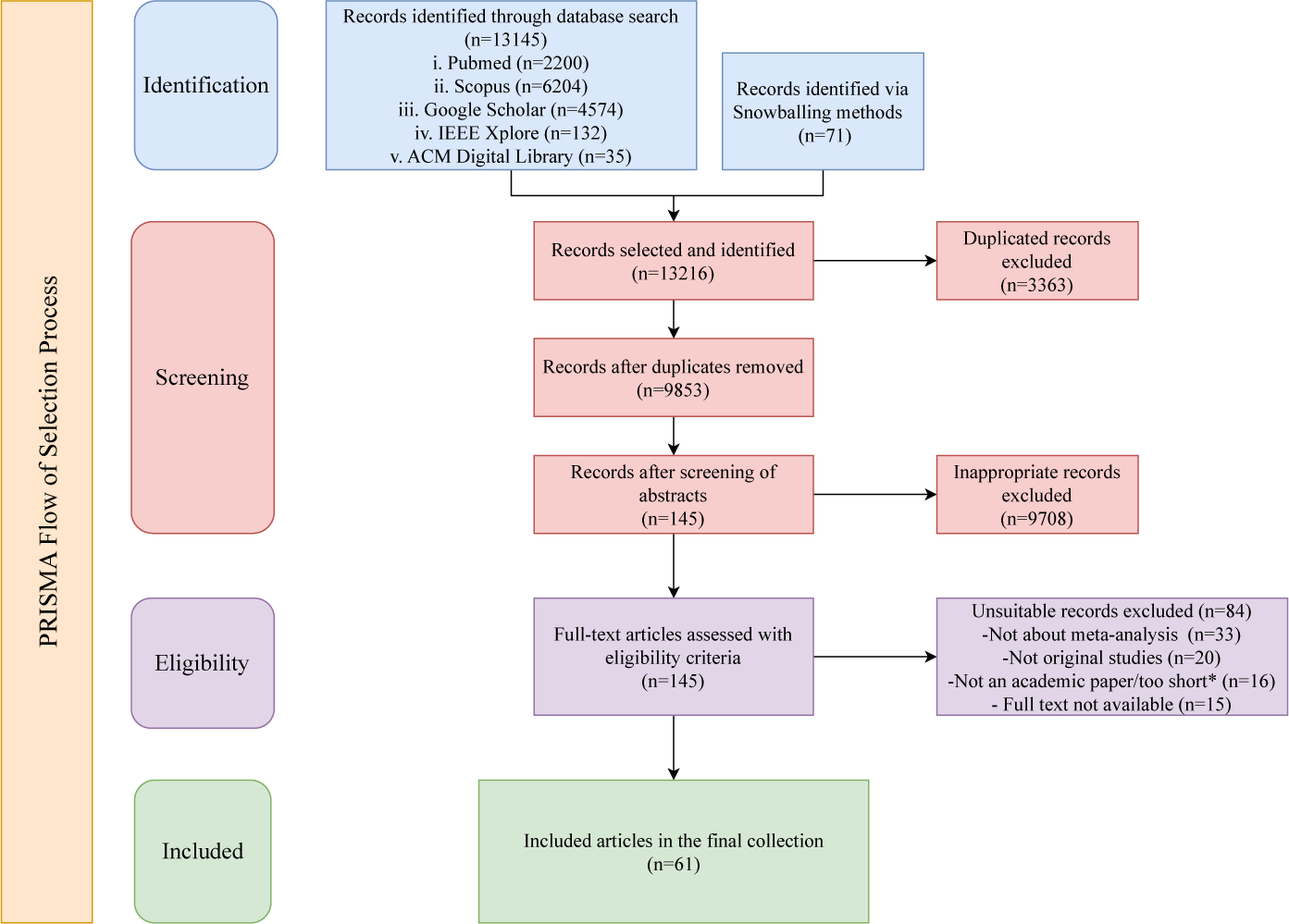

Figure 1 PRISMA workflow.

Note: “Too short” = records with fewer than four pages, excluded for lacking methodological detail.

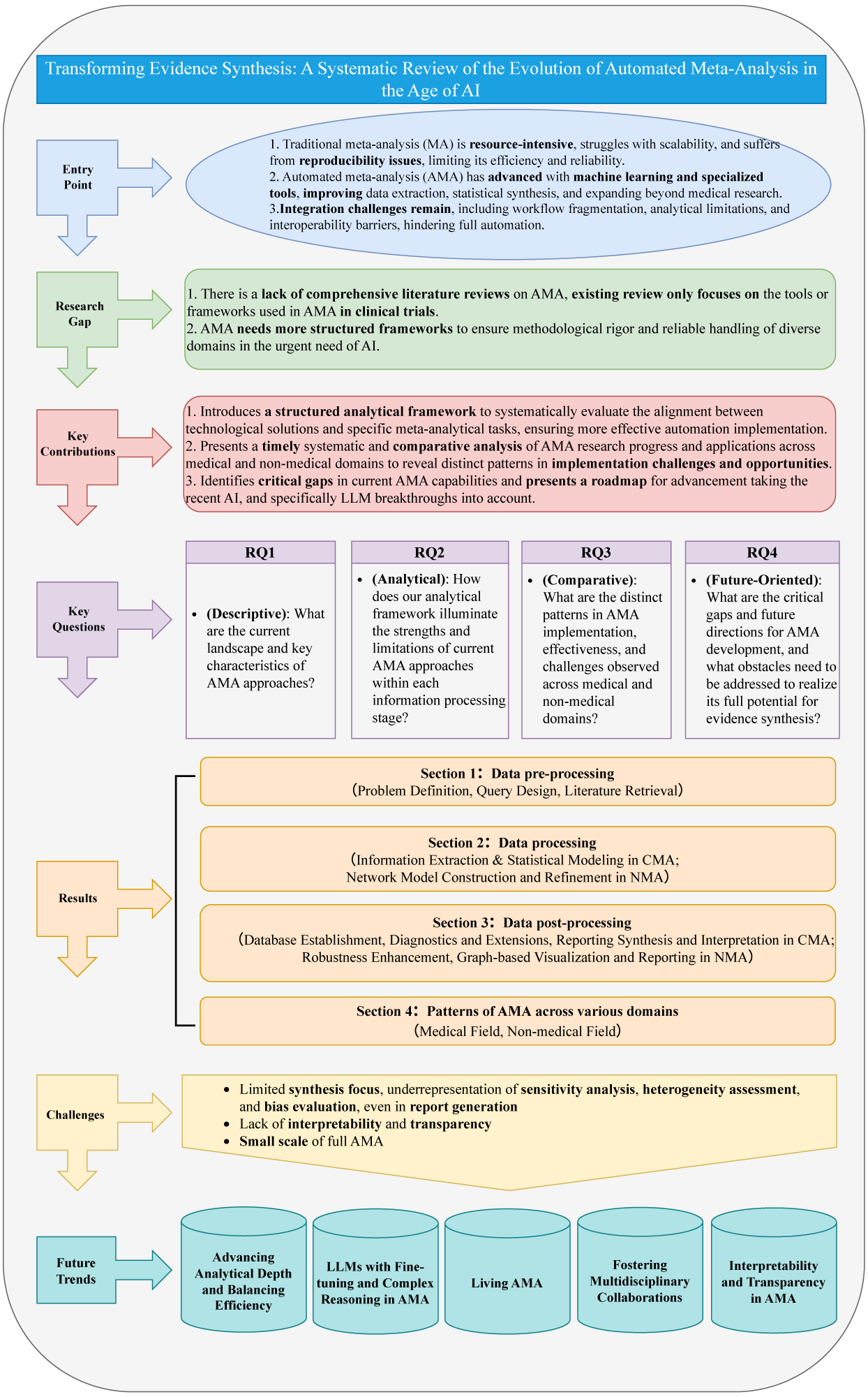

Figure 2 Holistic framework for this review.

3.2 Progressive phase structure in TTF

AMA streamlines the traditional resource-intensive process of MA by integrating automation for data extraction, analysis, and synthesis, enhancing efficiency while reducing human error and statistical expertise requirements. MAs can be categorized along multiple dimensions, including network structure, data type, statistical framework, update approach, and purpose. Among these, this review focuses on widely used and methodologically distinct approaches: conventional MA (CMA) for direct pairwise comparisons and network MA (NMA) for integrating both direct and indirect evidence across multiple interventions.

While MA methodologies (e.g., the Cochrane Handbook) provide a comprehensive set of methodological stages, these frameworks were not originally designed with automation in mind. Existing automation tools target isolated stages of the process; however, there remains no overarching framework to systematically organize and align automation efforts across the full MA workflow. To address RQ1 (What are the current landscape and key characteristics of AMA approaches?), we introduce the progressive phase structure (PPS), an automation-oriented framework that complements existing methodologies by structurally organizing automation tasks across the entire process. Figure 3 illustrates the PPS framework, which categorizes automation processes into three distinct phases across both CMA and NMA:

• • Pre-processing stage: Encompasses problem definition, query design, and literature retrieval. NLP, ML, and LLMs can significantly reduce time spent on these labor-intensive tasks.

• • Processing stage: Involves information extraction (IE) and statistical modeling in CMA or network model construction and refinement in NMA. Automated tools leveraging NLP, ML, and LLMs help extract required datasets and other relevant information and achieve high efficiency.

• • Post-processing stage: Focuses on database establishment, diagnostics, and reporting in CMA, and robustness enhancement and visualization in NMA. Different automation tools can enhance reproducibility through standardized reports and dynamic visualizations, thereby improving transparency.

Figure 3 Progressive phase structure with TTF model.

Note: “PreQ”, “ProcQ”, and “PostQ” denote analytical questions from the pre-processing, processing, and post-processing stages, respectively. Assessment ratings (H = High, M = Moderate, L = Low) are defined above.

PPS does not aim to replace existing methodological taxonomies but to provide a complementary, automation-oriented structure. It organizes the workflow into three high-level phases that correspond to established MA tasks outlined in the Cochrane Handbook (see Table 2), ensuring methodological completeness while offering a streamlined and automation-compatible perspective on the review process. To assess automation effectiveness, we also integrate the TTF model with PPS, providing a structured approach to evaluating alignment between specific MA tasks and available automation tools. This approach systematically deconstructs the automation process into granular components and assesses technological fit at each stage, which operationalizes this alignment by defining:

• • Tasks: Fundamental, well-defined tasks performed at each PPS phase (e.g., problem definition, query design, and literature retrieval). These tasks represent the concrete units of analysis for evaluating technology alignment.

• • Technology characteristics: Functional capabilities (e.g., IE, document classification, and text generation) enabled by current automation tools, such as NLP models, ML algorithms, and LLMs.

• • TTF assessment: Structured evaluation questions designed to systematically assess the degree to which available automation tools support the defined tasks, using a three-level qualitative scale (high/moderate/low).

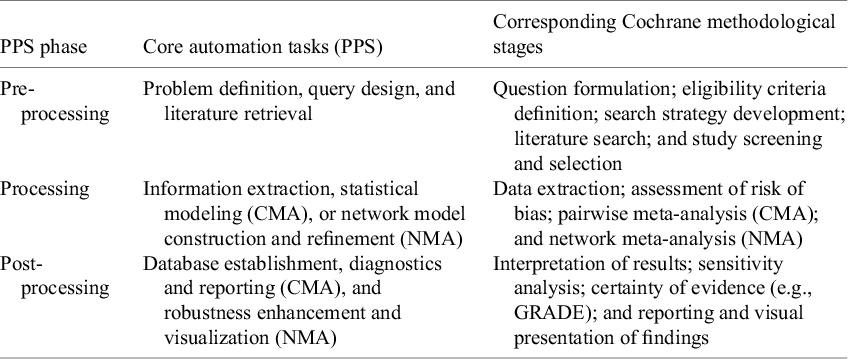

Table 2 Task-level mapping between PPS automation phases and Cochrane methodological stages

The three-level TTF assessment questions were developed through iterative pilot coding and team discussions to enhance conceptual clarity and ensure coverage across all AMA stages. For the actual application of these assessments, one reviewer (L.L.) initially extracted data from each included study (e.g., tool name, application stage, functionality, methodological approach, reported performance, and limitations). Two additional reviewers (A.M. and T.S.) independently checked and confirmed the extracted information. The extracted data were then mapped to the PPS framework. TTF ratings were assigned using the same process: L.L. provided initial judgments based on the predefined scale (H-high, M-moderate, and L-low), and A.M. and T.S. independently reviewed the ratings. Any discrepancies in data extraction or assessment were resolved through structured consensus discussions. By structuring AMA through PPS and rigorously applying the TTF model (all details were fully provided in Figure 3), this framework provides a robust methodological foundation for evaluating automation effectiveness in AMA.

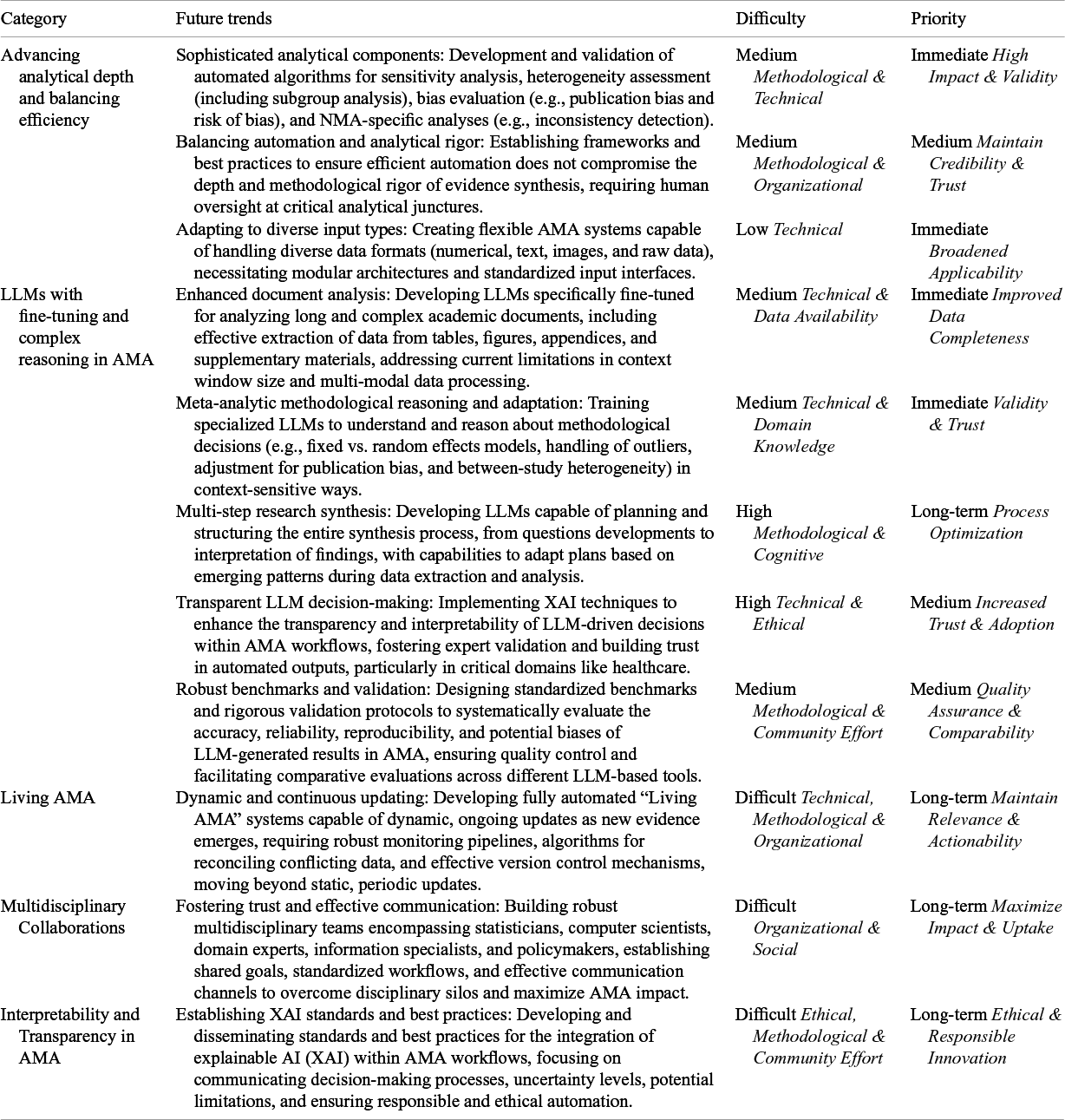

5.1 Advancing analytical depth and balancing efficiency in AMA

A critical and persistent limitation in AMA remains the automation of advanced analytical methodologies, including sensitivity analyses, heterogeneity assessments, publication bias evaluations, and stratified subgroup analyses. While preliminary data processing has advanced significantly, sophisticated analytical automation remains underexplored, compromising the reproducibility and scientific validity of AMA findings. Future research should prioritize three critical areas: (1) Algorithm advancement. Developing frameworks that execute complex analytical functions with minimal human intervention while maintaining methodological rigor, including automated sensitivity analysis and bias detection tools. (2) Methodological balance. Creating frameworks that enhance efficiency without compromising analytical depth and integrity, with strategic human oversight at critical analytical stages. (3) Multi-modal data integration. Incorporating heterogeneous data types (numerical data, medical images, tables, and raw data) through adaptable extraction techniques for comprehensive, statistically sound evidence synthesis. These advancements would elevate AMA beyond basic automation to deliver both sophisticated analytical capabilities and enhanced efficiency, strengthening its credibility in high-impact research domains.

5.2 LLMs with fine-tuning and complex reasoning in AMA

LLMs, including those with advanced “thinking” capabilities capable of complex reasoning, offer transformative potential for AMA by efficiently processing unstructured text and extracting critical variables (effect sizes and confidence intervals) from research articles. These “thinking models” in LLMs extend beyond basic data extraction, enabling genuine knowledge synthesis and methodological reasoning, potentially revolutionizing evidence synthesis by integrating statistical and semantic understanding. They function as methodological thought partners, assessing heterogeneity between studies, and adapting analytical strategies to the specific characteristics of included studies, thereby enhancing AMA’s precision, scalability, and adaptability across diverse research contents. However, several challenges hinder their full-scale deployment of LLMs in AMA. These include hallucinations that fabricate results, which is unacceptable in high-stakes applications like healthcare; propagation of implicit biases from training corpora into synthesized outputs; and limitations with extensive context windows when processing journal articles, dissertations, and complex figures/tables.Reference Liu, Lin and Hewitt ¹⁰⁹ To maximize this potential opportunity, future research should prioritize developing specialized “thinking LLMs” for analyzing long-form academic content with multi-modal capabilities; enhancing transparency through explainable AI (XAI) techniques to facilitate expert validation of automated extractions; and designing benchmarks and protocols to ensure the accuracy, reliability, and reproducibility of LLM-generated results. These advancements will significantly enhance the reliability and interpretability of LLM-assisted AMA workflows, potentially reshaping the foundations of evidence synthesis methodology and positioning “thinking LLMs” as a cornerstone of future AMA innovation.

5.3 Living AMA

Current AMA implementations primarily automate discrete stages of MA but lack mechanisms for continuous, real-time evidence updates. This limitation is particularly evident in Cochrane MAs, which require periodic updates to maintain clinical relevance. A “living AMA” addresses this gap by envisioning a system that can automatically and continuously scan databases for new studies, extract relevant data, and integrate fresh evidence into existing analyses. Realizing this vision should focus on three key aspects. First, designing robust AI-driven mechanisms to identify and validate new studies as they emerge. Second, developing algorithms to make a version control and reconcile conflicting data across studies while preserving analytical transparency. Third, creating efficient alert mechanisms that update researchers without overwhelming them with excessive information. Living AMA approaches have already emerged in related domains, such as “living literature review,”Reference Wijkstra, Lek, Kuhn, Welbers and Steijaert ¹¹⁰ COVID-19 living MAs,Reference Boutron, Chaimani and Devane ¹¹¹ MetaCOVID project,Reference Evrenoglou, Boutron, Seitidis, Ghosn and Chaimani ¹¹² and SOLES system.Reference Hair, Wilson, Wong, Tsang, Macleod and Bannach-Brown ¹¹³ Building on these foundations, future work must refine the methodological framework for Living AMA to ensure delivery of up-to-date, high-quality evidence synthesis.

5.4 Fostering multidisciplinary collaborations

The success of AMA depends on requiring seamless collaborations between statisticians, computer scientists, domain experts, and policymakers. However, interdisciplinary cooperation remains a bottleneck due to differences in methodologies, terminology, and research priorities. Addressing this challenge requires three strategic approaches: (1) interdisciplinary training programs to familiarize researchers with AMA methodologies and computational techniques; (2) joint funding initiatives to support large-scale, collaborative AMA projects; and (3) shared platforms and community to promote cross-disciplinary integration. These approaches leverage complementary expertise: statisticians ensure methodological rigor, computer scientists develop the technical framework, and domain experts provide contextual knowledge to interpret findings meaningfully. Through effective communication and trust-building, AMA can evolve into a widely adopted tool bridging computational power with domain-specific expertise.

5.5 Interpretability and transparency in AMA

As AMA tools become more sophisticated, transparency in their decision-making processes becomes increasingly paramount, particularly in high-stakes domains such as medical research where evidence synthesis directly influences clinical decisions. The integration of XAI methods into AMA represents a critical frontier in ensuring credibility and adoption. The challenge of interpretability in AMA extends beyond mere technical performance. While automated systems can significantly reduce the time and effort required for MA, their value diminishes if end-users cannot understand or trust their outputs. This is particularly crucial during the evidence synthesis phase, where complex algorithms process and integrate diverse evidence sources. Recent researchReference Luo, Sastimoglu, Faisal and Deen ⁵⁶ highlights the delicate balance required between efficient automation and maintaining the depth and accuracy of evidence synthesis. Future research should prioritize the standardization of XAI integration within AMA workflows, ensuring automated processes remain transparent, reproducible, and trustworthy. Various XAI techniques, such as rule-based explanations, visual explanations, and sensitivity analysis, may integrate into AMA findings with more accessible and easier adjustments. Through these approaches, AMA can evolve into robust and widely accepted tools that enhance the quality of evidence synthesis.
