Fortifying a Highland Landscape

Rabana and Merquly are located 1.5 kilometres apart on the western side of Mt. Piramagrun (Kurdish: پیرەمەگرون ), one of the most prominent massifs in the Zagros Mountains (Fig. 2). With a maximum elevation of 2624 metres, this is the region's highest peak, which has led to its association with landfall after the flood in the Epic of Gilgamesh (George Reference George2003: 516). In common with much of the wider Zagros, this landform primarily results from the last phase of Pleistocene glaciation, acting upon Mesozoic (dolomitic-marly) limestones of the Piramagrun anticline, followed by the formation of Pleistocene-Holocene piedmont (Sissakian and Fouad Reference Sissakian and Fouad2014; Wright Reference Wright, Ehlers and Gibbard2004). A particularly prominent geomorphological feature is a rockslide of 3.5 kilometres in length emanating from the small U-shaped valley called Qulla-Rash that separates Rabana and Merquly (Karim et al. Reference Karim, Hamasur and Tofiq2000). This rockslide is especially notable for its size, which at 200 million metric tons is the largest such recorded feature in northern Iraq.

Fig. 2

Rabana-Merquly settlement cluster. Elevations in metres above sea level (m.a.s.l.) (map by M. Brown).

Settlement at Rabana (Kurdish: ڕەبەنە ; WGS84 UTM 38N 519957m E, 3956946m N) can be viewed as an extension of the surrounding highland landscape (Fig. 3). Occupation was concentrated inside the valley, which is encompassed by an arête or sharp glacial ridge to the south and west, and sheer cliffs to the north-east. This terrain presents a formidable barrier, restricting passage through the mountain. Where gaps in the rock at the valley base and along its upper ridges allow access, walls and rectangular towers were constructed to block intruders (Fig. 4), comparable in design to defences at Hatra (Bergamini Reference Bergamini1987: 197). The overall result was a fortified enclosure of c. 26 hectares that could be readily defended on all flanks.

Fig. 3

Rabana settlement. Elevations m.a.s.l. (map by M. Brown).

Fig. 4

Upper fortifications at Rabana facing east (photo by J. Aguilar and J. Piech).

The main entrance into Rabana valley is from the south-west, where the bedrock has been eroded by a wadi, which ran through and was a defining topographical feature of the ancient settlement. This break in the site's natural perimeter was well defended by architectural augmentations, thereby allowing it to function as a ‘gate’. The best preserved of these is a large wall on the south side that forms the front of a platform or building foundation subdivided with internal walls (Fig. 5). Prominently displayed on the adjacent cliff is one of the two rock-reliefs.

Fig. 5

Entrance to Rabana valley facing south-east (photo by M. Brown).

Behind the perimeter fortifications, the focus of occupation was in the east of Rabana. This area has a comparatively gradual slope, which was in several places levelled through terracing. Where the watercourse enters the valley from a narrow gorge extending high up into the mountain, it has been canalised with a combination of rock-cut and rough-stone architecture. Near to the wadi inlet is a sub-rectangular niche with an interior feature carved into the rock (Fig. 6). While this sculpture is incomplete, similarities with Parthian era cultic installations at Assur and Uruk-Warka suggest an altar (Andrae and Lenzen Reference Andrae and Lenzen1933: 70-71, pl. 36; Jordan Reference Jordan1928: 36-38, pls. 14, 43b, 73a). Excavations in 2017 revealed a stone staircase cut into the bedrock, which originally connected a building to the wadi (Fig. 7). With broad steps suitable for seating, this feature also recalls small theatra associated with Parthian era temples at Seleucia on the Tigris and at other contemporary Persian sites (Hopkins Reference Hopkins1972: 119-26, 173; Hopkins Reference Hopkins1942: 17-18). An adjacent steeper flight of narrow steps, which does not connect with the staircase, may have functioned as a water cascade. The overall impression is of a sanctuary complex, with a hydrological component that can be compared to Graeco-Roman nymphaea. Above and west of the staircase, a path connects with fortifications on the north-west side of the valley.

Fig. 6

Rabana rock-cut niche. Front view and section (photogrammetry by J. Aguilar, drawing by M. Brown).

Fig. 7

Rabana sanctuary complex staircase and steps (photogrammetry by L. Schmidt).

Merquly (Kurdish: ميرقولی ; WGS84 UTM 38N 521432m E, 3955598m N) is located at the southern end of a high plateau, overlooking a narrow pass to a small valley within Mt. Piramagrun. This montane terrain was again augmented with walls, towers and terraces, expanding the area suitable for occupation and facilitating its defence. At the centre of the site is a citadel positioned atop a natural outcrop (Saber et al. Reference Saber, Rejeb and Altaweel2014: 231-36). To the north and east are various associated buildings. Merquly has one main phase of construction, which also appears to be the case at Rabana. Some minor renovation of the Merquly citadel occurred during the Parthian or Sasanian periods (Saber et al. Reference Saber, Rejeb and Altaweel2014: 236).

South-west of and below the Merquly citadel is the second rock-relief (Fig. 8). As with its counterpart from Rabana, the Merquly rock-relief was aligned with adjacent perimeter fortifications and may again have been located near an entrance, even if the precise point of ingress is unclear. Sections of perimeter wall and escarpment indicate a total intramural area of c. 20 hectares, with a more densely occupied zone east of the citadel. While Merquly is currently accessed along a track coming west from Zewe village, a southern or eastern ascent is also possible, which is reflected in the orientation of the site's defences.

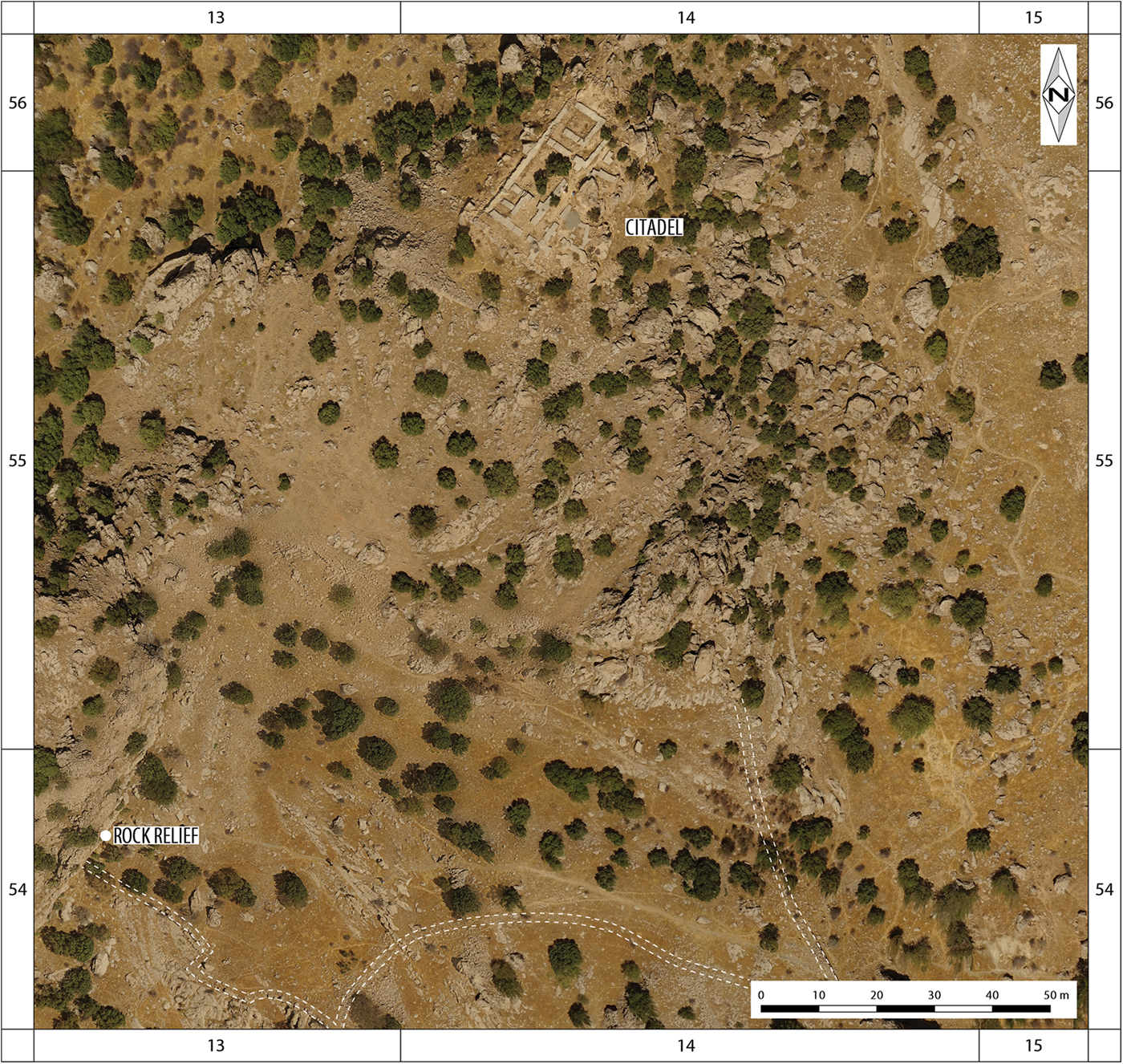

Fig. 8

Aerial orthophoto of Merquly showing location of rock-relief and citadel. Dashed line indicates perimeter fortifications (photography by J. Aguilar and J. Piech, GIS processing by M. Brown).

Portraits of a King

Defining features of Rabana and Merquly are their matching, approximately life-size rock-reliefs, each showing a bearded man in ornate attire (Figs. 9-10). Both sculptures are in good condition, having recently been cleaned in preparation for moulds taken to produce casts now displayed in the Sulaimaniyah Museum (Rasheed Reference Rasheed2001). Erosion and minor damage to the rock-reliefs make it difficult to discern some details with the naked eye alone. Accordingly, photogrammetry was used to produce clearer images based on high-resolution 3D models. Lack of accompanying inscriptions makes it impossible to directly identify the individual(s) depicted. Informed speculation is, however, possible based on typological and stylistic attributes, combined with contextual information derived from archaeology.

Fig. 9

Rabana rock-relief (photogrammetry by J. Aguilar, drawing by M. Brown and U. Bürger).

Fig. 10

Merquly rock-relief (photogrammetry by J. Aguilar, drawing by M. Brown and U. Bürger).

Both figures are identically dressed. Each wears a torc around his neck. A cloak or long-sleeved coat (kandys) reaches below the knees and is secured at the neck by means of a clasp (Curtis Reference Curtis and Wiesehöfer1998). Underneath this outer garment, the figures appear to be wearing Parthian trouser-suits. Around the waist is a tied belt with two hanging tapered ends. Both men wear plain ankle-high shoes. They are shown in the same standing or walking pose, with their right arm raised in front to chest height with open palm. This stance resembles statues of kings and nobles from Hatra (Dirven Reference Dirven and Kaizer2008: 222-28), and the frontal depiction in relief of an Elymaean ruler at Tang-i Sarvak (Mathiesen Reference Mathiesen1992: 135-36). Next to the inside left(?) leg of the Rabana figure is what appears to be an abortive earlier line. The relative care with which the facial features are rendered, in comparison to their bodies, suggests that the Rabana-Merquly rock-reliefs could be portraits. Both figures likely depict the same person (Amedie and Zamua Reference Amedie and Zamua2011: 236).

Because of potential numismatic parallels, the most diagnostic apparel shown in the rock-reliefs is headgear. Around the base of a tall hat (high tiara or kolah) is a narrow strip of fabric, known as a diadem, which is tied at the back with the two ends hanging down to just below shoulder height. A sub-triangular detail is clearly visible on the side of the Rabana hat, with fainter traces on the Merquly rock-relief. This shows either an adornment or upturned protective ear-flap.

The combination of diadem and tall hat is exclusively seen in depictions of Arsacid, as opposed to vassal, kings on Parthian coinage (Keller Reference Keller, Hackl, Jacobs and Weber2010: 624). Based on this iconographic trait, together with archaeological dating evidence for Rabana and Merquly (see ‘Parthian Ceramics’ below), it is possible to restrict the list of candidates to Parthian rulers of the first and second centuries a.d. Vonones II is credited with re-introducing the combination of tall hat and diadem on coinage after a century's hiatus (Sellwood Reference Sellwood1971: type 67). If a further distinction is made between tall hats with hanging ear-flaps and those without, as at Rabana-Merquly, only three kings wear this latter style of tiara on coins: Vologaeses II (Sellwood type 72), Pacorus II (Sellwood type 77), and Vologaeses III (Sellwood type 79) (Mathiesen Reference Mathiesen1992: 81). Side tiara adornments are not seen on coins of Pacorus II. Attribution of coins to Vologaeses II, a putative son of Vologaeses I, is problematic due to uncertainties regarding his reign (LeRider Reference LeRider1965: 174-75). It should be noted that some Arsacid kings (e.g. Vologaeses III) are depicted on different coin issues both with and without a tiara. The tall hat is not associated with rulers of Adiabene, who are only shown on coins wearing the satrapial style of tiara (Marciak and Wójcikowski Reference Marciak and Wójcikowski2016).

An important stylistic trait of the Rabana-Merquly rock-reliefs is their depiction of figures in three-quarter view, which can be seen in the visibility of two eye sockets and both sides of the chest. This halfway transition from profile to frontality is characteristic of sculpture during the Middle Parthian period (c. a.d. 1-150) (Mathiesen Reference Mathiesen1992: 27-28; Schlumberger Reference Schlumberger and Yarshater1983: 1050-51). The closest source for comparison in terms of style, composition and geography is the rock-relief from Batas-Herir 50 kilometres north-east of Erbil (cf. Zamua Reference Zamua2009). This larger sculpture similarly depicts a male figure in ceremonial dress with his right arm raised. Significant differences include the satrapal tiara, profile perspective, and rectangular double border, all of which hint at a relatively early date. The Batas-Herir figure also holds a spear or staff in his left hand. Various periods for the Batas-Herir rock-relief have been suggested, ranging from the first half of the second century b.c. (Grabowski Reference Grabowski2011) to the mid-first century a.d. (Boehmer and von Gall Reference Boehmer and von Gall1973).

Parthian Ceramics

Excavation of the stone staircase at Rabana in 2017 produced a small homogenous ceramic assemblage that can be dated to the Parthian period. Most of the pottery consists of storage jar sherds. A distinctive feature is the coarse fabric of the paste, which is mainly gritty or mineral tempered by medium to large size inclusions of orange, gray, white, black and yellow colors, mixed with non-levigated clay. A few sherds are coated with bitumen on their interior faces, indicating that these jars were used for storing liquid. Very few cooking ware sherds were present, likely reflecting the non-domestic context under investigation.

Three large pithos rims were found, with a square-banded profile and the upper part of the lip deliberately pressed down to accommodate a lid (Fig. 11A). The coarse exterior surface of the rim and body was smoothed with a clayey layer, tempered with medium to large size white mineral inclusions. These rims are decorated with horizontal and wavy incised lines under the lip on the exterior. Body sherds from the same pithos are decorated with applied cords.

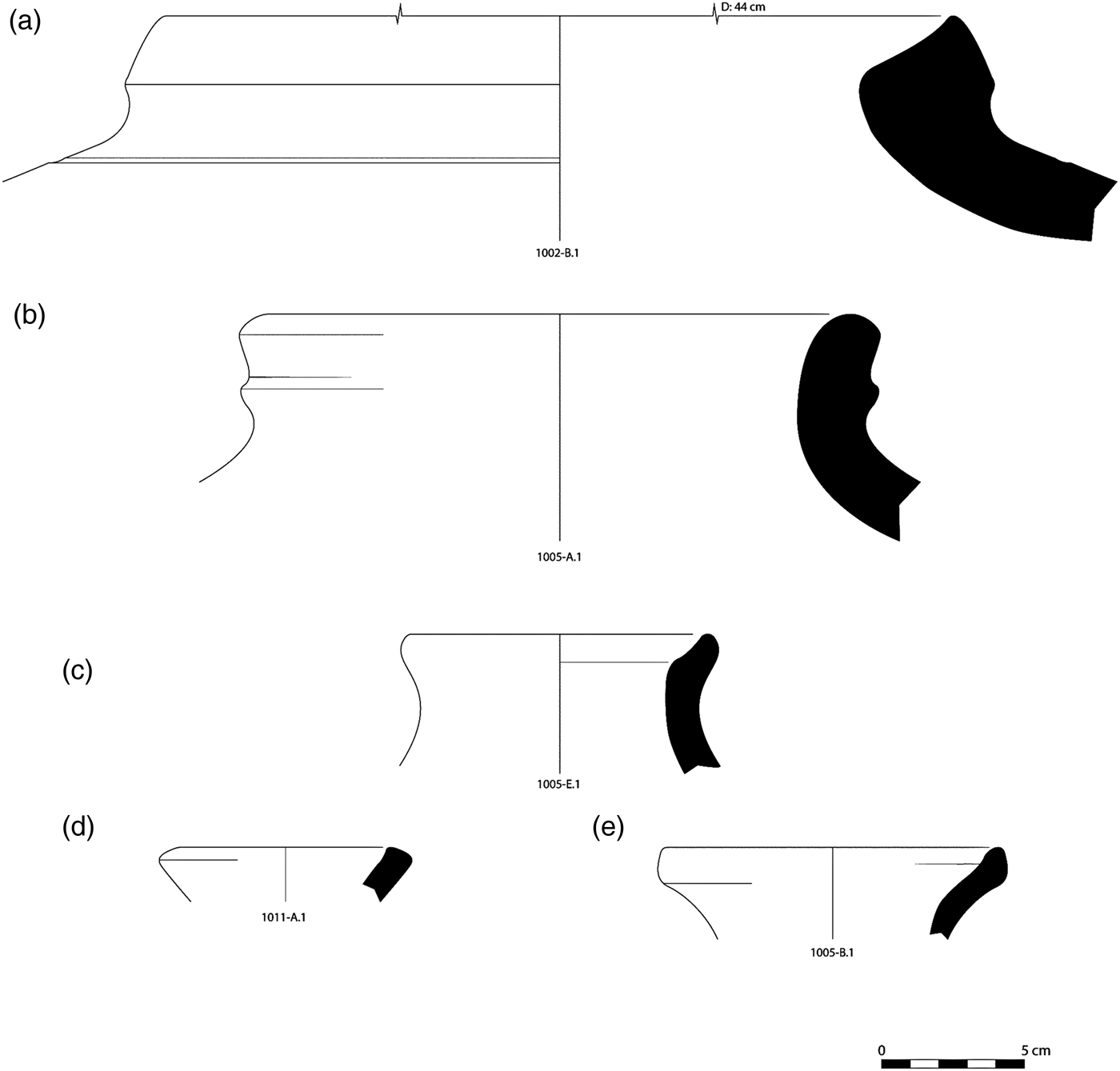

Fig. 11

Parthian ceramics from Rabana (drawings by M. Ahmad).

An exceptional storage jar rim has an over-rolled grooved profile (Fig. 11B). This form first appears in the Hellenistic period at Hatra (Venco Ricciardi Reference Venco Ricciardi1997: fig. 4.47, 49, 53) and Nimrud (Oates and Oates Reference Oates and Oates1958: pl. XXV.5-6) and continued into the Parthian era at Assur (Hauser Reference Hauser1994: pl. 155d-f) and Tell Barri (Palermo Reference Palermo, Matthews and Curtis2010: fig. 2a), with variations mainly in fabric. Our rim is dated to the Parthian period and has a gritty fabric with angular large brown minerals.

Two rims from bottles were recovered (Fig. 11C, E). A parallel for these is known from Parthian Assur (Hauser Reference Hauser, Bartl and Hauser1996: fig. 6d), and this type of rim is commonly found in Parthian levels at Iranian sites such as Qeshm Island (Khosrowzadeh Reference Khosrowzadeh2014: fig. 10.1-5). Two further discrete concentrations of pottery have a distinct sand-tempered fabric with fine mineral inclusions (Fig. 11D). This material potentially dates from the Parthian to early Sasanian periods.

The range of ceramics found so far at Rabana compares well with material from Merquly, where several Parthian and transitional Partho-Sasanian types were also identified (Saber et al. Reference Saber, Rejeb and Altaweel2014: 236-41). Of particular chronological significance are green-glazed ceramics from Merquly, diagnostic examples of which can be dated to between the first and third centuries a.d. based on Mesopotamian and Iranian parallels (Assur: Hauser Reference Hauser1994: pls. 136a, 225c-h; Seleucia on the Tigris: Debevoise Reference Debevoise1934: figs. 141-143, 180; Iran: Haerinck Reference Haerinck1983: pl. IV.3 (after Ghirshman Reference Ghirshman1962: 112, fig. 133a); Qeshm Island: Khosrowzadeh Reference Khosrowzadeh2014: fig. 8). Further excavation at Rabana, combined with comparative re-analysis of the ceramics from Merquly, is required to clarify the respective chronology of these assemblages.

The Parthian Frontier and the Persian Royal Road

The physical topography of southern Iraqi Kurdistan is defined by the Lower Zab and Diyala (or Sirwan) rivers respectively to the north and south, the Mesopotamian lowlands in the west, and the Zagros Mountains to the east. Passage through this landscape is structured by four broadly parallel foothill and mountain ranges (Bazian + Qara Dagh – Baramand – Piramagrun – Azmar + Kurhakazhaw + Avroman) running NW-SE. These are punctuated by a series of passes and river tracks. The focus of occupation in ancient and modern times is the Tanjero river valley, the wider southern half of which is known as the Shahrizor plain. The intermontane area adjacent to Rabana-Merquly, roughly defined by the western flank of Mt. Piramagrun together with the Charmaga and connecting Surqawshan river valleys, is a northern extension of this system.

In the early first millennium a.d., the combined region most probably corresponds to a western sub-division of greater Media (Radner in Altaweel et al. Reference Altaweel, Marsh, Mühl, Nieuwenhuyse, Radner, Rasheed and Saber2012: 15), which first came under Arsacid control in c. 148-141 b.c. when its capital Ecbatana (modern Hamadan) was conquered by Mithridates I (r. 171-139/8 b.c.). North-west of Media was the kingdom of Adiabene, the core territory of which surrounds its capital Arbela (modern Erbil) between the Upper and Lower Zab rivers. Although the Parthian conquest of Adiabene is not explicitly recorded in ancient texts, this vassal kingdom is known to have been under Parthian control from the time of Mithridates II (r. 124/3-88/7 b.c.) (Marciak Reference Marciak2017: 346-47). At various points during the ensuing three centuries of Arsacid dominion, the naturally defined border between Adiabene-Media (and Sittakene), which ran along the Lower Zab (classical Kapros) towards the Tigris, became a contested frontier between oriental and occidental powers. Specific instances include the abortive Parthian attack led by Vologaeses I on their rebellious vassal Adiabene under Izates II in a.d. 51, an unsuccessful Armenian invasion of Adiabene by Tigranes repulsed with Parthian support in a.d. 61, and Trajan's capture of Adiabene in a.d. 115 followed by Parthian resistance (Debevoise Reference Debevoise1938: 177-78; 185-87; 230-31).

It has been conversely proposed by Amedie and Zamua (Reference Amedie and Zamua2011: 236) that Rabana-Merquly could represent a southern extension of Adiabene. Although the twin fortresses undoubtedly lay close to the border, this alternative hypothesis should arguably be rejected on the basis that the headgear depicted in the rock-reliefs favours an Arsacid attribution. In addition, while Adiabene annexed territory north of the Upper Zab during the later first century b.c. – earlier first century a.d. at the expense of neighbouring Gordyene (Marciak Reference Marciak2017: 270-71), it is important to note that this expansion occurred within the context of at least nominal Parthian overlordship and is thus less likely to have encompassed lands south of the Lower Zab that presumably belonged to Media and by extension the Parthian Empire.

Traditional overland communications in southern Iraqi Kurdistan are summarised by Levine (Reference Levine1973: 10-14). During the Parthian period, most travellers coming from Arbela would have crossed the Lower Zab at Altun Kopri (Nováček Reference Nováček, Kopanias and MacGinnis2016: 270-71), entering the Charmaga-Tanjero valley through the Bazian and Tasluja passes. At various points in its history the Bazian pass is recorded as being fortified (Amin Ali and Deroche Reference Amin Ali, Deroche, Kopanias and MacGinnis2016: 11-12). This route would have connected Rabana-Merquly with the Royal Road between Sardis and Susa (Graf Reference Graf, Sancisi-Weerdenburg, Kuhrt and Root1994: 179). Those continuing south towards the Parthian winter capital at Ctesiphon along the western flank of the Bazian ranges could have crossed the Diyala river either by boat (Herodotus 1.189, 5.52; Godley Reference Godley1920) or via a precursor of the Sasanian era bridge near Jalula (Le Strange Reference Le Strange1905: 62), where the Royal (later Khorasan) Road also turns east towards the Parthian summer capital of Ecbatana via the Zagros Gates. This strategically important pass was overlooked by a fortified complex of Late Parthian date 12 kilometres to the northeast at Qal'eh-i Yazdigird (Keall Reference Keall1977; Reference Keall1982). The valley entrance at Sar-i Pol-i Zohab is marked by a series of rock-reliefs, including one depicting an unknown Parthian King (Mathiesen Reference Mathiesen1992: 176-77). In both respects, this broadly contemporary settlement landscape bears conceptual comparison with that of Rabana-Merquly.

Alternative more direct routes into the Persian interior from Arbela, bypassing the defences of the Zagros Gates, are possible through southern Iraqi Kurdistan (Fig. 12). A second minor crossing over the Lower Zab further east at Arzlu was mapped by Speiser (Reference Speiser1926-7: 23, 42), connecting with a path running above the right bank of the Surqawshan river. South of Rabana-Merquly two possible routes lead towards Kirmanshah on the Royal Road; down through the Sharizor plain to Halabja, and then up via the mountains into Iran; or through the Goyzha pass towards Lake Zeribor, running along the foothills of the Avroman Dagh. The antiquity of this latter way is demonstrated by the ‘Avroman Parchments’ of Parthian date, discovered in a cave at Kuh-e Salan on the Iranian side of the mountain (Edmonds Reference Edmonds1952). A comparable network of Sasanian fortifications regulating overland passage at Bazian – Merquly(?) – Sitak – Kazhaw has been proposed by Tamm et al. (Reference Tamm, Fassbinder, Fink, Borsdorf, Davtyan, Schmalenberger, Stier, Einwag and Ottoin press).

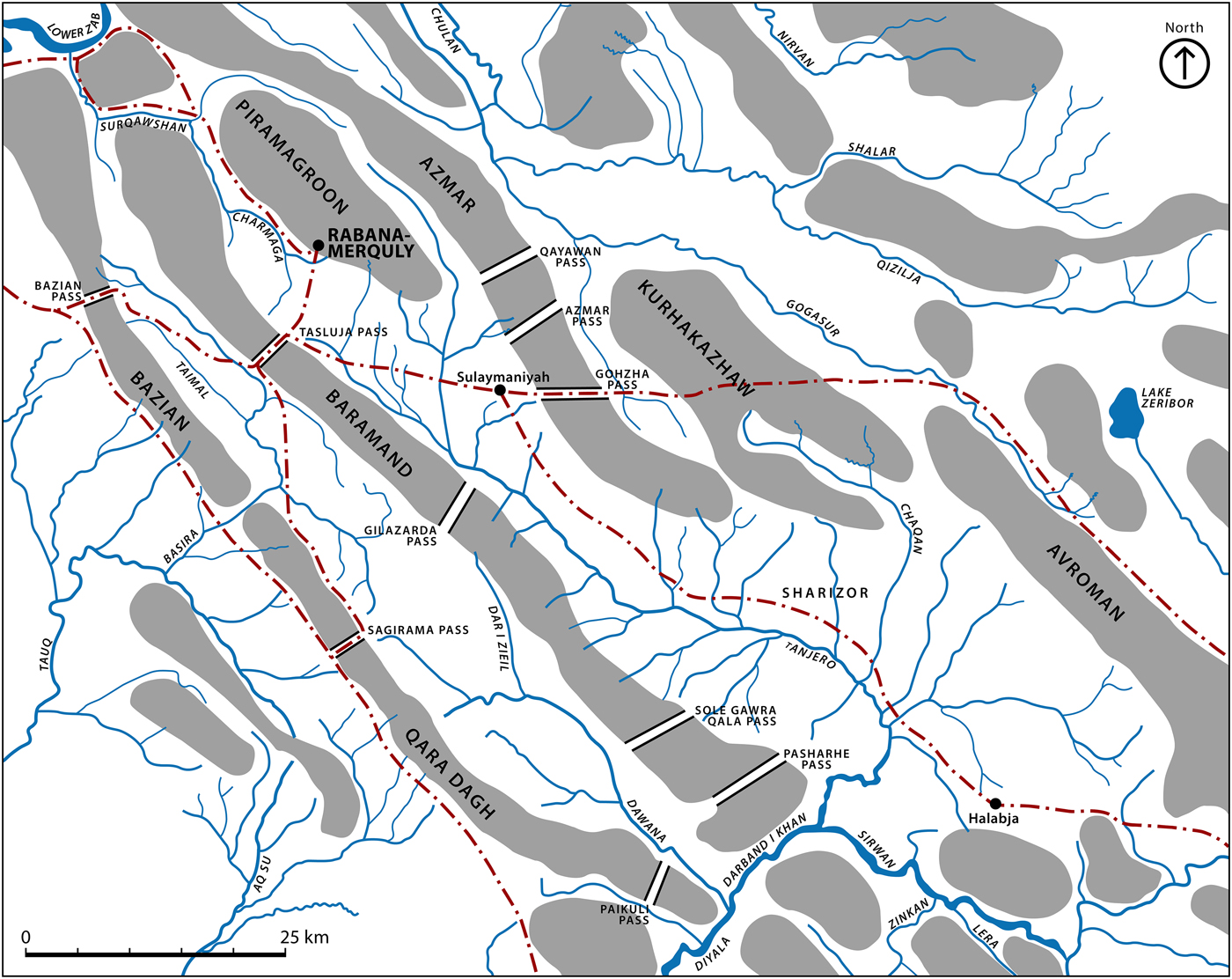

Fig. 12

Overland communications in southern Iraqi Kurdistan with routes mentioned in the text (map after Levine Reference Levine1973: 11).

The potential vulnerability of Media to invasions emanating from the west during the later Parthian period offers a plausible explanation for the construction of fortifications on Mt. Piramagrun. Commanding views from the high towers at Rabana and the citadel at Merquly suggest that the position of these settlements related to controlling access into the Charmaga-Tanjero valley, providing their occupants with forewarning of an attack. A hypothetical frontier garrison stationed at Rabana-Merquly would have been well placed to respond to threats involving its immediate neighbour Adiabene, restive hill tribes, and Parthian possessions in Babylonia.
