2.1 Graphical syntax

This section will present the equational theory of interacting Hopf algebras (Zanasi, Reference Zanasi2015) from which graphical linear algebra is based upon (Baez & Erbele, Reference Baez and Erbele2015; Bonchi et al., Reference Bonchi, Holland, Pavlovic and Sobocinski2017). It has been applied (and adapted) in a series of papers (Bonchi et al., Reference Bonchi, Sobociński and Zanasi2014, Reference Bonchi, Sobocinski and Zanasi2015, Reference Bonchi, Holland, Pavlovic and Sobocinski2017, Reference Bonchi, Piedeleu, Sobociński and Zanasi2019) to model signal flow graphs, Petri nets and non-passive electrical circuits. In this paper, however, the aim is to elucidate its status as a notation for linear algebra.

(2.1)

The graphical syntax is built from a series of initial diagrams (or symbols) called generators, shown in (2.1); diagrams can be combined according to two rules ( $;$ and $\times$ ) to form bigger diagrams. Semantically, each diagram canonically represents a linear relation (this will be better explained in Section 2.2), and the rules $;$ and $\times$ in diagrammatic notation correspond, respectively, to relational composition and cartesian product, as in Definition 2.

We use to denote a generic diagram with m wires on the left and n wires on the right (the chamfered edge on the right is necessary because eventually we will need to start “flipping diagrams horizontally”, so it is important to retain directional information).

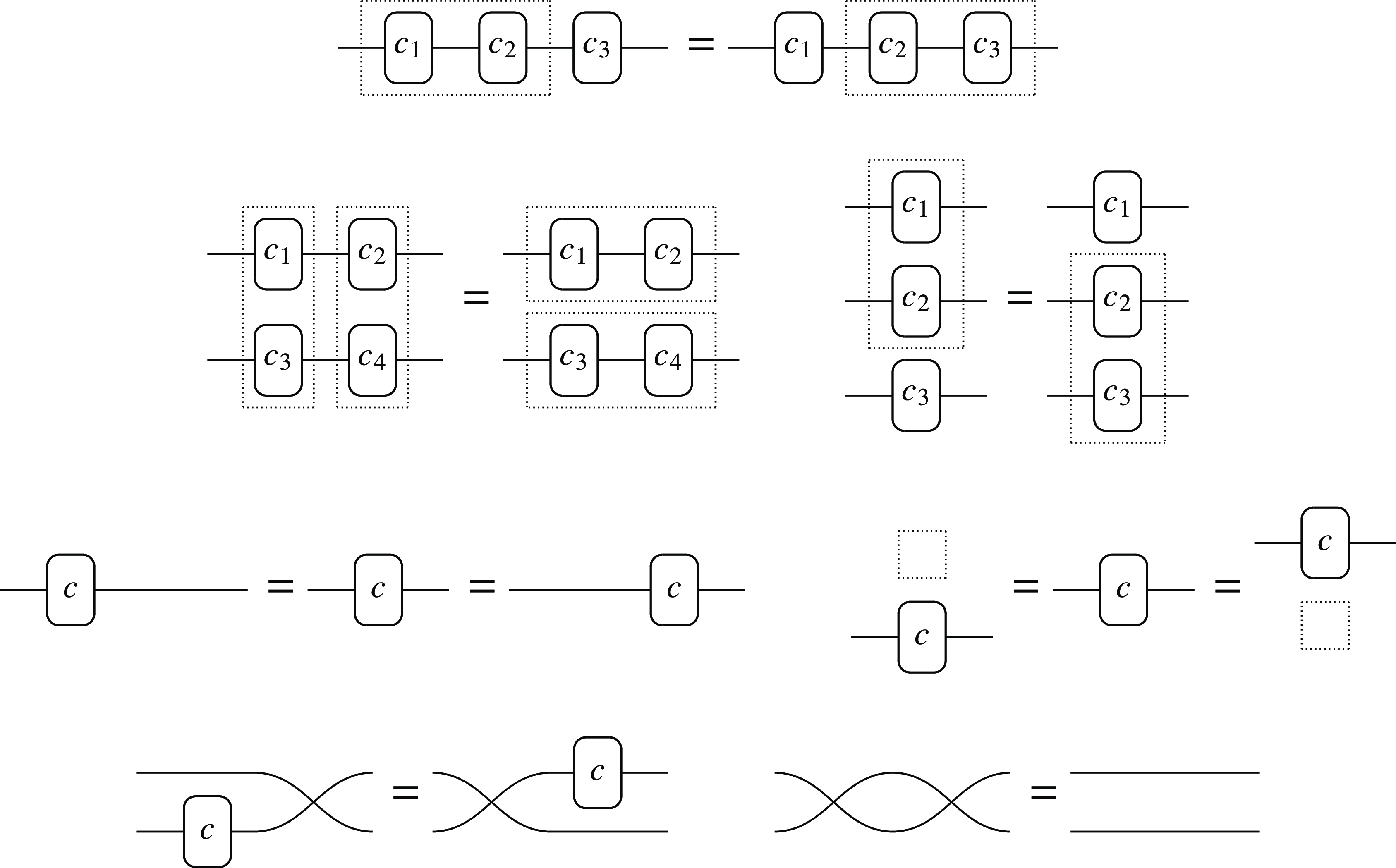

Definition 5 (Composing diagrams). The operations ; and × correspond to, respectively, attaching diagrams horizontally and vertically.

Notice that, similar to relational composition, to compute , R and S have to be compatible: the number of right-wires of R must be the same as the number of left-wires of S.

Example 2. The composition is ill-typed because the diagrams are incompatible (the first has one right-wire, whereas the second has two left-wires). The composition below, however, is valid.

Example 3. The operation $\times$ corresponds to stacking diagrams vertically. It can always be performed regardless of compatibility conditions.

Example 4. Here is a more complicated example of composition.

The last example above showcases a method of combining two diagrams into a bigger one which we named . This process can be continued inductively for any number of steps, forming what we call a generalized generator, written , for any $n \in \mathbb{N}$ . There are analogous constructions for each generator, as defined below.

Definition 6 (Generalized generators).

(2.2)

(2.3)

(2.4)

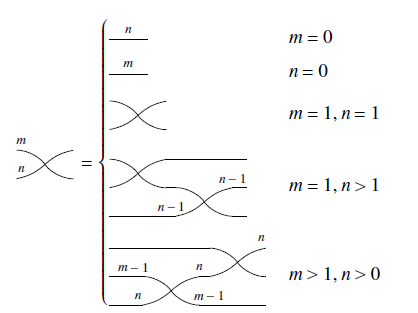

(2.5)

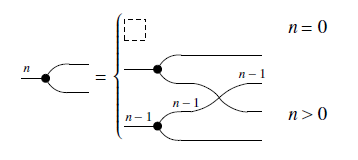

The constructions for and are what one might expect. For example, is the same as , but swapping the colors from black to white in the inductive definition. Similarly, is the same as but flipping the diagrams horizontally. This sort of double-symmetry (color-swapping and horizontal-flipping) is recurrent in GLA. For instance, the Theorem below is stated only for and , but the corresponding properties for the other generators can be readily guessed correctly.

Theorem 1. The types defined in Definition 6 are closed by the following operations.

(2.6)

(2.7)

(2.8)

(2.9)

These higher-order structures help simplify notation, especially when defining certain types of diagrams inductively, like matrices (see Definition 9).

Example 5. Here’s an example of how generalized generators compose with other diagrams.

By abuse of notation, we often omit the numbering on the wires when they are irrelevant or can be inferred from the given data.

2.2 Translating graphical notation to pointwise notation

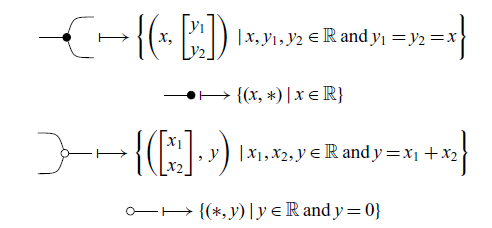

In the graphical notation, each diagram semantically corresponds to a linear relation. The translation of diagrams to pointwise notation is compositional and translates their semantic meaning – the meaning of a compound diagram is calculated from the meanings of its sub-diagrams. Here there is a connection with relational algebra, the two operations of diagram composition are mapped to the standard ways of composing relations: relational composition and cartesian product. In fact, the translation of diagrams to pointwise notation can be viewed as a functor from the category of diagrams to the category of linear relations over $\mathbb{R}$ . Given that all diagrams are built from composing smaller diagrams, it suffices to show how to translate the generators.

The generators and are, respectively, the opposite of the relations above, as hinted by the symmetric graphical syntax. Its interpretation in pointwise notation is therefore trivial.

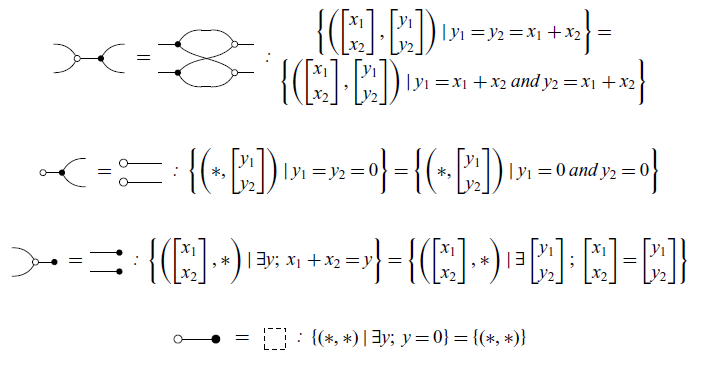

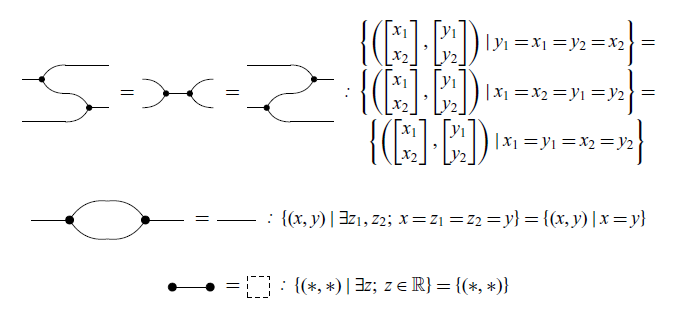

Intuitively, the black ball in diagrams refers to copying and discarding – indeed is copy and is discard. Meanwhile, the white ball refers to addition in $\mathbb{R}$ – indeed is add and is zero.

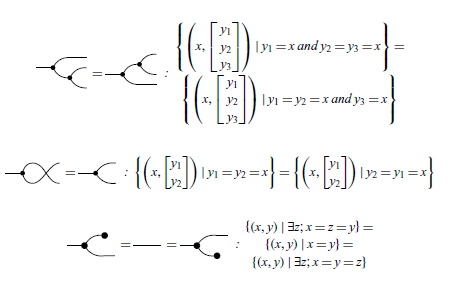

Example 6. Here’s an example of how to translate a more complicated diagram. The intuitive way to think about diagrams is like a series of logical gates, where the input starts on the left and flows to the right via the wires. In the image below we include some variable names $x_1, x_2, x_3, y_1, y_2$ (which are not wire numberings) to aid comprehension.

By visualizing the $x_i$ ’s flowing to the right, we can see $x_2$ is discarded and $x_3$ is copied. One of the copies is passed to $y_1$ while the other is added with $x_1$ to form $y_2$ . So $y_1 = x_3$ and $y_2 = x_1 + x_3$ . Thus, written in pointwise notation this diagram corresponds to the relation

$$\left\{\left(\begin{bmatrix}x_1\\x_2\\x_3 \end{bmatrix},\, \begin{bmatrix}y_1\\y_2 \end{bmatrix}\right) \in \mathbb{R}^3 \times \mathbb{R}^2 \;|\; y_1=x_3 \text{ and } y_2=x_1+x_3 \right\}.$$

For the purpose of simplifying the notation, sometimes in this paper, the inclusion “ $\in \mathbb{R}^3 \times \mathbb{R}^2$ ” will be omitted and diagrams such as the one presented above will be written in pointwise notation as follows.

$$\left\{\left(\begin{bmatrix}x_1\\x_2\\x_3 \end{bmatrix},\, \begin{bmatrix}y_1\\y_2 \end{bmatrix}\right) \;|\; y_1=x_3 \text{ and } y_2=x_1+x_3\right\}.$$

2.3 Scalars, matrices and other constructions

We’ve seen that linear transformation (or linear maps) can be thought of as special cases of linear relations. This section explains some basic types of maps which will be used throughout the paper. The most basic linear map is scalar multiplication: given $a \in \mathbb{R}$ , one can define the map $[a] : \mathbb{R} \rightarrow \mathbb{R}$ given by $x \mapsto ax$ . In diagrammatic notation, we write it as the $1 \times 1$ curved diagram , always with a lowercase letter. Semantically

If we restrict ourselves to scalars in $\mathbb{Q}$ , any scalar multiplication can be built inductively from the generators. Below we define diagrammatically the maps [q] for $0 \leq q \in \mathbb{Q}$ .

Definition 7 (Scalars in $\mathbb{Q}$ ). For $a, b \in \mathbb{N}, b \ne 0,$

The maps corresponding to negative numbers can also be built, but defining $[-1]$ is somewhat confusing so we won’t delve further into this discussion. For more information, see Sobociński (Reference Sobociński2015). As a last note on scalars, if we work under an uncountable field such as $\mathbb{R}$ , there is no way to build all scalars from the generators for cardinality reasons. Hence, formally, one needs an uncountable amount of new generators with $a \in \mathbb{R}$ .

Aside from scalars, another important construction is that of a matrix. In the graphical language, a matrix is considered a linear transformation built inductively from the generators in a way that resembles the column-by-column construction of classical block matrices. More concretely, here’s an inductive definition of a matrix in the usual sense.

Definition 8 (Matrix, column-by-column).

\begin{equation*} A_{n \times m} = \begin{cases} [a] & m=1,n=1,\\ \begin{bmatrix}A^{r_1}_{1 \times 1} \\ A^{r_2}_{n-1 \times 1} \end{bmatrix} & m=1,n>1,\\ \begin{bmatrix}A^{c_1}_{n \times 1} & A^{c_2}_{n \times m-1} \end{bmatrix} & m>1,n>1. \end{cases} \end{equation*}

We can mimic this definition in diagrammatic notation.

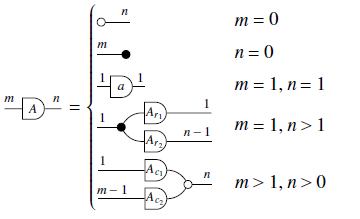

Definition 9 (Matrix in GLA).

Except for the two first cases, which account for diagrams with zero left/right wires, the different cases in the graphical definition are exactly the different cases in the usual, column-by-column definition. Notice that we write a matrix as a curved diagram, in order to distinguish them from ordinary relations. We write a matrix with lowercase letters if and only if it is a $1 \times 1$ matrix, i.e. a scalar.

Example 7. The triangular matrix $\begin{bmatrix}2 & 3\\ 0 & 1\end{bmatrix}$ can be written in graphical syntax as

However, this diagram presents an inefficient coding for the given matrix and can be simplified based on the Axioms and Theorems that will be exposed below.

We also mentioned in the Introduction that subspaces are special cases of linear relations. They can be thought of as relations $R \subseteq V \times W$ where $V = \{*\}$ is the zero-dimensional space. In diagrammatic notation, these correspond to the diagrams with 0 wires on the left. We write them as . Given a matrix $A_{n \times m}$ , some familiar subspaces are (the image of A) and (the kernel of A). With these, we can define surjectivity and injectivity graphically.

In fact, as a side note, linear transformations can be defined as linear relations satisfying and . If these equations hold, we say the relation R is, respectively, single-valued and total (see Definition 11). It is not difficult to prove, under this definition, that matrices are linear transformations.

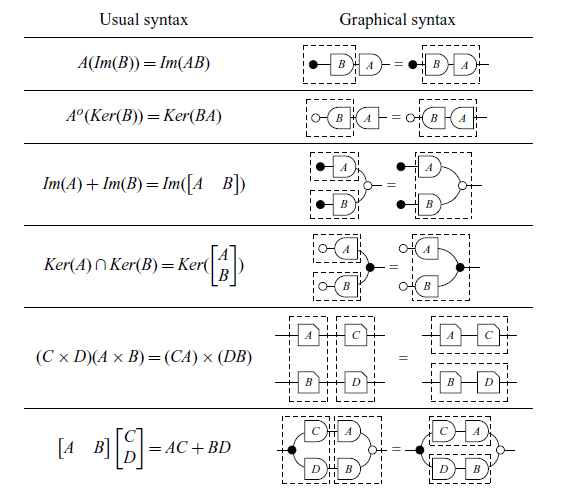

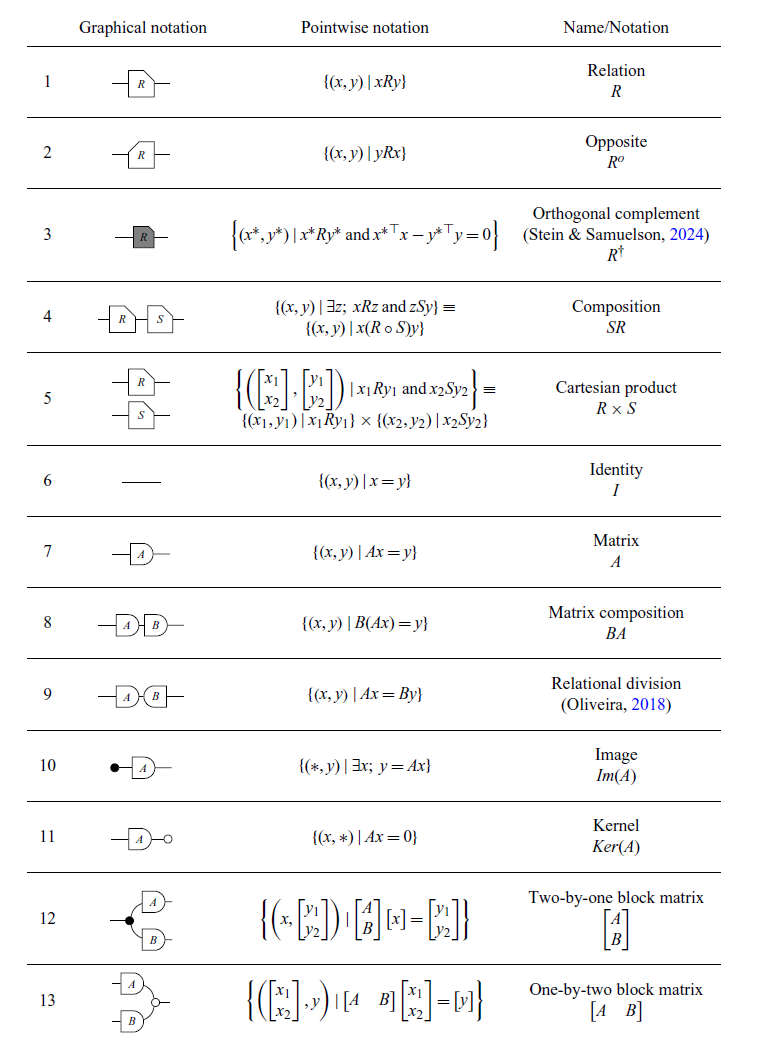

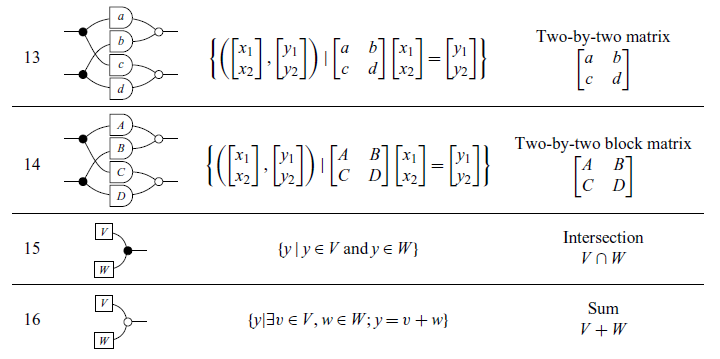

Tables 3 and 4 showcase some other constructions that will appear throughout the paper. Some new symbols are introduced: R,S denote mathematical relations; A,B,C,D represent matrices (linear transformations); a,b,c,d are real numbers; and V,W are subspaces. For simplicity, sometimes we write the expression $(x, y) \in R$ as xRy. It is worth noting that the dagger symbol $R^\dagger$ used below is not the dagger that appears in the context of dagger categories. A proper inductive definition of the dagger is given in Definition 10, and it corresponds to the intuitive notion of color-swapping, i.e. transforming white nodes into black nodes and vice-versa.

2.4 Diagrammatic reasoning

Now we present the axioms and theorems that will be used for the remainder of the paper. It is worth noting that here there are just three of the axioms of GLA. The complete presentation of the axioms can be found at Paixão et al. (Reference Paixão, Rufino and Sobociński2022). Most proofs in this section will be omitted as they are not the focus of this work, but can be found in the same reference. The axioms and theorems are inspired by the notion of an Abelian bicategory as defined by Carboni & Walters (Reference Carboni and Walters1987). Here, two combinations of diagrams that play an important role are bialgebras and special Frobenius algebras (respectively, Theorems 2 and 3). As explained by Lack (Reference Lack2004), these are two canonical ways in which monoids and comonoids can interact.

Axiom 1 (Commutative comonoid). The copy diagram satisfies the equations of commutative comonoids, that is, associativity, commutativity and unitality, as given below:

In graphical notation, the diagrams are closed under two symmetries: the “Mirror-Image” and the “Color-Swap”.

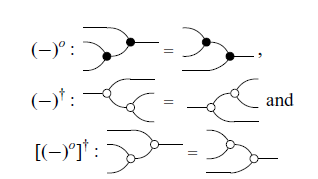

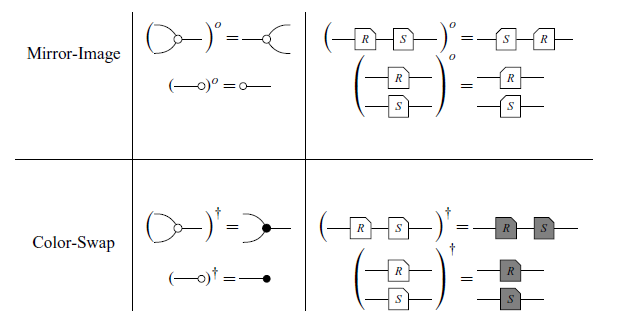

Definition 10 (Mirror-Image and Color-Swap). Mirror-Image (denoted by $(-)^o$ ) and Color-Swap (denoted by $(-)^\dagger$ ) are defined on the generators in the obvious way and extended recursively as follows:

Axiom 2 (Symmetries). We have the equivalences $R^o \subseteq S \iff R \subseteq S^o$ , i.e. in diagrams

and $R^\dagger \subseteq S \iff R \supseteq S^\dagger$ , or in diagrams

In Axiom 2, represents the diagram with inverted colors, where black circles turn white, and vice versa. Axiom 2 denotes a particularly relevant advantage of graphical notation. As an example, consider the axiom below.

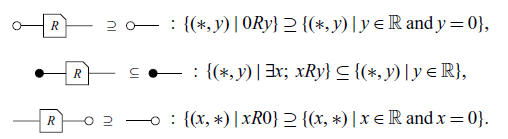

Axiom 3 (Discard).

Applying Axiom 2 to Axiom 3, we can assert that:

For equalities, this becomes even simpler. It can be assumed that each diagram has three other versions: the ‘mirror image,’ the ‘color swap,’ and both together. If an equation is valid, its other three versions are also valid. For example, from Axiom 1, it is known that the equality is true. Therefore, by Axiom 2:

are also true. When a result is proven, it will be assumed that the other three versions are also true, just referencing the original result. For example, all of the above statements will be denoted simply by Axiom 1.

Example 8. The triangular matrix diagram in Example 7 can be simplified using Axioms 1 and 2:

White and black diagrams act as bialgebras when they interact. This can be summarized by the following equations.

Theorem 2. (Bialgebra).

The white and black diagrams interact according to the rules of bialgebras. On the other hand, individually the white and black structures interact as (extraspecial) Frobenius algebras.

Theorem 3. (Frobenius Algebra). The following equations hold:

We now define the following important properties about linear relations.

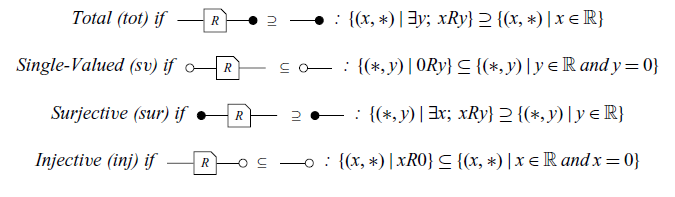

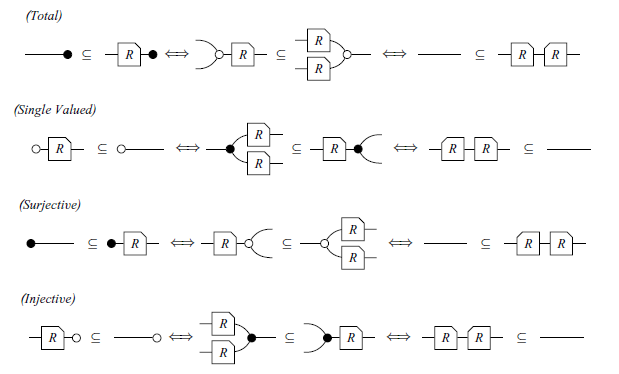

Definition 11 (Types of relations). The R relation is called:

Definition 11 has equivalent statements, summarised in the Theorem below:

Theorem 4. For every relation R, the following statements are equivalent:

Remark. A diagram is a map if it is total and single-valued. Also, a diagram is a Co-map if it is injective and surjective. In particular, a matrix is a Map.

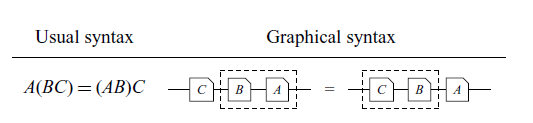

The other theorems relevant to this paper are summarized in Table 5. It is worth mentioning that the translations in pointwise notation presented are well-known theorems in linear algebra, which can be easily verified in a classical textbook, for example (Axler, Reference Axler1997; Strang, Reference Strang2009).

In Table 5, the dotted lines in some of the rows have no syntactic meaning and are included solely to visually illustrate the two ways in which the diagram in question can be semantically interpreted as it was done in introduction. For instance, the equation in row 18, which is a theorem in classical notation, implicitly holds true in the graphical syntax.

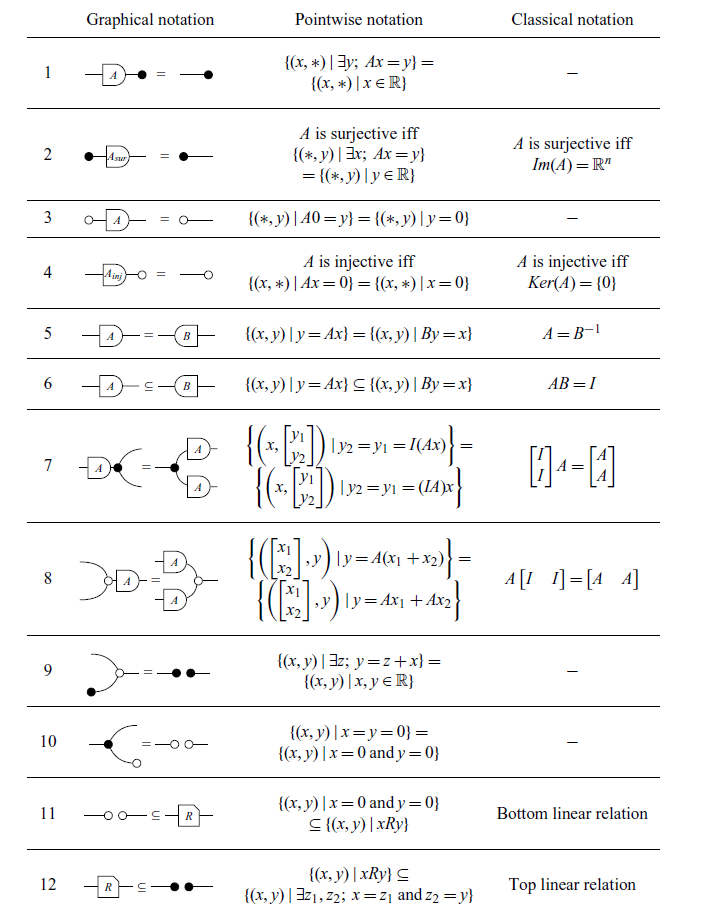

Table 5: Theorems, presented in the three different notations (Part 1).

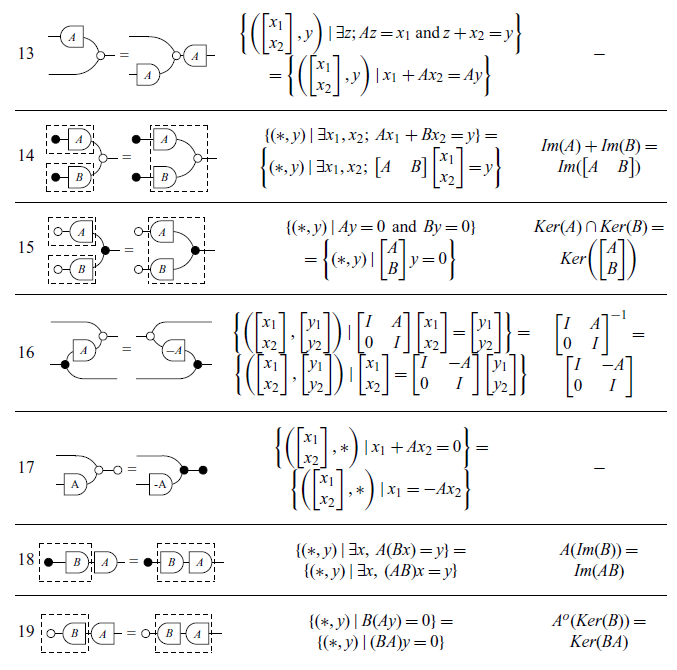

Table 6: Theorems, presented in the three different notations (Part 2).

Lastly, we state three additional Lemmas which will be useful in the next sections. Lemmas 1 and 2 will be used in the proof of the Zassenhaus’ algorithm (Theorem 9), while Lemma 3 will appear later, in the proof of the Exchange Lemma (Theorem 16). The reason for providing specific proofs of these three lemmas is to use them as examples of how Tables 3 and 5 can help in translating proofs from graphical notation into two other notations.

Lemma 1.

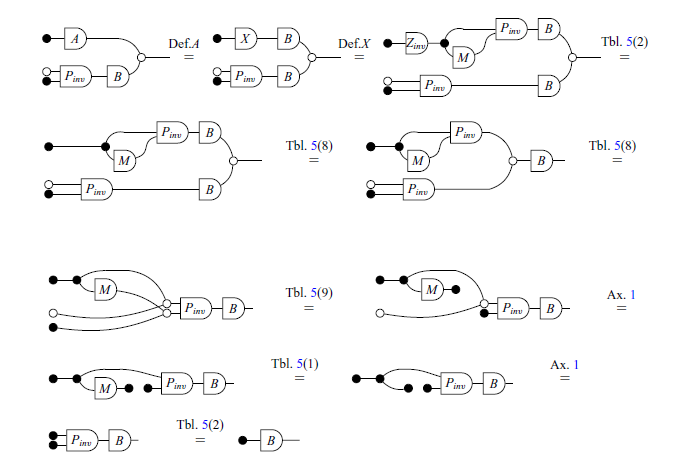

Proof

Lemma 2.

Proof

Lemma 3.

Proof

We can almost immediately obtain the same proofs (Lemmas 1, 2 and 3) in pointwise notation by systematically translating each step according to the Tables 3 and 5.

Lemma 4. (Lemma 1 in pointwise version).

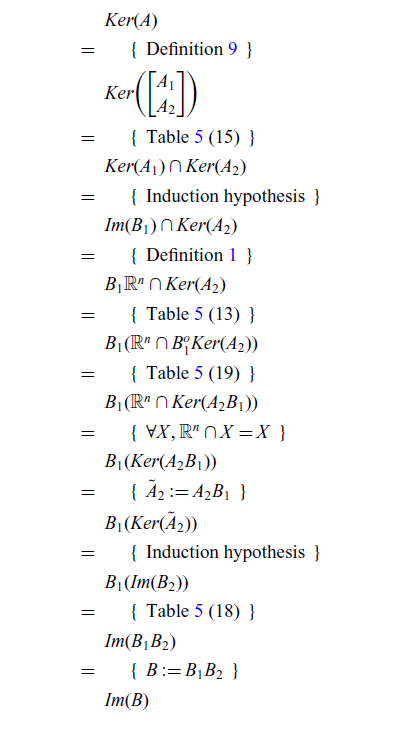

$$\left \{{ (*,y) \mid \exists} x_1,x_2;\; Ax_1=y \;\text{and}\;Bx_2=y \right \}=\left \{{ (*,y) \mid \exists} x_1,x_2;\; Ax_1=y \;\text{and}\;Ax_1=Bx_2 \right \}$$

Proof

Lemma 5. (Lemma 2 in pointwise version). Let A be a matrix, then

$$\left \{ \left ( \begin{bmatrix}x_1 \\x_2\end{bmatrix}, *\right ) \mid \exists z;\;Az=x_1\;\text{and}\;z+x_2=0 \right \}=\left \{ \left ( \begin{bmatrix}x_1 \\x_2\end{bmatrix}, *\right ) \mid x_1+Ax_2=0 \right \}$$

Proof

Lemma 6. (Lemma 3 in pointwise notation) Given two matrices $A_{n_1 \times m}$ and $B_{n_2 \times m}$ , then

$$Im{\left (\begin{bmatrix}A & 0\\B & I\end{bmatrix} \right )}=Im{(A)} \times\mathbb{R}^{n_2} $$

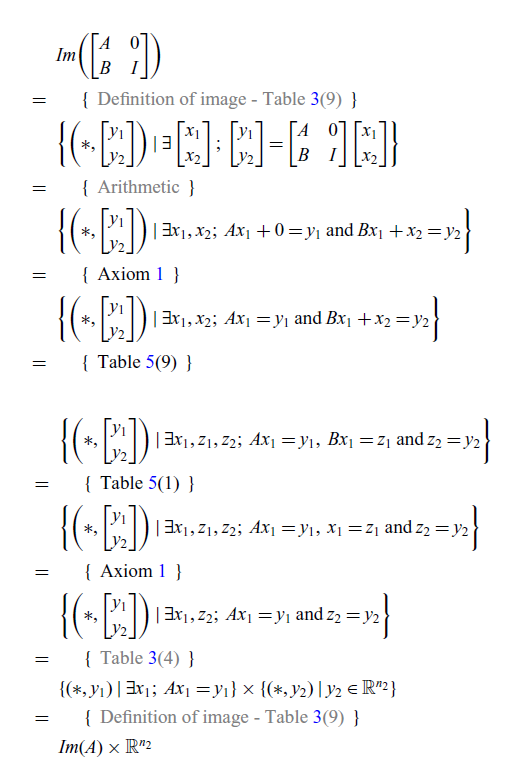

Proof

Note that in the proof of Lemma 6, some steps (gray letters) are needed in addition to those used in the graphical version (Lemma 3). In fact, this is quite common. Informally speaking, proofs in GLA often have fewer steps than their classical counterparts. There are two main reasons for this. The first is that, as seen in rows 14, 15, and 18 of Table 5, some non-trivial rules in the usual notation become implicitly true in GLA. The second is that the definitions of kernel and image do not require specific terminology; instead, they can be built from the pre-established fundamental symbols (zero, discard, and matrices).

3.1 Introductory example: finding the fundamental subspaces

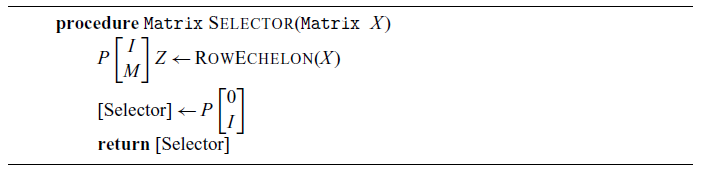

The algorithm presented by Beezer (Reference Beezer2014) determines bases for these four subspaces in a single calculation using Reduced Row Echelon Form (RREF) obtained through row operations. This algorithm can be stated as follows.

Theorem 5. (Bases for Fundamental Subspaces). For every matrix $A_{m\times n}$ , if there are surjective matrices C and L, a matrix K, and an invertible matrix X such that

\begin{equation*} \begin{bmatrix}A & I\end{bmatrix}=X\begin{bmatrix}C & K\\0 & L\end{bmatrix}\end{equation*}

the following equalities hold.

1. 1. $Im{(A^\top)}=Im{(C^\top)}$ ,

2. 2. $Ker{(A)}=Ker{(C)}$ ,

3. 3. $Im{(A)}=Ker{(L)}$ ,

4. 4. $Ker{(A^\top)}=Im{(L^\top)}$ .

Example 9. Let $A= \begin{bmatrix}1 & 1 \\1 & 2 \\1 & 3\end{bmatrix}$ . Then

See that the equations 1, 2, 3 and 4 of Theorem 5 hold:

1. 1. $Im{(A^\top)}=\left\{ \begin{bmatrix}1 \\1\end{bmatrix},\begin{bmatrix}1 \\2\end{bmatrix} \right\}=\mathbb{R}^2$ and $Im{(C^\top)}=\left\{ \begin{bmatrix}1 \\0\end{bmatrix},\begin{bmatrix}0 \\1\end{bmatrix} \right\}=\mathbb{R}^2$ ;

2. 2. $Ker{(A)}=Ker{(C)}=0$ ;

3. 3. $Ker{(L)}=\left\{ \begin{bmatrix}2\\1 \\0\end{bmatrix},\begin{bmatrix}-1\\0 \\1\end{bmatrix} \right\}=\mathbb{R}^3$ and $Im{(A)}=\left\{ \begin{bmatrix}1\\1 \\1\end{bmatrix},\begin{bmatrix}1\\2 \\3\end{bmatrix} \right\}=\mathbb{R}^3$ ;

4. 4. $Ker{(A^\top)}=Im{(L^\top)}=\left\{ \begin{bmatrix}1\\-2 \\1\end{bmatrix} \right\}$ .

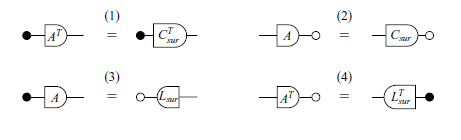

In graphical syntax, Theorem 5 takes the following form:

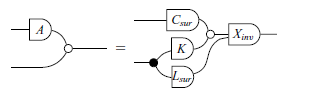

Theorem 6. (Bases for Fundamental Subspaces – Graphical version). For every matrix $A_{m\times n}$ , if there are surjective matrices C and L, a matrix K, and an invertible matrix X such that

then

We begin by exploring the proof of items 1 and 2.

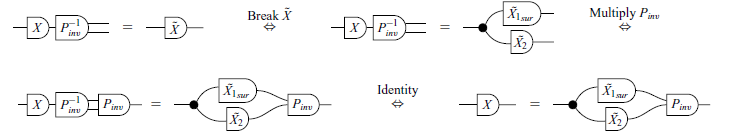

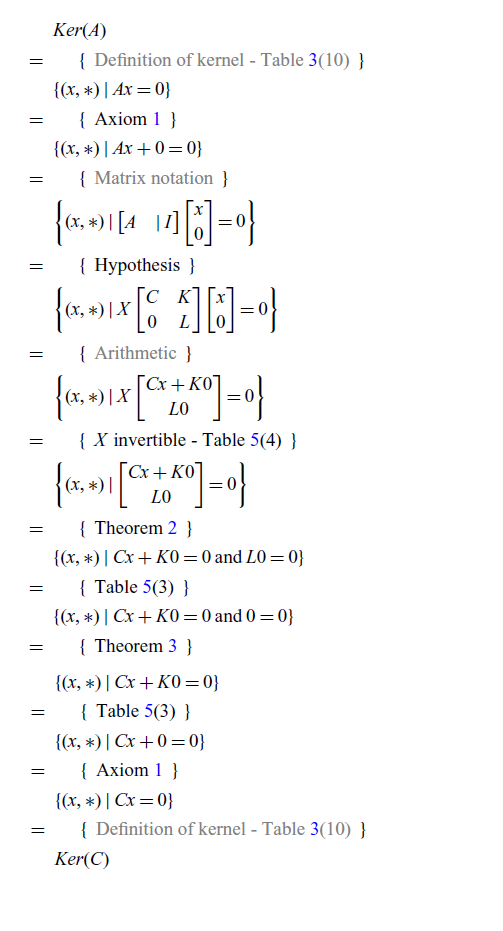

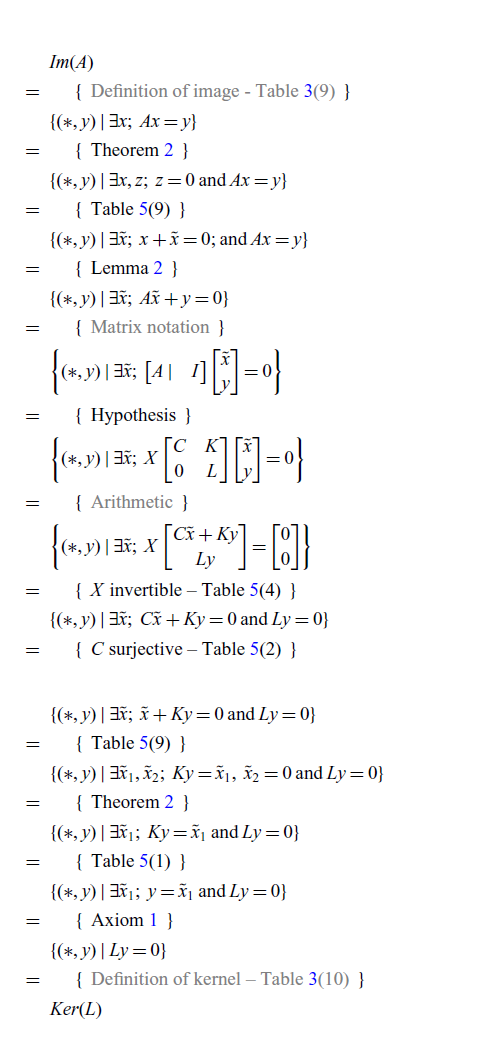

Proof of (2)

Proof of (1) It is proved by the Proof (2) and the Theorem 2.

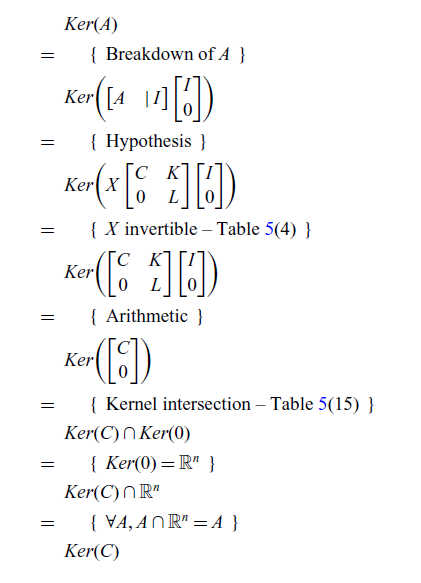

As seen in Section 2, each diagram has a semantic translation to pointwise notation. Therefore, based on the graphical proof above, we immediately obtain the following proof by translating each step systematically.

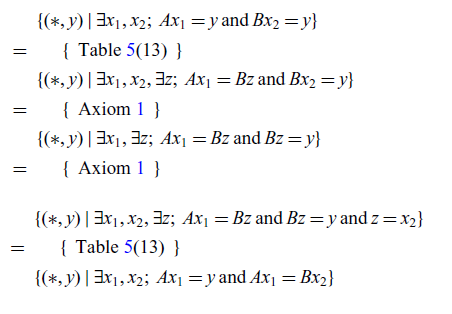

Proof of (2) [Pointwise version]

In a similar way, using Table 5 the same proof can be written in classical notation.

Proof of (2) [Classical version]

Now we prove items 3 and 4.

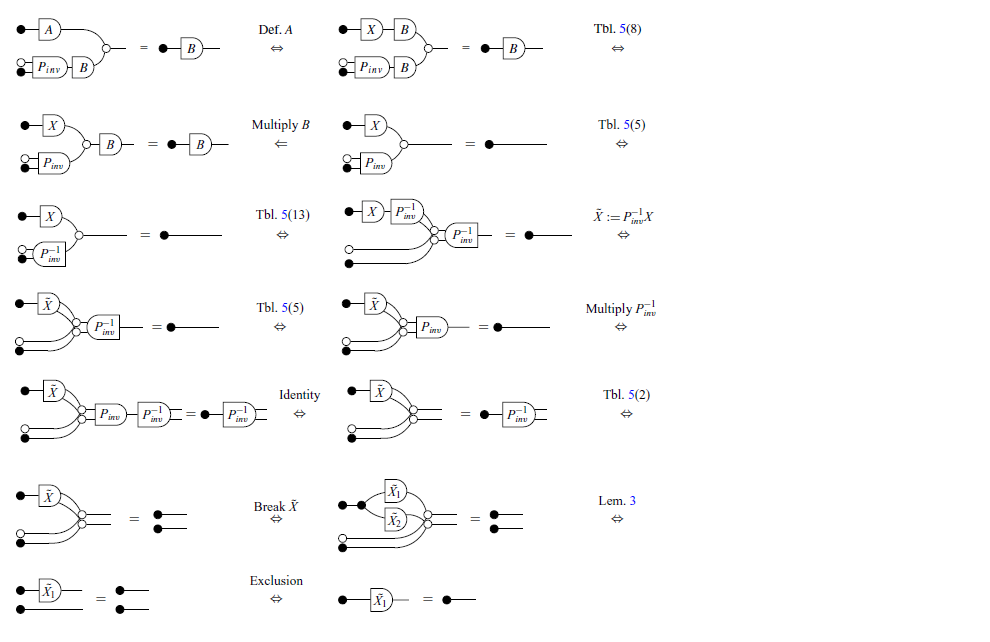

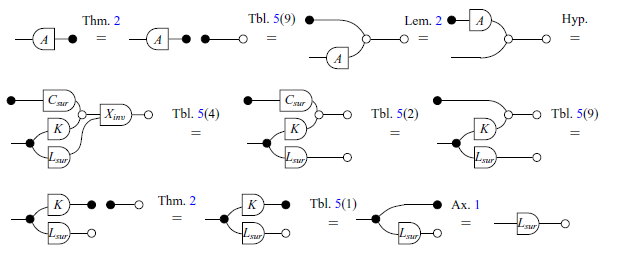

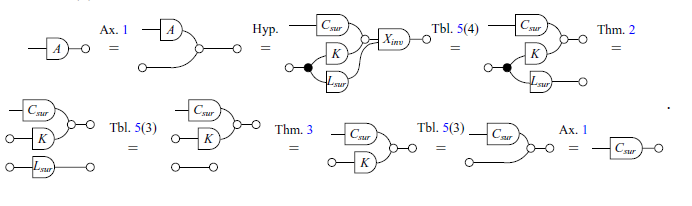

Proof of (3) [Graphical version]

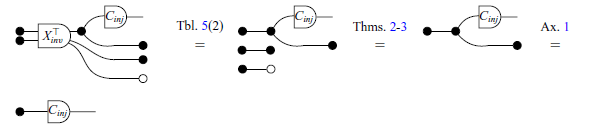

Proof of (4) [Graphical version]

It is proved by the Proof (3) and the Theorem 2.

Again, translating each step systematically, we obtain the proof in pointwise notation:

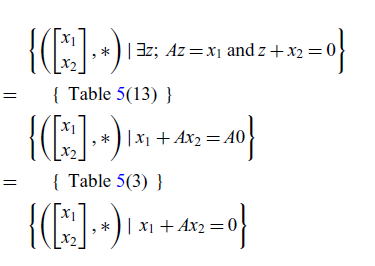

Proof of (3) [Pointwise version]

In this case, as shown in Table 5, some steps have no direct translations into classical notation. Hence, the following translation of the graphical proof relies on pointwise notation to fill in the gaps. Informally speaking, this often happens when multiple matrices interact with each other in a non-trivial way. The graphical language is expressive enough to handle these complex interactions without the need to introduce new symbols.

3.2 The Zassenhaus’ algorithm

The Zassenhaus algorithm is a well-known method that calculates a basis for the intersection and another for the sum of two subspaces of a vector space. According to Fischer (Reference Fischer2012), despite being attributed to Hans Zassenhaus (1912–1991), there is no publication of this algorithm in the mathematician’s works. However, there is a historical association regarding its application in Zassenhaus’ classic coffee grinder manufacturing company. This algorithm serves as a compelling example of how graphical syntax can be used to reason about linear subspaces.

Although there is published research exploring the Zassenhaus algorithm, the most widely available source is presented in Wikipedia contributors (2023), which describes the algorithm verbatim as presented in Appendix A.

The pointwise Wikipedia proof is using much subspace notation, has to define $\pi_1$ , ${\pi _{1}|}_{H}$ , has the word “obviously”, is full of indices to connect the matrices and subspaces, and uses dimension.

We begin by reformulating the algorithm as a theorem to make the assumptions clearer and write the proof in calculational style. In classical notation, the Zassenhaus algorithm, as presented by Wikipedia contributors (2023), can be summarized with the following theorem:

Theorem 7. For all subspaces A and B, if there are injective C and D, a matrix E, and invertible X, such that:

\begin{equation*}\begin{bmatrix}A^\top & A^\top\\B^\top & 0\end{bmatrix} =X \begin{bmatrix}C^\top & E^\top \\0 & D^\top \\0 & 0\end{bmatrix}\text{,}\end{equation*}

then,

1. 1. $Im(A) \cap Im(B) = Im(D)$

2. 2. $Im(A) + Im(B) = Im(C)$

Example 10. Let $A=\begin{bmatrix}1 & 0 \\-1 & 0 \\0 & 1 \end{bmatrix}$ and $B=\begin{bmatrix}5 & 0 \\0 & 5 \\-3 & -3 \end{bmatrix}$ . Then

Therefore

1. 1. $Im(A) \cap Im(B) = Im(D) = \left\{ \begin{bmatrix}1 \\-1 \\ 0\end{bmatrix}\right\}$

2. 2. $Im(A) + Im(B) = Im(C) = \left\{ \begin{bmatrix}1 \\0 \\ 0\end{bmatrix},\begin{bmatrix}0 \\1 \\ 0\end{bmatrix},\begin{bmatrix}0 \\0 \\ 1\end{bmatrix}\right\}=\mathbb{R}^3$

Note that the matrices are transposed because Wikipedia contributors (2023) formulate the matrix in blocks with row vectors. To facilitate notation, we will consider the block matrix in the following equivalent (transposed) form.

Theorem 8. (Zassenhaus). For all matrices A and B, if there are injective matrices C and D, a matrix E, and an invertible matrix X such that

\begin{equation*}\begin{bmatrix}A & B\\A & 0\end{bmatrix} =\begin{bmatrix}C & 0 & 0 \\E & D & 0\end{bmatrix}X^\top\text{,}\end{equation*}

then

1. 1. $Im(A) \cap Im(B) = Im(D)$ ,

2. 2. $Im(A) + Im(B) = Im(C)$ .

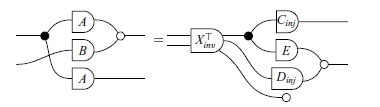

Similarly, this theorem can be expressed in graphical syntax.

Theorem 9. (Zassenhaus – Graphical version). For all matrices A and B, if there are injective matrices C and D, a matrix E, and an invertible matrix X such that

then

Let us rephrase the proof of the theorem using graphical syntax.

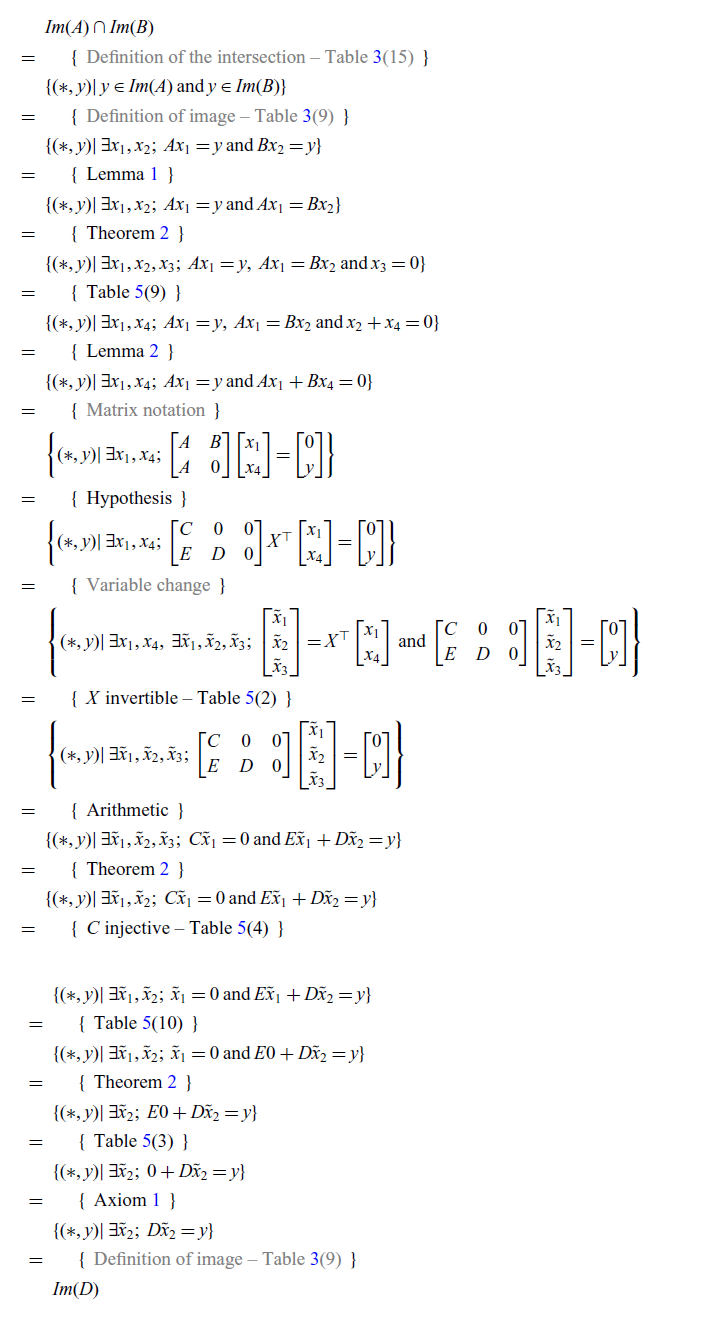

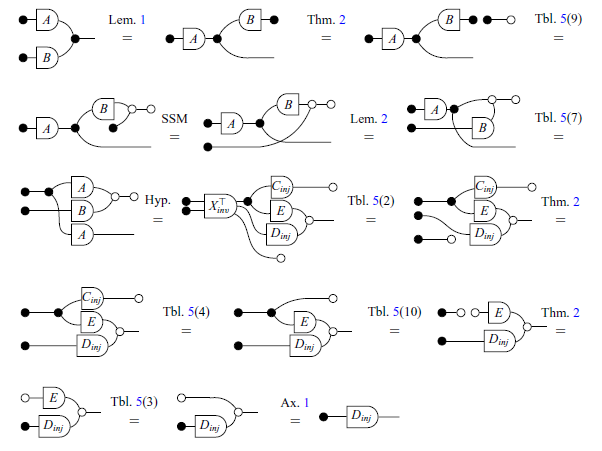

Proof of (1) [Graphical version]

Proof of (2) [Graphical version]

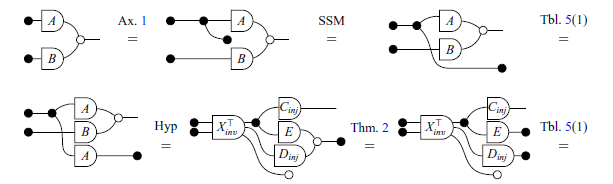

See that we have achieved a completely calculational and point-free proof. Moreover, the proof in graphical syntax serves as a guide to produce a new proof in pointwise notation (Appendix B).

4.1 Simple example: Right inverse of a wide triangular matrix

As an introductory example, we will discuss the problem of finding the right inverse of a wide triangular matrix.

Definition 13 (Recursive Wide Triangular Matrix/Classical notation). A wide triangular matrix $T_{m \times n}$ is recursively defined as

$$T_{m \times n}=\left\{\begin{matrix}T_{1 \times n}\; \text{is a non-zero vector,} & \text{if}\;m=1 \\\begin{bmatrix}T_{11} & T_{12}\\0 & T_{22}\end{bmatrix}, & \text{if}\;m>1\end{matrix}\right. $$

where $T_{12}$ is a matrix and $T_{11}$ and $T_{22}$ are smaller wide triangular matrices.

This definition is almost like that of a triangular matrix, but it allows for more columns than rows. Note that it is tricky to define this matrix non-recursively. This definition leads to matrices that are surjective but not necessarily injective. In fact, every matrix constructed by the above recursive rule is surjective. Below, we present a proof by verification in classical notation.

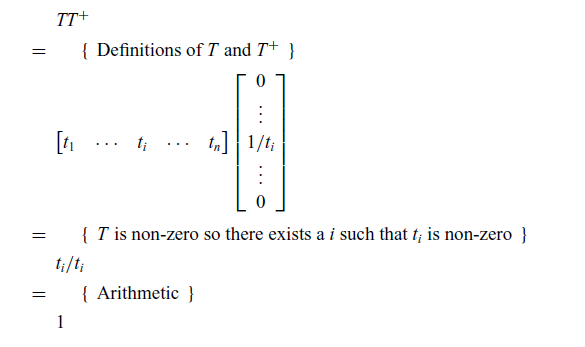

Theorem 10. (Verification/Classical version). Let T be a wide triangular matrix, then T has a right inverse $T^+$ . In other words, there exists an $T^+$ such that $TT^+= I$ and

$$T_{m \times n}^+=\left\{\begin{matrix}\begin{bmatrix}0 & \cdots & 1/t_i & \cdots & 0\end{bmatrix}^\top & \text{if}\;m=1 \\ \\\begin{bmatrix} T_{11}^{+} & - T_{11}^{+} T_{12} T_{22}^{+} \\ 0 & T_{22}^{+} \end{bmatrix}, & \text{if}\;m>1\end{matrix}\right.$$

For the inductive step, consider T in blocks as in the recursive definition.

Example 11. The matrix $T=\begin{bmatrix}3 & 2 & 3 & 4 \\0 & 5 & 2 & 1 \\\end{bmatrix}$ is wide triangular. So $T_{11}^+=\begin{bmatrix}1/3\end{bmatrix}$ , $T_{22}^+=\begin{bmatrix}1/5 & 1/2 & 1 \\ \end{bmatrix}^\top$ and

\[T^+=\begin{bmatrix}1/3 & -59/30 \\0 & 1/5 \\0 & 1/2 \\0 & 1 \\\end{bmatrix}.\]

Note that $TT^+=\begin{bmatrix}1 & 0 \\0 & 1\end{bmatrix}$ . Therefore, $T^+$ is the right inverse of T.

The disadvantage of this method has already been pointed out. One has to provide a candidate for the right inverse prior to the verification. In order to derive the inverse, we first reformulate the problem in GLA.

Definition 14 (Recursive Wide Triangular Matrix/Graphical version). A triangular wide matrix $T_{m \times n}$ is defined recursively by

where $T_{11}$ and $T_{22}$ are smaller wide triangular matrices.

Theorem 11. (Derivation/Graphical version). Let T be a wide triangular matrix. There exists a wide triangular matrix $T^+$ such that:

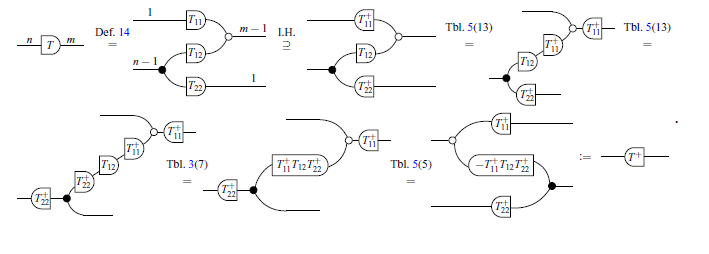

Proof The proof will be done by induction. For the base case ( $T_{1 \times n}$ ) we have

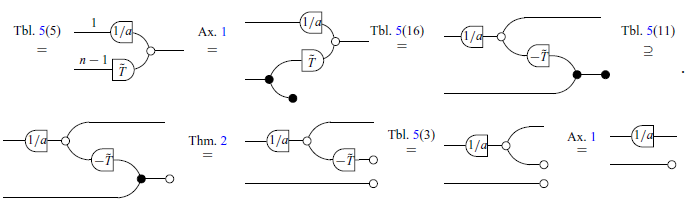

If $a = 0$ ,

If $a \neq 0$ ,

For the inductive step, consider in blocks as in the recursive Definition 14.

This automatically leads to a computer implementation (by simply translating each step of the proof into the pseudocode).

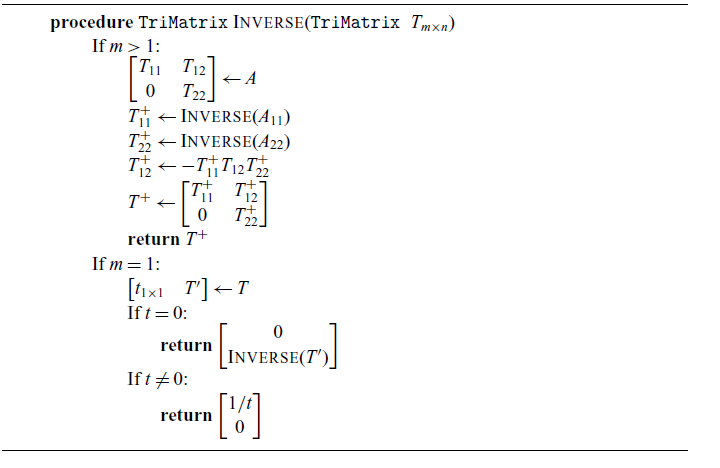

Algorithm 1. Right Inverse Triangular

4.2 Switching from implicit to explicit basis

A subspace can always be represented by implicit and explicit bases, as presented by Zanasi (Reference Zanasi2015). Let $B \subseteq \mathbb{R}^n$ be a subspace, and let $a_1,a_2,...,a_m$ be vectors orthogonal to B, as depicted in Figure 2. An implicit basis of this subspace is given by

\[\left\{ x \mid x\perp a_1, x\perp a_2,\ldots, x\perp a_m\right\}=\left\{ x \mid a_1^\top x=0, a_2^\top x=0,\ldots, a_m^\top x=0\right\}=\left\{ x \mid A^\top x=0 \right\}.\]

On the other hand, given $b_1, b_2,\ldots,b_r \in B$ , an explicit basis of B is given by

\[\left\{ x \mid \exists c_1, c_2, \cdots c_n \in \mathbb{R};\;c_1b_1 + c_2b_2 +\cdots+c_rb_r=x \right\}=\left\{ x \mid \exists c \in \mathbb{R}^n;\;Bc=x \right\}.\]

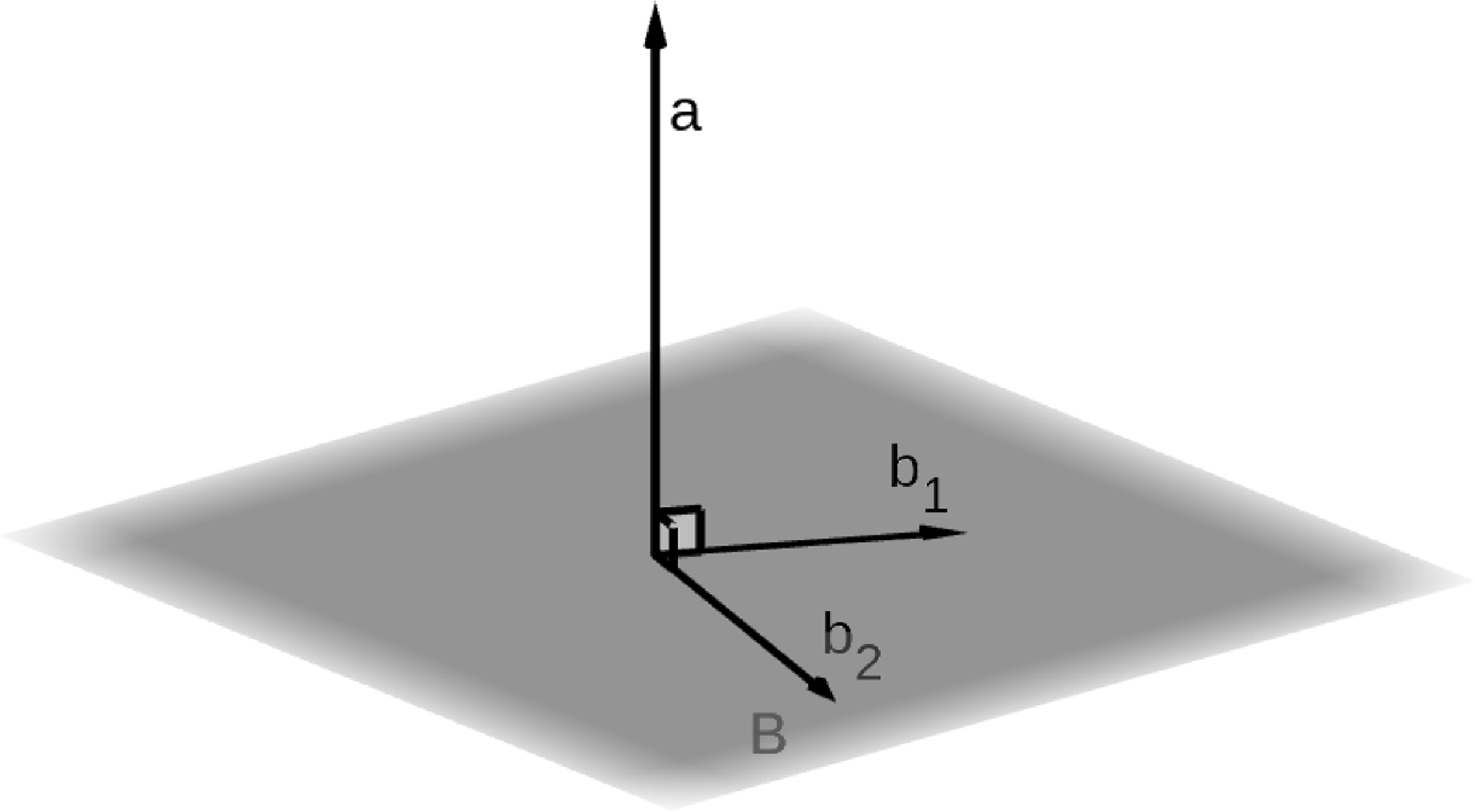

Fig. 2: Geometric representation of the implicit and explicit bases of the B subspace.

This can be denoted by the following theorem and proved recursively in graphical syntax.

Proof The proof will be done by induction. For the base case, if $m=1$ , there are two cases: Case 1 ( $n=1$ ):

If $a=0$ ,

If $a\neq 0$ ,

Case 2 ( $n>1$ ):

If $a=0$ ,

If $a\neq 0$ ,

Inductive step:

The inductive step can of course be written in classical linear algebra notation mixed with relational algebra notation as follows.

Proof [Classical version]

Furthermore this proof provides a nice recursive algorithm presented below:

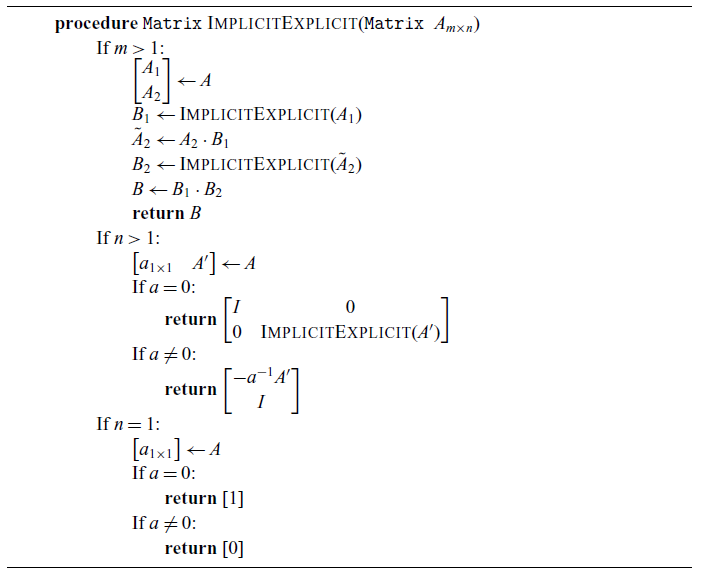

Algorithm 2. Implicit to Explicit Basis

4.2.1 Calculating a basis for the intersection

The example of section (4.2) motivates the next Theorem, in which we want to build a basis for the intersection of two subspaces.

Example 13. As shown in Example 10, a basis for the intersection of the images of the subspaces $A=\begin{bmatrix}1 & 0 \\-1 & 0 \\0 & 1 \end{bmatrix}$ and $B=\begin{bmatrix}5 & 0 \\0 & 5 \\-3 & -3 \end{bmatrix}$ is given by $\begin{bmatrix}1 \\-1 \\ 0 \end{bmatrix}$ , ie,

\[Im(A) \cap Im(B) = \left\{ \begin{bmatrix}1 \\-1 \\ 0\end{bmatrix}\right\}.\]

See the theorem:

Theorem 13. (Base for intersection). For all matrices $A_{k \times m}$ and $B_{k \times n}$ , there is an injective matrix Z such that

Using the Theorem 12, we obtain the derivation.

Proof

This derivation provides yet another algorithm that returns a basis for the intersection of two subspaces given as input:

Algorithm 3. Basis for the intersection

From the symmetries property of the graphical syntax (Axiom 2), it is also possible to obtain a program derivation and, consequently, an algorithm for the sum of two subspaces. This is the dual of Theorem 13.

4.3 The exchange lemma

Let V be a finite-dimensional vector space and let $A=(a_1, ..., a_r)$ and $B=(b_1, ..., b_s)$ be two subspaces of V such that A is linearly independent and

$$Im{(A)}\subseteq Im{(B)}.$$

The exchange lemma says that $r\leq s$ and that there exists a subspace C formed by the vectors of A and $s-r$ vectors of B such that $Im{(C)}=Im {(B)}$ . More details can be found in (Barańczuk & Szydło, 2021).

Example 14. Let $ \left ( e_1,e_2,e_3,e_4 \right )$ be the standard basis in $\mathbb{R}^4$ ,

\[A= \begin{bmatrix}a_1 & a_2 & a_3 \\\end{bmatrix}=\begin{bmatrix}-1 & 1 & 1 \\-1 & -1 & 1 \\1 & -1 & -1 \\0 & 0 & -2 \\\end{bmatrix}\quad \text{and}\]

\[B = \begin{bmatrix}b_1 & b_2 & b_3 & b_4 & b_5\end{bmatrix} = \begin{bmatrix}e_1 & e_2 & e_3 & e_4 & -e_4 \end{bmatrix}.\]

The subspace $C = \begin{bmatrix}a_1 & a_2 & a_3 & b_3 & b_4\end{bmatrix}$ is such that $Im(C)=Im(B)=\mathbb{R}^4$ .

The major issue of the lemma is “selecting” which vectors of B make this true, i.e:

$$Im{(A)}+Im{(B\;[\text{Selector}])}=Im{(B)}.$$

Inspired by the solution presented by Barańczuk & Szydło (2021), this problem can be stated as the following theorem:

Theorem 14. (Exchange lemma – Verification/Classical version). Let V be a finite-dimensional vector space and let A and B be two subspaces of V such that A is linearly independent and $Im{(A)}\subseteq Im{(B)}$ . Thus, there exists $X=P\begin{bmatrix}I\\M\end{bmatrix}Z$ , where P is a permutation matrix, I is the identity and Z is invertible, such that $A=BX$ and

$$Im{(A)}+Im{\left ( B P\begin{bmatrix}0\\I\end{bmatrix} \right )}=Im{(B)}.$$

The expression $P\begin{bmatrix}0\\I\end{bmatrix}$ is the selector that determines the proper vectors of B. The matrix $\begin{bmatrix}0\\I\end{bmatrix}$ has the function of selecting or discarding vectors, while the permutation matrix P determines the order in which this happens. For example, considering B with size $n \times 4$ , a possible selector would be

$$Im\left (\begin{bmatrix}(b_1) & (b_2) & (b_3) & (b_4)\end{bmatrix} \cdot \begin{bmatrix}1 & 0 & 0 & 0\\ 0 & 0 & 0 & 1\\ 0 & 1 & 0 & 0\\ 0 & 0 & 1 & 0\end{bmatrix}\cdot \begin{bmatrix}0 & 0\\ 0 & 0\\ 1 & 0\\ 0 & 1\end{bmatrix} \right ) = Im\left (\begin{bmatrix}(b_4) & (b_2)\end{bmatrix} \right ).$$

Theorem 14 can be rewritten in graphical syntax as follows:

Theorem 15. (Exchange lemma – Verification/Graphical version). Let A be an injective matrix where for some matrix B. Then, there exist invertible matrices Z, P and a matrix M such that

where

Proof

To solve this problem, Barańczuk & Szydło (2021) decomposed the matrix X into row-echelon form. It is possible to do a property derivation to find a way to decompose X by rewriting Theorem 15 as

Theorem 16. (Exchange lemma – Derivation/Graphical version). Let A be an injective matrix and for some matrix B. Suppose that

for some matrix X, surjective matrix $\tilde{X}_1$ , matrix $\tilde{X}_2$ and invertible matrix P. Then,

Proof

From , we can say that $\tilde{X_2}$ is any matrix. On the other hand, the equality shows us that $\tilde{X_1}$ must be at least surjective. Thus,

Note that $X=P\begin{bmatrix}\tilde{X_1}\\ \tilde{X_2}\end{bmatrix}$ gives the form of some of the possible solutions to the problem. This derivation also extends the solution initially presented by the reference, but this time is constructed according to the requirements of the problem. We can then write an algorithm that receives the matrix X, uses the derived property, and returns the desired “selector”:

Algorithm 4. Selector for the Exchange Lemma
