2.1 Radius of stellar system

A structural study of the system ESO65SC03 has been carried out using those stars which were detected in each of the 2MASS bands (J, H, and K) and their corresponding errors in magnitude < 0.1 mag. These stars were used to identify the system coordinates using maximum stellar counts per unit area. The radial stellar densities were estimated by taking the concentric rings from the centre of system with unit arcmin width, having maximum stellar counts and fitted with the King model (King Reference King1966). If the fit was not perfect, we selected the next unit cell with maximum stellar counts until we achieved the best fit. Finally, we determined the centre of the stellar system as $\alpha = 12^{\text{h}}:51^{\text{m}}:19.7^{\text{s}}, \delta = -69^{\circ} :43^{{\prime}}:21.6^{{\prime \prime}}$ and the equivalent Galactic coordinate as l = 302.91^d, b = −6.84^d which is consistent with the Kharchenko et al. (Reference Kharchenko, Piskunov, Schilbach, Roëser and Scholz2013).

The derived RDP of the system is shown in Figure 2. The modified king empirical formula [ρ_r − ρ₀ = f ₀(1 + (r/r_c)²)⁻¹, Kaluzny & Udalski (Reference Kaluzny and Udalski1992)] is drawn with the RDP of the cluster and it gives the peak stellar density (f ₀), core-radius ($r_{\text{c}}$), and background stellar density (ρ₀) as $2.3{\,\pm\,} 1.3\ \text{stars\,}\text{arcmin}^{-2}$, $1.1{\,\pm\,} 0.6\ \text{arcmin}$, and $3.2{\,\pm\,} 0.1\ \text{stars\,}\text{arcmin}^{-2}$, respectively. Here, the core radius of any stellar system is the radial distance from its centre where the enhanced stellar density above background level becomes half of that of the centre. The radius of the system is defined as the distance from the centre of the system to the point where the stellar enhanced density is not separated from the field region. After adding the 1σ correction in the background stellar density, we found the radius to be 5.36±0.24 arcmin.

Figure 2.

The radial density profile (RDP) for the field of ES065SC03. The blue-dashed line represents the best fit empirical profile on the cluster RDP. The pink line represents ρ₀ + σ_ρ0, where σ_ρ0 is the error in the estimation of field stellar density (ρ₀).

Limiting radius of any stellar system is defined as a radial distance, after which no stars are gravitationally bound to the stellar system. It is independent of the background stellar density and only depends on peak stellar density, core radius, and estimation in the error of the background stellar density. The Bukowiecki et al. (Reference Bukowiecki, Maciejewski, Konorski and Strobel2011) relation ($r_{\text{lim}} = r_{\text{c}} \sqrt{f_{0}/3 \sigma _{\text{bg}} -1}$) is used to estimate the limiting radius ($r_{\text{limit}}$) of the cluster that comes out to be $2.96{\,\pm\,} 1.19\ \text{arcmin}$, which is significantly smaller than the radius of the stellar system. Since the system is gravitationally bound within ~ 3 arcmin and the model stellar radius is larger than expected gravitational attraction, therefore, the said stellar system may not be fall on the category of OCs. We found the spatial components of this system as X = 1.24 kpc, Y = − 1.92 kpc, and Z = − 0.27 kpc. The Galactocentric distance of the cluster is computed to be about 7.51 kpc. Our estimated core-radius and system-radius are in close agreement with those determined by the Kharchenko et al. (Reference Kharchenko, Piskunov, Schilbach, Roëser and Scholz2013).

2.2 Surface number density profile

The number of stars per magnitude interval in unit area is defined as the surface number density (SND), σ(r, m), and is a function of stellar magnitude and radius from the centre (Sung et al. Reference Sung, Lee, Lee and Ann1996). We computed the σ(r, m) for both the system and field regions as drawn in Figure 3. We see that the σ(r, m) of each region increases towards the higher magnitude end of each region. The SND profile (SNDP) of the system indicates that the system region have enhanced brighter stars compared to the fainter stars. The system stars are further divided into two groups through their SNDPs namely (a) brighter stars group (BSG), (b) fainter stars group (FSG). A separation at about 13 mag has been taken as cut-off magnitude between BSG and FSG group of stars. A vertical line separating the two groups for both the regions is shown in Figure 3. The SNDPs of system and field regions give different slopes ($m=\frac{\Delta \sigma (r,m)}{\Delta M_{H}}$) for BSG and FSG, which is estimated as 0.40±0.05 and − 0.28±0.13, respectively. For the field region, the slope of BSG and FSG are estimated as 0.60±0.11 and − 0.07±0.09, respectively. The slope of the BSG for the field region is found to be steeper than the system region while opposite is found for FSG.

Figure 3.

The distribution of logarthim value of stellar number density versus J magnitude. The black points represent the logarithm SND values for the system region while blue points represent same for the field region. The solid vertical line has been used to separate the BSG and FSG stars of the stellar system.

2.3 Colour–magnitude diagram (CMD)

There is a possibility of some stars getting rejected from the system membership, if the chosen field region has more area than the system region. Whereas, if the area of the chosen field is less, the probability of the field stars in the stellar system is increased. In either case, the observed CMD must get deformed, thereby increasing the inaccuracy in estimation of the system parameters. Therefore, we have considered the area of the field region as 90.29 $\text{arcmin}^2$ which is equal to the area of the stellar system. Our field region begins after the radial distance of 5.36 arcmin from the centre as shown in Figure 1. The field star decontamination is necessary for reducing the colour-scattering on the CMDs. The field stars are removed by comparing the magnitude and colour similarities of stars between the stellar system to the field region. Based on the following criteria, the stars are excluded from the stellar enhanced region:

• • The obtained J-band magnitude difference between star in the system is not more than of 0.20 mag from the star of the field region at the same place in the CMD.

• • The colour difference (J − H) of stars between system and field regions is not more than 0.05 mag.

• • Similarly, the colour difference (H − K) of stars between system and field regions is not more than 0.05 mag.

We define a term $D_{\text{mc}}= \sqrt{\Delta _{J}^2+ \Delta _{JH}^2 + \Delta _{HK}^2}$ which is the summation of colour and magnitude differences of the field star and the star in the system, which fall within the grid of above specifications. We removed the star from the grid whose $D_{\text{mc}}$ is minimum. After iterating the procedure for each field region star, we found 158 stars on the statistically cleaned CMDs.

The statistical approach depends on the colour and magnitude grid size. If the boundaries of the grid size is increased, the system stars may get excluded from the membership of the stellar system and if the grid size is decreased, there is a possibility for the field stars to remain in the stellar system. Thus, the optimum grid size is chosen in such a way that the main-sequence (MS) pattern appears in the observed CMD. Before the field star decontamination, no such pattern was visible while after the decontamination of the field stars, we see a clear MS pattern (Figure 4(b)). We noticed an almost vertical sequence of stars with (J − K)~0.8 and J fainter than 13 mag in the $2\text{MASS}$ decontamination CMD. This vertical sequence represents residual field star contamination. These residual field stars are removed from the decontaminated CMD by taking grid size as $\Delta {J}=0.5,\ \Delta {(J-H)}=0.2,\ {\text{and}}\ \Delta {(H-K)}=0.2,$ but exact cluster evolutionary sequence is not occurred in the decontaminated CMD (Figure 4(c)). In this scenario, the estimation of system parameters may not be possible, therefore, we have derived parameters through decontaminated CMD as obtained by applying the earlier grid size. The limitation of this approach, however, is that the cluster characteristics depend on the size of the grid.

Figure 4.

J vs. (J–K) CMD for the system. (a) The cluster and the field stars are represented by red and green dots, respectively. (b) CMD for the remaining stars after the field star subtraction through statistical method (grid size, ΔJ = 0.20, Δ(J − H) = 0.05, Δ(H − K) = 0.05). The solid line represents the cluster evolutionary sequence while dotted lines represent the sequences beyond which CMDs may be contaminated by field stars. The black points represent possible residual field stars. (c) CMD for the remaining stars after the field star subtraction through statistical method with increased grid size (ΔJ = 0.50, Δ(J − H) = 0.20, Δ(H − K) = 0.20) (see text for detail).

The observed CMDs of the stellar system are used to determine the model distance, age, and reddening of the system by comparing them with the theoretical stellar isochrones. To test a suitable number of possible isochrone solutions, we first determined initial values for each physical parameter by visual inspection [log(τ)_i, (m − M)_i, (J − K)_i] and subsequently, we investigated a large parameter space in an iterative manner. Our isochrone solutions typically span the physical ranges as log(τ) = log(τ)_i ± 0.05,(m − M) = (m − M)_i ± 0.50, and (J − K) = (J − K)_i ± 0.10. We used the solar metallicity isochrones of log(age)=8.75 of UBVRIJHK photometric system (Marigo et al. Reference Marigo, Girardi, Bressan, Groenewegen, Silva and Granato2008) in J vs. (J − K) CMD (Figure 4(b)). Through these CMDs, we found the apparent distance modulus of J-band i.e., (m − M)_J and log(age) of the system as 12.06 mag and 7.75 Myr, respectively. Furthermore, the colour-excess, E(J − K), is estimated as 0.22 mag. The obtained log(age) value is in close agreement with that given by Kharchenko et al. (Reference Kharchenko, Piskunov, Schilbach, Roëser and Scholz2013). The obtained age of stellar system is however higher than that of sparse OCs (Bonatto et al. Reference Bonatto, Lima and Bica2012; Tanikawa & Fukushige Reference Tanikawa and Fukushige2005).

The Fiorucci & Munari (Reference Fiorucci and Munari2003) relations ($\frac{E({J-H})}{E({B-V})}= 0.309 {\,\pm\,} 0.130, \ \frac{E({J-K})}{E({B-V})} = 0.485 {\,\pm\,} 0.150$) have been used to estimate the reddening i.e. E(B − V) and E(J − H), which are estimated as 0.45 and 0.14 mag, respectively. The corresponding absolute distance modulus [(m − M)₀ = (m − M)_J − 1.125E(J − K)] and distance obtained as 11.81±0.25 mag and 2.30±0.35 kpc, respectively. The error in these values is estimated by considering the errors of Fiorucci & Munari (Reference Fiorucci and Munari2003) relations. Kharchenko et al. (Reference Kharchenko, Piskunov, Schilbach, Roëser and Scholz2013) estimated the apparent distance modulus, reddening, and distance as 12.6 mag, 0.56 mag, and 3.05 kpc, respectively which is slightly different than our obtained values.

2.4 Two-colour diagrams (TCDs)

TCD are useful to derive the relationships among various colours. The colour ratio, $\frac{J-K}{V_{\text{ph}}-K}$ and $\frac{J-K}{(B-V)_{\text{ph}}}$, are obtained as 0.19±0.01 mag and 0.30±0.03 mag, respectively and the resultant plots are shown in Figures 6(a) and (b). The $(V_{\text{ph}}-J)$ vs. (J − K) TCD are utilised to estimate the interstellar extinction in the near-IR, as shown in Figure 5. The best fit in this TCD gives a colour-excess of $E(V_{\text{ph}}-K)=0.90{\,\pm\,} 0.05$ mag and E(J − K) = 0.17±0.19 mag. We used Whittet & van Breda (Reference Whittet and van Breda1980) relation to estimate the reddening vector, $R_{\text{cluster}}$=1.1E(V − K)/E(B − V) in the direction of system. We have found this vector as 2.2 which is far-off from the normal value of 3.1. Dutra, Santiago, & Bica (Reference Dutra, Santiago and Bica2002) relation $\frac{A_K}{A_V}=0.112$ yields the A_K as 0.11. In fact, normal reddening law (R_V = 3.1) is expected in the line of sight of the cluster in the absence of dust and intermediate stellar gases (Snedden et al. Reference Snedden, Gehrz, Hackwell, York and Snow1978). So, we have concluded that system region is affected by interstellar gases and dust.

Figure 5.

The ($V_{\text{ph}}-K$) vs. (J − K) TCD for statistically cleaned members of system. The green-dotted line shows the solar metallicity isochrone for log(age) = 8.75, while the two solid arrows indicate the direction of the normal reddening vector. The blue-dotted line is obtained by using reddening as E(V − K) = 0.90 mag and E(J − K) = 0.17 mag.

Figure 6.

The ($V_{\text{ph}}-K$) vs. (J − K) and $(B-V)_{\text{ph}}$ vs. (J − K) (a) and (b) TCDs for the system's members which are found SPM4.0 catalogue. The dotted straight line represents the best linear fit. The lower panel represents the $(V_{\text{ph}}-\lambda)/(B-V)$ diagrams where λ have indicated any one photometric band from J, H, K, W ₁, and W ₂ bands.

Further, the TCD are used to examine the nature of variation of colour-excess with increasing wavelength and normal colour ratio values in the direction of system. For this purpose, the $(V_{\text{ph}}-\lambda)$ vs. $(B-V)_{\text{ph}}$ (λ is one of J, H, K, W ₁, and W ₂ bands.) plots are constructed in Figure 6(c) and the resultant colour ratios ($m_{\text{cluster}}$) are listed in Table 1. This clearly indicates that the value of $m_{\text{cluster}}$ increases from J to W ₁. To derive the normal values for various colour-ratios, we have used the following approximate Neckel & Chini (Reference Neckel and Chini1981) relation:

\begin{equation*} m_{\text{normal}}=m_{\text{cluster}}{\times} \frac{R_{\text{normal}}}{R_{\text{cluster}}}. \end{equation*}

The present estimated normal values are close to known values. The variation of these values may be occurred because photographic plates are less sensitive to measurement of stellar magnitudes and have more errors.

Table 1.

The various colour ratios are given in the table. The third column represents the estimated normal colour ratios through $R_{\text{cluster}}$ and Neckel and Chini relation (Neckel & Chini Reference Neckel and Chini1981) while the value in fourth column represents the expected normal colour ratios.

2.5 Proper motion of the system

We found a total of 158 stars in statistical cleaned J vs (J–K) CMD. We have also drawn a colour–magnitude filter around the best fitted isochrone as shown in Figure 4(b) by dotted lines. A total of 73 stars are found inside the colour–magnitude filter, which are defined as the MS stars and considered for the proper motion study (depicted by red dots in Figure 4(b)). The mean proper motion of this stellar system is estimated using two different catalogues. Using a criterion of 1-arcsec uncertainity, a total of 62 and 69 MS stars matched with the UCAC4 and SPM4.0 catalogues, respectively. The stars which do not fall within 3σ value of the mean are rejected. Using proper motions values from UCAC4 catalogue for 59 remaining MS stars after 3σ clipping, the mean proper motion values of the stellar system is found to be ${\bar{\mu}}_{x}$ = − 2.42±0.99 mas yr⁻¹ and ${\bar{\mu}}_{y}$ = − 2.18±0.78 mas yr⁻¹ in RA and DEC directions, respectively. Similarly, the mean proper motion values of remaining 61 MS stars, as found through SPM4.0 catalogue, are found to be − 5.37±0.81 mas yr⁻¹ and 0.31±0.40 mas yr⁻¹. One can see that both the catalogues have different number of stars and give different values of mean proper motion (shown in Figure 7). Since, the uncertainties in the stellar proper motion values of the SPM4.0 catalogue is less than UCAC4 catalogue, therefore, we considered the mean proper motion of the system ${\bar{\mu}}_{x}$ = − 2.42±0.99 mas yr⁻¹ and ${\bar{\mu}}_{y}$ = − 2.18±0.78 mas yr⁻¹ in RA and DEC directions, respectively as obtained through the former catalogue. Our obtained proper motion do not match with that estimated by Kharchenko et al. (Reference Kharchenko, Piskunov, Schilbach, Roëser and Scholz2013), using the PPMXL catalogue (${\bar{\mu}}_{x}$= − 14.54 mas yr⁻¹, ${\bar{\mu}}_{y}$=4.63 mas yr⁻¹).

Figure 7.

The open circles are depicted the location of stars at $\mu _{x}\text{--}\mu _{y}$ plane based on the proper motion of the system in SPM4.0 catalogue for the member of the stellar system. The filled circles represent the same using the UCAC4 catalogue.

When we consider all the stars in Figure 4(b) without any colour–magnitude filter and adopting the same approach as above using the SPM4.0 catalogue, we found a mean proper motion of ${\bar{\mu}}_{x} = -4.96 {\,\pm\,} 0.56$ and ${\bar{\mu}}_{y} = 0.43{\,\pm\,} 0.32$ for the system. This value is similar to the mean proper motion ${\bar{\mu}}_{x} = -4.45{\,\pm\,} 0.32$ mas yr⁻¹ and ${\bar{\mu}}_{y} = 0.48{\,\pm\,} 0.23$ mas yr⁻¹ estimated for the field region. For gravitationally bound cluster system, this result is unexpected. Hence, we could not separate out the stars between the system and field regions on the basis of proper motion membership probabilities.

3.1 Mass function

During the process of star formation, the distribution of stellar mass per unit volume is defined as the initial mass function (IMF) which determines the subsequent evolution of the cluster (Kroupa Reference Kroupa2002). The direct estimation of the IMF is not possible due to the dynamical evolution of the cluster. However, we can derive the MF, which is the relative number of stars per unit mass and can be expressed by a power law N(logM)∝M ^Γ. The slope, Γ, of the MF can be determined from

\begin{equation*} \Gamma = \frac{\text{d}\log N(\log {\it m})}{\text{d}\log {\it m}}, \end{equation*}

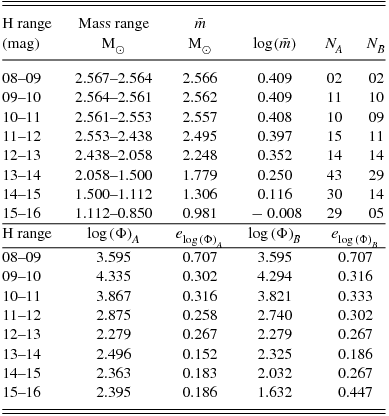

where Nlog(m) is the number of stars per unit logarithmic mass. The masses of probable cluster members can be determined by comparing observed magnitudes with those predicted by a stellar evolutionary model if the age, reddening, distance, and metallicity are known. The MF values estimated for the system are listed in Table 2, while the variation of MF with average mass in different magnitude bins are shown in Figure 8.

Figure 8.

The variation of logarithm MF with the logarithm of average mass of members. These quantities have been computed using members as leftover after field star decontamination through the statistical procedure. The Figure A and B are represented the said plot for members of SAMPLE-A and SAMPLE-B.

To determine the MF slope, we have only used those stars which lie in the MS of the stellar system. The mostly brighter stars (H < 12 mag) may be giants, therefore, they have excluded in the estimation of MF slope. The MF slope value Γ is found to be 0.07±0.42 for the mass range from 2.44 $\text{M}_{\odot} $ to 0.85 $\text{M}_{\odot} $ which is low numerical value compared to the Salpeter value [Salpeter (Reference Salpeter1955) gave the classical slope of − 1.35 for the stars of mass range 0.4 $\text{M}_{\odot} $ to 10 $\text{M}_{\odot} $] and have positive slope. Such flatness/positive value of MF slope may be due to the dynamical evolution, rather than the intrinsic difference in the IMF (Nilakshi & Sagar Reference Nilakshi and Sagar2002). The stellar incompleteness increases toward the fainter end of photometric magnitude and consequently reduce the MF value thereby increasing the flatness of the MF slope. The MF values have also been computed for SAMPLE-B members of stellar system. The purpose of computing the MF values for SAMPLE-B members was to find out any correlation between MF values and the common stellar fraction of stars in various photometric regions. The MF value of the stars from SAMPLE-B increases as the average mass of the stars increases from 0.85 $\text{M}_{\odot} $ to 2.57 $\text{M}_{\odot} $. Brighter stars are vital members to identify any cluster. However, even after the cleaning, the field stars may still be present in the fainter end. The MF value depends on the number of stellar members, hence the MF value should increase in presence of the residual field stars. However, the stellar incompleteness gives the opposite result, which is much effective and prominent compared to the effect of residual field stars. The corresponding MF slope value for SAMPLE-B is 1.68±0.67 which is numerically comparable with the Salpeter value but opposite in slope. Since the stars of SAMPLE-B are found in both 2MASS and WISE catalogues, the common stellar fraction of stars in both catalogues gradually decreases towards the end of fainter stars. Due to the incompleteness of the data, in terms of the number of common stars, we expect the MF slope increases towards the positive slope value.

3.2 Mass segregation

Through the process of mass segregation, the stellar encounters of the cluster members are gradually increased. Furthermore, the higher-mass cluster members gradually sink towards the cluster centre by transferring their kinetic energy to the more numerous lower-mass stellar members of the cluster (Yadav, Sariya, & Sagar Reference Yadav, Sariya and Sagar2013). For the investigation of the dynamical evolution and mass segregation phenomenon due to the energy equipartition, the cluster stars are divided into two mass range of $2.567 \ {\le} \text{M}_{\odot} < 2.438$ and $2.438 \ {\le} \text{M}_{\odot} < 0.850$. The cumulative radial stellar distribution of stars for various mass ranges are shown in Figure 9. This clearly indicates that the mass segregation effect is present in the stellar system, and the radial commutative distributions of various mass groups are seen separately from system centre to a distance of about 4.2 arcmin from the centre. The Kolmogorov–Smirnov (K–S) test have been performed for verifying the same kind of mass distribution. Using the relation $\chi ^2=\frac{4 D^2 n_1 n_2}{n_1 + n_2}$, we have also estimated the χ² value of mass segregation for the system, where D is the maximum distance between two cumulative radial distribution of stars and n ₁ and n ₂ are the number of stars found for various mass range. For the SAMPLE-A & SAMPLE-B, the χ² value comes out to be 4.14 (confidence level is 87%) and 3.38 (confidence level is 81%), respectively. On the basis of this K–S test, we conclude that mass segregation phenomenon is more for the stars of SAMPLE-A than the other sample.

Figure 9.

The radial density cumulative distribution of stars for various mass groups. The mass segregation phenomenon for the star groups are shown. The red and green lines represent the mass range: $2.567 \ {\le} \text{M}_{\odot} < 2.438$ and $2.438 \ {\le} \text{M}_{\odot} < 0.850$, respectively.
