1. Motivation

Engineering design is an inherently iterative process where designers are constantly battling the need to ensure high quality designs are realized in as short a time as possible. The number and length of iterations can be reduced if designers are able to predict failures in the early stages of the design process. In today’s world of big data and artificial intelligence, determining trends from historical accounts has become more feasible.

A company can learn from its previous mistakes in many ways. The most popular mechanism for this to occur is through institutional (sometimes implicit) knowledge of long-tenured employees. Another mechanism for companies to keep sight of previous errors is by analyzing their previous product recalls (that is, defects related to performance and/or safety non-compliance resulting in manufacturers replacing/reworking defective components). Specific to automotive design, the National Highway Traffic Safety Administration requires “manufacturers file a defect and noncompliance report as well as quarterly recall status reports, in compliance with Federal Regulation 49 (the National Traffic and Motor Safety Act) Part 573” [https://www.nhtsa.gov/nhtsa-datasets-and-apis]. The NHTSA publishes said recall data for open access to the public.

Given the pressure on automotive companies to hasten new product development cycles while maintaining high product quality, and in lieu of the abundant product recall made publicly available by the NHTSA, there is an opportunity to learn from previous errors committed by a multitude of automotive original equipment manufacturers. A systematic method of enumerating and analyzing failures is known as Failure Modes and Effects Analysis.

2. Failure Modes and Effects Analysis

Failure Modes and Effects Analysis (FMEA) is a tool widely used by engineers (Reference StamatisStamatis, 2003) to:

1. 1. Identify how a system/product/process might fail (failure mode)

2. 2. Analyze the reason that the failure occurs (failure cause)

3. 3. Predict the impacts of the failure (failure effects)

The recent case of the Takata airbag recall (Segal, 2019) can be viewed from the lens of FMEA which allows for a better understanding of the usefulness of FMEA as a tool. In this case, the failure was that the airbag inflator (a metal device that produces gas causing the airbag to inflate) exploded during a car crash. This makes “explosion” the failure mode. This was found to be caused by use of an inappropriate chemical that resulted in an explosive chemical reaction when exposed to heat for certain periods of time (the failure cause). The failure effect is that metal shards flew towards the passenger during airbag deployment which, in some cases, resulted in loss of life. Unfortunately, this failure was not predicted during design and only observed after the production and sale of millions of cars. As a result of this failure, 67 million airbags have been recalled and 26 deaths have been reported (ConsumerReports.org, 2024).

There are various types of FMEAs. Those performed on products are referred to as Design FMEAs. In this case individual components or specific subsystems are the subject of the analysis. An analysis of the failure modes of movement of a product through its supply chain (including its production process) is referred to as Process FMEA. A third category of FMEAs are those performed with the subject of analysis is the product and its interactions with all internal and external entities – System FMEA. The focus of the research presented in this paper is Design FMEAs.

FMEA provides a systematic method for engineers to determine weaknesses in a design (see Table 1 for an example). This tool has the power to reduce product design costs and time-to-market, thus increasing a company’s competitive edge(Reference StamatisStamatis, 2003). More importantly, when FMEA is used during the design of new products, it can alert designers to safety issues and provide the opportunity to prevent critical accidents.

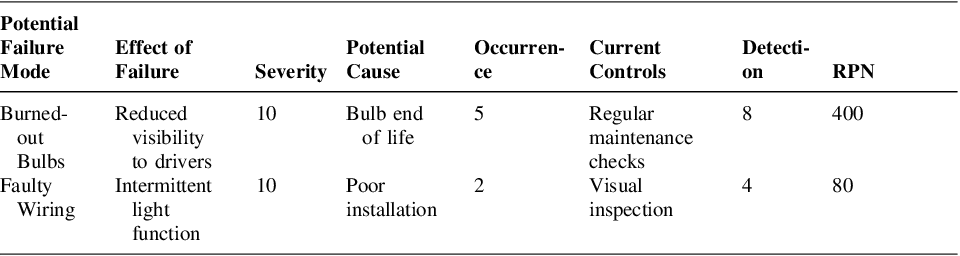

Table 1. Example failure modes and effects analysis

2.1. Computing RPN

FMEAs allow for objective decision-making by requiring the quantification of the frequency of failure mode occurrence (O), severity of the failure effects (S), and the detectability of the failure mode before it occurs (D). These values (O, S, and D) are typically assigned based on numeric scales (see Tables 2, 3 and 4 for an example) developed by the team performing the FMEA. Once assigned, a Risk Priority Number (RPN) for each failure mode-failure effect instance is computed by multiplying O, S, and D values.

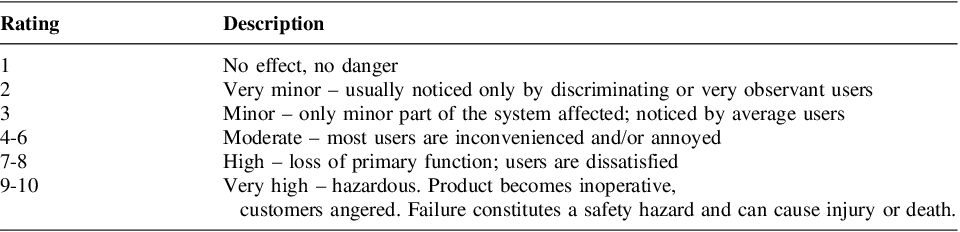

Table 2. Example rating scale for severity (adapted from (Reference SiemensSiemens, 2019))

Table 3. Example rating scale for occurrence (adapted from (Reference SiemensSiemens, 2019))

Table 4. Example rating scale for detectability (adapted from (Reference SiemensSiemens, 2019))

Upon a thorough enumeration of all failure modes and effects, the list can be sorted in multiple ways. This includes a simple descending-order sort based on RPN to focus on those failure modes and effects that have the highest RPNs first. A critical disadvantage of this method is that high criticality failure effects may be pushed down the list if they have lower occurrence and detectability scores compared to failure effects that may not be critical at all but occur frequently or may not be easily detected.

3. Prior work

Wu and colleagues (Reference Wu, Liu and NieWu et al., 2021) presented a thorough literature of FMEA in the context of the manufacturing industry. A key finding is that computational approaches must be taken to provide decision support for complex tasks and tedious work as they relate to FMEAs. They also recognize that much of the prior work on FMEAs relates to the quantification of RPNs and focusses highly on theoretical concepts as opposed to industrial needs/standards. They recommend that automated recognition of FMEA components (such as root cause, failure mode identification, and so on) should be the focus of future research to improve application efficiency of FMEAs.

Rehman and Kifor (Reference Rehman and KiforRehman & Kifor, 2016) evaluated an ontological approach to manage semantic knowledge embedded in Process FMEAs. They recognize that a critical challenge with successfully conducting FMEAs over many years is its reliance on institutional knowledge that is predominantly implicitly known by experienced employees. The method proposed to mitigate this challenge involves the establishment of an ontological representation of all entities of an FMEA which inherently requires the establishment of ontological rules to govern the relationship between entities. This requirement poses a challenge since it requires implicit knowledge to be made explicit which requires time commitment and willingness to participate. The proposed method does not address similar challenges in Product FMEAs (focus of the research presented in this paper.)

Chin and colleagues (Reference Chin, Chan and YangChin et al., 2008) have developed a fuzzy system to evaluate design concept alternatives based on FMEA information. Their system, scoped to evaluate only simple products, takes fuzzy linguistic inputs of O, S, and D, and returns an RPN based on fuzzy logic. This analysis is performed on a prepopulated information set related to known components and subsystems. While their research does address aspects of challenges associated with Product FMEAs, it is not agile nor easily scalable.

Price and colleagues developed the FLAME system that automates the FMEA process related to electrical systems. This approach uses ontological descriptions and reasoning to retrieve RPN values for new designs based on patterns recognized in historical data. While this approach does mitigate the issues related with FMEAs, it is an application-specific approach whose scalability requires high effort.

Renu and colleagues (Reference Renu, Visotsky, Knackstedt, Mocko, Summers and SchulteRenu et al., 2016) developed a knowledge-based FMEA approach that uses a knowledge base of previously conducted FMEAs. They use decision trees to develop inference capabilities and use Product Data Management information to predict failure modes and RPNs for subsystems/components. Much like other previous research efforts, their work depends on manual constructed database of historical FMEAs – an effort-intensive task.

Spreafico and Sutrisno (Reference Spreafico and SutrisnoSpreafico & Sutrisno, 2023) investigated the use of ChatBots (LLMs) to aid in the performance of FMEAs from a social sustainability perspective. They recognize that to have social aspects thoroughly considered in the design and development of a new product, a multidisciplinary team of engineers, sociologists, and psychologists will be needed. This is challenging since some companies do not have such a broad employee skillset, and because this will increase product-to-market times. The authors explore the feasibility of using an LLM-based chatbot to serve as a surrogate for the multidisciplinary team members. They evaluated the effectiveness of using a predefined lexicon in questions to solicit FMEA-related feedback from the chatbot. Their research showed limited success and indicated the need to provide the chatbot with more context than a technical lexicon around which prompts are framed.

While these research efforts have begun to address the various challenges associated with FMEAs, some gaps remain. Ontological approaches require time-intensive work to develop ontological representations and rules of the systems under consideration. Fuzzy approaches and other knowledge-based approaches require large amounts of historical data. These approaches have limited scalability and extensibility. The goal of the proposed research is to use LLMs to generate FMEA information while grounding the generative AI by using NHTSA recall data.

4. National Highway Transportation Safety Administration data

The dataset made available by the National Highway Traffic Safety Administration contains approximately 247,000 reports (as of December 2024) with recalls reported from 1949 to the present day. The number presented is approximate only because the dataset is updated periodically.

The dataset covers recalls related to vehicles, tires, child safety seats, and other automotive equipment [https://www.nhtsa.gov/nhtsa-datasets-and-apis#recalls]. The NHTSA offers an interactive web-based dashboard to explore the data and APIs to interact with the data through custom code. The raw data is also made available for bulk download.

5. Extracting FMEA information from NHTSA dataset

The proposed process of extracting information from the NHTSA dataset for use in FMEA is shown in Figure 1 (Left). The process is enumerated below.

1. 1. NHTSA recall data is downloaded from the website.

2. 2. Recall data is filtered to isolate the component/subsystem of interest.

3. 3. The filtered recall data is fed to a Large Language Model (Microsoft Copilot, in the case of this research).

4. 4. The LLM is asked to extract failure mode, failure consequence severity, and failure root cause for each recall for top ten defects. The prompt used is “Extract the top ten defects (combine semantically similar defects), paraphrase their consequence, rate the severity (low, medium, high), provide a failure mode, and provide a root cause. Format this as table.”.

5. 5. The extracted data is fed back to the designer for a critical review. This is a crucial step to ensure that AI hallucinations and inaccuracies are not present.

The structure and content of the prompts have an influence on the results generated by the LLM. It was critical to specify that the top ten defects needed to be extracted. In the absence of this detail, the LLM was inconsistent with the number of defects it extracted. The number (ten, in this case) can also be changed as needed. It was also critical to ask the LLM to combine semantically similar defects otherwise it could provide results that are redundant. Paraphrasing the consequence was found to be useful from the perspective of readability of the results generated. Without explicitly asking for failure modes and root causes, the LLM will not generate this critical information.

Figure 1. (Left) Process overview for generating FMEA information while priming with NHTSA data. (Right) Process overview for generating FMEA information without priming with NHTSA data

6. FMEA information generated from proposed process

To demonstrate and validate the proposed process, two products have been considered – child car seats, and brake lights. The process outlined in the previous section was followed to analyse the recall data associated with these two products. The perspective assumed was that of a new product designer trying to pre-empt common failure modes, consequences, and root causes. This data was downloaded from NHTSA on December 01, 2024.

6.1. Child car seats

When NTHSA data was filtered on column ‘COMPONENT NAME’ for any component that had ‘child seat’ in its name, 1097 rows of data were found. This data had 262 unique pairs of ‘DESC_DEFECT’ and ‘CONSEQUENCE_DEFECT’.

These unique pairs were uploaded to Copilot, and it was asked to extract the top ten defects, and its failure modes, severity ratings, and root causes using the prompt presented in the previous section. The response from Copilot is shown in Table 5.

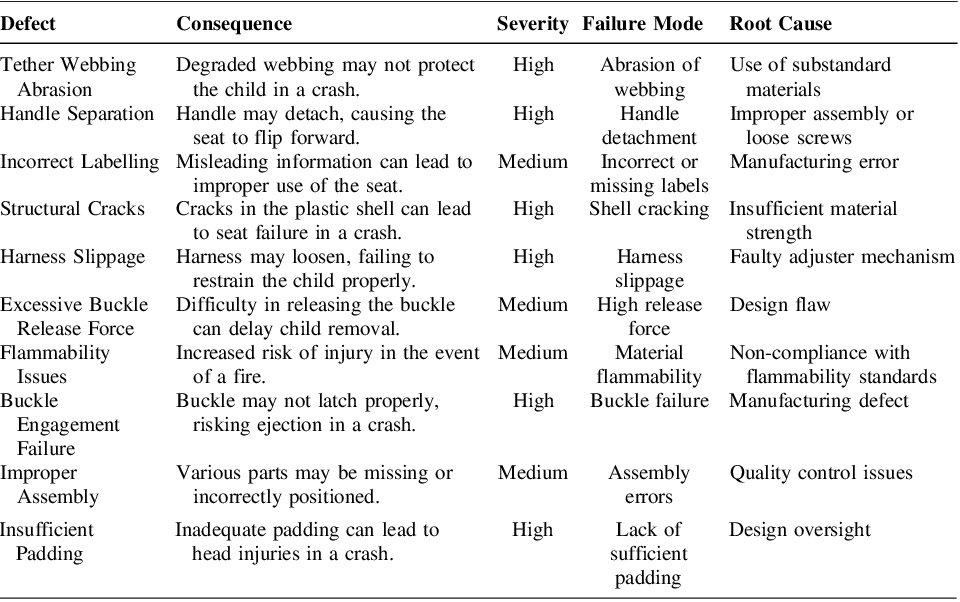

Table 5. LLM chatbot results for child seats when primed with NHTSA data

In addition, Copilot was asked to ignore the uploaded file and then generate ten common defects for child car seats and the associated failure modes, severity ratings, and root causes. The prompt used was “Ignore any data that I provided. Generate top ten defects for brake lights and the associated defect consequences, failure modes, root causes and severity rankings (low, medium, high). Format in a table.” This is shown in Table 6. The process overview for this is shown in Figure 1 (Right).

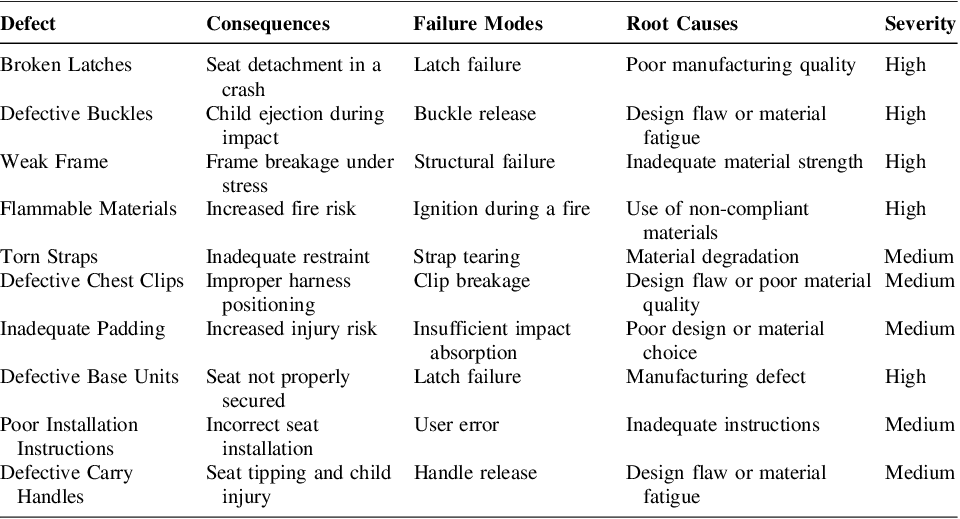

Table 6. LLM chatbot results for child seats when not primed with NHTSA data

A comparison of these two responses shows that Copilot results generated based on NHTSA data has more specifics and details than the results generated without uploading NHTSA data. For instance, results extracted from NHTSA data shows that “buckle engagement failure” and “excessive buckle release force” are two defects as opposed to “defective chest clips”. Another instance of this is related to the defect consequence of structural cracks. The results from NHTSA data show that consequence is “Cracks in the plastic shell can lead to seat failure in a crash”. Whereas, in the results generated with NHTSA data, “weak frame” is listed as the defect and “Frame breakage under stress” is listed as the consequence.

Another difference in the two result sets is related to terminology used. The results from NHTSA data uses terminology that is less pedestrian than the other result set, as expected. For instance, NHTSA results use the term “tether webbing”, while the other results refer to it as a “strap”. NHTSA results also refer to non-compliance with standards while the general results do not.

6.2. Brake lights

When NTHSA data was filtered on column ‘COMPONENT NAME’ for any component that had ‘brake light’ in its name, 2571 rows of data were found. This data had 234 unique pairs of ‘DESC_DEFECT’ and ‘CONSEQUENCE_DEFECT’.

These unique pairs were uploaded to Copilot, and it was asked to extract the top ten defects, and its failure modes, consequences, and root causes using the prompt presented in the previous section. The response from Copilot is shown in Table 7.

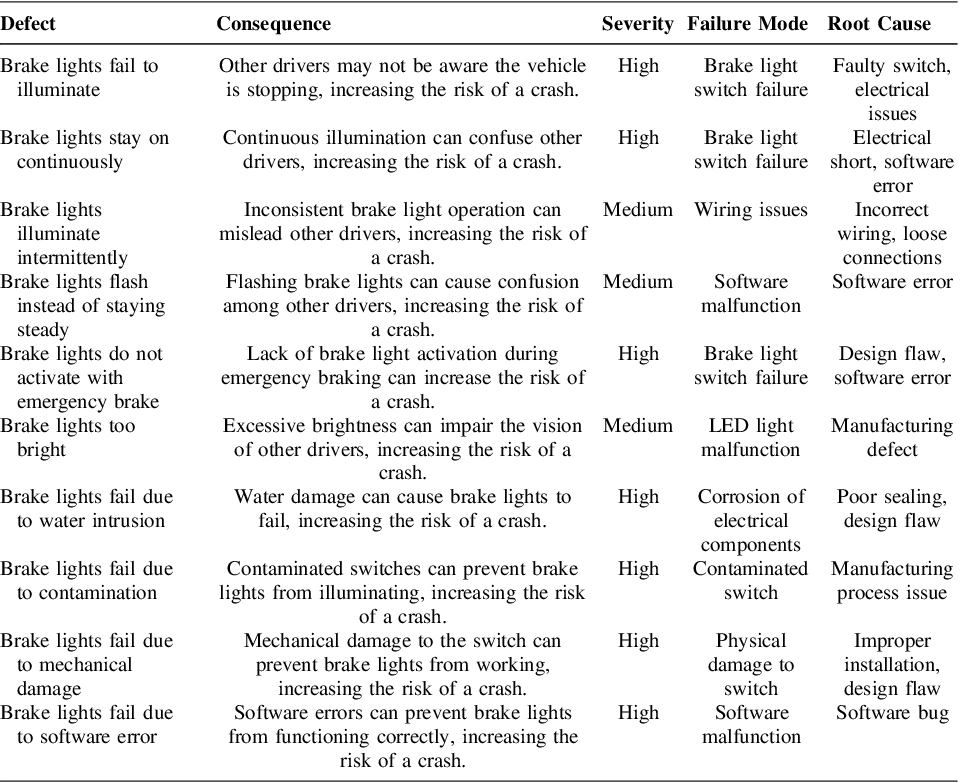

Table 7. LLM chatbot results for brake lights when primed with NHTSA data

In addition, Copilot was asked to ignore the uploaded file and then generate ten common defects for brake lights and the associated failure modes, consequences and root causes. This is shown in Table 8.

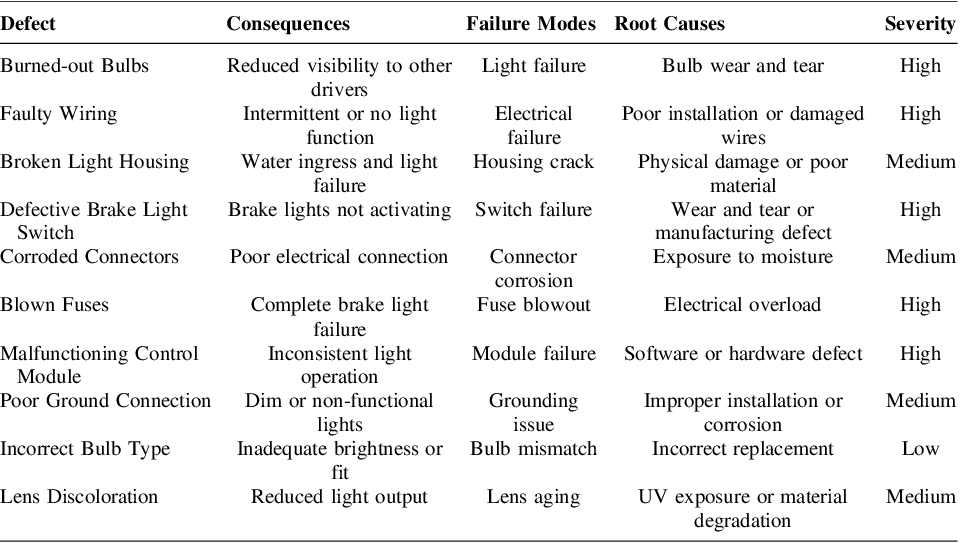

Table 8. LLM chatbot results for brake lights when not primed with NHTSA data

A comparison of these two result sets reveals a similar pattern as observed with child car seats. The defects from NHTSA data are far more detailed, whereas the result set without NHTSA data has defects that blur the lines between defect description and failure modes. Failure consequences are also more detailed when NHTSA data is provided to the LLM.

The root causes generated from NHTSA data, much like with child car seats, have fewer “or” clauses. This demonstrates the higher confidence in the model’s own diagnosis of root causes when NHTSA data is provided.

It must be noted that Copilot was asked to generate top ten defects (based on frequency counts and by combining semantically similar defects) only to ensure comprehensibility of the responses generated. If the designer chooses, it is possible to have Copilot generate failure modes, severity ratings, and root causes for all rows of data filtered from the NHTSA database.

7. Comparing with human FMEA

The NHTSA dataset was analysed by a subject matter expert to provide a basis to compare LLM-generated results against. This human analysis represents a “traditional” method of analysis which is effort intensive. The analysis was performed by the author who has experience with performing FMEAs in industry settings as well as conducting research on FMEAs (Reference Renu, Visotsky, Knackstedt, Mocko, Summers and SchulteRenu et al., 2016). Table 9 and 10 show results for FMEA performed by the human on the top ten (by frequency) defects for both components.

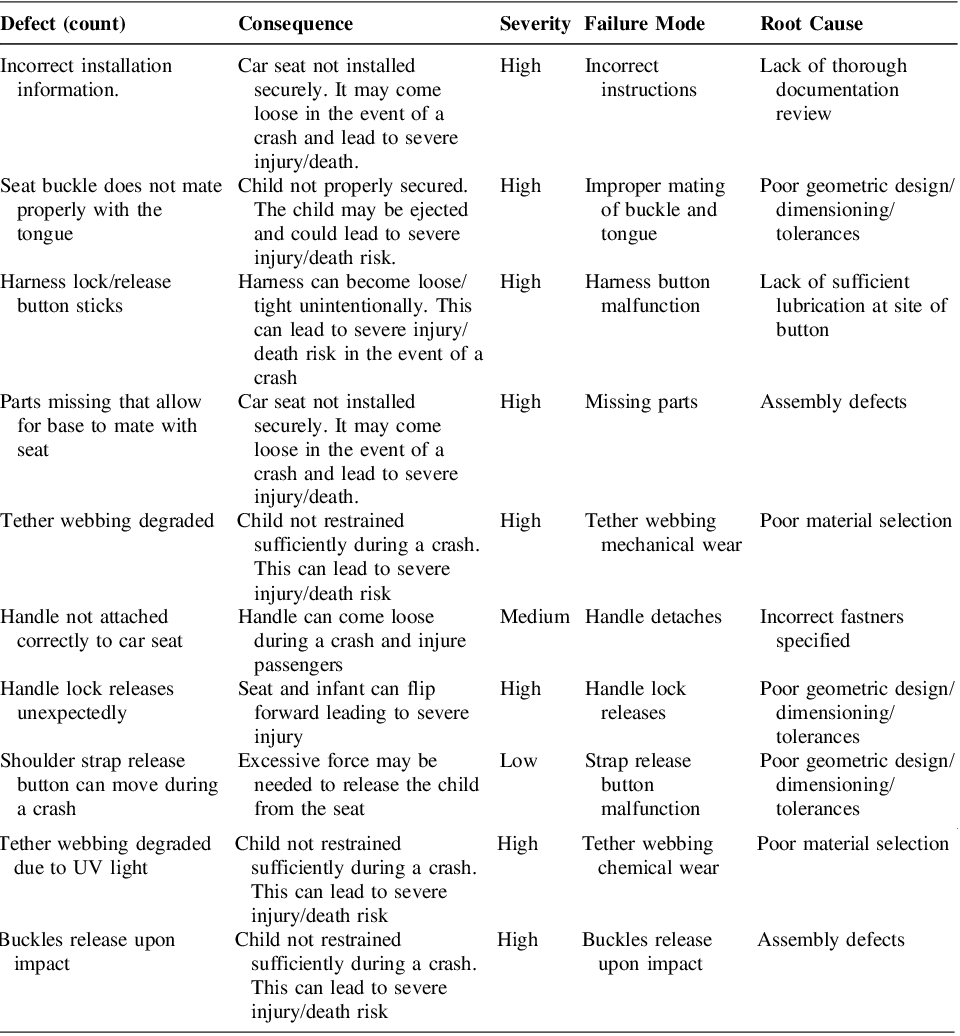

Table 9. Human analysis results for child seats

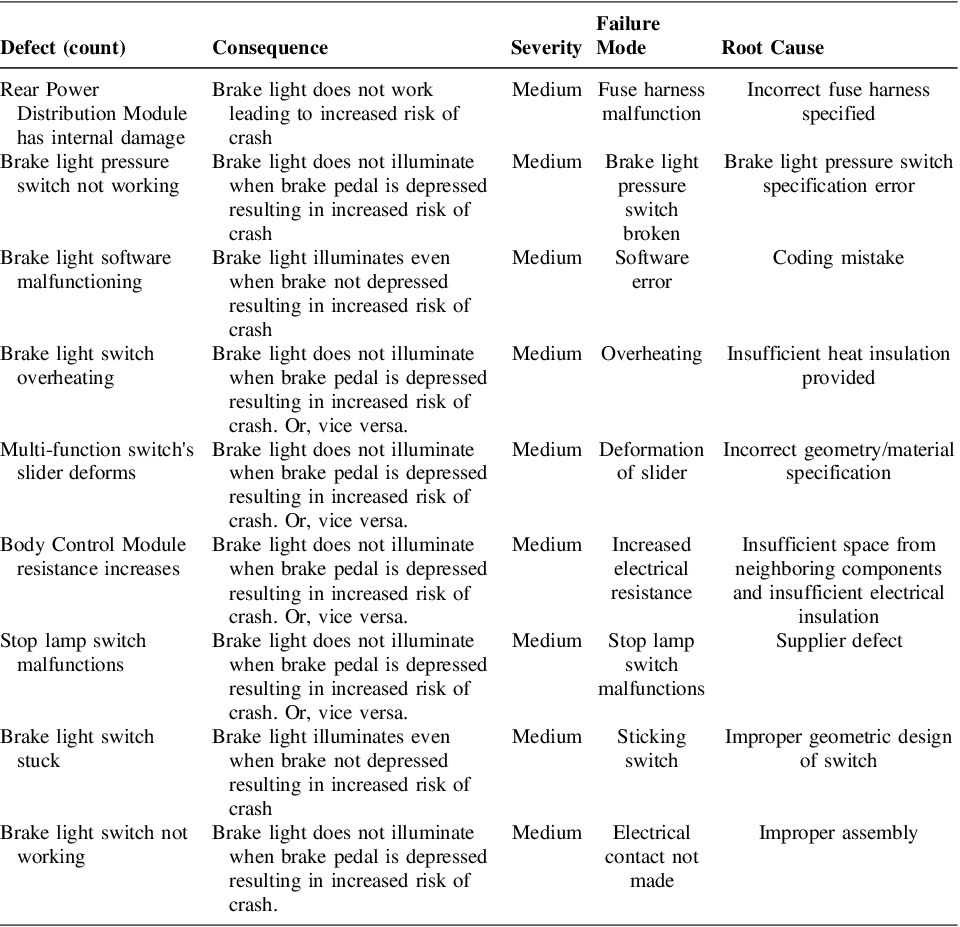

Table 10. Human analysis results for brake lights

In conducting the human analysis, the following observations were made. 1) DESC_DEFECT are large texts which include numerous model numbers. Manually reviewing each one to extract the actual defect description is time consuming and error prone. 2) In some cases, DESC_DEFECT listed multiple defects within a single description. 3) Root cause for the defects can be extrapolated by analysing the CORRECTIVE_ACTION data, and 4) In some cases, further research into the physics behind the component's operation is needed to extract root cause of the failure.
