KL Dra as a benchmark laboratory for accretion-disk physics: Constraints from TESS and ground-based surveys

Published online by Cambridge University Press:  06 May 2026

Luis E. Salazar Manzano*
Affiliation:
Department of Astronomy, University of Michigan, USA Department of Physics and Astronomy, The University of Texas Rio Grande Valley, USA
Liliana E. Rivera Sandoval
Affiliation:
Department of Physics and Astronomy, The University of Texas Rio Grande Valley, USA South Texas Space Science Institute, The University of Texas Rio Grande Valley, USA
Jean-Marie Hameury
Affiliation:
Université de Strasbourg, CNRS, Observatoire astronomique de Strasbourg, France
Craig O. Heinke
Affiliation:
Department of Physics, University of Alberta, Canada
Iwona Kotko
Affiliation:
Astronomical Observatory, Jagiellonian University, Poland
Thomas J. Maccarone
Affiliation:
Department of Physics and Astronomy, Texas Tech University, USA
Manuel Pichardo Marcano
Affiliation:
Instituto de Astronomía, Universidad Nacional Autónoma de México, Mexico
*
Corresponding author: Luis E. Salazar Manzano, Email: lesamz@umich.edu
Rights & Permissions [Opens in a new window]

Abstract

We present the longest-term optical analysis of the AM CVn system KL Dra using $\sim$11 yr of monitoring from TESS and wide-field ground-based surveys. The continuous TESS coverage allows us to characterise its frequent outbursts with unprecedented detail, providing the first comprehensive study of an AM CVn during outbursts and enabling detailed modelling of these systems. The superoutbursts in KL Dra generally include a precursor and are followed by a series of rebrightenings after which a sequence of 3–4 large amplitude normal outbursts is observed. We fit parametric profiles to each superoutburst component (precursor, rise to plateau, plateau, and decay), to rebrightenings, and to normal outbursts, which let us quantify every high state feature and investigate correlations with the system’s long-term supercyle evolution. Our continuous coverage reveals an average value for the supercycles, superoutbursts, and normal outbursts of $60.4 \pm 0.1$ d, $5.67\pm0.03$ d and $1.17 \pm0.01$ d, respectively. The supercycle duration may be correlated with the rebrightenings duration and superoutburst amplitude, and anticorrelated with the plateau length. Within a supercycle, normal outbursts grow in amplitude and duration, and the first normal outburst is usually highly asymmetric, while subsequent normal outbursts are more symmetric. We detected superhumps in TESS superoutbursts but not in the rebrightenings or normal outbursts. We interpret the results within the disc instability model, considering additional effects, such as changes in the donor mass transfer rate.

Information

Type
Research Article
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (https://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution and reproduction, provided the original article is properly cited.
Copyright
© The Author(s), 2026. Published by Cambridge University Press on behalf of Astronomical Society of Australia
Figure 0

Table 1. Details for the TESS data used in this work.

Figure 1

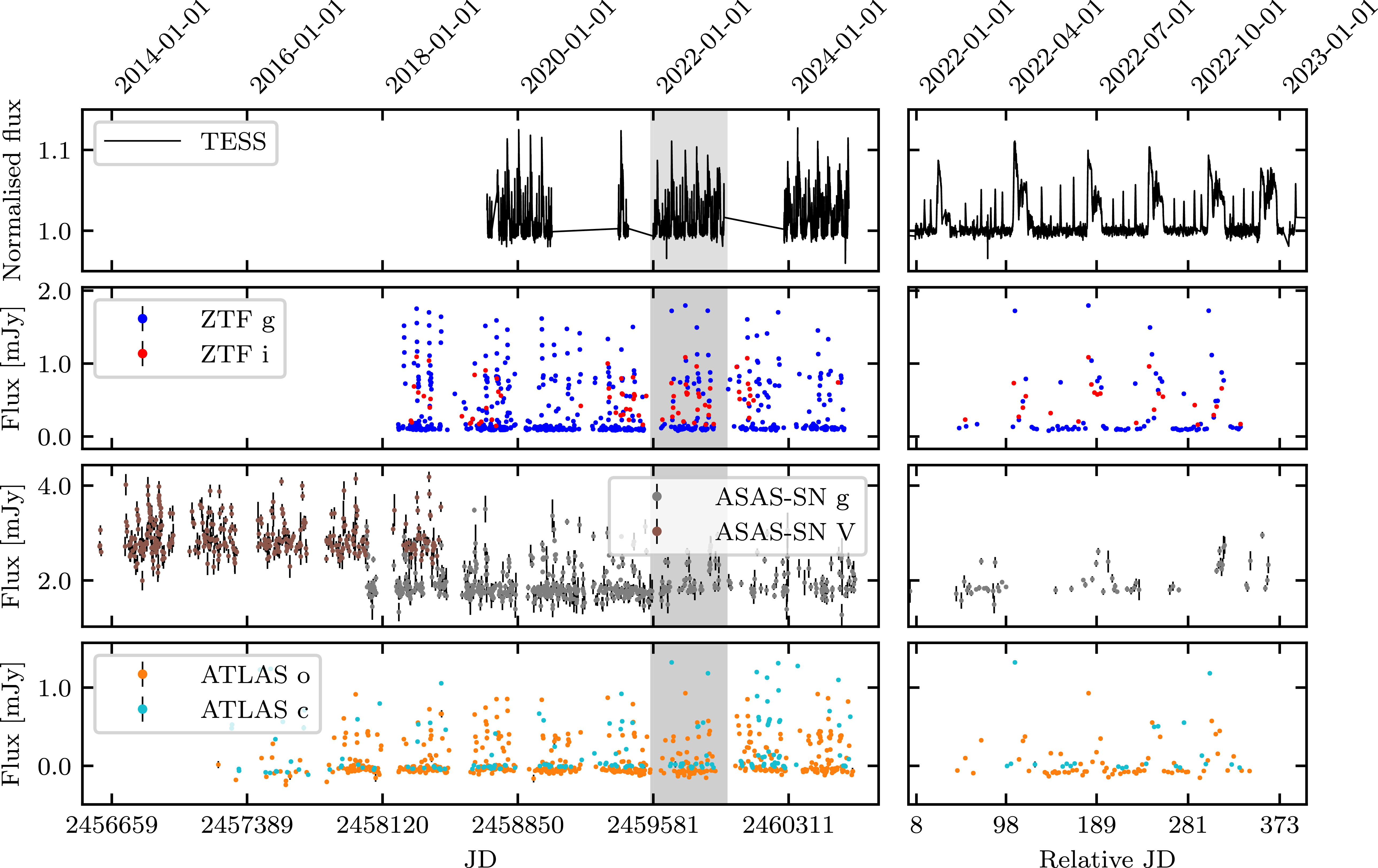

Figure 1. Comparison of TESS and ground-based light curves of KL Dra. The left column displays the full time span of available data, while the right column zooms into a 400-d window starting from JD 2459573, highlighted in grey in the left panels. The top row presents the cleaned and corrected TESS light curves, where black lines indicate 1-h binned data. The second, third, and fourth rows show cleaned and nightly-binned light curves from ZTF, ASAS-SN, and ATLAS, respectively, in different filters. The high-cadence, continuous monitoring of TESS is evident in the right column, while the long-term but lower-cadence coverage from ground-based surveys is prominent in the left column.

Figure 2

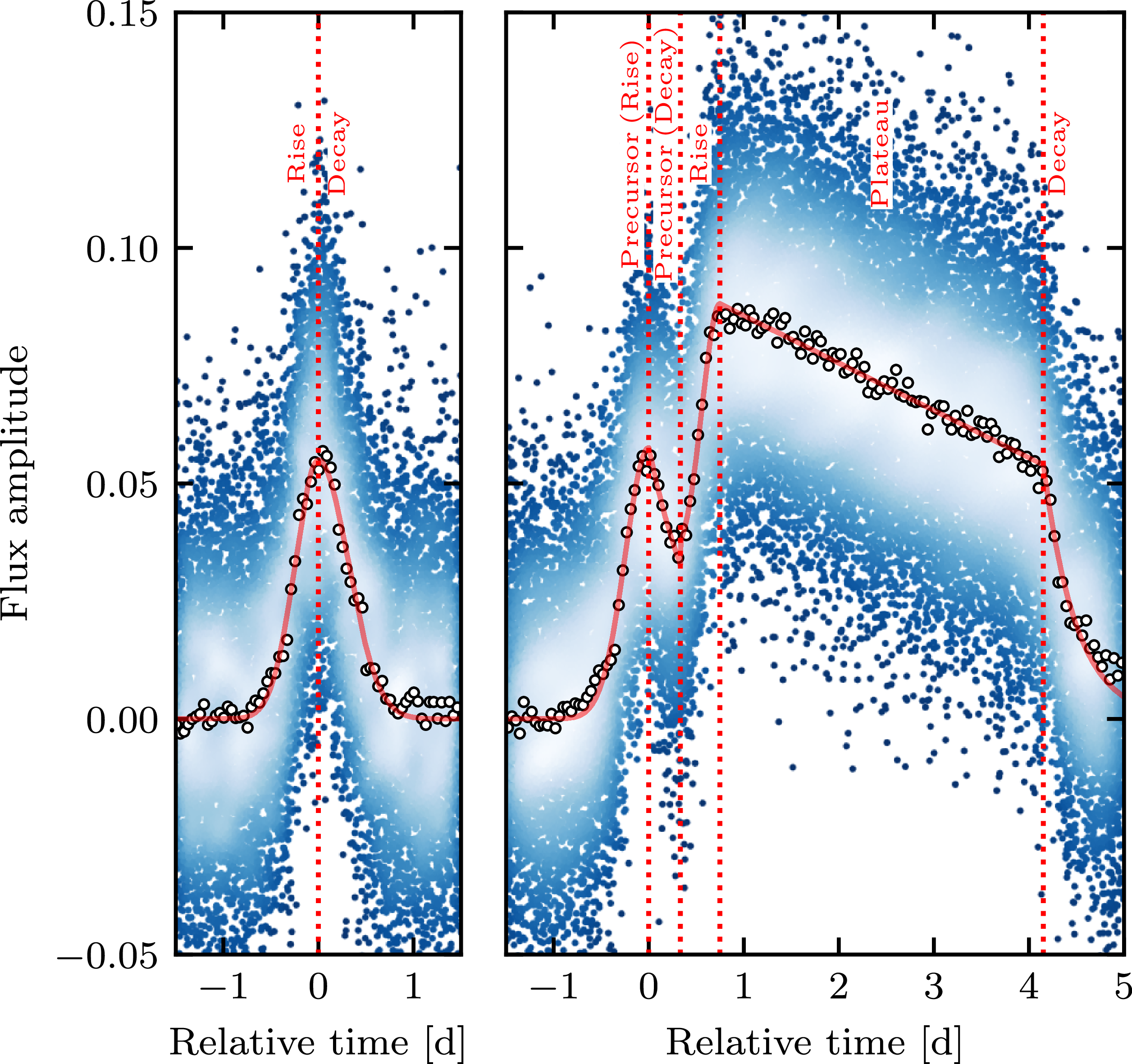

Figure 2. Example of a NO (left) and a SO (right) from TESS data of KL Dra. The blue dots represent the 20 s full-cadence data, where the colour intensity indicates point density based on a Kernel Density Estimator, with darker shades for lower densities and lighter shades for higher densities. The white circles with black edges show 1-h error-weighted binned data. The red solid lines correspond to the best-fit models, while the vertical red dotted lines mark the different evolutionary stages of the NO/SO.

Figure 3

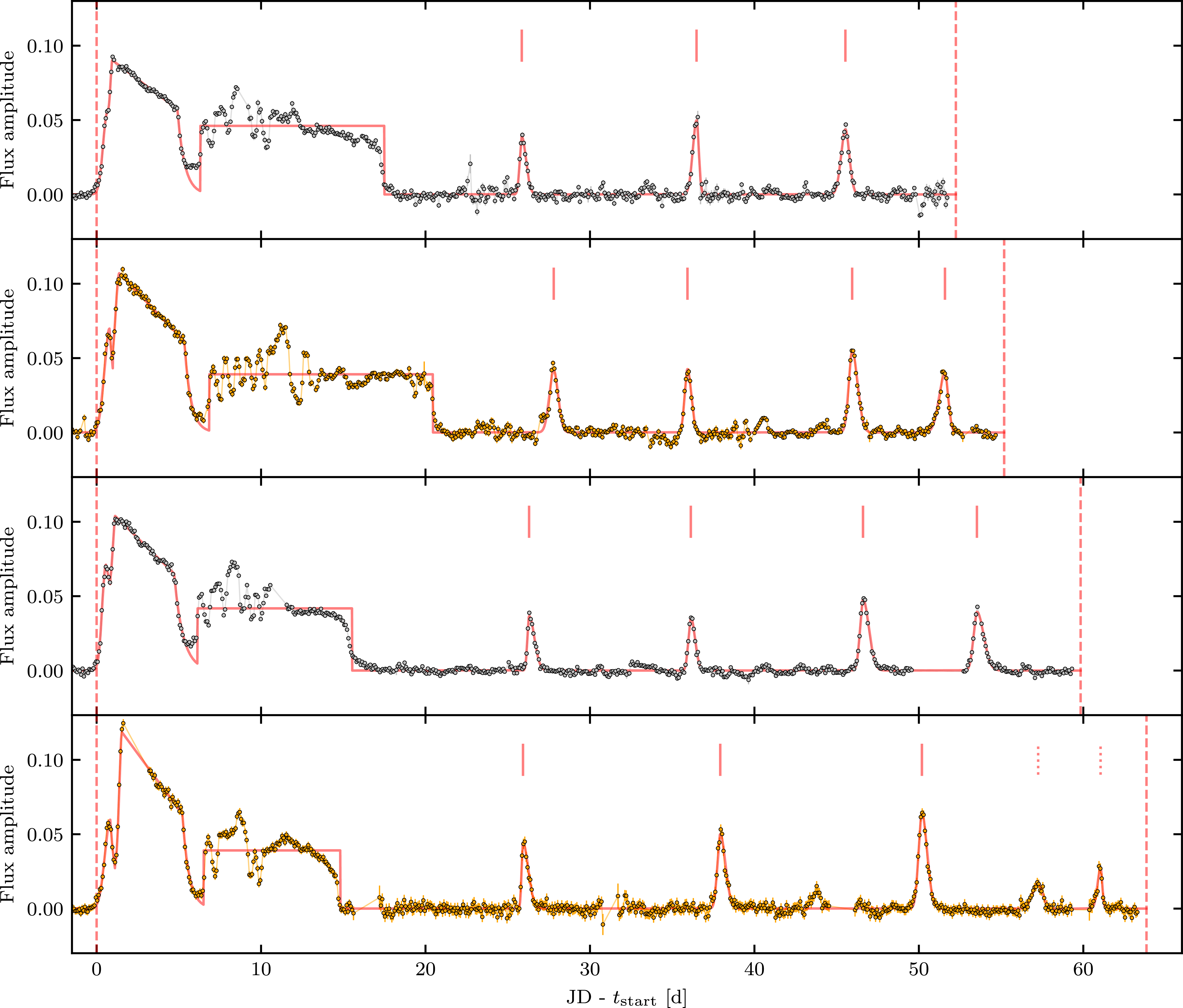

Figure 3. Sample of KL Dra SCs with complete TESS coverage, shown as a function of time from the onset of each SC. Each row corresponds to a different SC. The observed TESS data have been downsampled into 2-h bins, with the best-fit model shown as a solid red line. Red vertical dashed lines mark the start and end times of each SC, while small solid and dotted red lines indicate the positions of NOs and mini-NOs, respectively. SCs are sorted in ascending order of duration from top to bottom but are not sequential in time. All are displayed on the same time scale for consistency.

Figure 4

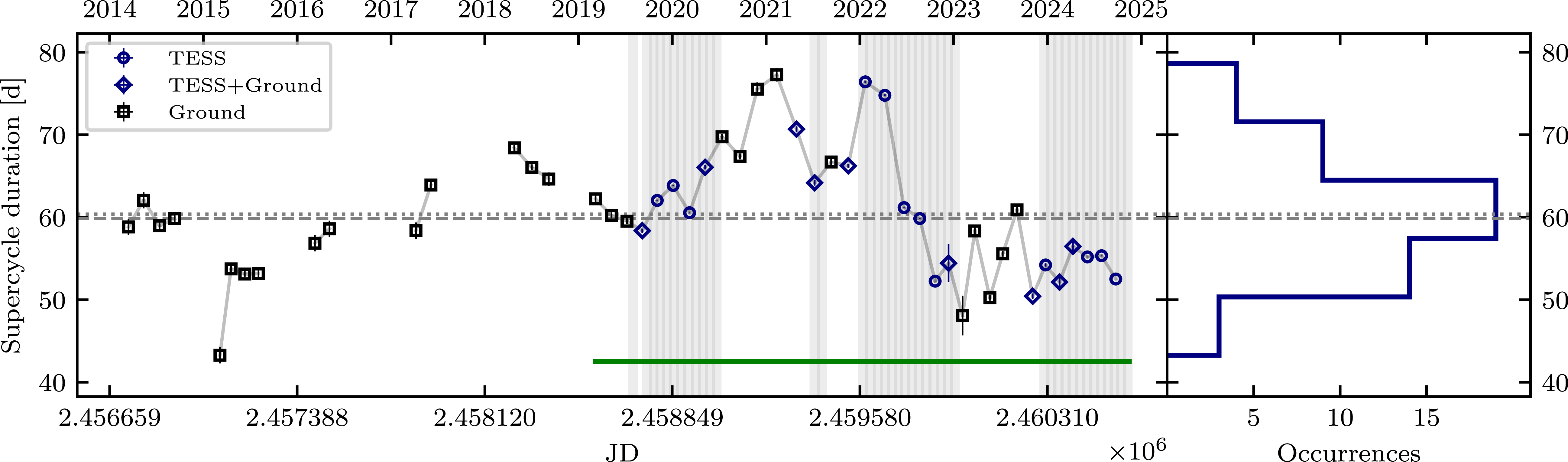

Figure 4. Time evolution (left) and histogram (right) of KL Dra SC durations. Blue circles indicate SCs with both start and end times constrained by TESS data. Blue diamonds represent cycles where either the start or end was measured using ground-based data (ZTF, ASAS-SN and/or ATLAS), while black squares denote cycles constrained solely by ground-based observations. A grey line connects successive SC measurements. The horizontal green line marks the period over which 34 consecutive SC measurements were obtained. The grey dashed line represents the median duration while the dotted line the mean. Vertical grey shaded regions indicate the time spans covered by individual TESS sectors.

Figure 5

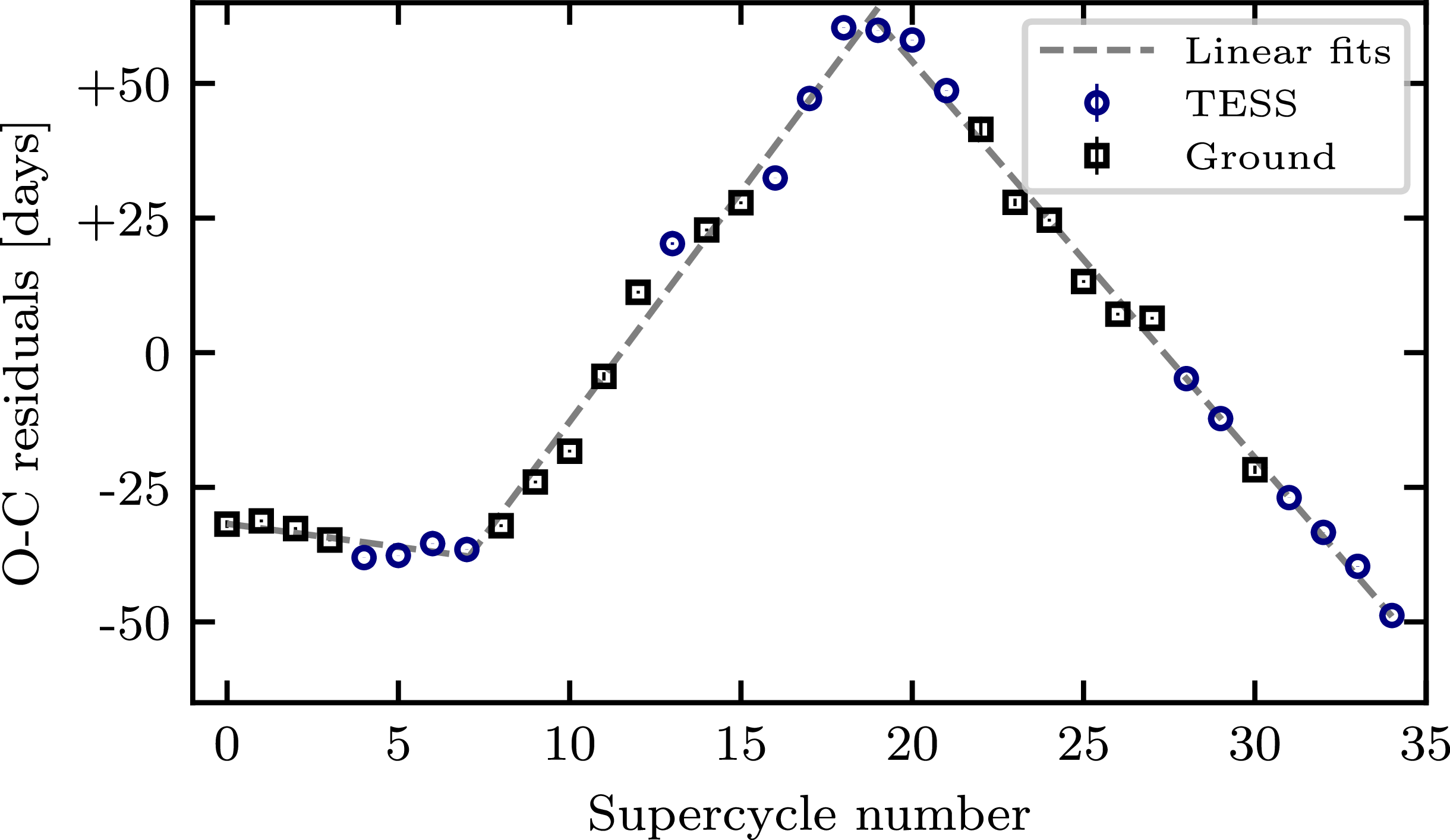

Figure 5. O-C residuals of SC start times relative to a linear ephemeris, as a function of SC number. The analysis includes the continuous sequence of 34 SC measurements from the second half of our dataset, marked by the horizontal green line in Figure 4. Blue circles indicate start times derived from TESS observations, while black squares denote those from ground-based data. The grey dashed line represent linear fits to distinct segments of the O-C residuals, highlighting changes in SC timing behaviour.

Figure 6

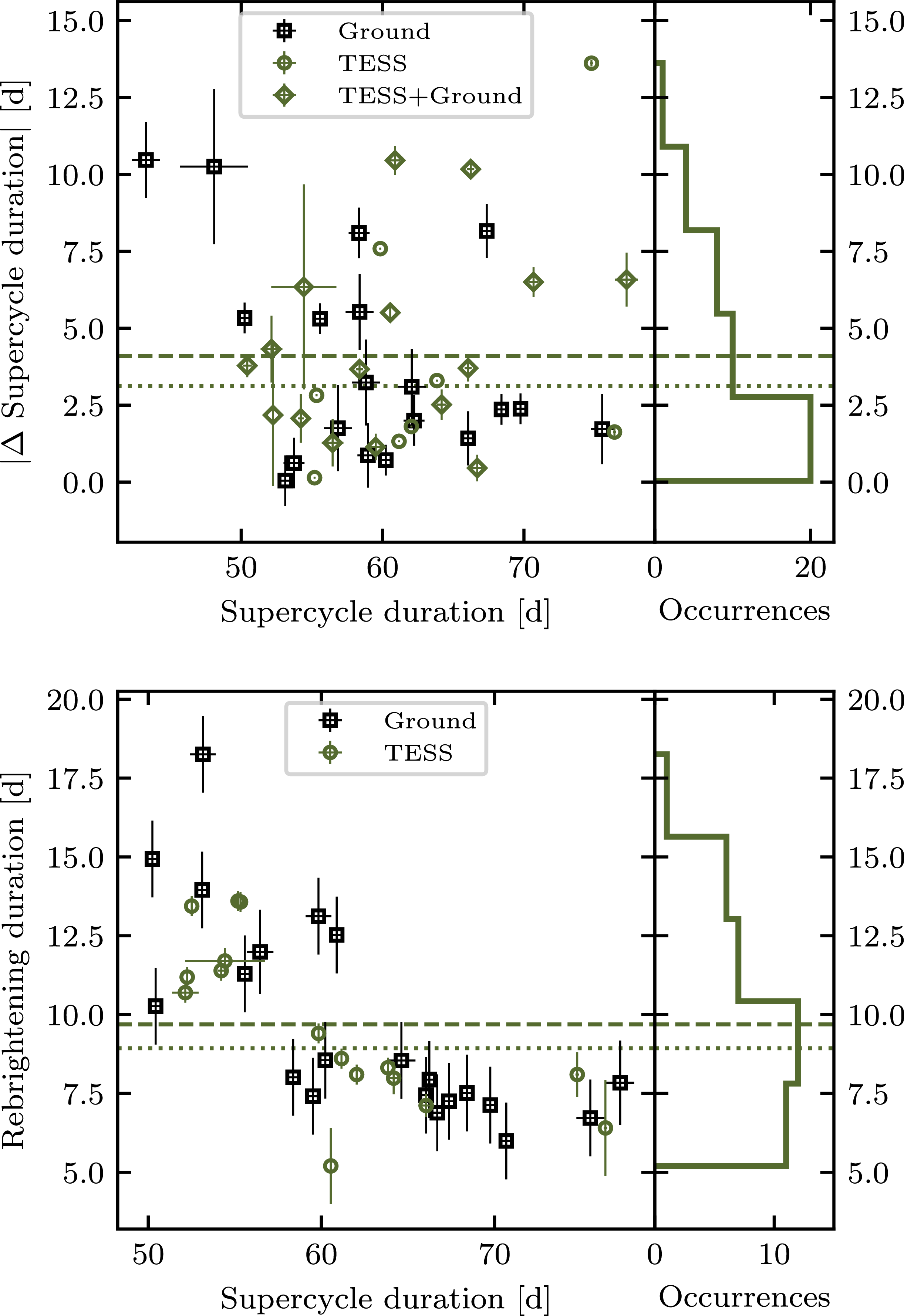

Figure 6. Change in SC duration (top), and rebrightening duration (bottom), as functions of SC duration. The top panel measures the absolute difference between the duration of a given SC (shown on the x-axis) and the immediately following SC. Marker shape and colour indicate whether measurements were obtained from TESS, ground-based data, or a combination of both. The histograms to the right display the distribution of the measured changes, the horizontal dashed line the median, and the horizontal dotted line the mean.

Figure 7

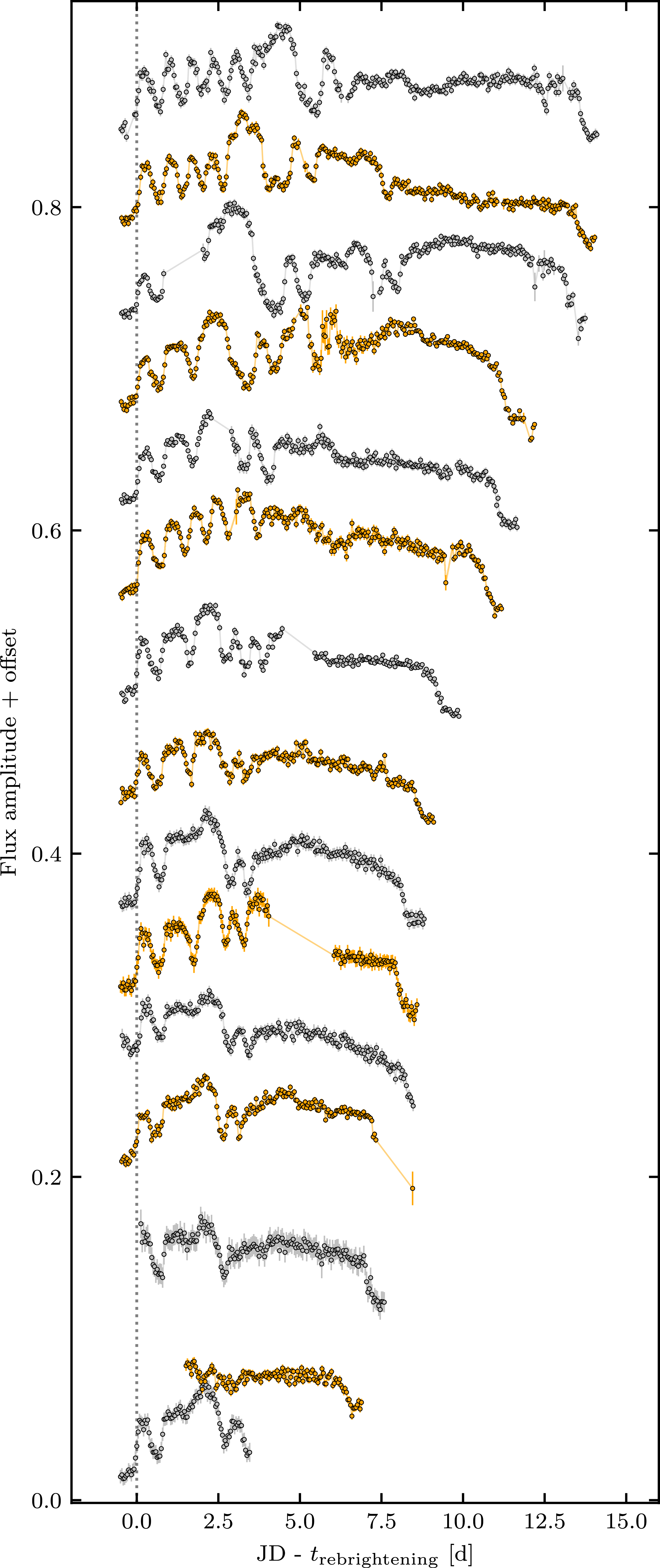

Figure 7. KL Dra rebrightenings observed by TESS. The points represent the 1-h bins, with 2 different colours for visualisation purposes. From bottom to top, the rebrightenings are arranged in order of increasing duration, with a constant vertical offset of 0.06 added for clarity. All rebrightenings are aligned at their onset. Some rebrightenings exhibit data gaps (see text for details).

Figure 8

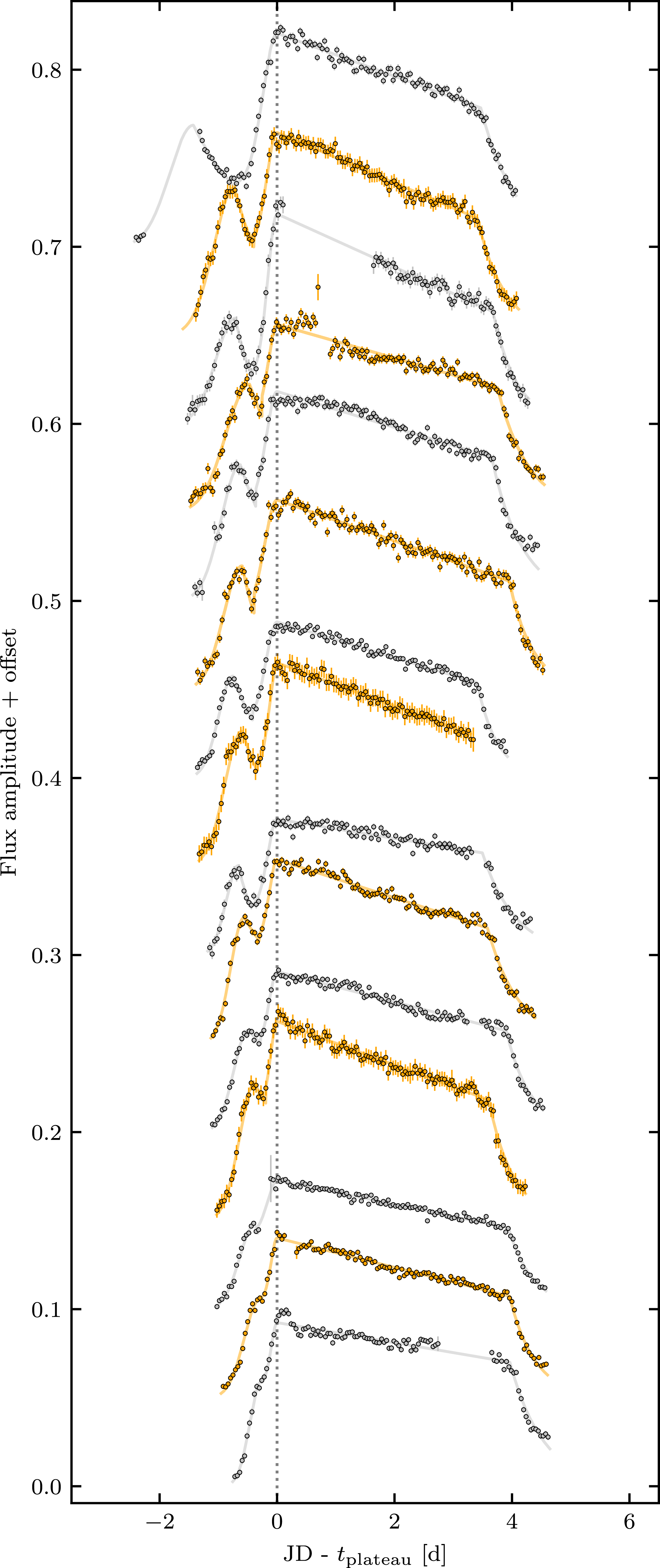

Figure 8. KL Dra SOs observed by TESS. The points represent 1-h bins, while the solid lines indicate the best-fit models, aligned at the start of the plateau phase, with two different colours used for visual clarity. From bottom to top, the SOs are arranged in increasing order of time between the SO onset and the plateau start, with a constant vertical offset of 0.05 added for clarity.

Figure 9

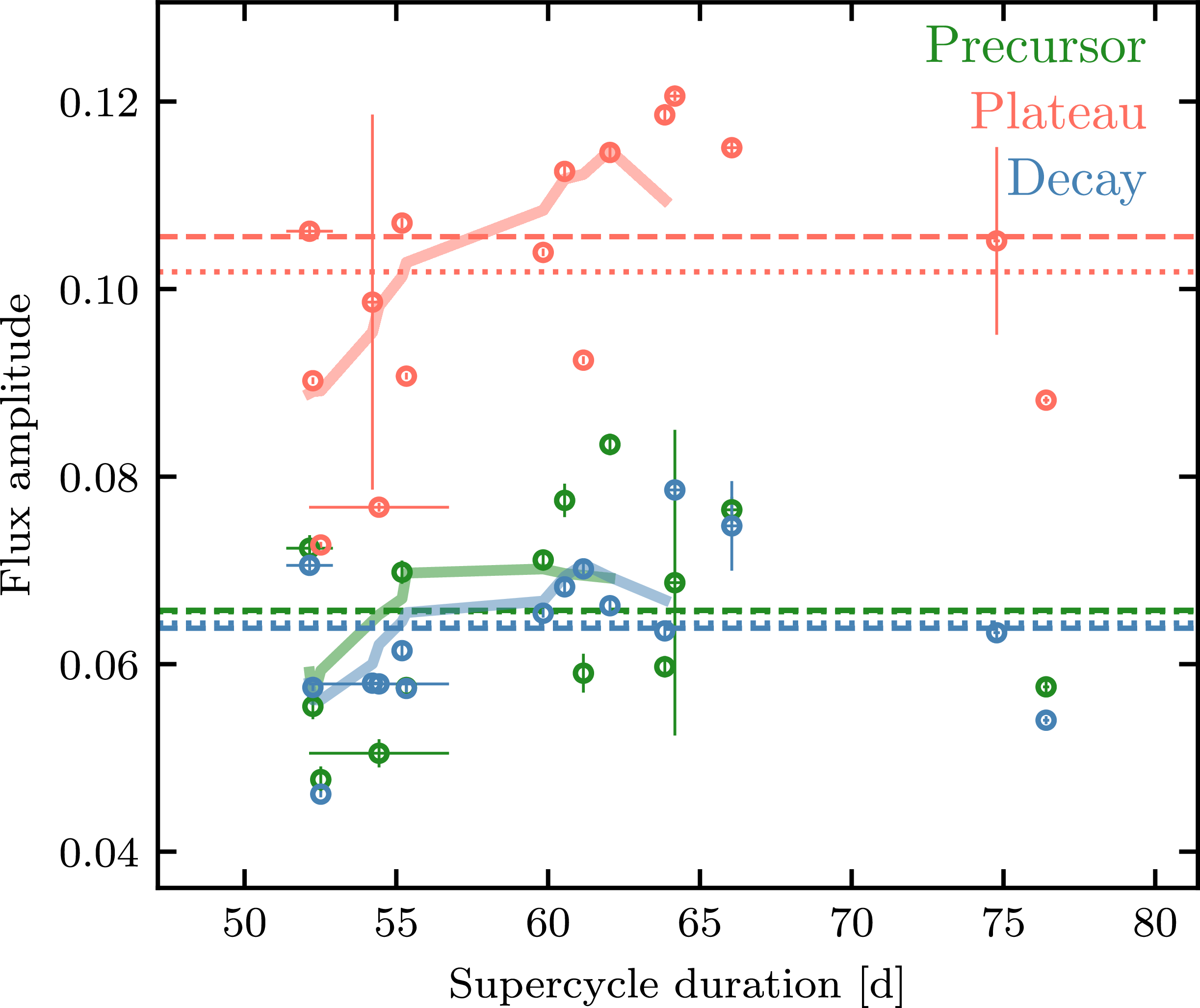

Figure 9. TESS-measured amplitudes of the precursor (green), plateau (pink), and SO decay (blue) as a function of SC duration. The dashed and dotted lines represent, respectively, the median and the mean. Solid lines correspond to a running average computed via convolution, added for visualisation purposes.

Figure 10

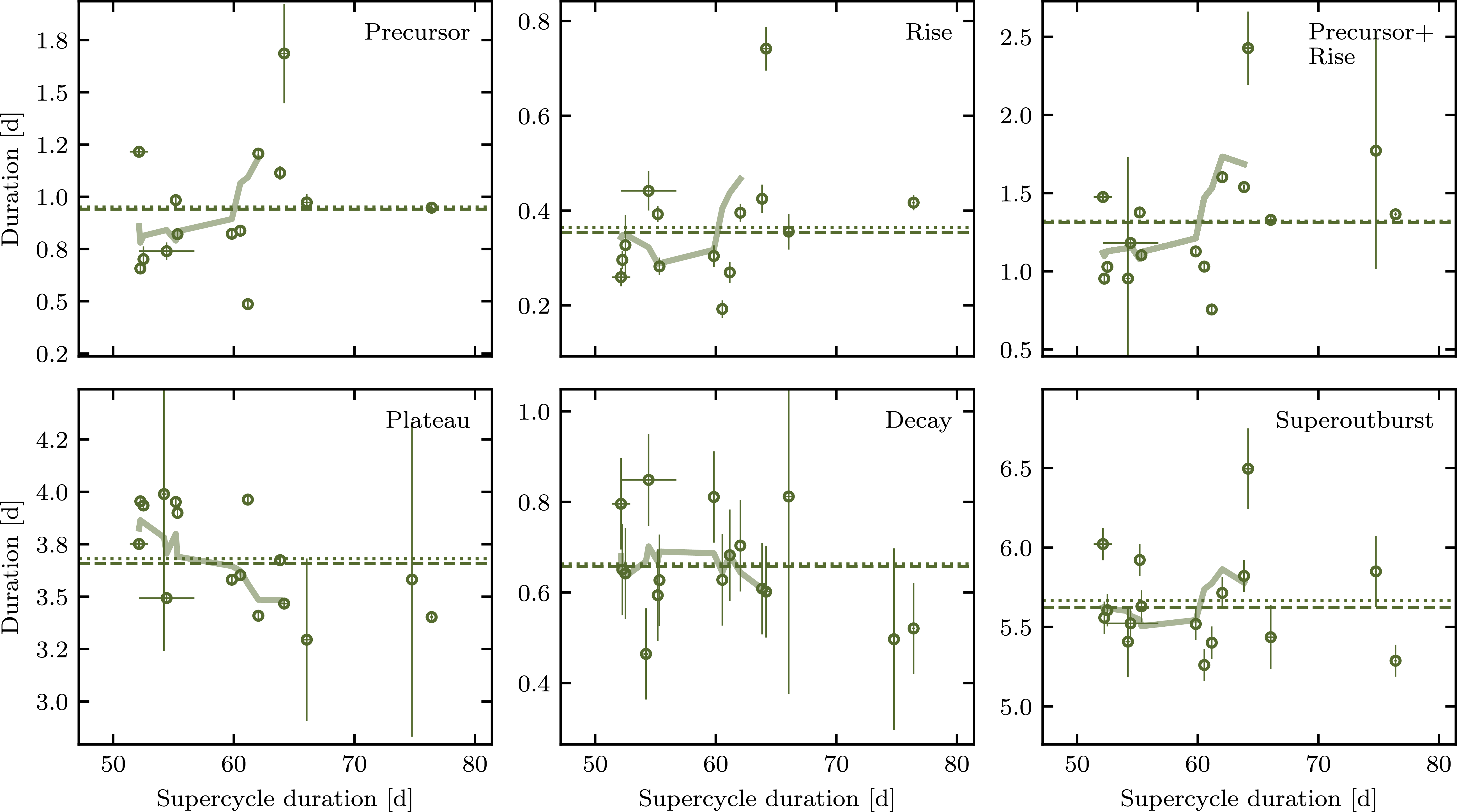

Figure 10. Duration of different SO phases as a function of SC duration. Each panel represents a specific SO phase, including precursor, rise to plateau, plateau, decay from plateau, and total SO duration. The green dashed line indicates the medians and the green dotted line the means, while the solid line represents a running average added for visualisation purposes.

Figure 11

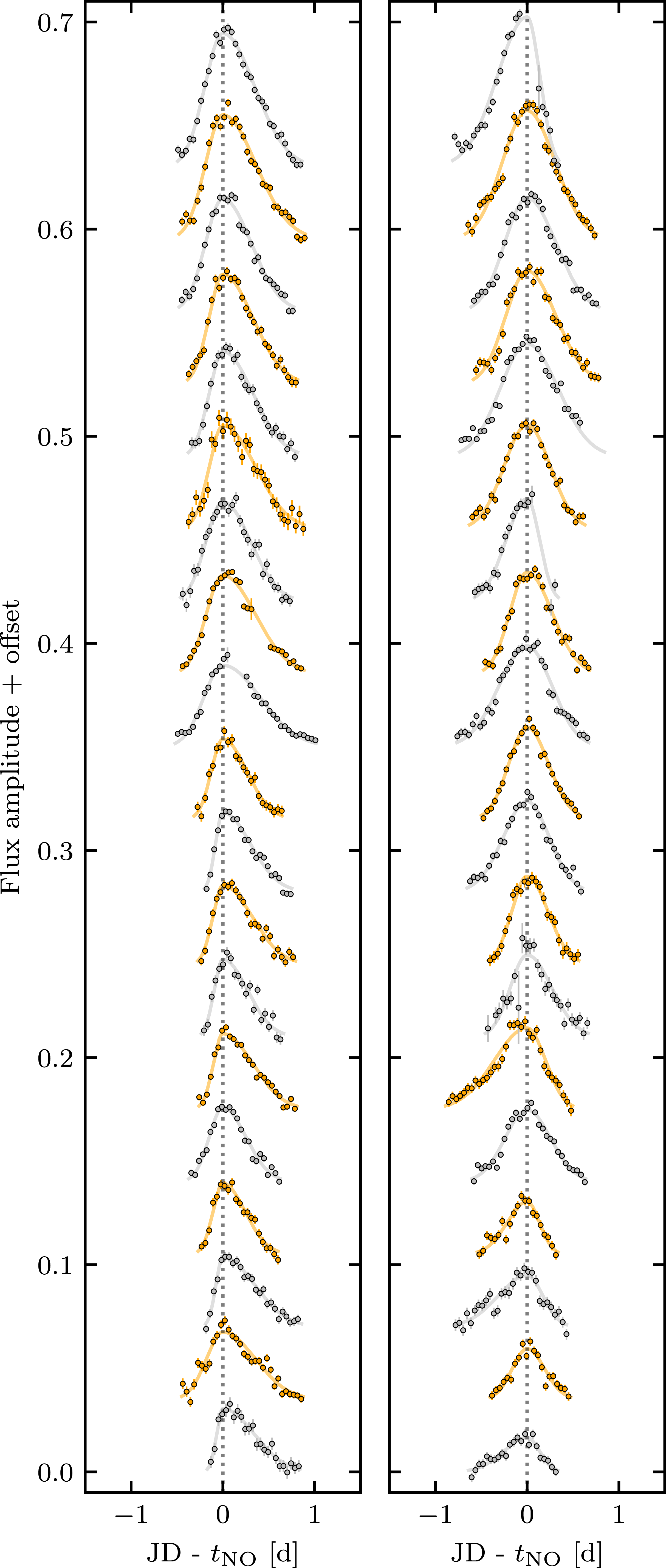

Figure 11. Sample of KL Dra NOs observed by TESS. Points represent 1-hour binned data, and solid lines indicate best-fit models. Two distinct colours are used for clarity. The left panel shows NOs with asymmetry parameters $f_r$ less than 0.4, while the right panel shows those with $f_r$ greater than 0.4. All outbursts are aligned at their peak amplitude, sorted by increasing amplitude, but they are not sequential in time. A constant vertical offset of 0.035 is applied to each NO to aid visualisation.

Figure 12

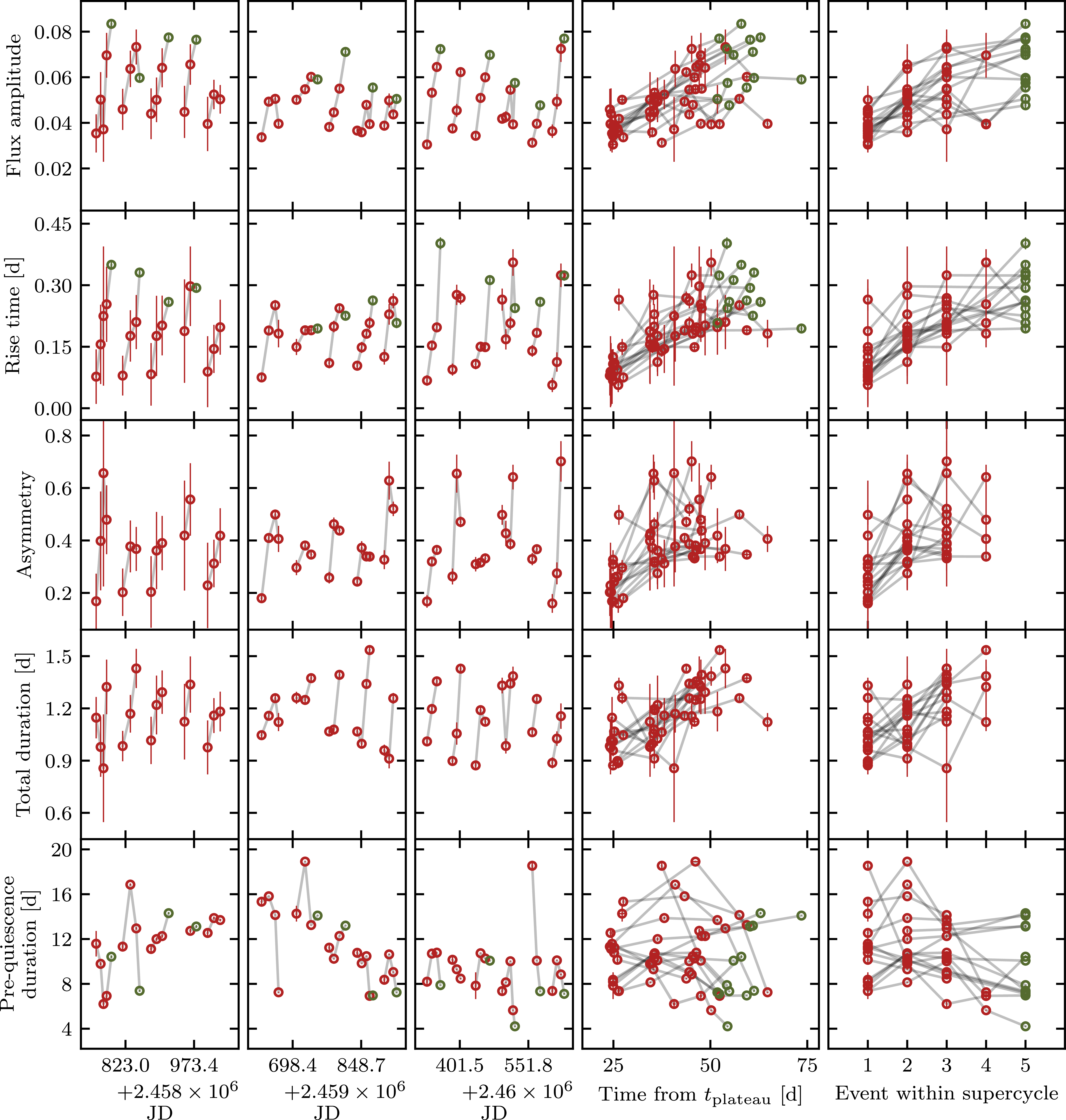

Figure 12. Time evolution of NO characteristics: amplitude, rise-to-plateau timescale, asymmetry parameter $f_r$, total duration, and pre-quiescence duration. Red points correspond to NOs, and green points to measurements based on precursors (included for amplitude, rise timescale, and quiescence comparisons). Mini-NOs (amplitude $\lt 0.03$) are excluded from this figure. NOs within the same SC are connected by lines. The first three columns show the absolute time evolution of each characteristic and share a common x-axis scale. The fourth column presents the timing of each NO relative to the onset of the plateau in the corresponding SC. The fifth column shows the order of occurrence of NOs within each SC, treating precursors as the fifth event.

Figure 13

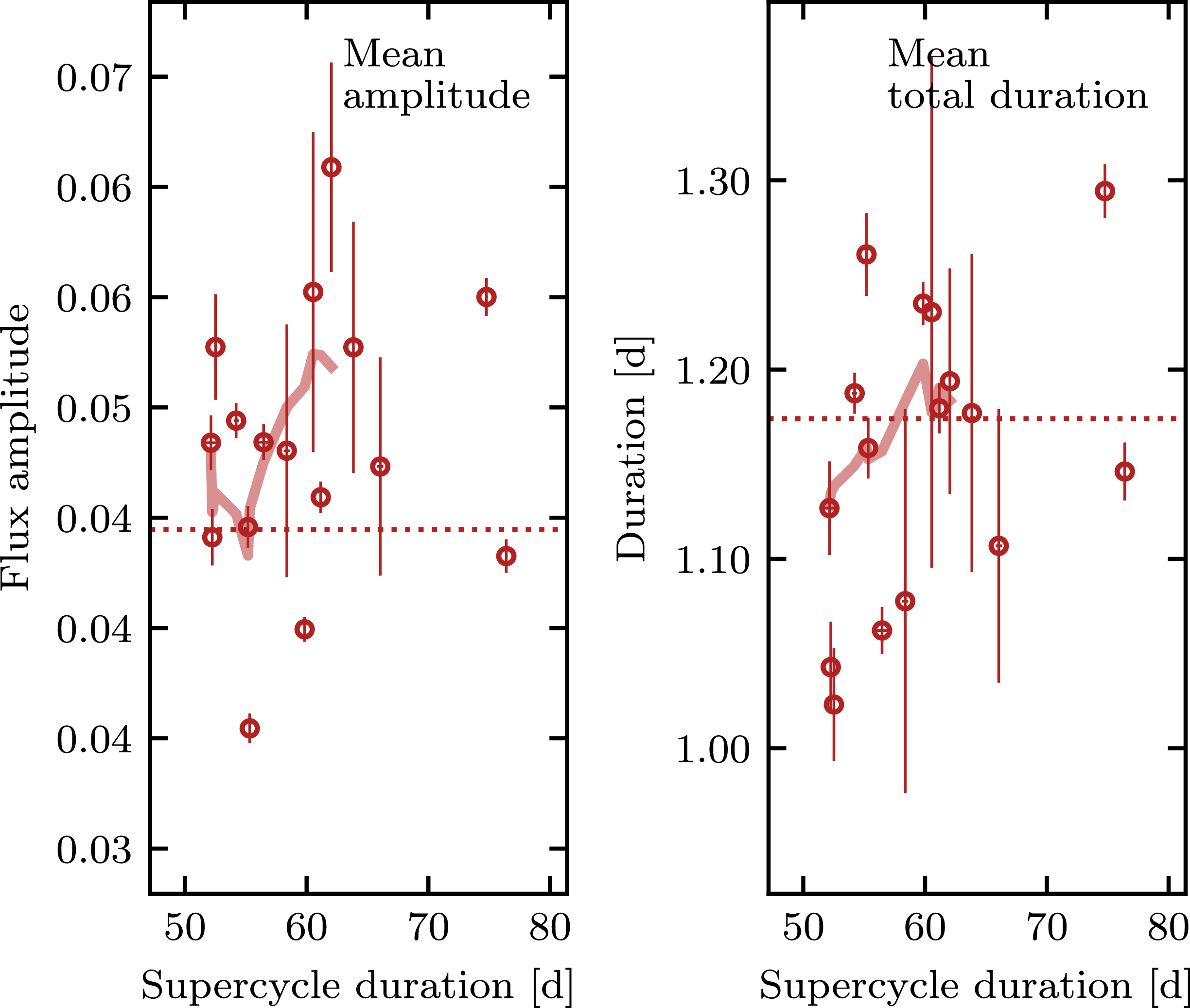

Figure 13. NO properties averaged within each SC as a function of SC duration. The left panel shows the mean NO amplitude, and the right panel shows the mean total duration. Mini-NOs (amplitude $\lt 0.03$) and precursors are excluded. The dotted line indicates the overall mean, while the solid line shows a running average included for visualisation purposes.

Figure 14

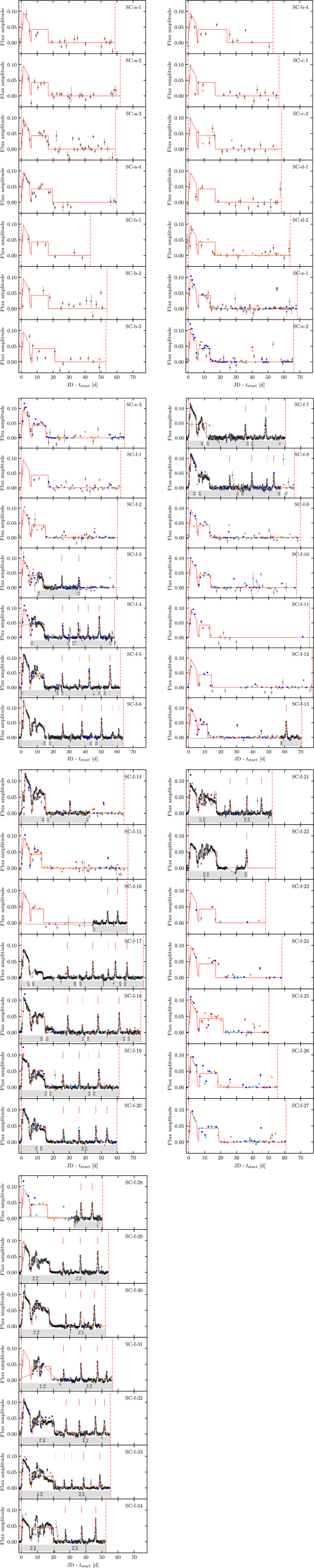

Figure A1. Light curves and models for all SCs included in this study, shown as a function of time from the SO onset. The colour/symbol scheme follows Figure 1 and the panel layout follows Figure 3. TESS (2 h bins) = white circles with black edge; ZTF $g/i$ = blue/red; ASAS-SN $g/V$ = grey/brown; ATLAS $o/c$ = orange/cyan. The red solid curve is the best-fit model; the red dashed line marks the end of the SC. Vertical solid lines indicate NOs and vertical dotted lines indicate mini-NOs. The label of each SC appears in the upper-right corner. The TESS sector is marked by a gray horizontal band, with the sector number indicated at the beginning and end of the corresponding time interval.
