2.1 Inertial measurement unit

An inertial measurement unit (IMU) is a device that utilises a combination of accelerometer, gyroscope and magnetometer sensors to determine a body’s orientation, velocity and gravitational forces. Often, it is paired with other sensors, such as vision-based or wireless technologies, to enhance pose estimation accuracy. When other sensors are unavailable, the IMU can act as the primary sensor. The IMU provides measurements of a quadrotor’s orientation through the three Euler angles: roll, pitch and yaw. The Pixhawk PX4 flight control unit (FCU) includes three internal sensor chips, namely the Invensense MPU 6000 as the primary 3-axis accelerometer/gyroscope, the ST Micro L3GD20 3-axis 16-bit gyroscope and the ST Micro LSM303D 3-axis 14-bit accelerometer/magnetometer.

2.2 Flight controller unit

The FCU is responsible for controlling the UAV’s movement and regulating the power delivered to each motor. Flight controllers assess the UAV’s level and speed, using this data to correct its orientation during flight. For this project, the Readytosky Pixhawk PX4 2.4.8 32-bit flight controller was chosen due to its advanced capabilities beyond the standard gyroscope and accelerometer sensors found in most flight controllers. The Pixhawk incorporates a barometer, magnetometer and IMU, enhancing the precision and reliability of flight performance. Furthermore, the Pixhawk is a 32-bit controller equipped with I2C and SPI interfaces and supports both the PX4 and ArduPilot flight stacks.

2.3 Onboard computer options

The quadrotor’s onboard computer, running the robot operating system 2 (ROS 2), manages critical tasks such as processing stereo camera frames for image recognition, handling ground ultra-wideband (UWB) sensor data, analysing point clouds from the light detection and ranging (LiDAR) sensor, integrating measurements from the flight controller, transmitting commands to the flight controller and streaming video to the ground station. To meet the need for a powerful, lightweight and energy-efficient computer, the FZ3 card was selected.

The FZ3 card [Reference Zheng, Zhang, Tan and Li20], featuring an AMD Zynq UltraScale+ ZU3EG MPSoC, is employed for real-time point cloud processing. Leveraging a dedicated Delaunay triangulation core [Reference Hadjiloizou, Makridis, Charalambous and Deliparaschos16], developed by the authors in prior work, within the programmable logic (PL) FPGA portion of the Zynq UltraScale+ ZU3EG MPSoC further enhances its efficiency in processing point cloud data.

2.4 Sensors: camera, LiDAR, ultrasonic sensors

Camera-based landmark detection is a well-established method for robot localisation. This technique employs a camera mounted on the quadrotor and a set of landmarks whose positions are known relative to the global reference frame. By analysing objects detected by the camera, the quadrotor’s position can be estimated. Using a monocular camera, depth information about the landmarks can be determined by processing successive frames. This enables estimation of the relative position between a landmark and the camera. Once the camera’s relative position is known, the quadrotor’s relative position, to which the camera is attached, can be calculated and expressed within the global reference frame.

Initially, we explored using a single basic RGB camera to capture video data for an object detection algorithm that would identify object locations. However, this setup posed challenges in accurately determining object distances. To address this limitation, we selected the ZED 2 stereo camera [Reference Kneip, Tache, Caprari and Siegwart21], which computes distances by analysing pixel differences between two images. The stereo camera connects via USB 3.0 to the FZ3 card. A drawback of this solution is the significant processing power required, particularly when simultaneously running a computationally intensive object detection algorithm.

Alternatively, a LiDAR sensor was considered as a less computationally intensive approach compared to using two RGB cameras. The point cloud generated by the LiDAR sensor allows object recognition while also determining object distances through the reconstructed surface created by the Delaunay triangulation core [Reference Hadjiloizou, Makridis, Charalambous and Deliparaschos16], implemented on the FZ3 accelerator card.

The LiDAR sensor is invaluable for detecting obstacles within the environment [Reference Krejsa and Vechet22]. For our system, we integrated a Hokuyo URG-04LX-UG01 2D LiDAR [23, Reference Kendoul, Lara, Fantoni and Lozano24] onto the UAV. This sensor offers a range of 20mm to 5500mm (with a resolution of 1mm) and a 240 ${^ \circ }$ scan window with an angular resolution of 0.36 ${^ \circ }$ . Its low power consumption (2.5W) and lightweight design (138g) make it an ideal choice for UAV applications.

For additional range sensing, we selected the Atmel ATMEGA328P microcontroller, mounted on an Arduino Pro Mini board, to manage four laterally mounted HC-SR04 ultrasonic range sensors. This 8-bit, 16 MHz microcontroller is well-suited for driving ultrasonic sensors and transmitting distance data to the processing module via UART or I2C communication. Its compact form factor, lightweight build, low power consumption and user-friendly development environment make it an excellent choice for this application. Moreover, the extensive documentation available for the Arduino platform enhances its integration and reliability in distance measurement tasks.

2.5 Communication modules: Wi-Fi and ultra-wideband (UWB)

Wi-Fi connectivity is essential for enabling communication between the onboard UAV computer and the ground control computer, particularly for the transmission of video data. As the FZ3 card does not include an integrated Wi-Fi module, the AC1300 Archer T3U Mini Wireless MU-MIMO USB adapter was selected. The choice of a USB Wi-Fi adapter, rather than a dedicated Wi-Fi card, was made to simplify system integration, as the latter would require an external antenna for effective operation. The compact USB module incorporates a built-in antenna, thereby reducing hardware complexity and easing installation.

The selected adapter also supports multi-user multiple-input multiple-output (MU-MIMO) technology, which enables two simultaneous data streams. When used in conjunction with a compatible MU-MIMO router, this feature improves overall throughput and network efficiency.

Ultra-wideband (UWB) technology was additionally incorporated to provide accurate localisation capabilities. UWB is a wireless communication technology that employs short, low-energy pulses transmitted over a wide bandwidth, making it inherently robust to multipath interference. In contrast to conventional radio-frequency identification (RFID) systems that operate within narrow frequency bands, UWB spans a broad spectrum, resulting in low power spectral density and reduced interference with other radio-frequency signals.

A key advantage of UWB lies in its precise time-of-flight (ToF) measurement capability, which enables accurate distance estimation and makes the technology particularly well suited for indoor localisation. A typical UWB localisation setup consists of wireless transmitters, referred to as anchors, positioned at fixed locations, and a receiver, known as a tag, mounted on the quadrotor. The tag measures the arrival times of signals transmitted by the anchors to estimate the quadrotor’s position in three-dimensional space. Conversely, if the anchors are arranged in a known geometric configuration and the initial position of the tag is specified, the anchors’ positions may also be inferred.

The UWB system employed in this work is based on the Pozyx platform [Reference Voos25], which utilises the Decawave DWM1000 transceiver.

In addition to Wi-Fi and UWB communication, radio control functionality is provided by a Radiolink R8EF receiver. This 8-channel receiver operates at a frequency of 2.4 GHz and is connected to the quadcopter’s FCU. Specifically, the SBUS output (channel 1) is interfaced with the Pixhawk RC input. The receiver relays control commands generated by the radio transmitter based on pilot stick inputs, thereby enabling precise manual control of the quadcopter when required.

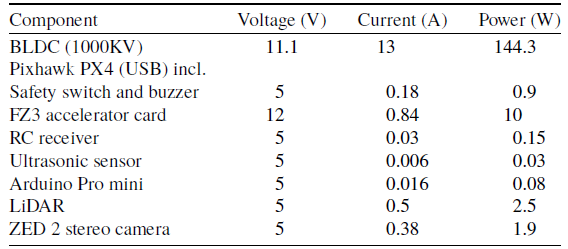

2.6 Power components: battery, DC-to-DC converter

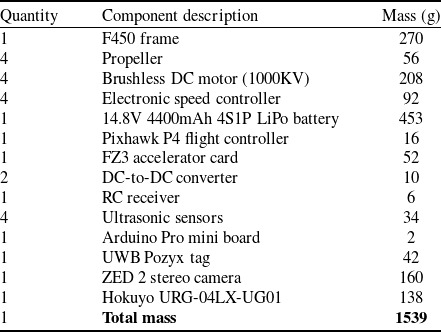

The quadrotor is powered by a lithium polymer (LiPo) battery, connected to a power distribution board (PDB) that distributes power to the various components. The selected battery is a 3S1P LiPo battery (three cells connected in series) with a nominal voltage of 11.1 volts, a capacity of 4400 mAh, a 30C discharge rate, and a mass of 453g. The choice of this battery was based on its balance of output voltage and mass.

To power the FZ3 card from the UAV’s power distribution board, we employed a buck converter. A buck converter, also known as a step-down converter, is a DC-to-DC converter that reduces input voltage while increasing output current. This type of converter falls under the category of switched-mode power supplies.

The FZ3 card requires a 12V DC power supply with a maximum current of two amps. Ensuring adequate power is critical, particularly during computationally intensive tasks such as running object detection algorithms, to prevent a CPU shutdown.

2.7 Propulsion and control system

Four A2212 brushless DC motors (BLDC), rated at 1000 kV (1000 rpm/V)Footnote ² , were selected for the propulsion system, each exhibiting a maximum efficiency of approximately 80%. The motors are driven by 30 A electronic speed controllers (ESCs) and are equipped with 10 $ \times $ 4.5 inch propellers in both clockwise (CW) and counter-clockwise (CCW) configurations. Each motor is capable of producing a maximum thrust of approximately 7.85 N, corresponding to 800 gram-force (gf).

The propulsion system components operate in unison to ensure stable and efficient flight. Despite their name, brushless DC motors are not true DC machines but rather polyphase synchronous motors supplied by electronically commutated currents. In these motors, DC power is converted into alternating currents through electronic switching, generating a rotating magnetic field within the stator. In contrast to brushed DC motors, which rely on mechanical commutation via brushes, BLDC motors achieve commutation electronically, resulting in improved efficiency, reduced wear, and enhanced reliability.

3.1 UAV overall architecture

The UAV system architecture is designed for efficient, autonomous operation and features several key components. Central to this architecture is the FZ3 card, equipped with a Zynq UltraScale+ ZU3EG MPSoC, which manages high-level computations, decision-making and surface reconstruction implementation on the PL side. The flight controller, specifically the Readytosky Pixhawk, connects to the FZ3 card and is responsible for managing the UAV’s movement and motor control. The system architecture is shown in Fig. 1.

Figure 1. Quadrotor system architecture.

Sensory input is provided by various sensors, including a stereo camera for image recognition, an IMU for orientation data, UWB sensors for localisation and a LiDAR sensor for point cloud data. These sensors collectively provide essential information for navigation and obstacle avoidance. The system is powered by a LiPo battery connected to a PDB, which supplies power to all components. For communication, the AC1300 Archer T3U Mini Wireless MU-MIMO USB adapter enables data exchange with a ground control station. The overall architecture is designed for modularity, offering flexibility to adjust configurations for different scenarios and experiments.

3.2 Coordinate systems for UAV positioning

To accurately determine the position of the quadrotor in space and the relative positions of surrounding objects, two coordinate frames are defined using the standard right-handed robotics convention, as illustrated in Fig. 2. The Earth’s inertial frame $\left\{ E \right\}$ adopts the East-North-Up (ENU) reference system, where the $ + x$ axis points east, $ + y$ points north and $ + z$ points upwards in accordance with the right-hand rule. The body frame of the quadrotor $\left\{ B \right\}$ is coincident with the origin and thus represents the quadrotor’s absolute position, $\left[ {x,y,z} \right]$ . It adheres to the Forward-Left-Up (FLU) convention, which defines forward horizontal movement along the $ + x$ axis, leftward horizontal movement along the $ + y$ axis and upward vertical movement along the $ + z$ axis.

Figure 2. F450 quadrotor model with coordinate frame.

3.3 Quadrotor dynamics

The quadrotor is an inherently unstable, non-linear and complex system comprising four rotors, as indicated by its name. Each rotor includes a propeller and a motor that generates an angular velocity ${\omega _i}$ , producing a thrust force ${f_i}$ , where $i$ denotes the motor number, as illustrated in Fig. 2. Two rotors rotate clockwise, while the other two rotate counterclockwise, counteracting any undesired rotation of the quadrotor body in the yaw ( $\psi $ ) direction due to the conservation of angular momentum.

The angular velocities of the rotors govern specific rotational coordinates, $\eta = \left( {\phi ,\theta ,\psi } \right) \in {\mathbb{R}^3}$ , which in turn control the quadrotor’s motion in the translational coordinates, $\xi = \left( {x,y,z} \right) \in {\mathbb{R}^3}$ , relative to the Earth’s inertial frame $\left\{ E \right\}$ . The quadrotor’s orientation is defined by the Euler angles $\phi $ , $\theta $ and $\psi $ , where $\phi $ (roll) is the angle about the $x$ -axis, $\theta $ (pitch) is the angle about the $y$ -axis, and $\psi $ (yaw) is the angle about the $z$ -axis. The translational coordinates $x$ , $y$ and $z$ represent the centre of mass of the quadrotor with respect to the Earth’s inertial frame.

The quadrotor’s translational equations of motion in the Earth’s frame are derived using the Newton–Euler formalism [Reference Bouabdallah26, Reference Jia, Yu, Mei, Chen, Shen and Ai27], while the rotational equations are derived using the same formalism [Reference de Berg, Cheong, van Kreveld and Overmars28]. These equations assume relatively small quadrotor movement angles:

\begin{align*} \ddot x = {{{f_T}} \over m}\left( {c\phi s\theta c\psi + s\psi s\phi } \right),{\textrm{ }}\ddot \phi = {{{I_y} - {I_z}} \over {{I_x}}}\dot \theta \dot \psi - {{J\dot \theta {{{\Omega }}_i}} \over {{I_x}}} + {{{\tau _x}} \over {{I_x}}},\end{align*}

(1) \begin{align} \ddot y = {{{f_T}} \over m}\left( {c\phi s\theta s\psi - c\psi s\phi } \right),{\textrm{ }}\ddot \theta = {{{I_z} - {I_x}} \over {{I_y}}}\dot \phi \dot \psi + {{J\dot \phi {{{\Omega }}_i}} \over {{I_y}}} + {{{\tau _y}} \over {{I_y}}},\end{align}

\begin{align*}\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\!\! \ddot z = {{{f_T}} \over m}\left( {c\phi c\theta } \right) - g,\qquad \ddot \psi = {{{I_x} - {I_y}} \over {{I_z}}}\dot \phi \dot \theta + {{{\tau _z}} \over {{I_z}}}.\end{align*}

Here, $m$ represents the quadrotor’s mass, ${f_T}$ is the total thrust force and $g$ is the gravitational acceleration. The torques ${\tau _x}$ , ${\tau _y}$ and ${\tau _z}$ correspond to the roll, pitch and yaw torques, respectively. $J$ denotes the rotor inertia, while ${{{\Omega }}_i}$ represents the angular velocity of the ${i^{th}}$ rotor [29, 30]. Additionally, ${I_x}$ , ${I_y}$ and ${I_z}$ are the moments of inertia of the quadrotor’s symmetric rigid body about its three principal axes.

A simplified linearised model is obtained around the hovering equilibrium point via small-angle approximation (i.e. since we assume relatively low navigation speed, the rotational angles of the system are small also). This approximation leads to $\dot \phi ,\dot \theta ,\dot \psi \simeq 0$ , and $s\phi \simeq \phi ,s\theta \simeq \theta ,s\psi \simeq \psi $ , with $c\phi = 1$ , $c\theta = 1$ and $c\psi = 1$ . The system state vector is defined as ${\bf{x}} = {[xyz\phi \theta \psi \dot x\dot y\dot z\dot \phi \dot \theta \dot \psi ]^T}$ . The hovering equilibrium point, ${\bar {\textbf{x}}} = {[\bar x\bar y\bar z000000000]^T}$ is reached when the total thrust corresponds to a constant control input of ${f_T} = mg$ , providing the force necessary to sustain the quadrotor’s hover at an arbitrary position $\left( {\bar x,\bar y,\bar z} \right)$ . The linearised system derived from this analysis is expressed as:

\begin{align*} \ddot x = g\theta ,{\textrm{ }}\ddot y = - g\phi ,{\textrm{ }}\ddot z = {{{f_T}} \over m},\end{align*}

(2) \begin{align} \ddot \phi = {{{\tau _x}} \over {{I_x}}},{\textrm{ }}\ddot \theta = {{{\tau _y}} \over {{I_y}}},{\textrm{ }}\ddot \psi = {{{\tau _z}} \over {{I_z}}}.\end{align}

4.1 Delaunay triangulation algorithm

This work utilises the Delaunay triangulation algorithm for surface reconstruction. In any triangulation, a triangle’s circumcircle must not contain any other points from the set within its boundary; the interior of the circumcircle should include only the triangle’s vertices. The incremental algorithm offers a step-by-step approach to constructing Delaunay triangulations. Starting from an initial triangulation, it adds new points sequentially, updating the triangulation with each insertion to maintain the Delaunay property.

A critical step in this method involves subdividing affected triangles when a new point is introduced, followed by edge flipping to ensure compliance with the Delaunay condition. Each point insertion results in localised adjustments, preserving the Delaunay property throughout the triangulation process.

To enable efficient real-time surface reconstruction, the algorithm is implemented on an FPGA via the DT-core (Delaunay triangulation core).

The process commences by projecting all sampled points onto the x-y plane while retaining their original height values. A Delaunay triangulation is subsequently applied to the projected points, segmenting the surface into multiple triangles. The points within the triangulation are then elevated to their recorded heights, creating a piecewise linear representation of the surface using these triangles. An increase in the number of points results in the formation of more triangles, thereby improving the quality of the surface reconstruction.

4.1.1 Incremental algorithm

To reconstruct the surface, the incremental algorithm is employed. This algorithm begins by creating an initial super-triangle that encompasses all points in the dataset. For each new point inserted, the triangle containing the point is identified and subdivided into three new triangles based on the newly added point. Subsequently, the circumcircles of these new triangles are examined to ensure they do not enclose any other points from the dataset. If the Delaunay condition is violated, edge-flipping is performed to restore compliance. This process continues for each new point until all triangles satisfy the Delaunay condition. The algorithm has a time complexity of $O\left( {n{\textrm{log}}n} \right)$ , where $n$ is the number of points in the dataset.

The Delaunay triangulation is detailed in Algorithm 4.1.1. In line 1, a triangle is constructed to encompass all the points on the surface being reconstructed. Lines 2–3 involve processing each point from the set $P$ , iterating over all triangles to find the one containing the current point. If such a triangle is found, it is subdivided into three new triangles in line 5, with their vertices formed by the newly inserted point. The set of triangles is then updated accordingly in line 6. The new triangles are marked as unprocessed for further investigation in line 7.

Lines 8–14 of the algorithm are dedicated to verifying the Delaunay condition for all unprocessed faces. If a face fails to satisfy the condition (line 9), the flipping procedure is applied in line 10 to transform it into a valid Delaunay triangle. The updated faces are marked for further investigation in line 11, while the edges and triangles are updated in lines 12–13. This iterative process continues until all triangles comply with the Delaunay condition. Finally, line 15 outlines the return of $D\left( P \right)$ , the edges of the completed Delaunay triangulation [Reference Hadjiloizou, Makridis, Charalambous and Deliparaschos16].

Algorithm 1: Incremental Delaunay Triangulation Algorithm

4.2 On the use of two-dimensional delaunay triangulation for mapping and navigation

The Delaunay triangulation (DT) approach adopted in this work operates in a two-dimensional domain, where triangulation is performed using only the planar $\left( {x,y} \right)$ coordinates. Each triangulation vertex retains its own elevation value, which may vary across the surface and is used to reconstruct surfaces of the form $z = f\left( {x,y} \right)$ .

This design choice is intentional and well aligned with typical indoor UAV navigation requirements. In many practical scenarios, motion planning and obstacle avoidance are carried out predominantly in the horizontal plane, while altitude is regulated independently by the flight control system. Under these conditions, a two-dimensional triangulated representation provides sufficient geometric information for mapping, free-space estimation and collision avoidance, while significantly reducing computational complexity.

Compared to full three-dimensional Delaunay triangulation, the 2D formulation offers advantages in terms of determinism, memory footprint and suitability for real-time implementation on resource-constrained SoC FPGA platforms. Although full 3D triangulation may be required for volumetric mapping or multi-level environments, such functionality lies beyond the scope of this work. The proposed DT core nevertheless provides a scalable foundation that can be extended towards higher-dimensional triangulation approaches in future research.

4.3 Delaunay triangulation core high-level architecture

The DT algorithm was implemented on an FZ3 accelerator card, which is built around the AMD Zynq UltraScale+ ZU3EG MPSoC. This platform integrates a SoC that combines a processing system (PS) – featuring a 1.2 GHz Quad-Core ARM Cortex-A53 and a 600 MHz Dual-Core Cortex-R5 – with PL, where the DT core was deployed. This architecture enables real-time surface reconstruction.

4.3.1 Hardware platform: FZ3 accelerator card

This work utilised the FZ3 accelerator card as the onboard computer, whose technical specifications are summarised in Table 1.

The onboard computer leverages the hardware capabilities of the AMD Zynq UltraScale+ MPSoC FZ3 accelerator card [Reference Nyboe, Malle and Ebeid32]. This platform is a general-purpose board that integrates a heterogeneous computing system consisting of a PS and PL, which communicate via a 128-bit AMBA AXI4 interconnect.

Processing system (PS)

The PS integrates several heterogeneous processing units:

• • Cortex-A53 application processing unit (APU): a 64-bit quad-core Arm v8 CPU with an 8-stage, 2-way superscalar in-order pipeline. Each core includes separate 32 KB L1 instruction and data caches, a shared 1 MB L2 cache and a memory management unit (MMU).

• • Cortex-R5 real-time processing unit (RPU): a 32-bit dual-core processor (Arm v7 architecture) with 32 KB of L1 instruction and data caches per core. Each core also has a local 128 KB tightly coupled memory (TCM). The cores can operate independently or in lockstep mode and support error correction code (ECC), enabling detection of up to two errors and correction of one.

• • Mali-400 MP2 graphics processing unit (GPU): includes pixel and geometry processors with a 64 KB L2 cache.

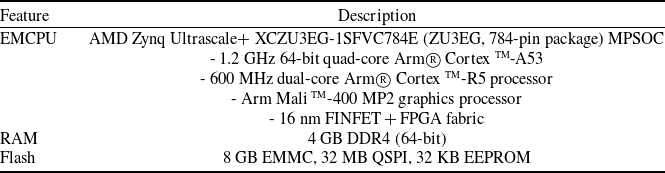

Table 1. Features of the FZ3 accelerator card

Programmable logic (PL)

The PL section provides significant reconfigurable computing resources for hardware acceleration and sensor interfacing, as summarised below:

• • Programmable logic cells: 154 K

• • Look-up tables (LUTs): 71 K

• • Flip-flops: 141 K

• • Distributed RAM: 1.8 Mb

• • Block RAM: 7.6 Mb

• • DSP slices: 360

A block-level overview of the SoC architecture and its subsystems is illustrated in Fig. 4.

Figure 4. Block-level overview of the Zynq UltraScale+ SoC architecture and its subsystems. Adapted from Ref. (Reference Nyboe, Malle and Ebeid32).

4.3.2 Implementation in programmable logic

The DT core is implemented on the PL side to enable point cloud surface reconstruction using point cloud datasets (PCD) received from the stereo camera or LiDAR on the UAV. This approach leverages the programmability and performance of FPGA hardware to efficiently process the incoming PCD data for real-time reconstruction.

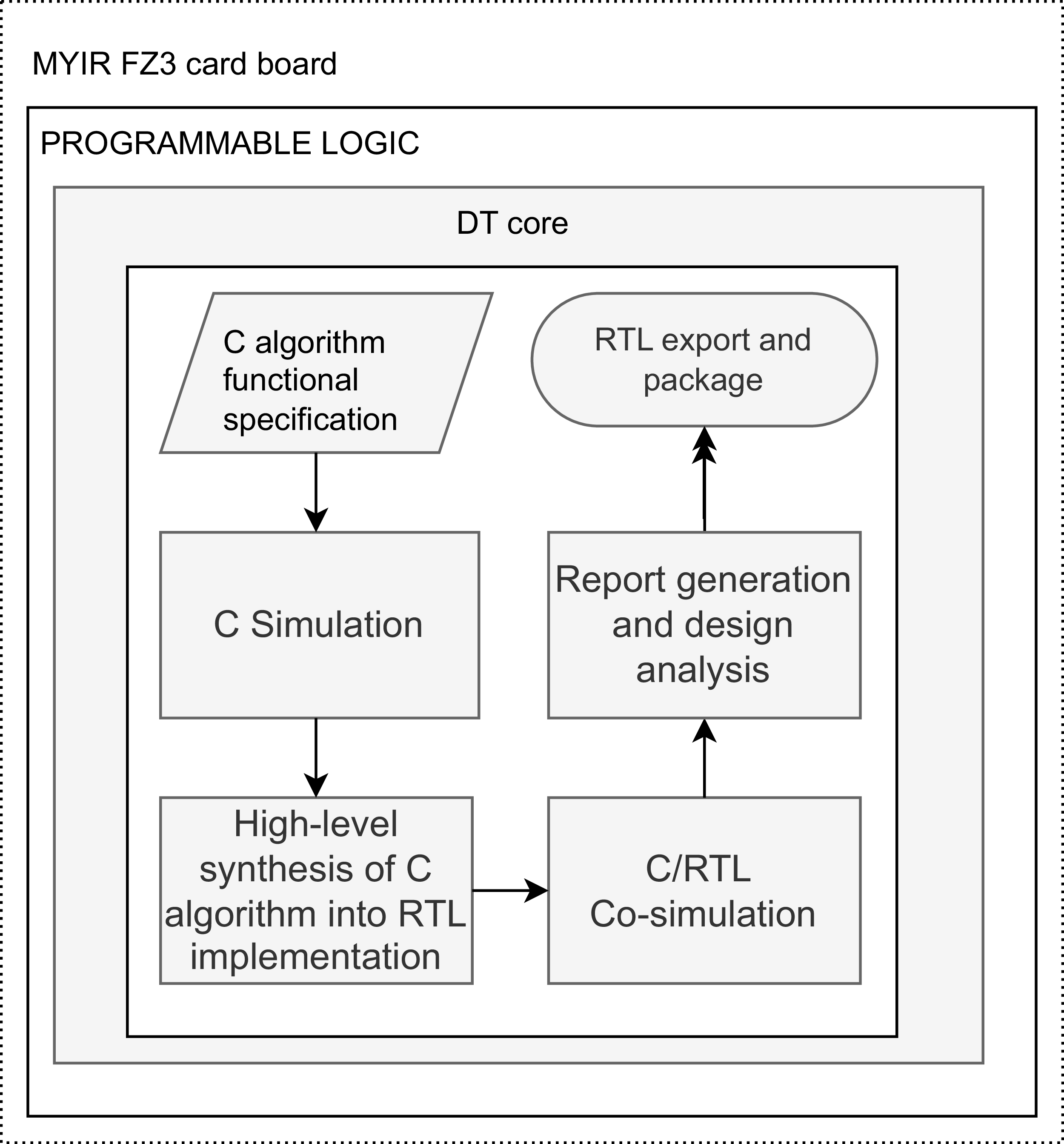

To develop the DT core, a high-level synthesis (HLS) process is employed. This process begins with a high-level description of the algorithm, written in languages such as C/C++, Python, or MATLAB. The code is then analysed, with architectural constraints and scheduling strategies applied to generate an optimised register-transfer level (RTL) HDL. Subsequently, the RTL is synthesised into gate-level circuits using logic synthesis tools, transforming the high-level algorithm into efficient hardware logic.

For high-level synthesis, Vitis HLS was used as the synthesis tool, packaging the resulting RTL into an intellectual property (IP) core on an AXI4 bus. This process is illustrated in Fig. 5.

Figure 5. DT core implementation on PL side.

Compared to the original software implementation, this design significantly improves surface reconstruction speed, with the IP core demonstrating substantial performance gains over the software-based approach, as shown in Fig. 12 [Reference Hadjiloizou, Makridis, Charalambous and Deliparaschos16].

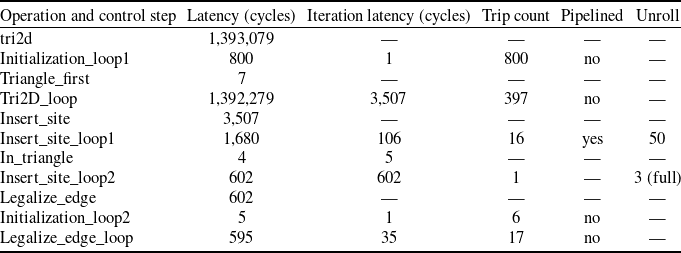

For efficient point handling, an incremental insertion process was developed, controlled by the ‘tri2D_loop1’ function, which calls the ‘insert_site’ function in each iteration. The ‘insert_site’ function runs in parallel with the loop and manages the insertion of each surface point. The number of iterations in the loop depends on the total number of surface points, directly influencing the loop’s latency cycles. Within the ‘insert_site’ function, the ‘insert_site_loop1’ loop is responsible for locating the legal triangle (stored in $T$ ) that contains the current point. To verify whether the identified triangle is valid, the loop invokes the ‘in_triangle’ function. If the required triangle is difficult to locate, the number of iterations in the loop may increase; however, the maximum number of iterations is governed by the equation $2n - 2 - k$ , which represents the maximum number of triangles that can be constructed during the Delaunay triangulation based on the number of points $n$ .

After the legal triangle is found, the ‘insert_site’ function calls the ‘legalise_edge’ function to verify the legality of each new edge. During this step, ‘initialisation_loop2’ initialises the table containing triangles to be checked. The ‘legalise_edge_loop1’ loop is responsible for checking all affected triangles until the verification process is complete. Ultimately, the triangulation results are output as ‘edge_matrix’. Figure 6 illustrates the overall DT-core architecture.

Figure 6. DT core architecture.

4.3.3 Real-time data exchange with ROS 2 in the processing system

In the PS, the surface reconstruction and implementation framework utilises the ROS 2 communication architecture to enable real-time data exchange between system components. This section outlines the ROS 2-based communication system and its role in managing data flow across various modules, including sensors and processing units. This configuration is critical for efficient point cloud processing, which serves as the foundation for the UAV’s environmental perception and navigation capabilities.

The ROS is an open-source middleware extensively used in robotics. However, ROS 1 is not well-suited for real-time embedded systems due to its inability to meet real-time requirements and its limited operating system compatibility. To address these limitations, ROS 1 has been significantly updated to ROS 2, which leverages the data distribution service (DDS). DDS is better suited for real-time distributed embedded systems due to its various transport configurations, such as deadline management, fault tolerance and scalability.

ROS 2 allows a primary programme to be divided into multiple subprocesses that operate concurrently and interact with each other. In ROS 2, nodes represent processes, each assigned a distinct task to enhance overall system efficiency. Communication among these nodes occurs through a series of topics and services. Topics facilitate the transfer of information, known as messages, from one node to another. Nodes publish and/or subscribe to topics to send and/or receive these messages. Services operate on the request/response model: one node offers a service that another node invokes using the service name. The node creating the service is the server, while the nodes calling the service are the clients. Topics are suitable for managing continuous data streams, while services are ideal for blocking calls, making them suitable for remote procedure calls that terminate quickly.

The uXRCE-DDS middleware is employed within PX4 to enable the publication and subscription of uORB messages on the FZ3 card, mimicking ROS 2 topics. This facilitates swift and dependable integration between PX4 and ROS 2, simplifying the process for ROS 2 applications to access UAV information and issue commands. PX4 utilises an XRCE-DDS implementation that takes advantage of eProsima Micro XRCE-DDS [33]. The uXRCE-DDS middleware comprises a client operating on PX4 and an agent functioning on the FZ3 card. These components facilitate bidirectional data exchange through a serial or UDP connection. Acting as a proxy for the client, the agent allows it to both publish and subscribe to topics within the global DDS data space. For PX4 uORB topics to be accessible on the DDS network, the uXRCE-DDS client on PX4 must connect with the micro XRCE-DDS agent on the FZ3 card. The PX4 uxrce_dds_client manages the publication and subscription of designated uORB topics within the global DDS data space. On the FZ3 card, the eProsima micro XRCE-DDS agent serves as a proxy for the client within the DDS/ROS 2 network.

A critical aspect of the system implementation is the interface between the PX4 flight controller and the onboard computer realised on the FZ3 card, enabling the UAV to operate safely indoors. Serial communication is employed for this interface via the TX and RX lines between the onboard computer and the PX4, connected through the TELEM2 port. The PX4 runs firmware version 1.15 to ensure proper interfacing, incorporating the uXRCE-DDS middleware on the PX4 side. The same uXRCE-DDS middleware is executed on the FZ3 card, integrated with the ROS 2 Humble release. To establish this interface, a PetaLinux project was developed, incorporating the hardware implementation, the ROS 2 environmentand a bootable image that includes an Ubuntu root file system.

The communication architecture is based on ROS 2 between the UAV modules (onboard computer, FCU and microcontroller ( $\mu $ C)) and the ground station (computer and RC controller). The IMU, UWB, LiDAR, stereo camera and ESC nodes send (i.e. publish) and receive (i.e. subscribe) data via several topics, while the buzzer and safety switch nodes send and receive data via services. Figure 7 presents the implementation on the PS and the interface with the PL through the AMBA Interconnect/AXI4 protocol [Reference Gatti34].

Figure 7. ROS 2-based communication architecture.

4.4 PetaLinux and Vivado workflow process design

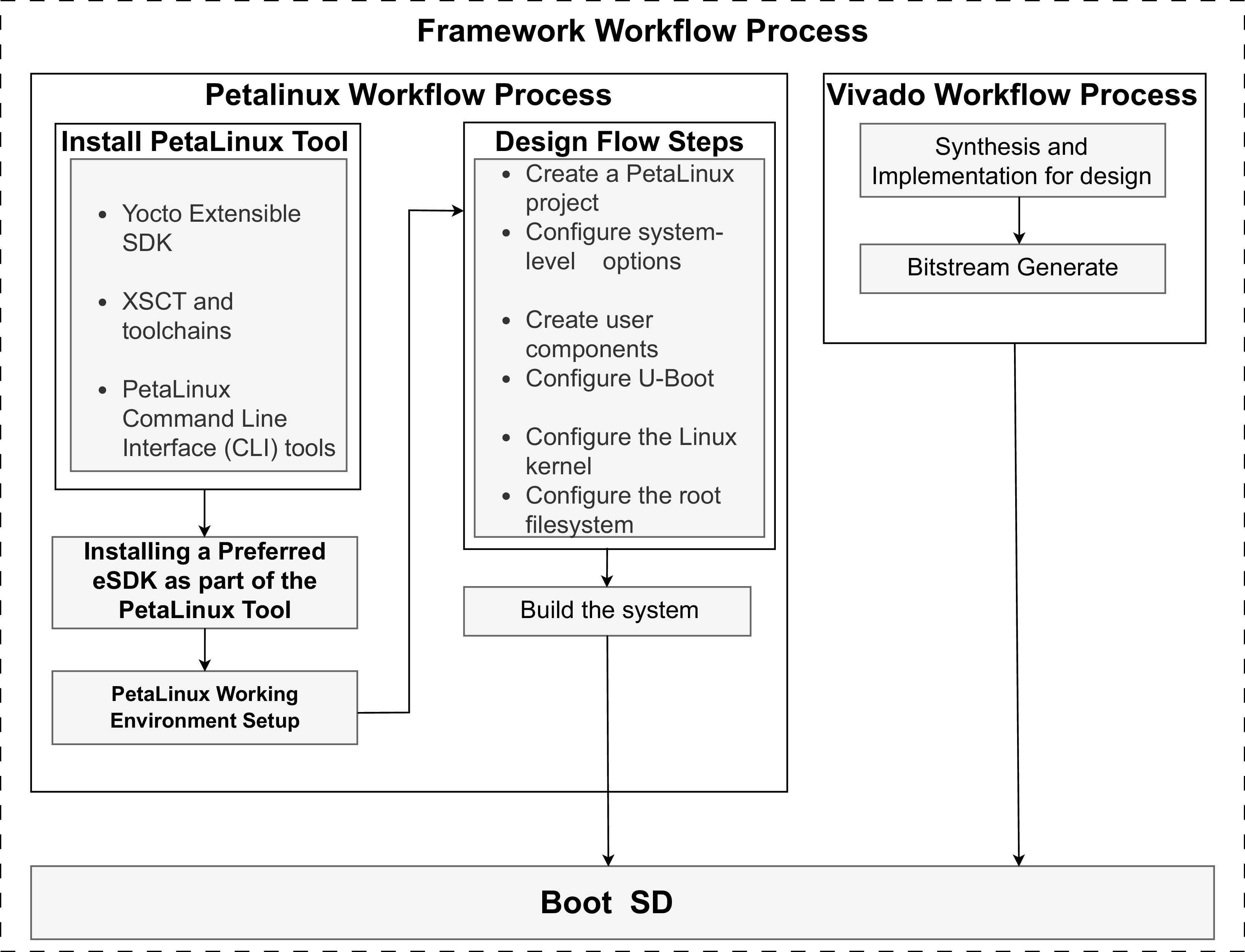

To build the system framework, two distinct processes are followed: the PetaLinux workflow and the Vivado workflow, as illustrated in Fig. 8 [Reference Saravanakumar, Sultan, Shahar, Giernacki, Lukaszewicz, Nowakowski, Holovatyy and Stepien35, Reference Townsend, Jiya, Martinson, Bessarabov and Gouws36]. PetaLinux operates in the PS of the Zynq SoC, enabling the creation of customised operating systems for SoC designs. Vivado, a design suite from AMD for adaptive FPGAs and SoCs, is employed for design entry, synthesis, place-and-route and verification/simulation of HDL designs implemented in the PL. Vivado provides comprehensive tools that facilitate the entire design process, including design entry, synthesis, place-and-route and verification/simulation [Reference Saravanakumar, Sultan, Shahar, Giernacki, Lukaszewicz, Nowakowski, Holovatyy and Stepien35, Reference Bauersfeld and Scaramuzza37].

Figure 8. Framework workflow process.

4.5 Indoor navigation and environment reconstruction

The indoor navigation framework of the proposed UAV platform relies on a sequential sensing-to-mapping pipeline that enables real-time perception and decision-making in GPS-denied environments. The process begins with data acquisition from multiple onboard sensors, including the LiDAR, stereo camera, UWB, IMU and ultrasonic range sensors. The LiDAR and stereo camera provide dense spatial information that is fused into a three-dimensional point-cloud representation of the surrounding environment, while the UWB and IMU modules supply localisation and attitude data to maintain a consistent reference frame.

The generated point cloud is transmitted to the FZ3 accelerator card, where the FPGA-based DT core performs incremental triangulation of the incoming data. Each new set of sampled points is processed in real-time, producing a topologically consistent triangular mesh. This mesh converts the unstructured point cloud into a continuous surface representation, effectively reconstructing the surrounding indoor environment. By updating the triangulation incrementally as new sensor data arrive, the system maintains a dynamic geometric model of the UAV’s immediate surroundings.

The reconstructed surface serves as the foundation for environment modelling. The triangulated mesh delineates free-space and obstacle regions based on geometric features such as height gradients and surface normal vectors. These features are subsequently utilised by the navigation and control modules to perform path planning and obstacle avoidance. The onboard ROS 2 nodes interpret the reconstructed model to determine safe flight corridors, compute feasible trajectories and issue corresponding motion commands to the flight controller.

This continuous loop, spanning from sensor acquisition through Delaunay-based surface reconstruction to navigation control, enables the UAV to achieve accurate, robust and real-time indoor navigation without external positioning systems.
