2 Background: Collaborative data structures

Our work is motivated by collaborative applications that require data structures to be shared and updated by multiple users concurrently under weak connectivity and without global coordination. As an example, consider a (directed) graph $(V,A)$ where $V$ is a set of nodes and $A \subseteq V \times V$ is a set of directed edges, as used in a collaborative design canvas or shared knowledge bases. Users may modify the graph by adding (and removing) nodes and edges; to simplify the presentation, we focus here on the structural updates and do not consider modifications of labels. Table 1 summarizes the semantics of such a graph with isolate-delete (ID) semantics.

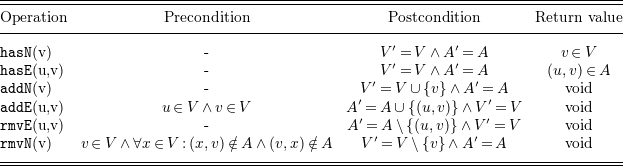

Table 1.

Operations for a directed graph with isolate-delete (ID) semantics; only isolated, non-connected nodes may be removed

Table 1. Long description

Panel A: Table with columns labeled Operation, Precondition, Postcondition, and Return value. The table lists various operations such as hasN, hasE, addN, addE, rmvN, and rmvE, along with their respective preconditions, postconditions, and return values. Panel B: Descriptions of each operation’s effect on the graph, including conditions under which nodes and edges are added or removed.

Additionally, we require an application-level invariant, which guarantees the absence of dangling edges: $\forall (u,v)\in A:\ u\in V \land v\in V$ .

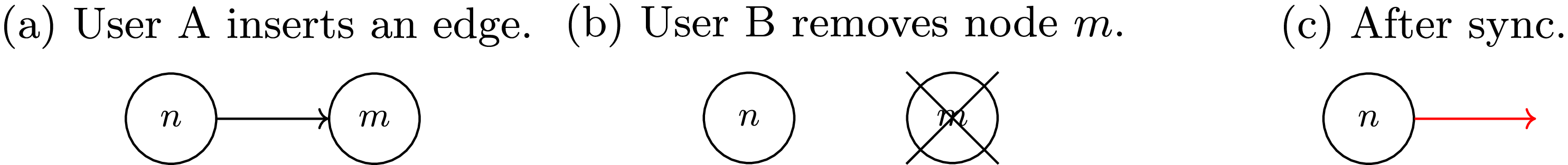

Figure 1.

Dangling edge scenario.

In a single-user, sequential setting, this invariant can be enforced directly by the operations. However, under concurrent updates by multiple users, preconditions are not stable, leading to invariant violations. We illustrate such a violation in Figure 1. Consider a graph with two nodes $n$ and $m$ . User A executes addE(n,m) while user B concurrently executes rmvN(m). To avoid an invalid graph state, a conflict-resolution strategy is required to preserve the invariant. One possible outcome is to remove $m$ and discard the edge; another is to discard the removal of $m$ . No resolution is universally correct: the appropriate behavior depends on the intended application semantics.

Developers must therefore specify how conflicting operations should be interpreted and combined while preserving availability to enable offline execution and immediate local reasoning. The CAP theorem states that, in the presence of network partitions, strong consistency and availability cannot be guaranteed simultaneously (Gilbert and Lynch (Reference Gilbert and Lynch2002)). Consequently, local-first collaborative systems require an explicit and declarative choice of conflict semantics.

CRDTs provide a standard approach to implementing highly available replicated state with deterministic convergence (Shapiro et al. Reference Shapiro, Preguiça, Baquero and Zawirski2011; Borth et al. Reference Borth, Lersch and Bieniusa2025). Informally, CRDTs guarantee SEC: once all replicas have received the same set of updates, they converge to the same state. Several systems expose CRDTs to application developers, including Yjs (Nicolaescu et al. Reference Nicolaescu, Jahns, Derntl and Klamma2015) and Automerge (Kleppmann Reference Kleppmann2017). These frameworks provide a collection of basic replicated data types, such as sets, maps, sequences, counters, and registers, each equipped with a specific conflict-resolution policy.

Throughout this paper, we refer to common policies for datatypes such as:

• • add-wins sets: concurrent add(v) and del(v) leave v present;

• • update-wins maps: concurrent upd(k,v) and rmv(k) preserve the binding for k when the entry is concurrently updated.

These policies are useful primitives, but they are not neutral; each one encodes a specific choice about user intent under concurrency.

Real applications rarely consist of a single basic CRDT. Instead, developers compose and nest CRDTs to obtain richer behavior. However, conflict resolution does not automatically compose intuitively (Kuessner et al. Reference Kuessner, Mogk, Wickert and Mezini2023): combining CRDTs can introduce unintended behaviors that may only surface under subtle concurrent execution patterns.

This motivates a tool-supported workflow in which developers specify application semantics abstractly, explore alternative CRDT decompositions, and verify that the chosen design matches the intended behavior. Ideally, this relies on an executable specification enabling systematic exploration of concurrent user interactions. The remainder of the paper develops such a framework and implements it in Soufflé (Jordan et al. Reference Jordan, Scholz and Subotic2016).

Our framework builds on the declarative model of replicated data types by Burckhardt (Reference Burckhardt2014), which defines each data type as a deterministic function over an operation context, in which events and their relation are captured. Note that we generalize the definition of an operation context such that each event can be mapped to a set of operations to model that the atomic execution of all operations of one event as needed in Subsection 3.4.

$\mathcal{F}_{\text{X}}$ is a declarative specification that maps an operation context to the result of each operation. Unlike Burckhardt (Reference Burckhardt2014), our model restricts contexts to update operations. Queries (e.g. hasN(v)) are treated as post hoc observers evaluated over the context to obtain the final state. Although concurrency is modeled via the visibility relation, the evaluation of $\mathcal{F}_{\text{X}}$ is deterministic.

In an add-wins set, an element $v$ is present if there exists an $\texttt {add}(v)$ event $e_1$ and no $\texttt {del}(v)$ event $e_2$ that observes it (i.e. $e_1$ is not visible to $e_2$ ). Thus, a delete concurrent with the add does not remove $v$ , capturing add-wins semantics. Formally:

(1) \begin{equation} {\begin{aligned} &\mathcal{F}_{\text{SetAW}}\big (\texttt {hasV}(v), (\text{E}, \text{op}, \text{vis}, \text{ar})\big ) = \text{true} \\ &\iff \exists e \in E: \texttt {add}(v) \in \text{op}(e) \land \neg \big (\exists e' \in E: \texttt {del}(v) \in \text{op}(e') \land e \xrightarrow {\mathrm{vis}} e' \big ) \end{aligned} } \end{equation}

Figure 2 illustrates an example operation context for an add-wins set. The context contains four events: event 1 performs add( $a$ ), event 2 del( $a$ ), event 3 add( $a$ ), and event 4 performs add( $b$ ). The visibility relation includes edges $1 \to 2, 3 \to 4$ and $2 \to 4$ , meaning that event 2 observes event 1; event 4 observes events 3, 2, and transitively also 1. Event 3 is concurrent with events 1 and 2. As arbitration order is irrelevant for an add-wins set, it is omitted. The resulting set contains $a$ and $b$ , since the concurrent add( $a$ ) in event 3 overrules del( $a$ ) in event 2.

3 A declarative framework for CRDT specification

We introduce CRDTlog,Footnote ¹ an implementation of the declarative approach to CRDTs from Section 2. It extends the framework with nested and composite CRDTs, enabling designers to model CRDT-based applications and reason about their semantics. This approach is generic: users can define arbitrary CRDTs with custom conflict resolution strategies. For instance, a delete-wins set, where any observed deletion takes precedence, can be captured by the specification in equation (2).

(2) \begin{equation} \mathcal{F}_{\text{SetDW}}\big (\texttt {hasV}(v), (\text{E}, \text{op}, \text{vis}, \text{ar})\big ) = \text{true} \iff \neg \big (\exists e \in E: \texttt {del}(v) \in \text{op}(e)) \end{equation}

CRDTlog is implemented in Soufflé, a Datalog engine with efficient, scalable bottom-up evaluation (Jordan et al. Reference Jordan, Scholz and Subotic2016). For readability, we present the theory and its Datalog implementation side by side: we represent operation contexts as input relations and derive return values (for queries) as output relations.

Our framework provides a “playground” for the design phase (Figure 3). Developers first write the SLS, a high-level specification of the intended application semantics, then propose the implementation compositional semantics (ICS): a CRDT composition with transformation rules mapping application operations to component operations. Both are executable over generated operation contexts, enabling systematic exploration of corner cases and property-based equivalence checks. If equivalence fails, the decomposition is revised and the process iterates. Crucially, the framework isolates the semantic core, that is how conflicts are resolved and how composed CRDTs interact, while abstracting away protocol and engineering choices, which can be deferred until after the semantic design is validated.

Throughout this section, we refer to the collaborative graph introduced in Section 2 and summarized in Table 1 as a running example to illustrate the workflow. The operations of the used datatypes can be found in Table 2.

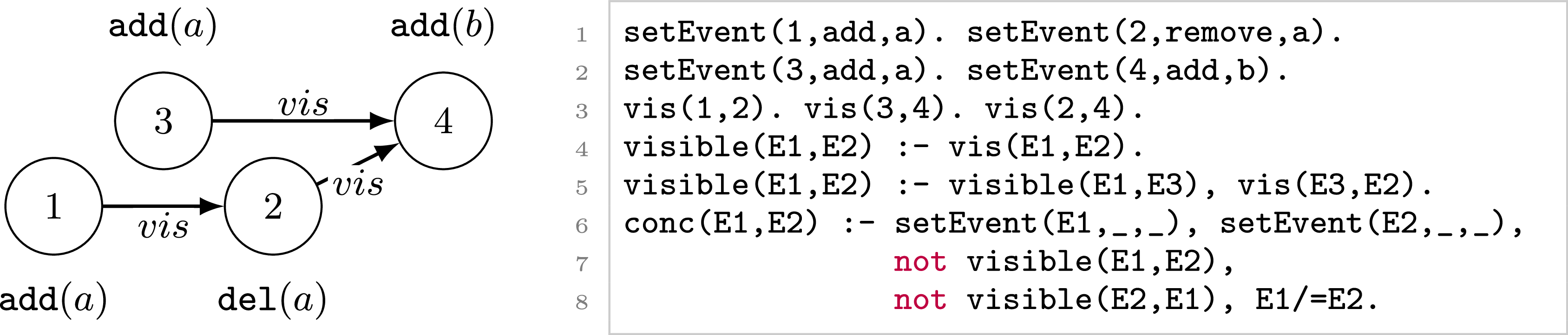

Figure 2.

Example operation context for an add-wins set and its Datalog encoding.

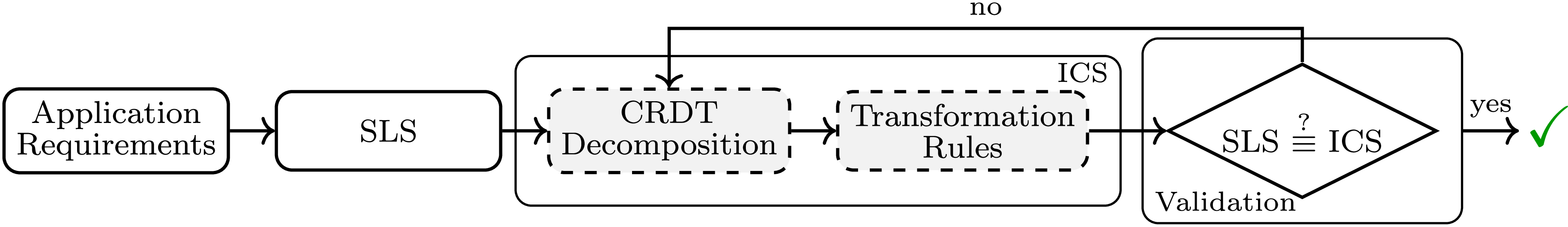

Figure 3.

Workflow for deriving and validating CRDT compositions. From application requirements, the user defines the SLS, decomposes it into CRDTs with transformation rules (ICS), and validates equivalence. Mismatches require revising the decomposition.

Table 2.

Summary of datatype operations

Table 2. Long description

A table comparing update and query operations for different data types. The table has three columns: Datatype, Update operations, and Query operations. It has three rows for different data types: Set, Map(Set), and Graph. Row 1: Datatype, Set; Update operations, add(v), del(v); Query operations, hasV(v). Row 2: Datatype, Map(Set); Update operations, upd(k,add(v)), upd(k,del(v)), rmv(k); Query operations, hasKV(k,v). Row 3: Datatype, Graph; Update operations, addN(n), rmvN(n), addE(n,m), rmvE(n,m); Query operations, hasN(n), hasE(n,m).

3.2 CRDT encoding in Datalog

In Section 2, we introduced declarative semantics for basic CRDTs, such as the add-wins set (Equation (1)). We express these semantics as Datalog rules that derive output relations representing the observable state at the end of the operation context.

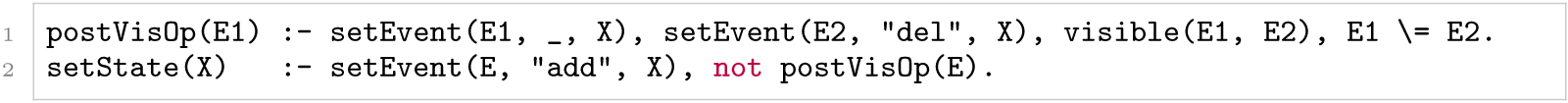

Listing 1.

Add-wins set semantics.

Listing 1 gives the Datalog encoding of the add-wins set. Events are represented by setEvent(E,O,X), where E is an event identifier, O an operation, and X a value. The predicate setState(X) computes hasV(X) over the operation context. A value X is in the set if and only if there exists an add(X) that is not canceled by a later del(X) (not postVisOp).

Collaborative applications typically compose basic or nested CRDTs into composite designs (Kuessner et al. Reference Kuessner, Mogk, Wickert and Mezini2023). Accordingly, CRDTlog supports nested CRDTs such as maps; our graph case study uses a Map $\langle$ Set $\rangle$ .

3.3 Nested CRDTs

Designers obtain nested data types by choosing component CRDTs and writing transformation rules from top-level events to component events. In nested structures, the decomposition is often structural. For example, a Map $\langle$ Set $\rangle$ combines a set that tracks keys and a set of values for each key.

To make this example concrete, consider a Map $\langle$ Set $\rangle$ with $Op_X = \{\texttt {upd}(k,v), \texttt {rmv}(k)\}$ , where $v$ can be either $\texttt {add}(x)$ or $\texttt {del}(x)$ . The first step is to define the SLS that formalize the behavior of the application as a single object:

(3) \begin{equation} {\begin{aligned} &\mathcal{F}_{\text{MapSet\_SLS}}\big (\texttt {hasKV}(k,x), (\text{E}, \text{op}, \text{vis}, \text{ar})\big ) = \text{true} \\ &\iff \exists e \in \text{E}: \texttt {upd}(k,\texttt {add}(x)) \in \text{op}(e) \land \big ( \neg \exists e' \in \text{E}: \texttt {rmv}(k) \in \text{op}(e') \land e \xrightarrow {vis} e' \big ) \\ & \quad \land \big ( \neg \exists e'' \in \text{E}: \texttt {upd}(k,\texttt {del}(x)) \in \text{op}(e'') \land e \xrightarrow {vis} e'' \big ) \end{aligned} } \end{equation}

A Map $\langle$ Set $\rangle$ contains a key k and value x in the set associated with k if it was inserted by an upd operation and neither the key nor the value were later removed.

Next, we obtain the ICS for the Map $\langle$ Set $\rangle$ . Intuitively, the map contains $(k,x)$ when $k$ is present in the key set and $x$ is present in the value set associated with $k$ . Figure 4 presents the corresponding transformation rules.

(4) \begin{equation} {\begin{aligned} &\mathcal{F}_{\text{MapSet\_ICS}}\big (\texttt {hasKV}(k,x), (\text{E}, \text{op}, \text{vis}, \text{ar})\big ) = \text{true} \iff \\ &\quad \mathcal{F}_{\text{Set}}\big (\texttt {hasV}(k), (\text{E}, \text{op}_{\texttt {KeySet}}, \text{vis}, \text{ar})\big ) \land \mathcal{F}_{\text{set}_k}\big (\texttt {hasV}(x), (\text{E}_{\texttt {ValSet}}, \text{op}_{\texttt {ValSet}}, \text{vis}, \text{ar})\big ) \end{aligned} } \end{equation}

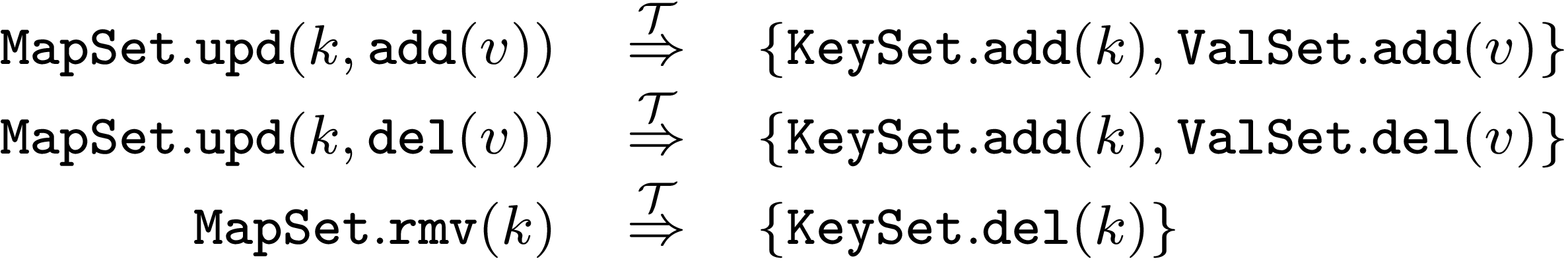

Figure 4.

Layered transformation for update-wins Map $\langle$ Set $\rangle$ .

In Datalog, the event facts of the Map $\langle$ Set $\rangle$ mapSetOp(E,Op,InnerOp,K,X) consist of the event identifier E, the map-level operation Op, the inner set operation InnerOp and the operation parameters K and X (Listing 2). keysEvent and setEvent correspond to the transformation rules. mapState computes the final state. Note that a key might exist with an empty value set. For that we use the empty value ’’’’.

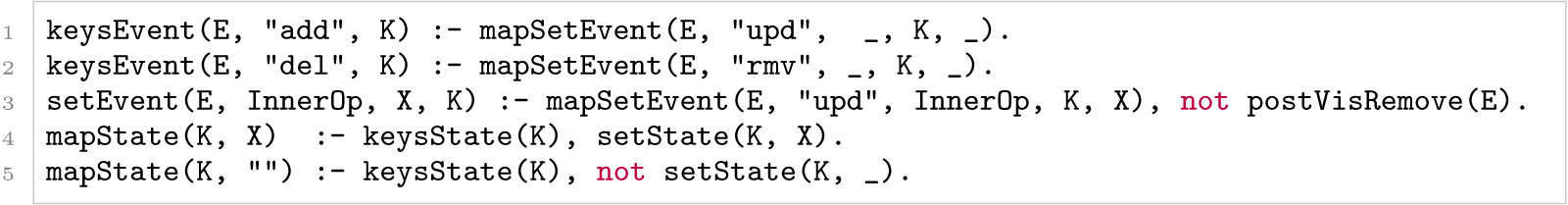

Listing 2.

Map $\langle$ Set $\rangle$ semantics expressed in Datalog.

Soufflé does not support dynamic instantiation of modules at runtime. In particular, a Map $\langle$ Set $\rangle$ cannot allocate a fresh set instance per key during evaluation. We therefore encode all inner sets within a single indexed set instance, using an additional identifier (the key) to distinguish per-key state. The corresponding code can be found in Listing 3. With this encoding pattern, deeper nesting (e.g. maps of maps) reduces to the repeated use of transformation rules and identifiers.

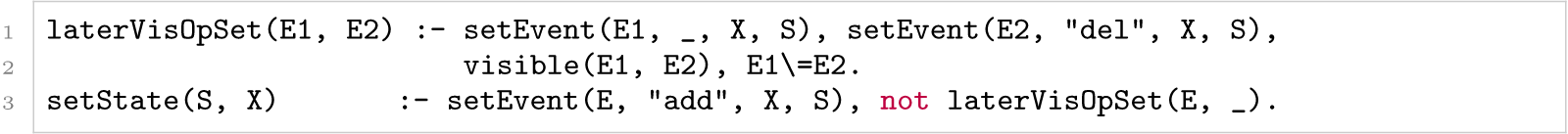

Listing 3.

Value set semantics expressed for ICS Map $\langle$ Set $\rangle$ .

3.4 Composite CRDTs and CRDT applications

Collaborative applications typically combine multiple CRDTs into composite ones (Kuessner et al. Reference Kuessner, Mogk, Wickert and Mezini2023). We illustrate the workflow on composite CRDTs using the ID graph application from Table 1. Recall that a node is in the graph if it has been added and not later removed, unless a concurrent addE defeats the removal. An edge is present if and only if it has been added and not subsequently removed. We define the corresponding SLS in equation (5).

(5) \begin{align} &\mathcal{F}_{\text{IDGraph\_SLS}}\big (\texttt {hasN}(n),\text{E},\text{op},\text{vis},\text{ar}\big )=\text{true} \iff \exists e\in \text{E}:\ \texttt {addN}(n) \in \text{op}(e) \; \nonumber\\ &\land \; \Big (\neg \exists e'\in \text{E}:\ \texttt {rmvN}(n) \in \text{op}(e')\land e\xrightarrow {\mathrm{vis}} e'\lor \ \exists e',e''\in \text{E}:\ \texttt {rmvN}(n) \in \text{op}(e') \land e\xrightarrow {\mathrm{vis}} e'\nonumber\\ & \hspace {1.3cm} \land \big (\texttt {addE}(n,m) \in \text{op}(e'')\ \lor \ \texttt {addE}(m,n) \in \text{op}(e'')\big )\ \land e'\not \xrightarrow {\mathrm{vis}} e'' \land e''\not \xrightarrow {\mathrm{vis}} e'\Big ) \nonumber\\ & \mathcal{F}_{\text{IDGraph\_SLS}}\big (\texttt {hasE}(n,m), \text{E}, \text{op}, \text{vis}, \text{ar}\big ) = \text{true} \nonumber\\ & \iff \exists e \in \text{E} : \texttt {addE}(n,m) \in \text{op}(e) \land \Big ( \neg \exists e' \in \text{E} : \texttt {rmvE}(n,m) \in \text{op}(e') \land e \xrightarrow {\mathrm{vis}} e' \Big ) \end{align}

In the executable SLS in Datalog (Listing 4), we model the input as facts graphEvent(E, O, V1, V2), where E is the event identifier, O is the operation of the event, and V1 and V2 are the parameters of the operation. For a node n to be in the resulting graph state nodes(K), there must be an addN(n) which is not visible to a remove (not postVisRmvN); or, if there is a postVisRmvN, there exists a concurrent addE (concAddE), outgoing or incoming from n. An edge is in the resulting graph state (edges(N,M)) if the edge has been added and it has not been removed later (postVisRmvE).

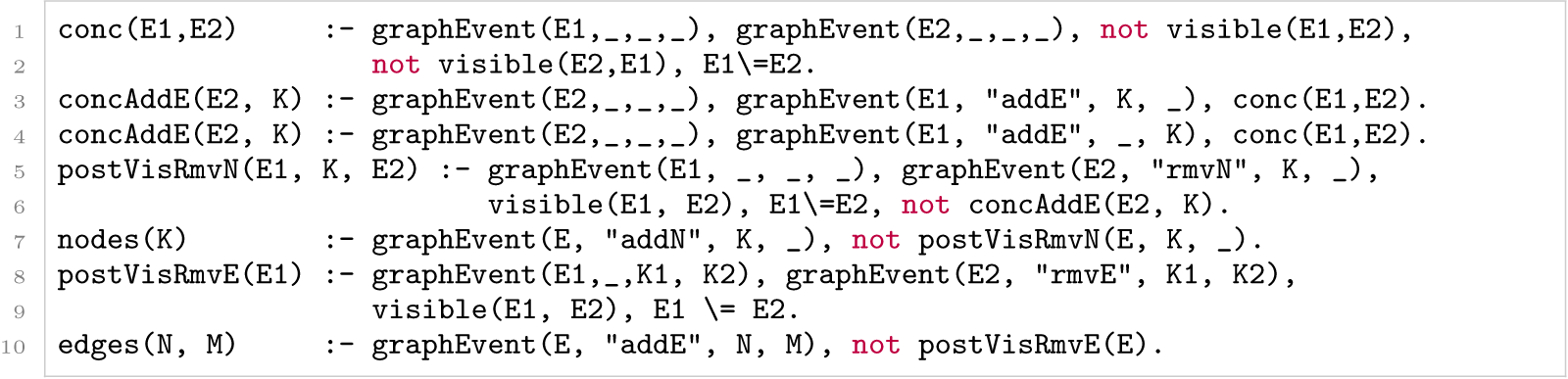

Listing 4.

SLS semantics of isolate-delete graph.

The next step is to derive the implementation-level compositional semantics (ICS) by choosing a CRDT decomposition and defining transformation rules (Definition2). A natural decomposition mirrors a sequential design: a replicated node set (NodeSet) and a map from each node to its outgoing-edge set (EdgeMap). The transformation rules (Figure 5) map each application event to one or more component updates. For nodes, addN(n) and rmvN(n) translate to add(n) and del(n); to realize isolate-delete under concurrency, addE(n,m) additionally produces add(n) and add(m) on the NodeSet, inducing the conflict needed to win over a concurrent node removal. For edges, outgoing edges are stored in an adjacency map: addE(n,m) translates to upd(n,add(m)) and rmvE(n,m) to upd(n,del(m)); we use upd rather than key removal, which would delete all outgoing edges of n. Since EdgeMap is a Map $\langle$ Set $\rangle$ , its internal transformation rules also apply; Map $\langle$ Set $\rangle$ is fully defined in the extended version.

Definition 2 (Transformation rules).

A $\textit{transformation rule}$ $\mathcal{T}: Op_{X} \to \mathcal{P}(Op_{X_1} \cup \dots \cup Op_{X_n})$ maps each operation of a composite data type $X$ to a set of operations over its components $X_1, \dots , X_n$ .

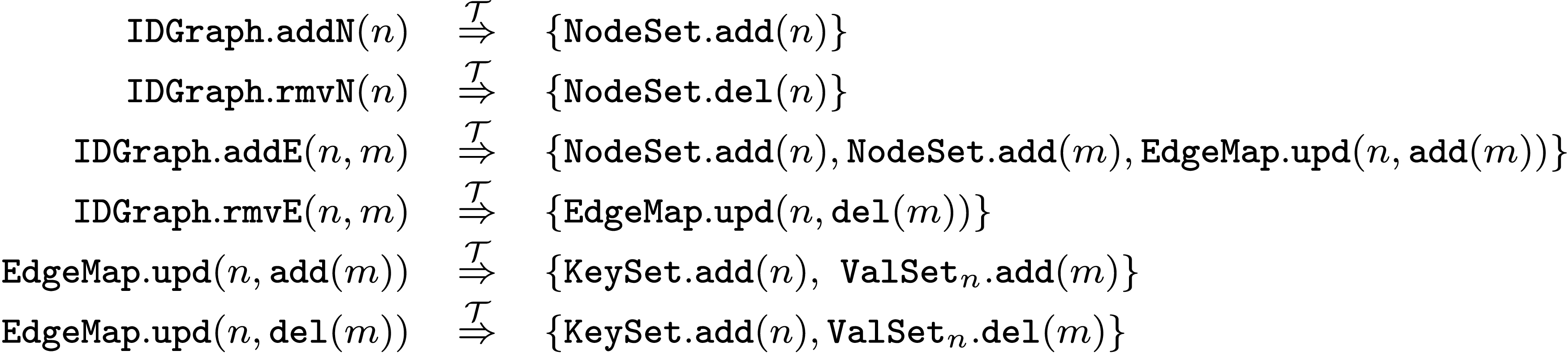

Figure 5.

Layered transformation for isolate-delete graph.

The resulting ICS of the ID graph is given as:

(6) \begin{align} {\begin{aligned} &\mathcal{F}_{\text{IDGraph\_ICS}}\big (\texttt {hasN}(n), (\text{E}, \text{op}, \text{vis}, \text{ar})\big ) = \text{true} \\ &\quad \iff \mathcal{F}_{\text{Set}}\big (\texttt {hasV}(n), (\text{E}_{\texttt {NodeSet}}, \text{op}_{\texttt {NodeSet}}, \text{vis}, \text{ar})\big ) \\ &\mathcal{F}_{\text{IDGraph\_ICS}}\big (\texttt {hasE}(n,m), (\text{E}, \text{op}, \text{vis}, \text{ar})\big ) = \text{true} \\ &\quad \iff \mathcal{F}_{\text{MapSet}}\big (\texttt {hasKV}(n,m), (\text{E}_{\texttt {EdgeMap}}, \text{op}_{\texttt {EdgeMap}}, \text{vis}, \text{ar})\big ) \end{aligned} } \end{align}

In the Datalog realization (Listing 5), the input facts have the same signature as the SLS, namely graphEvent(E, O, V1, V2). The resulting state is computed for each component. Note that this implementation may produce keys with empty value sets. We interpret such entries as non-existent edges and ignore them when inspecting the application state.

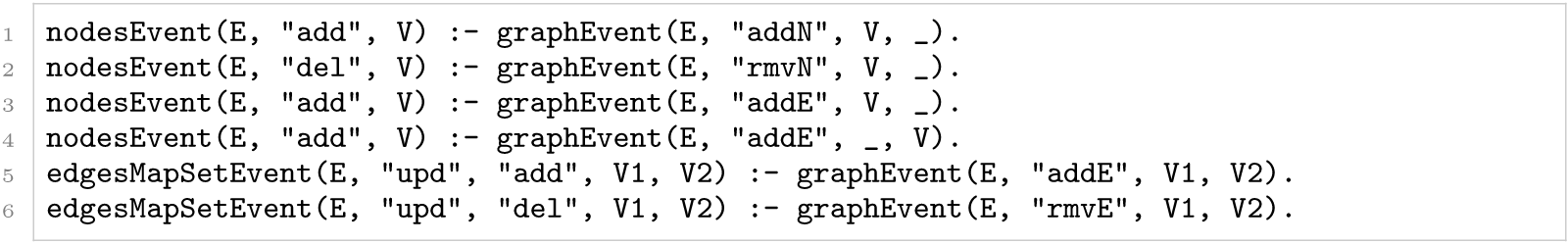

Listing 5.

ICS for isolate-delete graph.

The framework is compositional at the specification level: composite CRDTs are written as decompositions of simpler ones together with the corresponding transformation rules. The ICS is then mechanically derived from this choice of decomposition. However, Soufflé does not allow multiple independent instances of the same CRDT to share a single set of rules without an explicit discriminator. For nested types, this can be handled through a shape-based encoding, where nesting positions are represented as structured scopes. In this approach, a single set module serves all (map) nesting levels, with each instance distinguished by its position in a recursive scope type rather than by duplicated and renamed Datalog rules. For example, a Map $\langle$ Map $\langle$ Set $\rangle \rangle$ reuses the same set semantics as a Map $\langle$ Set $\rangle$ , with an additional scope level encoding the outer key: no ad-hoc adjustments are required, and the pattern extends to arbitrary nesting depths. In this paper, we opt for the explicit, per-instance encoding (e.g. separate nodesEvent and edgesMapSetEvent relations) as it maps directly to the formal definitions in Section 2 and makes the correspondence between the specification-level and implementation-level semantics transparent for verification.

CRDT composition is not semantics-neutral: decomposition choices determine which operations conflict and how conflicts are resolved. For graphs, nodes and edges are separate structures but semantically coupled; that is an addE may defeat a concurrent rmvN, so the transformation rules must intentionally induce or avoid such conflicts.

4 A case study on graph CRDTs

We evaluate CRDTlog on two directed graph variants: the isolate-delete (ID) graph from Sections 2 and 3 and a detach-delete (DD) graph introduced below, capturing common deletion policies with non-trivial concurrent interactions. We show that CRDTlog yields precise, executable semantics and enables systematic CRDT component selection.

Isolate-delete semantics (ID). We first revisit the ID semantics defined in Section 3.4. A natural implementation-level decomposition (ICS) represents nodes as an add-wins Set and outgoing edges as a $\mathrm{Map} \langle \mathrm{Set} \rangle$ . The transformation layer is straightforward for most operations and maps addE to additional add updates on the node set to ensure that concurrent edge additions override node removals, as required by the SLS.

Listing 6.

SLS for DD graph (edge rules).

DD We next consider the DD semantics for directed graphs. This specifies that removing a node also removes all its incident edges, ensuring the absence of dangling edges. The formal definition differs from ID only in the definition of $\texttt {hasE}(u,v)$ (Table 1). DD preserves the node semantics of ID. In particular, a node $n$ is present if it has been added and not subsequently removed, unless the removal is invalidated by a concurrent edge addition involving $n$ . Hence, the definition of $\mathcal{F}_{\text{DDGraph\_SLS}}(\texttt {hasN}(n),\dots )$ is identical to the isolate-delete case (Equation 5). Further, a DD graph contains an edge (n,m) if it has been added, has not been subsequently removed, and neither the source nor target node has been removed. The node condition is the new part: if n (or m) is removed, then all incident edges are removed as well (Equation 7, Listing 6). In the listing, edges(N,M) holds for added edges whose endpoints were not removed, while postVisRmvN captures concurrent addE that invalidate node removals.

(7) \begin{equation} {\begin{aligned}[t] &\mathcal{F}_{\text{DDGraph\_SLS}}\big (\texttt {hasE}(n,m),\text{E},\text{op},\text{vis},\text{ar}\big )=\text{true}\\ &\iff \exists e\in \text{E}:\ \texttt {addE}(n,m) \in \text{op}(e)\ \land \\ &\quad \quad \neg \exists e'\in E:\ \texttt {rmvE}(n,m) \in \text{op}(e') \land e\xrightarrow {\mathrm{vis}} e'\ \land \big (\Gamma (e,n)\land \Gamma (e,m)\big ) \\ &\Gamma (e,u)\stackrel {\mathrm{def}}{=} \neg \exists s\in \text{E}:\ \texttt {rmvN}(u) \in \text{op}(s)\land e\xrightarrow {\mathrm{vis}} s\ \end{aligned} } \end{equation}

At first glance, one might attempt to reuse the ID implementation strategy, using a set for nodes and a Map $\langle$ Set $\rangle$ for edges. Thus, removing a node n would remove n from the node set and delete its outgoing edges by removing the key n from the edge map. Incoming edges could then be removed by deleting the corresponding entries from the value sets associated with other keys. However, this straightforward approach fails because it introduces unintended conflicts in the map. In particular, a concurrent rmvE(n,m) and rmvN(n) generate conflicting updates that combine a value-level update (a upd or inner-set modification) with a key-level rmv. Under the update-wins map semantics, the upd may resurrect the key n, thereby preserving outgoing edges from n. The resulting state contains dangling edges, which violates the DD semantics. To avoid this, we represent the graph with one set for nodes and one set for edges. The edge set stores tuples (n,m). This design eliminates key-level put-versus-remove conflicts since all edge updates are applied uniformly to a single set. The transformations for node operations are unchanged from the ID case. The transformation for edge operations is defined in Figure 6.

(8) \begin{equation} \begin{aligned} & \mathcal{F}_{\text{DDGraph\_ICS}}\big (\texttt {hasE}(n,m), (\text{E}, \text{op}, \text{vis}, \text{ar})\big ) = \text{true} \\ & \iff \mathcal{F}_{\text{Set}}\big (\texttt {hasV}(n,m), (\text{E}_{\texttt {EdgeSet}}, \text{op}_{\texttt {EdgeSet}}, \text{vis}, \text{ar})\big ) \end{aligned} \end{equation}

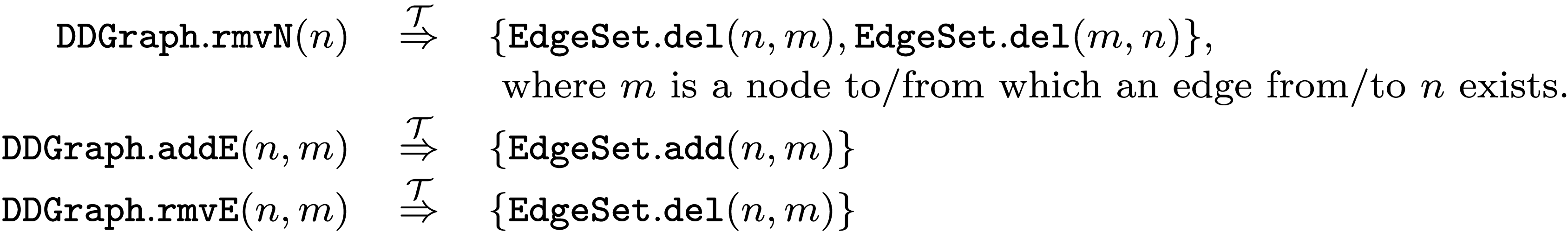

Figure 6.

Transformation rules for detach-delete graph.

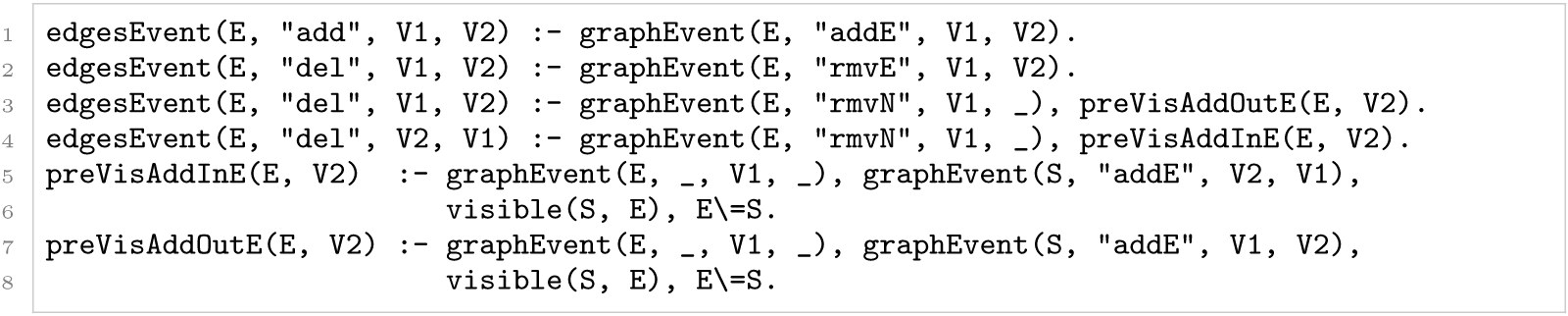

Listing 7.

ICS for DD graph. Transformation rules for the edges.

Note that the two additional predicates preVisAddInE and preVisAddOutE identify the edges that are visible during the removal event. The transformation then removes exactly these edges, ensuring that successful node deletions detach all incident edges while preserving the intended concurrency behavior captured by the node semantics.

We establish that SLS and ICS in the DD graph preserve the no-dangling edge invariant. The full proofs are in the supplemental material.

This case study highlights the value of explicit semantic specifications: they expose situations in which a CRDT decomposition enforces conflict resolution incompatible with the intended application semantics. CRDTlog makes this mismatch explicit at the specification level, supporting designers in composing CRDTs with the desired semantics.

5 Experimental evaluation

We compare ICS and SLS for both ID and DD graph applications. Correctness is assessed via property-based testing: for eight configurations, we generate 1K independent executions and verify that SLS and ICS produce identical output graphs. We then benchmark scalability by varying event count, replica count, and graph size. We structure the analysis around the following research questions.

• • RQ1 (Semantic Equivalence). Do ICS and SLS yield the same observable states for all tested operation contexts?

• • RQ2 (Application Graph Scalability). How does the size of the application graph affect the cost of semantic evaluation?

• • RQ3 (Concurrency Scalability). How does increasing replica count and concurrency affect evaluation cost?

• • RQ4 (Event Scalability). How does evaluation cost scale with increasing events?

• • RQ5 (Incrementality). How does incremental evaluation impact verification?

Experimental setup. All experimental inputs were automatically generated using Python scripts that enforce each graph application’s preconditions. For example, in the isolate-delete variant, rmvN(n) is never generated for nodes with incident edges, ensuring that all executions satisfy the assumptions of the model. The primary goal is to validate semantic equivalence (SLS $\equiv$ ICS) via property-based testing, therefore the inputs must be large and diverse enough to cover corner cases arising from concurrent operations across multiple replicas. While the graph semantics used here are intentionally minimal, the framework is intended for richer application domains (e.g. property graphs, collaborative spreadsheets) where complex operation interleavings are expected. For such scenarios, generating large workloads is necessary to provide adequate coverage.

Equivalence tests ran on a machine running Ubuntu 22.04.2 with 11th Gen Intel(R) Core(TM) i7-1165G7 2.80 GHz CPU and 32 GB of memory.

Scalability experiments ran on a CPU-only x86_64 server with two AMD EPYC 7443 processors (1.5–2.85 GHz, boost enabled) and 100 GB of allocated memory. For each configuration, we report mean execution times over 30 independent runs. Both SLS and ICS were evaluated on the same generated inputs.

Semantic equivalence (RQ1). SLS and ICS compute identical observable states for all tested operation contexts. We evaluated semantic equivalence using a property-based testing approach (Claessen and Hughes Reference Claessen and Hughes2000), generating randomized operation contexts and comparing the outputs of SLS and ICS. We considered eight configurations, combining two replica counts (5 and 10) with four event volumes (20, 50, 100, and 1K events). For each configuration, we generated 1,000 independent test inputs. All executions terminated successfully, and in every case, the SLS and ICS implementations produced identical results. These results provide empirical evidence that our CRDT compositions faithfully realize the intended semantics for both the ID and DD graph variants. Average execution times per test are reported in the supplemental material.

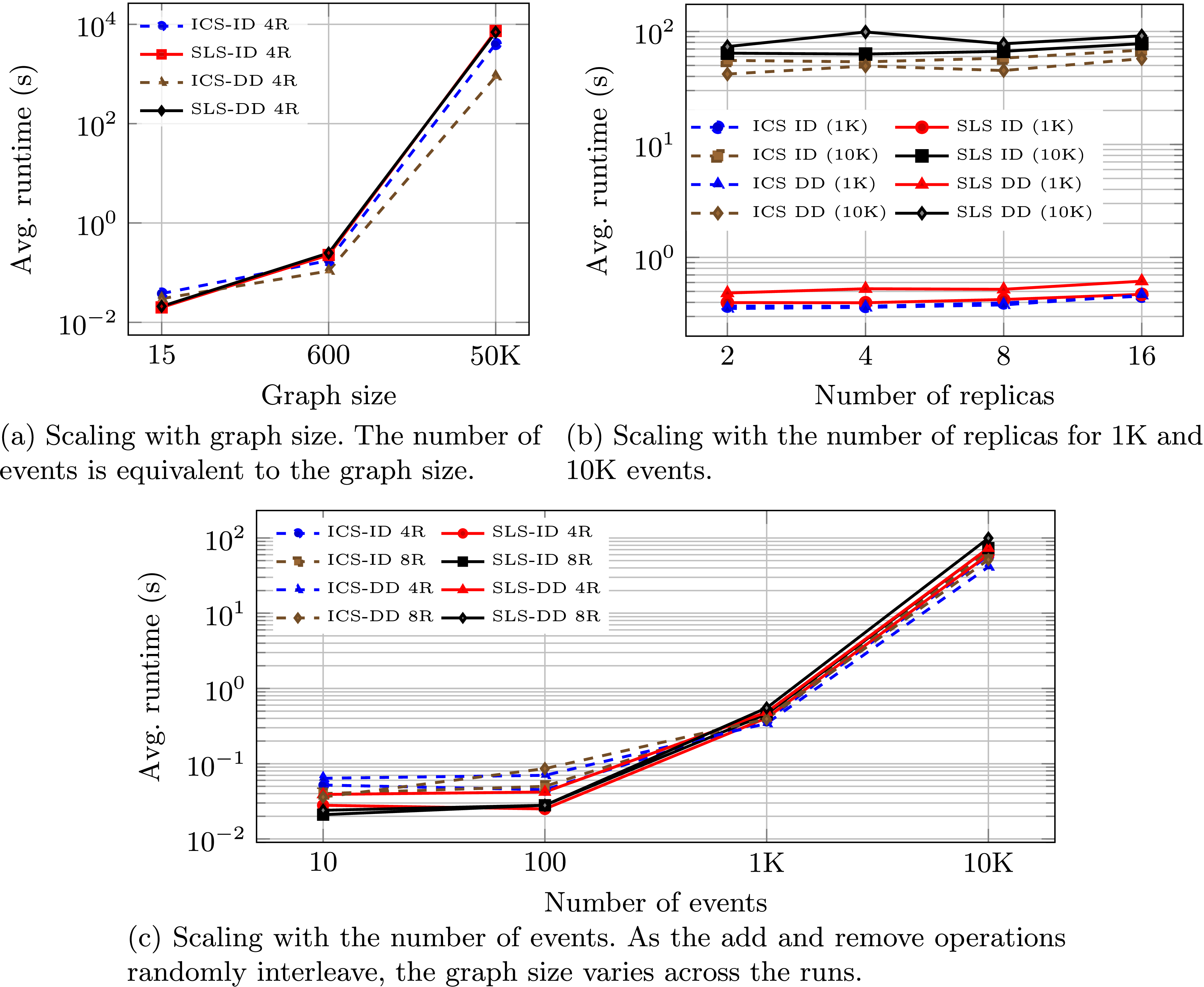

Figure 7.

Scalability of SLS and ICS for isolate-delete (ID) and detach-delete (DD).

Figure 7. Long description

Three line graphs depict the scalability of SLS and ICS for isolate-delete and detach-delete operations. Panel A: A line graph shows the average runtime in seconds on the vertical axis and graph size on the horizontal axis. The graph compares four different methods: ICS-ID 4R, SLS-ID 4R, ICS-DD 4R, and SLS-DD 4R. The runtime increases with graph size, with a significant rise as the graph size reaches 50K. Panel B: A line graph shows the average runtime in seconds on the vertical axis and the number of replicas on the horizontal axis. The graph compares eight different methods: ICS ID (1K), SLS ID (1K), ICS ID (10K), SLS ID (10K), ICS DD (1K), SLS DD (1K), ICS DD (10K), and SLS DD (10K). The runtime remains relatively stable across different numbers of replicas. Panel C: A line graph shows the average runtime in seconds on the vertical axis and the number of events on the horizontal axis. The graph compares eight different methods: ICS-ID 4R, SLS-ID 4R, ICS-ID 8R, SLS-ID 8R, ICS-DD 4R, SLS-DD 4R, ICS-DD 8R, and SLS-DD 8R. The runtime increases with the number of events, with a noticeable rise as the number of events reaches 10K.

Scalability (RQ2–RQ5). We analyze how semantic evaluation cost scales with operation context size, concurrency, and application graph size. Figure 7 reports runtime as a function of graph size (Figure 7(a)), replica count (Figure 7(b)), and number of events (Figure 7(c)). For concurrency and event scalability, we used the full range of graph operations, whereas for the graph scalability we used only addN and addE events. Concurrency is modeled by allowing operations to interleave and branch, producing non-trivial visibility structures.

Application graph scalability (RQ2). Evaluation cost increases with application graph size (nodes and edges), but ICS scales better than SLS for larger graphs. To study graph size scalability, we sampled random graphs with a fixed number of nodes (10, 100, and 1K) using an edge probability of $0.05$ , yielding an expected number of edges proportional to the graph size ( $\approx$ 15, 600, and 50K). This reflects the average number of events. For each graph, we generated an operation context with 4 replicas.

Figure 7(a) shows that for small graphs, ICS implementations are slightly slower than the corresponding SLS specifications due to the overhead of transformation rules. However, as graph size increases (and with it the number of events in the operation context), ICS becomes consistently faster for both applications. At approximately 50K graph entities, the ICS realization is nearly twice as fast as SLS for ID and close to an order of magnitude faster for DD. This behavior reflects the lower rule complexity of the component CRDT semantics used in ICS, which outweighs the transformation overhead once evaluation is dominated by joins over many events.

Concurrency scalability (RQ3). Increasing the number of replicas only mildly impacts the evaluation cost. We varied the replica count across 2, 4, 8, and 16, holding the total event count fixed at 1K and 10K. As shown in Figure 7(b), increasing the replica count results in only modest runtime growth. In CRDTlog, the number of replicas mainly affects the branching structure of the visibility relation without substantially increasing the complexity of rule evaluation. This suggests that semantic evaluation scales well with respect to concurrency.

Event scalability (RQ4). The evaluation cost grows primarily with the number of events in the operation context. As summarized in Figure 7(c), runtime increases steadily as the number of events grows for both graph variants and both semantic encodings. This trend holds largely independently of the number of replicas, indicating that event volume is the dominant factor driving semantic evaluation cost. Unlike in RQ2, the resulting graph size is not held constant here: since add and remove operations are interleaved during generation, graph size varies across runs and is not an independent variable.

Incrementality (RQ5). Our framework can also be instantiated with DDlog, an incremental Datalog engine that supports an interactive workflow: users incrementally add events and observe the resulting CRDT state, aiding scenario exploration and debugging. We evaluate DDlog in single-shot and incremental mode across varying events, replicas, and graph sizes. In incremental mode, events are inserted one at a time, mirroring the interactive use case. Both modes are substantially slower than Soufflé (Figure 8(c)), which is expected. DDlog optimizes for small updates over a stable base, so it pays a constant per-tuple cost for incrementality, even in single-shot mode. Here each new event causes changes to the visibility relation, so incremental evaluation effectively recomputes everything. DDlog remains practical for small to medium contexts (up to $\approx$ 1K events), which suffices for its intended interactive, exploratory use case.

Figure 8.

Single vs. incremental SLS and ICS for isolate-delete (ID) and detach-delete (DD).

Discussion. Although we do not directly compare ID and DD semantics, their scaling behaviors are notably distinct. DD is substantially faster for large graphs, with the SLS–ICS gap most pronounced. This reflects the underlying representations: ID stores edges in a Map $\langle$ Set $\rangle$ , introducing nesting and multiple component-level updates per event, whereas DD uses a single set of edge tuples with at most one component update per event. ICS consistently outperforms SLS for both graphs, as decomposition yields smaller relations with localized joins rather than complex guard predicates over the entire event. The effect is amplified in DDlog, where the incremental engine benefits from change propagation over many small relations. Thus, decomposition can significantly reduce intermediate joins and improve evaluation time, even when the resulting semantics are identical.

While runtimes grow steeply beyond 1K events, we argue that this is sufficient for property-based testing. Optimizing the underlying Datalog engine is orthogonal to our contribution and could further extend the feasible testing range.
