The relationship between subglacial water pressure and velocity of Findelengletscher, Switzerland, during its advance and retreat

Published online by Cambridge University Press:  20 January 2017

Almut Iken
Affiliation:
Versuchsanstalt für Wasserbau, Hydrologie and Glaziologie (VAW), Eidgenössische Technische Hochschule, CH-8092, Zürich, Switzerland
Martin Truffer
Affiliation:
Versuchsanstalt für Wasserbau, Hydrologie and Glaziologie (VAW), Eidgenössische Technische Hochschule, CH-8092, Zürich, Switzerland
Rights & Permissions [Opens in a new window]

Abstract

Findelengletscher, Switzerland, advanced about 250 m between 1979 and 1985, and retreated thereafter. Subglacial water pressure, surface velocity and surface strain rate were determined at several sites. The measurements were made early in the melt seasons of 1980, 1982, 1985 and 1994 and in the autumn of 1983 and the winter of 1984. Changes of surface geometry were assessed from aerial photographs.

The estimated basal shear stress changed little between 1982 and 1994. Nevertheless, large changes in the relationship of subglacial water pressure and surface velocity were observed, which cannot be reconciled with the most commonly used sliding law unless it is modified substantially. Consideration of possible reasons indícales that a change in the subglacial drainage system occurred, probably involving a change in the degree of cavity interconnection. Isolated cavities damp the variations in sliding velocity that normally result from changes in water pressure, because the pressure in isolated cavities decreases as the sliding speed increases. In contrast, by transmitting water-pressure fluctuations to a larger area of the bed, interconnected cavities amplify the effect of water-pressure fluctuations on sliding speed. Thus, we suggest that an observed decrease in velocity (for a given water pressure) between 1982 and 1994 was a consequence of a decrease in the interconnectedness of the subglacial cavity system.

Information

Type
Research Article
Copyright
Copyright © The Author(s) 1997
Figure 0

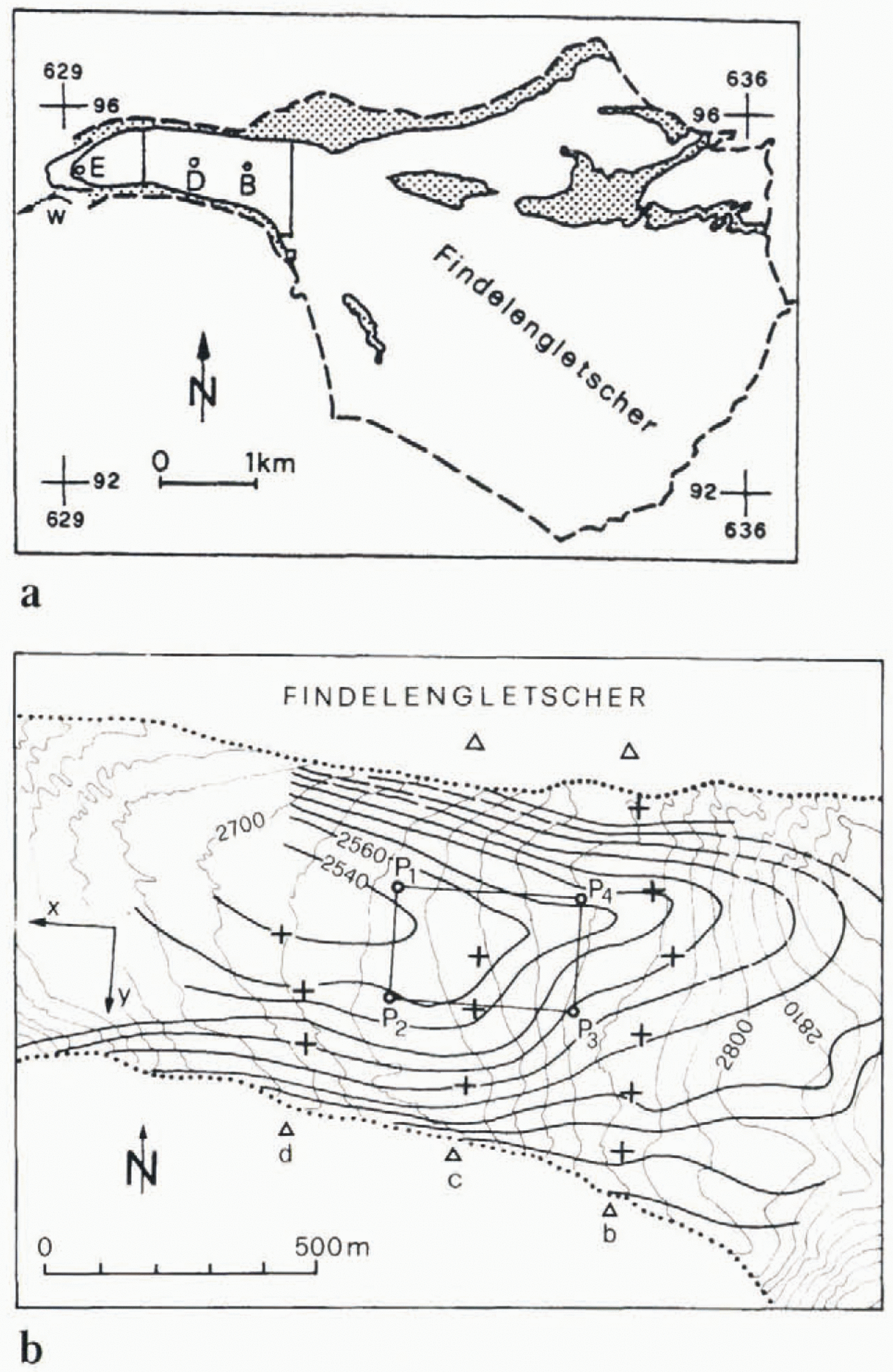

Fig. 1. (a) Map of Findelengletscher. The section between the vertical lines skows the study area. B, D and E indicate the locations of poles, referred to in Figure3. The positions of the terminus in 1977 and 1986 are shown. Stippled areas are unglacierized parts of the drainage basin, (b) Map of study area. Thin contours: surface elevation (10 m intervals). Heavy contours: bed elevation (20 m intervals; data from radio-echo soundings by H. P. Wächter, unpublished, 1982). Crosses are surveyed poles, arranged in three transverse lines b, с and d; triangles are survey stations. Numbering of the poles along a profile is from smith to north starting with 1. Rectangle P1P2P3P4refers to the section of the glacier for which the mean basal shear stress was calculated.

Figure 1

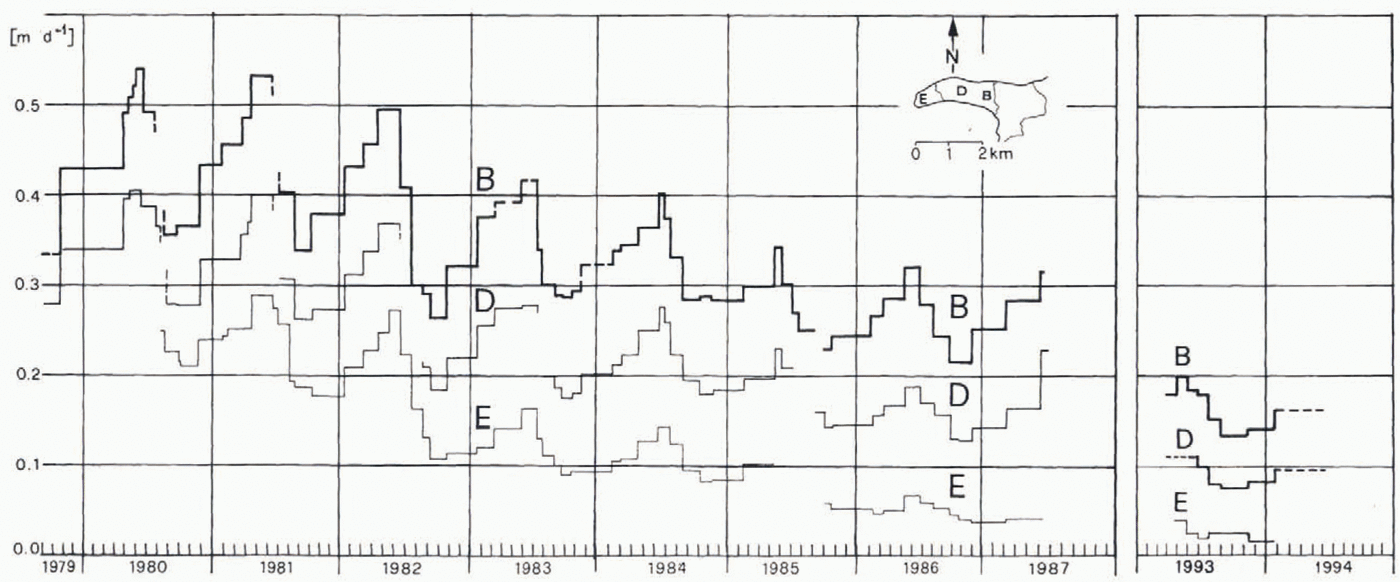

Fig. 3. Velocity of three poles along the centre line during advance and retreat of the glacier. The locatian of these poles is indicated in Figure la.

Figure 2

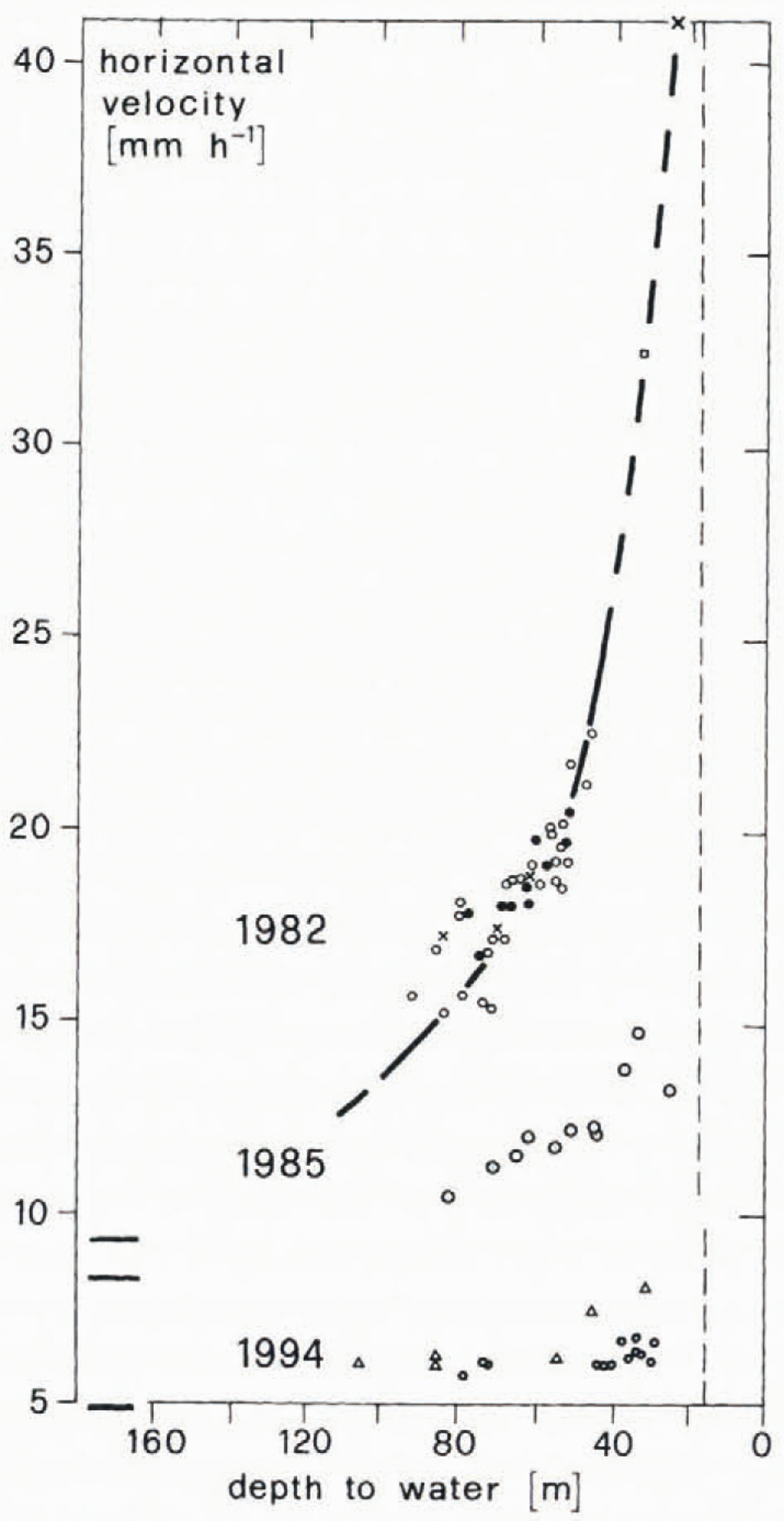

Fig. 2. Horizontal velocity of pole C3 as a function of subglacial water pressure in different rents. Water pressure is given as depth to unter (mean value of depths in several holes). The curve at the top of the figure refers to the data in the early melt seasons of 1980 (crosses) and 1982 (circles). Filled circles: scatter of depths to water in different holes was small, and velocity variations Were similar at profiles b, с and d. Open circles: larger scatter. The cluster of large circles are data from the spring of 1985, and the symbols at the bottom of the figure are data from the spring of 1994 (circles: before 2 June; triangles: after 2 June). The vertical, dashed lines indicate the depths of the water surface which correspond to the overburden pressure. (At pole C3, the ice depth was 163 m in 1982, 165m in 1985, and 147 m in 1994.) The three short, horizontal lines on the left of the figurr depict, from top to bottom, the velocities measured in the autumn in 1982, 1985 and 1993.

Figure 3

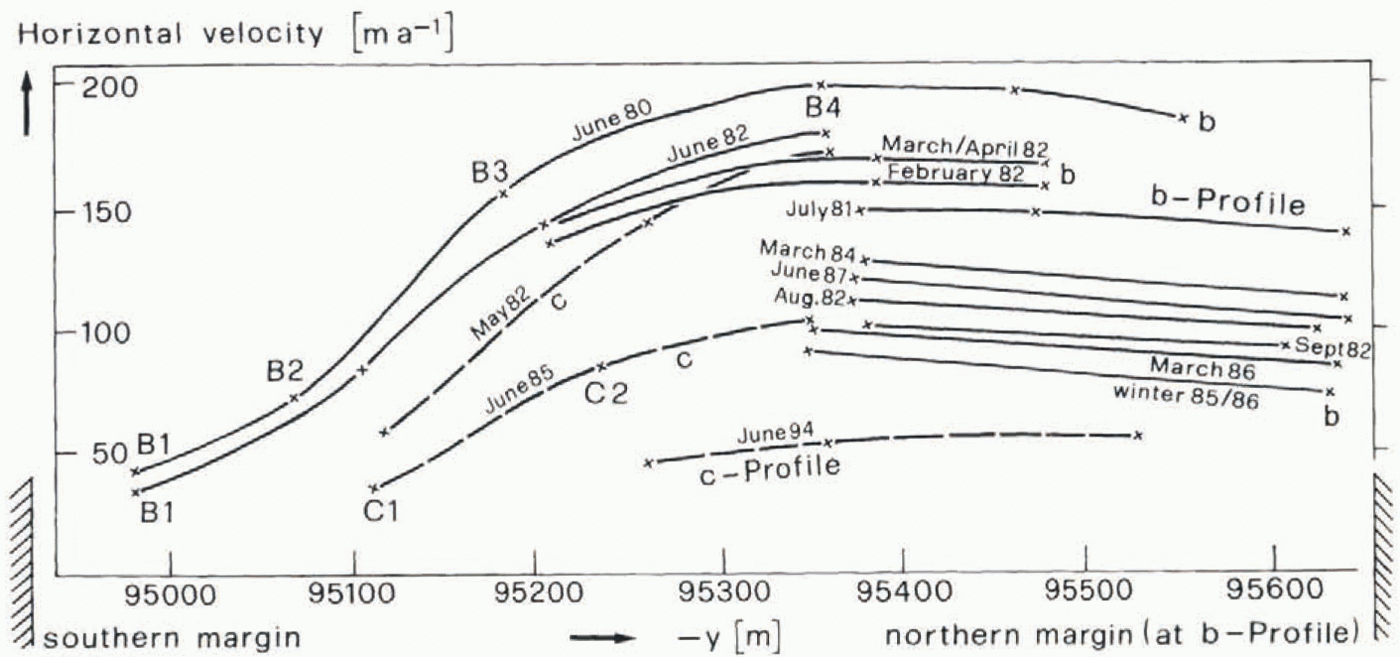

Fig. 4. Velocities of poles on transverse profiles b and c during different periods of time. Note the transverse velocity gradients on the right (northern) side of the glacier where the ice along the margin had sheared off from the valley wall.

Figure 4

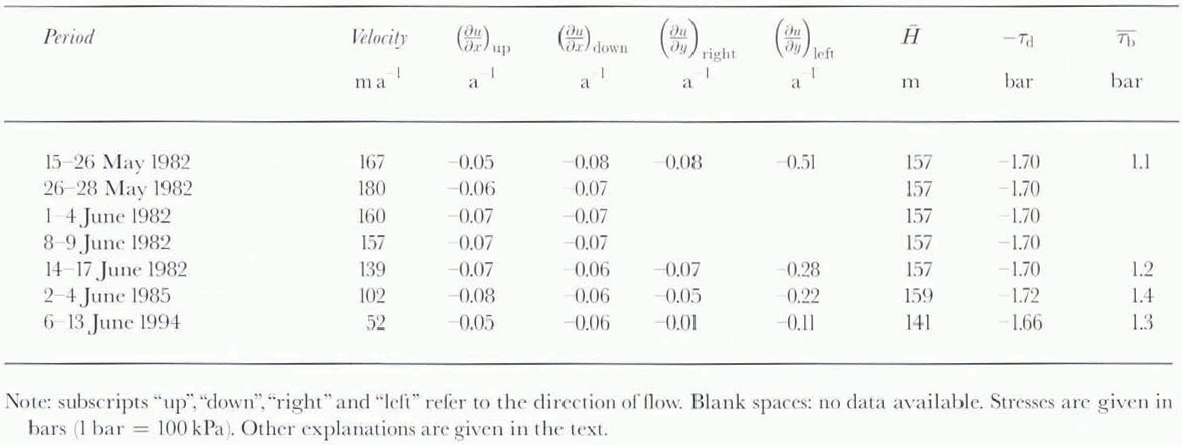

Table. 1. Velocity, strain rates, mean ice thickness, driving stress and mean basal shear stress for different periods

Figure 5

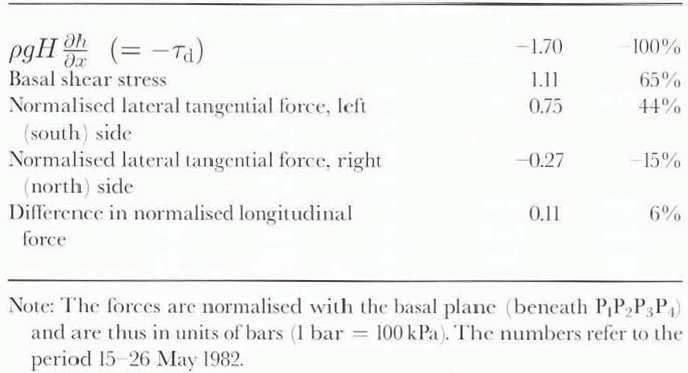

Table. 2. Contributions of the different four components to the driving stress τd

Figure 6

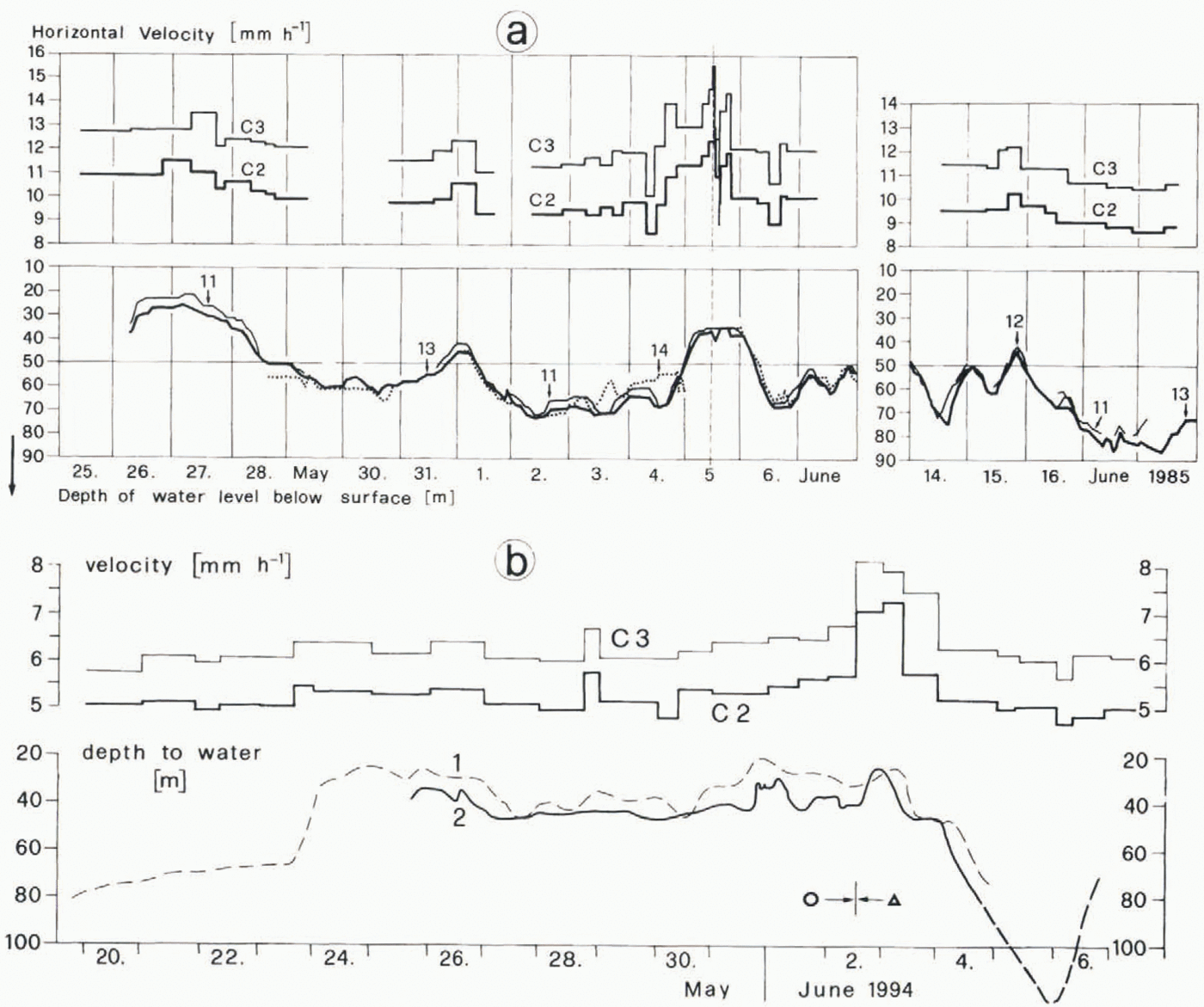

Fig. 5. Horizontal surfасе velocity of glacier and water levels in boreholes, (a) 1985, (b) 1994. Upper part of each diagram: velocity of two poles of с profile; C3 is located in the centre of rectangle P1P2P3P4(Fig. 1). Below: water levels in boreholes. Boreholes 11–14, drilled in 1985, were located between profiles c and d. Boreholes 1 and 2 were drilled near poles C3 and B4 in 1994. The heavy dashed line (end of water-level record in 1994) indicates beginning obstruction of hole.

Figure 7

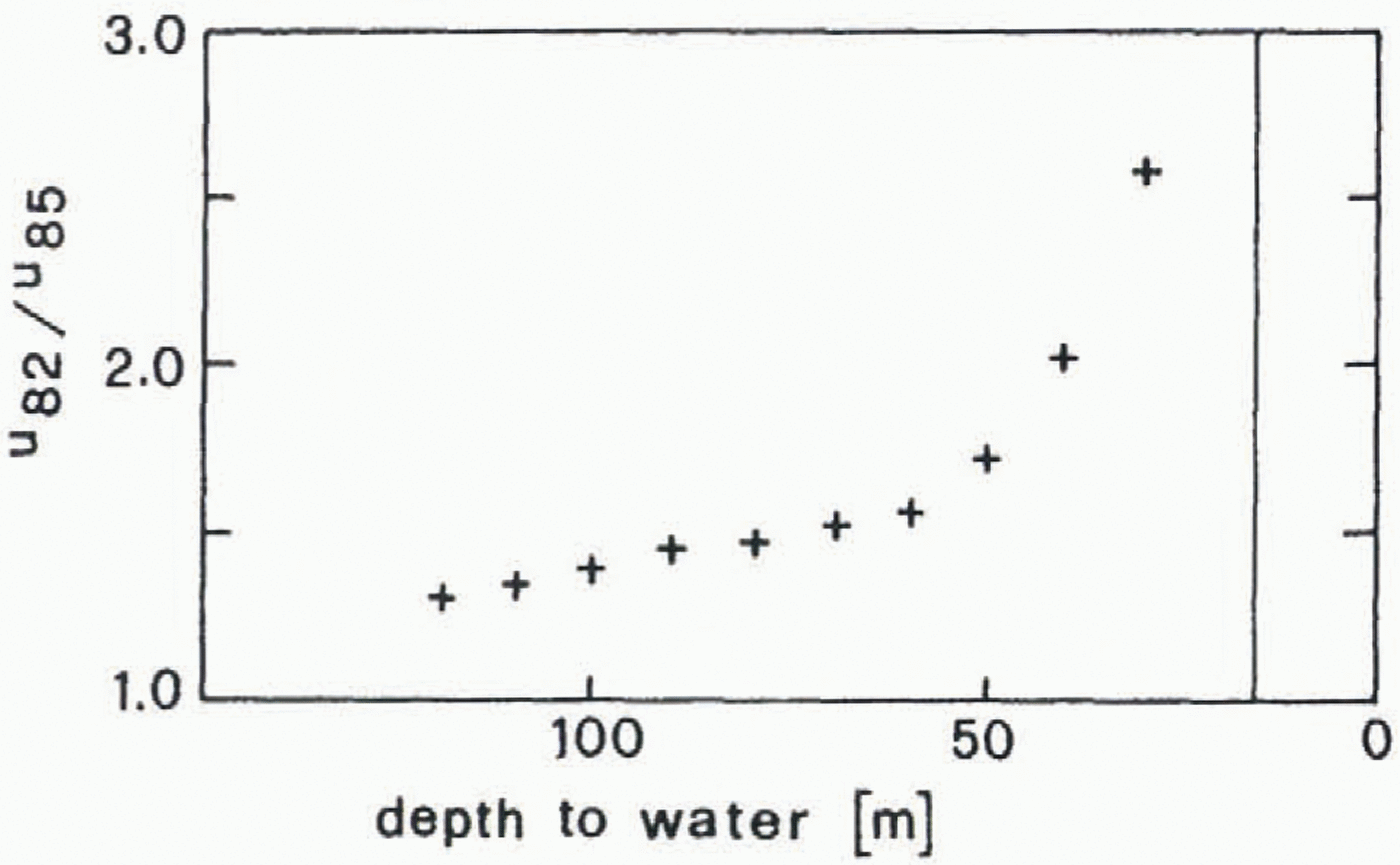

Fig. 6. Ratio of 1982 and 1985 velocities as a functiim of water pressure. The vertical line indicates the water level that correspondence to the overburden pressure.

Figure 8

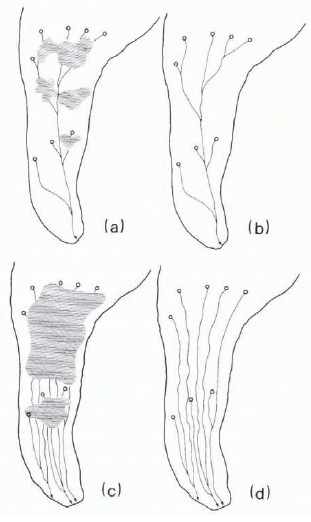

Fig. 7. Scheme of presumed changes of subglacial drainage system. Circles are moulins, lines are subglacial R channels, and shaded areas are zones covered with interconnected cavities. (a) and (b) Prior to advance of glacier. (c) and (d) During rapid advance. (a) and (c) Early melt season. (b) and (d) Late summer. Toward the end of the advance, situations (a) and (b) gradually redeveloped.
