2.1 Reflection coefficients of the components

The scattering parameters (S-parameters) characterise the response of RF-components to RF-signals as a function of frequency. The reflection coefficient (S11) is a complex ratio of the reflected to incident voltage. Therefore, its squared magnitude (|S11|²) represents the fraction of power reflected and is in the range [0,1], which translates into [ − ∞, 0] in dB scale. The transmission coefficient (S21) is a complex ratio of voltages at the output and input of a device. Thus, its squared magnitude is a measure of gain (> 0 dB) or attenuation (< 0 dB). |S11|² and |S21|² are typically expressed in dB, and we will also typically refer to reflection coefficient as magnitude expressed in dB scale. Characteristics (such as the S-parameters or the NF) of the components were measured with a vector network analyser (VNA) whenever it was necessary. During field trips, the antenna’s reflection coefficient was measured with a portable Rohde-Schwarz ZVL VNA, whilst for more precise measurements (such as noise temperature), which could be done in the laboratory, a Agilent PNA-X was used. The reflection coefficient of the antenna deployed at the Wondinong Station in April 2014 (see Section 3.1) was measured at the reference point I (Figure 3). Its magnitude and phase are shown in Figure 6. The biconical antenna is very well matched to the front-end (|Γ_al|² < 0.01) only in the frequency band ~ 172–184 MHz and reasonably well matched (|Γ_al|² < 0.1) across the rest of the ~ 130–230 MHz band. In the prototype stage of the experiment, the antenna was required to be portable. Therefore, its characteristics were a compromise between what was available on the market and the predictions for the global EoR signal at the time of purchase. The requirements for the reflection coefficient of the antenna will be discussed in Section 4.4.

Figure 6.

The magnitude and phase of the reflection coefficient of the antenna-over-groundscreen as deployed at Wondinong Station measured at the reference point I (Figure 3).

The reflection coefficient of the front-end was measured at the reference point I (Figure 3). Its magnitude and phase are shown in Figure 7.

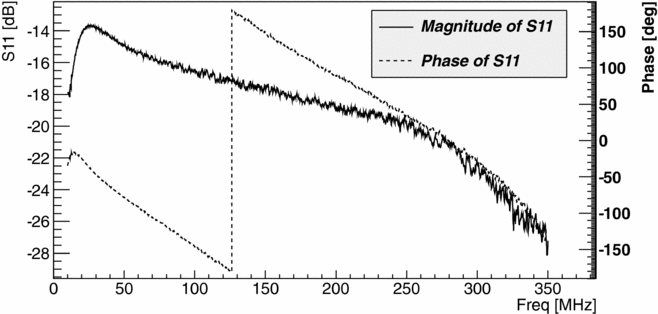

Figure 7.

The magnitude and phase of the reflection coefficient of the front-end (with a 3 dB attenuator connected to its input) measured at the reference point I (Figure 3).

2.2 Receiver gain and noise temperature

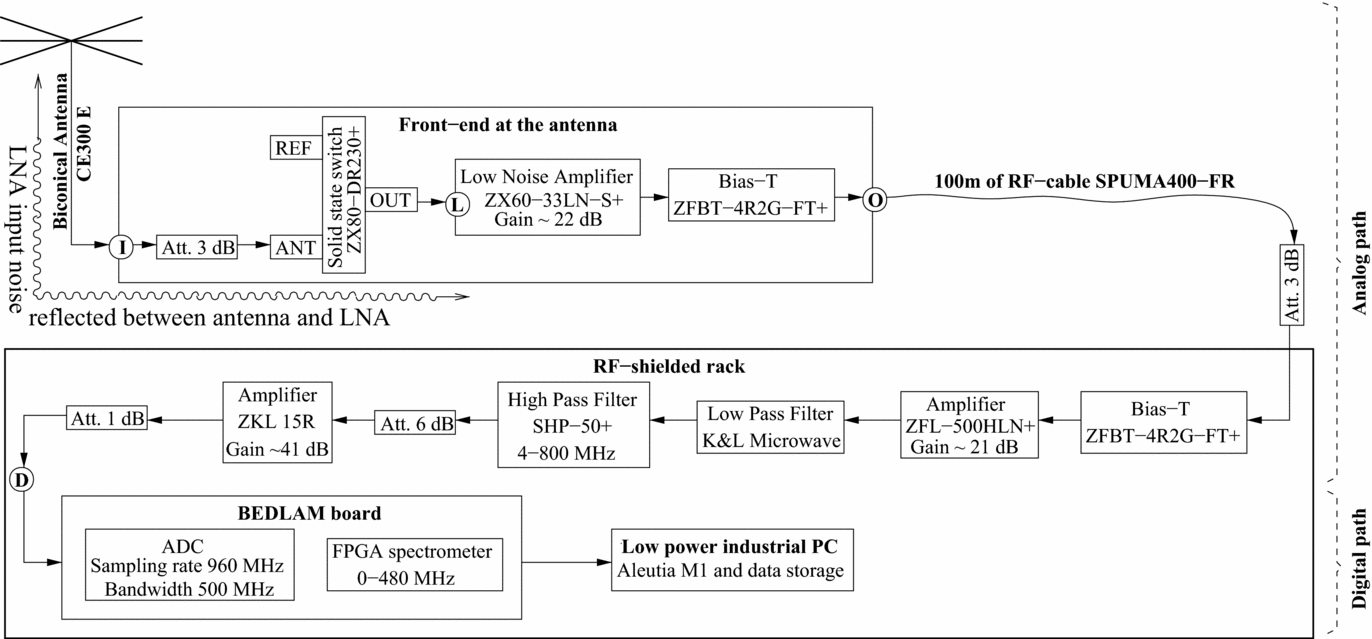

The noise temperature (Figure 8) and the gain of the whole system (Figure 9) were measured between the reference points I and D (Figure 3). The noise temperature of the system was measured in the laboratory with the PNA-X prior to the astronomical observations. The noise temperature of the terminated, standalone LNA is $T_{\text{lna}} \approx$ 80 K, the noise temperature of the entire signal path without a 3 dB attenuator is ≈ 170 K, whilst the noise temperature of the entire signal path with a 3 dB attenuator is T^a _rcv ≈ 600 K. The receiver noise temperatures (without and with the attenuator) agree with the expected values calculated according to the Friis formula (~160 K and ~ 620 K, respectively) for the system presented in Figure 3. The noise temperatures were parameterised by a 9th order polynomial in order to be used in the calibration process (Figure 8). Based on the reduced χ² test, the 9th order polynomial was sufficient to describe the noise temperature data (measurement error ~ 5.4 K) in 50–340 MHz band. Nevertheless, data analysis may be performed in the narrower frequency band where lower order polynomials should be sufficient. In a single (cold state) calibration schema, without the possibility of continuous determination of the noise temperature from hot/cold reference sources, higher accuracy noise temperature measurements are also required.

Figure 8.

Measured noise temperatures of the low noise amplifier ZX60-33LN-S+ (blue curve) and of the entire signal path with a 3 dB attenuator at the antenna input of the front-end with a 9th order polynomial fit superimposed (red curve).

Figure 9.

The total gain of the analogue path measured with the Rohde-Schwarz ZVL vector network analyser. A quasi-periodic ripple of expected periodicity ≈ 1.275 MHz due to a standing wave in the 100 m cable is shown in a frequency range 180–220 MHz.

2.3 System portability

In order to be able to deploy the system in any remote location without access to electricity, it was designed to be portable. In the field it is deployed in a modified off-road camper trailer. The whole system consumes about 120 W of power. In order to make the system fully mobile, the power system consisting of a 24 V, 130 Ah battery, 24 V/23 A smart charger, and a power generator was assembled. The capacity of the battery is sufficient to continuously run the system overnight. In the field the system was running on the battery during the night and the battery was charged for a few hours during the day from a power generator (Honda 20EU).

2.4 Electromagnetic compatibility testing

The self-generated electromagnetic interference (EMI) from the system was measured in an anechoic chamber at Curtin University. The emissions from the systems were compared against the military standard MIL-STD461F (2007) and commercial standard CISPR 22 Class B (2008), which define a well-established procedure of testing electronic equipment. Moreover, the EMI requirements of radio quiet sites, such as the Murchison Radio-astronomy Observatory in Western Australia, are defined with respect to the military standard (i.e. 20 dB below), and the system has to satisfy these requirements if it is ever intended to be deployed there. During the first two tests, EMI from the whole system was measured. In the first case, the system was running on the battery with the charger turned off, which was a typical night time operation mode in the field. In this configuration, the system satisfies the military standard MIL-STD461F (2007). However, a few narrow band emissions in the ~ 150–160 MHz band and above 230 MHz, and wide band emissions at ~ 150 MHz and above 190 MHz were identified. Three narrow band emissions above 220 MHz were close the military standard limit. Therefore, using these data and a model of radiowave propagation over the surface of the Earth (ITU-R P526-12 2012) we estimated the resulting power that could be picked up by the antenna as deployed at Wondinong Station (see Section 3.1). In this configuration, the antenna was placed at a distance of approximately 50 m from the trailer housing the RF-shielded rack and the power system. In the procedure, we used sensitivity data (gain and antenna factor) measured by the manufacturer at 3 m distance and provided with the antenna. According to the antenna pattern obtained from the FEKO 6.3 electromagnetic simulation software, we estimated that the gain of the antenna above the ground screen in the direction of the rack (as deployed at Wondinong Station) was ≈ 20–25 dB smaller than the gain provided in the antenna’s datasheet. Finally, we expressed the detected power in temperature units for 117.2 kHz frequency bins. Except for a few narrow band spikes reaching ≈ 80–100 mK, which should be excluded from data analysis, the EMI power calculated at the antenna does not exceed ~ 10 mK in the frequency band 50–230 MHz. Thus, we conclude that our measurements at Wondinong Station were not significantly affected by self-generated RFI from the rack during the night time observations.

During the second test, the charger was plugged into 240 V socket and continuously charged the battery. Although the charger is the noisiest component of the system, it satisfies the commercial standard CISPR 22 Class B (2008). Such a configuration was not used in the field, where the battery was charged by the Honda generator (likely the noisiest part of the system). However, this test allowed us to assess the EMI when the system is run off the 240 V socket inside a shielded building, which may be the case in the future.

During the last test only the antenna, the front-end, and temperature probe in the metal box were inside the chamber and the rest of the system was outside. No emission could be detected in this configuration down to the sensitivity limit of the EMI receiver of the order of − 10–0 dBμV m⁻¹ in the frequency band 20–300 MHz. It is very likely that these simple components are much quieter than the sensitivity limit. The front-end box is so close to the antenna that the upper limit translated into temperature units in the 117.2 kHz frequency bin is of the order of Kelvins, which is insignificant in comparison to the requirements of the EoR experiment. Nevertheless, the measurement gave us confidence that there is no significant undesired emission from the ‘near antenna components’.

3.1 Data collection

Several datasets have been collected from three different locations in Western Australia (Table 1). A number of substantial test datasets were collected in 2012 at Muresk (Figure 10). While Muresk is an adequate test site (relatively close to Perth), the data quality is not good enough for global EoR studies. This is mainly due to RFI from relatively close transmitters in the FM (87–108 MHz) and digital radio and TV bands (174–230 MHz), which can saturate the receiver or cause significant distortions in the sky power spectra.

Figure 10.

Outline map of Western Australia with Perth and the three deployment sites (Table 1) marked.

Table 1.

The summary of the locations and major datasets collected with the BIGHORNS system in 2012–2014 period.

The quality of the data is another critical requirement for a measurement of the global EoR signature. Therefore, in order to collect low RFI data, several trips to very remote radio quiet locations were organised. Much better quality data, at ~ 270 ms time resolution, were collected at the Eyre Bird Observatory (EBO: Figure 10). The EBO is a very remote location on the coastline of the Southern Ocean and is hundreds of kilometres away from high power radio transmitters. Surprisingly however, we found that even in such a remote location the night time data quality was affected due to long distance RFI propagation from distant coastline transmitters in South Australia, Victoria and even Tasmania (up to 1500 km away). The signals were, most likely, refracted via a tropospheric ducting mechanism, which allows for long distance propagation and is common in summer and particularly severe near the coastline (Hitney et al. Reference Hitney, Richter, Pappert, Anderson and Baumgartner1985). Thus, especially after dusk there were a lot of RFI signals in the FM and digital TV bands.Footnote ² Particularly, the later were undesired as they affected the most promising band, where the biconical antenna is best matched. Hence, the third site was inland at the Wondinong Station (Figure 10), where the best data to date were collected.

3.2 RFI excision and data reduction

The main requirement for the BIGHORNS deployment site was for a low RFI environment. Thus, the collected data are intrinsically relatively clean, even within the FM band. The main source of the high power RFI signals are from the low orbit telecommunication ORBCOMM satellites at around 137.5 MHz (right-hand circularly polarised) and from airplanes in the frequency band 117.975–136 MHz. The power transmitted by these devices is relatively high and can saturate the receiver. Very high power in a narrow band can also cause distortions in the noise floor of the remaining spectrum. In order to efficiently exclude RFI affected data they should be collected at the highest possible time resolution, which is limited by the maximum data transmission and storage rates in the system. Therefore, the Wondinong Station data were collected with 50 ms resolution.

Due to the fact that the calibration switch operates autonomously, the first data processing step identifies integrations collected on the antenna and reference source and saves this information to the FITS file headers. The state identification procedure calculates total power in every integration in a certain frequency band (60–110 MHz for the Wondinong data), compares it with a threshold value and flags as an antenna or reference integration. The threshold value is typically calculated automatically (based on the distribution of total power) or can be predefined according to observed total power for each of the states. When a state transition is detected, three surrounding integrations are flagged as undefined in order to be excluded from further analysis. In the next processing step, in order to excise data affected by RFI, the following criteria are applied:

1. 1. Single channel excision - if the power measured by the spectrometer exceeded − 35 dBm in any single channel the whole integration was excised. The value of the threshold was determined empirically in the laboratory with a signal generator connected to the antenna input of the front-end. It has been observed that power ⩾ −35 dBm affects the noise floor by ⩾ 1 %. The threshold was set at − 15 dBm for the Muresk test data. The average excision rate of this criterionFootnote ³ for the data from Wondinong Station was ≈ 13%.

2. 2. Broadband excision - if the sum of power in the entire band was above the median galactic noise level plus the threshold of − 37.5 dBm (corresponding to 5 × 10⁸ in the original arbitrary power units in which the cut is performed at the early data processing stage) the integration was excised (Figure 11). For the Muresk data the threshold value was − 14.5 dBm (10¹¹ in arbitrary units). The purpose of this criterion is to excise integrations affected by high RFI power appearing in more than one channel. The average excision rate of this criterion for the data from Wondinong Station was ≈ 16% (Figure 12).

   Figure 11.

   Total power in the 0–480 MHz frequency band observed over 12 h at the Wondinong Station with a cut-off threshold value.


   Figure 12.

   Percentage of all the Wondinong Station data excised by the three criteria in the frequency resolution of 117.2 kHz. The excision rates of each individual criteria were calculated independently of the other criteria. The power based criteria are constant across the frequency at ≈ 13% (red curve) and ≈ 16% (blue curve). The heavily RFI affected channels were almost entirely rejected by the AOflagger software. Therefore, the green curve lies on top of the black curve in these channels.



3. 3. AO-flagger - all the data were flagged with the AOflagger software (Offringa, van de Gronde, & Roerdink Reference Offringa, van de Gronde and Roerdink2012), and the flagged data were excluded from further processing. The ‘rejection floor’ of this criterion is ~ 1.3–2% in the frequency band 60–300 MHz for the data from Wondinong Station and reaches 100% for RFI affected channels (Figure 12).

The average excision rates of each criterion applied to the data collected at Wondinong Station are shown in Figure 12. The RFI occupancy comparing the three sites, where the system was deployed in years 2012–2014, is shown in Figure 13. After the RFI excision process, the data volume was reduced to a more manageable volume by averaging every N integrations on the antenna and a reference load, where N was 700 for the sky signal and varied between 200 and 300 on the calibration signal. The number of averaged single integrations in every frequency channel was saved to a separate FITS file for later analysis. Further data analysis was performed on the reduced dataset.

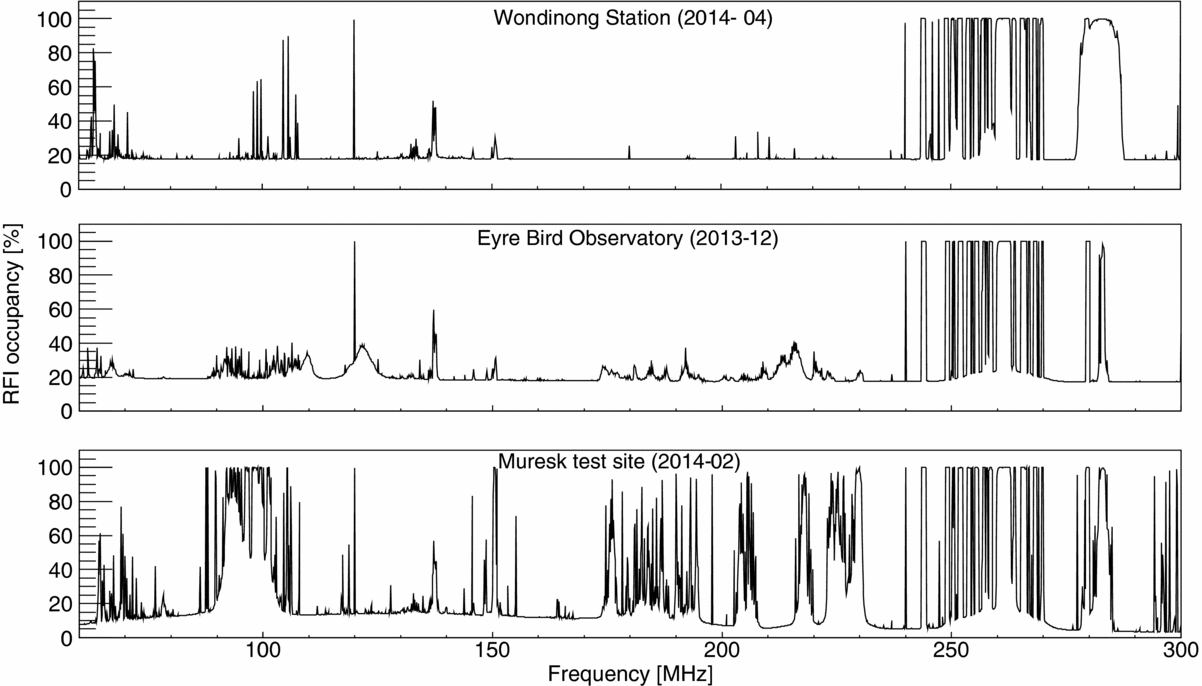

Figure 13.

Comparison of RFI occupancy between the Wondinong Station, the EBO, and Muresk. Please note that RFI threshold values used in criteria 1 and 2 (see text) for the EBO and Wondinong data would reject all the Muresk data. Thus, the figure shows occupancy obtained after cuts appropriate for the Muresk data were applied, which situates the ‘rejection floor’ slightly below the other two, but also shows a lot of narrow band emission.

3.3 Sky signal modelling

In order to calculate the expected sky spectrum, a sky model (de Oliveira-Costa et al. Reference de Oliveira-Costa, Tegmark, Gaensler, Jonas, Landecker and Reich2008) was integrated with a simulated antenna pattern. A model of the biconical antenna 52 cm above a 3 × 3 m ground screen and soil was developed in the FEKO 6.3 package in order to calculate the expected antenna pattern, P _ν(θ, ϕ), and efficiency, η(ν). The coordinates (θ, ϕ) are angles in the antenna frame and can be directly translated to horizontal coordinates (az,el) according to orientation of the antenna in the field. For a given time and frequency, ν, the antenna pattern P _ν(θ, ϕ) was integrated over the entire sky with the sky brightness temperature T _ν(θ, ϕ), obtained from the sky model, according to the formula:

(1) \begin{equation} T_{\text{pattern}}(\nu ) = \frac{\int _{4\pi } P_{\nu }(\theta ,\phi ) T_{\nu }(\theta ,\phi ) d\Omega }{\int _{4\pi } P_{\nu }(\theta ,\phi ) d\Omega }. \end{equation}

The above formula is time dependent through the implicit time dependence of T _ν(θ, ϕ). Many equations and quantities in this paper are frequency and time dependent, but their frequency and time dependence is usually not explicitly shown for brevity.

Predictions for the sky model, antenna pattern, and their product in zenith orthographic projection are shown in Figure 14.

Figure 14.

Prediction for sky model brightness temperature T _ν(θ, ϕ) with over-plotted contours of simulated antenna pattern P _ν(θ, ϕ) (left panel) and their product (right panel) at ν = 150 MHz. The upper pair of images corresponds to the Galactic Centre below the horizon (at 2014-04-06 10:34:51 UT, corresponding to approximate local sidereal time 07^h27^m), and the lower images correspond to the Galactic Centre transit (at 2014-04-06 21:07:51 UT, corresponding to approximate local sidereal time 18^h02^m). Summation of values in all the pixels of the original images (before the orthographic projection) in the right panel leads to a T _model(150 MHz) as in the corresponding curve in Figure 16.

Resistive losses in the antenna rods and due to signal picked up from the ground were estimated in the FEKO simulation (Figure 15). Thus, the expected output signal from the antenna (before the balun) is

(2) \begin{equation} T_{{\rm model}}(\nu ) = T_{{\rm pattern}}(\nu ) \eta (\nu ) + (1 - \eta (\nu )) T_{{\rm amb}}, \end{equation}

where T _amb is ambient temperature. Further losses in the signal chain (before the RF-switch inside the front-end), due to balun and cable inside the antenna, were included in the calibration process. A comparison of calibrated and modelled spectra of the sky at Wondinong Station when the Galactic Centre was transiting and when it was below the horizon are shown in Figure 16.

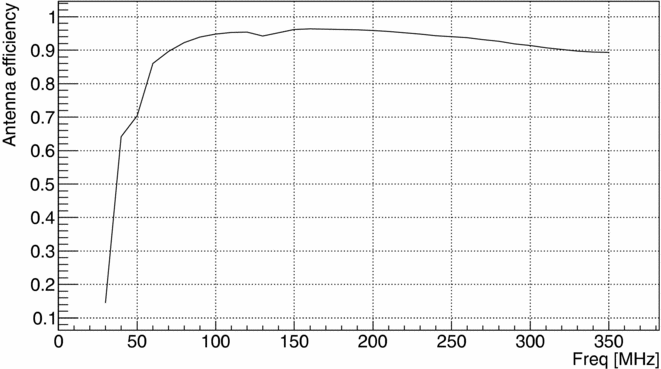

Figure 15.

Efficiency (η) of the biconical antenna obtained from the FEKO model. The dip at ≈ 130 MHz is caused by ground screen related effects, and it is also observed in the data, although slightly shifted in frequency (Figure 16). Using the FEKO model it was verified that the depth of dip depends on the height of the antenna above the ground screen and that the dip is not present when the antenna is in free space (without the ground screen).

Figure 16.

Calibrated data collected on 2014-04-06 at the Wondinong Station (with RFI affected channels removed) compared with the sky model integrated with antenna pattern. The dash-dotted lines show a calibration with an extra 0.4 dB loss inside the antenna, which could be the case due to lack of exact characteristics of the antenna.

3.4 Absolute calibration of the signal

In the existing calibration schema, a two position switch was used, switching between the antenna and a 50 Ω resistor at ambient temperature (cold load). The power spectra observed when the switch is set to antenna and load can be expressed by the following equations:

(3) \begin{equation} P_{{\rm ref}} = g \big(T_{\text{amb}} (1 - |\Gamma _{l}|^2) + T^{r}_{\text{rcv}} \big) \end{equation}

(4) \begin{equation} P_{\text{ant}} = g T_{\text{rec}} , \end{equation}

where P _ref and P _ant are the powers measured on the antenna and reference respectively, and g is the system gain post LNA at the receiver.

T^r _rcv is the receiver noise temperature when the RF-switch is set to the 50 Ω terminator measured with the VNA between points L and D (Figure 3), and |Γ_l|² is the reflection coefficient between the receiver and reference source (in this case a 50 Ω resistor).

T _rec is the sum of signal collected by the antenna (T _ant) and transmitted to the receiver (not reflected back) and full (including noise reflections in the antenna-receiver system) receiver noise (T _rcvn):

(5) \begin{equation} T_{{\rm rec}} = T_{{\rm ant}} (1 - |\Gamma _{{\rm al}}|^2) L + T_{{\rm rcvn}}, \end{equation}

where L is a frequency dependent loss between the antenna terminals and the first LNA (due to losses in the RF-switch and an optional attenuator). Losses of these components as a function of frequency were measured with the VNA. |Γ_al|² is the reflection coefficient between the antenna and receiver. Hence, the term (1 − |Γ_al|²) is the fraction of antenna signal entering the receiver (not reflected back to the antenna). Γ_al can be expressed in terms of impedances of the antenna (Z_a) and receiver (Z_l) as:

(6) \begin{equation} \Gamma _{{\rm al}} = \frac{Z_a - Z^{*}_l}{Z_a + Z_l}. \end{equation}

T _ant in Equation (5) is the antenna temperature (in lossless antenna case T _ant ≈ T _sky). Because frequency dependance of losses inside the off-the-shelf biconical antenna could only be estimated according to datasheets of the balun and cable, non-zero losses inside the antenna (L_a ≠ 0) were optional in the calibration process as they might be a source of significant uncertainty. After taking into account non-zero losses inside the antenna, T _ant can be expressed as:

(7) \begin{equation} T_{{\rm ant}} = T_{{\rm sky}}L_a + (1-L_a)T_{{\rm amb}}. \end{equation}

Finally, the receiver noise (T _rcvn) in Equation (5) can be expressed as a sum of the standardFootnote ⁴ receiver noise temperature T^a _rcv (measured between points I and D in Figure 3), and a reflected noise term (T _nw) due to receiver input noise reflected back and forth between the antenna and receiver (‘noise waves’) resulting from the impedance mismatch of these elements (Figure 3):

(8) \begin{equation} T_{{\rm rcvn}} = T^{a}_{{\rm rcv}} + T_{{\rm nw}}. \end{equation}

In the first approximation T _rcvn ≈ T^a _rcv, but higher accuracy calibration requires taking into account reflected noise terms (T _nw). The biconical antenna 52 cm above the ground screen (Section 2) is very well matched to the front-end (|Γ_al|² < 0.01) only in the frequency band ~ 172–184 MHz. Thus, the contribution of reflected noise is substantial outside this range. The contribution of the reflected noise was estimated with an approach described by Rogers & Bowman (Reference Rogers and Bowman2012), where it is treated as noise waves due to LNA input noise reflected back and forth between the antenna and LNA. The noise wave amplitudes were suppressed by a 3 dB attenuator inserted between the antenna and input of the front-end. However, this is undesirable because it significantly increases the noise temperature of the receiver (improvements in the presented system will be discussed in Section 5). The procedure of determining noise wave contribution was described in detail in the aforementioned paper. In summary, the amplitudes of the noise wave terms were estimated by measuring a power spectrum of an open (or shorted) cable of sufficient length (in our case ~ 10 m) connected to the input of the front-end (instead of the antenna); and measuring the reflection coefficient of this cable; and the reflection coefficient of the front-end (which was measured anyway). The observed power spectrum of the cable can be described by Equation (5), where T _ant is set to T _amb (as the cable ‘sees’ the physical temperature), and T _rcvn can be expressed in terms of correlated (T_c, T_s) and uncorrelated (T_u) portions of the noise from the input of the LNA as in Equation (8) in Rogers & Bowman (Reference Rogers and Bowman2012). After assuming certain parameterisation (e.g. linear) of the T_c, T_s, and T_u terms, their parameters can be fitted in order to reproduce the observed power spectrum of the cable.

An alternative, anechoic chamber based method of determining full receiver noise (including reflected noise contribution) was also developed and tested. It is based on the assumption that the brightness temperature in the shielded (~80 dB at the frequencies of interest) anechoic chamber is equal to the ambient temperature. A proper analysis of how well the anechoic chamber approximates a black-body is considered as very important if the method is going to be further used and improved, but is beyond the scope of this paper. However, a first order approximation can be obtained based on normally incident plane wave and reflectivity (deviation from a perfect absorber) of the absorber (FS-600H), which is ~ 10% at 20 MHz, ~ 3% at 30 MHz, and ~ 1% above 80 MHz. Thus, we estimate that the chamber acts as a black-body within a few percent down to ~ 30 MHz and even better (within ~ 1%) at frequencies above 80 MHz. Equation (5) can then be converted to:

(9) \begin{equation} T_{{\rm rcvn}} = T_{{\rm rec}} - T_{{\rm amb}} (1 - |\Gamma _{{\rm al}}|^2) L , \end{equation}

where all the values on the right hand side can be determined: T _rec according to Equation (10); T _amb with a temperature probe; and coefficient Γ_al can be calculated from Equation (6) after measuring the reflection coefficient of the antenna in the anechoic chamber. In order to measure T _rcvn, the system was deployed in the anechoic chamber in almost exactly the same form as in the field. The resulting values of T _rcvn were later used to calibrate the sky data. The method yields very similar results to the method of Rogers & Bowman (Reference Rogers and Bowman2012) and might be further improved and used in the future.

Equations (4)–(8) can be solved to determine T _rec which can be expressed as

(10) \begin{equation} T_{{\rm rec}} = \frac{P_{{\rm ant}}}{P_{{\rm ref}}} ( T_{{\rm amb}} (1 - |\Gamma _{l}|^2) + T^{r}_{{\rm rcv}} ). \end{equation}

The factor (1 − |Γ_l|²) can be approximated by 1, because a 50 Ω terminator is very well matched to the front-end input. Finally, the calibrated sky temperature, corrected for reflections in the antenna-LNA system, can be obtained from Equations (5), (7), (8), and (10) as:

(11) \begin{equation} T_{{\rm sky}} = \frac{T_{{\rm rec}} - T_{{\rm rcvn}}}{(1 - |\Gamma _{{\rm al}}|^2) L L_a} + \left(1 - \frac{1}{L_a}\right)T_{{\rm amb}} . \end{equation}

3.5 Statistical errors

The statistical error on T _rec can be expressed by the following formula:

(12) \begin{eqnarray} \delta T_{{\rm rec}} = \frac{P_{{\rm ant}}}{P_{{\rm ref}}}\sqrt{ ( T_{{\rm amb}} + T^{r}_{{\rm rcv}} )^2 \bigg ( \Big (\frac{\delta P_{{\rm ref}}}{P_{{\rm ref}}} \Big )^2 + \Big (\frac{\delta P_{{\rm ant}}}{P_{{\rm ant}}}\Big )^2 \bigg ) + \delta T_{{\rm amb}}^2 }, \nonumber\\ \end{eqnarray}

where δT _amb is the error on the temperature measurement and δP _ref and δP _ant are statistical errors of the power measured on the reference and antenna, respectively. Equation (12) holds under the assumption that the errors (δP _ref, δP _ant, and δT _amb) are independent and Gaussian distributed, which we verified on subsets of the data. It can be simplified under the assumption that the error on the measured power satisfies the radiometer equation $\delta P/P = \sqrt{B \tau }$, where B is the resolution of the frequency bin and τ is the integration time. If a long integration time τ is achieved by averaging M single integrations of duration τ_i then the error on the temperature measurement also decreases as $\delta T_{{\rm amb}} = \sigma _{{\rm amb}}/\sqrt{M} = \sigma _{{\rm amb}}/\sqrt{\tau /\tau _i}$, where σ_amb ≈ 0.03 K is the estimated error on a single measurement with the presently used temperature probe. Consequently, the error on such an averaged T _rec can be expressed by

(13) \begin{equation} \delta T_{{\rm rec}} = \frac{P_{{\rm ant}}}{P_{{\rm ref}}} \sqrt{ \frac{( T_{{\rm amb}} + T^{r}_{{\rm rcv}} )^2}{B}\Big (\frac{1}{\tau _{{\rm ant}}} + \frac{1}{\tau _{{\rm ref}}}\Big ) + \sigma _{{\rm amb}}^2\frac{\tau _i}{\tau } } \;, \end{equation}

where τ_ant and τ_ref are integration times on antenna and reference, respectively (in a situation when they are not the same).

3.6 Comparison of calibrated data and sky model predictions

An example of two calibrated integrations (average of 700 single 50 ms integrations) when the Galaxy was transiting and below the horizon is shown in Figure 16. The relative difference between calibrated spectrum and the sky model is below 10% in the 70–200 MHz band, and gets down to 5% when an extra 0.4 dB of unaccounted attenuation is added to the attenuation inside the antenna. These values are within the sky model error, which was estimated by its authors (de Oliveira-Costa et al. Reference de Oliveira-Costa, Tegmark, Gaensler, Jonas, Landecker and Reich2008) to be ≈ 10% at low frequencies (20–400 MHz).

The discrepancy may be attributed to an overestimation of the antenna efficiency (η), underestimation of the signal loss between the antenna, and the LNA, incorrect subtraction of reflected noise contribution, or uncertainty in the sky model itself. In order to test our understanding of the signal calibration without relying on the exact knowledge of the additive noise terms T _rcvn (mainly uncertainty of reflected noise), the difference of the two calibrated integrations was compared with a difference of the corresponding sky model predictions (Figure 17). Figures 16 and 17 show that an accurate absolute calibration requires a very good knowledge of the antenna efficiency, which is a poorly constrained quantity. In the presented analysis the value of η was obtained from the FEKO simulation, and in practise it is difficult to have a better estimation. The antenna efficiency is typically measured with a ~ 20% precision, 5–10% is considered good and the best accuracy that can be achieved is ~ 1% (Johnston & McRory Reference Johnston and McRory1998). Even such an extremally good measurement would introduce a frequency dependent error ≳ 1 K outside ~ 130–170 MHz band (at ~ 150 MHz ‘cold sky’ temperature equals typical ambient temperature thus antenna efficiency does not matter). Although it might not be possible to absolutely calibrate the signal to a mK precision, as long as the antenna efficiency is a smooth and ‘well behaved’ function (without bumps and wiggles) of frequency, the global EoR signature can still be detected. The precise absolute calibration also necessitates good characteristics of losses inside the antenna which, in the case of the off-the-shelf biconical antenna, could not be measured precisely (without breaking the antenna) and only approximate datasheet values were used.

Figure 17.

The difference of the calibrated spectrum at two different epochs (21:07:51 and 10:34:51 2014-04-06 UT) compared with the corresponding differences of the sky model. The red dash-dotted line corresponds to difference of calibrated data with an extra 0.4 dB (Figure 16). The two model curves were generated for antenna efficiency η = 1 and η as from the FEKO simulation.

3.7 Data quality assessment

The calibration schema was used to calibrate 5 days of averaged antenna integrations by the corresponding averaged reference integrations and saving the resulting dynamic spectra to FITS files. In order to assess the quality of the antenna data, a median dynamic spectrum for 1 sidereal day was generated by grouping all data into local sidereal time (LST) bins of size approximately 1 min and taking the median of each bin. Every integration of the entire 5 day dataset was then divided by the corresponding value (with the closest LST) of the median dynamic spectrum. An example piece of the normalised dynamic spectrum is shown in Figure 18. The daytime data are significantly affected by solar activity, but the night time data are stable (typically to less than ~ 1%). Several RFI related features marked in the image are due to: military satellites at ~ 235–290 MHz, FM band at 87.5–108 MHz, and ORBCOMM satellites at 137–138 MHz. The relatively high power transmitted by ORBCOMM satellites sometimes caused some undesired leakage-like effects on the nearby channels (marked with arrows in the bottom of the plot), which were not excised by the earlier RFI flagging criteria, but were identified and excluded based on the normalised dynamic spectrum. The first 24 h were also affected by thunderstorms within some 100 km. The ≈ 1.275 MHz ripple resulting from the reflections in the 100 m cable is present almost in the entire band, but it is well visible as vertical lines below 100 MHz due to a particularly bad match at these frequencies. Some horizontal lines are due to ORBCOMM power affecting the entire band which may enforce an even more rigorous threshold in the RFI excision criteria 2. The normalised dynamic spectrum is a very useful diagnostic tool which enables identification and excision from further analysis integrations still affected by RFI or other undesired effects.

Figure 18.

Normalised dynamic spectrum of approximately 66 h. Frequency scale is on horizontal axis and time flows from the bottom to the top. The first night was affected by thunderstorms within some 100 km. Nevertheless, excluding frequency bands affected by RFI (marked in the figure) due to FM (87.5–108 MHz) and ORBCOMM (137–138 MHz and sometimes nearby channels), the night time data is mostly stable to ≲ 1% in the frequency band 50–235 MHz. Several other features such as: daytime solar activity and RFI due to military satellites (~235–290 MHz) were also marked in the image. The ≈ 1.275 MHz ripple is well visible as vertical lines at frequencies below 100 MHz.

4.1 Stability of the reference data

During the laboratory tests the antenna input of the front-end was terminated with a 50 Ω resistor. A large laboratory dataset (475 h) was reduced by averaging all 200 integrations (~270 ms each) in every single FITS file (~54.6 s) and saving them to a separate output FITS file. The variations of the recorded signal were estimated by normalising the averaged dynamic spectrum to the first or a median integration. The response of the system changes by a few percent due to temperature variations and changes in the system’s gain as a function of temperature. Switching between the antenna and a reference source allows us to calculate the instantaneous gain and thus eliminate the effects of gain variations from the calibrated data.

Using the same large laboratory dataset, the ability of the system to integrate down according to the radiometer equation was tested. Because spectra collected on the terminated antenna input are indistinguishable from those collected on the reference, odd integrations were calibrated with the even ones. Such calibrated data were later averaged and a constant room temperature was fitted in the 155–190 MHz sub-band to the resulting average spectrum. The Gaussian distribution of residuals of this fit yielded a statistical error δT _ref ≈ 1.7 mK of the mean integration resulting from averaging all the integrations, which is within 0.1 mK of what is expected from Equation (13) and τ ≈ (475/2) h and B = 117.2 kHz. The same procedure of fitting Gaussian to a distribution of residuals (Figure 19) led to determination of the error as a function of integration time which is shown in Figure 20.

Figure 19.

Fit of constant temperature in the 155–190 MHz band to calibrated reference integration of ≈ 54.7 h duration (lower panel), and a distribution of residuals with a Gaussian fit superimposed (upper panel). The standard deviation of the fitted Gaussian represents δT _ref(τ ≈ 54.7 h) ≈ 3.8 mK in Figure 20.

Figure 20.

The error δT _ref(τ) in a single frequency bin of 117.2 kHz within 155–190 MHz frequency band (derived as described in the text) as a function of integration time τ. Every point in this figure was obtained from the Gaussian fit to a distribution of residuals (Figure 19).

The stability of the data collected at Wondinong Station was also assessed in the same way. Every 200 reference integrations were averaged to a single (≈ 10 s) integration, and odd integrations were calibrated by the even ones. All the calibrated reference integrations (≈ 13.2 h) were averaged and a constant (across frequency) temperature fit was subtracted. The error of ≈ 7.4 mK was derived from the distribution of residuals and agrees very well with a value ≈ 7.3 mK obtained from Equation (13) for a given integration time and (T _amb + T^r _rcv) = 386 K. The dependence on the integration time is also in a good agreement with the expectations.

Finally, the quality of the reference data was always verified by normalising the averaged dynamic spectrum of the reduced reference data to the first (or median) integration, which would allow identification of any undesired variations in the reference signal and system’s response.

4.2 Stability of the antenna data

In order to test the stability of the antenna data, the system was deployed in the anechoic chamber in almost the same form as in the field, and a few days worth of data were collected. The uncalibrated antenna and reference power varies by ~ 1%. The calibrated signal varied by ~ 0.1% which corresponds to variations of the physical temperature in the chamber. The data were collected at ~ 270 ms resolution and were reduced as described in Section 3. Single integrations were averaged resulting in a reduced dynamic spectrum at ~ 54.6 s resolution (200 single integrations) and reference at ~ 15.8 s (43–65 single integrations) resolution. The resulting dynamic spectrum was calibrated to T _rec according to Equation (5). Then, for every frequency channel a standard deviation of T _rec was calculated from a sample of increasing number of integrations (Figure 21).

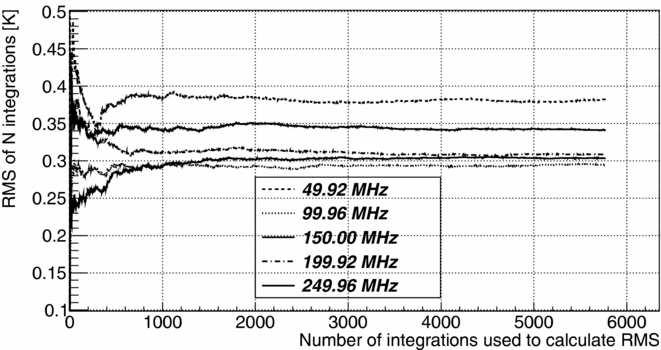

Figure 21.

Standard deviation of the T _rec as a function of number of sample integrations used to calculate it for selected frequency channels.

The standard deviation converges to a constant value after a sufficient number of integrations and remains constant at least over a period of ~ 5 days of the test duration. Its value, representing observed δT _rec of a single frequency channel of a single calibrated mean integration (τ_i ≈ 54.6 s), varies across frequency between 0.25–0.4 K. The expected values of δT _rec were calculated according to Equation (13), and a good agreement between the observed and expected values of δT _rec is shown in Figure 22. The good understanding of the statistical error on the calibrated data collected in the anechoic chamber enabled us to estimate expected statistical errors for the sky data.

Figure 22.

Standard deviation of T _rec calculated for all integrations of the chamber data (Figure 21) compared with the expected value of δT _rec calculated according to Equation (13).

The expected δT _rec for the sky data was calculated according to Equation (13) where the ratio P _ant/P _ref for a ‘cold sky’ was taken from the Wondinong data. The values of δT _rec for single 117.2 kHz channels calculated for several integration times (including a single average integration of ~ 35 s) are shown in Figure 23. The expected error of 10 average channels, corresponding to a frequency resolution of ~ 1.17 MHz, would be $\sqrt{10}$ smaller.

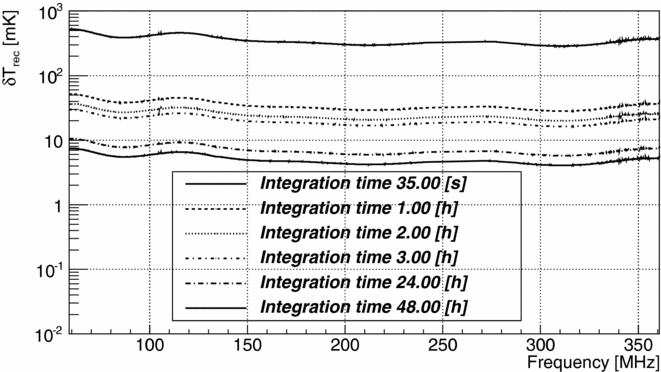

Figure 23.

The expected statistical error δT _rec calculated according to Equation (13) as described in the text for the case of ‘cold sky’ (when the Galactic Centre was in the lowest point below the horizon). The error does not significantly increase at lower frequencies, as could be expected from the high sky temperatures (Figure 1), due to the very poor antenna match at these frequencies (reflecting back more than half of the sky signal).

4.3 Limitations of calibration

The two positional calibration schema works under the assumption that noise and S-parameters characteristic of the LNA do not vary significantly with variations of environmental parameters. Modern LNAs satisfy this assumption fairly well. The LNA response was tested in the laboratory by heating up (to ~ 320–330 K) and cooling down (to ~ 276–283 K) the first amplifier in the chain and observing changes in measured noise temperature and S-parameters. The maximum differences of the LNA’s parameters between cold and hot states were: gain ≈ 0.05 dB; reflection coefficient ≈ 0.5 dB; and noise temperature ≈ 1–2 K. The parameter changes were affected by a systematic shift (without any significant frequency structure), which could result in a systematic error of the absolute calibration ≈ 1–2 K. Daily variations of temperature at Wondinong Station were ~ 288–316 K over the period of data collection, and only ~ 294–306 K over 4 h after the sunset (before the rise of the Galactic Centre). Thus, the error on the absolute calibration was likely smaller than the estimations from the laboratory tests. Particularly, for the best parts of the data (a few hours after sunset) when the temperature was close to room temperature at which LNA’s characteristics was measured in the laboratory. A new front-end equipped with an in-built ‘hot and cold’ reference source will enable us to continuously determine the instantaneous receiver noise (Section 5.1).

The main difficulty in calibrating the data collected with the presented system comes from the effects of source impedance (antenna or 50 Ω terminator) propagating further downstream the signal path. Particularly, the aforementioned ≈ 1.275 MHz quasi-periodic ripple due to reflections of the signal on both ends of the 100m cable connecting the front-end with second gain stage cannot be fully calibrated out and can only be modelled. This is due to the fact that it has a different amplitude and phase as a function of frequency when the RF-switch is set to the antenna and reference. These effects can be diagnosed and quantified by measuring the reflection coefficient at the output of the front-end (S22) at the reference point O (Figure 3) which is significantly different when the RF-switch is set to antenna and a 50 Ω terminator (Figure 24). Several modifications in the front-end, which should efficiently eliminate this problem, have already been tested and will be discussed in Section 5.1.

Figure 24.

The reflection coefficient (S22) of the front-end measured at point O (Figure 3) with the three different sources connected to its input.

4.4 Antenna mismatch

The off-the-shelf biconical antenna, as presented in Section 2.1, is very well matched (reflection coefficient ≲ −20 dB) over a relatively narrow frequency band (~172–184 MHz). Nonetheless, very good match in a wide frequency band (~50–100 MHz) facilitates the calibration procedure and thus is a very important factor for the global EoR experiment. A better matched antenna together with the ‘isolation’ in the front-end (Section 4.3) can further reduce the downstream propagation effects. While the effects of the LNA input noise reflected between the antenna and LNA cannot be entirely eliminated, they can be significantly reduced with a very well matched antenna. Assuming that all the mismatch effects downstream from the first LNA can be calibrated out by cold or hot-cold reference (discussed in Section 4.3), some requirements for optimal reflection coefficients come from the considerations of noise reflected in the antenna-receiver system and absolute calibration (Section 3.4). In the first approximation (single reflection of the receiver input noise from the antenna), the amplitude of these reflections is proportional to the product of the antenna reflection coefficient (|Γ_a|²) and input noise temperature of the receiver (typical value of the order of $T_{\text{in}}\sim$50 K). The requirement for $T_{\text{in}}|\Gamma _a|^2$ ⩽ 1 mK leads to |Γ_a|² ⩽ −47 dBm - nearly a perfect match. Such a good match cannot be achieved in practise over a finite bandwidth. In the antenna engineering, a ⩽ −10 dB match is considered good, ⩽ −15 dB match very good, and ⩽ −20 dB in a wide frequency band (e.g. 100 MHz) is extremally good and difficult to achieve. Usually a ⩽ −30dB match can be achieved in a narrow frequency band of the order of 5–10 MHz (e.g. biconical antenna in Figure 6). The condition might be relaxed by requiring only smoothness of the reflection coefficient in a restricted frequency range (tens of MHz) to satisfy the condition $T_{\text{in}}|\Delta \Gamma _a|^2$ ⩽ 1 mK, which results in condition |ΔΓ_a|² ⩽ 2 × 10⁻⁵. This means that the smoothness of the reflection coefficient itself should be smaller than 10⁻⁵, which is also difficult to achieve in practise. Thus, either LNA input noise has to be significantly suppressed or noise reflections between the antenna and receiver have to be understood and parameterised with a required precision. Nevertheless, a better match implies easier parameterisation of the reflections in the antenna-receiver system. Hence, it is important to have these components matched as well as possible and thus an upgrade to a better matched antenna (Section 5.2) is one of the major modifications needed in the presented system.

5.1 Modifications in the front-end

It has been identified that reflection coefficient of the output (S22) of a single LNA (ZX60-33LN-S+) is significantly affected by the source impedance connected to its input (Section 4.3). Therefore, in order to suppress effects of the source impedance changing the reflection coefficient of the output of the front-end (downstream propagation effects) more attenuators and amplifiers were added into a modified front-end, which introduce a desired ‘impedance isolation’ between its input and output. Instead of having a single LNA, a front-end with two LNAs (ZX60-33LN-S+) providing ~ 44 dB of gain separated by a 10 dB attenuator and another 10 dB attenuator at the output of the second LNA, which in fact remove all the extra added gain, was developed and tested in the laboratory and under the sky (but not deployed for longer data collection). In this configuration, the reflection coefficient S22 measured at the output of the front-end is almost exactly the same whether the input of the new front-end is terminated, opened or connected to the antenna (Figure 25). The initial tests of the new front-end in the chamber and under the sky showed that the ≈ 1.275 MHz ripple and any other effects down from the output of the front-end can be calibrated out. Further measurements and analysis will assess whether suppression of impedance mismatch propagation effects is already sufficient in this configuration.

Figure 25.

The reflection coefficient (S22) of the new front-end measured at the output with terminated or opened input port, which are the two ‘extremes’ and the antenna is somewhere in between. In this case, the match is very good and almost exactly the same in both cases.

Furthermore, a noise source was added to enable ‘hot-cold load’ calibration schema and continuously determine instantaneous receiver noise temperature without relying on a laboratory measurement and the assumption that it remains constant over the measurement duration. Additionally, the two-position lossy (~0.75 dB) solid-state RF-switch has been replaced with a very low loss mechanical RF-switch. A solid state RF-switch was used in the prototype system mainly for practical reasons. At the time we wanted to power the front-end with a single 5 V voltage (required by the LNA) whilst off-the-shelf mechanical RF-switches typically require at least 12 V and draw much larger current. The solid-state switch, besides its relatively high loss, is a more complex device (possibly not entirely passive) than a mechanical RF-switch. Based on experiences with the prototype system we decided we should replace it by a simpler mechanical RF-switch in order to further simplify the signal path and remove undesired attenuation at the beginning of the signal path. The above changes should lead to significant improvements in the calibration procedure and be more robust to the effects of the source impedance propagation effects.

5.2 Conical log spiral antenna

The off-the-shelf biconical antenna is going to be replaced with a bespoke conical log spiral antenna (Figure 26), which is better matched over a wide frequency band. Such an antenna will allow us to characterise all its components which should significantly improve the accuracy of the absolute calibration. Moreover, it is a left-hand circularly polarised antenna which will help in suppressing reception of undesired right-hand circularly polarised signals from the ORBCOMM satellites. With a narrower beam (FWHM ≈ 70–80° at all frequencies) and low gain towards the horizon (Figure 27), it will also enable us to use only data collected when the antenna is pointing towards the coldest regions of the sky.

Figure 26.

The conical log spiral antenna (before painting) during tests at Curtin University.

Figure 27.

Comparison of simulated antenna pattern of the biconical and conical log spiral antennas at 110, 150, and 190 MHz.

Initial tests showed that the antenna is well matched (reflection coefficient ~ − 20 dB) in a wider frequency range ~ 70–180 MHz. Therefore, equipped with a better matched antenna and experience gained with a prototype system, we should be able to parameterise the reflected noise without any undesired attenuation between the antenna and receiver. Thus, we plan to minimise losses between the antenna and the first LNA due to cable, RF-switch and in particular remove the 3 dB attenuator.
