Introduction

This paper presents the results of an investigation into the use of colour on Neo-Assyrian relief carvings. Additionally, the effects of lighting angles on these reliefs are also considered in order to demonstrate the variety of details highlighted under different conditions. Gypsum relief carvings originally decorated the palaces of the Neo-Assyrian Empire between the ninth and seventh centuries BC, often depicting scenes of royal prowess and military victory (Reference AtaçAtaç 2010). Although reliefs were originally painted with various pigments, much of the colour has been lost due to weathering, poor preservation and exposure to light and moisture (Reference LayardLayard 1849: 130).

While the use of colour has been recognised (e.g. Reference Cohen and KangasCohen & Kangas 2010), few pigments have been subject to analysis (but see Reference Verri, Collins, Ambers, Sweek and SimpsonVerri et al. 2009), and a limited number of colour schemes have been reconstructed. Yet the original polychrome appearance of the reliefs would have been dramatically different from their present monochrome condition, suggesting alternative experiences and meanings. This research therefore aims to consider which colours were most frequently used, which features were most often painted and whether there was variation in the use of colour over time.

Methodology

To establish a baseline for the reconstruction of colour, evidence for surviving pigments on reliefs was collected. A representative sample was identified, which focused on reliefs originally located in the north-west palace of Ashurnasirpal II (reigned 883–859 BC) at Nimrud and the palace of Sargon II (reigned 721–705 BC) at Khorsabad. This provided the opportunity to analyse changes in colour schemes from the reigns of the two kings. Data was collected by direct visual analysis and through enquiries to curators from the British Museum, the Fitzpatrick Museum and the Metropolitan Museum of Art. Details of visible colour on reliefs within museum collections were recorded, including pigment colour and the location of painted details. Additionally, sketches, drawings and written accounts by nineteenth-century excavators were also consulted.

Evidence of colour on painted wall friezes and glazed bricks from Neo-Assyrian palatial sites was also compiled for comparison. These decorative elements were located above relief panels on the walls at both Nimrud and Khorsabad (Reference Reade and CaubetReade 1995: 227), although it should be noted that reliefs and glazed brick murals and wall paintings were not always found in association. Both datasets are used to inform the reconstructed colour schemes.

Results and reconstructions

Surviving evidence of colour use from the north-west palace of Ashurnasirpal II is limited to a palette of black, white and red. Traces of red are sometimes found on features such as bows, the bases of sandals and on headwear and jewellery (Figure 1). Such colourations are mostly naturalistic and used particularly to highlight facial features, with hair, beards, eye outlines and pupils painted black, whereas white pigment is noted for the whites of the eyes. This standardised scheme is found on all surviving painted reliefs from Ashurnasirpal II’s north-west palace, and therefore features in all versions of the reconstruction (Figure 2).

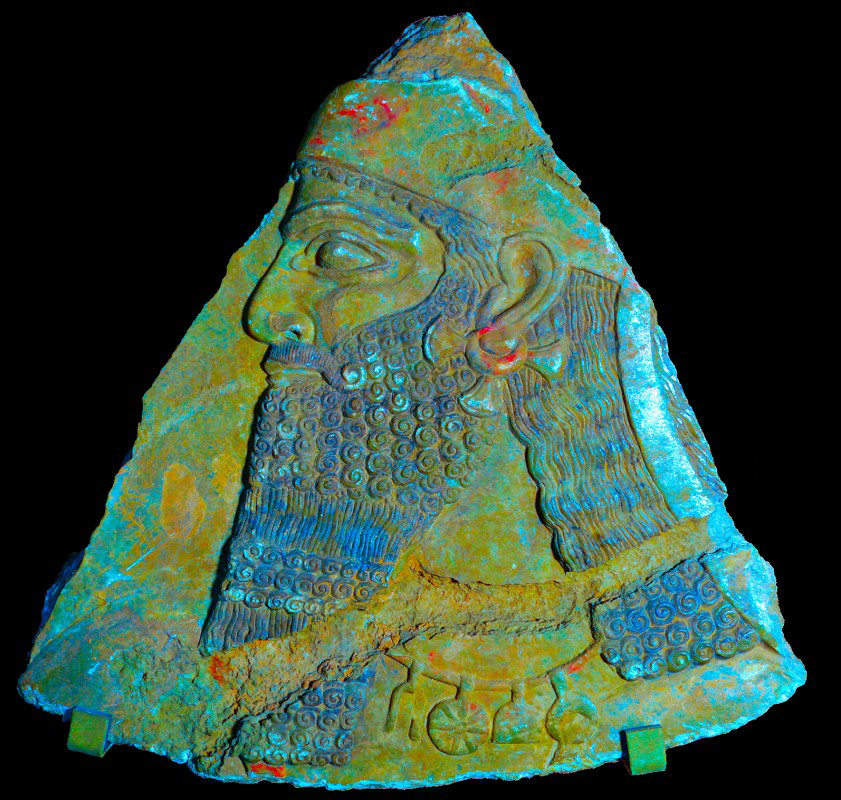

Figure 1.

Fragment of a relief from the north-west palace, depicting King Ashurnasirpal II; false colour processing has been applied to highlight the surviving black pigment, which is seen as a dark blue on the beard and hair, and as red visible on the king’s necklace, earrings and headgear (© Fitzwilliam Museum, Cambridge).

Figure 2.

Digital re-colourations of a relief from the north-west palace of Ashurnasirpal II, depicting a winged genie facing an attendant carrying the king’s bow; all re-colourations are ranked in order of reliability: from one (based solely on colours found on the specified relief features) to four (integrating colours evidenced by later colour schemes on reliefs and wall paintings); the colour shades shown are informed by those still visible on relief sculptures and Neo-Assyrian wall paintings (© Li Sou & the Trustees of the British Museum).

It is possible that red was selected as the closest available colour pigment to depict wood, on objects such as bows and staves, while the choice of red for jewellery could reflect the Akkadian term of ‘red gold’ used to describe a specific shade of the precious metal (Reiner et al. 1984). Pigments survive particularly well on the footwear of relief figures, and it is possible that preservation conditions for colour were more favourable on the base of the carvings. This standardised colour scheme is observed on all surviving painted sandals, with a red trim and black central panel and laces.

Figure 3 shows that blue is the predominant pigment used on reliefs from the palace of Sargon II at Khorsabad, in contrast to the abundance of black pigment surviving on reliefs from the north-west palace (Figure 3). Additionally, it was found that Sargon’s sandals were painted differently to those of other figures, which were decorated with blue and red stripes, marking him out as different in comparison to the plain sandals of courtiers, soldiers and others (Figure 4).

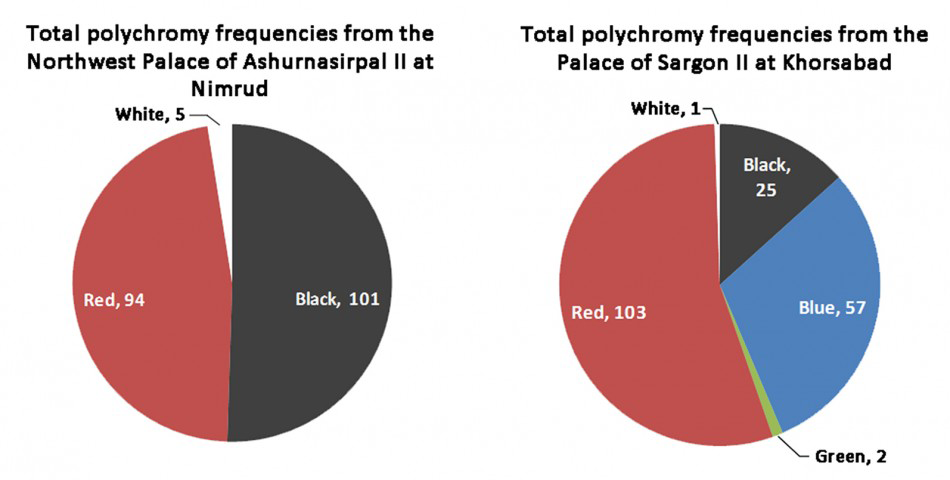

Figure 3.

Pie charts displaying the proportional representation of all colours found in archaeological or archival evidence from the two palaces.

Figure 4.

Digital re-colourations of a relief from the exterior of the palace of Sargon II at Khorsabad, depicting the king (left) holding a staff, facing an attendant (© Li Sou & the Trustees of the British Museum).

Figure 5.

Digital re-colourations of a relief from Ashurnasirpal II’s north-west palace, depicting the king (far right) and the Assyrian army besieging a city; torches are thrown against the invaders, but water is piped from the siege engine to quench the fire (© Li Sou & the Trustees of the British Museum).

The importance of blue in the colour palette of Sargon II’s palatial reliefs may be connected to the high value attributed to this colour through its association with lapis lazuli, which was particularly valued in Neo-Assyrian culture (Reference MooreyMoorey 1994: 85). As such, the extensive use of blue on reliefs of this date may reflect the intention to convey prestige and wealth, particularly as it was used for features such as metal weapons and armour (Figure 5).

It is clear from the reconstructions that the use of colour on these reliefs creates a striking effect, highlighting and distinguishing certain features (Figure 6). In the case of Sargon II, his unique sandal colour scheme reflects an intention to differentiate him from other human figures. The addition of colour to natural features such as hair and eyes creates a more lively appearance, potentially distinguishing Assyrians from other races shown on the reliefs. No traces of pigment were found on any of the figures’ skin, nor in the backgrounds. It is uncertain on the basis of surviving archaeological and textual information whether the reliefs were originally fully coloured.

Figure 6.

Video of the reflectance transformation imaging model of a relief from the north palace of Ashurbanipal, with the light source moving from left to right, then from top to bottom (© Li Sou).

Examining the effects of light

An experimental reflectance transformation imaging (RTI) model was developed to test how different lighting angles cast light and shadow over a Neo-Assyrian relief from the north palace of Ashurbanipal (reigned 668–631 BC) (DUROM.1950.4, Oriental Museum, Durham). This provides a controllable method for assessing the variable clarity of the details on the relief.

Figure 6 clearly shows that the relief was not intended to be viewed from an adjacent light source, as the intricate detail is washed out. While lighting from above and below casts somewhat better shadows, the optimum lighting directions were found to be from oblique angles to the left or right, casting shadows of the greatest depth. Specific image details are highlighted as light moves horizontally past the relief; this suggests that a handheld light source may have been the intended means of illumination, carried by a person walking through the palace complex.

Conclusions

Polychromy was used on select parts of Neo-Assyrian reliefs, allowing specific features to be highlighted; for example, martial gear, human features and costume. The possibility that pigments may have been used on background areas or on other relief features, however, is not ruled out. Additionally, it was found that standardised colour schemes were used at the two palaces, although the schemes are not identical. It is clear that a substantial amount of colour pigment survives, and it is probable that inspections of other reliefs will reveal more traces than hitherto recognised. The position and angle of light also has a strong effect on the visibility of particular features. These results suggest that further research into the use and effects of light and colour on Neo-Assyrian reliefs would be worthwhile.
