2.1. Physical system

The gas within the bubble is taken to be homogenous, inviscid and insoluble (Barajas & Johnsen Reference Barajas and Johnsen2017; Hasan et al. Reference Hasan, Al Mahmud, Khan, Patil, Dennis and Adnan2021). It is also assumed to be adiabatic due to the high frequencies ( ${\gtrsim}1$ MHz) of the driving ultrasound. Tissues and gels are nearly incompressible, which is enforced outside of the bubble. These same assumptions underly the Rayleigh–Plesset equation (Rayleigh Reference Rayleigh1917; Plesset Reference Plesset1949).

The material outside the bubble is a Newtonian fluid. Although this neglects the weak elasticity of gels and tissues, numerical studies have shown that the viscosity of similar materials has a stronger effect on the amplitude of fast microbubble oscillation than their elasticity (Yang & Church Reference Yang and Church2005; Freund Reference Freund2008; Movahed et al. Reference Movahed, Kreider, Maxwell, Hutchens and Freund2016; Murakami et al. Reference Murakami, Yamakawa, Zhao, Johnsen and Ando2021). This is further shown through a scaling analysis in § 2.2 for the baseline model parameters.

Tunnelling requires the degradation of the material. For this, we invoke the simplest tensorially consistent model based on a threshold for the maximum principal tensile strain. The effect of the degradation is to reduce the material’s viscous resistance, the model for which is introduced in § 2.3.

2.2. Configuration

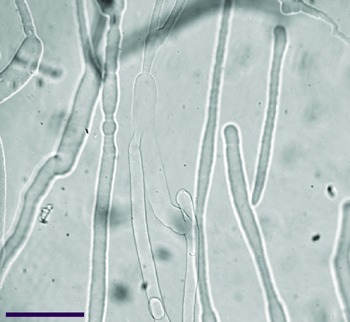

Some tunnels have been observed to bend and even fork (Williams & Miller Reference Williams and Miller2003; Caskey et al. Reference Caskey, Qin, Dayton and Ferrara2009a ; Kim et al. Reference Kim, Wang, Xu and Cain2011), but our focus is basic linear tunnelling, for which an axisymmetric model is sufficient. The initial configuration is shown in figure 2. The initial bubble with diameter $D_i=1\,\unicode{x03BC} \mathrm{m}$ starts centred at $(x,r) = (0,0)$ . The tunnel is initiated with the bubble at the end of a capsule-shaped low-viscosity (fully degraded) inclusion. This tunnel geometry is constructed for convenience, but simulations will run for sufficient numbers of cycles and tunnel lengths to become independent of this choice. The bubble is placed near the end of the tunnel based on the observations in the microscopy images (Caskey et al. Reference Caskey, Qin, Dayton and Ferrara2009a ). The initial distance of the bubble centre from the tunnel $\delta x_{b0}$ is varied to study the effect of initial configuration on tunnelling rate. However, $\delta x_{b0}=D_i/2$ , unless otherwise noted, and nearly all of the results concern a behaviour that has become independent of the placement. The density $\rho$ outside the bubble is uniformly $1000\,\mathrm{kg\,m^{- 3}}$ as appropriate for tissues or hydrogels (Maxwell et al. Reference Maxwell, Wang, Yuan, Duryea, Xu and Cain2010). The viscosity of the degraded material is taken to be water-like, with $\mu _1 = 0.001$ Pa s. The viscosity and damage threshold of the material are motivated by the characteristics of common tissue-mimicking gels. The viscosity of the undegraded material is varied from $\mu _2=0.002$ Pa s to $0.025$ Pa s (Hamaguchi & Ando Reference Hamaguchi and Ando2015; Murakami et al. Reference Murakami, Yamakawa, Zhao, Johnsen and Ando2021), which corresponds to the ratio $\mu ^*=\mu _2/\mu _1=2{-}25$ .

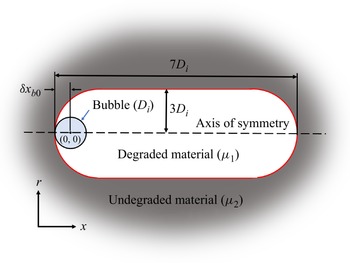

Figure 2. Proto-tunnel initial condition.

The tensile stretch limit (see § 2.3) is $\lambda _f = 1.5$ , which is similar to tissue-mimicking hydrogels (Gent & Wang Reference Gent and Wang1991; Barrangou, Daubert & Foegeding Reference Barrangou, Daubert and Foegeding2006). The surface tension on the bubble surface is $\sigma = 0.073\,\mathrm{N\,m^{- 2}}$ . The frequency of the driving acoustic excitation ranges from $f=1$ to $4$ MHz, which is within the range of therapeutic HIFU (Vlaisavljevich et al. Reference Vlaisavljevich2015). Corresponding ultrasound wavelengths $0.185$ – $1.48$ mm are large with respect to the bubble diameter and so are represented as a uniform far-field pressure that cycles as (Plesset & Prosperetti Reference Plesset and Prosperetti1977; Gaudron, Warnez & Johnsen Reference Gaudron, Warnez and Johnsen2015)

(2.1) \begin{equation} p_{\infty } = p_0 - p_a\sin \left ( 2\pi f t \right)\!, \end{equation}

where $p_0=10^5\,\textrm {Pa}$ is the ambient mean pressure. This treatment of the acoustic pressure is consistent with common practice (Prosperetti & Lezzi Reference Prosperetti and Lezzi1986; Calvisi et al. Reference Calvisi, Lindau, Blake and Szeri2007; Wang & Blake Reference Wang and Blake2011), including bubble dynamics driven by travelling acoustic waves (Calvisi et al. Reference Calvisi, Lindau, Blake and Szeri2007). Because $p_\infty$ is uniform, the bubble does not experience an acoustic radiation force (King Reference King1934). The initial bubble pressure is $p_{b0}=20p_0$ , which corresponds to an equilibrium bubble diameter $ (D_{0})$ of $1.6\,\unicode{x03BC} \mathrm{m}$ . An elevated initial pressure was selected to show that the model can represent bubble-collapse jetting and its accelerated damage, which $p_{b0}=20p_0$ produces, but results will show that this jetting gives way to a non-jetting steady tunnelling. Long-time tunnelling rates are confirmed to be independent of this initial pressure, and tunnelling does not occur without subsequent acoustic excitation. The amplitude of the acoustic excitation $p_a$ varies from 0.15 to 0.35 MPa, which loosely emulates the expected conditions where tunnelling is seen in tissue outside the focus region in HIFU therapeutic procedures (Maxwell et al. Reference Maxwell, Wang, Yuan, Duryea, Xu and Cain2010). The equilibrium bubble diameter $D_0$ and the ambient pressure $p_0$ yield an inviscid linear spherical resonance frequency

(2.2) \begin{equation} f_n =\frac {1}{\pi D_0}\sqrt {\frac {3p_{0}\gamma }{\rho }} \approx 4\,\mathrm{MHz}. \end{equation}

A reference velocity scale is associated with the velocity of the bubble interface during Rayleigh collapse (Rayleigh Reference Rayleigh1917; Curtiss et al. Reference Curtiss, Leppinen, Wang and Blake2013; Han et al. Reference Han, Köhler, Jungnickel, Mettin, Lauterborn and Vogel2015; Ohl et al. Reference Ohl, Klaseboer and Khoo2015):

(2.3) \begin{equation} u_0\equiv \sqrt {\frac {\Delta p}{\rho }} \approx 10\,\mathrm{m\,s^{- 1}}, \end{equation}

where $\Delta p\sim 10^5\,\mathrm{Pa}$ represents the difference in the pressure within the expanded bubble $ (p_b\approx 0.2\times 10^5\,\text{Pa})$ and mean ambient pressure $ (p_0\approx 10^5\,\text{Pa})$ . The reference parameters $D_0$ , $p_0$ , $u_0$ and $f_n$ are used for subsequent non-dimensionalisation. The Weber number is

(2.4) \begin{equation} {\textit{We}}_{D} = \frac {\rho u_0^2 D_0}{\sigma }, \end{equation}

and a Reynolds number to characterise the flow in the high-viscosity undegraded material is

(2.5) \begin{equation} {{\textit{Re}}}_{D} = \frac {\rho \dot {R}_mD_m}{\mu _2}, \end{equation}

where $D_m$ is the diameter of the bubble when the rate of change of its radius $\dot {R} = \dot {R}_m$ is maximum. For a deformed bubble, $D_m$ and $\dot {R}_m$ are based on a sphere of equal volume.

The elastic versus viscous stresses can be estimated for a Kelvin–Voigt material. Shear modulus $G=1$ kPa and shear viscosity $\mu =0.01$ Pa s is considered (Murakami et al. Reference Murakami, Yamakawa, Zhao, Johnsen and Ando2021). The nominal diameter of the bubble is taken as $D=1\,\unicode{x03BC}$ m. The bubble is excited by a sinusoidal far-field acoustic excitation at $f = 1$ MHz and amplitude $p_a= 10^5$ Pa. A scale for strain $ (\varepsilon)$ and strain rate $ (\dot {\varepsilon })$ in the material surrounding the oscillating bubble is given by

(2.6) \begin{equation} \varepsilon \equiv \frac {u_0}{Df}\approx 10 \end{equation}

and

(2.7) \begin{equation} \dot {\varepsilon }\equiv \frac {u_0}{D}\approx 10^7\,\mathrm{s}^{-1}, \end{equation}

respectively. Therefore, an elastic stress scale is

(2.8) \begin{equation} \tau _e\equiv G\varepsilon \equiv \frac {Gu_0}{Df}\approx 10^4\,\mathrm{Pa}, \end{equation}

and the corresponding viscous stress scale is

(2.9) \begin{equation} \tau _v\equiv \mu \dot {\varepsilon }\equiv \frac {\mu u_0}{D}\approx 10^5\,\mathrm{Pa}. \end{equation}

Therefore, the Wissenberg number of the flow is ${Wi}=\tau _e/\tau _v=0.1$ , so viscous effects are anticipated to dominate elastic effects. A more sophisticated model might better characterise the potentially multiple continuum and molecular time scales of the material degradation and elastic resistance, but this loose estimate is sufficient for justifying a viscous-only model for the present purposes. An approximate factor of ten is significant, on top of which it should be recognised that large strains do not yield large elastic stresses because of the material degradation. A more specific analysis of a Rayleigh–Plesset equation modified for a degrading Kelvin–Voigt material suggests that viscous effects will exceed elastic effects by a factor of 500 with these same viscous, elastic and degradation parameters. It was shown in a previous study (Murakami et al. Reference Murakami, Yamakawa, Zhao, Johnsen and Ando2021) that the amplitude of oscillation of small bubbles with an equilibrium radius of approximately $10\,\unicode{x03BC} \text{m}$ is similar in a Kelvin–Voigt viscoelastic material and Newtonian viscous fluid with the same viscosity.

2.3. Governing equations

The incompressible fluid outside the bubble flows according to

(2.10) \begin{align} \rho \left [\frac {\partial \boldsymbol{u}}{\partial t} + \boldsymbol{u}\boldsymbol{\cdot }\boldsymbol{\boldsymbol{\nabla }} \boldsymbol{u} \right] &= -\boldsymbol{\boldsymbol{\nabla }}p + \boldsymbol{\boldsymbol{\nabla }}\boldsymbol{\cdot }{\boldsymbol{\tau }}, \end{align}

(2.11) \begin{align} \boldsymbol{\boldsymbol{\nabla }}\boldsymbol{\cdot }\boldsymbol{u}&=0, \end{align}

where $\rho$ is the density, $\boldsymbol{u}$ is the velocity, $p$ is the pressure and $\boldsymbol{\tau }$ is the deviatoric stress tensor. The fluid is a mixture of the degraded and the undegraded Newtonian components, so

(2.12) \begin{equation} \boldsymbol{\tau }=\bar {\mu }\left (\boldsymbol{\boldsymbol{\nabla }}\boldsymbol{u}+\boldsymbol{\boldsymbol{\nabla }}\boldsymbol{u}^T\right)\ \end{equation}

with mixture viscosity

(2.13) \begin{equation} \bar {\mu }=\frac {\left (1-\phi \right)}{2}\mu _1+\frac {\left (1+\phi \right)}{2}\mu _2, \end{equation}

where $\phi =-1$ indicates fully degraded material and $\phi =1$ undegraded material. Material is tracked by an advection equation:

(2.14) \begin{equation} \frac {\partial \phi }{\partial t}+\boldsymbol{\boldsymbol{\nabla }}\boldsymbol{\cdot }\left (\boldsymbol{u}\phi \right)= b\left [ {\nabla} ^2\phi + \frac {\phi \left (1 - \phi ^2\right)}{W^2} - \lvert \boldsymbol{\nabla }\phi \rvert \boldsymbol{\nabla }\boldsymbol{\cdot }\left ( \frac {\boldsymbol{\nabla }\phi }{\lvert \boldsymbol{\nabla }\phi \rvert } \right) \right] - R_d I_d(1+\phi). \end{equation}

Experiments show a sharp boundary between the degraded and the undegraded material (Caskey et al. Reference Caskey, Qin, Dayton and Ferrara2009a ; Maxwell et al. Reference Maxwell, Wang, Yuan, Duryea, Xu and Cain2010; Lundt et al. Reference Lundt, Allen, Shi, Hall, Cain and Xu2017), which is maintained in the simulations. The first term on the right-hand side is a common model to ensure that a sharp hyperbolic-tangent-like $\phi$ profile is preserved along the normal to the boundary (Folch et al. Reference Folch, Casademunt, Hernández-Machado and Ramírez-Piscina1999; Sun & Beckermann Reference Sun and Beckermann2007). Earlier, this method was found to preserve the sharpness of the interface with excellent mass conservation (Sun & Beckermann Reference Sun and Beckermann2007). We shall see in § 4.2 that any mass error, which in this case would cause artificial degradation (or repair) of the material, is insufficient to show any sign of tunnelling. The model parameters $W$ and $b$ mediate the target thickness of this interface and the strength of the sharpening. Except when noted, $W$ is twice of the minimum mesh spacing $\Delta x$ , and the sharpening parameter is (Sun & Beckermann Reference Sun and Beckermann2007)

(2.15) \begin{equation} b = \alpha _b \frac {\Delta x^2}{\Delta t}, \end{equation}

where $\alpha _b = 6.0\times 10^{-5}$ . The bubble dynamics and tunnelling are insensitive to $W$ and $\alpha _b$ in the range of $\pm 50\,\%$ of these standard values.

The second term on the right-hand side of (2.14) models degradation. This degradation model is a low-elasticity limit of the established model of Shanthraj et al. (Reference Shanthraj, Sharma, Svendsen, Roters and Raabe2016). The rate coefficient is $R_d = 20 f_n$ , where $f_n$ is the natural frequency of the bubble, and the indicator,

(2.16) \begin{equation} I_d=\begin{cases} 0 & \text{if }\lambda _m\lt \lambda _f\\ 1 & \text{if }\lambda _m\geqslant \lambda _f \end{cases}, \end{equation}

is activated where the maximum of the principal stretches $\lambda _m = {\textit{max}} (\lambda _1,\, \lambda _2,\, \lambda _3)$ exceeds the stretch threshold $\lambda _f$ . As this linear maximum-stretch model obviously neglects many factors that would mediate degradation of a real material (Movahed et al. Reference Movahed, Kreider, Maxwell, Hutchens and Freund2016; Milner & Hutchens Reference Milner and Hutchens2021), it might be quantitatively incorrect for complex materials. Nevertheless, it is expected to afford the correct phenomenology, as will be seen. Closer quantitative comparisons with rates might require refinements to the material damage model.

The principal stretches depend on the deformation from the $\boldsymbol{Z}= (X,R,\varTheta)$ initial material coordinates to the $\boldsymbol{z}= (x,r,\theta)$ current coordinate as mapped by the deformation gradient tensor:

(2.17) \begin{equation} \boldsymbol{F} = \frac {\partial \boldsymbol{z}}{\partial \boldsymbol{Z}}. \end{equation}

The material derivative of $\boldsymbol{F}$ is

(2.18) \begin{equation} \dot {\boldsymbol{F}}=\frac {\partial \boldsymbol{F}}{\partial t} + \boldsymbol{u} \boldsymbol{\cdot }\boldsymbol{\nabla }\boldsymbol{F}=\boldsymbol{\nabla }\boldsymbol{u}\boldsymbol{\cdot }\boldsymbol{F}, \end{equation}

which evolved in time along with (2.10), (2.11) and (2.14) to track deformation (Liu & Walkington Reference Liu and Walkington2001; Kamrin, Rycroft & Nave Reference Kamrin, Rycroft and Nave2012). The principal stretches $ (\lambda _1,\, \lambda _2,\, \lambda _3)$ are the square-root of eigenvalues of the right Cauchy–Green tensor: $\boldsymbol{C} ={\boldsymbol{F}}^T \boldsymbol{\cdot }\boldsymbol{F}$ . The maximum principal strain, which will be analysed, is

(2.19) \begin{equation} \varepsilon _{{\textit{max}}} = \max \left ( \frac {\lambda _1^2 - 1 }{2}, \frac {\lambda _2^2 - 1 }{2}, \frac {\lambda _3^2 - 1 }{2}\right)\!. \end{equation}

Therefore, the material degradation model described in (2.14) through (2.16) limits $\varepsilon _{{\textit{max}}}$ to a maximum of $(\lambda _f^2 - 1)/2$ in the undegraded material.

2.4. Bubble representation

For an homogeneous inviscid adiabatic gas, the pressure $p_b$ and volume $V_b$ of the bubble follows

(2.20) \begin{equation} p_bV_b^{\gamma } = p_{b0} V_{b0}^{\gamma }, \end{equation}

where $V_{b0}$ is the initial volume of the bubble and we take $\gamma =1.4$ . The bubble pressure contributes to the boundary condition for the liquid on the bubble surface.

The bubble interface is treated differently than the material $\phi$ boundary. It is represented by the $\psi =0$ level set of advected field variable $\psi$ ,

(2.21) \begin{equation} \frac {\partial \psi }{\partial t} + \boldsymbol{u}\boldsymbol{\cdot }\boldsymbol{\nabla }\psi = 0, \end{equation}

with a constrained fourth-order least-squares method, consistent with the discretisation, that enforces kinematic and dynamic conditions. The continuity of the velocity,

(2.22) \begin{equation} \left [ \boldsymbol{u} \right] = 0, \end{equation}

and the deformation gradient tensor,

(2.23) \begin{equation} \left [ \boldsymbol{F} \right] = 0, \end{equation}

are the kinematic conditions at the bubble interface, with the liquid–gas ( $l$ – $g$ ) jump condition for any variable $\chi$ defined as

(2.24) \begin{equation} \left [\chi \right] = \chi _l - \chi _g. \end{equation}

The two dynamic interface conditions needed for axisymmetric flow without swirl are

(2.25) \begin{equation} p_l = p_g + 2\mu _l\frac {\partial u_n}{\partial n} + \sigma \left ( \kappa _1 + \kappa _2\right) \end{equation}

and

(2.26) \begin{equation} \mu _l\left ( \frac {\partial u_s}{\partial n} + \frac {\partial u_n}{\partial s}\right) = 0, \end{equation}

where $n$ is the local normal coordinate and $s$ is the relevant local tangent coordinate. The two principle curvatures of the bubble interface, $\kappa _1$ and $\kappa _2$ , are

(2.27) \begin{equation} \kappa _1 = \boldsymbol{\nabla }\boldsymbol{\cdot }\left ( \frac {\boldsymbol{\nabla }\psi }{\lvert \boldsymbol{\nabla }\psi \rvert }\right) \qquad \mathrm{and} \qquad \kappa _2 = \frac {1}{r} \frac {\psi _r}{\lvert \boldsymbol{\nabla }\psi \rvert }. \end{equation}

Bubble contact with the undegraded material is minimal, so the choice of

(2.28) \begin{equation} \frac {\partial \phi }{\partial n} = 0 \end{equation}

on the bubble surface is inconsequential.

2.5. Discretisation

The flow equations (2.11) and (2.10) are discretised on a staggered mesh using a standard second-order fractional-step method (Chorin Reference Chorin1967) with second-order Runge–Kutta time integration of (2.10), (2.14), (2.18) and (2.21). The time step size is computed adaptively such that the following stability criteria is satisfied (Kang, Fedkiw & Liu Reference Kang, Fedkiw and Liu2000):

(2.29) \begin{equation} \Delta t \frac {C_c+C_v+\sqrt {\left (C_c + C_v\right)^2 + 4C_{\textit{sft}}^2}}{2} \leqslant 0.5, \end{equation}

where

(2.30) \begin{equation} C_c=\frac {u_{\textit{max}}+v_{\textit{max}}}{\Delta x},\quad C_v=\left (\frac {\overline {\mu }}{\rho }\right)\left (\frac {4.0}{\Delta x^2}\right)\!,\quad C_{\textit{sft}}=\sqrt {\frac {\sigma \lvert \kappa _1+\kappa _2\rvert }{\Delta x^2}}, \end{equation}

and $u_{\textit{max}}$ and $v_{\textit{max}}$ are the maximum magnitudes of the velocity components in the computation domain. The advection terms in (2.14), (2.18) and (2.21) are discretised using a fifth-order WENO scheme (Jiang & Shu Reference Jiang and Shu1996). The use of the fifth-order WENO method for discretisation of the advection term $\boldsymbol{u}\boldsymbol{\cdot }\boldsymbol{\nabla }\boldsymbol{F}$ in (2.18) sufficiently preserved the incompressibility constraint $ (\boldsymbol{\nabla }\boldsymbol{\cdot }\boldsymbol{F} = \boldsymbol{0})$ . We also note that the degradation makes the accuracy of $\boldsymbol{F}$ immaterial before widespread and strong gradients can arise.

The interfacial conditions at the bubble surface (2.22)–(2.28) are enforced by extending the $\boldsymbol{u}$ , $p$ , $\boldsymbol{F}$ and $\phi$ fields from the liquid phase near the interface to the grid points in the gas phase across the interface (Caiden, Fedkiw & Anderson Reference Caiden, Fedkiw and Anderson2001; Popinet & Zaleski Reference Popinet and Zaleski2002) using a fourth-order least-square reconstruction that is constrained to be divergence-free on the boundary, with (2.25) and (2.26) imposed as linear constraints in the least-squares fit. The pressure in the liquid and the gas are coupled at the bubble interface through (2.25). The $\boldsymbol{F}$ and $\phi$ fields are extrapolated with appropriate constraints into the bubble with a second-order least-squares reconstruction, though these are not particularly important on the bubble. This scheme is implemented in the AMReX adaptive mesh refinement engine (Zhang et al. Reference Zhang2019).

The discretised domain spans $\pm 240D_0$ in $x$ and extends radially to $r = 240D_0$ , which provides results that are independent of the domain size. The symmetry axis is $r=0$ . The pressure on the other three boundaries is $p_{\infty }$ from (2.1) with $\boldsymbol{\nabla }\boldsymbol{u}\boldsymbol{\cdot }\boldsymbol{n}=\boldsymbol{0}$ $ (\mathrm{where}\,\boldsymbol{n}\,\mathrm{is\,unit\,vector\,normal\,to\,the\,boundary})$ to allow fluid flow through the domain boundary. Adaptive mesh refinement provides resolution near the bubble ( $\psi = 0$ ) and the damage boundary $(\phi =0)$ . The coarsest mesh has $D_0 = 0.13 \Delta x$ with resolution doubled at every level of refinement.

2.6. Demonstration: spherical bubble oscillations

The accuracy of the method, domain size and discretisation, particularly bubble-volume conservation, is assessed for the same computational domain against an accurate numerical solution of the infinite-domain Rayleigh–Plesset equation,

(2.31) \begin{equation} R\ddot {R} + \frac {3}{2} \dot {R}^2 = \frac {1}{\rho }\left [p_{b0}\left ( \frac {R_0}{R}\right)^{3 \gamma } - p_{\infty } - \frac {4 \mu \dot {R}}{R} - \frac {2\sigma }{R}\right]\!, \end{equation}

where $R(t)$ is the bubble radius. The initial bubble radius $R(0) = 5\,\unicode{x03BC} \mathrm{m}$ and its initial pressure is $p_{b0} = 10 p_{\infty }$ with $\mu =0.002$ Pa s and $\sigma =0.072$ N m⁻¹. The equilibrium bubble diameter $D_0$ in this case is $16.7\,\unicode{x03BC} \mathrm{m}$ . The diameter $D(t)$ shows only a slow accumulation of error over many cycles in figure 3. The decay of amplitude due to viscous dissipation is also well reproduced. Errors do, of course, accumulate with time, though even the coarsest resolution might be considered to provide sufficient accuracy for our objectives.

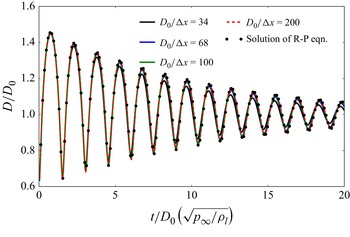

Figure 3. Comparison of the axisymmetric adaptive-mesh solver with an accurate (spherical) free-space Rayleigh–Plesset (2.31) solution for the evolution of the bubble diameter $D(t)$ . The initial condition is $R(0) = 5.0\,\unicode{x03BC}$ m with $\mu = 0.002$ Pa s and $p_{b0}= 10 p_{0}$ .

The $L_2$ error in calculation of the bubble diameter over the duration of the calculation is

(2.32) \begin{equation} \epsilon _{L_2} = \frac {\int _{0}^{30D_0\sqrt {\frac {\rho _l}{p_{\infty }}}}\left (D\left (t\right)-D_{rp}\left (t\right)\right)^2 \,{\rm d}t}{\int _{0}^{30D_0\sqrt {\frac {\rho _l}{p_{\infty }}}}D_{rp}\left (t\right)^2\, {\rm d}t}. \end{equation}

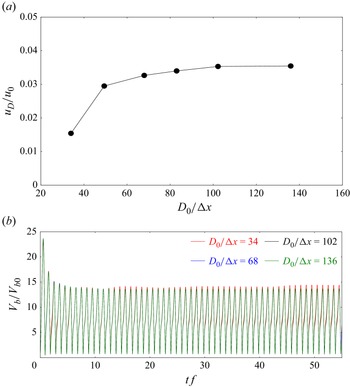

This $L_2$ error decreases from 0.0271 to 0.0022 for resolution increase from $D_0/\Delta x = 34$ to $200$ , with a well-fitted $\epsilon _{L_2} \propto \Delta x^{1.4}$ behaviour. Even though most components of the algorithm are at least second order, full second-order convergence for this quantity is not expected because it entails so many coupled components. However, convergence is sufficient for our goals, as is the 1.2 % error for $D_0/\Delta x = 68$ , which is the main resolution we use. This case also was used to confirm that a computation domain extending to $r = 60 D_0$ from the bubble centre was sufficient to show domain size independence over 14 bubble cycles. With the adaptive meshing, extending to $r = 240D_0$ provided additional confidence of this at a modest cost. To confirm implementation and selected resolution, the evolution of a pressurised bubble near a wall was also simulated with these same parameters and confirmed to match closely the Popinet & Zaleski (Reference Popinet and Zaleski2002) simulations that also reproduce the Lauterborn & Ohl (Reference Lauterborn and Ohl1997) experiment.

3.1. Initial tunnelling: material degradation due to jetting collapse of the the bubble

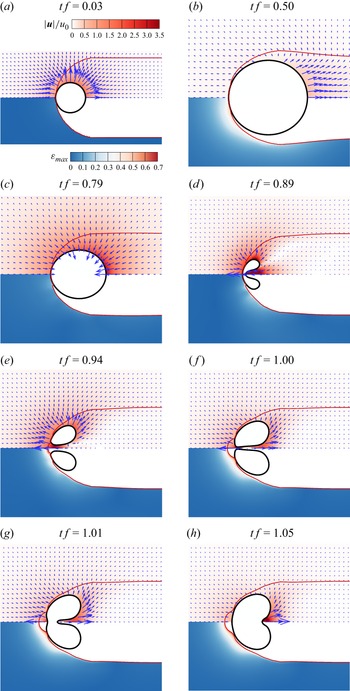

The initial high pressure in the bubble leads to its expansion followed by a jetting collapse. Figure 7(a) shows the initial expansion of the bubble with minimum $p_b =0.24 p_0$ before reversing at $tf \approx 0.5$ . Figure 7(b) shows the corresponding strain in the surrounding material. The subsequent collapse is asymmetric. Figure 7(c) shows that the velocity of the bubble surface is smaller adjacent to the undegraded viscous material, which leads to the formation of a jet towards the undegraded material (figure 7 d). This jet eventually crosses the bubble, transiently forming a toroidal bubble (figure 7 e). Figures 7(e) and 7(f) show that the undegraded material adjacent to the bubble is strained as the jet impinges on it. As the toroidal bubble expands, the liquid bridge at the centre of the bubble breaks, as seen in figure 7(g). Finally, figure 7(h) shows the rebound to a nearly spherical expanded shape. During this expansion, the undegraded material around the bubble is also stretched, causing further degradation. Although jetting is important in this initial phase for this initial condition, it does not persist into the steady tunnelling phase.

3.2. Steady tunnelling: the move-expand-stretch(-repeat) mechanism

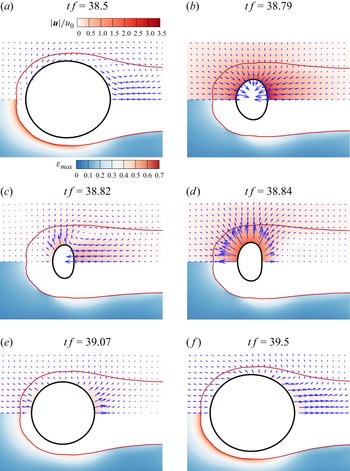

The bubble dynamics during the steady growth of the tunnel are visualised in figure 8. Figure 8(a) shows the peak bubble volume when velocity is small and high strain extends ahead of the bubble, degrading the material. The low bubble pressure initiates the subsequent collapse (figure 8 b), during which the acceleration of the bubble interface towards the bubble centre is non-uniformly impeded by the viscosity of the material, and the surface furthest from the undegraded material achieves the highest speed inward. The resulting asymmetry of the bubble shape is measured by its sphericity

(3.1) \begin{equation} \varPsi \left (t\right) =\frac { \pi ^{\frac {1}{3}} [6V_b(t)]^{\frac {2}{3}} }{ A_b\left (t\right) }, \end{equation}

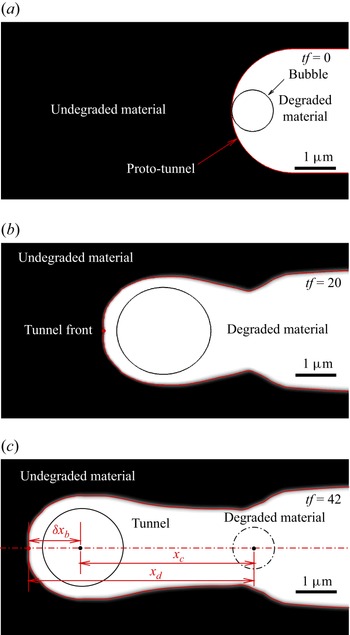

where $A_b$ is its surface area. It is nearly spherical ( $\varPsi \approx 1$ ) at $tf = 38.5$ near maximum volume (figure 8 a). However, as the bubble starts to collapse, $\varPsi$ decreases, but the minimum is only $\varPsi _{{\textit{min}}}\approx 0.95$ at $tf = 38.8$ . The corresponding shape of the bubble is shown in figure 8(c). Formation of a high speed re-entrant jet during steady tunnelling is not observed in this calculation. Figure 8(c) shows thats the bubble is further from the leading edge of the tunnel, which reduces the asymmetry in the viscous resistance it experiences. The cycle-averaged distance of the bubble centre from the tunnel end increases to $\overline {\delta x}_b = \overline {x_c - x_d} \approx 0.84 D_0$ . At this distance, the asymmetry in the viscous resistance continues to cause the bubble to deform, though insufficiently for jetting collapse. The velocity vectors in figure 8(c), at the minimum bubble volume, indicate a net flow of the degraded material towards the leading end of the tunnel. Its momentum to the left is quantified by

(3.2) \begin{equation} M_{-x} = -\int _{V_c} \frac {1 - \phi }{2}\rho u\,{\rm d}V, \end{equation}

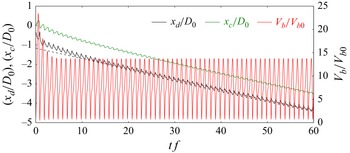

where $V_c$ is the computational domain. Figure 9(a) shows that $M_{-x}$ peaks during the collapse, pulling the bubble along the tunnel and keeping it near the growing tunnel front. The small net displacement of the bubble during its collapse is shown in figure 9(b). The time series plot of $x_c$ in figure 9(c) also shows the asymmetric fast movement of the bubble centre during the collapse.

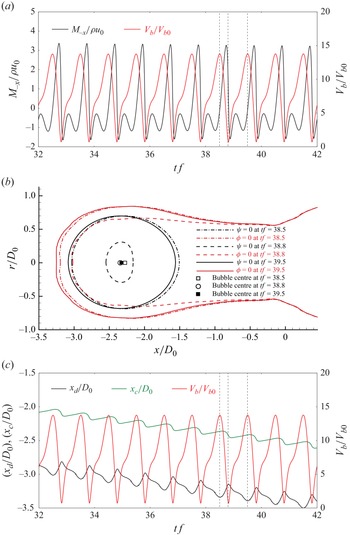

Figure 9. Steady tunnelling behaviour: (a) the time evolution of normalised net momentum $M_{-x}$ from (3.2) of the degraded material along and the bubble volume $V_b$ ; (b) the displacement of the bubble interface (black line) and the interface between the undegraded and the degraded material (red line) during one complete cycle of oscillation between $tf = 38.5$ and $39.5$ of the bubble; and (c) the time evolution of $x_c$ , $x_d$ and $V_b$ .

The subsequent rebound of the bubble from its collapsed state strains the undegraded material surrounding the tunnel end. The $\varepsilon _{{\textit{max}}}$ visualised in figure 8 shows increase in $\varepsilon _{{\textit{max}}}$ at the tunnel end as the bubble expands. It is only during the expansion phase, seen in figures 8(a), 8(e) and 8(f), that the undegraded material around the bubble is strained beyond its threshold $\lambda _f$ . The growth of the tunnel over one oscillation is also visualised in figure 9(b). The history of $x_d$ and $x_c$ in figure 9(c) shows that the bubble travels left during the collapse phase of the bubble. In sum, it is a move-expand-stretch(-repeat) mechanism that grows the tunnel.

4.1. Effect of material viscosity $\mu ^*$

Varying $\mu ^* = \mu _2/\mu _1$ from $2$ to $25$ , keeping $\mu _1 = 0.001$ Pa s, shows a jump in the tunnelling rate (figure 10 a): $u_D$ increases approximately linearly from $\mu ^* = 2$ to $6.45$ , which is unexpected since greater viscosity might be anticipated to resist strain. It then surprisingly drops by half at an apparent $\mu ^*$ threshold between 6.45 and 6.7. For larger $\mu ^*$ , it changes only modestly, suggesting an apparently constant value for $\mu ^* \gtrsim 20$ . The details of the move-expand-stretch mechanism explain this behaviour. The tunnel growth rate is determined by two factors: (1) the bubble translation rate towards the growing tunnel end during its collapse phase and (2) the extent of strain-induced degradation during its subsequent expansion. Increasing the viscosity of the undegraded material influences both of these, which in turn leads to the non-monotonic tunnelling speed. The drop in tunnelling rate corresponds to a significant drop in maximum bubble volume $V_{b,{\textit{max}}}$ due to a switch from inertia to viscosity-dominated dynamics. Figure 10(b) shows that the $V_{b,{\textit{max}}}$ abruptly decreases by a factor of 5, as seen from spherical models, for which the viscous resistance suddenly overwhelms inertial expansion (Freund Reference Freund2008; Movahed et al. Reference Movahed, Kreider, Maxwell, Hutchens and Freund2016). This is reflected in ${\textit{Re}}_D \approx 1$ for $\mu ^*\gtrsim 6.5$ in figure 10(c). Increasing $\mu ^*$ also increases environment asymmetry, inducing asphericity in bubble shape during its inertial collapse (figure 10 d). This has a corresponding increase in the net flow of the degraded material towards the growing end of the tunnel, reflected in the maximum value of $M_{-x}\, (M_{-x,{\textit{max}}})$ in figure 10(e), increasing the translation of the bubble during the collapse phase.

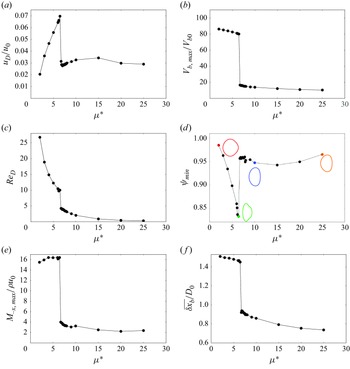

Figure 10. Effect of $\mu ^*$ on tunnelling: (a) tunnelling speed $u_D$ ; (b) maximum bubble volume $V_{b,{\textit{max}}}$ ; (c) ${{ Re}}_D$ ; (d) minimum sphericity $\varPsi$ during the stable oscillation; (e) peak momentum $M_{-x,{\textit{max}}}$ of the degraded material towards the tunnel end during bubble collapse; and (f) average distance $\overline {\delta x}_b$ of the bubble centre from the tunnel end.

The maximum expansion of the bubble is suppressed for $\mu ^*\gtrsim 6.5$ , so the tunnel extension due to the expansion of the bubble and the bubble movement in the subsequent collapse phase are both suppressed due to the high viscosity of the undegraded material. However, even with the suppressed expansion, it still stretches the undegraded material beyond $\lambda _f$ because the bubble in this case sits closer to the tunnel end. Specifically, figure 10(f) shows that $\overline {\delta x}_b$ also has a step decrease near $\mu ^* = 6.5$ . The visualisations in figure 11 show the lengths and shapes of the tunnel at $tf \approx 42.8$ for selected $\mu ^*$ . The tunnels are wider for $\mu ^* \lesssim 6.5$ due to the greater expansion.

Figure 11. Shapes of the tunnels and the bubble at $tf = 42.8$ for $\mu ^*=2,\,6.45,\,10\,\mathrm{and}\,25$ are shown with $\phi = 0$ (solid) and $\psi = 0$ (dashed) contours.

4.2. Effect of stretch threshold $\lambda _f$

Stretch thresholds $\lambda _f = 1.50$ , $2.24$ and $\infty$ (no degradation) in figure 12 show, as expected, that bubble moves less for higher $\lambda _f$ . The expansion is more suppressed due to the viscous resistance when $\lambda _f$ is increased, with the maximum volume of the bubble decreasing for larger $\lambda _f$ (see table 1). However, the mean distance of the bubble centre from the tunnel end $\overline {\delta x}_b$ decreases at higher $\lambda _f$ , so the tunnel still grows with bubble expansion in each cycle. The long time to reach the equilibrium growth rate in figure 12 for $\lambda _f = 2.4$ is due to the relatively long time it takes for the bubble to reach its equilibrium $\overline {\delta x}_b$ . The $\lambda _f \to \infty$ case is not realistic, but it is informative about the overall model. In this case, there is no degradation, but the bubble translates slowly into the high viscosity region. It stops when its environment is effectively symmetric once it travels a few diameters from the proto-tunnel initial condition.

Table 1. Dependence on damage threshold $\lambda _f$ .

Figure 12. Tunnelling for different stretch degradation threshold $\lambda _f$ . The dashed lines are linear fits.

4.3. Effect of surface-tension $\sigma$

The water–gel system that motivated our parameter selection would give ${\textit{We}}_D = 2.31$ . Figure 13 shows that higher surface tension (smaller ${\textit{We}}_D$ ) suppresses tunnelling. This is because it suppresses expansion of the bubble and also its migration along the tunnel because the bubble remains more spherical. The behaviour for larger ${\textit{We}}_D$ shows the same sudden change of behaviour associated with discontinuous dependence on $\mu ^*$ , but likely involves additional factors. The bubble becomes unstable for very low surface tensions, which makes the axisymmetric model less relevant, so this is not explored in detail.

Figure 13. Effect of the bubble surface tension on the tunnelling rate for $p_{a}=2.5 p_{0}$ , $p_{b0}=20 p_{0}$ , $f = f_{n}$ , $\mu ^* = 10$ and $\lambda _f = 1.5$ .
