Solitary water waves created by variations in bathymetry

Published online by Cambridge University Press:  30 April 2021

Manuel Quezada de Luna*
Affiliation:
Computer, Electrical, and Mathematical Sciences & Engineering Division, King Abdullah University of Science and Technology, 4700 KAUST, Thuwal 23955, Saudi Arabia
David I. Ketcheson
Affiliation:
Computer, Electrical, and Mathematical Sciences & Engineering Division, King Abdullah University of Science and Technology, 4700 KAUST, Thuwal 23955, Saudi Arabia
*
Email address for correspondence: manuel.quezada@kaust.edu.sa

Abstract

We study the flow of water waves over bathymetry that varies periodically along one direction. We derive a linearized, homogenized model and show that the periodic bathymetry induces an effective dispersion, distinct from the dispersion inherently present in water waves. We relate this dispersion to the well-known effective dispersion introduced by changes in the bathymetry in non-rectangular channels. Numerical simulations using the (non-dispersive) shallow water equations reveal that a balance between this effective dispersion and nonlinearity can create solitary waves. We derive a Korteweg–de Vries-type equation that approximates the behaviour of these waves in the weakly nonlinear regime. We show that, depending on geometry, dispersion due to bathymetry can be much stronger than traditional water wave dispersion and can prevent wave breaking in strongly nonlinear regimes. Computational experiments using depth-averaged water wave models confirm the analysis and suggest that experimental observation of these solitary waves is possible.

Information

Type
JFM Papers
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution, and reproduction in any medium, provided the original work is properly cited.
Copyright
© The Author(s), 2021. Published by Cambridge University Press
Figure 0

Figure 1. An example of the kind of bathymetry studied in this work. (a) Bathymetry that changes periodically in one direction. (b) Narrow channel with non-flat bathymetry.

Figure 1

Figure 2. Channel with inclined walls. The channel is infinitely long. (a) Front view. (b) Isometric view.

Figure 2

Figure 3. Notation for shallow water equations with variable bathymetry. The reference point $z=0$ is located at the bottom of the bathymetry. The surface elevation is denoted by $\eta (x,y)$ and the undisturbed surface elevation is denoted by ${{\eta ^{*}}}$. The water depth is denoted by $h(x,y)=\eta (x,y)-b(y)$. The bathymetry $b(y)$ varies along the axis that points into the page. Figure 1(a) presents a three-dimensional view for one specific bathymetric profile. In this diagram, the bathymetry $b$ is piecewise constant; however, in general we assume it to be $y$-periodic.

Figure 3

Figure 4. Solution of the shallow water equations (2.1) with periodic bathymetry vs solution of the linearized homogenized approximation (2.20). We show the surface elevation $\eta$ at (from left to right) $t=20, 120$ and $t=200$. We plot two different slices of the solution at different $y$ values; however, because $\delta \ll 1$ there is almost no phase difference and the two plots are nearly exactly aligned.

Figure 4

Figure 5. Bathymetric solitary waves at $t=340$. The initial condition is a Gaussian pulse given by (2.24a,b) with $\epsilon =0.05$, ${{\eta ^{*}}}=0.75$ and (a,b) $\alpha =2$ and (c,d) $\alpha =10$. In (a,c) we show the surface elevation plots (where the dashed line represents the location of the jump in the bathymetry) and in (b,d) we show slices along $y=0.25$ (in dashed blue) and $y=-0.25$ (in solid red).

Figure 5

Figure 6. For each solitary wave in figure 5(c,d), we plot (a) the amplitude as a function of $y$, and (b) the variation $\Delta A:=\max _y A(y)-\min _yA(y)$ as a function of mean amplitude $\bar A:=({1}/{\varOmega })\int _{-\varOmega /2}^{\varOmega /2}A(y)\,{\textrm {d}y}$. The black dashed line in (b) is a quadratic least-squares curve fitted to the data and constrained to pass through the known value $(0,0)$. In both cases, the amplitude is measured relative to the undisturbed water level ${{\eta ^{*}}}$.

Figure 6

Figure 7. Scaling relation for bathymetric solitary waves. In (a) we show the first three $y$-averaged solitary waves (given by (3.2)) from figure 5(c,d) centred at the origin. In (b) we show the same solitary waves after the scaling given by (3.3). The black dashed line in (b) is a $\text {sech}^{2}$ function fitted to the data and the dotted cyan line is a soliton solution of a KdV-type equation that we derive in § 4.

Figure 7

Figure 8. Speed–amplitude relation for bathymetric solitary waves. We measure the amplitude based on (3.2). The solid purple line is based on a KdV-type equation that we derive in § 4 and the dashed black line is the quadratic least-squares fitted curve to the cyan circles and constrained to pass through the known value $c_{{eff}}=\sqrt {g\left \langle {{\eta ^{*}}}-b\right \rangle }$ for zero-amplitude waves. The amplitude is measured relative to the undisturbed water level ${{\eta ^{*}}}$.

Figure 8

Figure 9. Counter-propagating collision. We show (in different colour) slices at the middle of each bathymetry section. As a reference, we plot the propagation of the taller solitary wave by itself. In (d) we zoom in on the tails of the solitary waves after the interaction to notice the oscillations and the slight change in phase.

Figure 9

Figure 10. Co-propagating collision at different times. We show (in different colour) slices at the middle of each bathymetry section. As a reference, we plot the propagation of the taller solitary wave by itself. In (f) we zoom in on the tails of the solitary waves after the interaction.

Figure 10

Figure 11. In green, solution of Peregrine's model (4.1). In black, $y$-averaged solution of the shallow water equations (2.1) with periodic bathymetry. The bathymetry is given by (2.21) with $b_0=0.01$ for (ac) and $b_0=0.5$ for (df). The initial condition is given by (2.24a,b) with $\alpha =2$, $\eta^*=0.015$ and $\epsilon=0.001$ for (ac) and $\alpha=2$, $\eta^*=0.75$ and $\epsilon=0.05$ for (df).

Figure 11

Figure 12. Solution of the shallow water equations (2.1) with periodic bathymetry given by (2.21) with ${b_0}=0.5$. The initial condition is given by (4.9a) with $\gamma =0$ and (4.10). We show a slice along $y=-0.25$, with initial amplitude (ac) $A_m=6.25\times 10^{-5}$ and (df) $A_m=2\times 10^{-3}$.

Figure 12

Figure 13. Estimated $\gamma$ such that (4.9a) is the closest (in a least-squares sense) to a given bathymetric solitary wave. The bathymetric solitary waves correspond to the solution of the shallow water equations (2.1) (at $t=100$) with periodic bathymetry given by (2.21) with ${b_0}=0.5$. The initial condition is given by (4.9a) with $\sigma =\sigma (0)$, (4.10) and amplitude $A_m$ given by (4.11).

Figure 13

Figure 14. In red, solution of the KdV-type equation (4.8). In black, $y$-averaged solution of the shallow water equations (2.1) with periodic bathymetry. The bathymetry is given by (2.21) with ${b_0}$ as indicated below. The initial condition is given by (2.24a,b) with $\alpha =2$ and ${{\eta ^{*}}}$ and $\epsilon$ as indicated below. (ac) Simulation of the same scenario as in figure 11(ac), this time comparing (4.8) with the shallow water equations (2.1). We use (2.21) with ${b_0}=0.01$ and (2.24a,b) with ${{\eta ^{*}}}=0.015$ and $\epsilon =0.001$. (di) Simulation of the same scenario as in figure 11(df), this time comparing (4.8) with the shallow water equations (2.1). We use (2.21) with ${b_0}=0.5$ and (2.24a,b) with ${{\eta ^{*}}}=0.75$ and $\epsilon =0.05$. (jo) The same as figure 14(di), but with an initial wave that is twice as tall ($\epsilon =0.1$).

Figure 14

Figure 15. Coefficients from the ${O}(k^{3})$ terms in the dispersion relations (5.2), and that of Peregrine's model (4.1). The blue and red curves correspond to KdV equation (5.1) and our model (4.8), respectively. The dispersive coefficient of Peregrine's model is plotted in green. (a) Regime considered in figure 11(df). Here, ${{\eta ^{*}}}=0.75$. (b) Regime considered in figure 11(ac). Here, ${{\eta ^{*}}}=0.015$.

Figure 15

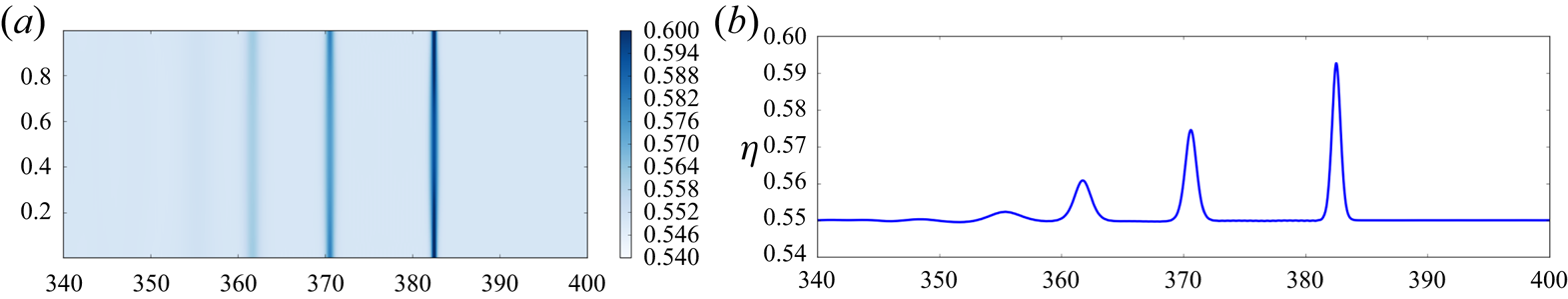

Figure 16. Solitary waves at $t=200$ in a channel like the one shown in figure 2. The initial condition is given by (2.24a,b) with $\epsilon =0.05$, ${{\eta ^{*}}}=0.75$ and $\alpha =2$. In the (a) we show the surface plots and in (b) we show slices along $y=0.5$.
