2.1 The interval consensus model

In this section, we will introduce the notation for the data and the parameters. Appendix 5 provides an overview of these definitions, along with short explanations. We assume that interval responses are measured on a response scale from $0$ to $1$ so that the lower and upper interval bounds are given as $0 \leq X^{L} \leq X^{U} \leq 1$ . We first transform the data into a more generalizable compositional form, namely, a simplex with three components that sum to one:

(1) $$ \begin{align} \boldsymbol{X} = \Bigg[ X^{L}, \; X^{U} - X^{L}, \; 1 - X^{U} \Bigg]^\top. \end{align} $$

Since any of the three components in $\boldsymbol {X}$ can be zero, we add a padding constant c to all components to ensure that we can later apply a log-ratio transformation. After adding the constant, the compositional form is restored by dividing each element of the vector by the sum of all its elements:

(2) $$ \begin{align} \boldsymbol{Y} = \frac{1}{ 1 + 3c } \left(\boldsymbol{X} + c \, \mathbf{1} \right) \quad \text{with} \; c = 0.01, \end{align} $$

where $\mathbf {1}$ is a vector of three ones. Other methods have been proposed to remove zero components, some of which have properties that are more optimal for compositional analysis, like the preservation of the original ratios of non-zero components for a particular interval response (Martín-Fernández et al., Reference Martín-Fernández, Barceló-Vidal and Pawlowsky-Glahn2003). However, the rescaling method used here has the advantage of preserving the original ratios of non-zero components across all responses, which is important for estimating consensus values across items and participants. The rescaling essentially creates a hypothetical response scale for which the extreme values determining the scale’s minimum and maximum cannot occur in the data. The particular choice of $c = 0.01$ is arbitrary. We conducted a sensitivity analysis (see the materials in the OSF repository), which indicated that this value is a sensible choice. The results in our empirical example (see Section 4) did not change substantially when choosing slightly different values. If none of the components is zero for all responses, we can skip this step in the analysis.

Next, we need to convert interval responses into a format better suited for our modeling framework, which assumes a bivariate normal distribution. For this purpose, we apply a specific version of the ILR transformation function to $\boldsymbol {Y}$ . This link function is tailored to the compositional form of interval responses (Smithson & Broomell, Reference Smithson and Broomell2024):

(3) $$ \begin{align} \boldsymbol Z = \big[Z^{loc}, Z^{wid}\big]^\top = \Biggl[ \sqrt{\frac{1}{2}} \log\biggl(\frac{{Y}_1}{{Y}_3} \biggr), \, \sqrt{\frac{2}{3}} \log\biggl(\frac{{Y}_2}{\sqrt{{Y}_1 {Y}_3}}\biggr) \Biggr]^\top. \end{align} $$

The transformation yields a vector $\boldsymbol Z \in \mathbb {R}^{2}$ with two elements, $Z^{loc}$ and $Z^{wid}$ , which correspond to the unbounded interval location and width, respectively. The unbounded interval location ${Z}^{loc}$ compares the size of the left component $Y_1$ , defined by the left response scale limit and the lower bound of the response interval, against the size of the right component $Y_3$ , defined by the upper bound of the response interval and the right response scale limit. The unbounded interval width ${Z}^{wid}$ compares the middle component $Y_2$ , that is, the observed interval width, to the geometric mean of the left and right components $\sqrt {{Y}_1{Y}_3}$ .

The geometric mean in the denominator is used to scale the interval width relative to the interval location in the unbounded space. Therefore, a response interval of a particular width will be transformed into an unbounded interval of a greater width if the interval location is closer to the lower or upper limit of the response scale, compared to being near its center. For example, the response interval $[.80, .90]$ has a mean of the interval bounds of $.85$ and a width of $.10$ on the bounded scale, which corresponds to a transformed location of $Z^{loc}=1.47$ and a transformed width of $Z^{wid} = -0.85$ . Placing an interval with the same observed width near the center of the bounded scale—for example, the interval $[.40, .50]$ with a mean of interval bounds of $.45$ —will yield a considerably smaller transformed width $Z^{wid} = -1.23$ ( $Z^{loc}=-0.16$ ). This scaling of the transformed, unbounded width, conditional on the interval’s proximity to the response scale limits, accounts for the boundedness of the response scale. To illustrate this, consider a respondent who wants to move the interval location toward one of the response scale limits. Eventually, one of the interval bounds will touch the corresponding response scale limit and it becomes necessary to lower the interval width to move the interval location even closer to the respective response scale limit. The transformation counteracts this effect of the bounded response scale. This is a pragmatic solution that does not necessarily reflect a hypothesized true mapping of a latent response to an observed one. Rather, it is just an assumption similar to the S-shaped item response curves in classical item response models.

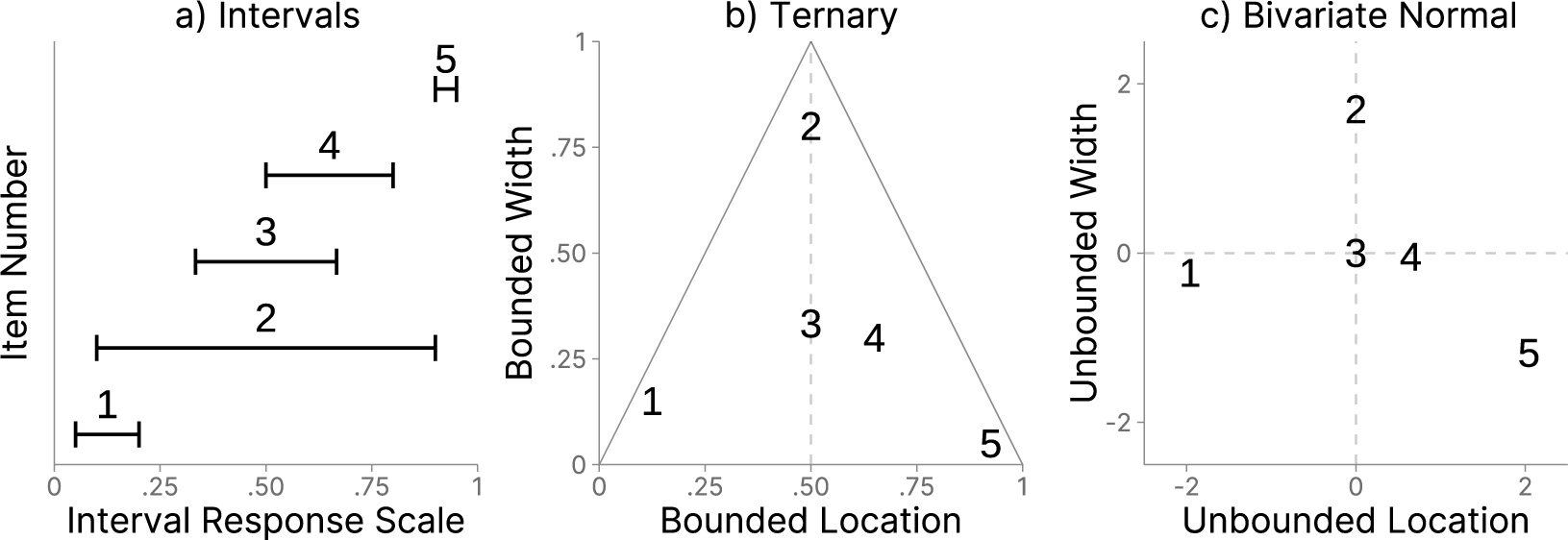

Figure 2 illustrates the ILR transformation for five response intervals. Panel (a) shows raw response intervals, Panel (b) represents these intervals in the ternary space, and Panel (c) illustrates their location in the unbounded, transformed space. Interval 3 divides the response scale into a composition of three equally sized components (Panel (a)) and corresponds to the origin of the transformed, unbounded space (Panel (c)). Regarding the location dimension (x-axis), the origin in the unbounded space in Panel (c) maps to the center of the bounded response scale in Panel (b). Hence, unbounded location values of zero correspond to response intervals that are centered on the response scale, containing an equal amount of support for values to the left and the right of the scale’s center (e.g., the same proportion of negative and positive values on a bipolar scale). In contrast, the origin of the width dimension (y-axis) in the unbounded space does not have such a clear, substantive interpretation. For example, the origin corresponds to a width of one-third when the interval is placed on the center of the response scale. As the interval’s location moves away from the scale’s center, the value zero will correspond to different widths on the bounded response scale. Therefore, the width dimension has slightly different properties than the location dimension, which we will consider below in the parameterization of our model. Interval 2 is also placed on the center of the bounded response scale, but it is much wider, which places it in the center of the x-axis and at the upper quarter of the y-axis of Panels 2(b) and (c). The other three intervals illustrate how shifts to the left (Interval 1) or to the right (Intervals 4 and 5) on the bounded response scale result in transformed values left and right from the center of the x-axis in the unbounded space. As these intervals are relatively small, they have negative values on the y-axis in the unbounded space.

Figure 2

Illustration of the multivariate logit transformation.

Note: The five observed response intervals are: Interval 1 $ = [.05,.20]$ , Interval 2 $ = [.10,.90]$ , Interval 3 $ = \big [\frac {1}{3},\frac {2}{3}\big ]$ , Interval 4 $ = [.50,.80]$ , and Interval 5 $ = [.90,.95]$ .

The specific form of the ILR transformation that we use here is one of many log-ratio functions described in the compositional analysis literature (Greenacre et al., Reference Greenacre, Grunsky and Bacon-Shone2021). In some of these applications, the data have a certain natural meaning (e.g., when studying compositions of chemicals), which is not the case for interval responses. Therefore, not all approaches proposed for compositional data analysis are directly applicable in our case. We need a transformation that yields two conceptually independent and interpretable dimensions, corresponding to the location and the width of response intervals. We know of two log-ratios (described by Smithson & Broomell, Reference Smithson and Broomell2024) that satisfy these requirements and can thus be applied to interval responses. The first option, the ILR, was presented above. The second option is an amalgamation log-ratio (Greenacre et al., Reference Greenacre, Grunsky and Bacon-Shone2021). We tested both log-ratios against each other in a preliminary simulation study (see Section 3) and finally chose the ILR as it performed better. Contrary to the amalgamation approach, the ILR takes the extremity of the interval location into account when determining the transformed interval width, as described above. This is favorable especially in applications with a bipolar response scale featuring a neutral point at the center of the scale, such as a scale ranging from negative to positive values. This may also be a probability scale ranging from $0$ to $1$ . Here, $0.5$ is the neutral point of complete uncertainty, while $0$ and $1$ indicate complete certainty about an event not happening or happening, respectively.

Using the ILR transformation as a link function, we can extend the model by Anders et al. (Reference Anders, Oravecz and Batchelder2014) to the two-dimensional case, similar to the model for geographical judgments by Mayer & Heck (Reference Mayer and Heck2023). We decided to rely on a logit link because it provides more flexibility than the alternative approach of assuming a Dirichlet distribution for the compositional data (see Kloft et al., Reference Kloft, Hartmann, Voss and Heck2023, for an IRT model using the latter approach). Whereas the Dirichlet approach offers only one common variance parameter for both dimensions, the bivariate logit-normal distribution allows us to assume separate variance parameters for the location and the width dimensions in the unbounded space.

Next, we consider the bivariate, logit-transformed response $\boldsymbol Z_{ij}$ of respondent $i = 1,\dots , I$ (number of respondents) to item $j = 1, \dots , J$ (number of items). We assume the following data-generating mechanism for $\boldsymbol Z_{ij}$ : Respondent i makes a latent appraisal, $[A^{loc}_{ij}, A^{wid}_{ij}]^\top \in \mathbb {R}^{2}$ , for the item j based on the latent cultural consensus interval, $[T^{loc}_{j}, T^{wid}_{j}]^\top \in \mathbb {R}^{2}$ . This latent appraisal contains some error, which depends on the proficiency of the person, $[E^{loc}_{i}, E^{wid}_{i}]^\top \in \mathbb {R}^2_{+}$ , and on the discernibility of the latent consensus for the particular item, $[\lambda ^{loc}_{j}, \lambda ^{wid}_{j}]^\top \in \mathbb {R}^2_{+}$ . Departing from previously developed CCT models (e.g., Anders et al., Reference Anders, Oravecz and Batchelder2014), we inverted these parameters. Hence, higher values of proficiency and discernibility lead to higher precision of the latent appraisal, and thus, to observed response intervals that are closer to the latent consensus interval. Moreover, we assume an item-specific correlation $\omega _{j}$ between the errors on the two dimensions (Mayer & Heck, Reference Mayer and Heck2023). Assuming a bivariate normal distribution of errors, the appraisal is centered on the latent cultural consensus with an added disturbance governed by person and item characteristics:

(4) $$ \begin{align} \begin{aligned} \begin{bmatrix} A^{loc}_{ij}\\ A^{wid}_{ij} \end{bmatrix} \sim \mathcal{N} \Big( &\begin{bmatrix} T^{loc}_{j}\\ T^{wid}_{j} \end{bmatrix} , \, \boldsymbol{\Sigma}_{ij}^A \Big) \quad \text{with} \quad \boldsymbol{\Sigma}_{ij}^A = \text{diag} (\boldsymbol\sigma^A_{ij}) \,\boldsymbol \Omega_{j} \, \text{diag} (\boldsymbol\sigma^A_{ij}), \\ \boldsymbol\sigma^A_{ij} = &\begin{bmatrix} \frac{1}{E^{loc}_{i} \lambda^{loc}_{j}}\\ \frac{1}{E^{wid}_{i} \lambda^{wid}_{j}} \end{bmatrix}, \quad \boldsymbol \Omega_{j} = \begin{bmatrix} 1 & \omega_{j}\\ \omega_{j} & 1 \end{bmatrix}. \end{aligned} \end{align} $$

The latent appraisal is further influenced by the respondent’s scaling bias, $a^{loc}_{i} \in \mathbb {R}^2_{+}$ , and shifting biases, $[b^{loc}_{i}$ , $b^{wid}_{i}]^\top \in \mathbb {R}^{2}$ , which yields the final response:

(5) $$ \begin{align} \boldsymbol{Z}_{ij} = \left[ {A}_{ij}^{loc} \, a^{loc}_{i} + b^{loc}_{i} , \; {A}_{ij}^{wid} + b^{wid}_{i} \right]^\top. \end{align} $$

The two shifting biases are directional response biases and add a constant to each dimension of the latent appraisal—or, more technically, to the expected location and width. This corresponds to a respondent’s tendency to systematically under- or over estimate all locations or all widths of the consensus intervals. The scaling bias corresponds to an extremity response bias, which pushes all observed responses of a person away from zero if $a^{loc}_{i}> 1$ or pulls them toward zero if $a^{loc}_{i} < 1$ . For the bounded response scale, this means that interval locations are either pushed away from or pulled toward its center. As explained above, the origin of the width dimension, $T_j^{wid} = 0$ , is not a substantively meaningful anchor, as it depends on the location of a particular interval. It would not be meaningful to let the interval width scale around such an ambiguous, arbitrary value of zero. We thus specify a scaling bias only for the location dimension.

Since the appraisal of the interval location ${A}_{ij}^{loc}$ consists of the consensus location plus an error, the scaling bias does not only influence the expected interval location, but also the residual variance, that is, the precision of the latent appraisal. In the full model, it is therefore necessary to ensure that the scaling bias parameter is included not only in the mean but also in the variance of the normal distribution:

(6) $$ \begin{align} \begin{aligned} \boldsymbol{Z}_{ij} &\sim \mathcal{N}(\boldsymbol{\mu}_{ij}, \boldsymbol{\Sigma}_{ij}), \\ \boldsymbol{\mu}_{ij} &= \big[ T^{loc}_{j} a^{loc}_{i} + b^{loc}_{i}, \; T^{wid}_{j} + b^{wid}_{i} \big]^\top, \\ \boldsymbol{\Sigma}_{ij} &= \text{diag} (\boldsymbol{\sigma}_{ij}) \,\boldsymbol{\Omega}_{j} \, \text{diag} (\boldsymbol{\sigma}_{ij}), \\ \boldsymbol{\sigma}_{ij} &= \begin{bmatrix} \frac{a^{loc}_{i}}{E^{loc}_{i} \lambda^{loc}_{j}}\\ \frac{1}{E^{wid}_{i} \lambda^{wid}_{j}} \end{bmatrix}, \quad \boldsymbol{\Omega}_{j} = \begin{bmatrix} 1 & \omega_{j}\\ \omega_{j} & 1 \end{bmatrix}. \end{aligned} \end{align} $$

The model can easily be modified by omitting bias parameters that are not relevant for certain applications (see also Section 4.1). Our own workflow involves first fitting the full model and then examining the parameter estimates for any problems. For example, if all respondents have a similar estimate for the location shift bias, $b^{loc}_{i}$ , we remove this parameter from the model.

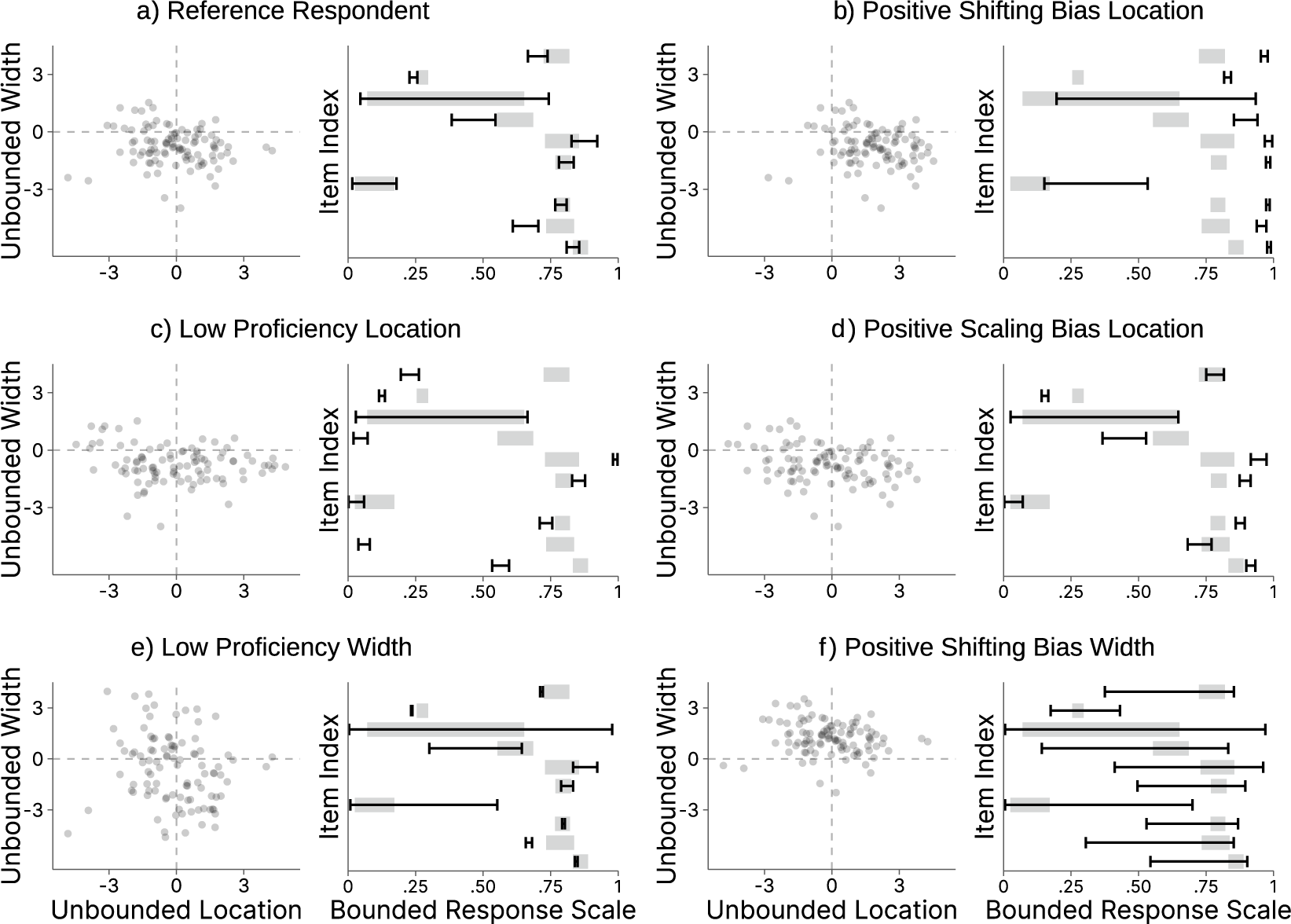

Figure 3 shows the isolated influence of each person parameter when all remaining parameters are held constant (see the figure note for more details on the simulation of the shown response patterns). For a person with a low proficiency concerning interval locations ( $E^{loc}_{i} = 0.5$ ), Panel 3(c) shows that response intervals move away from the latent consensus interval unsystematically due to increased error variance. Similarly, for a person with a low proficiency concerning interval widths ( $E^{wid}_{i} = 0.5$ ), Panel 3(e) shows that the widths of response intervals become less similar to the widths of the latent consensus intervals. Inducing a large scaling bias ( $a_{i} = 1.5$ ) for interval locations shifts response intervals away from the center of the scale (Panel 3(d)). A positive shifting bias ( $b^{loc}_{i} = 2$ ) for locations, shown in Panel 3(b), moves all response intervals to the right. Similarly, for a positive shifting bias concerning interval widths ( $b^{wid}_{i} = 2$ ), Panel 3(f) shows that all response intervals are greatly expanded in width.

Figure 3

Illustration of how changing the person parameters in the interval consensus model influences the predicted responses.

Note: The scatter plots in the left-hand subpanels show simulated responses of one respondent to $100$ randomly drawn items on the unbounded, bivariate scale. The right-hand subpanels show the corresponding responses (black intervals) for ten selected items on the bounded response scale. The consensus intervals, which are identical across all plots, are shown as gray, shaded bars in the background of the response intervals. We first simulated consensus intervals with $T^{loc}_j \sim \mathcal {N}(0,1.5)$ and $T^{wid}_j \sim \mathcal {N}(-1, 1)$ . Next, we simulated the response intervals in Panel (a) by setting respondent proficiency as well as item discernibility to 1 and assuming no response biases. In the remaining panels, we adopted the hypothetical responses from Panel (a) while manipulating different person parameters (e.g., shifting and scaling biases) to illustrate their effect on response behavior. We lowered the respondent’s proficiencies by factor $\tfrac {1}{6}$ (Panels (c) and (e)), increased the shifting bias by adding a constant of 2 (Panels (b) and (f)), and increased the scaling bias by factor 1.5 (Panel (d)).

It is difficult to interpret the estimate for the latent consensus interval, $[T^{loc}_{j}, T^{wid}_{j}]^\top $ , on the transformed, unbounded scale. To facilitate a substantively meaningful interpretation of this estimate, we convert the unbounded interval back to the original, bounded response scale. First, we transform the two-dimensional logit values to the compositional format via the inverse of the ILR function, and second, we undo the padding initially applied in Equation (2):

(7) $$ \begin{align} \begin{aligned} \mathbf{T}^{*}_j &= (1 + 3c) \, \Biggl[ \frac{\exp\Big( \sqrt{2} \, T^{loc}_{j} \Big)}{\Sigma}, \; \frac{\exp\Big( \sqrt{\frac{3}{2}} \, T^{wid}_{j} + \frac{T^{loc}_{j}}{\sqrt{2}} \Big)}{\Sigma}, \; \frac{1}{\Sigma} \Biggr]^\top - c \, \mathbf{1}, \\ \text{with} \quad \Sigma &= \exp\Big( \sqrt{2} \, T^{loc}_{j} \Big) + \exp\Bigg( \sqrt{\frac{3}{2}} \, T^{wid}_{j} + \frac{T^{loc}_{j}}{\sqrt{2}} \Bigg) + 1, \end{aligned} \end{align} $$

where, again, $c = 0.01$ and $\mathbf {1}$ is the vector of ones. If no padding was applied before fitting the model, we set $c = 0$ . Third, we compute the actual interval boundaries on the bounded scale from 0 to 1:

(8) $$ \begin{align} \begin{aligned} \big[T^{*L}_j, T^{*U}_j\big]^\top = \big[{T}^{*}_{j1}, \; {T}^{*}_{j1} + {T}^{*}_{j2} \big], \end{aligned} \end{align} $$

with ${T}^{*}_{j1}$ being the first and ${T}^{*}_{j2}$ the second component of the simplex $\mathbf {T}^{*}_j$ . The interval formed by $[T^{*L}_j, T^{*U}_j]^\top $ is the estimated consensus for the specific item, which we are ultimately interested in.

2.2 Bayesian estimation

We estimate the model in a Bayesian hierarchical modeling framework (Kruschke & Vanpaemel, Reference Kruschke, Vanpaemel, Busemeyer, Wang, Townsend and Eidels2015). An illustration of the prior distributions can be found in the OSF repository and an example comparison of prior and posterior distributions is displayed in Section 4. The main parameters we are interested in are the latent consensus location and width, $[T^{loc}_{j}, T^{wid}_{j}]^\top $ . The priors for these parameters will partly serve to identify the model. To facilitate the specification of these priors, we first specify them on the bounded scale. Then, we transform the values back to the unbounded scale via the ILR function to use them in the model. With this approach, there is no need to define priors on the transformed scale, that is, normal distributions, that align with our assumptions about the implied priors on the bounded scale. From a practical standpoint, we also experienced sampling to be more stable with priors on the bounded instead of the unbounded scale. For the other parameters, which are more flexible due to their hyperpriors, we specify the priors directly on the unbounded scale.

First, based on common applications of interval responses (e.g., in Ellerby et al., Reference Ellerby, Wagner and Broomell2022; Kloft & Heck, Reference Kloft and Heck2024), we assume that consensus intervals with a very large width spanning the entire response scale are highly unlikely. Wide intervals are also not relevant or meaningful in most scenarios, as they would not provide any additional information. Typically, we would exclude items for which we anticipate this to be the case. Therefore, we assign a weakly informative prior to the widths of consensus intervals on the bounded scale:

(9) $$ \begin{align} T^{wid(0,1)}_j \sim \text{Beta}(1.2, 3). \end{align} $$

This prior has an expected value of $.29$ and a mode of $.09$ and therefore reflects our beliefs about the marginal width of true intervals more adequately than a uniform prior. However, interval responses of full width (ranging from zero to one) are still possible and not ruled out by our prior choice. Instead, we merely assume that the latent consensus interval itself is unlikely to span the entire response scale. Researchers who want an uninformative uniform prior on the consensus of the interval width may change the prior to $T^{wid(0,1)}_j \sim \text {Beta}(1, 1)$ .

Second, conditional on a particular width of a consensus interval, we do not assume that particular locations of the consensus interval are more likely than others. This assumption makes the prior choice more generalizable across different use cases (more informative alternatives are mentioned below). Therefore, we assign an uninformative prior to an auxiliary, multiplicative parameter $s_j$ , which is subsequently used to compute the actual interval bounds on the bounded scale:

(10) $$ \begin{align} \begin{aligned} s_j &\sim \text{Beta}(1, 1), \\ T^{L}_j &= s_j (1 - T^{wid(0,1)}_j), \\ T^{U}_j &= s_j (1 - T^{wid(0,1)}_j) + T^{wid(0,1)}_j. \end{aligned} \end{align} $$

This means that, for a given interval width, we take what is left of the response scale and multiply it by $s_j$ , which results in the lower bound for this particular interval. To arrive at the upper bound, we add the interval width to the lower bound. In the location dimension, we could also choose alternative priors that would be more informative. If theory or prior knowledge suggests that locations in the center of the response scale are more probable, we might choose $s_j \sim \text {Beta}(2, 2)$ . If we think that locations to the extreme ends of the response scale are more probable, we might choose $s_j \sim \text {Beta}(0.5, 0.5)$ . Such prior knowledge may be informed, for example, by the selected items. For judgments of verbal quantifiers, for example, when only selecting low-probability words like “seldom” or “unlikely,” we can incorporate prior knowledge by giving more weight to consensus locations on the left side of the response scale, for example, $s_j \sim \text {Beta}(1.2, 3)$ .

Third, we transform the consensus interval from the bounded simplex to the unbounded bivariate scale via the ILR function in Equation (3):

(11) $$ \begin{align} { \mathbf{T}_j = [T^{loc}_{j}, T^{wid}_{j}]^\top = \text{ILR}\Bigg(\bigg[ T^{L}_j, \; T^{wid(0,1)}_j, \; 1 - T^{U}_j \bigg]^\top\Bigg). } \end{align} $$

Alternatively, we could have also applied an uninformative prior directly on the simplex via a Dirichlet distribution (an implementation of this prior can also be found in the OSF repository):

(12) $$ \begin{align} \text{ILR}^{-1}(\mathbf{T}_j) \sim \text{Dirichlet}(1, 1, 1). \end{align} $$

The person proficiency parameters, $[E^{loc}_{i}, E^{wid}_{i}]^\top $ , have weakly informative priors on both the means and the variances (see Table 1, column 1). The priors are specified on the log-scale to ensure positive values. We are also interested in the relationship between a respondent’s proficiency in the location dimension and their proficiency in the width dimension, and therefore assign a bivariate normal prior with correlation parameter $\rho _E$ instead of two independent normal priors. Similarly, we assign the same priors to the item discernibilities, $[\lambda ^{loc}_{j}, \lambda ^{wid}_{j}]^\top $ (Table 1, column 2). The only difference is that we fix the mean vector $\boldsymbol {\mu }_{\lambda }$ to zero to render the person proficiency parameters identifiable (Anders et al., Reference Anders, Oravecz and Batchelder2014).

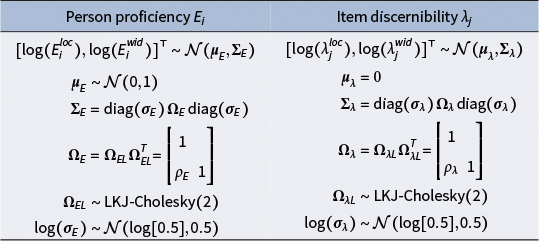

Table 1

Default prior distributions for the interval consensus model

For the remaining person parameters, namely, the scaling and the shifting biases, we also assign weakly informative priors. In doing so, we impose certain restrictions on the means for reasons of identifiability (Anders et al., Reference Anders, Oravecz and Batchelder2014):

(13) $$ \begin{align} \begin{aligned} \log(a^{loc}_{i}) &\sim \mathcal{N}(0, \sigma_{a^{loc}}), \\ b^{loc}_{i} &\sim \mathcal{N}(0, \sigma_{b^{loc}}), \\ b^{wid}_{i} &\sim \mathcal{N}(0, \sigma_{b^{wid}}), \\ \log(\sigma_{a^{loc}}) &\sim \mathcal{N}(\log[0.5], 0.5), \\ \log(\sigma_{b^{loc}}), \log(\sigma_{b^{wid}}) & \overset{\text{i.i.d.}}{\sim} \mathcal{N}(\log[0.5], 1). \end{aligned} \end{align} $$

The mean vector of the shifting bias parameters, $[b^{loc}_{i}, b^{wid}_{i}]^\top $ , is fixed to zero to make the model identifiable with respect to the estimated mean of the latent consensus locations and widths. Analogously, the mean vector of the scaling bias parameters, $a_i^{loc}$ , is fixed to one to render the model identifiable regarding the estimated mean of the proficiency parameters, $[E^{loc}_{i}, E^{wid}_{i}]^\top $ .

Finally, we assign weakly informative priors to the residual correlation between interval location and width via a scaled beta distribution:

(14) $$ \begin{align} \frac{\omega_{j} + 1}{2} \sim \text{Beta}(2, 2). \end{align} $$

3.1 Aims

The simulation study aimed to explore the estimation performance of the ICM concerning bias and mean-squared error of parameter estimates in realistic scenarios of use. The main target estimates were the latent consensus interval location and width, $[T_j^{loc}, T_j^{wid}]^\top $ . We also tracked the performance of the other parameters, except for the hyperparameters. We compared the model estimates of the latent consensus intervals for each item against simple means and medians (only means in the pre-registration) of the logit-transformed responses as a simple competitor model (i.e., wisdom of crowds; Surowiecki, Reference Surowiecki2004). Given that the data were generated from our model, we expected the model estimates to perform better than simple means and medians. If that was not the case, the added complexity of our model may not be worth the effort compared to relying on simpler descriptive aggregation strategies. We further expected that larger numbers of respondents would lead to better performance of item parameters, and, vice versa, that larger numbers of items would lead to better performance of person parameters.

In addition to the main simulation study, we conducted a preliminary simulation study to test the ILR function against an alternative amalgamation log-ratio transformation, which is based on a stick-breaking procedure (see Smithson & Broomell, Reference Smithson and Broomell2024). We were interested in checking the robustness of the two link functions regarding model misspecification. We generated data with one fixed combination of $200$ respondents and $30$ items and only varied the link function used to simulate the data, resulting in two conditions. Each model was fitted to the data using the data-generating link function as well as the non-data-generating link function. We report the full results of this preliminary simulation study in the OSF repository.

3.2 Data generation

We randomly generated data from the model described in Section 2.1. We varied the following factors in a fully factorial manner:

• • Number of respondents: $\{10, 50, 100, 200\}$ ;

• • Number of items: $\{5, 10, 20, 40\}$ .

This yielded $16$ conditions. The numbers of respondents and items were selected to cover a range of practically relevant applications. There may be scenarios with only a few items and few expert raters, for instance, when a company has ten expert employees judging the risk of a security breach for five software components. In other scenarios, large numbers of raters and items might be available, for instance, in a forecasting challenge.

In all conditions, the true, data-generating parameters were randomly drawn for each repetition. We used the model described in Section 2.1 as the data-generating mechanism for each interval response $\boldsymbol {Z}_{ij}$ of respondent i to item j on the unbounded scale. To obtain manifest interval responses in the bounded simplex space, we first transformed the unbounded interval response $\boldsymbol {Z}_{ij}$ using the inverse ILR function (Smithson & Broomell, Reference Smithson and Broomell2024). In the model estimation step, the data were then transformed back to the unbounded space using the ILR function (Equation (7) with c = 0, see also Smithson & Broomell, Reference Smithson and Broomell2024). This back-and-forth transformation is a redundant step for fitting the model in our main simulation study, where the same transformation was used for data generation and model estimation. However, for our preliminary simulation study investigating the performance of different link functions, this is a crucial step required to cross-fit a model version with one link function to the data generated with the respective other link function.

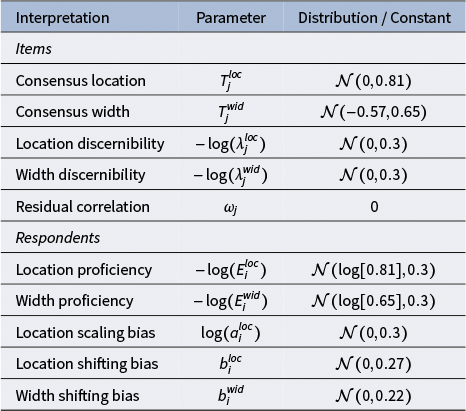

Table 2 lists all hyperparameter values used for generating person- and item-specific model parameters. The preregistration protocol contains a detailed justification of these values (see also the corresponding script in the OSF repository). Overall, we aimed to generate plausible distributions of manifest response intervals. We derived the hyperparameters from theoretical response intervals representing typical or extreme responses. For the true mean of consensus interval location and width, we used the values resulting from the logit-transformed interval $[.40,.60]$ . For the standard deviation of the true consensus interval location, we used the interval $[.495,0.505]$ transformed to the bivariate space. We declared the resulting unbounded value as the point that is four standard deviations away from the unbounded mean location, that is, an extreme value in the unbounded space. We further calculated the standard deviation for the unbounded true consensus location by dividing the difference between this extreme value and the mean of the true consensus location by four. Analogously, for the standard deviation of the true consensus width, we used the interval $[.495,0.505]$ . We simulated the true consensus location and width parameters from normal distributions since all parameters were defined on the unbounded scale. The hyperparameters for the bias parameters were then chosen to yield plausible distributions of the simulated response intervals.

Table 2

Values of the hyperparameters used for data generation

Note: For the parameters $E_j$ and $\lambda _j$ , we defined the distributions on the negative log scale to facilitate an interpretation in terms of the variance instead of the precision.

Due to the large computational demand of our simulation study, we determined the number of repetitions as follows: We aimed for a Monte Carlo standard error (MCSE) of $\leq 0.05$ for our primary performance measure (the absolute bias for the latent consensus interval location and width) in all conditions. We deemed $500$ (pre-registration: 1,000) repetitions computationally reasonable. After $500$ repetitions, we checked the MCSEs in all conditions. If they had not met the above criterion, we would have incrementally added repetitions in steps of $250$ until they did. The MCSEs in all conditions had met the criterion after $500$ repetitions, with the largest MCSE of the absolute bias being $0.005$ in one condition.

Further details can be found in the preregistration and in the OSF repository, where we illustrate the distributions of parameters and responses as well as the recovery of one set of data-generating parameters.

3.3 Method

We estimated the same model for all generated data sets in a Bayesian framework using Stan (Stan Development Team, 2023) in R (R Core Team, 2023) via rstan (Stan Development Team, 2024). For the Bayesian estimation, we used the priors described in Section 2.2, which we did not preregister. The only deviation from the model described above was that we used independent univariate prior distributions instead of a multivariate prior for $[E_i^{loc}, E_i^{wid}]^\top $ and $[\lambda _j^{loc}, \lambda _j^{wid}]^\top $ , meaning that we did not estimate the correlations $\rho _E$ and $\rho _\lambda $ in the simulation. For each repetition, we ran four chains of Stan’s Hamiltonian Monte Carlo sampler (Betancourt, Reference Betancourt2018) with $500$ warm-up samples not used for analyses and $500$ (preregistration: 1,000) samples for the computation of parameter estimates, which yielded 2,000 samples per parameter. Given the results for the convergence diagnostics shown below, we deemed this number sufficient. The adapt_delta parameter was set to $0.999$ for conditions with a number of total simulated responses $\leq 2,000$ , and to $0.9$ for the conditions with a greater number (preregistration: $0.9$ for all conditions). We changed this setting because in our earlier simulations, we had encountered issues with divergent transitions in conditions with low numbers of responses. The range of the initial values of the sampling algorithm for the unbounded parameters was set to $[-0.1, 0.1]$ .

3.4 Performance measures

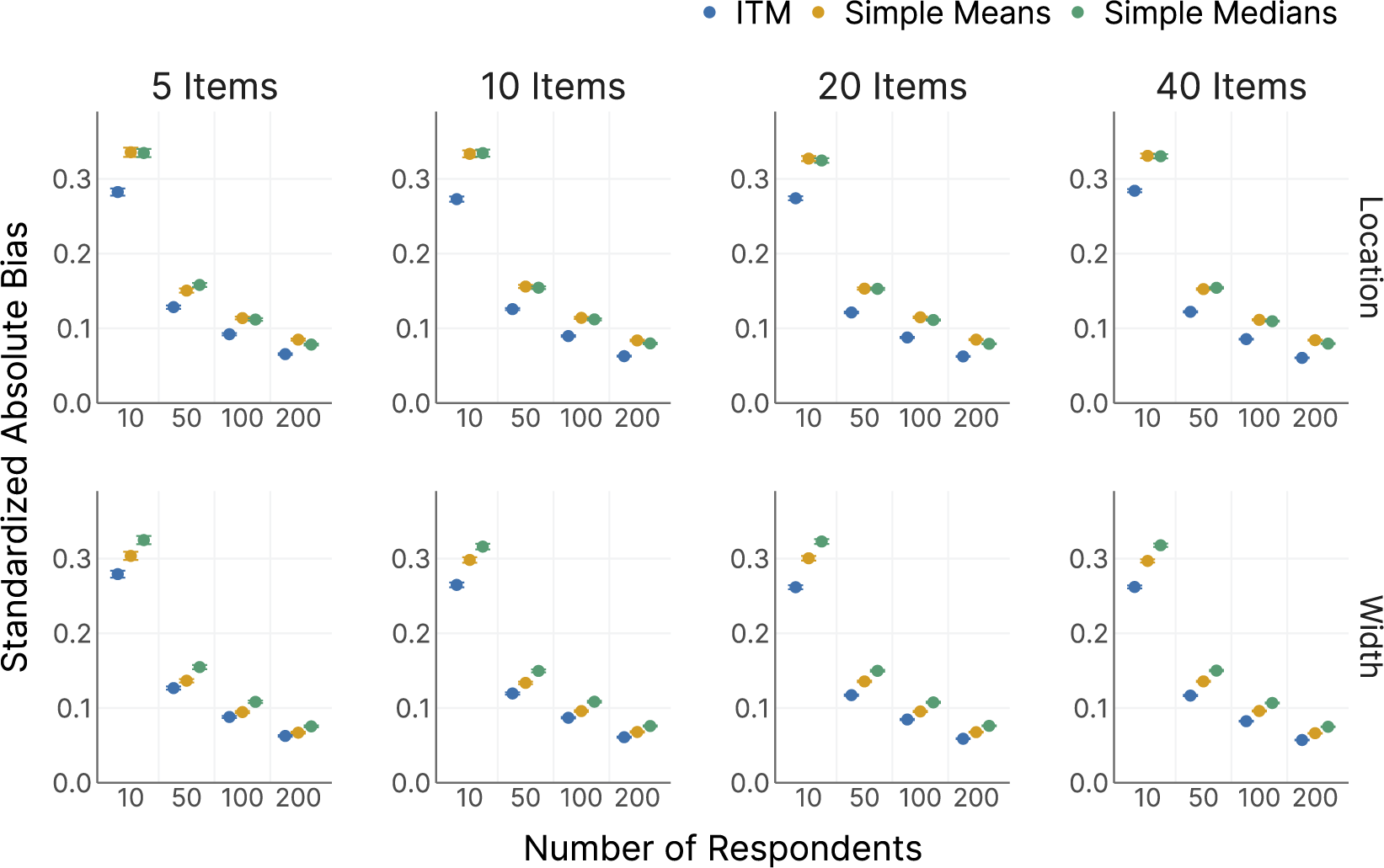

Our primary performance measure was the absolute bias of both the latent, unbounded consensus interval location and the width jointly, $[T^{loc}_{j}, T^{wid}_{j}]^\top $ , which we defined as follows:

(15) $$ \begin{align} \begin{aligned} \widehat{\mathrm{AbsBias}} = \frac{\displaystyle\sum_{n=1}^{N} \displaystyle\sum_{j=1}^{J} 0.5 \bigg( \Big|\hat{T}^{loc}_{nj} - T^{loc}_{nj}\Big| + \Big|\hat{T}^{wid}_{nj} - T^{wid}_{nj}\Big| \bigg)}{N \times J}, \end{aligned} \end{align} $$

where J is the number of items in a specific condition and N is the number of repetitions of the simulation. We computed the mean of the (absolute) bias of location and width jointly because we expected that there could be a compensatory effect concerning the accuracy of estimates. We also computed the absolute bias for both dimensions separately for illustration purposes below (see the OSF repository for a plot of the joint biases).

We additionally calculated the mean squared error (MSE) for the bivariate vector $[T^{loc}_{j}, T^{wid}_{j}]^\top $ of the latent, unbounded consensus intervals:

(16) $$ \begin{align} \begin{aligned} \widehat{\mathrm{MSE}} = \frac{\displaystyle\sum_{n=1}^{N} \displaystyle\sum_{j=1}^{J} 0.5 \bigg( \Big(\hat{T}^{loc}_{nj} - T^{loc}_{nj}\Big)^2 + \Big(\hat{T}^{wid}_{nj} - T^{wid}_{nj}\Big)^2 \bigg)}{ N \times J}. \end{aligned} \end{align} $$

We also calculated the MSE for the location and width individually.

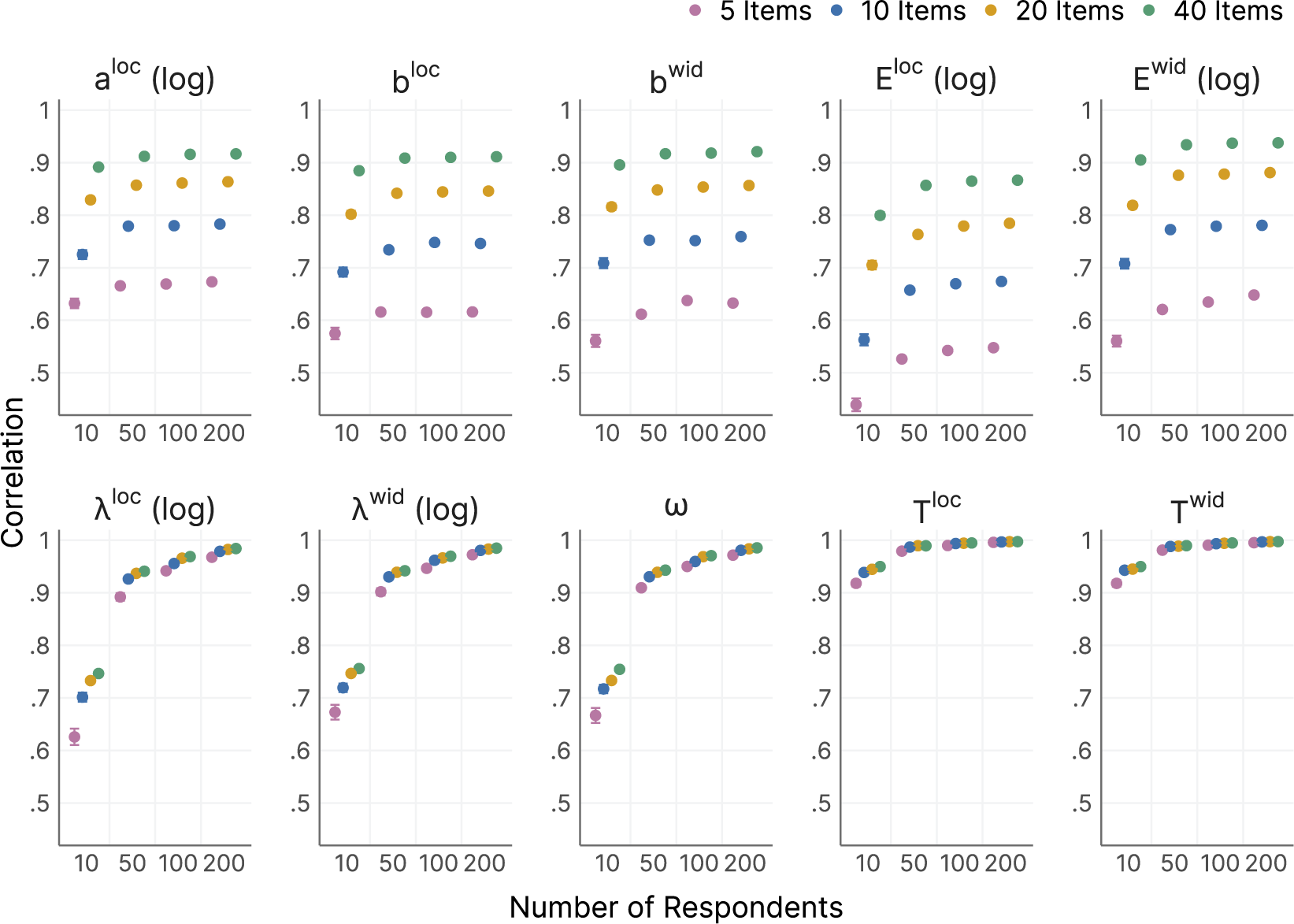

As a measure of parameter recovery, we also computed the average Pearson correlation between the estimated and the true values of the parameters:

(17) $$ \begin{align} \hat{\rho} = \frac{1}{N} \sum_{n=1}^{N} \frac{\sum_{k=1}^{K} (\hat{\theta}_{nk} - \bar{\hat{\theta}}_n)(\theta_{nk} - \bar{\theta}_n)}{\sqrt{\sum_{k=1}^{K} (\hat{\theta}_{nk} - \bar{\hat{\theta}}_n)^2 \sum_{k=1}^{K} (\theta_{nk} - \bar{\theta}_n)^2}}{,} \end{align} $$

where $\hat {\theta }_i$ and $\theta _i$ represent the estimated and true values, respectively, $\bar {\hat {\theta }}$ and $\bar {\theta }$ are their respective means, and K represents either the number of items or the number of persons, depending on the type of parameter.

We estimated the MCSE of these performance measures via bootstrapping. We further tallied the number of non-converged simulation repetitions.

4.1 Model modification and estimation

Not all parameters described in Section 2 yielded useful estimates in an initial fit of the full model. Specifically, the estimates for the respondents’ response bias parameters $b_i^{loc}$ (i.e., systematic shifts in the location dimension) did not differ meaningfully between individuals, as indicated by a variance close to zero. We therefore simplified the model by excluding these parameters.

We estimated the model using the same software as in the simulation study but on a Windows machine. Information on the computational environment is provided in the session info at the end of the analysis script, rendered as an HTML report in the OSF repository. For Bayesian inference, we used the priors described in Section 2.2. We ran four chains of Stan’s Hamiltonian Monte Carlo sampler (Betancourt, Reference Betancourt2018) with $500$ warm-up samples, which were not used for analyses, and 1,000 samples for the computation of parameter estimates. This yielded 4,000 samples per parameter. The adapt_delta parameter was set to $0.8$ and the range of the initial values of the sampling algorithm for the unbounded parameters was set to $[-0.1, 0.1]$ . Convergence was assessed via the $\widehat {R}$ statistic (Vehtari et al., Reference Vehtari, Gelman, Simpson, Carpenter and Bürkner2021), which was below $1.011$ for all parameters. We provide posterior predictive checks in the OSF repository.

4.2 Model results

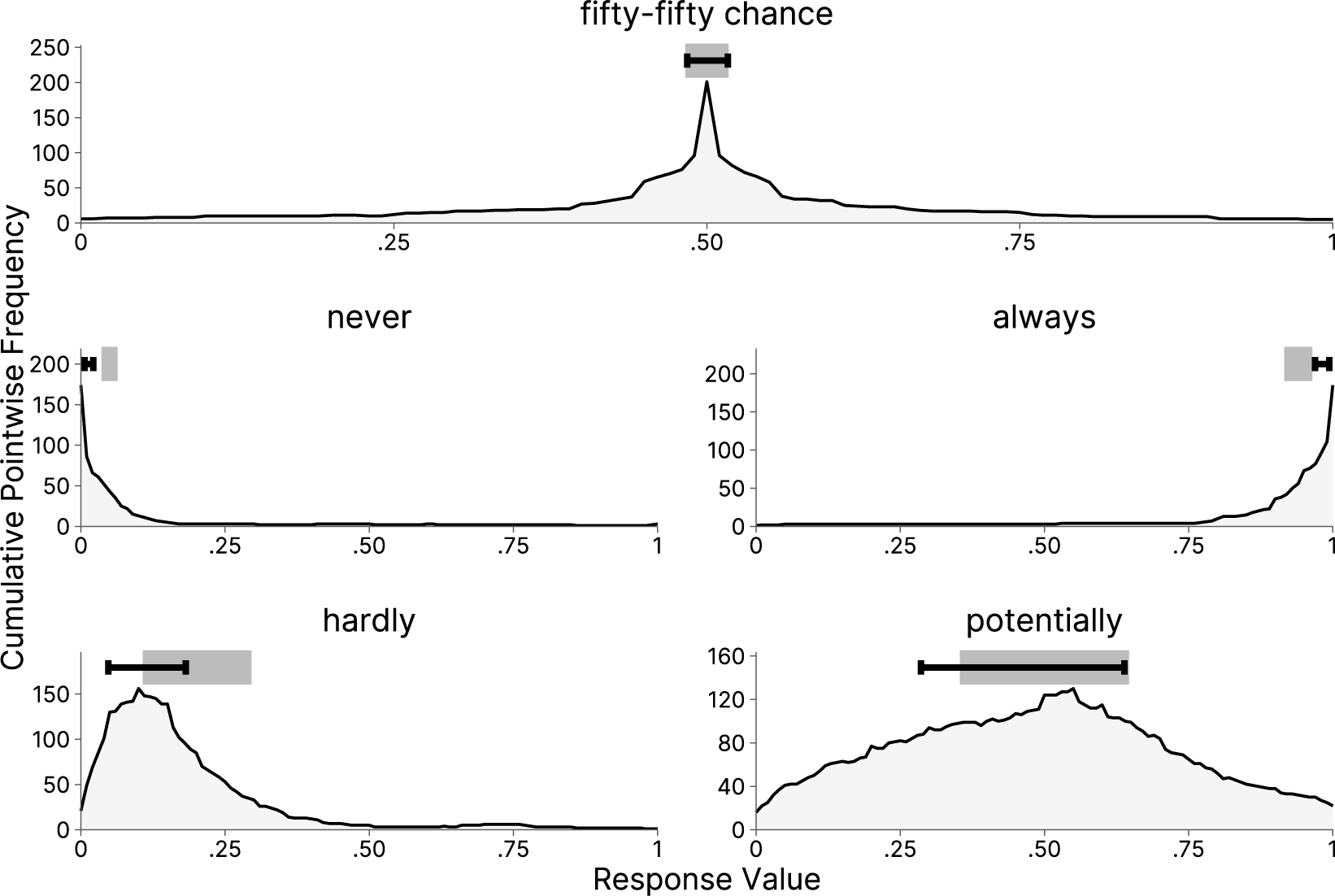

Figure 6 presents five examples of estimated consensus intervals (black horizontal intervals) that each resemble the cultural consensus of the sampled respondents, jointly with a simple median of logit-transformed interval responses (gray horizontal bars) and pointwise cumulative frequencies of the empirical interval responses (black density lines).

Figure 6

Estimated consensus intervals for verbal quantifiers.

Note: Black horizontal interval: Consensus interval estimated by the interval consensus model. Gray horizontal bar: Typical interval based on the median location and median width of the observed, logit-transformed response intervals.

The “fifty-fifty chance” item (top) was one of the control items in the study, for which respondents were expected to answer with narrow intervals placed in the center of the response scale. The estimated consensus interval is centered on the correct reference value of 50% and very narrow, reflecting the high precision of the verbal statement “fifty-fifty chance.” A substantial proportion of response intervals are wider, as indicated by the density. However, the consensus is still that a “fifty-fifty chance” is a probability very close to 50%. Also, the simple median interval in this case gives a similar estimate of the consensus. The two other control items were “never” (middle left) and “always” (middle right). Figure 6 shows that their consensus intervals were close to the extreme ends of the response scale, as expected for these words. In contrast, the intervals based on the medians are strongly influenced by a skewness of response intervals toward the center of the scale. Overall, the three control items demonstrate that the ICM provided more meaningful estimates of the interval consensus than simple aggregation via the median.

The item “potentially” (bottom right) provides an example of a typical pattern found for most of the verbal quantifiers. The simple median interval was more strongly influenced by the concavely shaped longer tail of the distribution of response intervals, while the consensus interval estimated by the model was more representative of the convexly skewed shorter tail. This trend also appeared for the item “hardly” (bottom left). The model-based estimate of the consensus interval was more representative of the empirical distribution, while the simple median interval was shifted toward the center of the scale, demonstrating a stronger influence of the inwardly skewed outliers of the empirical responses. Overall, the model estimates provided a better representation of where the bulk of response intervals were located.

Figure 7 displays posterior draws of the consensus intervals for a selection of verbal quantifier items, jointly with the prior density of the model (a plot of all verbal quantifiers can be found in the OSF repository). The plot includes the three control items “never,” “fifty-fifty chance,” and “always” at the bottom, reflecting a shared consensus that the meaning of these quantifiers in terms of probabilities is clear (i.e., the width on the y-axis is estimated to be very small). The other quantifiers have larger widths, indicating a consensus that using these words comes with more ambiguity. While the posterior distributions for most control items are relatively peaked and precise, more vague quantifiers, such as “potentially,” also show higher estimation uncertainty. The model allows us to distinguish two types of uncertainty: First, the increased width, as shown by large values on the y-axis, of the item “potentially” indicates a latent consensus that the item has a wider range of plausible meanings. Second, the wider posterior distribution, as shown by the distribution of posterior samples, indicates that the estimation certainty for this inference is lower than that for the remaining items. Furthermore, the prior density in the background of Figure 7 also illustrates that our weakly informative prior was an appropriate choice for this application, as most posterior distributions are located in areas of relatively high prior probability.

Figure 7

Prior and posterior distributions for the cultural consensus intervals.

Note: Orange points: 1,000 posterior draws for each verbal quantifier. Purple to yellow density in the background: prior density estimated from 1,000,000 samples and standardized to a maximum density of $1$ . The prior on the marginal distribution of interval widths is $\text {Beta}(1.2, 3)$ . The prior on the marginal distribution of interval locations, conditional on the interval width, is $\text {Beta}(1, 1)$ .

The estimated correlation of respondents’ proficiencies for the location and the width dimension (see also Table 1, column 1) was $\hat {\rho }_{E} = .63$ ( $95\%$ HDI $[.51, .73]$ ). Substantively, this means that respondents who answered highly consistently with respect to interval locations were also highly consistent regarding interval widths, that is, when judging the variability in how the quantifiers are being used.

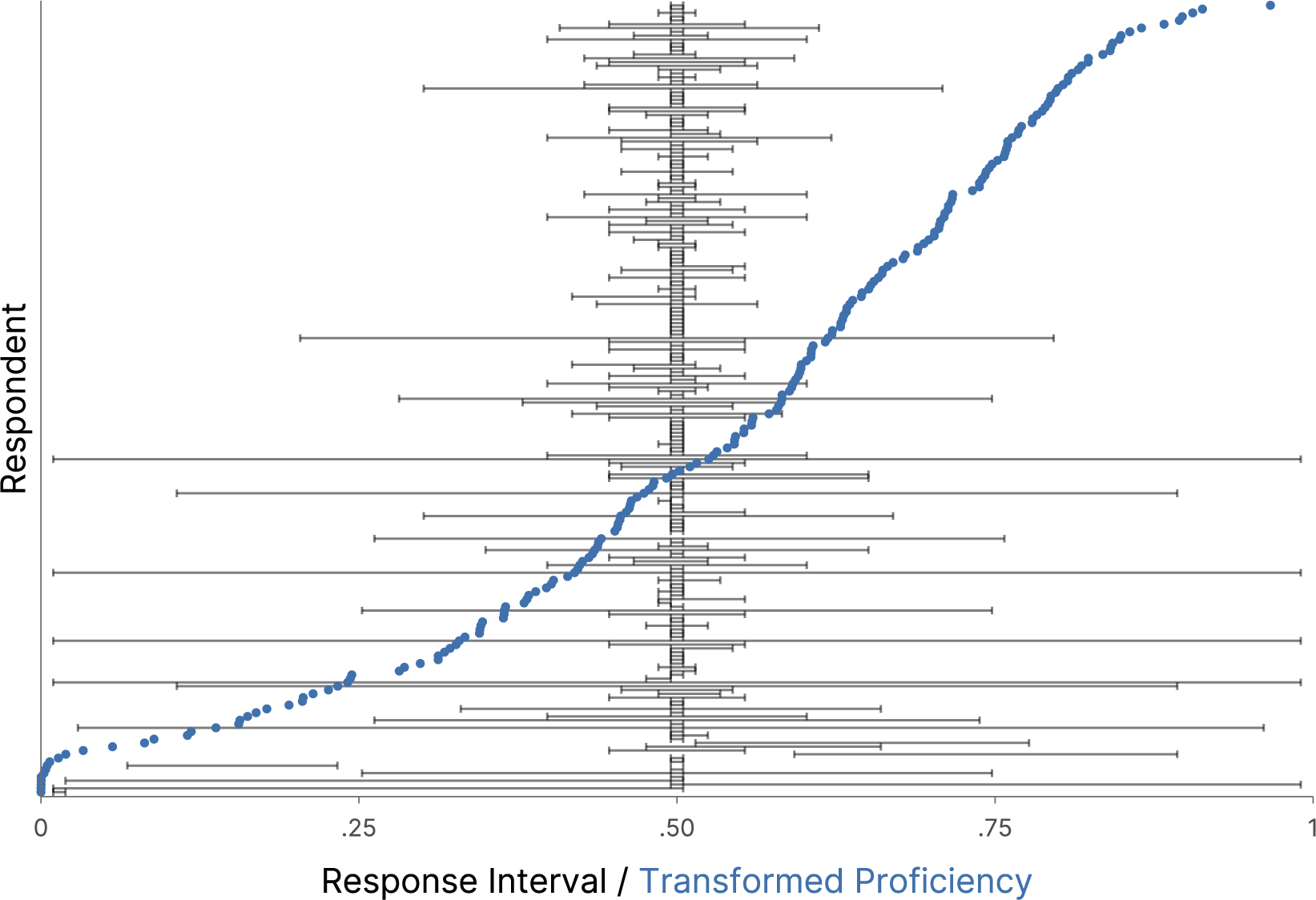

Figure 8 provides insights into how the estimated proficiencies relate to empirical interval responses. The empirical responses of all participants to the verbal quantifier “fifty-fifty chance” (black intervals) are shown jointly with the corresponding individual proficiency estimates (blue points). For illustration, the two-dimensional proficiency estimates are collapsed within each individual by taking the mean of the location and the width parameter. Respondents are ordered by their proficiencies from high (top) to low (bottom). The respondents with the highest proficiencies (upper half of the y-axis) mostly provided relatively narrow intervals located at the center of the response scale. In the lower half of the y-axis, respondents provided much wider response intervals, some of which were necessarily located at the center of the scale due to their large width. Those respondents with the lowest proficiency at the bottom of the y-axis mostly failed to place the interval at the center of the response scale. This shows that the proficiency estimates may be useful for diagnosing non-effortful responding. The model also enables us to automatically downweight the responses of unreliable respondents. This is achieved by the person proficiency parameters, which assign higher error variances to respondents providing inconsistent response patterns (see Section 2.1). Consequently, we do not have to exclude respondents from the data based on possibly arbitrary filtering criteria.

Figure 8

Empirical interval responses and estimated proficiencies for the item “fifty-fifty chance.”

Note: Black horizontal bars: Empirical response intervals. Blue dots: Estimated proficiencies, computed per person as the mean of the standardized posterior medians for the location and the width proficiency, transformed to normal quantiles.

Regarding item parameters, the discernibilities of consensus locations and widths (see also Table 1, column 2) were correlated negatively with $\hat {\rho }_{\lambda } = -.47$ ( $95\%$ HDI $[-.77, -.06]$ ). This correlation should be considered with caution since it is driven by the control items (“never,” “always,” and “fifty-fifty chance”). These had especially high location discernibility estimates, above the mean, and especially low width discernibility estimates. At the same time, all other items’ location discernibility estimates were below the mean, and their width discernibility estimates were above the mean. We initially selected these verbal quantifiers as control items because they have a clear implication regarding the probability assigned to them, that is, “never” $= 0\%$ , “always” $= 100\%$ , and “fifty-fifty chance” $= 50\%$ . The high location discernibility indicates that respondents overall interpreted these quantifiers in the assumed way.

To check whether the negative correlation between location and width discernibilities was just due to the control items’ influence, we re-fitted the model, excluding the three control items. As expected, the correlation was no longer negative and even changed to a large positive value with $\hat {\rho }_{\lambda } = .80$ ( $95\%$ HDI $[.43, .98]$ ). This means that items with an easy-to-detect consensus location also tended to have a consensus width that was easier to detect. At the same time, the correlation for respondents’ location and width proficiencies was reduced to $\hat {\rho }_{E} = .50$ ( $95\%$ HDI $[.34, .64]$ ). Since respondents who participated seriously were likely able to set a reasonably accurate location and width for the control items, these items might have artificially inflated the correlation between person proficiencies. Therefore, the lower correlation provides a more conservative, and arguably more appropriate, estimate. In conclusion, our empirical example shows that item parameters, such as discernibility, can facilitate manipulation checks or may be used to exclude poorly performing items.
