Microplastic contamination in the Guandu River basin: The water supply reservoir of Rio de Janeiro metropolitan region (Southeastern Brazil)

Published online by Cambridge University Press:  01 December 2025

Catarina de Sá Oliveira
Affiliation:
Research Group of Experimental and Applied Aquatic Ecology, Department of Ecology and Marine Resources, Federal University of the State of Rio de Janeiro (UNIRIO), Brazil
Raimara S. Gomes
Affiliation:
Institute of Chemistry, Federal University of Rio Grande do Sul (UFRGS), Brazil
Andreia N. Fernandes
Affiliation:
Institute of Chemistry, Federal University of Rio Grande do Sul (UFRGS), Brazil
Luciano N. Santos
Affiliation:
Research Group of Experimental and Applied Aquatic Ecology, Department of Ecology and Marine Resources, Federal University of the State of Rio de Janeiro (UNIRIO), Brazil
Raquel A. F. Neves*
Affiliation:
Research Group of Experimental and Applied Aquatic Ecology, Department of Ecology and Marine Resources, Federal University of the State of Rio de Janeiro (UNIRIO), Brazil
*
Corresponding author: Raquel A. F. Neves; Email: raquel.neves@unirio.br
Rights & Permissions [Opens in a new window]

Abstract

The present study aimed to elucidate the extent of microplastic (MP) contamination in the Guandu River basin. Samples were collected from surface waters using a Manta trawl at 11 sites in two seasonal periods. MPs abundance was 6.1 ± 4.9 particles m−3 in the cold-dry season, and 2.3 ± 1.1 particles m−3 in the warm-rainy season. Four shapes and 12 colors were identified, indicating a high degree of particle diversity. Fragments were the most common, followed by fibers. The frequent colors were black, blue and transparent. Eleven plastic polymers were identified using micro-Fourier transform infrared spectroscopy analysis; the dominant ones were polyethylene and polypropylene. Artificial cellulose particles (including the semisynthetic polymer rayon) were also detected in high relative abundance. No significant difference in MP abundance was found between seasons and limnic conditions. There was a significant trend toward higher abundance of MPs near areas with greater urban influence and lower abundance in reservoirs surrounded by less urbanized areas (upstream river). Therefore, MPs appeared to be influenced by land use and occupation, with higher abundance in more urbanized areas, suggesting an urban–rural effect.

Information

Type
Research Article
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (http://creativecommons.org/licenses/by/4.0), which permits unrestricted re-use, distribution and reproduction, provided the original article is properly cited.
Copyright
© The Author(s), 2025. Published by Cambridge University Press
Figure 0

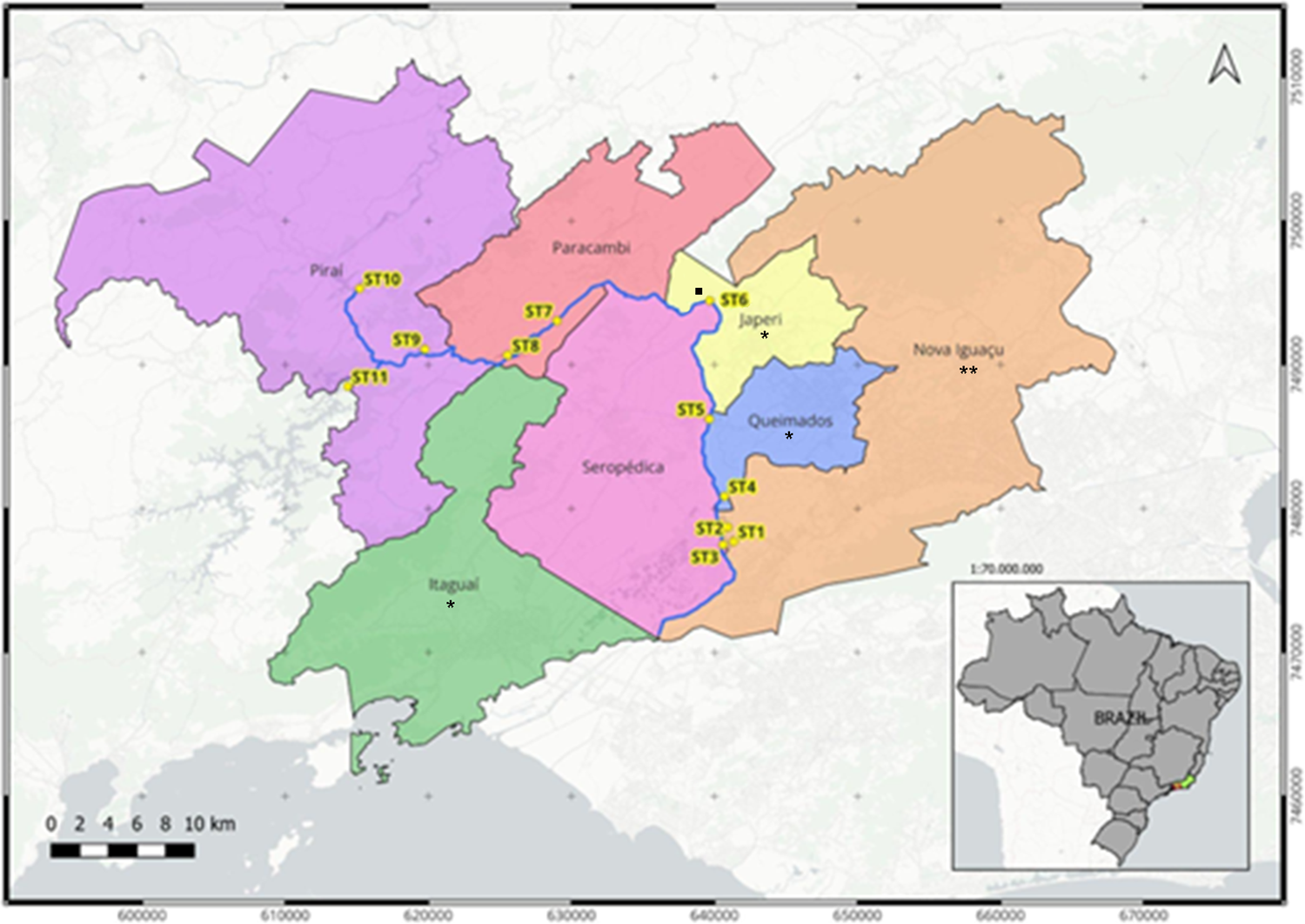

Figure 1. Geographical location of sampling sites (ST1–ST11) in the Guandu system, covering lentic environments (e.g., lagoons and reservoirs) and lotic environments (river course), in the state of Rio de Janeiro, Brazil. Codes represent sampling sites in the Guandu Lagoon (ST1 and ST2), Patos Lagoon (ST4) and the reservoirs of Paracambi (ST8), Pereira Passos (ST9), Vigário (ST10) and Ribeirão das Lajes (ST11); all the other sites were located along the main course of the Guandu River (ST3, ST5, ST6 and ST7). Different symbols indicate the potential sources of microplastics: the oldest landfill area in Japeri city (▪), a highly urbanized city with more than 300 thousand inhabitants (**), and highly urbanized cities with less than 300 thousand and more than 100 thousand inhabitants (*).

Figure 1

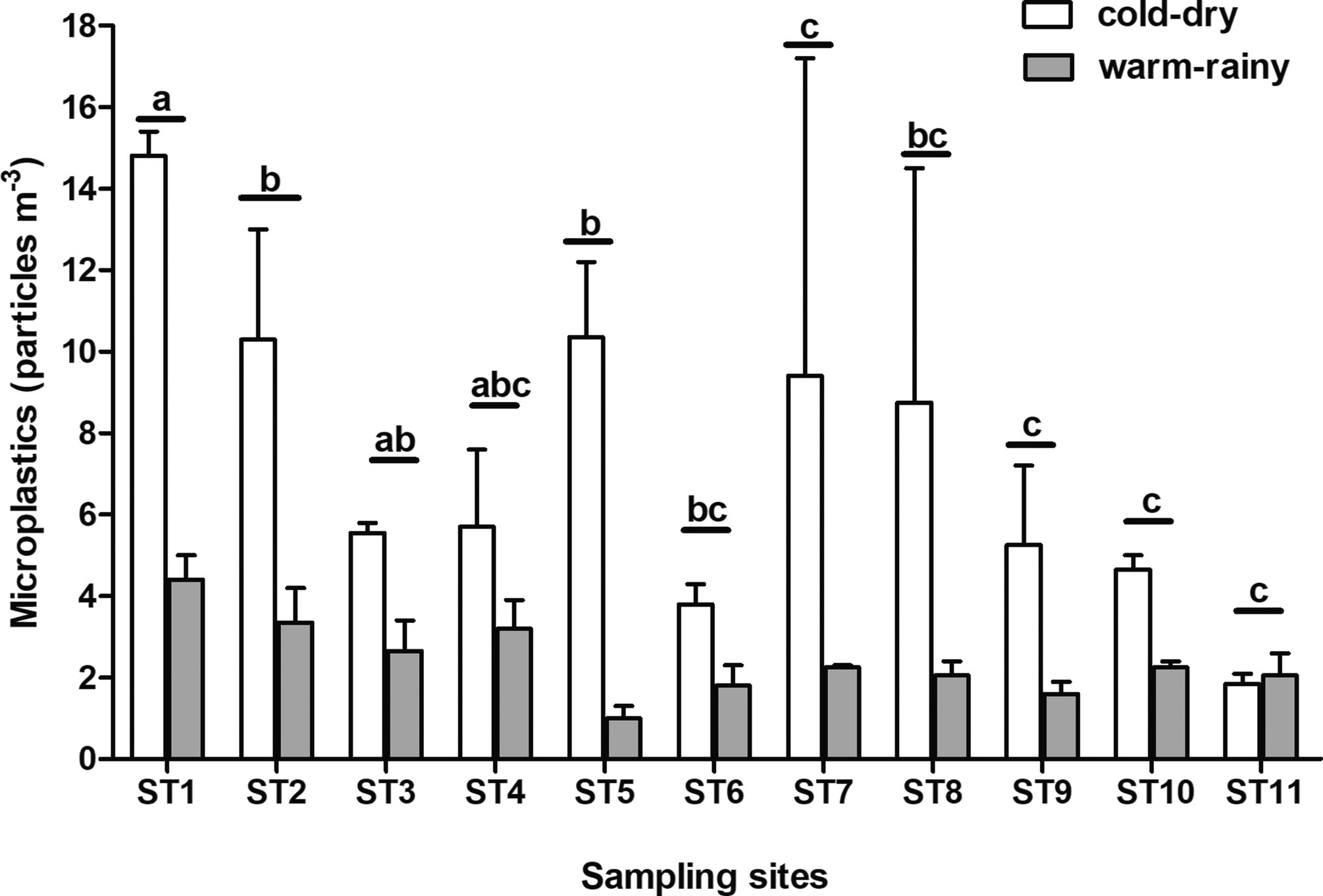

Figure 2. Microplastic abundance (particles m−3) at the sampling sites in the Guandu River basin during cold-dry and warm-rainy seasons. The different letters indicate significant differences among sampling sites (multiple comparisons test, p ≤ 0.05), regardless of the seasonal period.

Figure 2

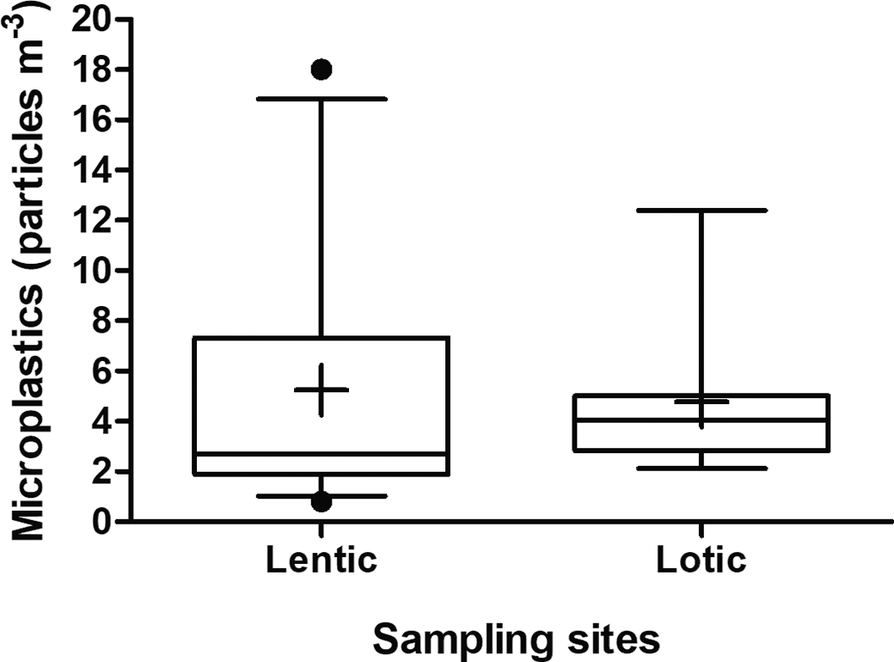

Figure 3. Boxplot of microplastic abundance (particles m−3) at lentic and lotic sampling sites in the Guandu River basin. Lentic areas include lagoons and reservoirs (ST1, ST2, ST4, ST8, ST9, ST10 and ST11). While lotic areas include sites in the main course of the Guandu River (ST3, ST5, ST6 and ST7). The data represent the 5th–95th percentiles (box limits), median (−), mean (+), standard deviation and outliers (•).

Figure 3

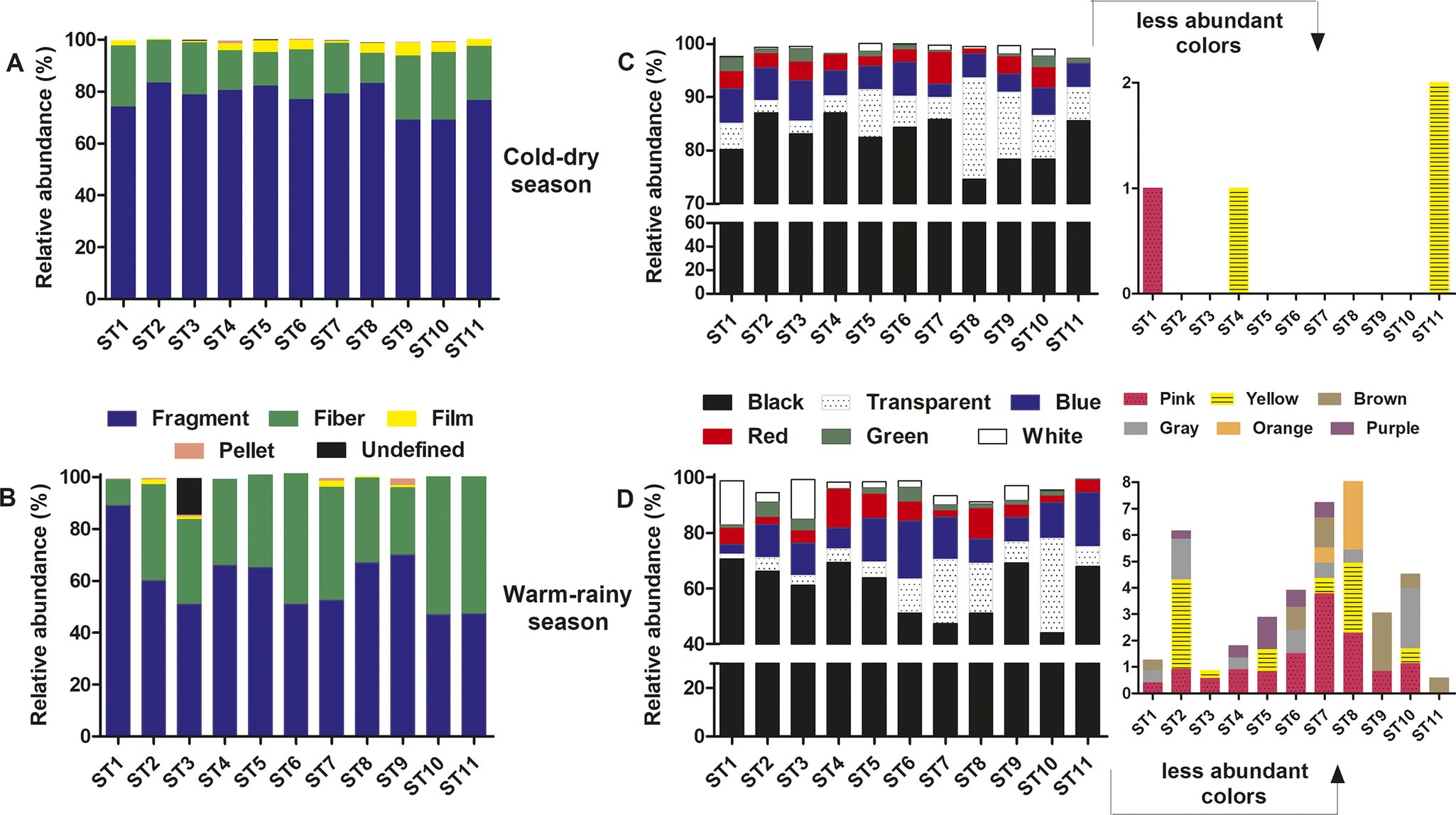

Figure 4. Microplastics in the surface waters of the Guandu River basin. Relative percentage of occurrence by particle shape (%) in the cold-dry and warm-rainy seasons (A and B, respectively). Relative percentage of microplastic occurrence by color (%) in the cold-dry and warm-rainy seasons, including the less abundant colors (pink, yellow, brown, gray and purple) in a complementary graph (C and D, respectively). The data represent the mean relative abundance between independent replicates (n = 2).

Figure 4

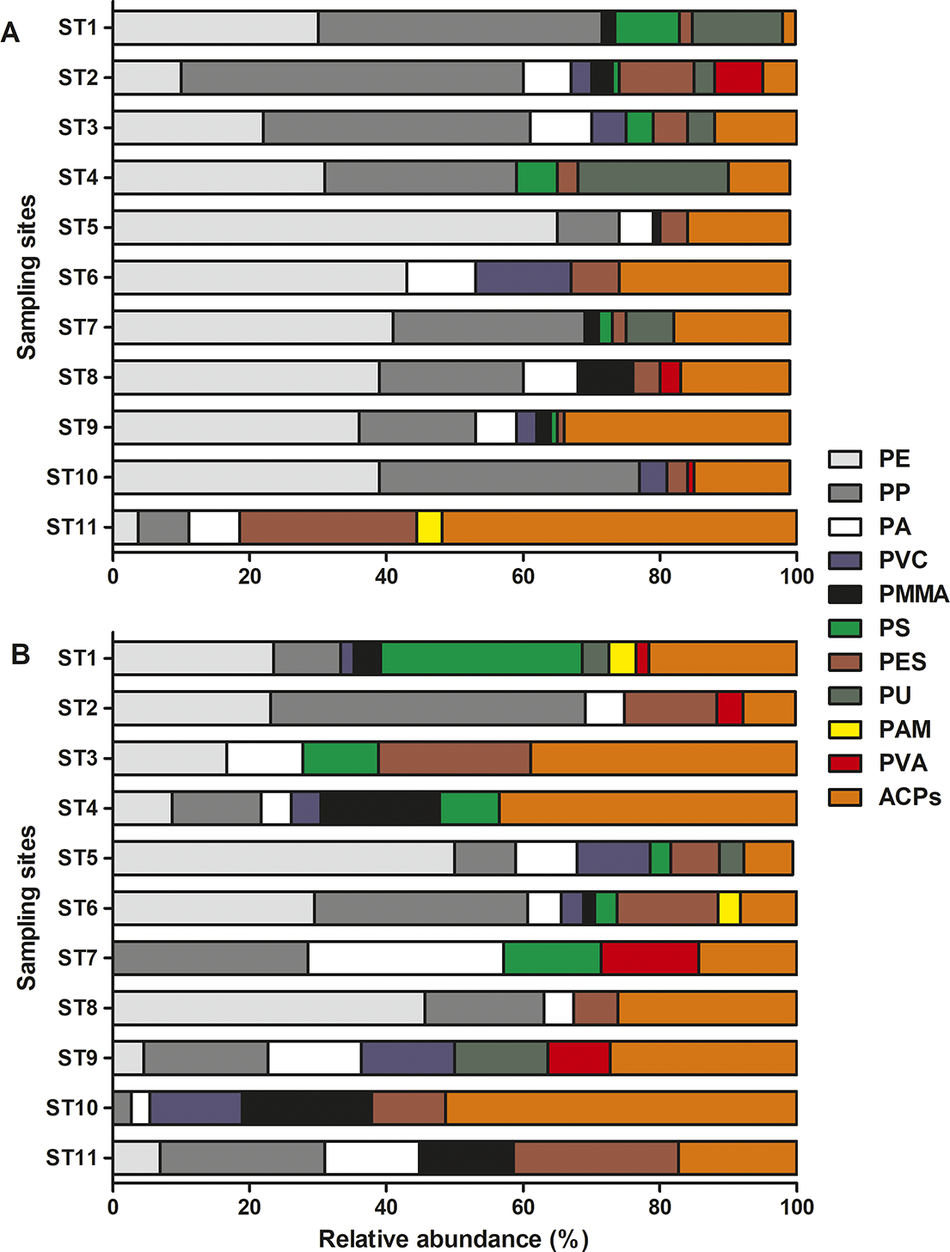

Figure 5. Relative abundance (%) of microplastic polymers and artificial cellulosic particles (ACPs) identified in the surface waters of sampling sites in the Guandu River basin by seasonal period: (A) cold-dry season and (B) warm-rainy season. The codes mean polymer identified: polyethylene (PE), polypropylene (PP), polyamide – nylon (PA), polystyrene (PS), polyester (PES), polymethyl methaacrylate (PMMA), polyacrylamide (PAM), polyvinyl chloride (PVC), polyurethane (PU), polyvinyl alcohol (PVA) and artificial cellulose particles – including rayon (ACPs). The data represent the mean relative abundance of polymers between independent replicates (n = 2).

Figure 5

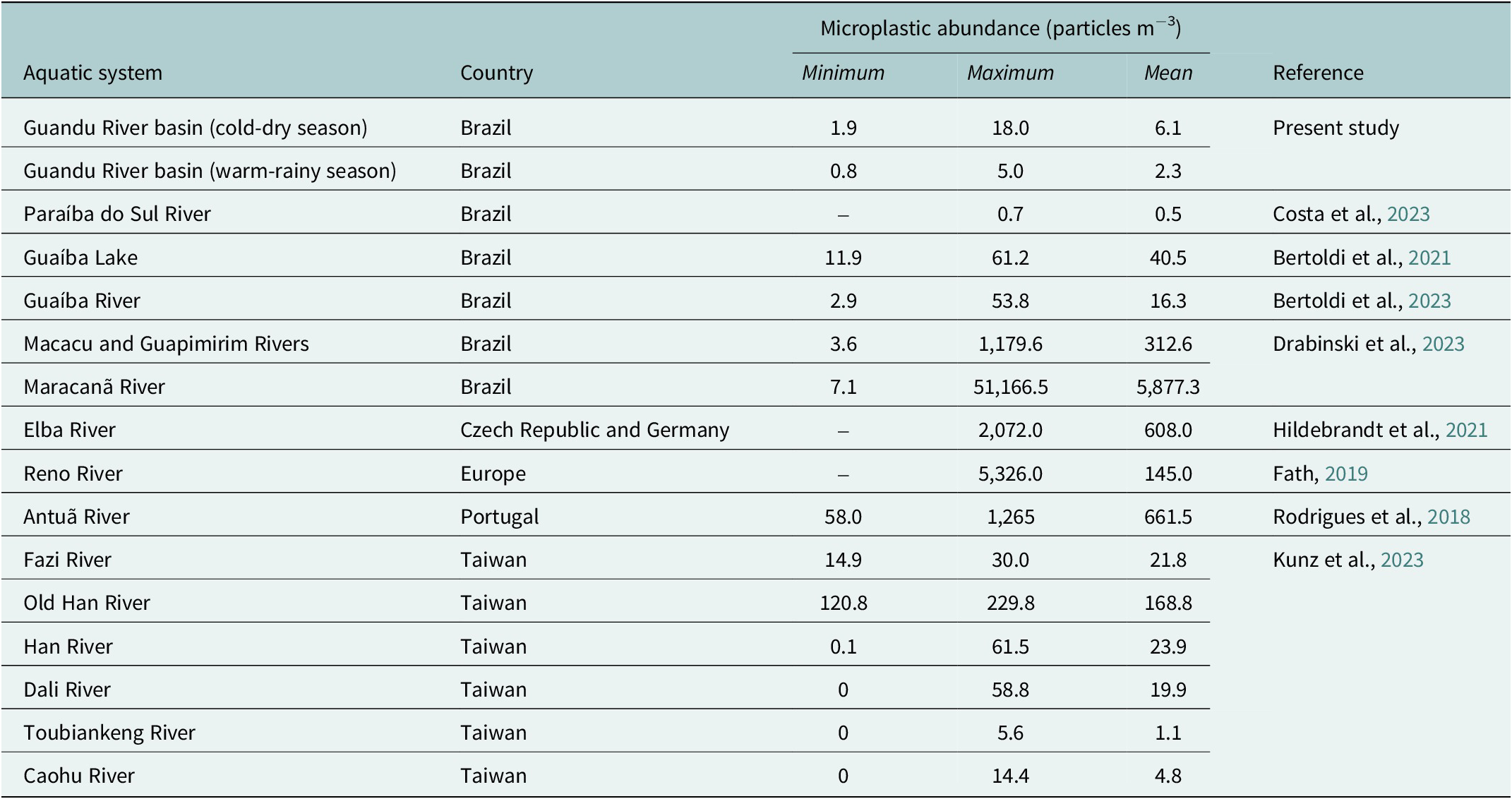

Table 1. Microplastic abundance (particles m−3) found in surface waters of freshwater systems worldwide. Data are presented as minimum, maximum and mean values when available in the studies

Supplementary material: File

de Sá Oliveira et al. supplementary material 1

de Sá Oliveira et al. supplementary material
Download de Sá Oliveira et al. supplementary material 1(File)
File 27.6 KB
Supplementary material: File

de Sá Oliveira et al. supplementary material 2

de Sá Oliveira et al. supplementary material
Download de Sá Oliveira et al. supplementary material 2(File)
File 133 KB

Author comment: Microplastic contamination in the Guandu River basin: The water supply reservoir of Rio de Janeiro metropolitan region (Southeastern Brazil) — R0/PR1

Comments

Dear Editor of the journal Cambridge Prisms: Plastics

Please find the manuscript entitled “Microplastic contamination in the Guandu River basin: the water supply reservoir of Rio de Janeiro

metropolitan region (southeastern Brazil)” by Catarina de Sá Oliveira, Raimara S. Gomes, Andreia N. Fernandes, Luciano Neves dos

Santos and Raquel A. F. Neves, submitted as Research Article.

Microplastics (MPs) are ubiquitous in aquatic environments. They are not routinely monitored or effectively removed during water and

wastewater treatment processes, posing potential and/or actual risks to human health, and are classified as emerging contaminants.

Our study aimed to elucidate the contamination of MPs in the Guandu River basin. This freshwater system is the largest water source

supplying 8 million people in the metropolitan region of Rio de Janeiro state (southeastern Brazil), highlighting the potential risks of

MPs contamination to environmental and human health. For this purpose, samples were collected from surface waters using a Manta

trawl at 11 sites during two seasonal periods. MPs were quantified, classified, and identified using µ-FTIR analysis. For the first time, a

widespread contamination by a diverse range of MPs (encompassing various shapes, colors, and types of polymers), as well as a

semi-synthetic microfiber (artificial cellulose particles - ACPs), was observed in the Guandu River basin. Our study falls within the

context of the United Nations' Sustainable Development Goals 6 (clean water and sanitation) and 14 (life below water).

We believe that the present study falls within the range of interests of the Cambridge Prisms: Plastics, and we would appreciate

hearing your comments on it. We hope you will consider it for publication.

Yours sincerely,

Raquel A. F. Neves

Review: Microplastic contamination in the Guandu River basin: The water supply reservoir of Rio de Janeiro metropolitan region (Southeastern Brazil) — R0/PR2

Conflict of interest statement

Reviewer declares none.

Comments

The manuscript addresses an area of great importance to the population. The study has the potential to inform the development of public policies by authorities and demonstrates significant relevance.

However, some points require revision to increase the clarity and consistency of the work:

The authors should consider clarifying the fact the data are presented in cubic meters, but the actual volume of water that flowed through the network is not clearly specified. As a result, readers cannot know how many liters of water were sampled or whether the presentation per 1000 liters was a methodological choice.

The authors consistently use the term “concentration” to describe the quantities of microplastics. This is not entirely accurate, as concentration refers to homogeneous systems, while the system studied is heterogeneous. More appropriate terms are % or abundance.

The terminology used for particles and microplastics needs to be standardized, as particles are a broader category. This confusion exists in figures, statistical analyses, and discussions and must be corrected.Suggestions to be considered:

Fig 2: the representation of significant differences with different letters is not clear to the reader and needs to be redone.

Fig 4: the sampling points need to be shown on the X-axis of graphs A and C to make reading easier. The figure legend needs to be revised to accurately describe the graphs. The color scheme (red/pink/purple, yellow/orange, black/gray) is not appropriate, as it relies on the observer’s visual acuity. Authors should consider merging these tones and preparing an additional figure showing the mean relative abundances of types and color.

Fig 5: use the correct polymer name, PMMA, which is polymethyl methacrylate (PMMA).

L 72: the sentence needs to be rewritten since it is not only wind and rain that disperse these particles in the environment.

L 114: the authors need to clarify whether “Ribeirão das Lajes” is a river, lagoon, or reservoir.

L 116/117: the authors need to clarify what “Japeri, Engenheiro Pedreira, and Parque Cesária” are. What are these urban areas? What is their area? What does this represent in relation to the length of the Guandu River?

L 155: a word needs to be added, e.g., “for 3 min,” to make the towing time clear.

L 158: although the authors used a flowmeter, the sampling flow rate data were not presented.

L 161: the decontamination processes of the materials used need to be mentioned. The time the samples were kept frozen should be specified. The protocol suggesting freezing should be cited.

L 167–172: the volumes of water and the amounts of KOH and H₂O₂ reagents need to be specified.

L 173: the term “saturated NaCl solution” already implies its concentration; it is recommended that the authors remove this detail.

L 174–181: the text needs to be improved so readers will not doubt that using a cellulose membrane will not cause contamination. What is the membrane’s composition?

L 184: the absence of contamination may raise doubts and should be clarified. Since the separation process was not carried out in a flow system, the samples were exposed to atmospheric air, which references show contains MPs. Were all samples processed at the same time? The processing of samples and blanks needs to be described in greater detail to avoid doubts. Even if contamination was not detected, it is possible that particles were introduced during the procedure, which justifies caution in interpreting the results.

L 186: the authors should state how many particles were actually analyzed by FTIR and how they were selected, as well as how FTIR corrected the results to obtain the %.

L 196: the sentence “The spectra were recorded between 4000–600 cm⁻¹” is repeated in line 201.

L 222–223: the authors present results as MPs m⁻³, but in the boxplot it appears as particles m⁻³. These terms need to be standardized.

L 229: Figure 2 does not support the statement of a gradual decrease in % of MPs; I suggest the authors revise the term “gradual.”

L 231–233: the authors should explain that the analyses of lentic and lotic sites considered the sampling sites in groups, as the information in L 225 may confuse readers.

L 240: figure C does not show %.

L 241: figure C should be cited here. This presents the confusion of tones mentioned earlier.

L 241–243: this section should be rewritten since the text compares black/transparent and then black/blue.

L 243: the authors discuss mean relative abundance, but the graphs in the study show relative abundance. It is necessary to present graphs of mean relative abundance to contribute to the discussion.

L 247: how were the analyzed particles selected?

L 277: “Japeri” needs to be characterized.

L 289: the authors cite 86.0% of the total analyzed; they need to clarify “total of what.”

L 298–300: the authors should consider presenting data on population density and industrialization.

L310 and L313: Use the term rainfall (pluviometric precipitation).

L 333: the common polymers present in tires are not listed; the authors should consider rewriting this sentence.

L 357: the authors should consider addressing polymer densities to discuss the increase of denser polymers during the rainy season.

L 359: the relationship between the absence of vegetation and the suspension of less dense particles in the water column was not well described.

L 367: the common polymers present in tires are not listed.

L 376: color should not influence the degree of adsorption, as adsorption is a physical phenomenon. Color could indicate the occurrence of adsorption

Review: Microplastic contamination in the Guandu River basin: The water supply reservoir of Rio de Janeiro metropolitan region (Southeastern Brazil) — R0/PR3

Conflict of interest statement

Reviewer declares none.

Comments

There is some repetition among the cited references. Additionally, in several sections, the inclusion of more recent and relevant literature would strengthen the scientific grounding of the paper.

It is recommended that Figure 1 include not only the sampling points but also potential sources of microplastic contamination—such as the landfill area mentioned in the text—represented by symbols or annotations.

The discussion section begins with the sentence:

“The significant difference observed between sampling sites in the Guandu River basin indicates a gradient in which upstream sites showed lower MP concentrations, whereas downstream sites exhibited higher concentrations.”

However, the corresponding data are not clearly presented in the Results section. The Results part should be expanded to include sufficient quantitative details to support the statements made in the Discussion.

The linkage between morphological characteristics and potential sources of microplastics appears somewhat underdeveloped. For example, while black-colored particles accounted for approximately 60–70% at some sampling sites, the associated polymers differed notably. Since 86% of the particles were analyzed—an adequate level of representativeness—the discussion could provide a more realistic interpretation of potential sources considering this variability.

Overall, the methodology section is well-structured, addressing the research gap with clarity and supported by appropriate and recent references. The descriptions of the study area, sampling strategy, and analytical steps meet the expected standards for this type of research.

The only methodological uncertainty concerns the use of cellulose membranes. Given that cellulose material is susceptible to both physical and chemical deformation after organic removal treatments (i.e., KOH followed by H₂O₂), the authors should clarify whether this process might have affected the integrity of the membrane and, consequently, the accuracy of microplastic recovery.

Recommendation: Microplastic contamination in the Guandu River basin: The water supply reservoir of Rio de Janeiro metropolitan region (Southeastern Brazil) — R0/PR4

Comments

In accordance with the recommendations provided by the reviewers, minor revisions to the article are deemed appropriate. It is imperative that the reviewer comments be meticulously reviewed and any necessary corrections be made.

Decision: Microplastic contamination in the Guandu River basin: The water supply reservoir of Rio de Janeiro metropolitan region (Southeastern Brazil) — R0/PR5

Comments

No accompanying comment.

Author comment: Microplastic contamination in the Guandu River basin: The water supply reservoir of Rio de Janeiro metropolitan region (Southeastern Brazil) — R1/PR6

Comments

Dear Prof. Steve Fletcher

Editor-in-Chief of the journal Cambridge Prisms: Plastics

Please find the revised version of the manuscript entitled “Microplastic contamination in the Guandu River basin: the water supply reservoir of Rio de Janeiro metropolitan region (southeastern Brazil)” by Catarina de Sá Oliveira, Raimara S. Gomes, Andreia N. Fernandes, Luciano Neves dos Santos and Raquel A. F. Neves, submitted as Research Article.

The authors would like to thank you for the careful review of the manuscript. Accordingly, please find in the “Response to Reviewers” the description of all changes made since the authors acknowledged the comments and suggestions of reviewers.

Yours sincerely,

Raquel A. F. Neves

Review: Microplastic contamination in the Guandu River basin: The water supply reservoir of Rio de Janeiro metropolitan region (Southeastern Brazil) — R1/PR7

Conflict of interest statement

no conflict of interest.

Comments

I suggest that the authors consider indicating in the IR spectra presented in the supplementary materials that the samples analyzed by FTIR were not subjected to any prior drying process.

Review: Microplastic contamination in the Guandu River basin: The water supply reservoir of Rio de Janeiro metropolitan region (Southeastern Brazil) — R1/PR8

Conflict of interest statement

Reviewer declares none.

Comments

No changes are required; the revised version of the manuscript is acceptable for publication in Cambridge Prisms: Plastics.

Recommendation: Microplastic contamination in the Guandu River basin: The water supply reservoir of Rio de Janeiro metropolitan region (Southeastern Brazil) — R1/PR9

Comments

I suggest that the authors consider indicating in the IR spectra presented in the supplementary materials that the samples analyzed by FTIR were not subjected to any prior drying process.

Decision: Microplastic contamination in the Guandu River basin: The water supply reservoir of Rio de Janeiro metropolitan region (Southeastern Brazil) — R1/PR10

Comments

No accompanying comment.
