On the convergence of bootstrap current to the Shaing–Callen limit in stellarators

Published online by Cambridge University Press:  20 May 2025

Christopher G. Albert*
Affiliation:
Fusion@ÖAW, Institute for Theoretical Physics - Computational Physics, Graz University of Technology, Graz 8010, Austria
Craig D. Beidler
Affiliation:
Max-Planck-Institut für Plasmaphysik, Greifswald 17489, Germany
Gernot Kapper
Affiliation:
Fusion@ÖAW, Institute for Theoretical Physics - Computational Physics, Graz University of Technology, Graz 8010, Austria
Sergei V. Kasilov
Affiliation:
Fusion@ÖAW, Institute for Theoretical Physics - Computational Physics, Graz University of Technology, Graz 8010, Austria Institute of Plasma Physics, National Science Center “Kharkov Institute of Physics and Technology”, Kharkov 61108, Ukraine
Winfried Kernbichler
Affiliation:
Fusion@ÖAW, Institute for Theoretical Physics - Computational Physics, Graz University of Technology, Graz 8010, Austria
*
Corresponding author: Christopher Albert, albert@tugraz.at

Abstract

The bootstrap current in stellarators can be presented as a sum of a collisionless value given by the Shaing–Callen asymptotic formula and an off-set current, which non-trivially depends on plasma collisionality and radial electric field. Using NEO-2 modeling, analytical estimates and semi-analytical studies with the help of a propagator method, it is shown that the off-set current in the $1/\nu$ regime does not converge with decreasing collisionality $\nu _\ast$ but rather shows oscillations over $\log \nu _\ast$ with an amplitude of the order of the bootstrap current in an equivalent tokamak. The convergence to the Shaing–Callen limit appears in regimes with significant orbit precession, in particular, due to a finite radial electric field, where the off-set current decreases as $\nu _\ast ^{3/5}$. The off-set current strongly increases in case of nearly aligned magnetic field maxima on the field line where it diverges as $\nu _\ast ^{-1/2}$ in the $1/\nu$ regime and saturates due to the precession at a level exceeding the equivalent tokamak value by ${v_E^\ast }^{-1/2}$, where $v_E^\ast$ is the perpendicular Mach number. The latter off-set, however, can be minimized by further aligning the local magnetic field maxima and by fulfilling an extra integral condition of “equivalent ripples” for the magnetic field. A criterion for the accuracy of this alignment and of ripple equivalence is derived. In addition, the possibility of the bootstrap effect at the magnetic axis caused by the above off-set is also discussed.

Information

Type
Research Article
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (https://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution and reproduction, provided the original article is properly cited.
Copyright
© The Author(s), 2025. Published by Cambridge University Press
Figure 0

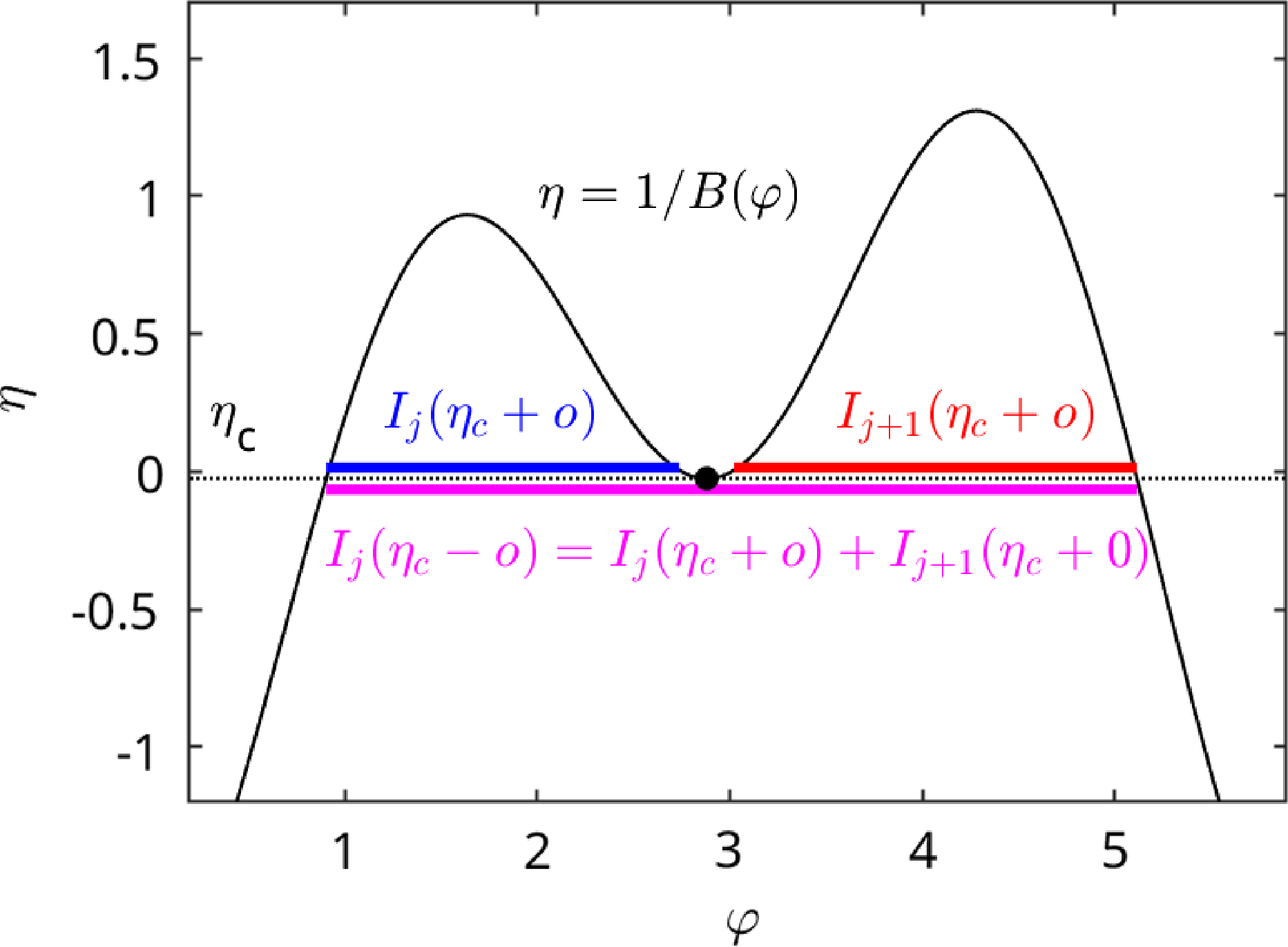

Figure 1. Example of class-transition boundary introduced by local field maximum $B_{\textrm{max}}^{\textrm{loc}}$ (black dot) where three types of trapped particles meet (two “single-trapped” and one “double-trapped”). Boundary conditions (2.28) are fulfilled by (2.27) due $H_j(\eta _c-o)=H_j(\eta _c+o)+H_{j+1}(\eta _c+o)$.

Figure 1

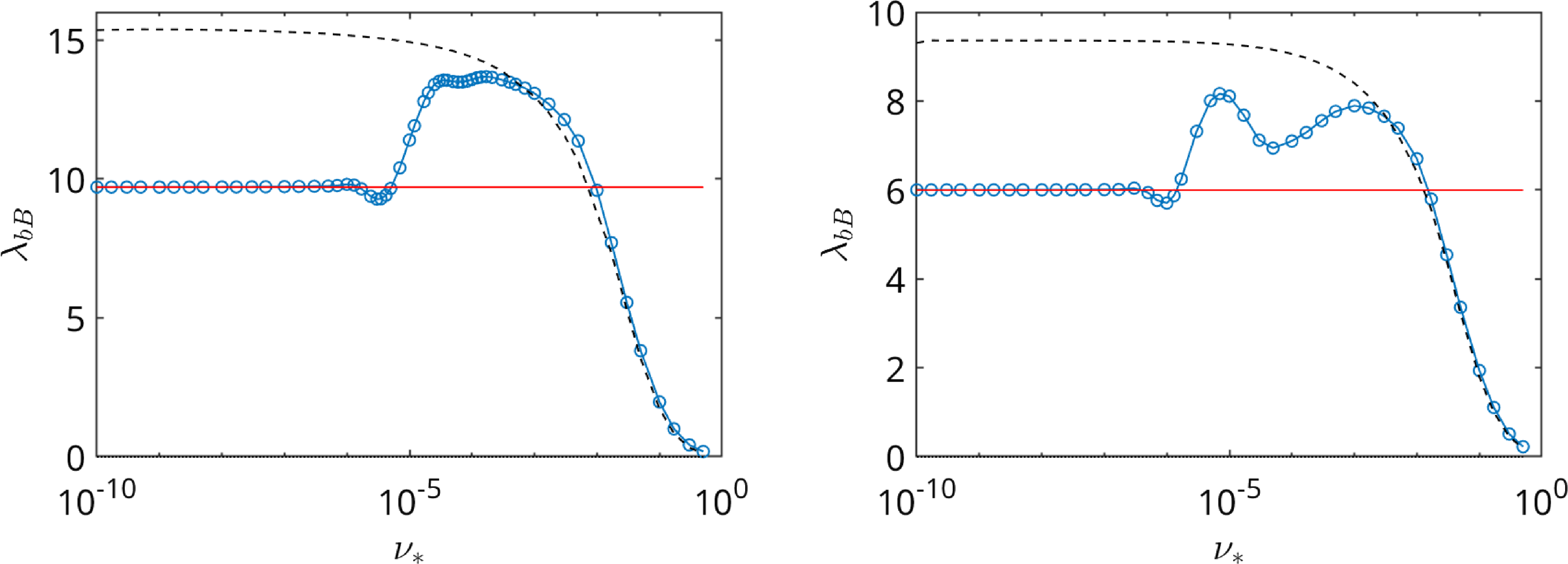

Figure 2. Geometrical factor $\lambda _{bB}$ computed by NEO-2 (blue) for different normalized collisionalities $\nu _\ast$ and computed from the Shaing–Callen limit (2.43) evaluated by NEO (red) for $\iota =1/4$ (left) and $\iota =2/5$ (right). Black dashed lines show the result of NEO-2 for axisymmetric fields ($\varepsilon _{M}=0$).

Figure 2

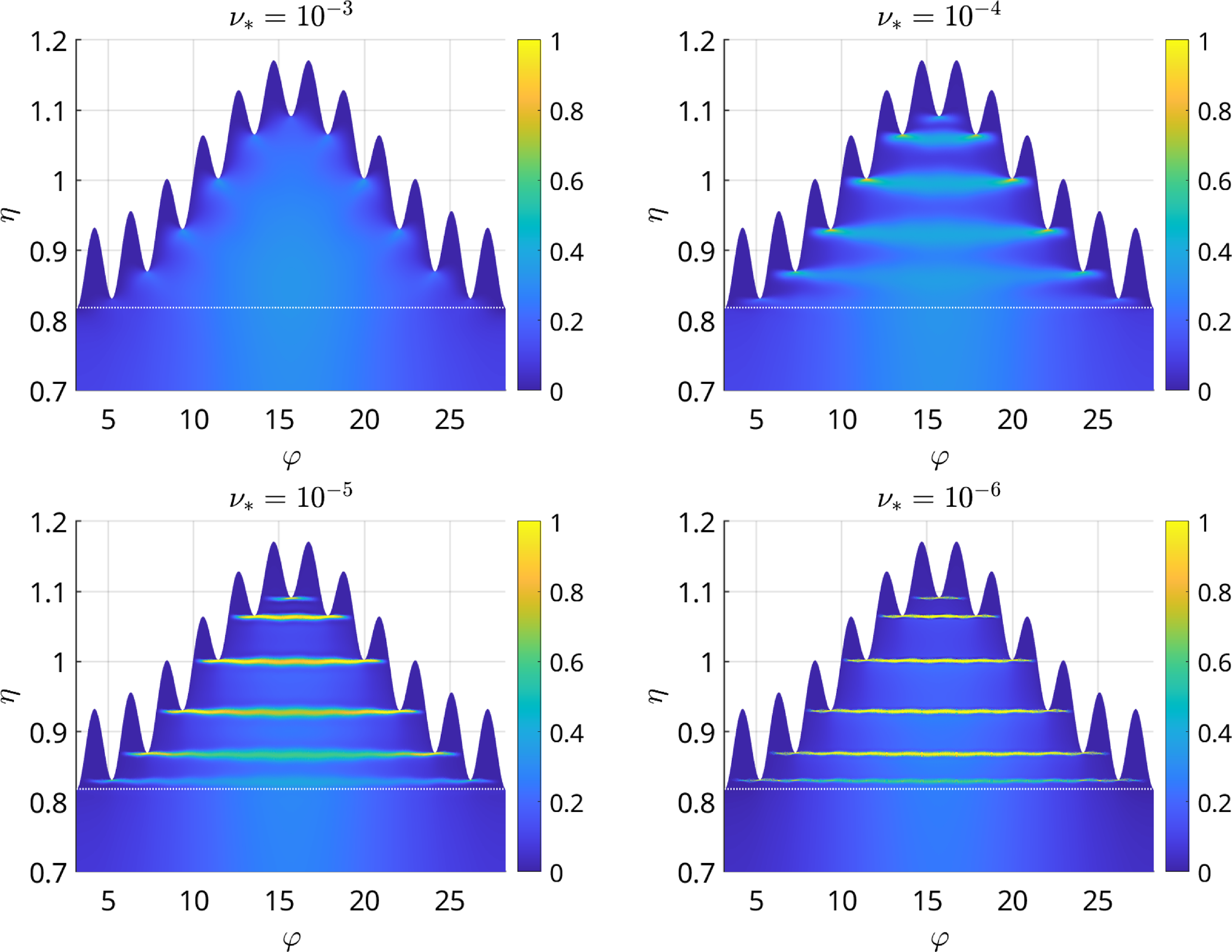

Figure 3. Odd part of the distribution function, $g^{\text{odd}}(\varphi, \eta )=(g(\varphi, \eta, 1)-g(\varphi, \eta, -1))/2$, driven by $s_{(1)}$ for different normalized collisionalities $\nu _\ast$ (see the legend) in case $\iota =1/4$. The trapped–passing boundary is shown by a white dotted line.

Figure 3

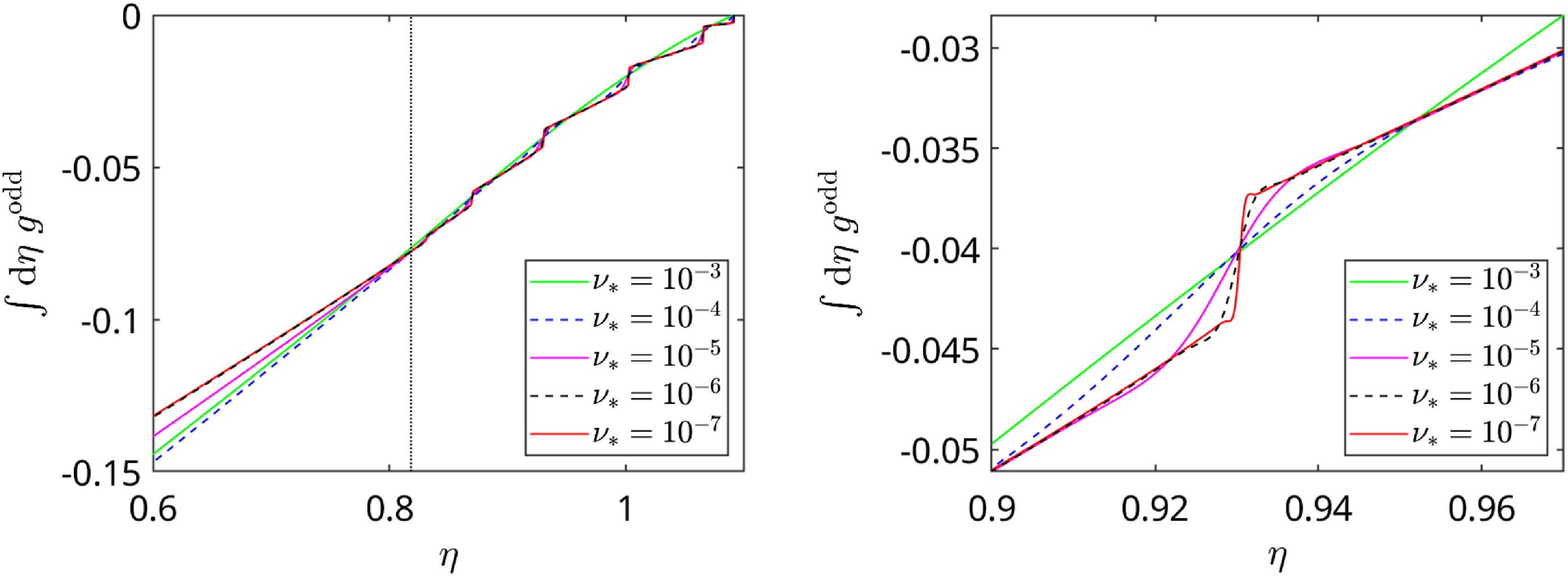

Figure 4. Integral $\int _\eta ^{1/B} \textrm { d} \eta ^\prime \; g^{\text{odd}}$ as a function of the lower limit (left), and its zoom near one of the class-transition boundaries (right) for various plasma collisionalities (see the legend) at $\varphi =5\pi$. The trapped–passing boundary is shown by a vertical dotted line.

Figure 4

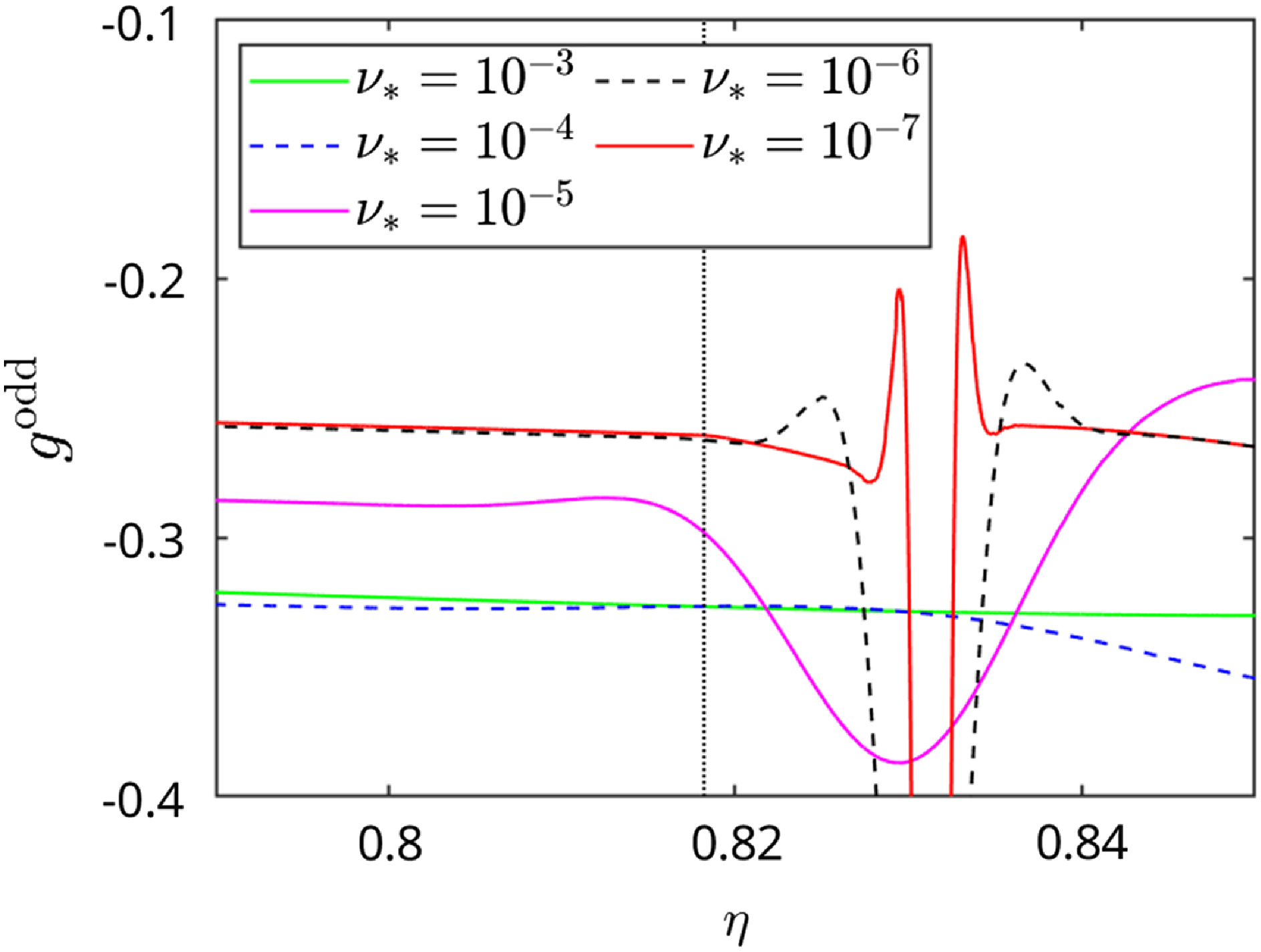

Figure 5. Odd part of the distribution function $g^{\text{odd}}$ near the trapped–passing boundary (vertical dotted line) at $\varphi =5\pi$ for various collisionalities (see the legend).

Figure 5

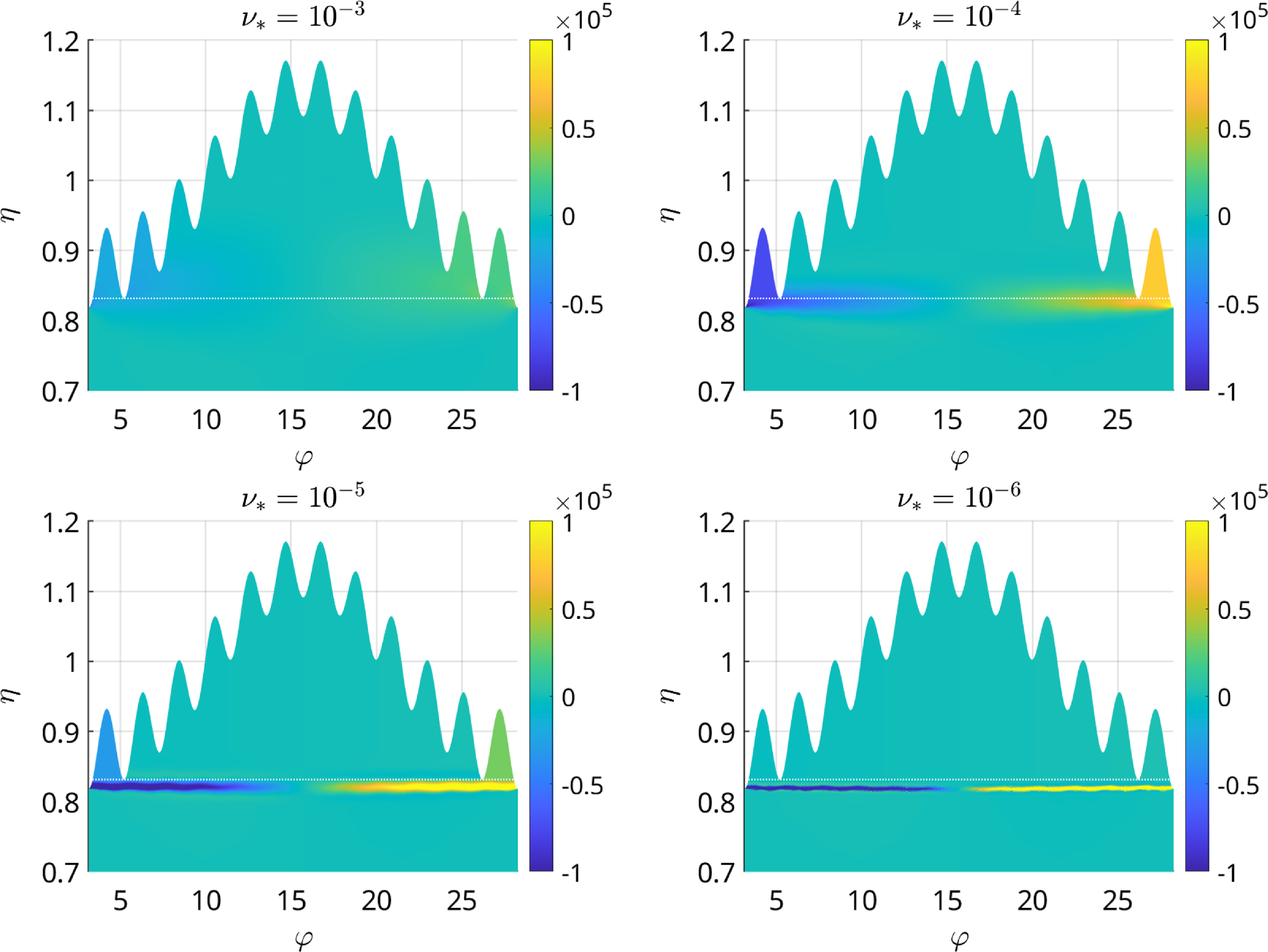

Figure 6. Even part of the distribution function, $g^{\text{even}}(\varphi, \eta )=(g(\varphi, \eta, 1)+g(\varphi, \eta, -1))/2$, driven by $s_{(3)}$ for the same cases as in figure 3. The transition boundary between the two highest trapping classes is shown by a white dotted line.

Figure 6

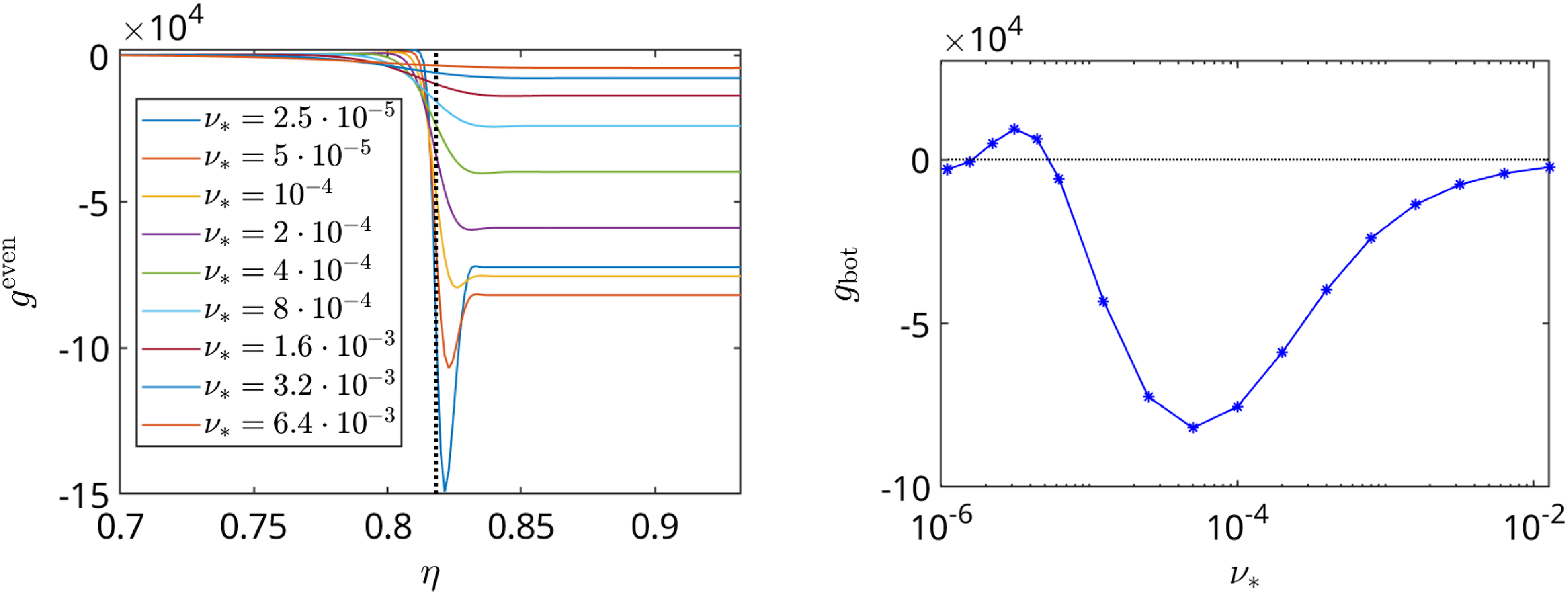

Figure 7. Even part of the distribution function $g^{\text{even}}$ as a function of $\eta$ in the middle of the left off-set well, $\varphi =4 \pi /3$ for various collisionalities (left) and $\iota =1/4$. The trapped–passing boundary is shown by a vertical dotted line. The value of $g^{\text{even}}$ at the off-set well bottom, $g_{\text{bot}}$, is shown as a function of $\nu _\ast$ in the right plot.

Figure 7

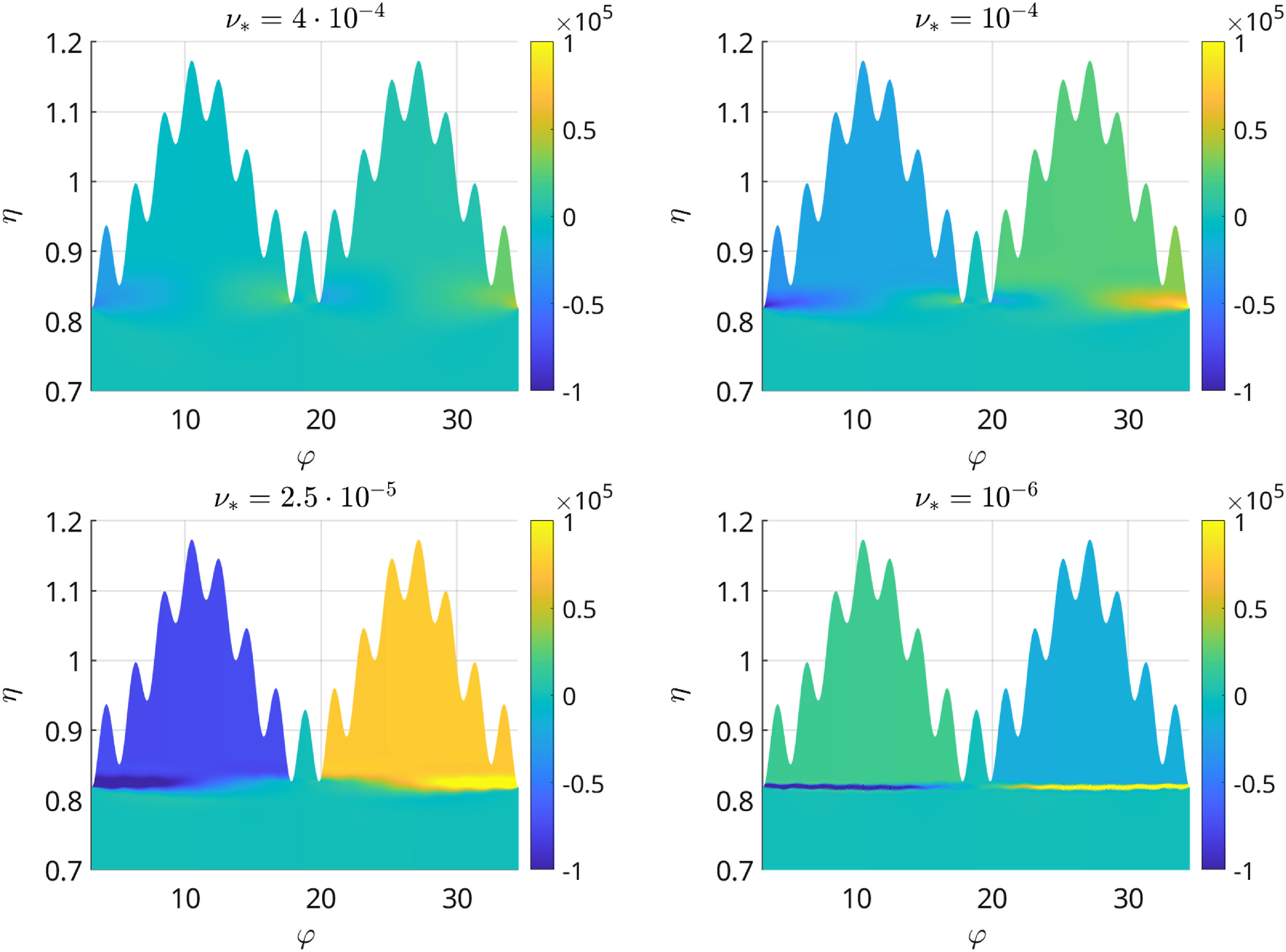

Figure 8. The same as in figure 6 for $\iota =2/5$ and different collisionalities (see the legend).

Figure 8

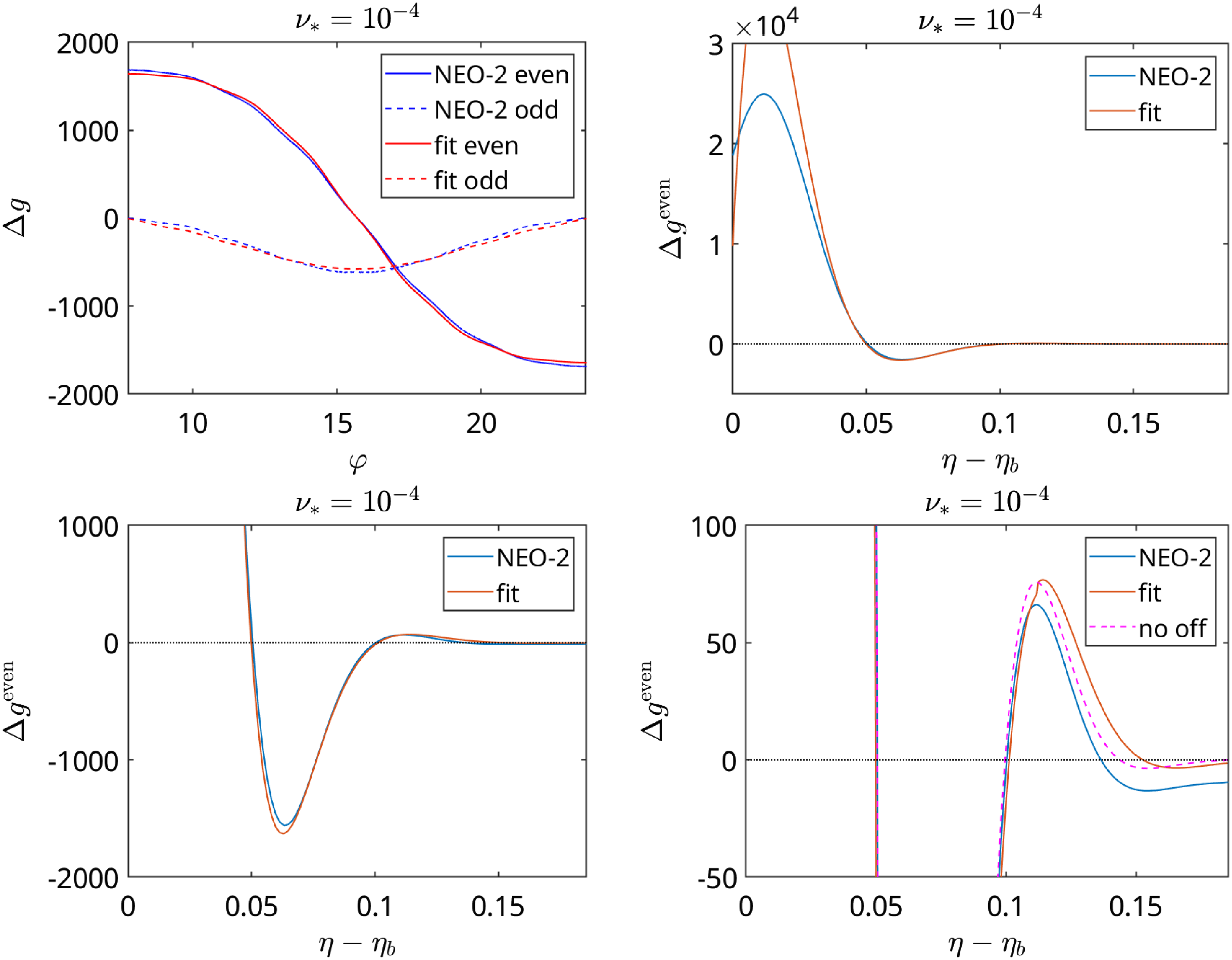

Figure 9. Difference $\Delta g$ and the fit $\Delta g_{\text{fit}}$, (3.8) for the case $\nu _\ast =10^{-4}$ in figure 6. Upper left – even and odd parts as functions of $\varphi$ for $\eta -\eta _b=0.07$. Upper right – even parts as functions of $\eta$ for $\varphi =19 \pi /3$ (7th local maximum). Lower panel – zooms of the upper right plot over the Y-axis. Dashed line in the last zoom corresponds to the NEO-2 result for $g^{\text{even}}-g_{\lambda =0}$, where $g_{\lambda =0}$ is $g^{\text{even}}$ for standing particles with $\eta =1/B$. Function $g_{\lambda =0}$ differs here from $g_0=g_0^t$ by an exponentially small off-set.

Figure 9

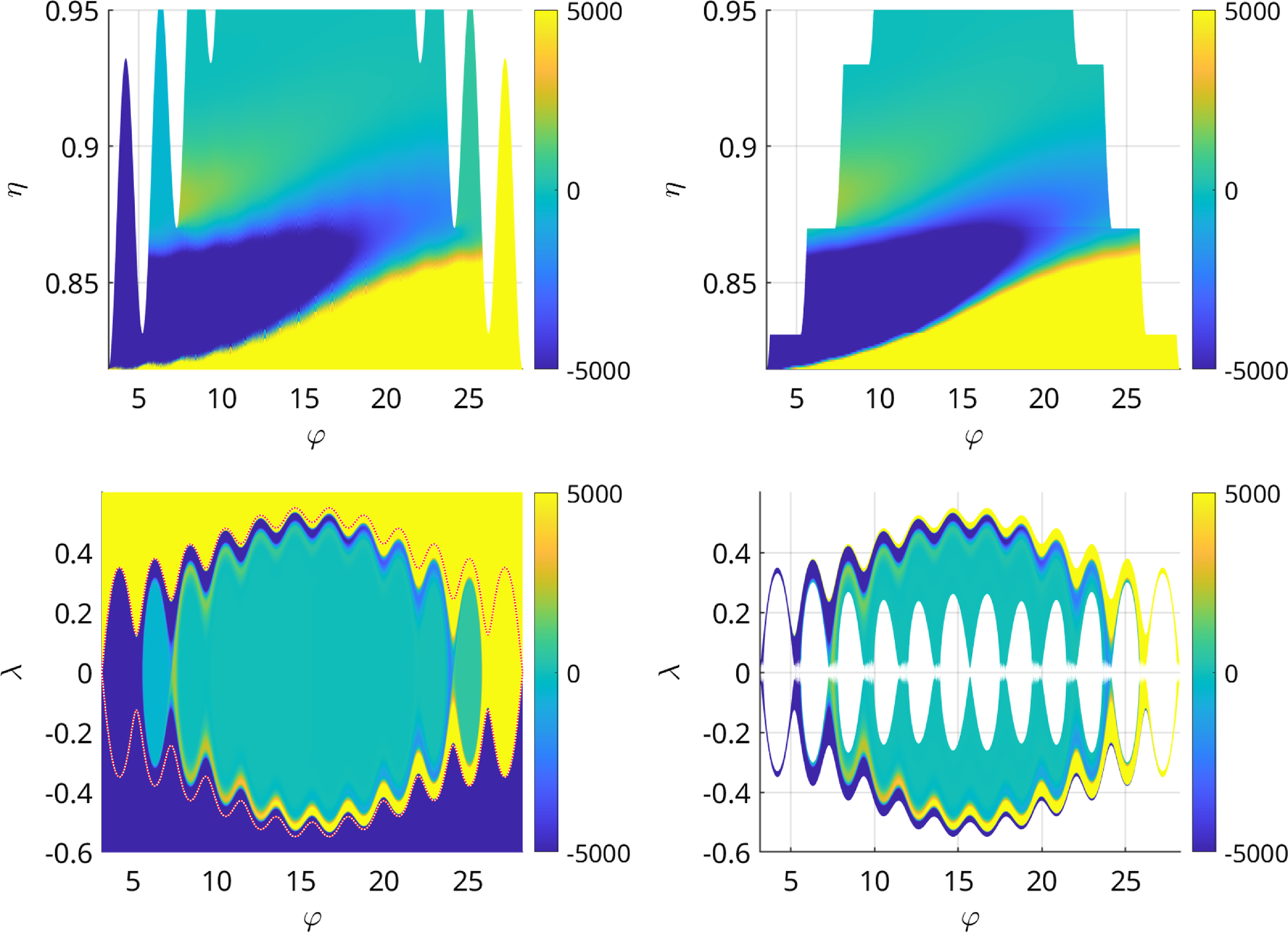

Figure 10. Difference $\Delta g$ (left) and its fit $\Delta g_{\text{fit}}$ (right) as functions of $(\varphi, \eta )$ and $\sigma =1$ (upper panel) and $(\varphi, \lambda )$ (lower panel) for the same case as in figure 9. Saturation of color scale at $|\Delta g| \geqslant 5000$ occurs in the whole passing particle region. Fit $\Delta g_{\text{fit}}$ is plotted excluding passing particle domains and local trapping domains where $\Delta g_{\text{fit}}$ is not defined. Red dotted line in $\Delta g(\varphi, \lambda )$ plot shows the trapped–passing boundary where transient particles move clockwise.

Figure 10

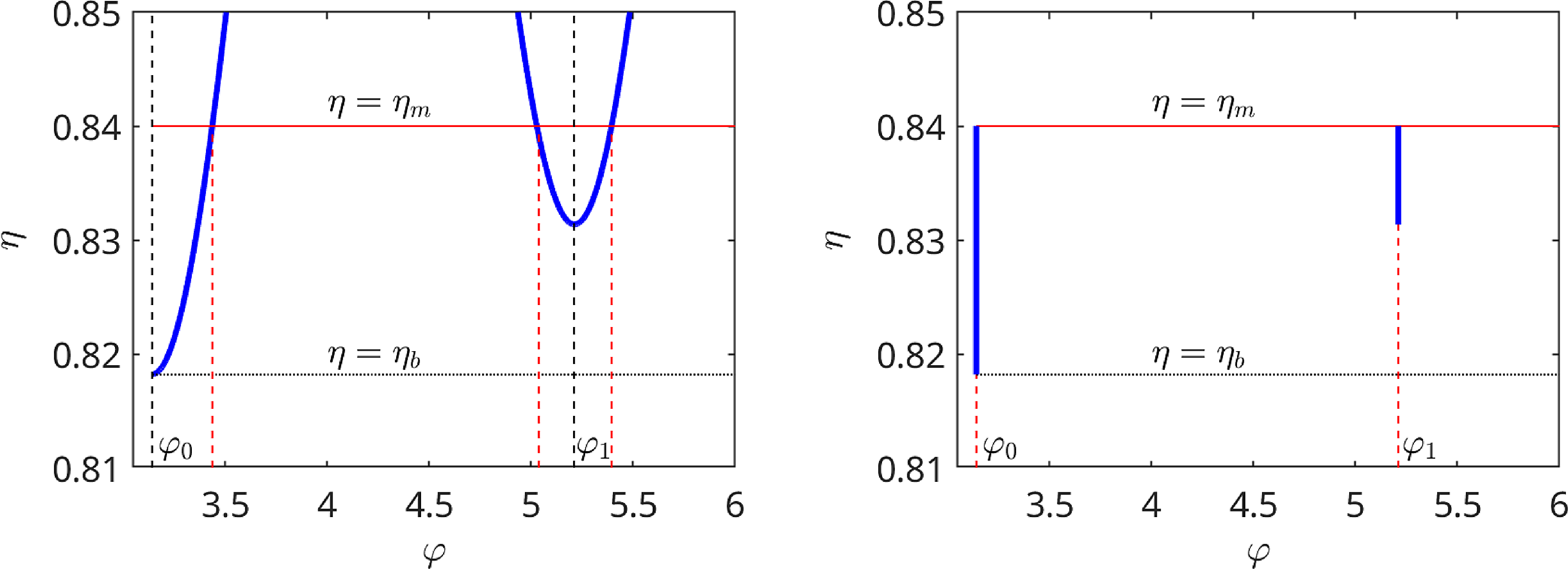

Figure 11. Computation domain before (left) and after (right) simplifying transformation. Trapped–passing boundary $\eta =\eta _b$ and matching boundary $\eta =\eta _m$ are shown by black dotted and red solid line, respectively. Original domain boundary $\eta =1/B(\varphi )$ (solid blue), field maxima $\varphi _j$ (dashed black) and boundaries of interface regions $\varphi _j \pm \delta \varphi$ (dashed red) are shown in the left plot. Reflecting (solid) and transparent (dashed) boundaries of the transformed domain are shown in the right plot.

Figure 11

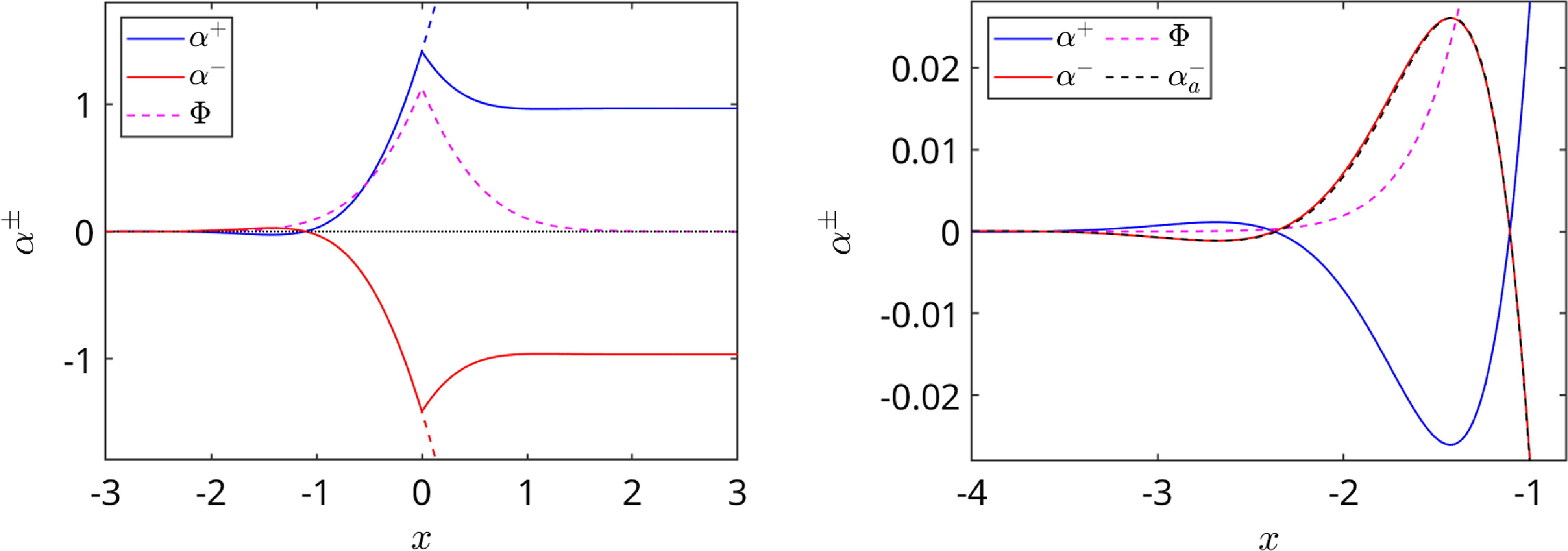

Figure 12. Normalized distribution functions $\alpha ^+$ (blue), $\alpha ^-$ (red) and source function $\Phi$ (magenta). Full normalized distribution functions, $\alpha ^{\pm }+\alpha _{1/\nu }^\pm$, are shown with dashed lines. The right picture is a zoom to the trapped region, where also the asymptotic solution (3.34) is shown (black dashed).

Figure 12

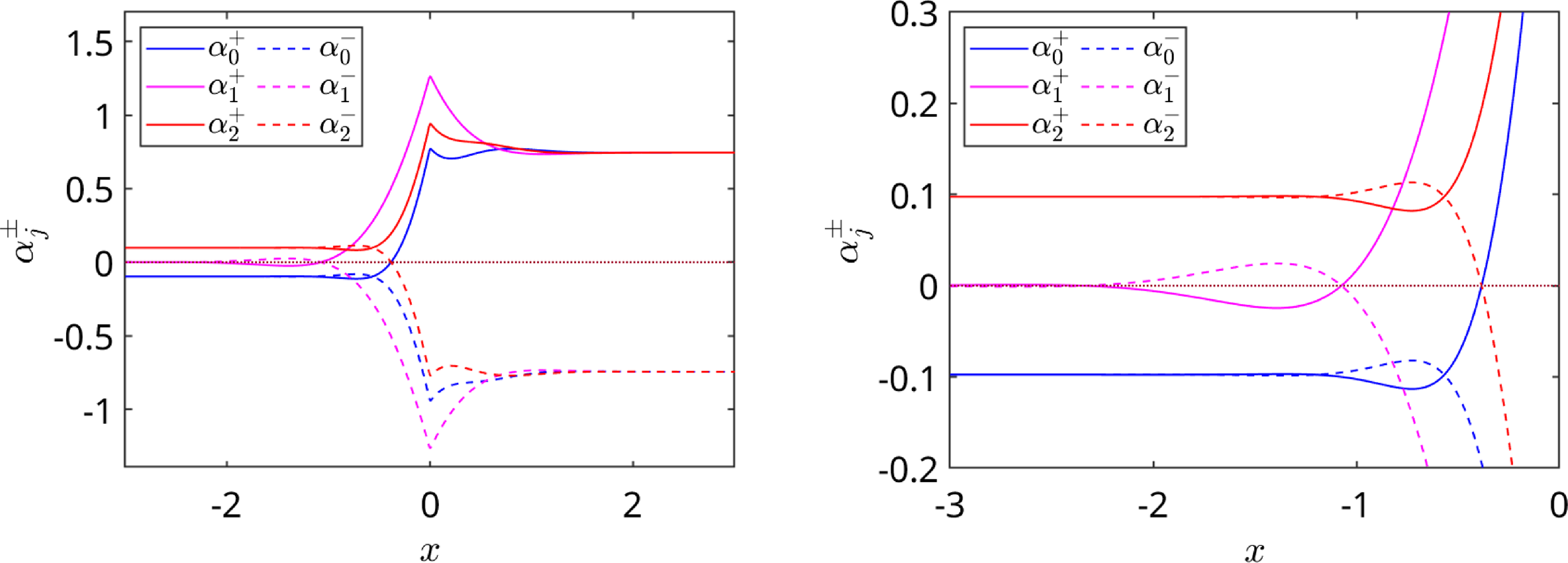

Figure 13. Normalized distribution functions $\alpha _j^+$ (solid) and $\alpha _j^-$ (dashed) in the case of three relevant trapping domains per closed field line. The right picture is a zoom to the trapped particle domain.

Figure 13

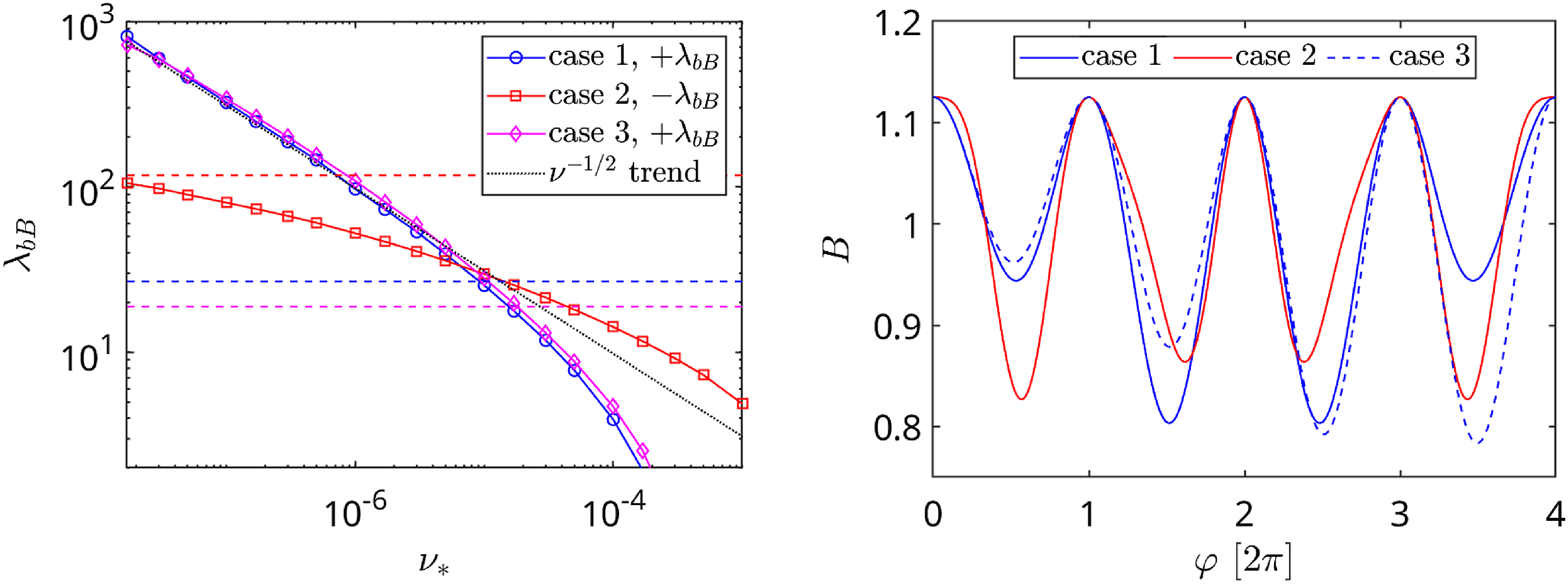

Figure 14. Left: normalized bootstrap coefficient $\lambda _{bB}$, (2.44), computed by NEO-2 for “anti-sigma optimized” configurations in cases 1, 2 and 3 (see the legend) as function of normalized collisionality $\nu _\ast$. For each case, the Shaing–Callen limit (2.43) is shown with a dashed line of the respective color. Sign of $\lambda _{bB}$ (but not of the respective asymptotic) is reversed in case 2. Right: magnetic field strength $B(\varphi )$, (3.36) for these cases plotted along the field line within the first four toroidal periods.

Figure 14

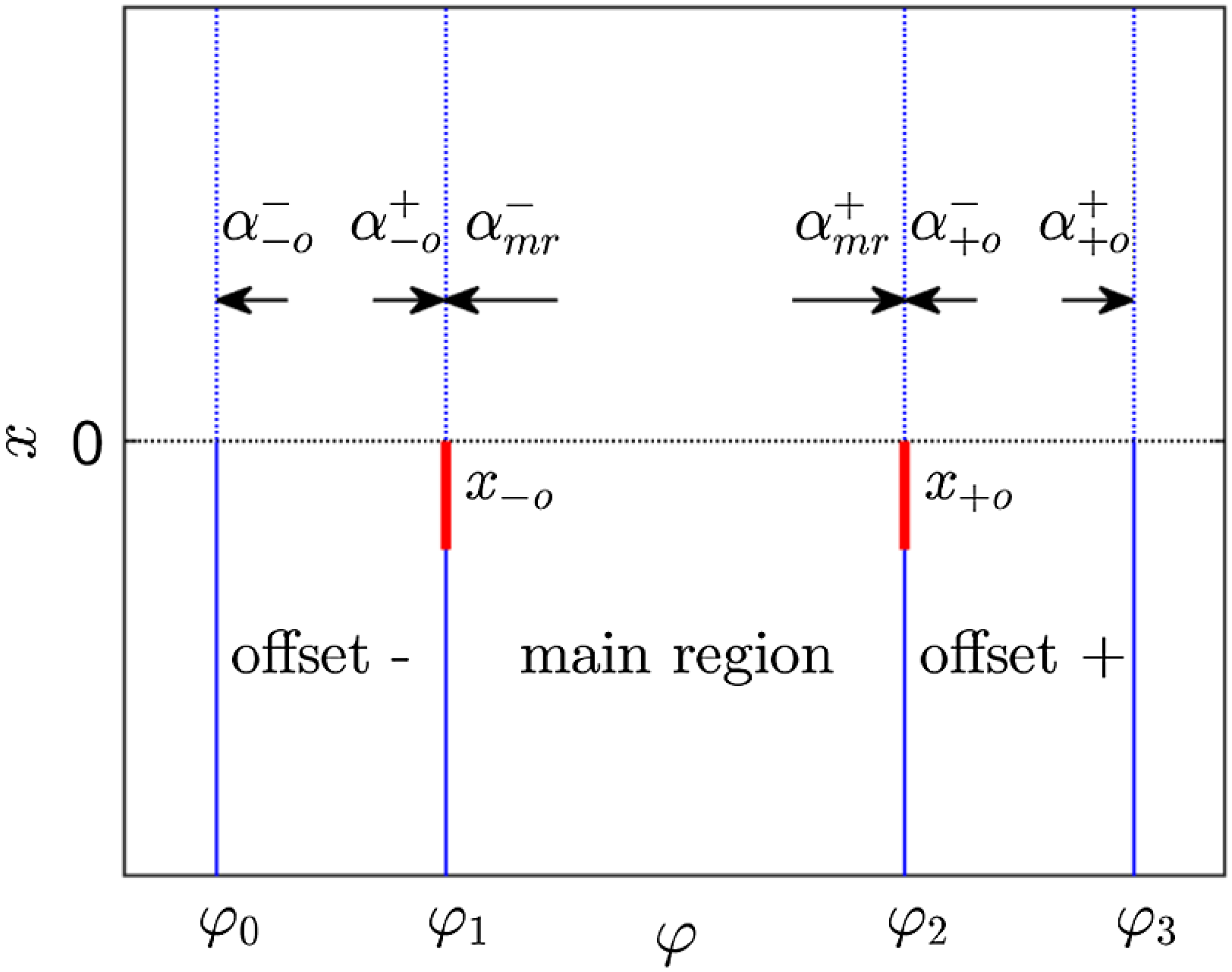

Figure 15. Locations of normalized outgoing particle distributions $\alpha _{\pm o}^\pm$ and $\alpha _{mr}^\pm$ in the respective off-set domains and the main region. Positions of relevant maxima $\varphi _j$ are shown with blue lines. Normalized misalignments $x_{\pm o}$ are shown with red lines.

Figure 15

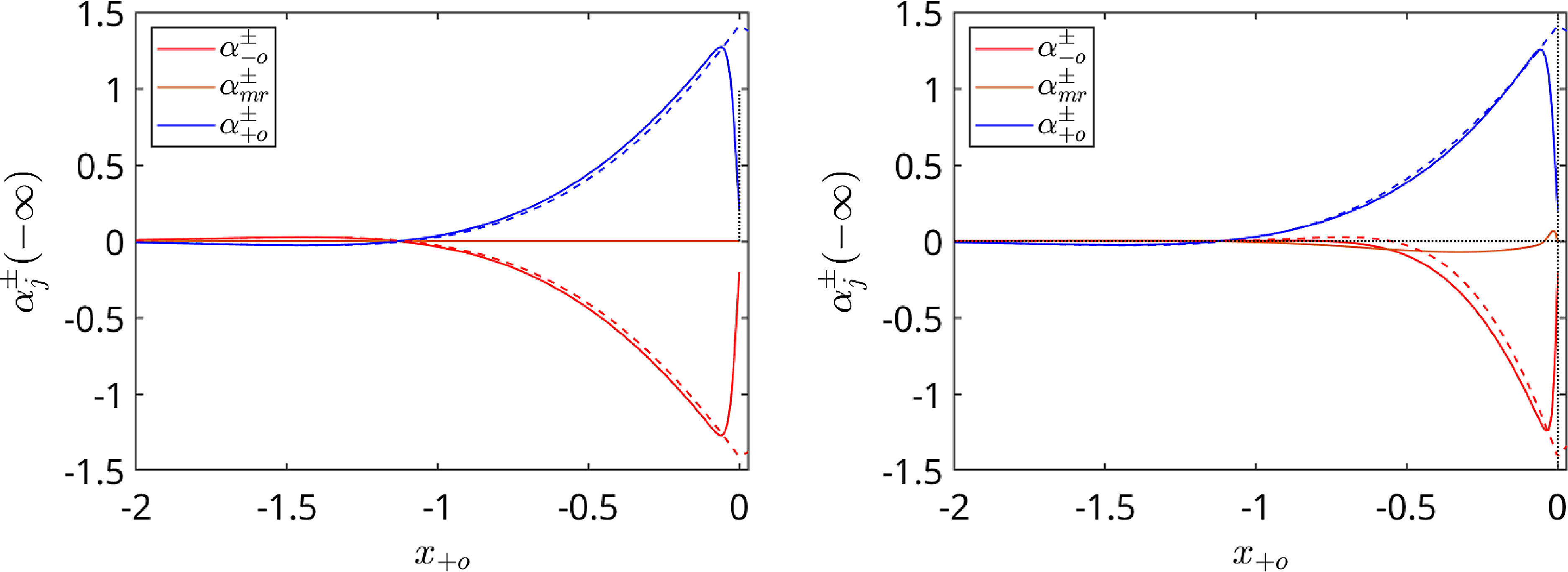

Figure 16. Off-sets in three local wells as functions of the normalized mis-match parameter $x_{+o}$ for the symmetric case, $x_{-o}=x_{+o}$, (left) and for the destroyed stellarator symmetry, $x_{-o}=2 x_{+o}$, (right). Solid – results of direct solution of (3.29), dashed – approximation (3.46).

Figure 16

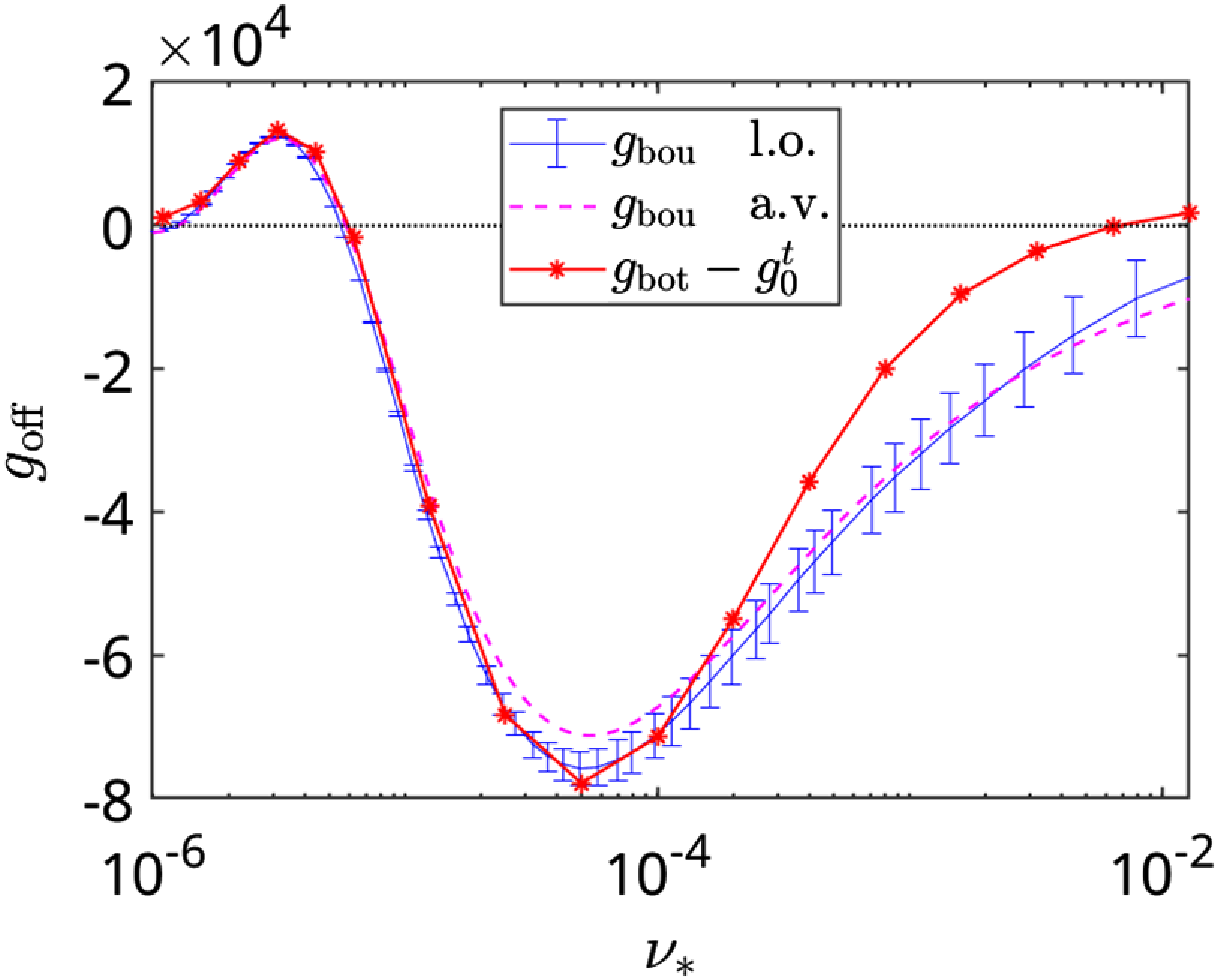

Figure 17. Distribution function off-set $g_{\text {off}} = g_{(3)} - g_0^t$ at the bottom of the first local well, $j=0$, as a function of collisionality parameter $\nu _\ast$ for configuration in figure 7. Blue – leading-order solution for $g_{\text{bou}}$ via (3.29), magenta – its large aspect ratio approximation (3.46), red – off-set $g_{\text{off}}=g_{\text{bot}}-g_0^t$ via the result of NEO-2 shown in figure 7.

Figure 17

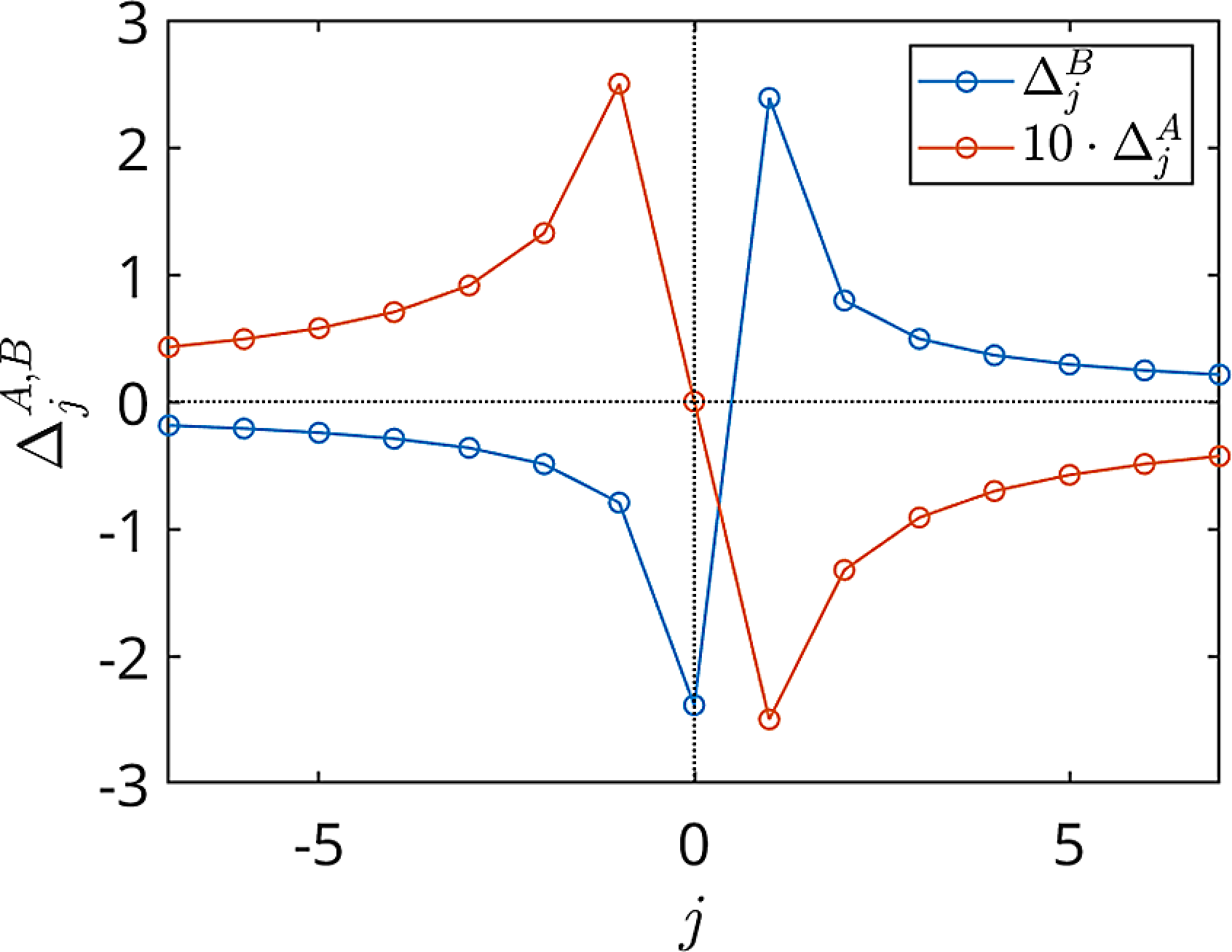

Figure 18. Factors $\Delta ^B_j$ (blue) and $\Delta ^A_j$ (red) as functions of the ripple index $j$.

Figure 18

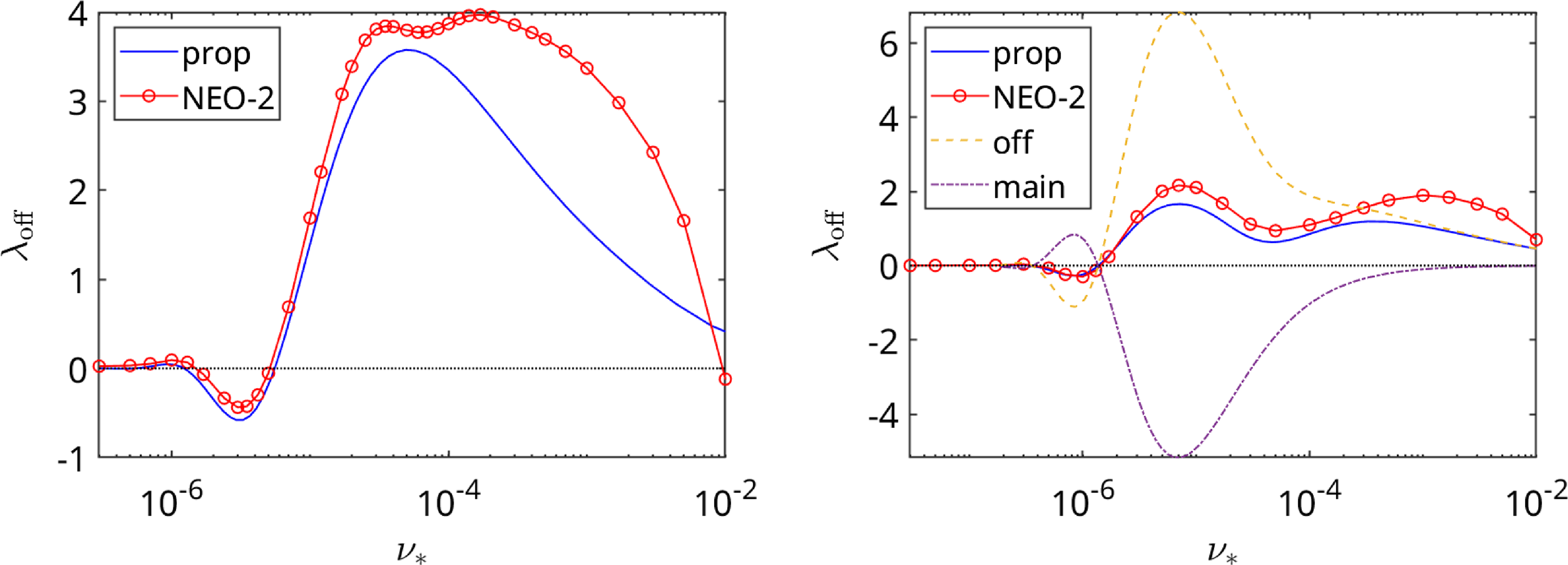

Figure 19. Off-set of the geometrical factor, $\lambda _{\text{off}}$, from the propagator method via (3.54) (blue) and from NEO-2 results shown in figure 2 (red) for $\iota =1/4$ (left) and $\iota =2/5$ (right). In the case of $\iota =2/5$, also shown are summary contributions to (3.54) of the off-set domains (dashed) and of the main regions (dashed-dotted).

Figure 19

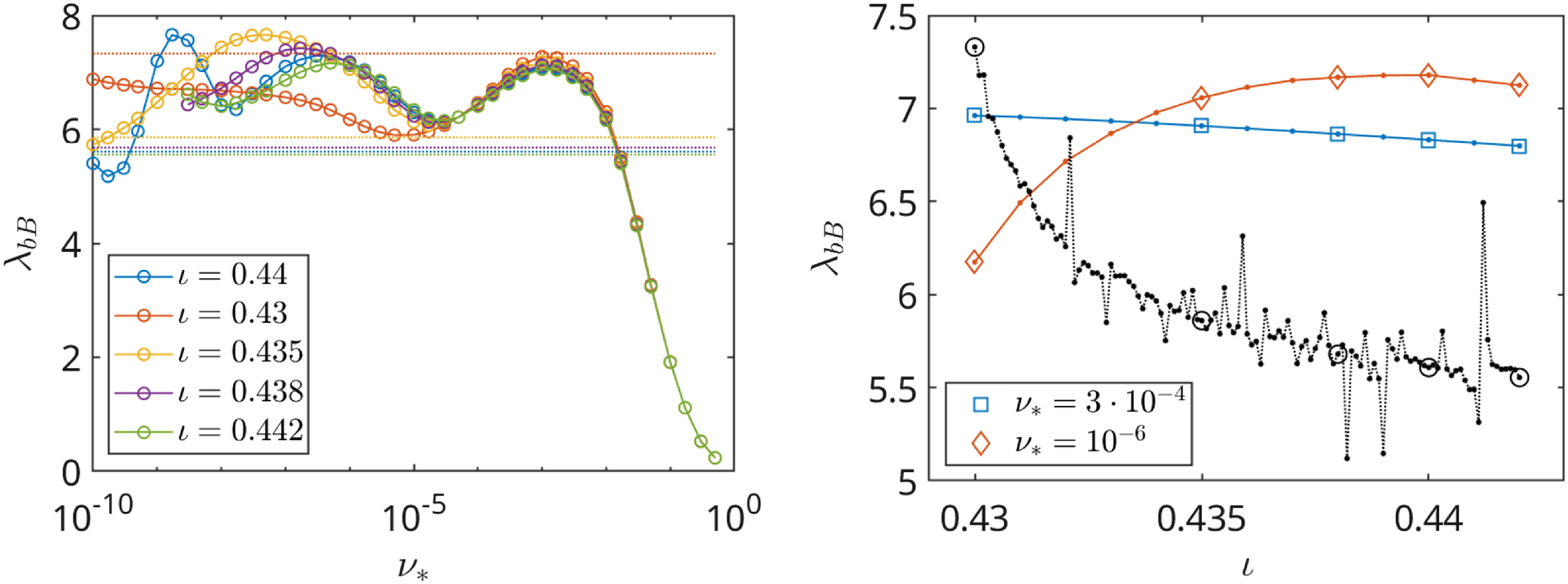

Figure 20. Normalized bootstrap coefficient (2.44) for five $\iota$ values vs. normalized collisionality $\nu _\ast$ (left) and its dependence on $\iota$ for two selected collisionalities shown in the legend (right). Shaing–Callen limit (2.43) is shown with dotted lines (data points – with dots). Abscissa values for markers in the right plot correspond to the legend in the left plot.

Figure 20

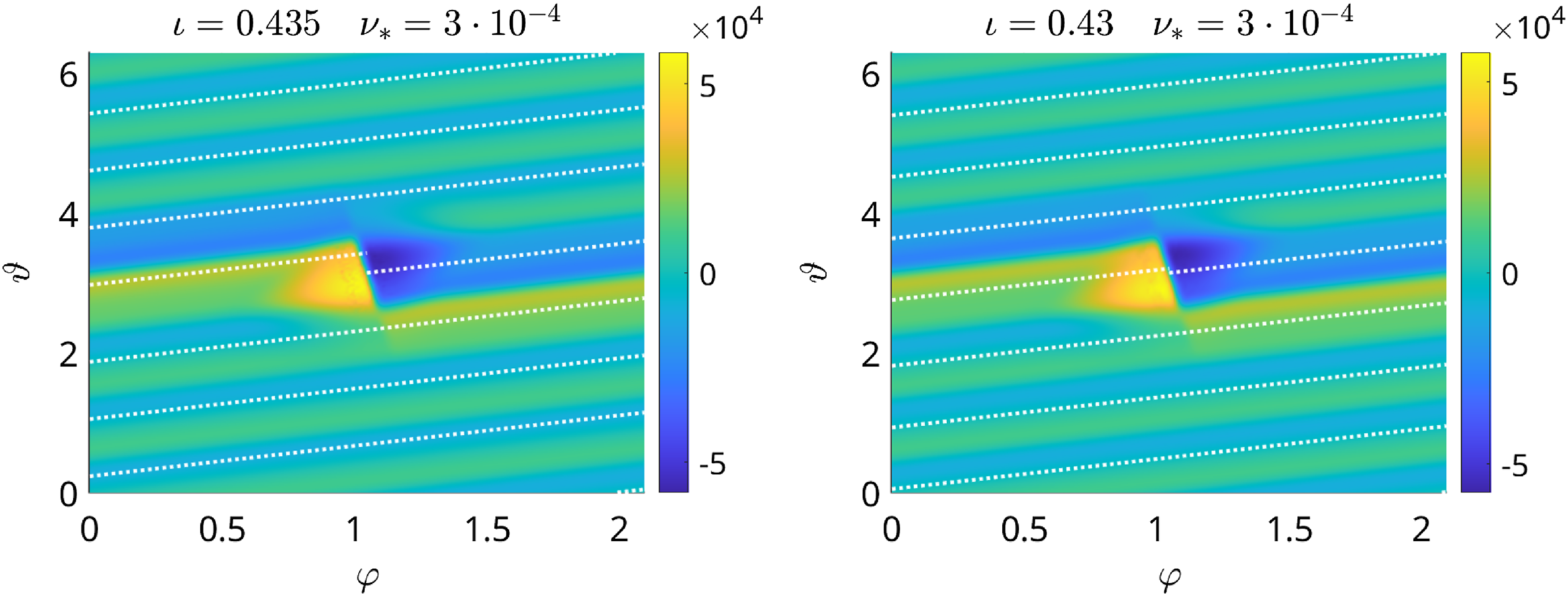

Figure 21. Generalized Spitzer function $g_{(3)}(\vartheta, \varphi, \lambda )$ for standing particles ($\lambda =0$) at the flux surface with $\iota =0.435$ (left) and $\iota =0.43$ (right) for $\nu _\ast = 3\cdot 10^{-4}$. White dotted lines show the field line starting from the global maximum and making 7 toroidal turns.

Figure 21

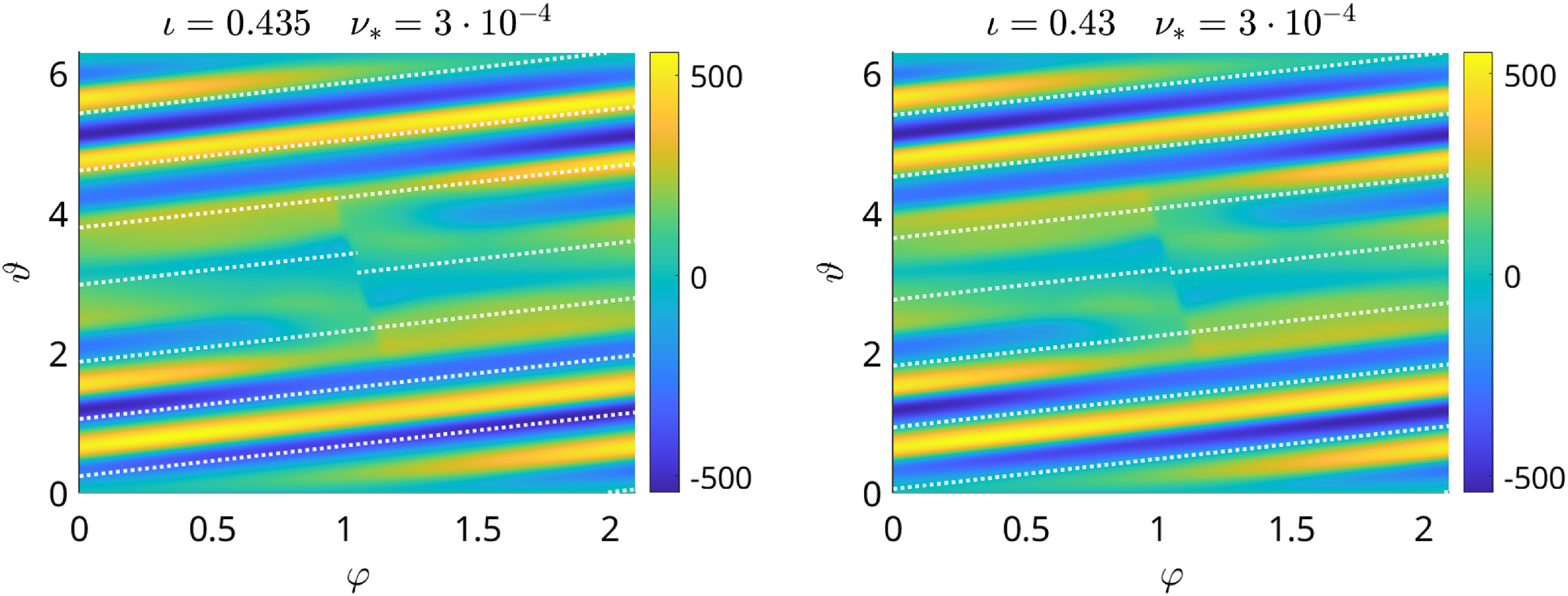

Figure 22. Normalized distribution over the angles of trapped particle radial flux $\gamma (\vartheta, \varphi )$ at the flux surface with $\iota =0.435$ (left) and $\iota =0.43$ (right) for $\nu _\ast = 3\cdot 10^{-4}$. White dotted lines – the same as in figure 21.

Figure 22

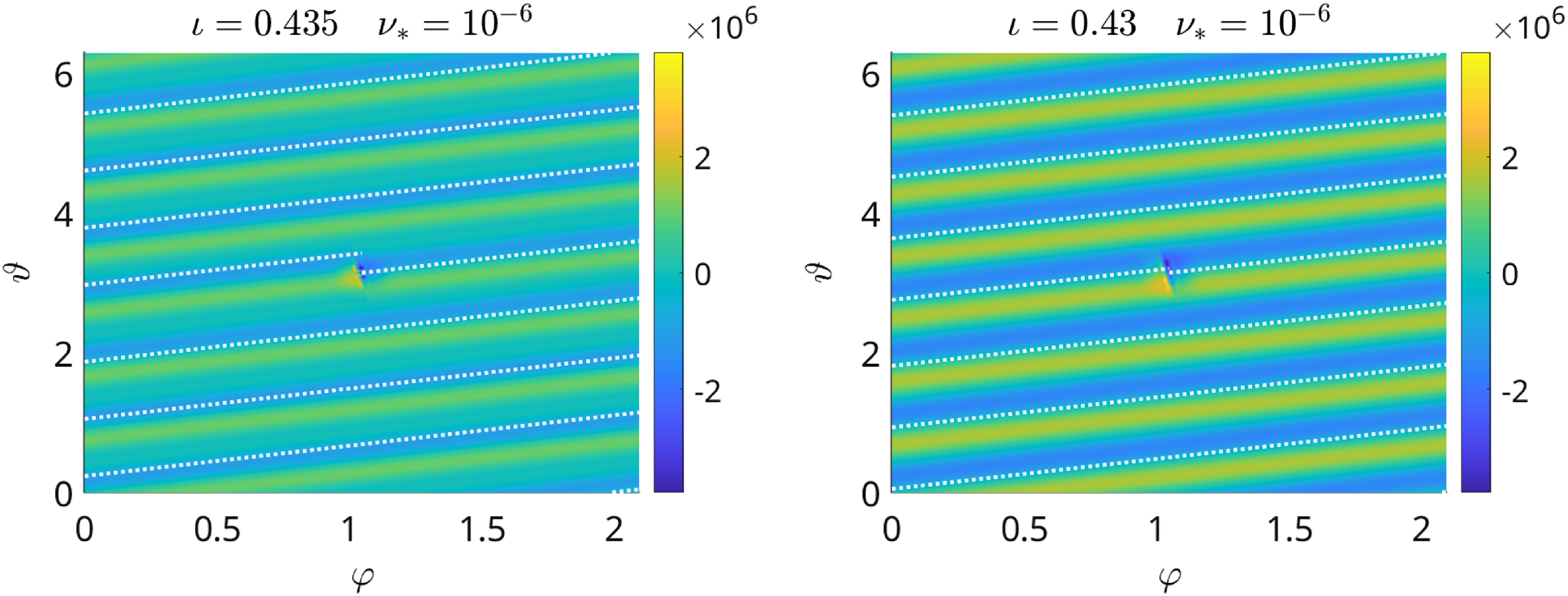

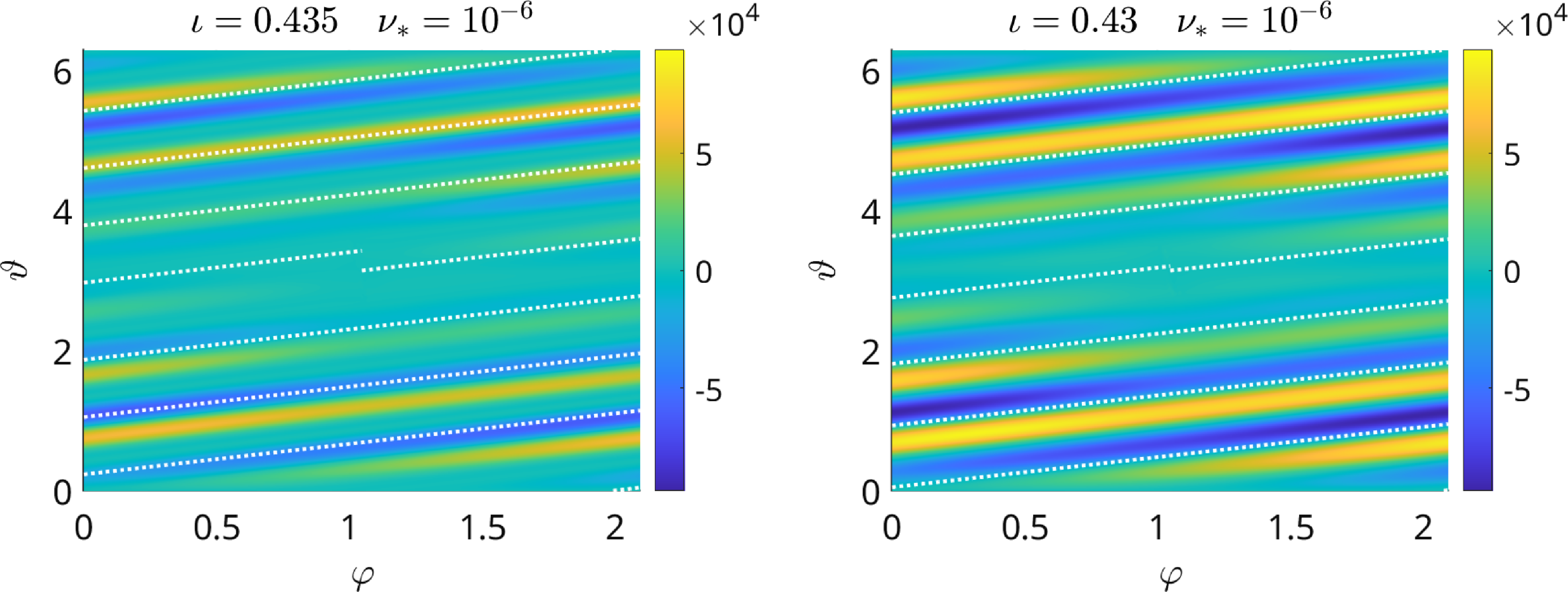

Figure 23. The same as figure 21 for $\nu _\ast = 10^{-6}$.

Figure 23

Figure 24. The same as figure 22 for $\nu _\ast = 10^{-6}$.

Figure 24

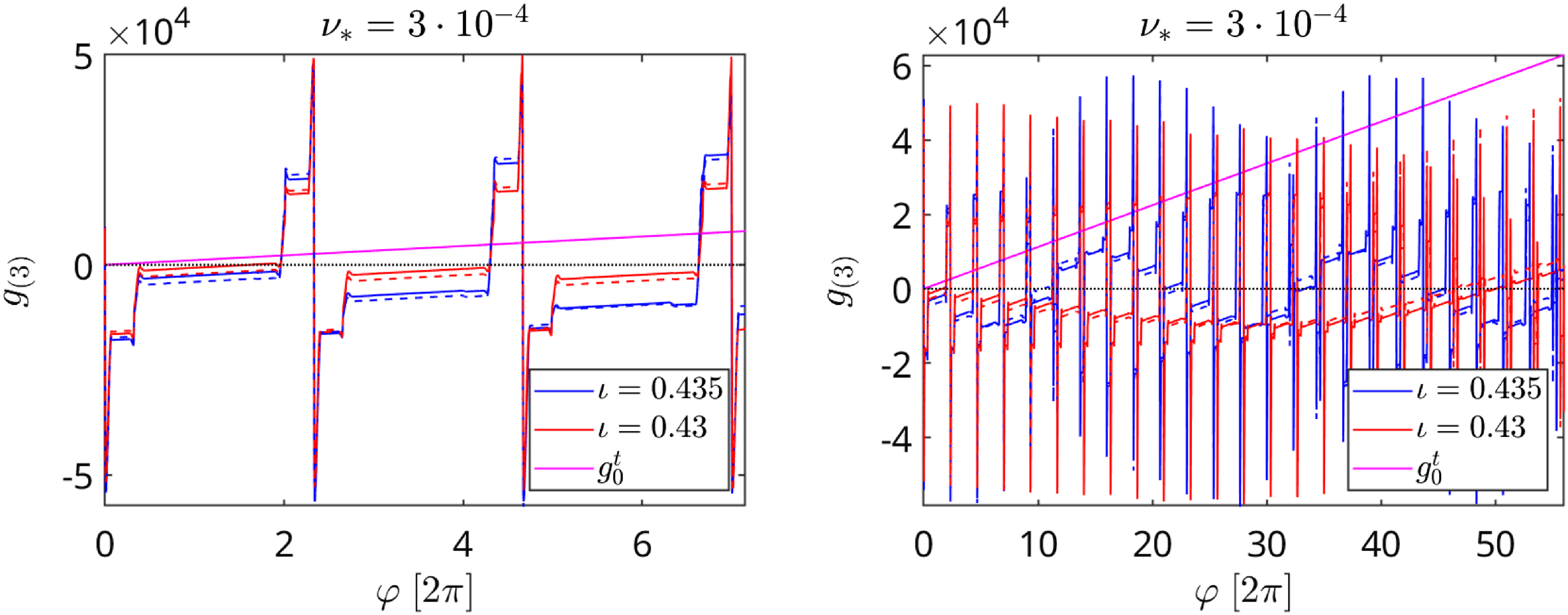

Figure 25. Generalized Spitzer function $g_{(3)}$ along the field line starting from global maximum (solid) and from the close point displaced by $\Delta \vartheta = 0.03$ (dashed) for $\iota = 0.435$ (blue) and $\iota = 0.43$ (red) and $\nu _\ast = 3\cdot 10^{-4}$. The magenta line shows the asymptotic solution $g_0^t$, (2.47), at the first field line. Left and right plots show the same for 7 and 56 periods, respectively.

Figure 25

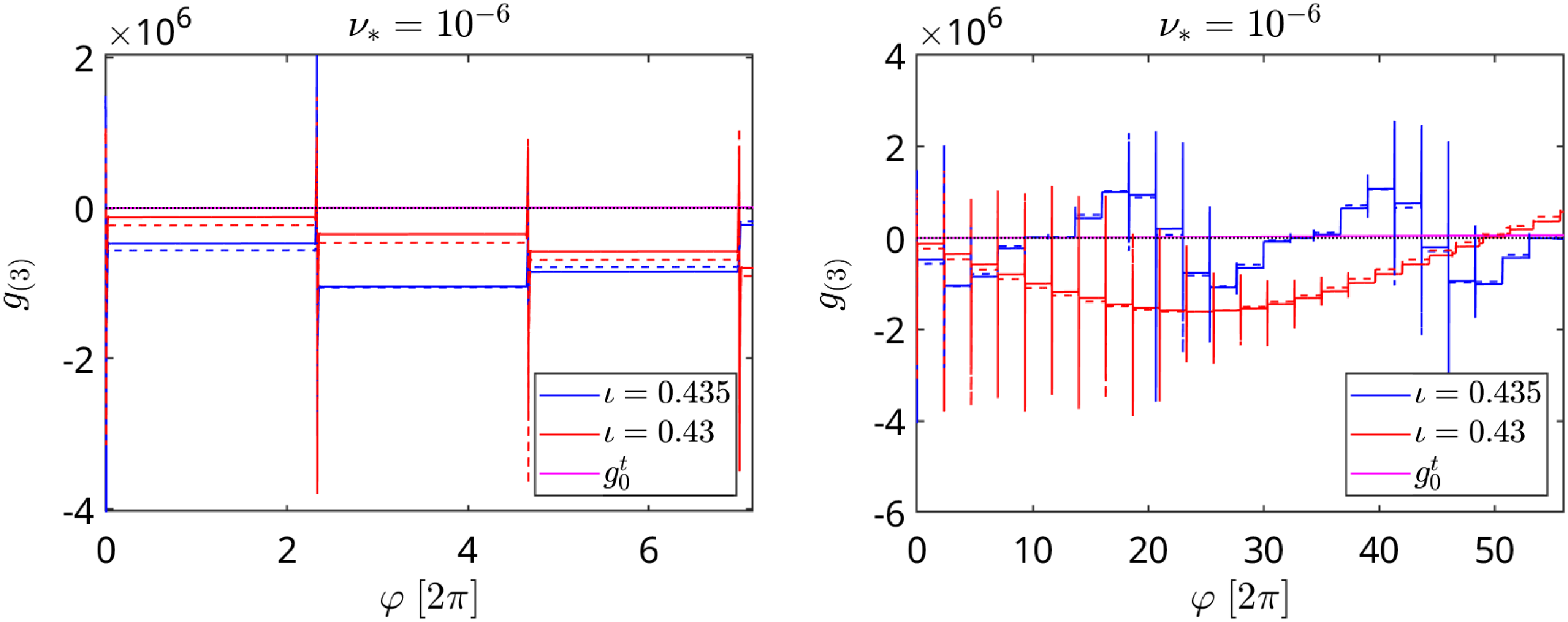

Figure 26. The same as figure 25 for $\nu _\ast = 10^{-6}$ and $\Delta \vartheta = 0.01$.

Figure 26

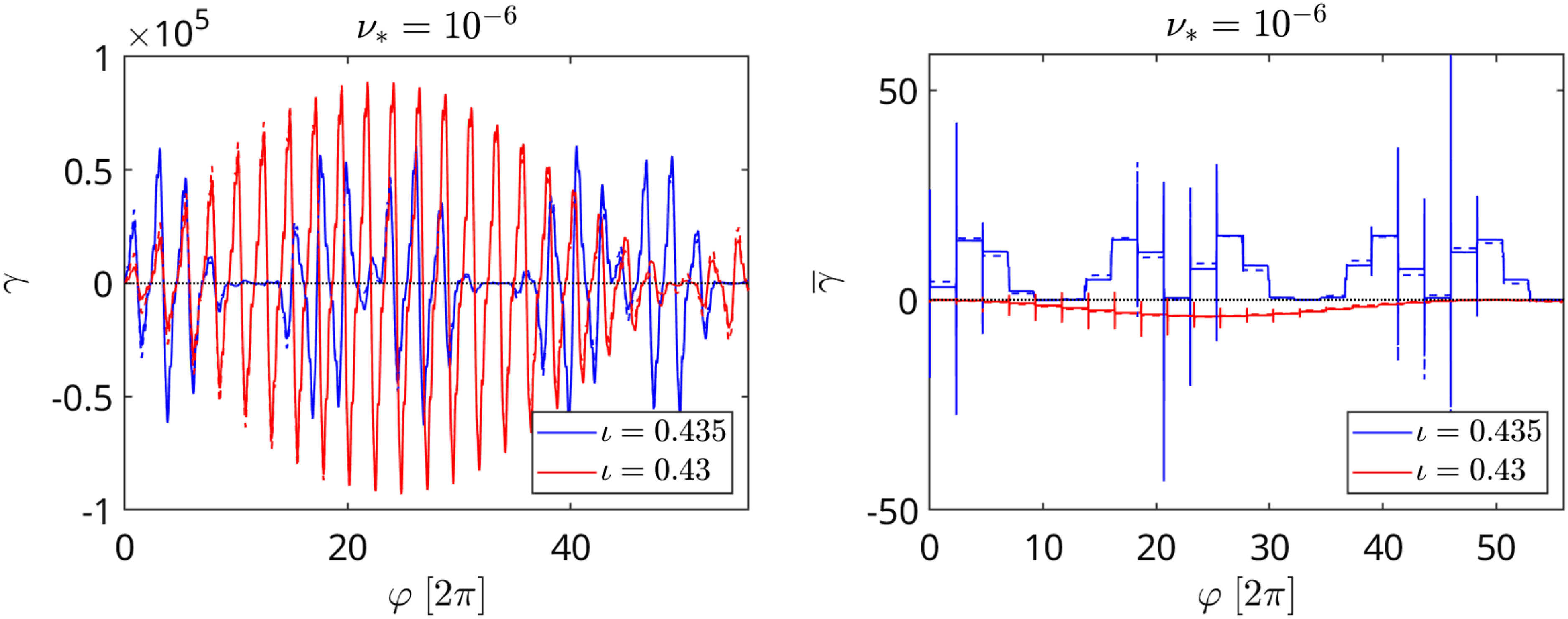

Figure 27. Normalized trapped particle radial flux angular density $\gamma$ (left) and sub-domain average $\bar \gamma$ (right) for the distribution functions shown in figure 26.

Figure 27

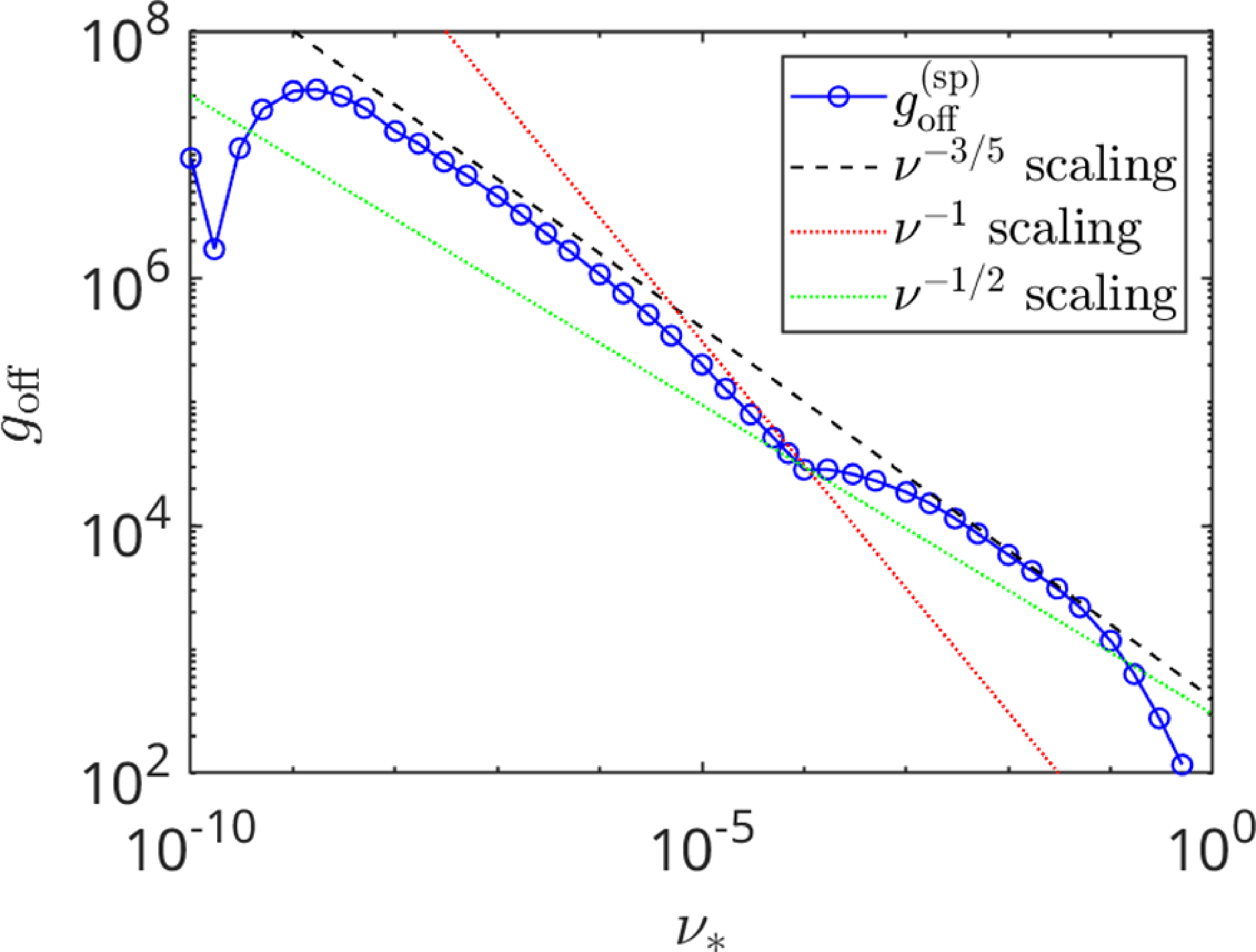

Figure 28. Span of the generalized Spitzer function $g_{\text{off}}^{\text{(sp)}}\equiv (\!\max (g_{\text {(3)}}) -\min (g_{\text {(3)}}))/2$ for standing particles, $\lambda =0$, at $\varphi =0$ as a function of collisionality (case $\iota = 0.435$ in figure 20). Scalings $\nu _\ast ^{-3/5}$, $1/\nu _\ast$ and $1/\sqrt {\nu _\ast }$ are shown by black dashed, red and green dotted lines, respectively.

Figure 28

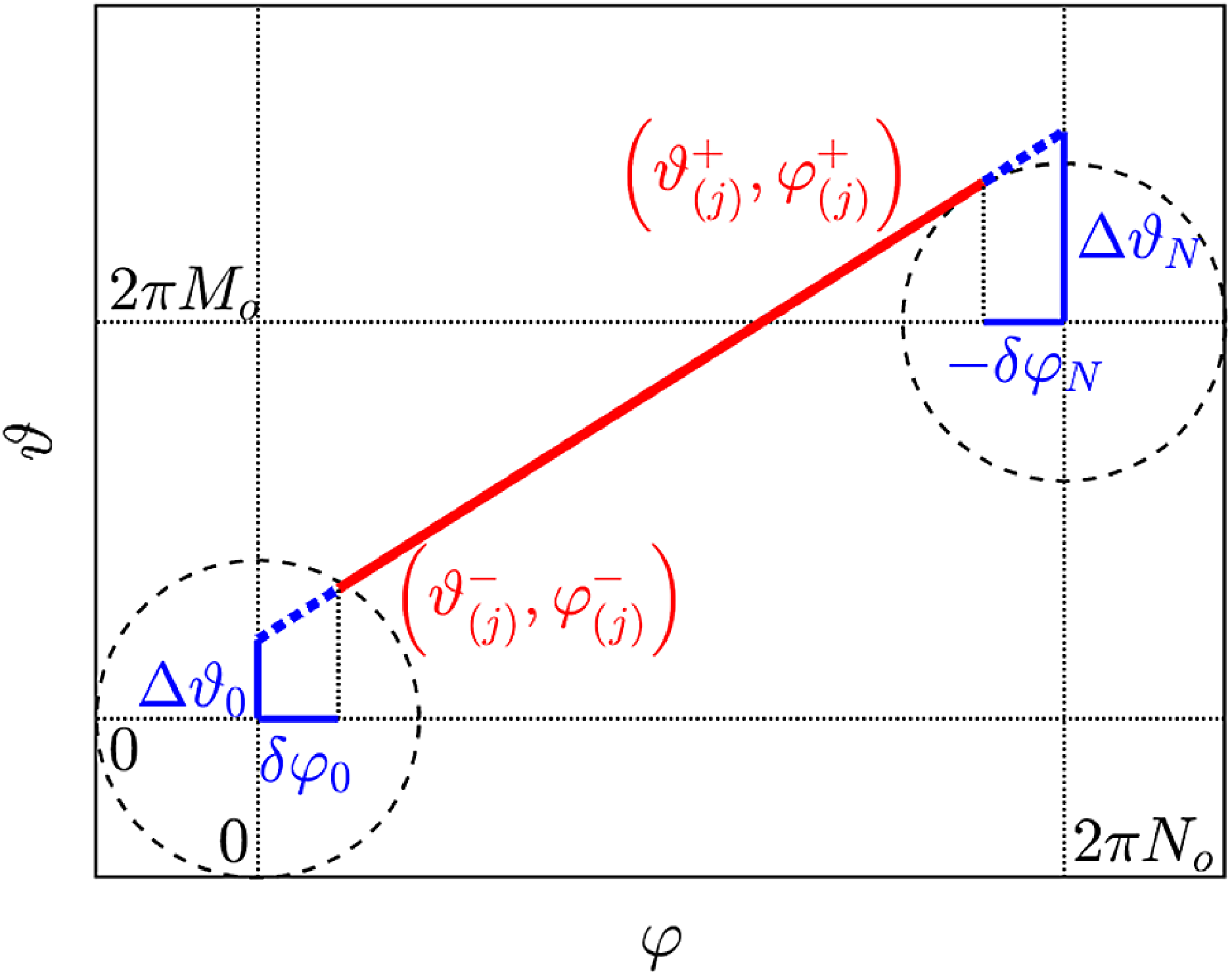

Figure 29. Field line segment containing the off-set domain (blue dotted) covered by transient banana orbit (red) in case the lower local field maximum is on the right, $\eta _{\textrm{loc}}^{(j)}=\eta _{j+1}$. Dashed black ellipses correspond to the contour $\eta _{\textrm{loc}}^{(j)} B(\vartheta, \varphi )=1$.

Figure 29

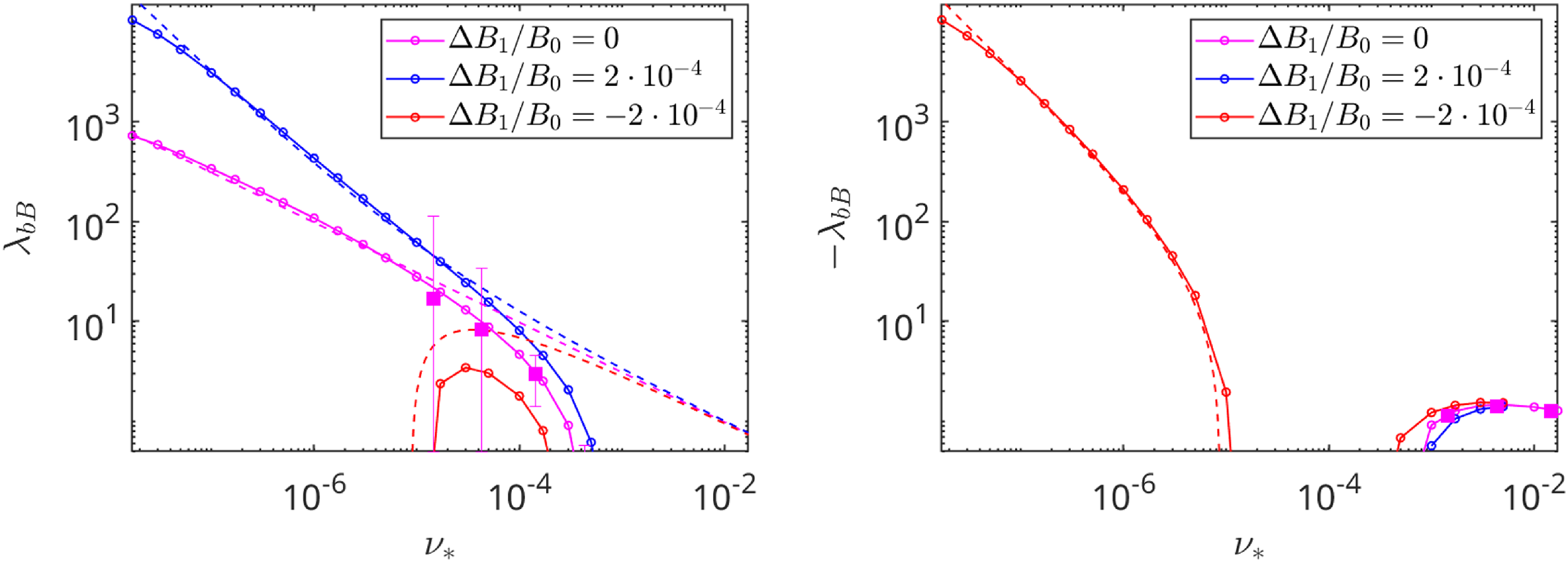

Figure 30. Geometrical factor $\lambda _{bB}$ computed by NEO-2 (circles) and DKES (filled squares) vs $\nu _\ast$. Three different maximum-$B$ perturbations are marked with colors (see the legend). Dashed lines correspond to the asymptotic (4.22). Negative $\lambda _{bB}$ are shown in the right plot.

Figure 30

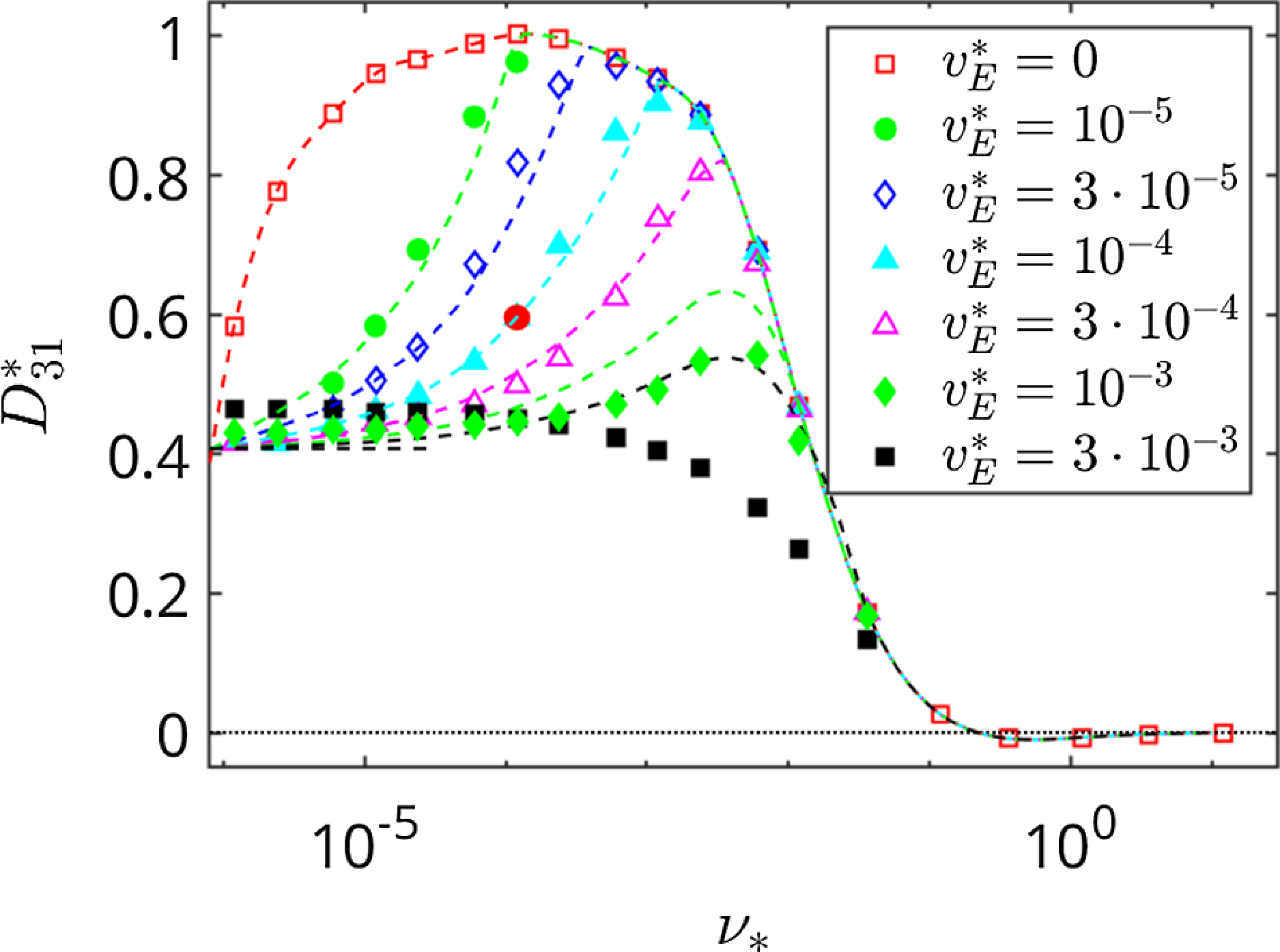

Figure 31. Attenuation test for the case in figure 4 of Helander et al. (2011). Normalized electric field values (Mach numbers $v_E^\ast =cE_r/(vB)$) are defined in the legend. Dashed lines show the result of scaling in (5.9) with the reference point shown by a red circle.
