Quasi-linear theory of perpendicular ion heating by critically balanced turbulence

Published online by Cambridge University Press:  10 June 2026

Zade Johnston*
Affiliation:
Department of Physics, University of Otago, 730 Cumberland St., Dunedin 9016, New Zealand
Jonathan Squire
Affiliation:
Department of Physics, University of Otago, 730 Cumberland St., Dunedin 9016, New Zealand
*
Corresponding author: Zade Johnston, zade.t.johnston@gmail.com

Abstract

In collisionless astrophysical plasmas, turbulence mediates the partitioning of free energy among cascade channels, and its dissipation into ion and electron heat. The resulting ion heating is often anisotropic, with ions observed to be preferentially heated perpendicular to the local magnetic field; understanding the mechanisms responsible for this heating is a key step in understanding the evolution of such plasmas. In this paper, we use the framework of quasi-linear theory to compute analytically the heating rates of ions interacting with turbulent, large-scale Alfvénic fluctuations. We show how the imbalance of the turbulence (the difference in energies between Alfvénic fluctuations travelling parallel and antiparallel to the magnetic field) modifies the spatiotemporal spectrum of these fluctuations, allowing the heating mechanism to smoothly transition between stochastic heating in balanced turbulence and cyclotron-resonant heating in imbalanced turbulence. The resultant heating rate is found to have a general form regardless of the level of imbalance, exhibiting a suppression related to the conservation of the ions’ magnetic moment at small turbulent amplitudes and recovering previous empirical results in a formal calculation. The results of this work help to consolidate our qualitative understanding of ion heating within astrophysical plasmas, as well as yielding specific quantitative predictions to analyse simulations and observations.

Information

Type
Research Article
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (https://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution and reproduction, provided the original article is properly cited.
Copyright
© The Author(s), 2026. Published by Cambridge University Press
Figure 0

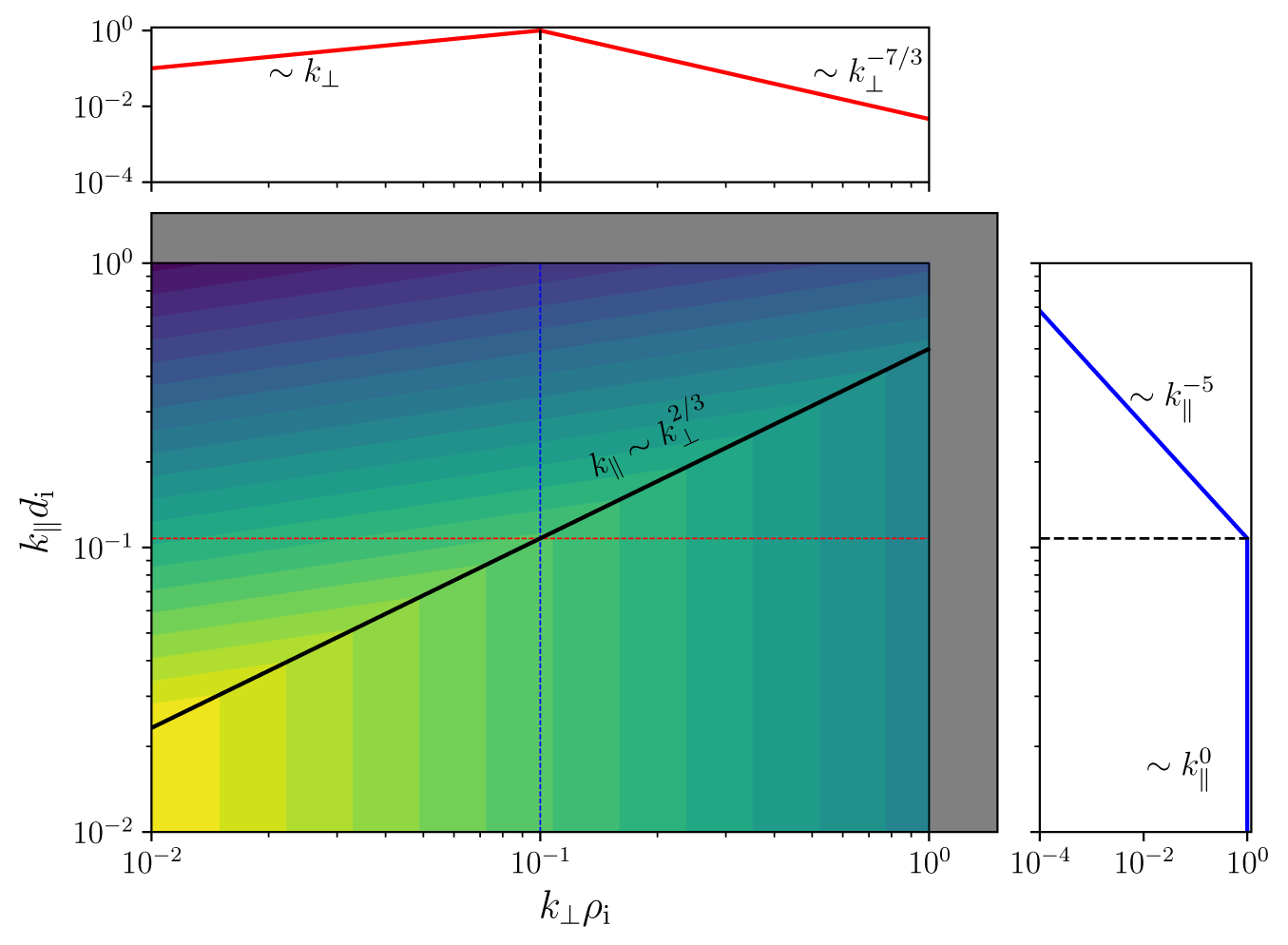

Figure 1. Two-dimensional spectrum model (3.13) with the Goldreich & Sridhar (1995) critical balance scaling $s_{\mathrm{CB}} = 2/3$, $C=1$ and $\xi _{\rho ,{\mathrm{th}}}=0.5$ (with critical balance line $k_\| d_{\mathrm{ i}}=0.5(k_\perp \rho _{\mathrm{i}})^{2/3}$). The grey boundaries represent the spectrum cutoff at $|k_\| d_{\mathrm{i}}| \gt 1$ or $k_\perp \rho _{\mathrm{i}} \gt 1$ assumed in (3.13). Side panels show slices through the spectra (normalised to the maximum value along the slice), showing the individual scalings of $k_\perp$ and $k_\|$ above and below the CB line.

Figure 1

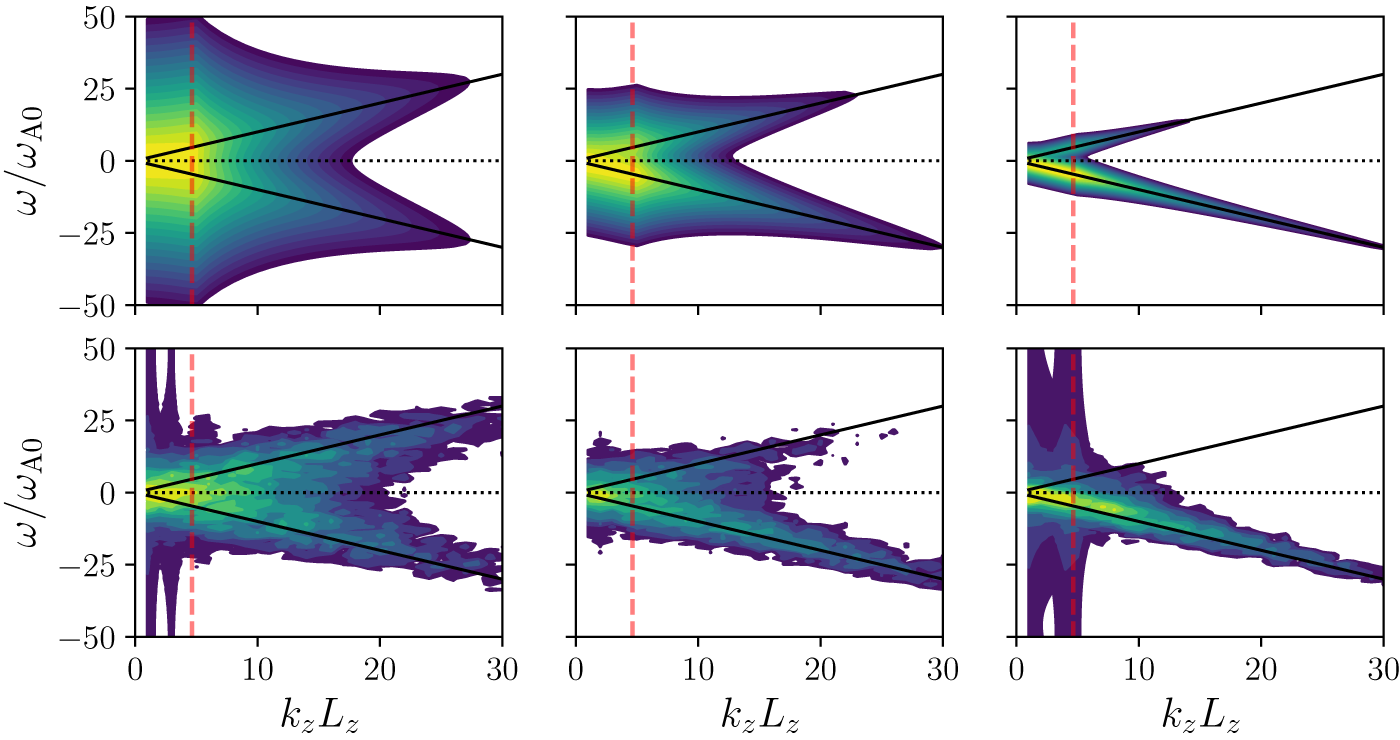

Figure 2. Slices at constant $k_\perp L_\perp = 10$ through the model wavevector–frequency spectrum of RMHD turbulence (3.23, top), showing it qualitatively reproduces features of the RMHD simulations presented in Appendix A (bottom). The turbulence has imbalance $\sigma _{\mathrm{c}} = 0,\ 0.59$ and $0.96$ (left, middle and right columns, respectively), and the model sets $\xi _{\rho ,{\mathrm{th}}} = 1$. The solid black lines correspond to zero frequency and the Alfvén dispersion relation $\omega _{\mathrm{A}} = \pm k_zv_{\mathrm{A}}$; the red dashed line is the critical balance scaling $k_\|^{\mathrm{CB}}$, such that everything with $k_\| \lt k_\|^{\mathrm{CB}}$ is within the CB cone. The frequencies are normalised to the outer-scale Alfvén frequency of the simulations, $\omega _{\mathrm{A0}}=v_{\mathrm{A}}/L_z$. Note that the appearance of energy in high frequencies at small $k_z$ in the bottom left and right figures is an artefact of the method used to calculate the spectrum.

Figure 2

Figure 3. Slices at constant $k_z L_z = 10$ through the model wavevector–frequency spectrum of RMHD turbulence (3.23, top), showing it qualitatively reproduces features of the RMHD simulations presented in Appendix A (bottom). The turbulence has imbalance $\sigma _{\mathrm{c}} = 0,\ 0.59$ and $0.96$ (left, middle and right columns, respectively), and the model sets $\xi _{\rho ,{\mathrm{th}}} = 1$. Solid black lines represent the centre of the Alfvén dispersion relation $\omega _{\mathrm{A}}=\pm k_zv_{\mathrm{A}}$ at the given value of $k_z$, and the red dashed line shows where $k_\perp = (k_\|^{\mathrm{CB}})^{3/2}$. Frequencies are normalised to the outer-scale Alfvén frequency, $\omega _{\mathrm{A0}}=v_{\mathrm{A}}/L_z$.

Figure 3

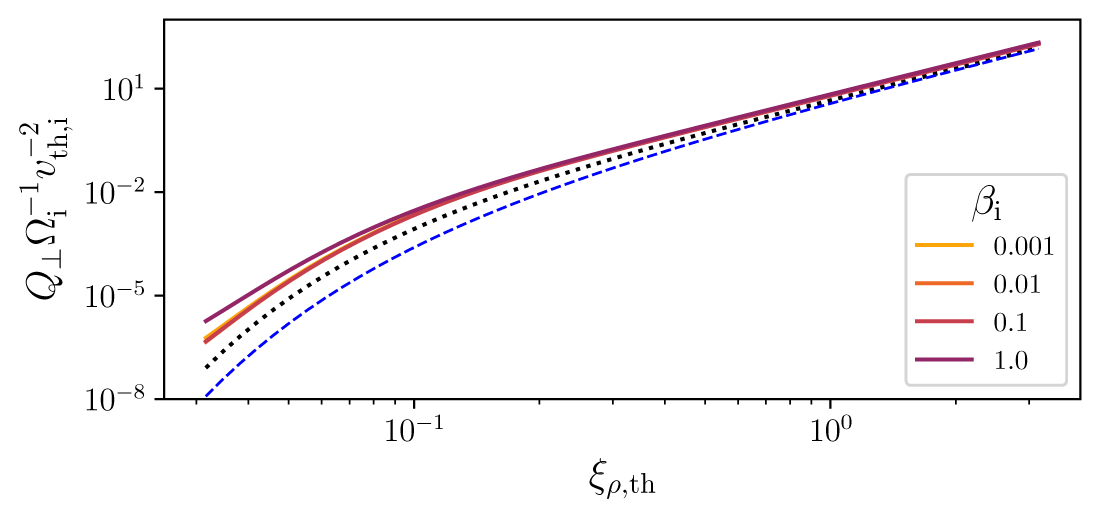

Figure 4. Perpendicular heating rate $Q_\perp$ in the fully imbalanced limit, where the general quasi-linear theory of velocity-space diffusion reduces to diffusion along contours of constant energy in the wave frame (Kennel & Engelmann 1966). $Q_\perp$ is calculated numerically from (4.23) using the imbalanced limit of the generalised diffusion coefficient $\mathcal{D}$ (4.22) for different values of $\beta _{\mathrm{i}}$ (with $C=1$ in $\tilde {\mathcal{E}}_{\mathrm{2D}}$, 3.13). Dotted lines show only the contribution of fluctuations below the CB cone to $Q_\perp$.

Figure 4

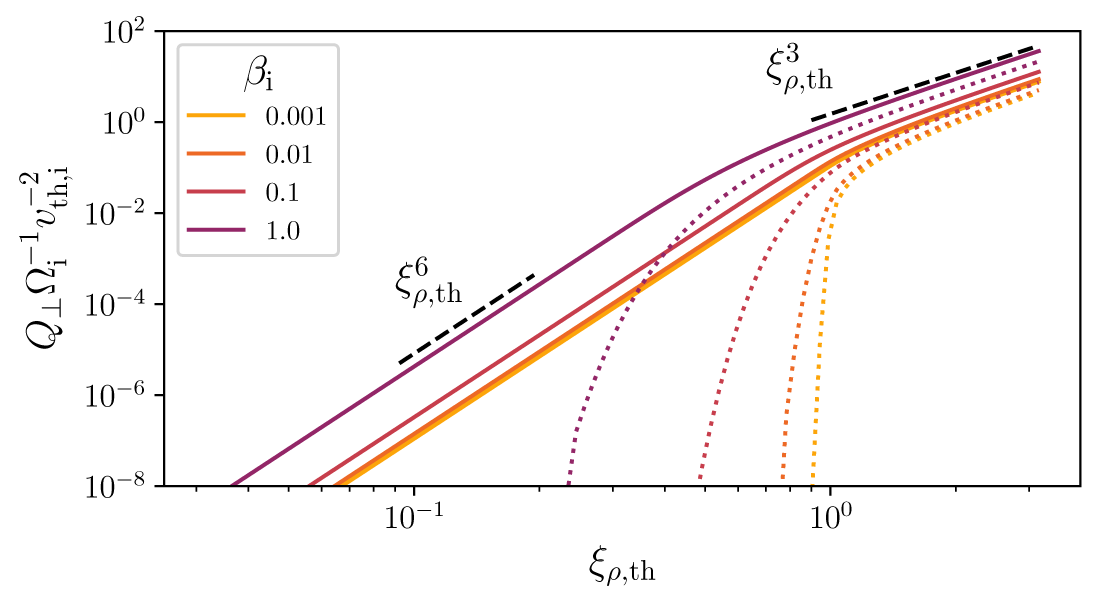

Figure 5. Perpendicular heating rate $Q_\perp$ in the balanced limit for different values of $\beta _{\mathrm{i}}$, calculated numerically using (4.26) with $C=5$ in $\tilde {\mathcal{E}}_{\mathrm{2D}}$ (3.13). To better highlight the suppression, only the contribution from modes below the CB cone are considered. The black dotted line shows the $\beta _{\mathrm{i}}$-independent analytic expression for $Q_\perp$ (4.29) (obtained in the limit $|\tilde{v}_\|| \ll 1$ and $\tilde{k}_\|\ll \tilde{k}_\|^{\mathrm{CB}}$) with $\hat {c}_1\approx 5$ and $\hat {c}_2 \approx 0.3$. These show qualitatively similar behaviour to the empirical stochastic heating formula (1.3) (Chandran et al. 2010a), shown by the blue dashed line with the same values for $c_1$ and $c_2$.

Figure 5

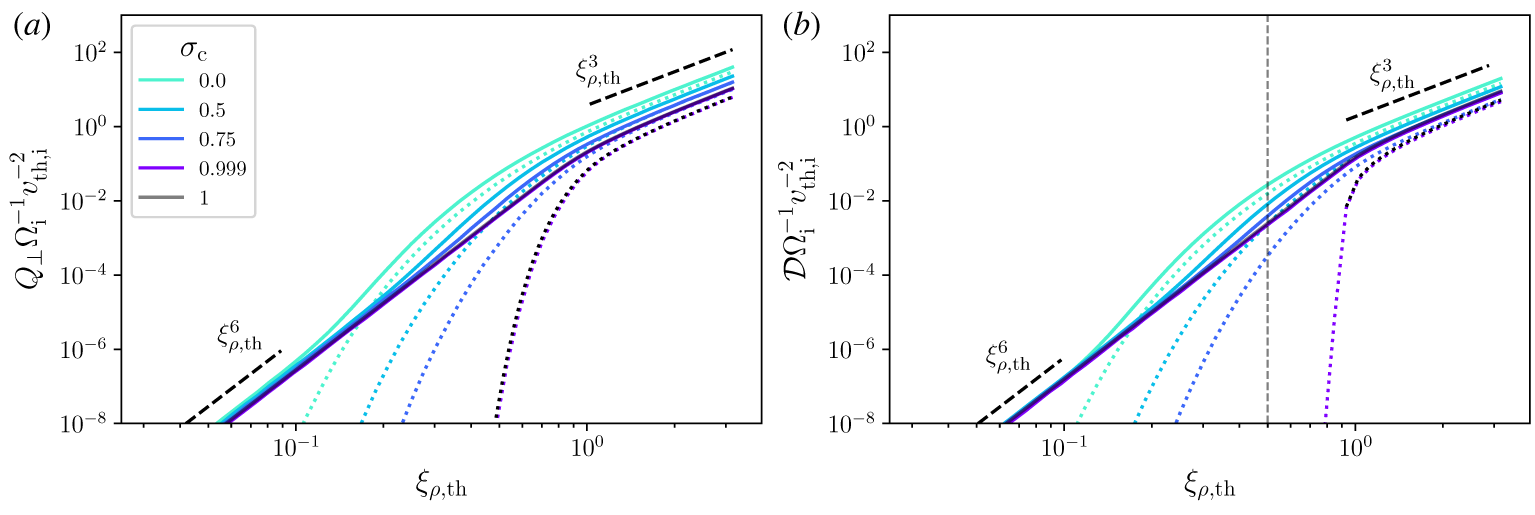

Figure 6. (a) Perpendicular heating rate $Q_\perp$, (4.15), as a function of $\xi _{\rho ,{\mathrm{th}}}$, with the integral in (4.15) calculated numerically with $\beta _{\mathrm{i}}=0.1$ and for different values of $\sigma _{\mathrm{c}}$. Solid lines show the contribution to $Q_\perp$ from all modes and dotted lines the contribution from only modes below the CB cone to highlight the suppression in heating for small $\xi _{\rho ,{\mathrm{th}}}$ (with $C=1$ in $\tilde {\mathcal{E}}_{\mathrm{2D}}$, (3.13)). The form of $Q_\perp$ in the $\sigma _{\mathrm{c}}=1$ limit (4.23) is also shown in grey; this overlaps $Q_\perp$ calculated with $\sigma _{\mathrm{c}}=0.999$. (b) Generalised diffusion coefficient $\mathcal{D}$ (4.10) as a function of $\xi _{\rho ,{\mathrm{th}}}$, showing the similarity in scaling to $Q_\perp$. The integral in (4.10) is calculated numerically with $\tilde{v}_\|=0.1$ and with the same values of $\sigma _{\mathrm{c}}$ in panel (a); dotted lines show the contribution from only modes below the CB cone. The dashed vertical line at $\xi _{\rho ,{\mathrm{th}}}=0.5$ corresponds to the value of $\xi _{\rho ,{\mathrm{th}}}$ used in figure 7. The form of $\mathcal{D}$ in the $\sigma _{\mathrm{c}}=1$ limit, (4.22), is also shown in black; as above, this overlaps $\mathcal{D}$ calculated with $\sigma _{\mathrm{c}}=0.999$.

Figure 6

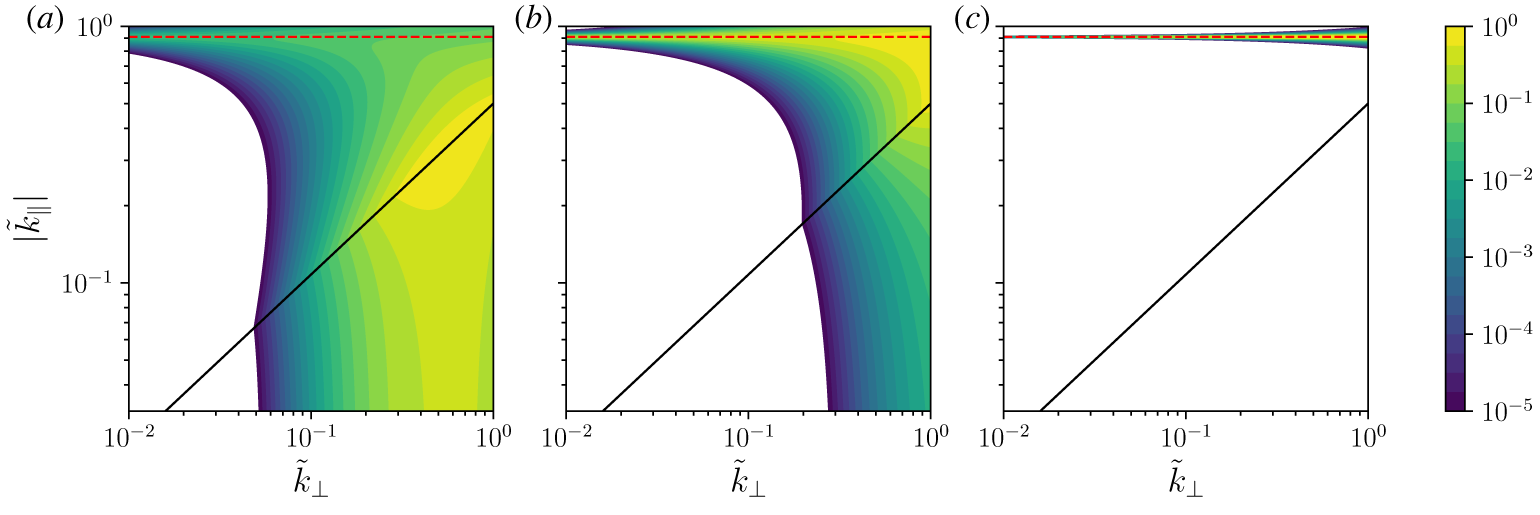

Figure 7. Integrand of the generalised diffusion coefficient $\mathcal{D}$, (4.10), which therefore shows the contribution of fluctuations at a given $(\tilde{k}_\perp ,\tilde{k}_\|)$ to the overall heating. Each integrand is normalised to its maximum value and is plotted with $\xi _{\rho ,{\mathrm{th}}} = 0.5$, $\tilde{v}_\|=0.1$, and $\sigma _{\mathrm{c}} = (a)\, 0.0$, (b) $0.75$ and (c) $0.999$. The black line corresponds to the CB cone $\tilde{k}_\|^{\mathrm{CB}} = \xi _{\rho ,{\mathrm{th}}}\tilde{k}_\perp ^{2/3}$. The horizontal red dashed line is $\tilde{k}_\|^{(1)}\approx 0.9$, the resonant $k_\|$ with which ions interact in the imbalanced limit defined in (4.19). Note that we are looking at the $\tilde{k}_\| \lt 0$ modes.

Figure 7

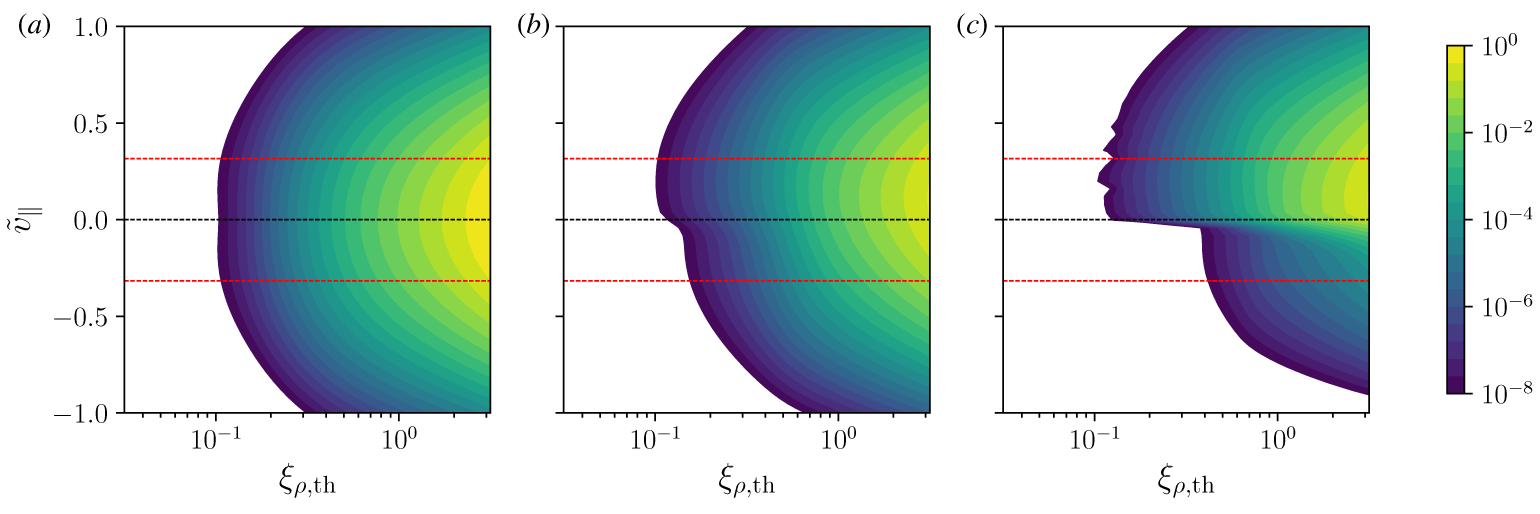

Figure 8. Differential heating rate ${\mathrm{d}} Q_\perp /{\mathrm{d}} v_{\|}$ (4.31), which quantifies the heat given to ions with parallel velocities between $v_{\|}$ and $v_{\|}+{\mathrm{d}}v_{\|}$, calculated using $\beta _{\mathrm{i}}=0.1$, and $\sigma _{\mathrm{c}}= (a)\,0.0$, (b) $0.75$ and (c) $0.999$. The red dashed lines correspond to where $|\tilde{v}_{\|}|=v_{\mathrm{th}, \textrm{i}}/v_{\mathrm{A}}=\sqrt {\beta _{\mathrm{i}}}$. These plots are normalised to the maximum value in the balanced case in panel (a).

Figure 8

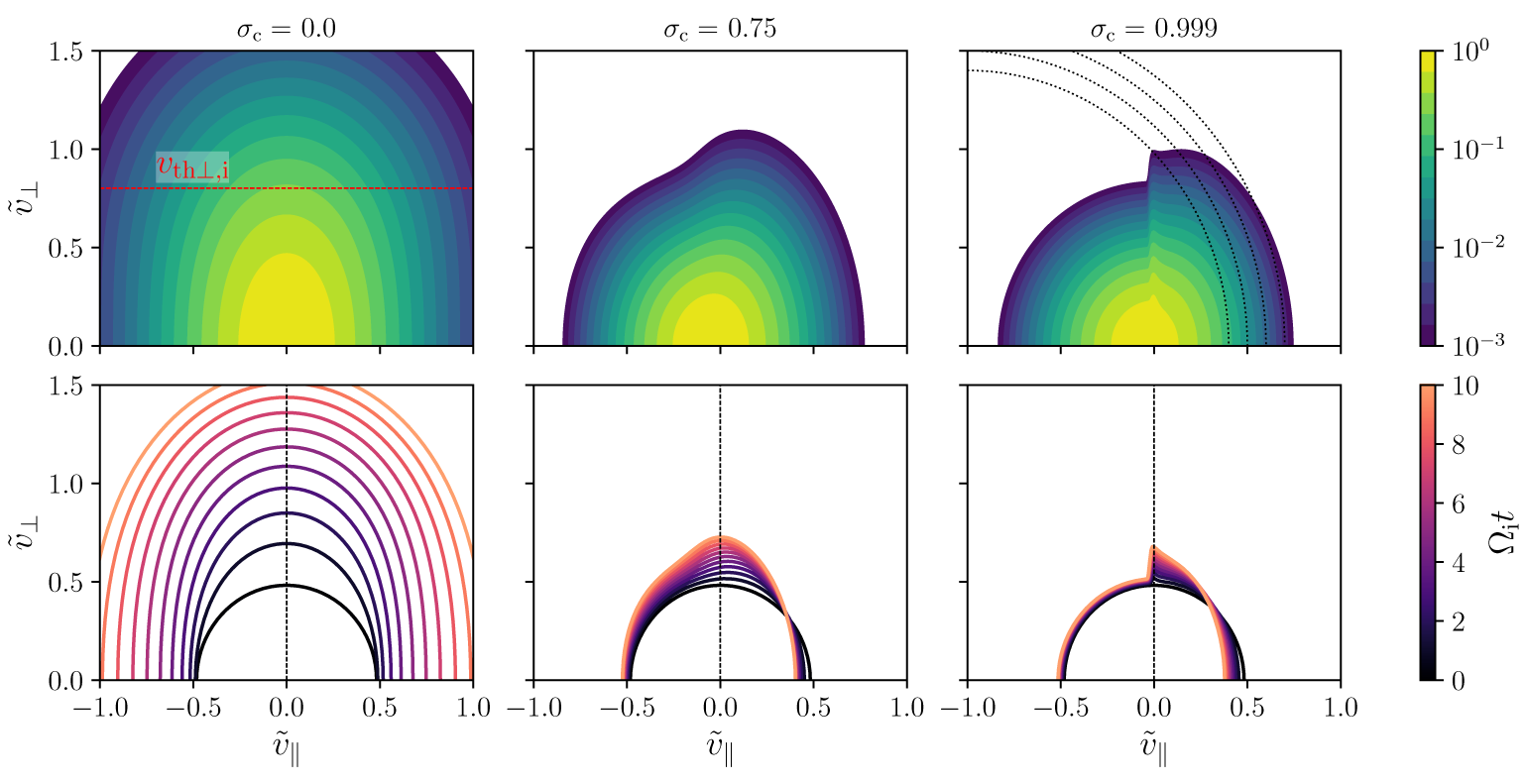

Figure 9. Distribution function $f_0$ numerically evolved from an initial Maxwellian using the diffusion coefficients (4.4) in the diffusion equation (2.5), with $\beta _{\mathrm{i}}=0.1$, $\xi _{\rho ,{\mathrm{th}}}=0.5$ and $\sigma _{\mathrm{c}}=0.0$ (left column), $0.75$ (middle column) and $0.999$ (right column). Top row: snapshots of $f_0$ at time $\varOmega _{\mathrm{i}} t = 4$, showing their evolved structure. The distribution functions are normalised to their maximum value, with contours of the initial Maxwellian shown in grey. The red dashed line in the $\sigma _{\mathrm{c}}=0.0$ case represents the current perpendicular thermal velocity $v_{\mathrm{th}\perp , \mathrm{i}}$ of $f_0$, and the dotted lines in the $\sigma _{\mathrm{c}}=0.999$ case represent contours of constant energy in the frame of the $\boldsymbol{z}^+$ fluctuations, which are circles centred on $\tilde{v}_\|=-1$. Bottom row: evolution of $f_0$ up to time $\varOmega _{\mathrm{i}} t = 10$, with contours enclosing 90 % of the distribution shown at intervals of $\varOmega _{\mathrm{i}} t=1$. As the imbalance increases, $f_0$ becomes asymmetric around $\tilde{v}_\|=0$ (dashed lines).

Figure 9

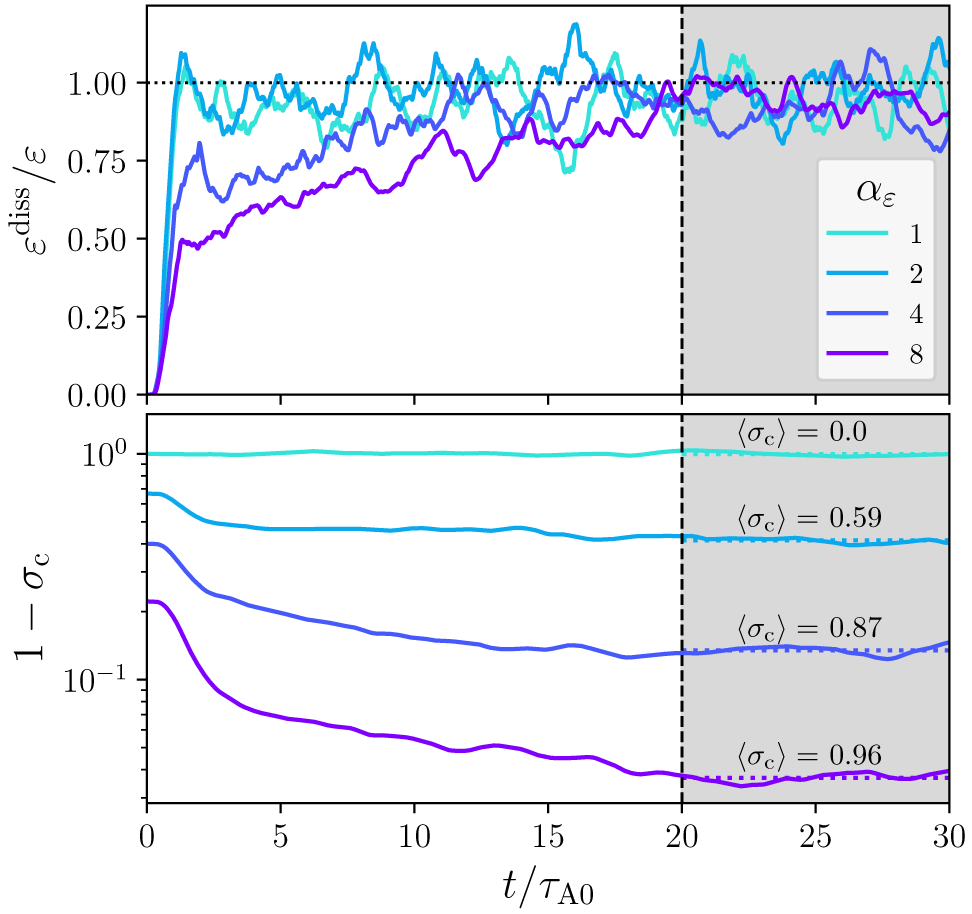

Figure 10. Dissipation and normalised cross-helicity versus time from all simulations, with different levels of injection imbalance $\alpha _\varepsilon$ as listed in the legend. The turbulence reaches approximate steady state when dissipation balances the injection energy, with all simulations reaching this point after $20\tau _{{\mathrm{A}}0}$. The grey region represents the period of time over which all statistics are calculated and averaged (denoted by $\langle \boldsymbol{\cdot }\rangle$).

Figure 10

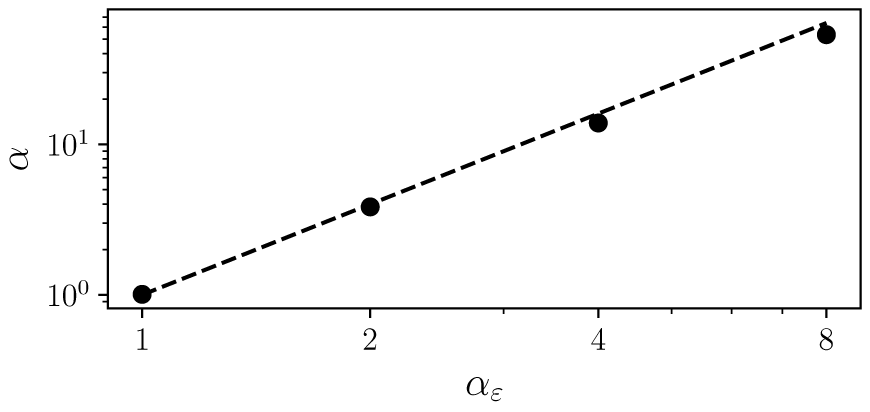

Figure 11. Elsasser energy ratio calculated from the time-averaged cross helicity using (A3). Most phenomenological theories of imbalanced turbulence predict that this should scale as $\propto \alpha _\varepsilon ^2$ (dashed line), which agrees well with our results.

Figure 11

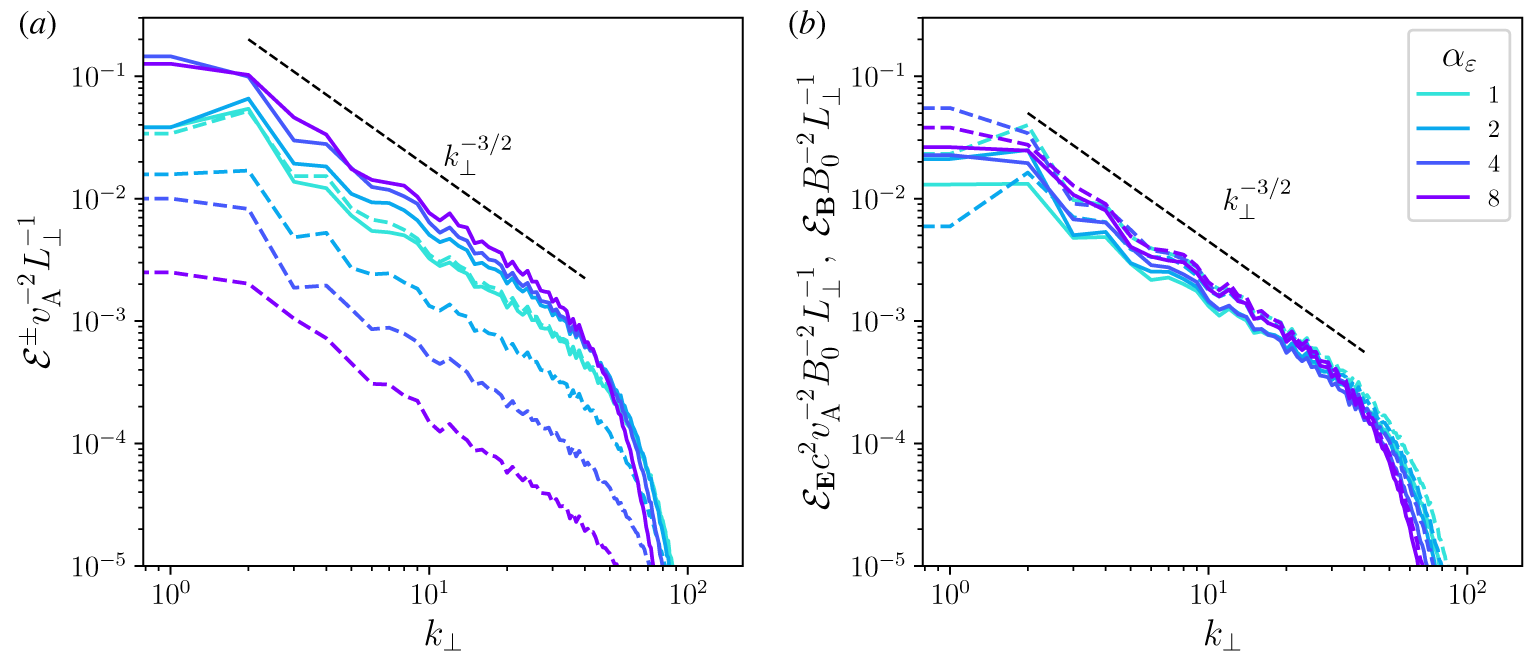

Figure 12. (a) One-dimensional energy spectra of the $\boldsymbol{z}^+$ ($\mathcal{E}^+(k_\perp )$, solid) and $\boldsymbol{z}^-$ ($\mathcal{E}^-(k_\perp )$, dashed) fluctuations, respectively. (b) One-dimensional energy spectra of the electric- ($\mathcal{E}_{{\boldsymbol{E}}}(k_\perp )$, solid) and magnetic-field fluctuations ($\mathcal{E}_{{\boldsymbol{B}}}(k_\perp )$, dashed).

Figure 12

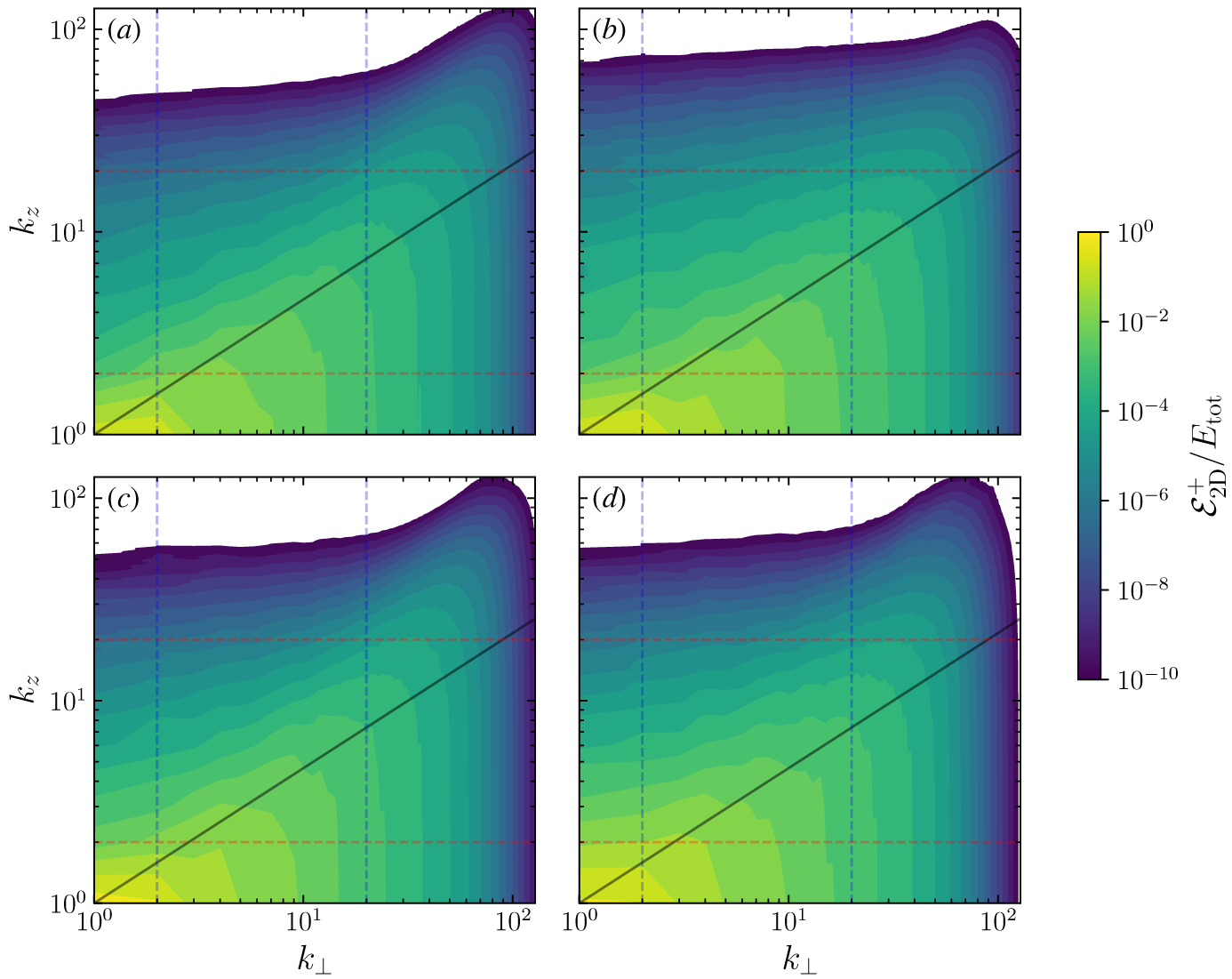

Figure 13. Two-dimensional spectra of $\boldsymbol{z}^+$ from the $\alpha _\varepsilon = (a)\,1$, (b) 2, (c) 4 and (d) 8 simulations. Blue and red dashed lines correspond to the slices at constant $k_\perp$ and $k_z$ used in figure 15, and the black line shows $k_z \propto k_\perp ^{2/3}$.

Figure 13

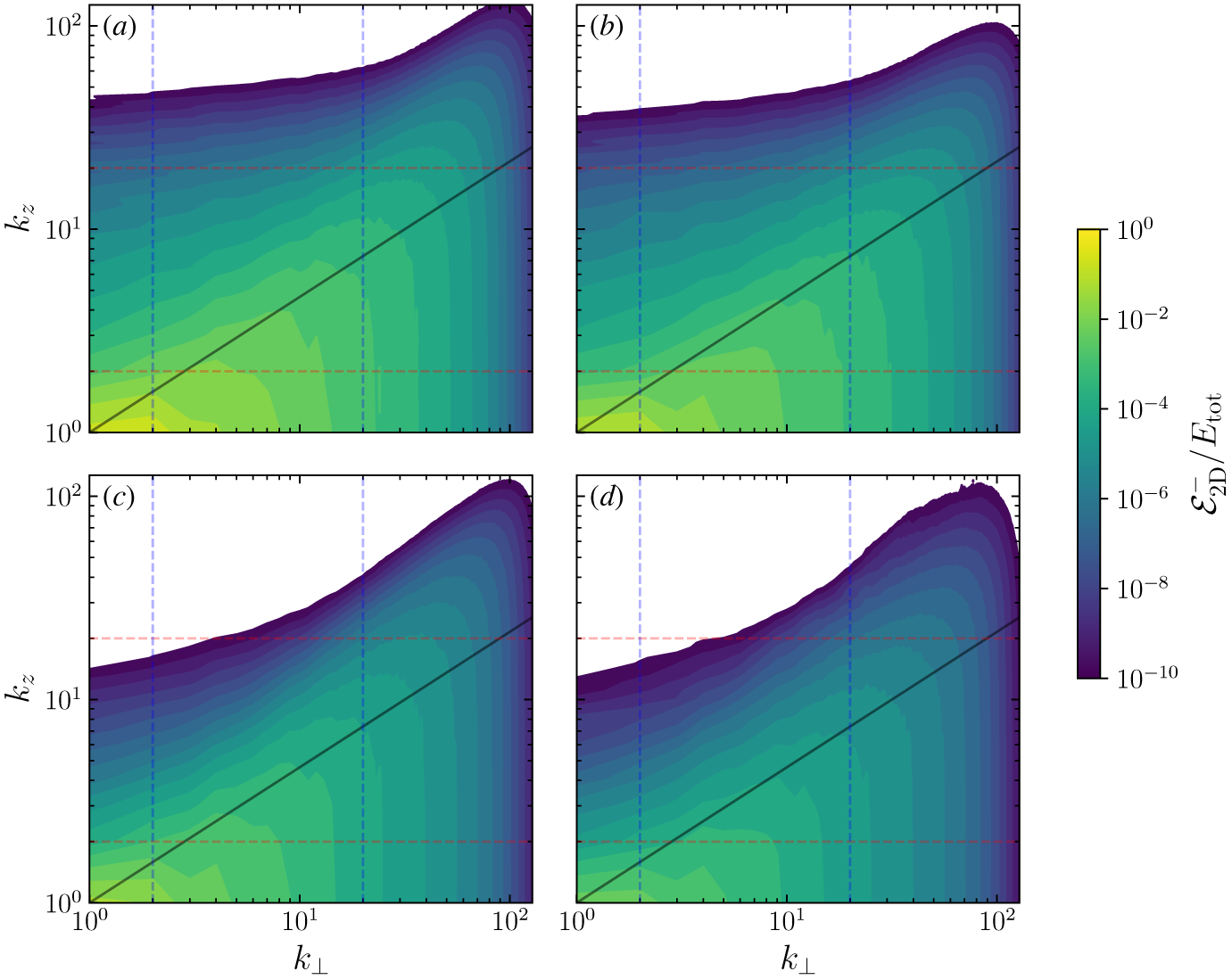

Figure 14. Two-dimensional spectra of $\boldsymbol{z}^-$ from the $\alpha _\varepsilon = (a)\,1$, (b) 2, (c) 4 and (d) 8 simulations. As in figure 13, blue and red dashed lines correspond to the slices used in figure 16.

Figure 14

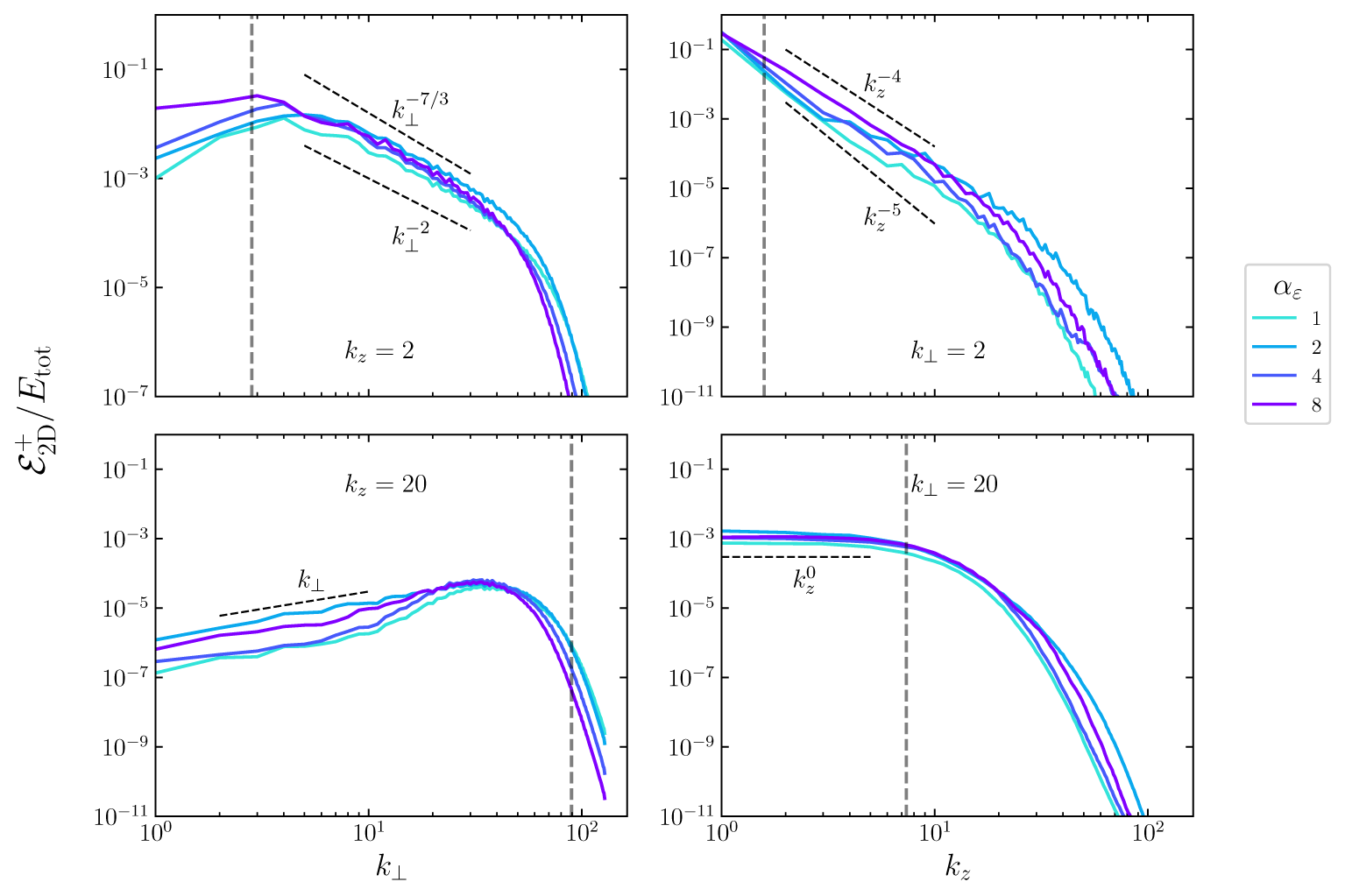

Figure 15. Slices taken through the two-dimensional spectra of $\boldsymbol{z}^+$ at constant $k_z$ (left panels) and $k_\perp$ (right panels), and at low (top panels) and high (bottom panels) values of $k_z$ and $k_\perp$, respectively. Vertical dashed lines correspond to the approximate position of the CB cone, $\approx k_\perp ^{2/3}$ for the constant-$k_\perp$ slices and $\approx k^{3/2}_z$ for the constant-$k_z$ slices. Note the difference in $y$-axis scaling for the $k_z=2$ slice.

Figure 15

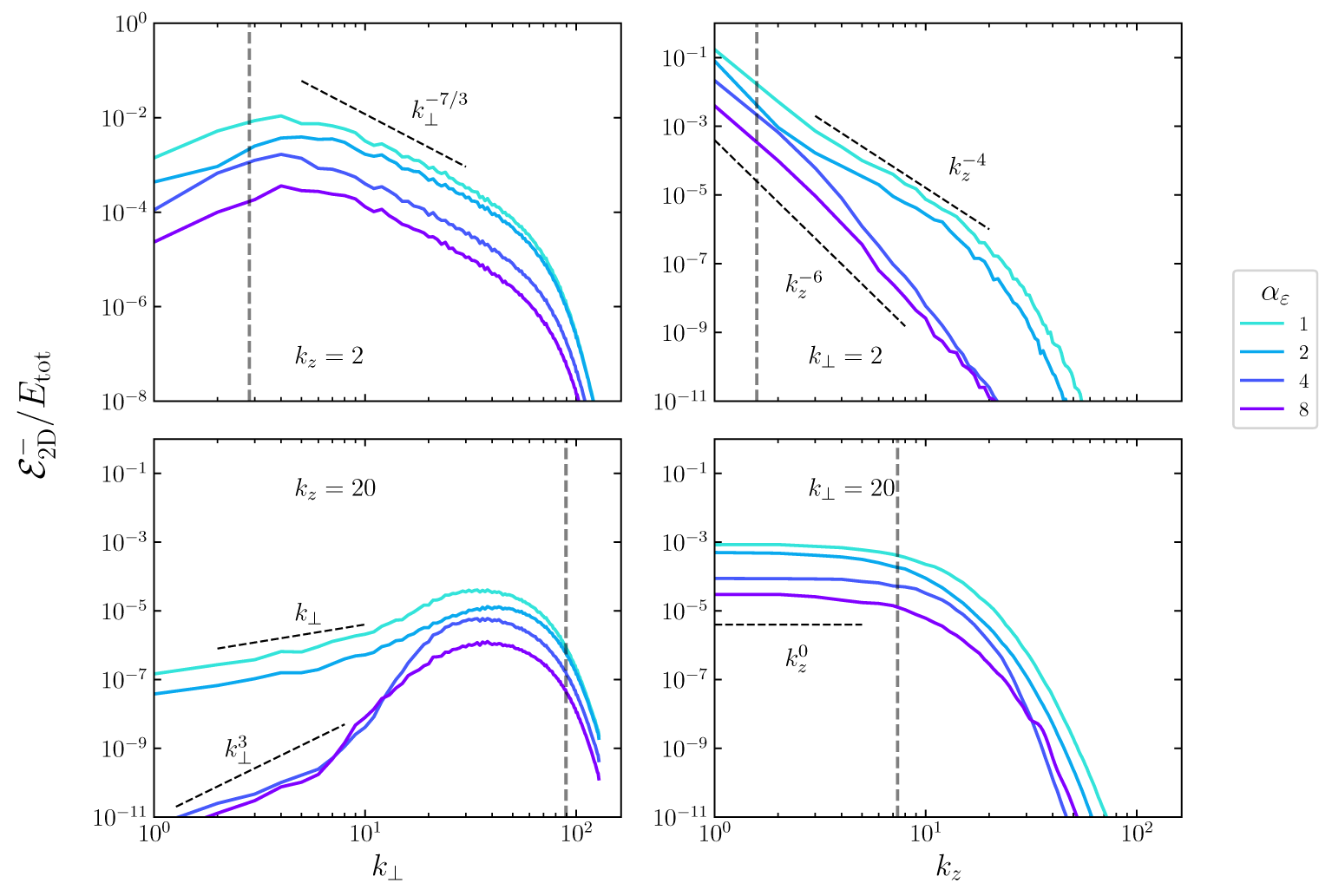

Figure 16. As in figure 15, but for the $\boldsymbol{z}^-$ fluctuations.

Figure 16

Figure 17. Top row: the wavevector–frequency spectrum $\mathcal{E}_{\mathrm{tot}}$ (A4) normalised to its maximum value at each value of $k_z$, with $\alpha _\varepsilon$ increasing from left to right. The dashed lines correspond to zero frequency and the Alfvén dispersion relation $\omega _{\mathrm{A}} = \pm k_zv_{\mathrm{A}}$; the blue line is the mean value of $\omega$ at each value of $k_z$. Bottom row: the wavevector–frequency spectrum $\mathcal{E}^-$ of the $\boldsymbol{z}^-$ fluctuations normalised to its maximum value at each value of $k_z$, with $\alpha _\varepsilon$ increasing from left to right. Frequencies in all plots are normalised to the outer scale Alfvén frequency $\omega _{\mathrm{ A0}}=v_{\mathrm{A}}/L_z$.

Figure 17

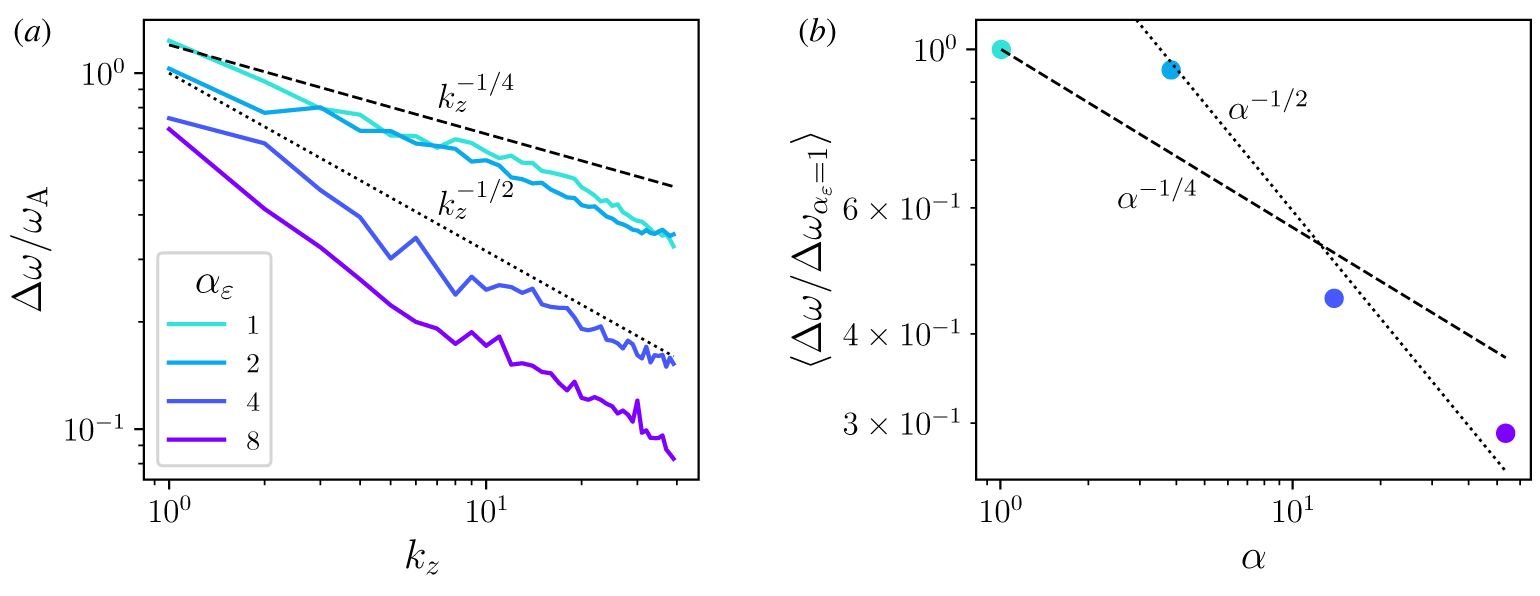

Figure 18. (a) Widths $\Delta \omega$ of the bands in the $k_\perp$-averaged wavevector–frequency spectrum (figure 17) relative to the Alfvén frequency $\omega _{\mathrm{A}}=k_zv_{\mathrm{A}}$. These scale approximately between $k^{-1/4}_z$ and $k^{-1/2}_z$. (b) Average value of the ratio of $\omega _{\mathrm{rms}}$ for each simulation to that of the $\alpha _\varepsilon =1$ simulation.

Figure 18

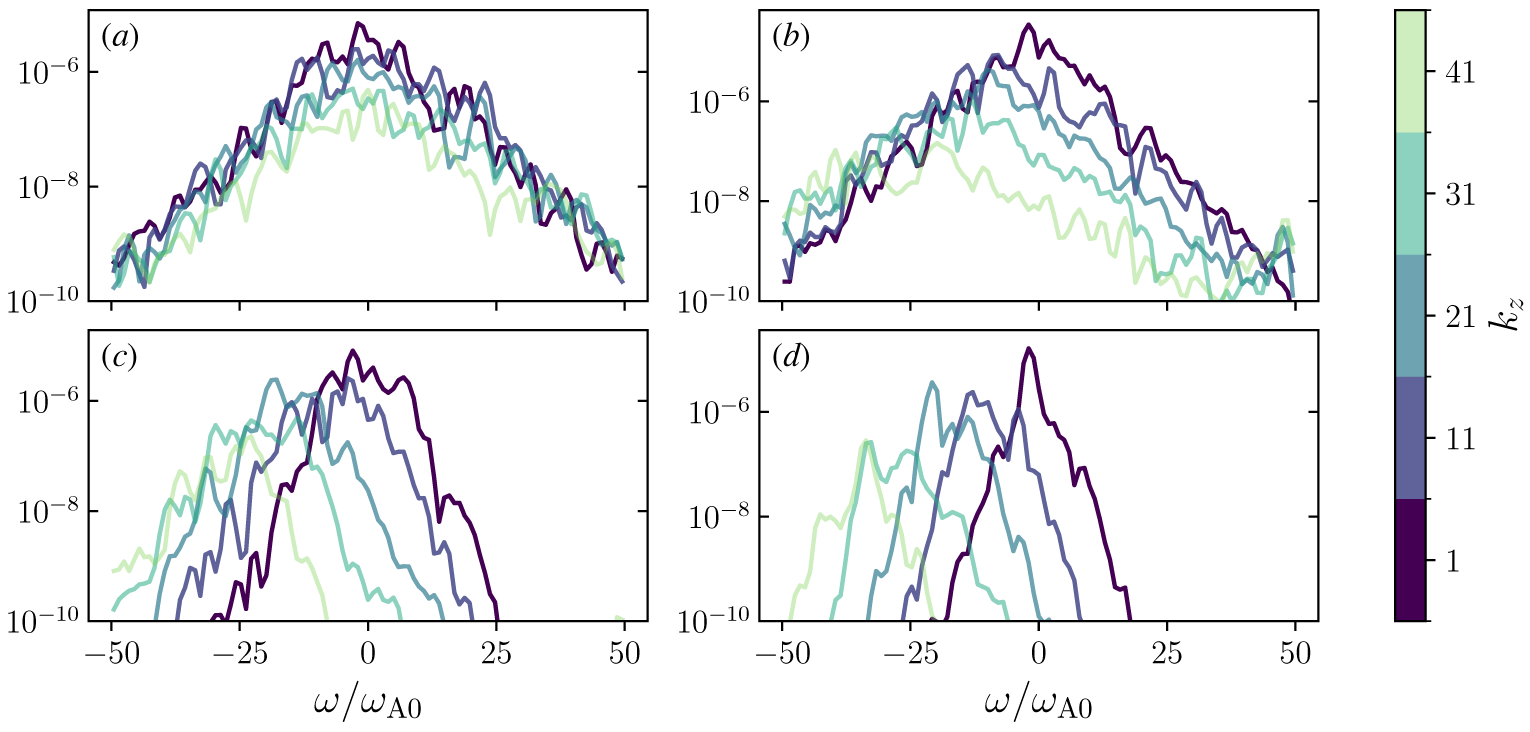

Figure 19. Slices at $k_\perp =50$ and increasing values of $k_z$ (from 1 to 41 in steps of 10) from the $\alpha _\varepsilon = (a)\, 1$, (b) 2, (c) 4 and (d) 8 wavevector–frequency spectra $\mathcal{E}_{\mathrm{ tot}}(k_\perp ,k_z,\omega )$. Frequencies are normalised to the outer scale Alfvén frequency $\omega _{\mathrm{A0}}=v_{\mathrm{A}}/L_z$.

Figure 19

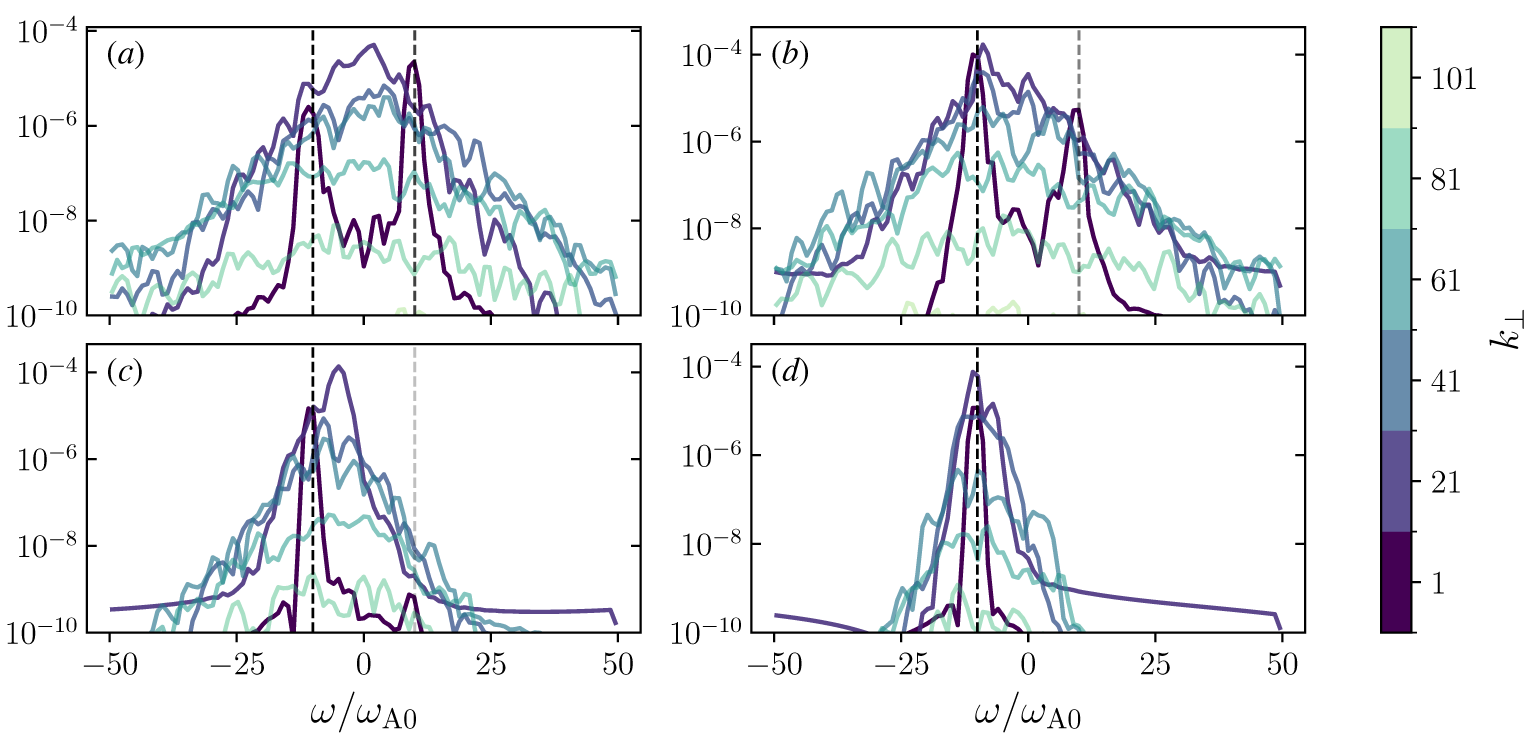

Figure 20. Slices at $k_z=10$ and increasing values of $k_\perp$ (from 1 to 101 in steps of 20) from the $\alpha _\varepsilon =(a)\, 1$, (b) 2, (c) 4 and (d) 8 wavevector–frequency spectra $\mathcal{E}_{\mathrm{ tot}}(k_\perp ,k_z,\omega )$. Dashed vertical lines at $\omega _{\mathrm{A}}/\omega _{\mathrm{A0}}=\pm 10$ correspond to the Alfvén wave dispersion relation at this value of $k_z$. Frequencies are normalised to the outer scale Alfvén frequency $\omega _{\mathrm{A0}}=v_{\mathrm{A}}/L_z$.

Figure 20

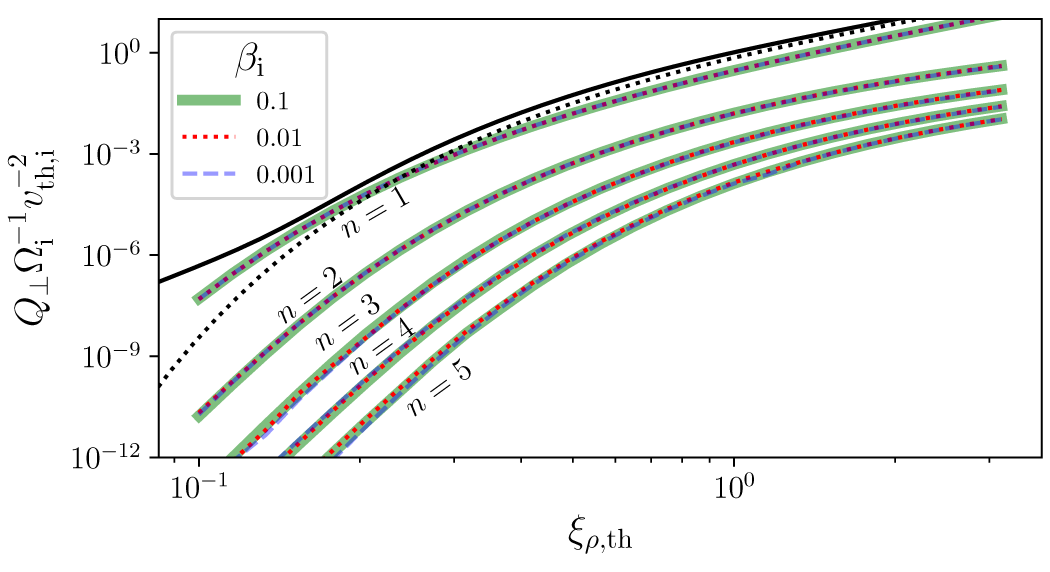

Figure 21. Perpendicular heating rates $Q_\perp ^{(n)}$ for $1\leqslant n\leqslant 5$, calculated using (C4). The solid black line shows the contribution to $Q_\perp$ from all modes calculated numerically using (4.15) with $\sigma _{\mathrm{c}}=0$ and $\beta _{\mathrm{i}}=0.1$, while the dotted line shows only the contribution from modes below the CB cone.

Figure 21

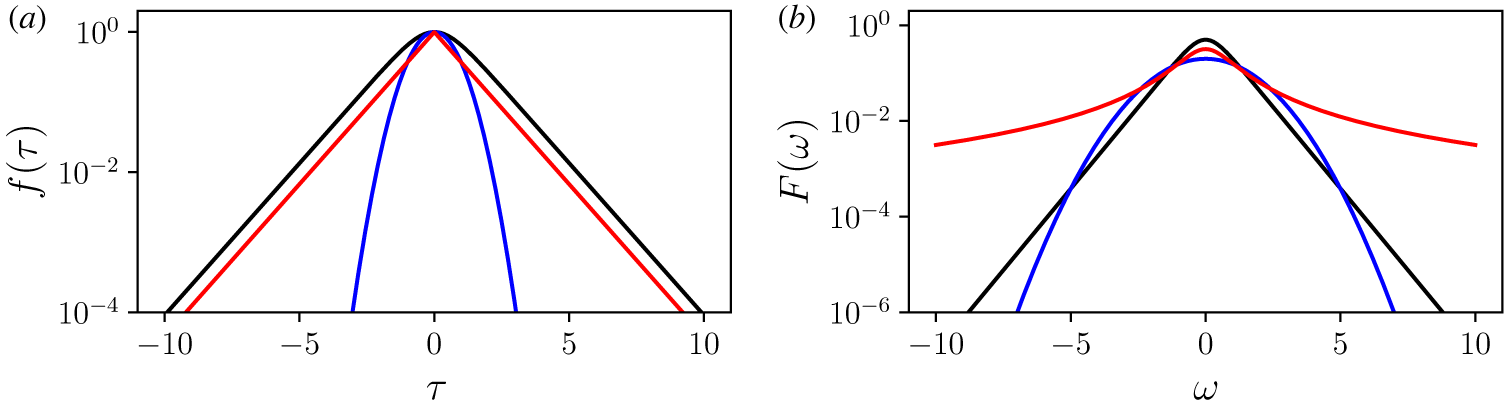

Figure 22. (a) Time correlation functions $f(\tau )$ and (b) their temporal Fourier transforms $F(\omega )$, with $f(\tau )={\mathrm{sech}}(\alpha \tau )$ (black; (D1)), $\exp (-(\alpha \tau )^2)$ (blue; (D2)), $\exp (-|\alpha \tau |)$ (red; (D3)); $\alpha$ is set to 1 for all functions.

Figure 22

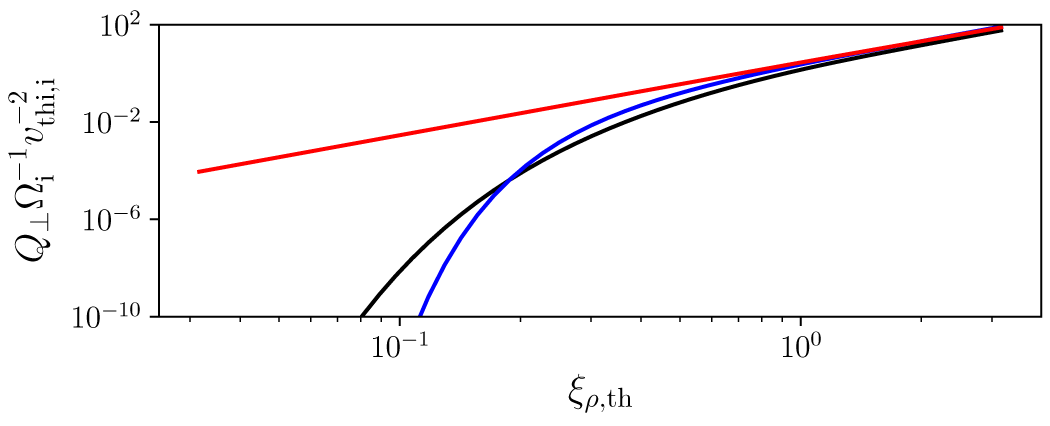

Figure 23. Perpendicular heating rate $Q_\perp$ in balanced turbulence with $\beta _{\mathrm{i}}=0.1$, using the temporal correlation functions ${\mathrm{sech}}(\omega _{\mathrm{nl}}\tau )$ (black; (D1)), $\exp (-(\omega _{\mathrm{nl}}\tau )^2)$ (blue; (D2)), $\exp (-|\omega _{\mathrm{nl}}\tau |)$ (red; (D3)). To better show the suppression, only the contribution from modes beneath the CB cone are considered in the calculation of $Q_\perp$.

Figure 23

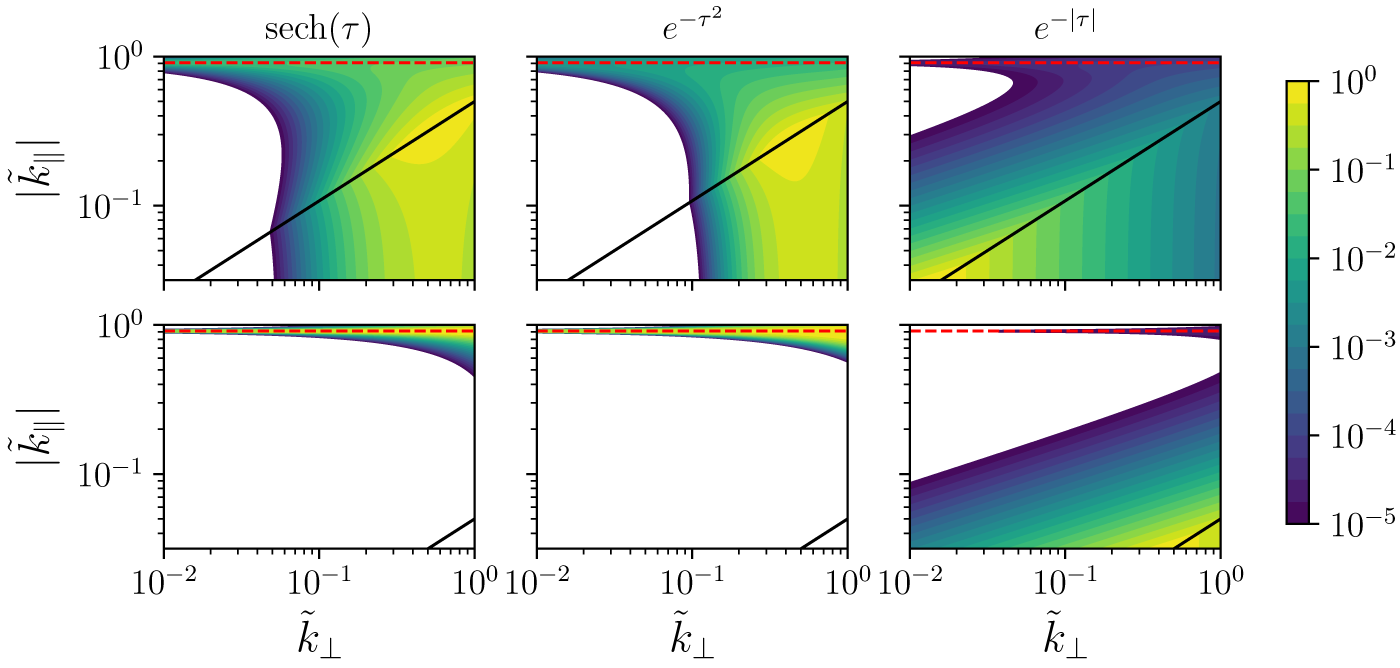

Figure 24. The integrand of (4.10), normalised to its maximum value, plotted with $\tilde{v}_\|=0.1$, $\sigma _{\mathrm{c}}=0$, and correlation function ${\mathrm{sech}}(\omega _{\mathrm{nl}}\tau )$ (left; (D1)), $\exp (-(\omega _{\mathrm{nl}}\tau )^2)$ (middle; (D2)), $\exp (-|\omega _{\mathrm{nl}}\tau |)$ (right; (D3)); the top row sets $\xi _{\rho ,{\mathrm{th}}}=0.5$, and the bottom $\xi _{\rho ,{\mathrm{th}}}=0.05$. The black line corresponds to the CB cone $\tilde{k}_\|^{\mathrm{CB}} = \xi _{\rho ,{\mathrm{th}}}\tilde{k}_\perp ^{2/3}$. The horizontal red dashed line is $\tilde{k}_\|^{(1)}$, the resonant $k_\|$ that ions interact with in the imbalanced limit (4.19). Note that we are looking at the $\tilde{k}_\| \lt 0$ modes, corresponding to $\boldsymbol{z}^+$ fluctuations.

Figure 24

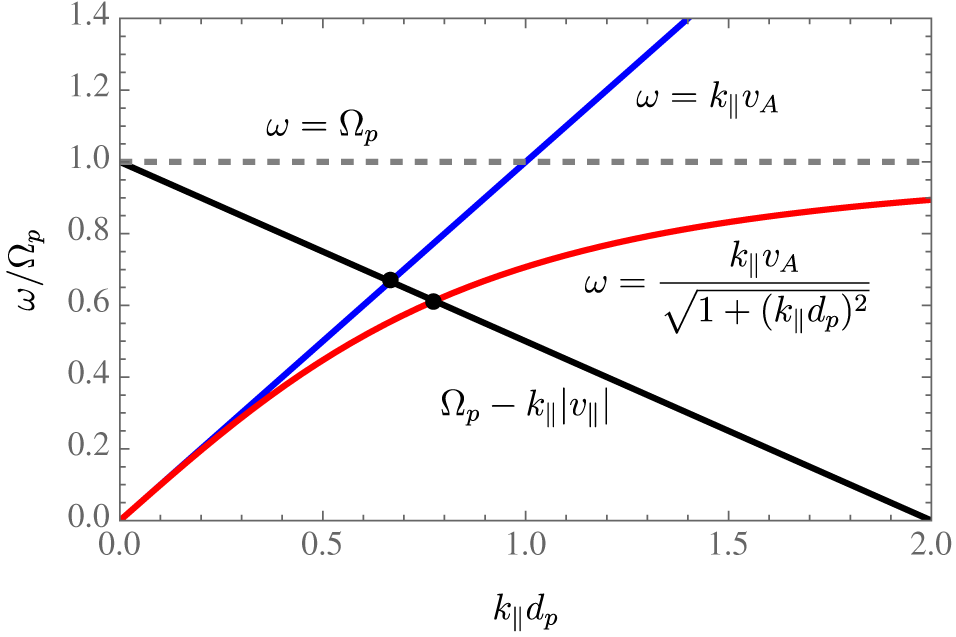

Figure 25. Comparison of the resonant parallel wavenumber obtained from the quasi-linear resonance condition (E1) when using the Alfvén-wave dispersion relation (blue), and the oblique limit of ICWs at $\beta _{\mathrm{i}}\ll 1$ (red). The intersection between these curves and the line $\omega = \varOmega _{\mathrm{p}} - k_\||v_\||$ (black, illustrated for a proton with $v_\|\lt 0$), where (E1) is satisfied, gives the resonant wavenumber.
