Optimal Landau-type closure parameters for two-fluid simulations of plasma turbulence at kinetic scales

Published online by Cambridge University Press:  19 February 2026

Simon Lautenbach*
Affiliation:
Theoretical Physics I, Ruhr University Bochum, Universitätsstraße 150, D-44801 Bochum, Germany
Jeremiah Lübke
Affiliation:
Theoretical Physics I, Ruhr University Bochum, Universitätsstraße 150, D-44801 Bochum, Germany
Maria Elena Innocenti
Affiliation:
Theoretical Physics I, Ruhr University Bochum, Universitätsstraße 150, D-44801 Bochum, Germany
Katharina Kormann
Affiliation:
Numerical Mathematics, Ruhr University Bochum, Universitätsstraße 150, D-44801 Bochum, Germany
Rainer Grauer
Affiliation:
Theoretical Physics I, Ruhr University Bochum, Universitätsstraße 150, D-44801 Bochum, Germany
*
Corresponding author: Simon Lautenbach, simon.lautenbach@ruhr-uni-bochum.de

Abstract

Two-fluid simulations using local Landau-fluid closures derived from linear theory provide an efficient computational framework for plasma modelling, since they bridge the gap between computationally intensive kinetic simulations and fluid descriptions. Their accuracy in representing kinetic effects depends critically on the validity of the linear approximation used in the derivation: the plasma should not be too far from local thermodynamic equilibrium (LTE). However, many of the problems where these models are of particular interest (such as plasma turbulence and instabilities) are in fact quite far from LTE. The question then arises as to whether kinetic-scale processes are still sufficiently well captured outside of the theoretical regime of applicability of the closure. In this paper, we show that two-fluid simulations with Landau-fluid closures can effectively reproduce the energy spectra obtained with fully kinetic Vlasov simulations, used as references, as long as the local closure parameter is appropriately chosen. Our findings validate the usage of two-fluid simulations with a Landau-fluid closure as a possible alternative to fully kinetic simulations of turbulence, in cases where being able to simulate extremely large domains is of particular interest.

Information

Type
Research Article
Creative Commons
Creative Common License - CCCreative Common License - BY
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (https://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution and reproduction, provided the original article is properly cited.
Copyright
© The Author(s), 2026. Published by Cambridge University Press
Figure 0

Table 1. Models employed across different simulation cases. Each cell indicates whether a particular plasma model (column) was used for a specific simulation set-up (row).

Figure 1

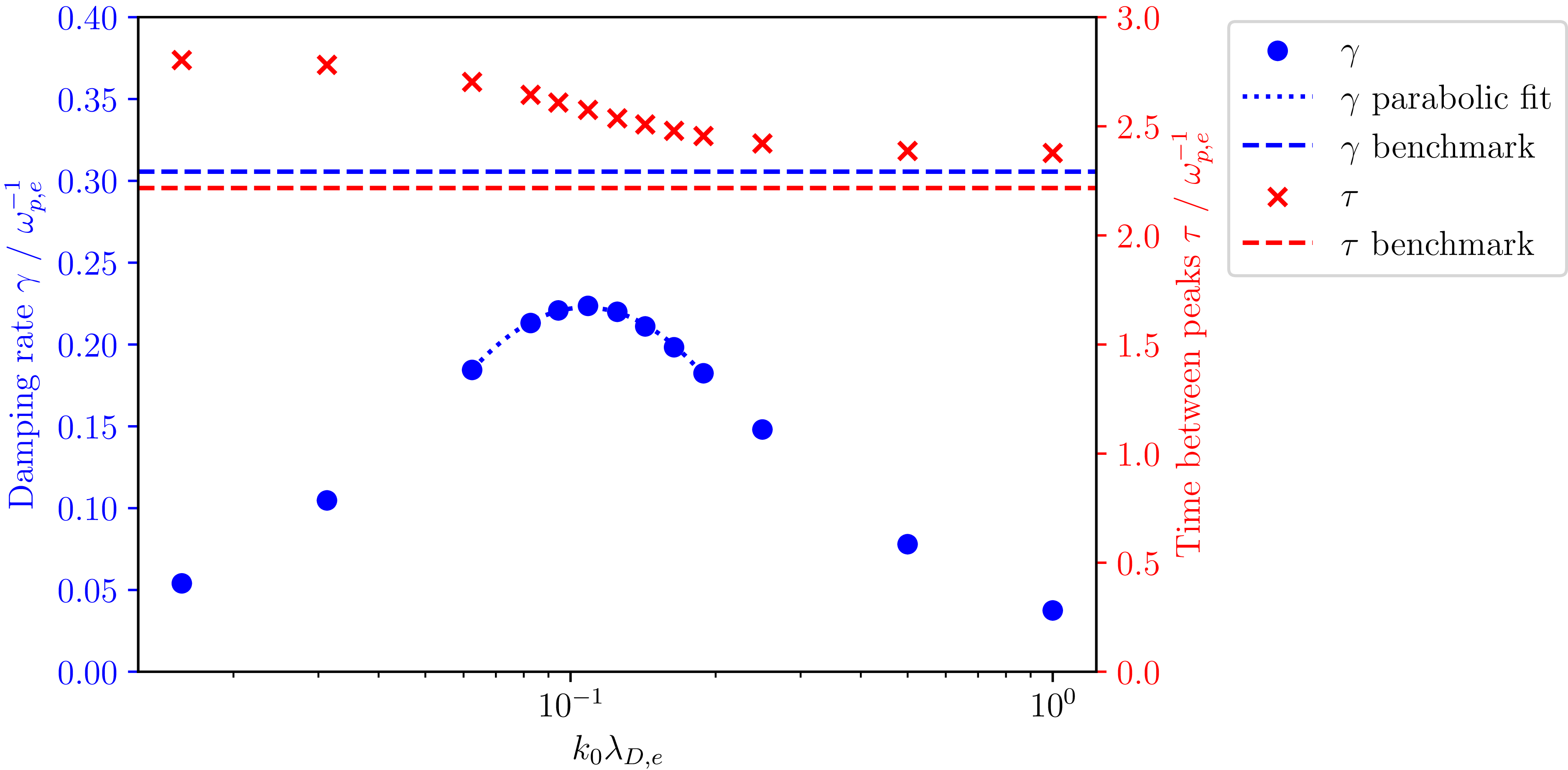

Figure 1. Landau damping in hybrid (Vlasov ion, fluid electron) simulations as a function of $k_0 \lambda _{D,e}$. The damping rate $\gamma$ is plotted in blue on the left axis, the half-period of the electric field oscillations in red on the right axis. The dashed lines at the top and bottom are results from the fully kinetic benchmark simulation. A parabolic fit of the damping rate over the highest values (dotted blue) gives the closest approach to the benchmark value at $k_0=0.11\,\lambda _{D,e}^{-1}$ with a damping rate of $0.22\,\omega _{p,e}^{-1}$.

Figure 2

Figure 2. Value of $B_z/ B_{0}$ as a function of space in KHI simulations with different models, at $t = 200 \omega _{p,e}^{-1}$: fully kinetic Vlasov simulation (panel a); hybrid simulation, with Vlasov ions and fluid, 10-moment electrons (panel b); two-fluid 10-moment simulation (panel c); two-fluid simulation, with 10-moment ions and 5-moment electrons (panel d); two-fluid, 5-moment simulation (panel e). The colour indicates the strength of the out-of-plane magnetic field $B_z$ normalised to the initial field strength $B_0$. Horizontal and vertical axes show position normalised to the half-width of the initial shear layer $L_0$.

Figure 3

Figure 3. Enstrophy evolution as a function of time in the fully kinetic Vlasov simulation for the centre-of-mass velocity and the magnetic field.

Figure 4

Table 2. List of the turbulence runs examined in this work. For each run, we provide a run ID (BW stands for Biskamp–Welter), the model type (kinetic, hybrid or two-fluid 10-moment) and, when needed, the $k_0$ value used for the heat flux closure, normalised to the respective skin depth. The $k_0$ value that compares best with the kinetic benchmark is marked in bold.

Figure 5

Figure 4. Compensated spectra for the hybrid simulations with varying $k_{0,e}$, compared with the Vlasov reference: (a) electron velocity, (b) ion velocity, (c) magnetic field, (d) electric field spectra. The different hybrid simulations are marked in colours. The Vlasov reference is depicted in dashed line.

Figure 6

Figure 5. Comparison of two-dimensional colour maps at time $t=100\,\varOmega _{c,i}^{-1}$ showing: panel (a): $|j_e|$ from the Vlasov reference simulations. Panel (f): $\|\boldsymbol{\nabla }\boldsymbol{\cdot }Q_e \|$ calculated from the distribution function of the Vlasov simulation; panel (g): calculated with (2.10) using moments from the Vlasov simulations. By matching amplitude with (f), we a posteriori determine $k_{{0,e}}\,d_e= 201$; $\|\boldsymbol{\nabla }\boldsymbol{\cdot }Q_e \|$ from hybrid simulations using (c, h) $k_0 d_e= 20$, (d, i) $k_0 d_e= 200$ and (e, j) $k_0 d_e= 2000$. In (g)–(j), we adjust the colour scale in every panel. (b)–(e) Show the same data with colour scales set to the range of the kinetic ‘ground truth’ (f). (k)–(o) depict $\| \boldsymbol{\nabla }\boldsymbol{\cdot }Q _e\| \boldsymbol{\cdot }|j|$, with $\|\boldsymbol{\nabla }\boldsymbol{\cdot }Q_e \|$ calculated as in the row above.

Figure 7

Figure 6. Compensated spectra for the fluid simulations with $k_{0,e} d_e = 200$ and with varying $k_{0,i}$, compared with the vlasov reference: (a) electron velocity, (b) ion velocity, (c) magnetic field, (d) electric field spectra. The different two-fluid simulations are marked in colours. The Vlasov reference is depicted in dashed line.

Figure 8

Figure 7. Comparison of ion heat flux divergence $\| \boldsymbol{\nabla }\boldsymbol{\cdot }Q _i\|$ at time $t=100\,\varOmega _{c,i}^{-1}$ for 10-moment simulations with $k_{0,e} d_e = 200$ and varying $k_{0,i}$: the ion closures use (c, h, m) $k_0 d_i= 2$, (d, i, n) $k_0 d_i= 20$ and (e, j, o) $k_0 d_i= 200$. Panel compositions are the same as in figure 5.

Figure 9

Figure 8. Comparison of electron heat flux divergence $\| \boldsymbol{\nabla }\boldsymbol{\cdot }Q _e\|$ at time $t=100\,\varOmega _{c,i}^{-1}$ for 10-moment simulations with $k_{0,e} d_e = 200$ and varying $k_{0,i}$: the ion closures use (c, h, m) $k_0 d_i= 2$, (d, i, n) $k_0 d_i= 20$ and (e, j, o) $k_0 d_i= 200$. Panel compositions are the same as in figure 5.

Figure 10

Figure 9. Energy evolution for the Vlasov simulation (first column), ‘best’ hybrid simulation, with $k_{0,e}^0 d_e = 200$ (second column) and ‘best’ two-fluid 10-moment simulation, with $k_{0,e}^0 d_e = 200$ and $k_{0,i}^0 d_i = 20$ (third column). Top row: total energy and each component is normalised to their respective initial value. Bottom row: total energy and each component is normalised to initial value of total energy.
