The hypovitaminosis D kyphotic pig model created and subsequently reproduced in our laboratory multiple times under controlled experimental conditions has provided a means to study the initiation of bone lesions and the role of maternal diet on factors involved in the offspring bone development⁽ Reference Rortvedt and Crenshaw ^{1 )}. Pigs produced by sows fed no or limited supplemental D during gestation and lactation are at risk of developing kyphosis if nutritionally challenged during their early growth phase⁽ Reference Rortvedt and Crenshaw ^{1 ,} Reference Amundson, Hernandez and Crenshaw ^{2 )}. The ability to reproduce the bone abnormality under controlled conditions offers an opportunity to study cellular signals involved in the initiation and early development of bone lesions, rather than characterise the final lesion as is commonly reported in most studies of animal and human bone abnormalities. A molecular understanding of the events and cell signals that lead to those final lesions will provide a means to monitor and potentially prevent the final lesion from ever occurring.

Hypovitaminosis D is typically associated with rachitic abnormalities in bone owing to the role of D in the regulation of mineral homoeostasis. In a previous experiment, pigs produced by sows fed limited D during gestation and lactation had a 25 % reduction in whole-body bone mineral density as measured by dual-energy X-ray absorptiometry, but visible symptoms of kyphosis were not evident until the pigs were 8 weeks of age⁽ Reference Amundson, Hernandez and Laporta ^{3 )}. However, classical signs of rickets were not evident at any point. Recently, we have shown that the hypovitaminosis-D-induced kyphosis cannot be predicted by common measures of D status such as serum 25-OH-D₃ and body tissue stores of D⁽ Reference Amundson, Hernandez and Crenshaw ^{2 )}, even though these measurements are among the most common to evaluate D adequacy in both human and animal populations.

Additional bones, as well as the vertebrae, were affected in the hypovitaminosis D kyphotic pig model, even in pigs without visible presentation of spinal or limb deformities. Excised femurs from pigs produced by sows and fed dietary regiments during growth known to induce kyphosis display gross abnormalities in the growth plate region and have reduced bone mineral content and mechanical properties⁽ Reference Rortvedt and Crenshaw ^{1 ,} Reference Amundson, Hernandez and Laporta ^{3 )}. The growth plate abnormalities are consistent with osteochondrosis-like lesions in which cartilage is retained and not replaced with mineralised bone. The resulting lesions reflect aberrant endochondral ossification, which results in dysregulated bone development.

Endochondral ossification, the manner by which long bones and vertebrae are formed, is a dynamic process that involves multiple cell types and localised cellular signals, which couple bone turnover and formation. During endochondral ossification, chondrocytes (cartilage cells), osteoblasts (bone forming cells), osteocytes (mature bone cells) and osteoclasts (bone resorbing cells) work in concert to form a cartilage matrix, which is subsequently calcified and replaced with mineralised bone. Endochondral ossification involves multiple steps with coordination of cell signals; however, the modelling and remodelling of the extracellular matrix is presumed to be the rate-limiting step⁽ Reference Ortega, Behonick and Werb ^{4 ,} Reference Stickens, Behonick and Ortega ^{5 )}. Among the multiple proteins and cell signals involved in normal endochondral ossification, critical enzymes implicated in bone development and pathophysiology include the family of matrix metalloproteinases (MMP) and vascular endothelial growth factor (VEGF)⁽ Reference Ortega, Behonick and Werb ^{4 )}.

The MMP are a group of Zn-dependent enzymes responsible for degradation of matrix proteins during normal and aberrant growth. Initiation of enzyme function occurs during the early stages of embryonic development⁽ Reference Sternlicht and Werb ^{6 ,} Reference Nagase, Visse and Murphy ^{7 )}, and certain MMP family members have been implicated in bone development. These proteins are closely regulated at the transcriptional level and are synthesised as zymogens, which undergo post-transcriptional and secretory regulation and require activation by each other or other proteinases⁽ Reference Sternlicht and Werb ^{6 ,} Reference Nagase, Visse and Murphy ^{7 )}.

Results from cell culture studies revealed evidence that MMP are needed to direct specific locations for the initiation and migration of osteoclasts⁽ Reference Blavier and Delaisse ^{8 )}, an important event in extracellular matrix turnover. Two members of the MMP family, MMP9 and MMP13, provide critical roles for extracellular matrix turnover during bone modelling and remodelling. MMP9, a gelatinase, and MMP13, a collagenase, have been implicated in both normal and pathophysiological bone tissue development⁽ Reference Ortega, Behonick and Werb ^{4 ,} Reference Malemud ^{9 –} Reference Krane and Inada ^{11 )}.

Animal knockout models of MMP9 and MMP13 have revealed severe bone phenotypes resulting from dysregulated growth plate development and ossification processes⁽ Reference Vu, Shipley and Bergers ^{12 ,} Reference Inada, Wang and Byrne ^{13 )}. The MMP9 knockout model presented with a delay in endochondral ossification characterised by an enlarged hypertrophic cartilage zone, implying that MMP9 was involved in hypertrophic cartilage vascularisation and ossification⁽ Reference Vu, Shipley and Bergers ^{12 )}. In a separate model of MMP9 deficiency, the necessity for MMP9 to degrade the non-mineralised septae within the bone matrix was verified⁽ Reference Engsig, Chen and Vu ^{14 )}.

The MMP13 knockout model displayed very similar bone phenotypes as observed in the MMP9 knockout model. The MMP13^−/− mouse displayed abnormally wide growth plates characterised by delayed chondrocyte turnover and ossification of the embryonic and adult skeleton⁽ Reference Stickens, Behonick and Ortega ^{5 ,} Reference Inada, Wang and Byrne ^{13 )}. The bone tissue abnormalities were attributed to decreased proteolysis of cartilage extracellular matrix and suppression of vascular invasion.

The MMP9^−/−/MMP13^−/− double knockout mouse had a more severe growth plate defect (expanded hypertrophic cartilage zone) than either single knockout⁽ Reference Johansson, Saarialho-Kere and Airola ^{15 )}. In addition, if MMP9 was added to tissue culture with MMP13, the collagenolytic activity of MMP13 was twice as effective, implying a synergistic effect of MMP9 and MMP13⁽ Reference Engsig, Chen and Vu ^{14 )}. Studies in which VEGF was inhibited have revealed similar growth plate phenotypes as MMP9 and MMP13 knockout models. Inhibition of VEGF leads to impaired bone formation, an expanded hypertrophic cartilage zone and almost complete suppression of blood vessel invasion of the growth plate⁽ Reference Carlevaro, Cermelli and Cancedda ^{16 ,} Reference Murata, Yudoh and Masuko ^{17 )}.

The MMP have high specificity for their respective substrates and therefore work in concert to degrade the milieu of proteins present in the extracellular matrix. The cooperative work of MMP proteins during turnover of the extracellular matrix allows for the release of additional extracellular matrix proteins, which further direct localised endochondral ossification processes. An example is VEGF, which remains inactive until released by the combined actions of MMP9 and MMP13⁽ Reference Engsig, Chen and Vu ^{14 )}.

The angiogenic factor, VEGF, is expressed by endothelial cells and hypertrophic chondrocytes⁽ Reference Carlevaro, Cermelli and Cancedda ^{16 –} Reference Ferrara, Gerber and LeCouter ^{18 )}. Angiogenesis is necessary for proper endochondral bone formation as cartilage is an avascular tissue, which is replaced by ossified bone, a highly vascular tissue⁽ Reference Carlevaro, Cermelli and Cancedda ^{16 )}. As reviewed by Carlevaro et al. ⁽ Reference Carlevaro, Cermelli and Cancedda ^{16 )}. and Murata et al.⁽ Reference Murata, Yudoh and Masuko ^{17 )}, VEGF is essential for physiological angiogenesis, growth plate development and endochondral ossification.

Previous research has shown that MMP9, MMP13 and VEGF can be regulated by D. In mice treated with the active metabolite, 1α,25(OH)₂D₃, MMP9 mRNA and MMP9 protein expressions were increased⁽ Reference Lin, Amizuka and Sasaki ^{19 )}. In cell culture, 1α,25(OH)₂D₃ indirectly induced an increase in MMP13 mRNA expression by mouse osteoblast-like cells⁽ Reference Uchida, Shima and Chikazu ^{20 )}. In addition, vitamin D increased transcription of VEGF ⁽ Reference Lin, Amizuka and Sasaki ^{19 )}. However, the in vivo effects of dietary D on these factors in intact tissues has not been reported.

Therefore, given the in vitro evidence for the roles of MMP9, MMP13 and VEGF in extracellular matrix turnover, the rate-limiting step of endochondral ossification and their potential relationship with vitamin D, these factors are excellent candidates to measure in the hypovitaminosis D kyphotic pig model to assess their potential role in bone lesion initiation and development.

As mentioned earlier, the hypovitaminosis D kyphotic pig model also revealed a carryover effect of maternal dietary D on whole-body bone mineralisation that persisted well into the growth cycle of the offspring. A more recently discovered phosphaturic hormone, fibroblast growth factor 23 (FGF23), has been implicated in pathophysiological bone phenotypes associated with diseases such as hypophosphatemic rickets and chronic kidney disease. Mouse knockout and disease models are consistent with a role of FGF23 in bone mineralisation. However, the indirect actions of FGF23 on bone through mineral homoeostasis v. the direct actions of FGF23 on bone mineralisation factors is still not completely understood. FGF23 is primarily produced in osteoblast and osteocyte cells and is responsible for P homoeostasis through a pathway that involves feedback regulation between FGF23, D, P⁽ Reference Sitara, Razzaque and St-Arnaud ^{21 ,} Reference Lanske, Densmore and Erben ^{22 )} and Ca⁽ Reference Rodriguez-Ortiz, Lopen and Munoz-Castaneda ^{23 ,} Reference David, Dai and Martin ^{24 )}. Increased FGF23 acts on the kidney to decrease the D anabolic enzyme, 1α-hydroxylase, and the sodium phosphate transporters to elicit an overall decrease in serum active D and P⁽ Reference Sitara, Razzaque and St-Arnaud ^{21 ,} Reference Lanske, Densmore and Erben ^{22 )}. The role of FGF23 in response to dietary vitamin D inputs in a physiologically unaltered animal model remains to be explored and understood. Therefore, given the abnormal bone mineralisation of pigs subject to conditions known to induce kyphosis, FGF23 is another candidate for a potentially dysregulated cellular signal associated with the initiation and development of bone lesions in the hypovitaminosis D kyphotic pig model.

The objective of results reported herein was to determine the relative mRNA expression of FGF23, MMP9, MMP13 and VEGF in the femur and vertebra of pigs produced by sows and fed nursery diets known to induce kyphosis. Results reported are from pigs that were part of a larger study that examined the accuracy of serum vitamin D analysis to predict bone abnormalities⁽ Reference Amundson, Hernandez and Crenshaw ^{2 )} and the prolonged effects of maternal dietary D deficiency on spinal curvature as a model for human kyphosis⁽ Reference Halanski, Hildahl and Amundson ^{25 )}. However, the purpose of the current results was to study expression of selected molecular signals in tissues from these pigs before they developed gross outward signs of kyphosis. The selection of an early age was intended to identify changes in cellular signals that may be pivotal in the initiation of bone lesions and therefore provide potential targets for maternal dietary D during offspring bone development. The hypovitaminosis D kyphotic pig model provides a physiologically relevant, genetically and physically unaltered model to understand maternal dietary effects on long-term bone development. These results will aid in both animal and human bone development research and understanding.

Methods

Ethics statement

All animal procedures were approved (Protocol A00865) by the College of Agricultural and Life Sciences Animal Care and Use Committee, University of Wisconsin-Madison. Animals selected for tissue collections were humanely euthanised by electrical stunning followed by exsanguination.

Experimental design and diets

The complete experimental design (Fig. 1) and dietary compositions used in the study were described by Amundson et al. ⁽ Reference Amundson, Hernandez and Crenshaw ^{2 )}. Briefly, crossbred (PIC Large White×Landrace) first parity sows (n 37) were bred via artificial insemination with semen collected from an individual Line 19 boar (PIC Inc.). At breeding, sows were randomly assigned (n 12, 12 and 13/treatment, respectively) to one of three dietary treatments that varied in D supplementation to provide 0 (−D), 8·125 (+D) or 43·750 (++D) µg vitamin D₃/kg diet. Sows were fed their respective dietary treatments throughout gestation and lactation phases and were allowed to complete parturition naturally. Pigs were weaned after a 24·7 (sem 0·6)-d lactation period (3 weeks) and randomly assigned within sow treatment to one of four nursery dietary treatments that varied in vitamin D, Ca and P concentrations to comprise the twelve dietary treatment groups for the pigs during the nursery phase. The four nursery dietary treatments were arranged in a 2×2 factorial design with nursery diets formulated to supply either 0 (−D) or 7·0 (+D) µg vitamin D₃/kg, each with 75 and 95 % (LCaP) or 150 and 120 % (HCaP) of the Ca and P requirements for 10–20 kg pigs^{( 26 )}, respectively. At weaning, pigs were fed an adjustment diet with no supplemental D for 1 week, before being fed treatment diets for 3 weeks for a total nursery phase duration of 4 weeks. The 1-week adjustment diet included whey protein and was fed to allow pigs to transition from weaning to solid feed. The nursery phase concluded at 52·4 (sem 0·17) d of age (7 weeks). Tissue samples were collected from pigs at 0 (n 27), 3 (n 27) and 7 (n 72) weeks for molecular analysis, before the age at which the outward spinal curvature due to kyphosis is visible based on our earlier results⁽ Reference Rortvedt and Crenshaw ^{1 ,} Reference Amundson, Hernandez and Crenshaw ^{2 )} The earlier age for tissue collection was selected, as our objective was to evaluate the initiation and early developmental stages of the bone lesions.

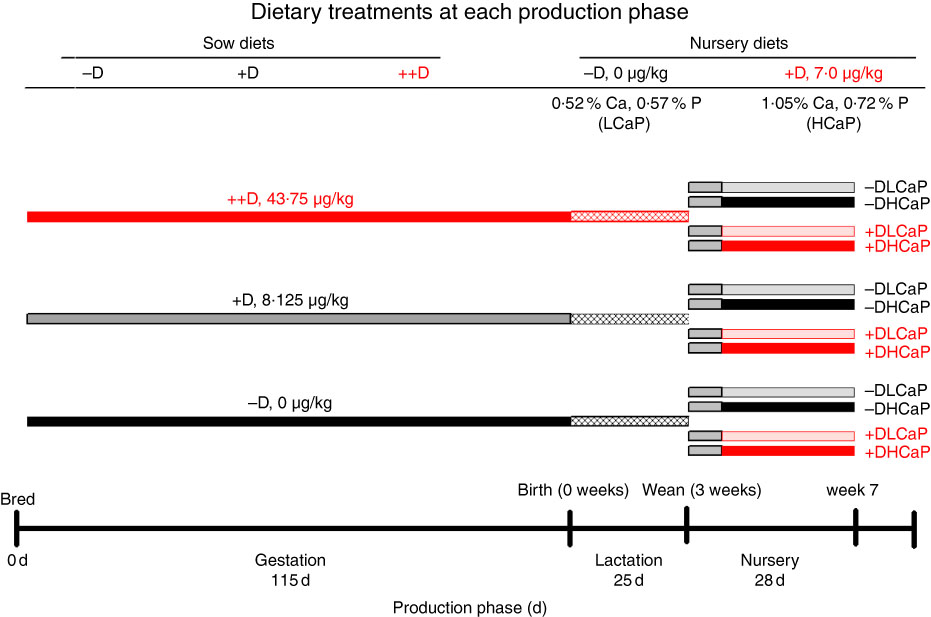

Fig. 1

Timeline of dietary treatments fed to sows during gestation and lactation and diets fed to nursery pigs. Maternal diets were formulated to supply 0 (−D), 8·125 (+D) or 43·750 (++D) µg vitamin D₃/kg diet in complete diets fed from breeding through the lactation phase. Nursery diets were formulated to supply either 0 µg vitamin D₃/kg (−D) or 7·0 µg vitamin D₃/kg (+D) and either 75 and 95 % (LCaP) or 150 and 120 % (HCaP) of the Ca and P requirements, respectively, for 10-–20-kg pigs. Pigs were fed an adjustment diet during the 1st week of the nursery, which was consistent with routine diets fed to the herd (whey, maize, soyabean meal and oat groats), except the diet contained no supplemental vitamin D.

Quantitative real-time PCR

Bone sections of the distal femur and 15th vertebral body (vertebra) were collected immediately after euthanasia of each pig, snap-frozen in liquid N₂ and stored at −80°C until quantitative real-time PCR (qPCR) analysis. Longitudinal slabs (approximately 1 mm) of the distal femur, including both the epiphysis and metaphysis regions immediately surrounding and including the growth plate region, were collected. A mid-section, longitudinal slab to the entire vertebral body was collected. The RNA isolation and qPCR analyses were completed as described previously⁽ Reference Amundson, Hernandez and Crenshaw ^{2 )}. Relative femur and vertebra mRNA expression levels of MMP9, MMP13, VEGF and FGF23 were measured and normalised to vitamin D receptor (VDR), which was verified to be stably expressed across treatments within each tissue. Considerable effort was devoted to identify and select VDR as a housekeeping gene for use as a control. Critical criteria for selection of a suitable housekeeping gene is that its expression does not change across treatment groups in the tissues being compared. Given that there were twelve treatment groups at the end of the nursery phase, the identification of a qualified housekeeping gene was quite a challenge. Commonly used genes such as GAPDH or actin did not qualify, as the expression was not stable across treatments (data not shown). Although not a ‘classical’ housekeeping gene, VDR was the most stably expressed gene with the tightest range of Ct values across the 12 nursery treatments study even though diets were supplemented with variable concentrations of D, Ca and P. The qPCR data were analysed using the $2^{{{\minus}\Delta \Delta C_{T} }} $ method⁽ Reference Schmittgen and Livak ^{27 )} with pigs produced by sows fed –D diets serving as the control for samples at birth (0 week) and 3 weeks and pigs produced by sows fed –D diets and fed –DLCaP nursery diets serving as the control for samples at 7 weeks. Primer sequences are listed in Table 1. Primer sequences were designed with the Primer3 program based on gene sequences obtained from the National Center for Biotechnology Information, except for VDR ⁽ Reference Hittmeier, Grapes and Lensing ^{28 )}.

Table 1

Primer sequences for housekeeping gene and genes of interest for quantification by real-time quantitative real-time PCR (qPCR)*

VDR, vitamin D receptor; MMP9, matrix metalloproteinase 9; MMP13, matrix metalloproteinase 13; VEGF, vascular endothelial growth factor; FGF 23, fibroblast growth factor 23.

* Forward and reverse sequences for primers used to analyse mRNA content using qPCR.

Statistical analysis

Data were analysed by regression analysis using mixed models, general linear models and rank (if data were not normally distributed) procedures using SAS version 9.3 (SAS Institute Inc.) as described previously⁽ Reference Amundson, Hernandez and Crenshaw ^{2 )}. Briefly, analysis of data collected from pigs at 0 and 3 weeks involved a randomised block design. Analysis of data from samples collected from pigs at 7 weeks involved a 3×4 factorial arrangement of treatments analysed as a split-plot design. Maternal diets (−D, +D, ++D) were the main plot fixed effect units. The split-plot units were nursery treatment groups (−DLCaP, −DHCaP, +DLCaP, +DHCaP, arranged as a 2×2 factorial), and the two-way interaction with maternal diets and nursery diets. Even though maternal diets were fed to sows, the sow responses to diets were not evaluated in this experiment. The individual pig was considered the experimental unit, as only one pig from each litter was sampled at the age periods. Differences owing to pig sex were not considered in the analysis. Inferences among treatment groups were based on orthogonal contrasts used to identify the main effects attributed to variation among maternal diets (−D v. +D, ++D and +D v. ++D), effects due to nursery diets (D effect (−D v. +D), CaP effect (LCaP v. HCaP) and the D×CaP interaction) and effects due to the interaction between maternal and nursery diets. Significance was considered at P≤0·05 and trends at P≤0·10. Results are reported as the average values for each trait within three (0 and 3 weeks) or twelve (7 weeks) dietary treatments groups with a pooled standard error of the mean. The standard error of the mean was calculated by dividing the root mean square of the random error term in the regression model by the square root of the average number of observations within treatment groups. For the mRNA expression data, a power analysis for a hypothesised effect size of 2, an α of 0·05 and power set at 80 %, the required sample size was five per treatment. However, given the fallacies associated with power calculations⁽ Reference Hoenig and Heisey ^{29 )}, the calculation may be misleading and therefore of unknown merit.

Results

MMP9 expression

In pigs at birth (0 weeks), no differences were detected in femur (Fig. 2(a)) or vertebra (Fig. 3(a)) relative MMP9 expression among maternal dietary D treatment groups. Differences were detected in relative MMP9 expression at 3 weeks but only in femur tissue. Pigs produced by +D or ++D sows had reduced femur MMP9 expression that was approximately 0·5-fold of that in pigs produced by –D sows. Therefore, transcriptional differences due to maternal dietary D were evident as early as 3 weeks. Opposite trends were observed in MMP9 expression in vertebra, but differences among maternal diets were not significant. The lack of significance can be largely attributed to the large variation in the vertebra tissue (Fig. 5(a)) compared with the femur (Fig. 4(a)), most likely caused by the relatively small amount of tissue from pigs at this age, and therefore needs to be replicated in future experiments. Although this experiment was not designed to decipher between gestation and lactation effects, the lack of a detectable difference at 0 weeks does not preclude a gestation diet effect. As described in our previous experiment, maternal dietary D failed to alter milk 25-OH-D₃ levels in this experiment, and therefore an affect due to the D status of the milk would not be expected to attribute to differences detected at weaning (3 weeks)⁽ Reference Amundson, Hernandez and Crenshaw ^{2 )}. Further experiments need to be conducted to decipher between gestation and lactation effects.

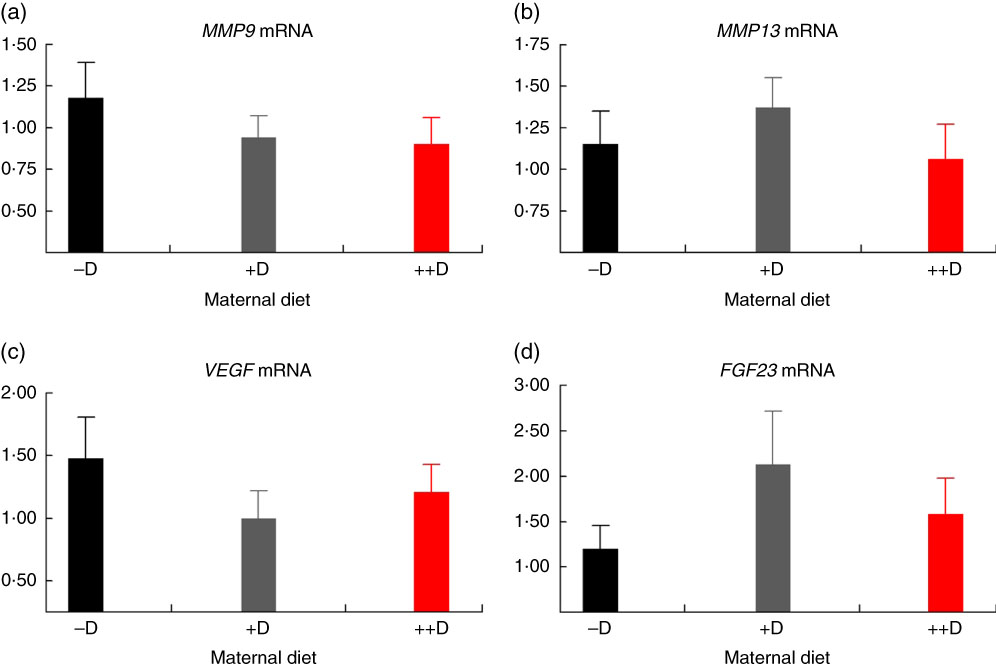

Fig. 2

Femur relative mRNA expression of matrix metalloproteinase 9 (MMP9) (a), matrix metalloproteinase 13 (MMP13) (b), vascular endothelial growth factor (VEGF) (c) or fibroblast growth factor 23 (FGF23) (d) from pigs at birth (0 weeks) across maternal dietary treatments. Values are means (n 8 to 9 tissues per treatment), with their standard errors of the relative fold change compared with the control (−D), normalised to vitamin D receptor. –D, 0 µg vitamin D₃/kg diet; +D, 8·125 µg vitamin D₃/kg diet; ++D, 43·750 µg vitamin D₃/kg diet.

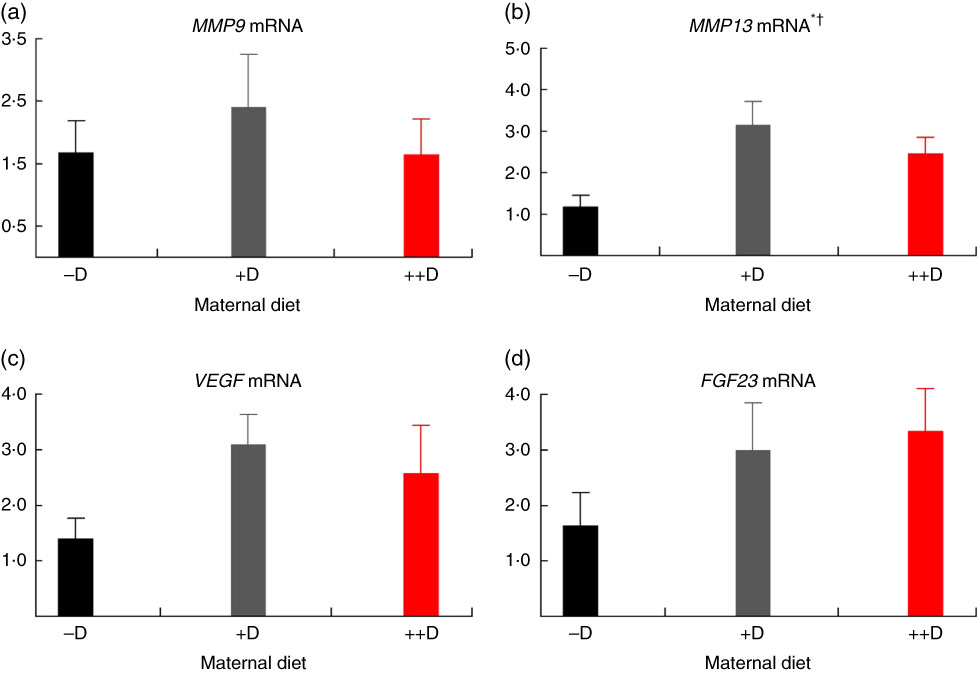

Fig. 3

Vertebra relative mRNA expression of matrix metalloproteinase 9 (MMP9) (a), matrix metalloproteinase 13 (MMP13) (b), vascular endothelial growth factor (VEGF) (c) or fibroblast growth factor 23 (FGF23) (d) from pigs at birth (0 weeks) across maternal dietary treatments. Values are means (n 4 to 9 tissues per treatment), with their standard errors of the relative fold change compared with the control (−D), normalised to vitamin D receptor. * Difference due to maternal diet, P≤0·05; † maternal diet –D v. +D and ++D differ, P≤0·05. –D, 0 µg vitamin D₃/kg diet; +D, 8·125 µg vitamin D₃/kg diet; ++D, 43·750 µg vitamin D₃/kg diet.

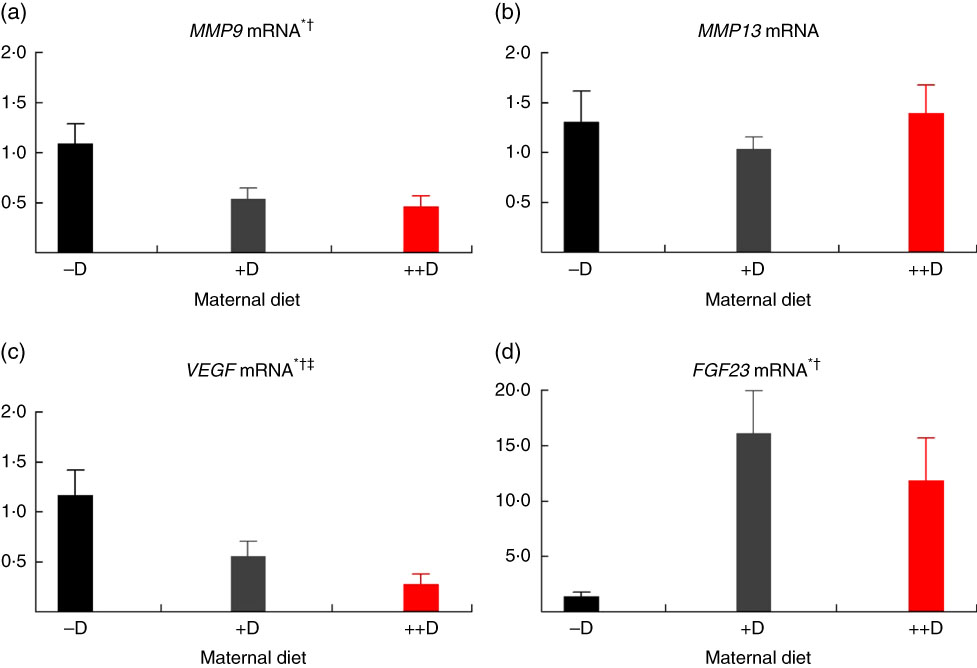

Fig 4

Femur relative mRNA expression of matrix metalloproteinase 9 (MMP9) (a), matrix metalloproteinase 13 (MMP13) (b), vascular endothelial growth factor (VEGF) (c) or fibroblast growth factor 23 (FGF23) (d) from pigs at weaning (3 weeks) across maternal dietary treatments. Values are means (n 6 to 9 tissues per treatment), with their standard errors of the relative fold change compared with the control (−D), normalised to vitamin D receptor. * Difference due to maternal diet, P≤0·05; † maternal diet –D v. +D and ++D differ, P≤0·05; ‡ maternal diet +D v. ++D differ, P≤0·10. –D, 0 µg vitamin D₃/kg diet; +D, 8·125 µg vitamin D₃/kg diet; ++D, 43·750 µg vitamin D₃/kg diet.

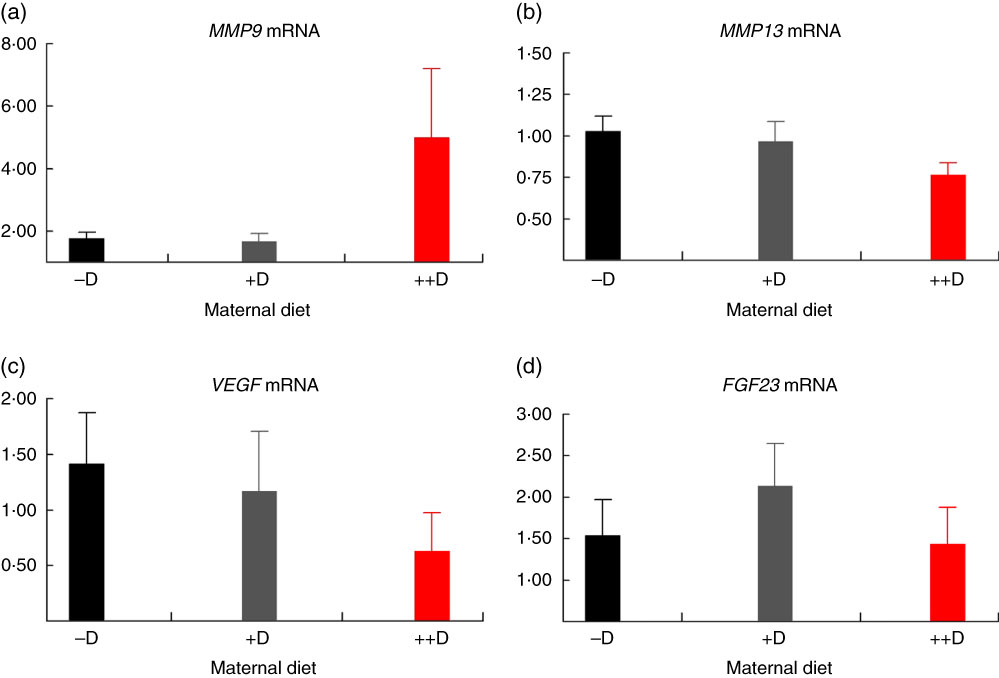

Fig. 5

Vertebra relative mRNA expression of matrix metalloproteinase 9 (MMP9) (a), matrix metalloproteinase 13 (MMP13) (b), vascular endothelial growth factor (VEGF) (c) or fibroblast growth factor 23 (FGF23) (d) from pigs at weaning (3 weeks) across maternal dietary treatments. Values are means (n 5 to 9 tissues per treatment), with their standard errors of the relative fold change compared with the control (−D), normalised to vitamin D receptor. –D, 0 µg vitamin D₃/kg diet; +D, 8·125 µg vitamin D₃/kg diet; ++D, 43·750 µg vitamin D₃/kg diet.

Most notably, maternal dietary D continued to influence both pig femur (Fig. 6(a)) and vertebra (Fig. 7(a)) relative MMP9 expression at 7 weeks of age, regardless of the nursery dietary treatment the pig consumed. Pooled across nursery dietary treatments, expression was reduced (P≤0·05) to 0·52-fold and 0·37-fold in femurs from pigs produced by +D or ++D sows, respectively, compared with cohorts produced by –D sows (0·64-fold). In vertebra, MMP9 expression was reduced (P≤0·05) to 0·58-fold in vertebra from pigs produced by +D and ++D sows compared with cohorts produced by –D sows (0·95-fold). These results imply that maternal dietary D levels during gestation and lactation had prolonged effects on pig MMP9 transcription regardless of dietary D concentrations during the 4-week nursery phase. In addition, dietary D supplementation in the nursery diets decreased MMP9 mRNA expression in femur tissue, but differences were not detected in vertebra tissue. Pooled across maternal dietary treatments, expression was reduced (P≤0·05) to 0·38-fold in pigs fed +D nursery diets compared with cohorts fed –D nursery diets (0·63-fold). Therefore, maternal nursery dietary D affected MMP9 expression in the same manner but as separate affects, as an interaction between maternal and nursery diets was not detected. The discrepancy between femur and vertebra tissue response to nursery dietary D is not completely understood.

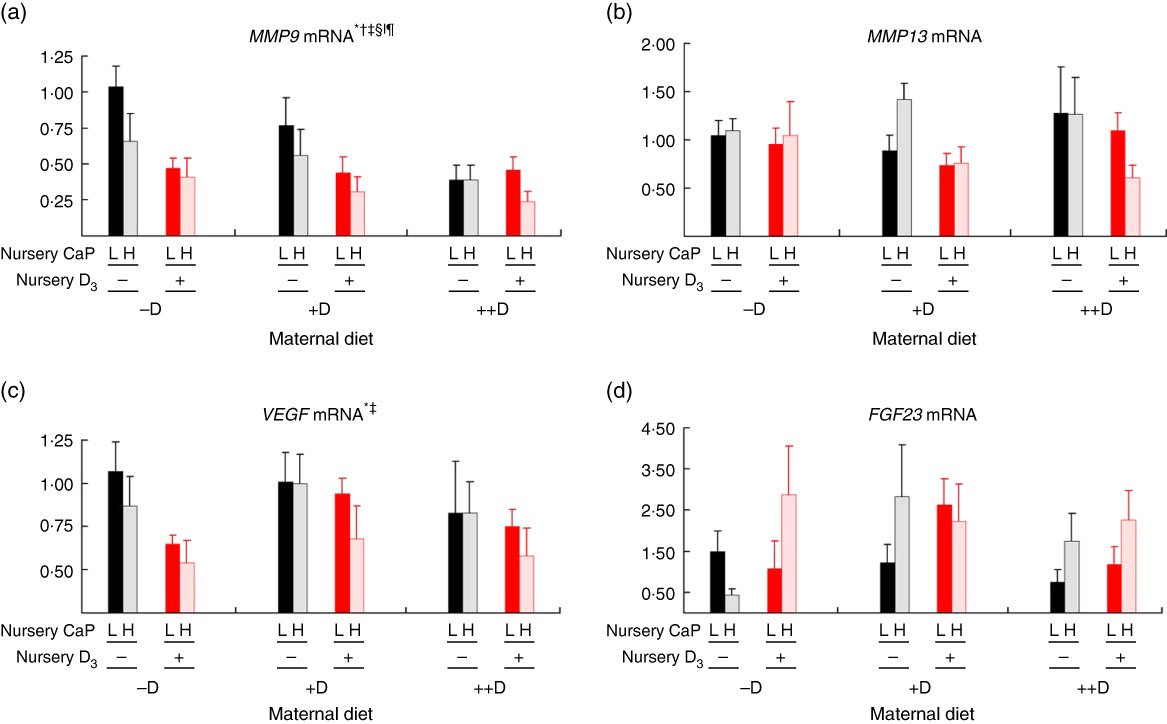

Fig. 6

Femur relative mRNA expression of matrix metalloproteinase 9 (MMP9) (a), matrix metalloproteinase 13 (MMP13) (b), vascular endothelial growth factor (VEGF) (c) or fibroblast growth factor 23 (FGF23) (d) from pigs at the end of nursery (7 weeks) across maternal and nursery dietary treatments. Values are means (n 4 to 6 tissues per treatment), with their standard errors of the relative fold change compared with the control (−D maternal diet and –DL nursery diet), normalised to vitamin D receptor. * Difference due to maternal diet, P≤0·05; † maternal diet –D v. +D and ++D differ, P≤0·05; ‡ maternal diet +D v. ++D differ, P≤0·05; § difference due to nursery diet, P≤0·10; ‖ nursery diet CaP effect, P≤0·10; ¶ nursery diet D effect, P≤0·05. Maternal diets: –D, 0 µg vitamin D₃/kg diet; +D, 8·125 µg vitamin D₃/kg diet; ++D, 43·750 µg vitamin D₃/kg diet. Nursery diets: −D, 0 µg vitamin D₃/kg diet; +D, 7·0 µg vitamin D₃/kg diet; L, 75 and 95 % of the Ca and P requirements, respectively, H, 150 and 120 % of the Ca and P requirements, respectively.

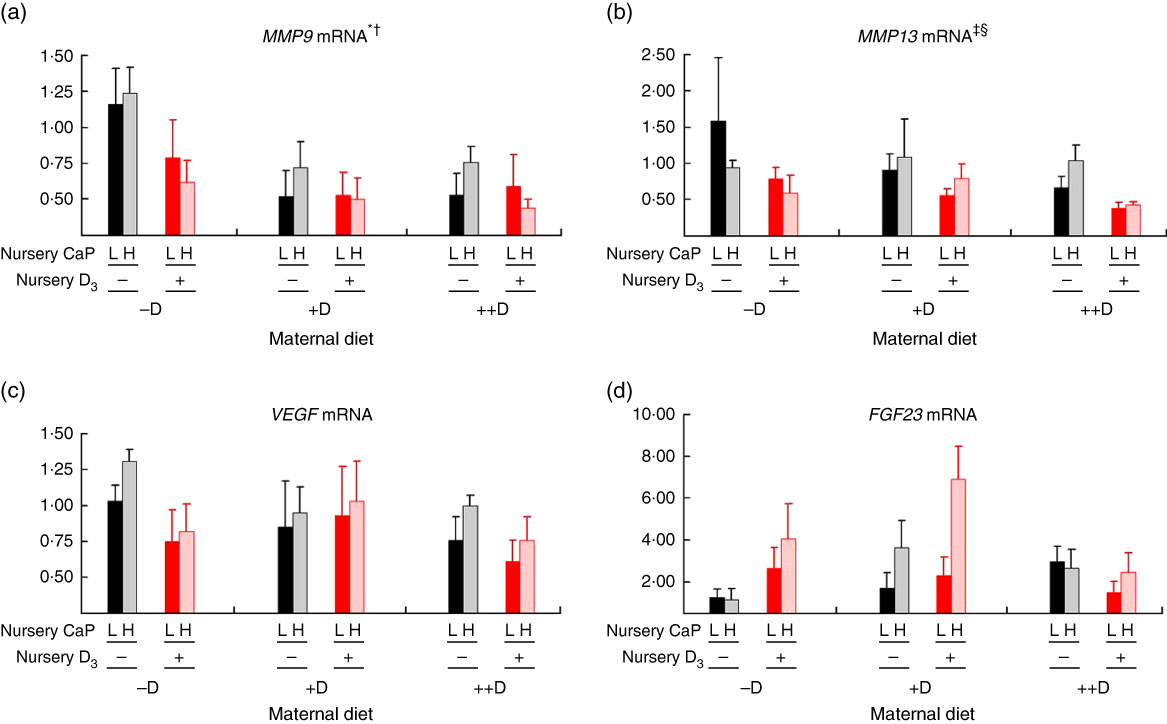

Fig. 7

Vertebra relative mRNA expression of matrix metalloproteinase 9 (MMP9) (a), matrix metalloproteinase 13 (MMP13) (b), vascular endothelial growth factor (VEGF) (c) or fibroblast growth factor 23 (FGF23) (d) from pigs at the end of nursery (7 weeks) across maternal and nursery dietary treatments. Values are means (n 4 to 6 tissues per treatment), with their standard errors of the relative fold change compared with the control (−D maternal diet and –DL nursery diet), normalised to vitamin D receptor (VDR). * Difference due to maternal diet, P≤0·05; † maternal diet –D v. +D and ++D differ, P≤0·05; ‡ difference due to maternal diet, P≤0·10; § maternal diet –D v. +D and ++D differ, P≤0·10. Maternal diets: –D, 0 µg vitamin D₃/kg diet; +D, 8·125 µg vitamin D₃/kg diet; ++D, 43·750 µg vitamin D₃/kg diet. Nursery diets: −D, 0 µg vitamin D₃/kg diet; +D, 7·0 µg vitamin D₃/kg diet; L, 75 and 95 % of the Ca and P requirements, respectively, H, 150 and 120 % of the Ca and P requirements, respectively.

MMP13 expression

No differences in femur relative MMP13 expression were detected in pigs at any age (Fig. 2(b), 4(b) and 6(b)). However, differences were detected in vertebra relative MMP13 mRNA expression. At 0 weeks, MMP13 mRNA expression was increased (P≤0·05) approximately 2-fold in pigs produced by +D and ++D sows compared with cohorts produced by –D sows (Fig. 3(b)), but no differences were detected in vertebra MMP13 mRNA expression at 3 weeks (Fig. 5(b)).

As mentioned for MMP9 expression, maternal dietary D continued to influence pig MMP13 expression at the end of the nursery phase. Pooled across nursery dietary treatments, pigs produced by +D and ++D sows tended to have reduced (P≤0·10) vertebrae MMP13 expression to approximately 0·74-fold compared with cohorts produced by –D sows (0·97-fold; Fig. 7(b)). The discrepancies between MMP13 vertebra expression at 3 and 7 weeks and between vertebra and femur tissue is not completely understood. Potentially the vertebra tissue undergoes modelling and remodelling at a greater rate than the femur at these ages; therefore, the vertebra would require increased amounts of enzyme expression for matrix turnover.

VEGF expression

No differences in vertebra relative VEGF expression were detected in pigs at any age (Fig. 3(c), 5(c) and 7(c)). Differences were detected in femur relative VEGF expression in pigs at 3 and 7 weeks but not at 0 weeks (Fig. 2(c), 4(c) and 6(c)). At 3 weeks, femur VEGF expression was reduced to approximately 0·5-fold (P≤0·05) or 0·3-fold (P≤0·05) in pigs produced by +D or ++D sows, respectively, compared with pigs produced by –D sows (1·17-fold; Fig. 4(c)). Relative VEGF expression was reduced proportionately to MMP9 expression in femur tissue, which may not be surprising given the relationship between MMP9 and VEGF mentioned earlier.

Interestingly at 7 weeks, differences in femur VEGF expression were due only to maternal dietary treatment, not nursery diet (Fig. 6(c)). Pooled across nursery dietary treatments, pig femur relative VEGF expression was reduced (P≤0·05) to 0·75-fold in pigs produced by ++D sows compared with cohorts produced by –D and +D sows (0·84-fold). As with MMP9 mRNA expression, these results indicate a prolonged effect of maternal dietary D on pig mRNA expression at the end of the 4-week nursery phase.

FGF23 expression

The only differences detected in relative FGF23 mRNA expression were in femur tissue of pigs at 3 weeks (Fig. 4(d)). Pig femur relative FGF23 expression was increased (P≤0·05) approximately 14-fold in pigs produced by +D and ++D sows compared with those produced by –D sows. Both femur and vertebra tissue relative FGF23 mRNA expressions were highly variable. Reasons for the variability of relative expression are not apparent. In a previous experiment, we reported even larger magnitudes of differences in metatarsal tissue FGF23 expression⁽ Reference Amundson, Hernandez and Laporta ^{3 )}. The different bone measured in the current experiment offers one potential factor in the discrepancy between the two experiments.
