Method for detection of leads from Sentinel-1 SAR images

  • Dmitrii Murashkin (a1), Gunnar Spreen (a1), Marcus Huntemann (a1) (a2) and Wolfgang Dierking (a2) (a3)
Abstract

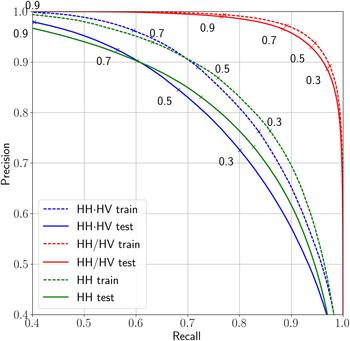

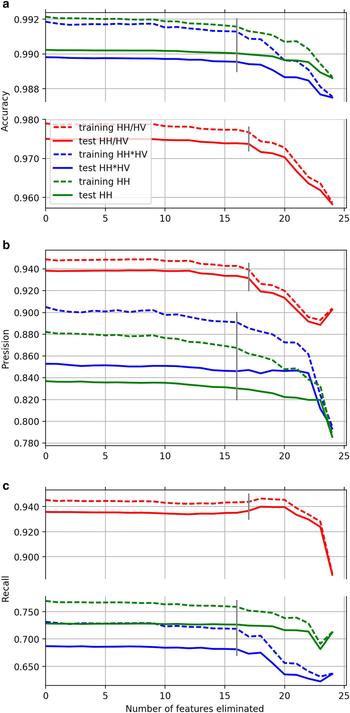

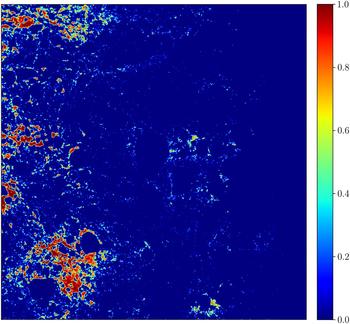

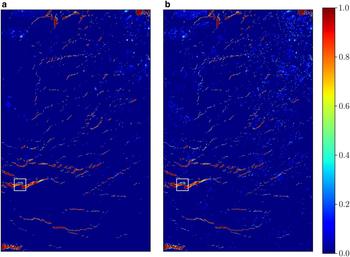

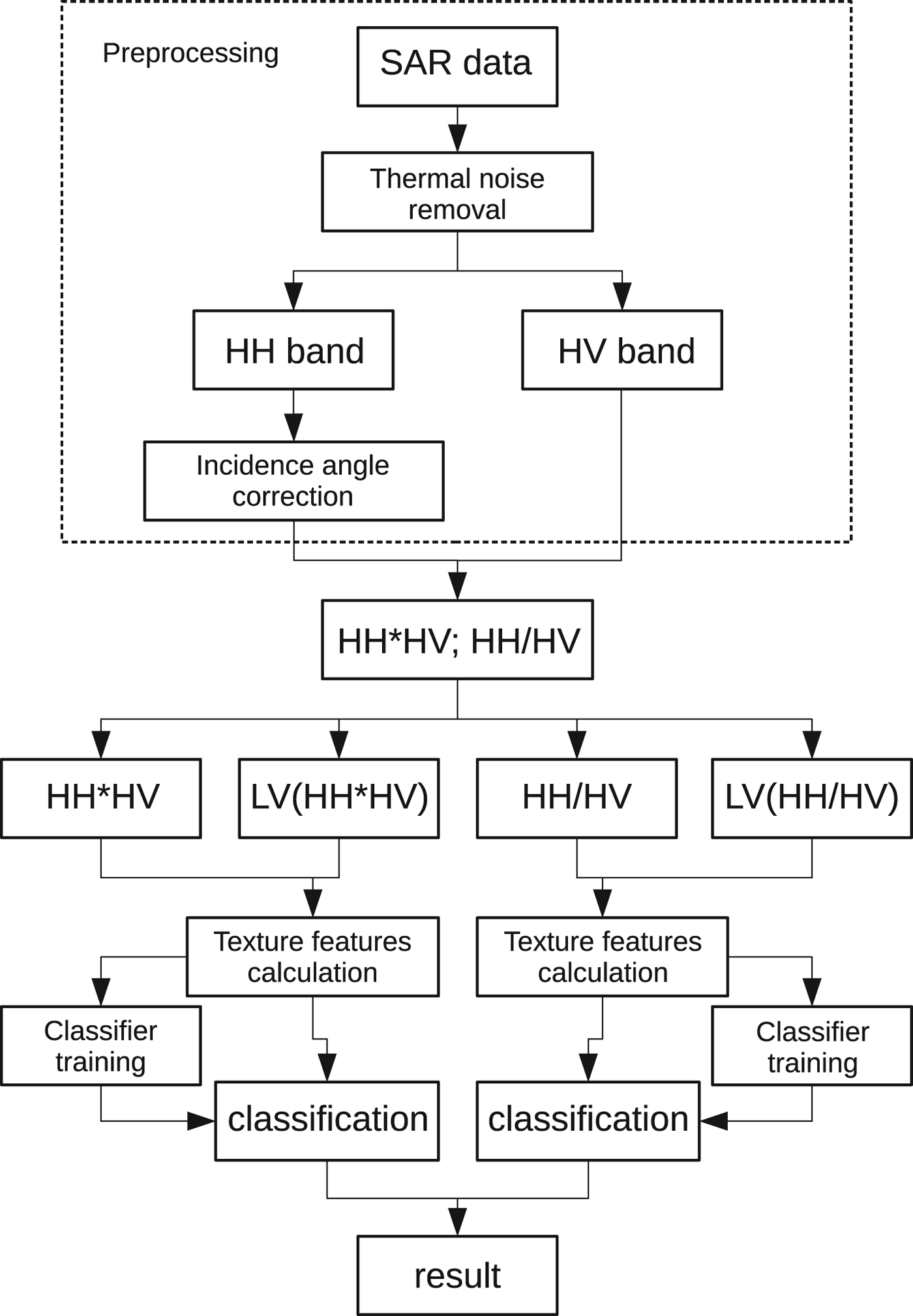

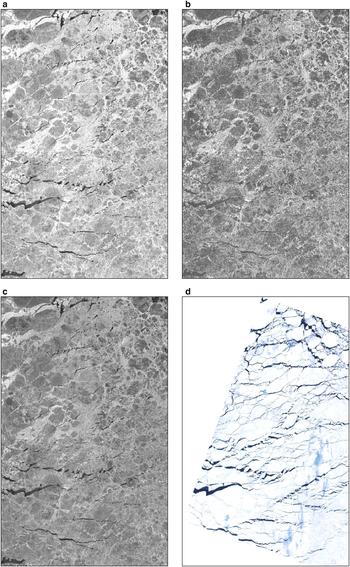

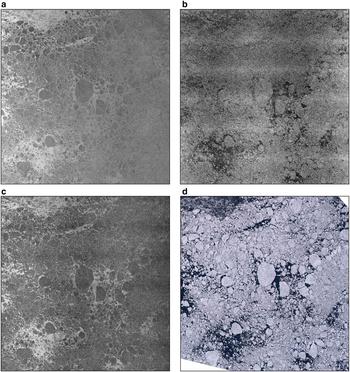

The presence of leads with open water or thin ice is an important feature of the Arctic sea ice cover. Leads regulate the heat, gas and moisture fluxes between the ocean and atmosphere and are areas of high ice growth rates during periods of freezing conditions. Here, an algorithm providing an automatic lead detection based on synthetic aperture radar images is described that can be applied to a wide range of Sentinel-1 scenes. By using both the HH and the HV channels instead of single co-polarised observations the algorithm is able to classify more leads correctly. The lead classification algorithm is based on polarimetric features and textural features derived from the grey-level co-occurrence matrix. The Random Forest classifier is used to investigate the importance of the individual features for lead detection. The precision–recall curve representing the quality of the classification is used to define threshold for a binary lead/sea ice classification. The algorithm is able to produce a lead classification with more that 90% precision with 60% of all leads classified. The precision can be increased by the cost of the amount of leads detected. Results are evaluated based on comparisons with Sentinel-2 optical satellite data.

  • View HTML
    • Send article to Kindle

      To send this article to your Kindle, first ensure no-reply@cambridge.org is added to your Approved Personal Document E-mail List under your Personal Document Settings on the Manage Your Content and Devices page of your Amazon account. Then enter the ‘name’ part of your Kindle email address below. Find out more about sending to your Kindle. Find out more about sending to your Kindle.

      Note you can select to send to either the @free.kindle.com or @kindle.com variations. ‘@free.kindle.com’ emails are free but can only be sent to your device when it is connected to wi-fi. ‘@kindle.com’ emails can be delivered even when you are not connected to wi-fi, but note that service fees apply.

      Find out more about the Kindle Personal Document Service.

      Method for detection of leads from Sentinel-1 SAR images
      Available formats
      ×
      Send article to Dropbox

      To send this article to your Dropbox account, please select one or more formats and confirm that you agree to abide by our usage policies. If this is the first time you use this feature, you will be asked to authorise Cambridge Core to connect with your <service> account. Find out more about sending content to Dropbox.

      Method for detection of leads from Sentinel-1 SAR images
      Available formats
      ×
      Send article to Google Drive

      To send this article to your Google Drive account, please select one or more formats and confirm that you agree to abide by our usage policies. If this is the first time you use this feature, you will be asked to authorise Cambridge Core to connect with your <service> account. Find out more about sending content to Google Drive.

      Method for detection of leads from Sentinel-1 SAR images
      Available formats
      ×
Copyright
This is an Open Access article, distributed under the terms of the Creative Commons Attribution licence (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted re-use, distribution, and reproduction in any medium, provided the original work is properly cited.
References
Hide All
Alonso-Gonzalez, A, Lopez-Martnez, C, Salembier, P and Deng, X (2013) Bilateral distance based filtering for polarimetric SAR data. Remote Sens. (Basel), 5, 56205641 (doi: 10.3390/rs5115620)
Assmy, P and 40 others (2017) Leads in Arctic pack ice enable early phytoplankton blooms below snow-covered sea ice. Sci. Rep., 7 (doi: 10.1038/srep40850)
Breiman, L (2001) Random forests. Mach. Learn., 45, 532 (doi: 10.1023/A:1010933404324)
Brekke, C, Holt, B, Jones, C and Skrunes, S (2014) Discrimination of oil spills from newly formed sea ice by synthetic aperture radar. Remote Sens. Environ., 145, 114, (doi: 10.1016/j.rse.2014.01.015)
Brekke, C, Jones, CE, Skrunes, S, Holt, B and Espeseth, M (2016) Cross-correlation between polarization channels in SAR imagery over oceanographic features. IEEE Trans. Geosci. Remote Sens., 13(7), 9971001 (doi: 10.1109/LGRS.2016.2558543)
Bröhan, D and Kaleschke, L (2014) A nine-year climatology of arctic sea ice lead orientation and frequency from AMSR-E. Remote Sens. (Basel), 6, 14511475, (doi: 10.3390/rs6021451)
Davis, J and Goadrich, M (2006) The relationship between precision-recall and ROC curves. In Proc. of the 23rd Int. Conf. on Machine Learning pp. 233-240
Dierking, W (2010) Mapping of different sea ice regimes using images from sentinel-1 and ALOS synthetic aperture radar. IEEE Trans. Geosci. Remote Sens., 48(3), 10451058, (doi: 10.1109/TGRS.2009.2031806)
Dierking, W (2013) Sea ice monitoring by synthetic aperture Radar. Oceanography, 26(3), 100111 (doi: 10.5670/oceanog.2013.33)
Dierking, W and Wesche, C (2014) C-Band Radar polarimetry - useful for detection of icebergs in sea ice?. IEEE Trans. Geosci. Remote Sens., 52(1), 2537 (doi: 10.1109/TGRS.2012.2234756)
ESA (2016) Sentinel-1 Level 1 Detailed Algorithm Definition. Technical Report, ESA
Fawcett, T (2006) An introduction to ROC analysis. Pattern Recognit. Lett., 27, 861874. (doi: 10.1016/j.patrec.2005.10.010)
Haralick, RM, Shanmugam, K and Dinstein, I (1973) Textural Features for Image Classification. IEEE Trans. Syst. Man Cybern., smc-3(6), 610621
Isleifson, D, 5 others (2014) A study on the C-Band polarimetric scattering and physical characteristics of frost flowers on experimental sea ice. IEEE Trans. Geosci. Remote Sens., 52(3), 17871798 (doi: 10.1109/TGRS.2013.2255060)
Ivanova, N, Rampal, P and Bouillon, S (2016) Error assessment of satellite-derived lead fraction in the Arctic. Cryosphere, 10, 585595, ISSN 19940424 (doi: 10.5194/tc-10-585-2016)
Karvonen, J (2014) Baltic sea ice concentration estimation based on C-band dual-polarized SAR data. IEEE Trans. Geosci. Remote Sens., 52(9), 55585566, (doi: 10.1109/TGRS.2013.2290331)
Korosov, AA and Park, JW (2016) Very high resolution classification of Sentinel-1A data using segmentation and texture analysis. In Living Planet Symp. 2016 p. 44
Leigh, S, Wang, Z and Clausi, DA (2014) Automated ice-water classification using dual polarization SAR satellite imagery. IEEE Trans. Geosci. Remote Sens., 52(9), 55295539, (doi: 10.1109/TGRS.2013.2290231)
Lindsay, RW and Rothrock, DA (1995) Arctic sea ice leads from advanced very high resolution radiometer images. J. Geophys. Res., 100(C3), 45334544 (doi: 10.1029/94JC02393)
Liu, H, Guo, H and Zhang, L (2015) SVM-Based sea ice classification using textural features and concentration from RADARSAT-2 Dual-Pol ScanSAR data. IEEE J. Sel. Top. Appl. Earth Observ. Remote Sens., (doi: 10.1109/JSTARS.2014.2365215)
Maykut, GA (1978) Energy exchange over young sea ice in the central Arctic. J. Geophys. Res., 83(C7), 36463658. (doi: 10.1029/JC083iC07p03646)
Moen, MAN, Anfinsen, SN, Doulgeris, AP, Renner, AHH and Gerland, S (2015) Assessing polarimetric SAR sea-ice classifications using consecutive day images. Ann. Glaciol., 56(69), 285294, (doi: 10.3189/2015AoG69A802)
Nghiem, SV, 5 others (1997) A laboratory study of the effect of frost flowers on C band radar backscatter from sea ice. J. Geophys. Res., 102(C2), 33573370 (doi: 10.1029/96JC03208)
Pedregosa, F, 15 others (2011) Scikit-learn: Machine Learning in Python. J. Mach. Learn. Res., 12, 28252830.
Ressel, R, Singha, S, Lehner, S, Rosel, A and Spreen, G (2016) Investigation into different polarimetric features for sea ice classification using X-band synthetic aperture radar. IEEE J. Sel. Top. Appl. Earth Observ. Remote Sens., 9(7), 31313143, (doi: 10.1109/JSTARS.2016.2539501)
Röhrs, J and Kaleschke, L (2012) An algorithm to detect sea ice leads by using AMSR-E passive microwave imagery. Cryosphere, 6(0), 343352, (doi: 10.5194/tc-6-343-2012)
Scharien, RK and Yackel, JJ (2005) Analysis of surface roughness and morphology of first-year sea ice melt ponds: implications for microwave scattering. IEEE Trans. Geosci. Remote Sens., 43(12), 29272939. (doi: 10.1109/TGRS.2005.857896)
Spreen, G, Kaleschke, L and Heygster, G (2008) Sea ice remote sensing using AMSR-E 89-GHz channels. J. Geophys. Res., 113, (doi: 10.1029/2005JC003384)
Steffen, K (1991) Energy flux density estintation over sea ice based on satellite passive microwave measurements. Ann. Glaciol., 15, 178183.
Tomasi, C and Manduchi, R (1998) Bilateral filtering for gray and color images. In Sixth International Conference on Computer Vision, pp. 839-846 (doi: 10.1109/ICCV.1998.710815)
Wang, Q, Danilov, S, Jung, T, Kaleschke, L and Wernecke, A (2016) Sea ice leads in the Arctic Ocean: Model assessment, interannual variability and trends. Geophys. Res. Lett., 43, 70197027, (doi: 10.1002/2016GL068696)
Weeks, W (2010) On Sea Ice. University of Alaska Press, Fairbanks,
Wernecke, A and Kaleschke, L (2015) Lead detection in Arctic sea ice from CryoSat-2: Quality assessment, lead area fraction and width distribution. Cryosphere, 9, 19551968, (doi: 10.5194/tc-9-1955-2015)
Willmes, S and Heinemann, G (2015) Pan-Arctic lead detection from MODIS thermal infrared imagery. Ann. Glaciol., 56(69), 2937 (doi: 10.3189/2015AoG69A615)
Willmes, S and Heinemann, G (2016) Sea-ice wintertime lead frequencies and regional characteristics in the Arctic, 2003-2015. Remote Sens. (Basel), 8(4), (doi: 10.3390/rs8010004)
Zakhvatkina, N, Korosov, A, Muckenhuber, S, Sandven, S and Babiker, M (2017) Operational algorithm for icewater classification on dual-polarized RADARSAT-2 images. Cryosphere, 11, 3346 (doi: 10.5194/tc-11-33-2017)
Zakhvatkina, NY, Alexandrov, VY, Johannessen, OM, Sandven, S and Frolov, IY (2013) Classification of sea ice types in ENVISAT synthetic aperture radar images. IEEE Trans. Geosci. Remote Sens., 51(5), 25872600 (doi: 10.1109/TGRS.2012.2212445)
