Introduction
Eukaryotic genomes harbour a significant fraction of repetitive elements (REs), which play a determinant role in driving genetic innovation in the genome (Kazazian, Reference Kazazian2004; Bourque et al., Reference Bourque, Burns, Gehring, Gorbunova, Seluanov, Hammell, Imbeault, Izsvák, Levin, Macfarlan, Mager and Feschotte2018). Significant repeat categories that comprise the ‘repeatome’ include transposable elements (TEs) and certain protein-coding gene families, which are dispersed throughout the genome. Another major category consists of tandem repeats, such as satellite DNA, ribosomal RNA and simple repeats, which are arranged in consecutive copies along the genomic DNA (Woo et al., Reference Woo, Hong, Kim, Chung, Kang, Kim and Seo2007; Biscotti et al., Reference Biscotti, Olmo and Heslop-Harrison2015). In certain organisms, TEs are the predominant type of RE within the eukaryotic genome. They were first discovered by Barbara McClintock, who referred to them as ‘controlling elements’ (McClintock, Reference McClintock1984). It is well known that TEs are constituted by a large variety of families that can be categorized into 2 major classes based on their transposition mechanisms: Class I TEs (retrotransposons), which relocate into the genome through a ‘copy-and-paste’ mechanism involving an RNA intermediate, and Class II TEs (DNA transposons), which move via a DNA intermediate mostly using ‘cut-and-paste’ mechanism of mobilization (Finnegan, Reference Finnegan1989; Bourque et al., Reference Bourque, Burns, Gehring, Gorbunova, Seluanov, Hammell, Imbeault, Izsvák, Levin, Macfarlan, Mager and Feschotte2018; Gilbert et al., Reference Gilbert, Peccoud and Cordaux2021). The retrotransposons are divided into 5 orders distinguished by the major organizational structures of their coding and non-coding domains: LTR (long terminal repeat) retrotransposons, LINE (long interspersed nuclear elements), DIRS (Dictyostelium intermediate repeat sequence) elements, PLE (Penelope-like elements) and SINE (short interspersed nuclear elements) (Wicker et al., Reference Wicker, Sabot, Hua-Van, Bennetzen, Capy, Chalhoub and Schulman2007).
The family Trypanosomatidae contains a number of parasitic protistan lineages that can be divided into 2 major non-taxonomic groups: monoxenous (only 1 host, parasitizing mostly invertebrates) and dixenous (alternating between invertebrates, vertebrates and, sometimes, plants) organisms (Kaufer et al., Reference Kaufer, Ellis, Stark and Barratt2017; Kostygov et al., Reference Kostygov, Karnkowska, Votýpka, Tashyreva, Maciszewski, Yurchenko and Lukeš2021). Earlier studies have evaluated the repetitive content of the main medically important trypanosomatid species (Trypanosoma brucei, T. cruzi and Leishmania major) and reported retrotransposons (2–5%) as the only colonizers, while not documentingthe presence of DNA transposons (Bringaud et al., Reference Bringaud, Müller, Cerqueira, Smith, Rochette, El-Sayed, Papadopoulou and Ghedin2007; Macías et al., Reference Macías, Afonso-Lehmann, López, Gómez and Thomas2018). More recently, using graph-based clustering of short reads, a proportion of TEs in the T. brucei and T. cruzi genomes was estimated to be even higher, at ∼6% and 13%, respectively (Pita et al., Reference Pita, Díaz-Viraqué, Iraola and Robello2019).
Concerning TE diversity in trypanosomatids, older studies have reported only 4 major clades, namely INGI, CRE, VIPER and TATE (Aksoy, Reference Aksoy1991; Vazquez et al., Reference Vazquez, Ben-Dov, Lorenzi, Moore, Schijman and Levin2000; Bringaud et al., Reference Bringaud, García-Pérez, Heras, Ghedin, El-Sayed, Andersson, Baltz and Lopez2002; Lorenzi et al., Reference Lorenzi, Robledo and Levin2006; Peacock et al., Reference Peacock, Seeger, Harris, Murphy, Ruiz, Quail and Berriman2007) (Figure 1). The INGI and CRE clades belong to the LINE order (also known as non-LTR retrotransposons) (Kojima, Reference Kojima2020). The CRE clade (Figure 1A) comprises a group of elements originally identified by different names (SLACS, CZAR, CRE1 and CRE2) which consistently insert at the same relative position in the spliced leader (SL) RNA genes (Aksoy, Reference Aksoy1991; Teng et al., Reference Teng, Wang and Gabriel1995). While these elements were previously thought to encode 2 open reading frames (ORFs) in T. cruzi, we verified a single ORF in most species. These elements encode a reverse transcriptase (RT) and possess a restriction enzyme-like endonuclease motif (RLE). In general, the 3ʹ end is characterized by a poly-A tail. Most copies present 1 or 2 zinc finger (ZF)-like motifs (Fujiwara, Reference Fujiwara2015). Additionally, 1 or 2 internal repeat regions (RPT) are found in CRE elements of some species. These elements generate target-site duplications (TSDs, not represented in Figure 1) that vary in size.

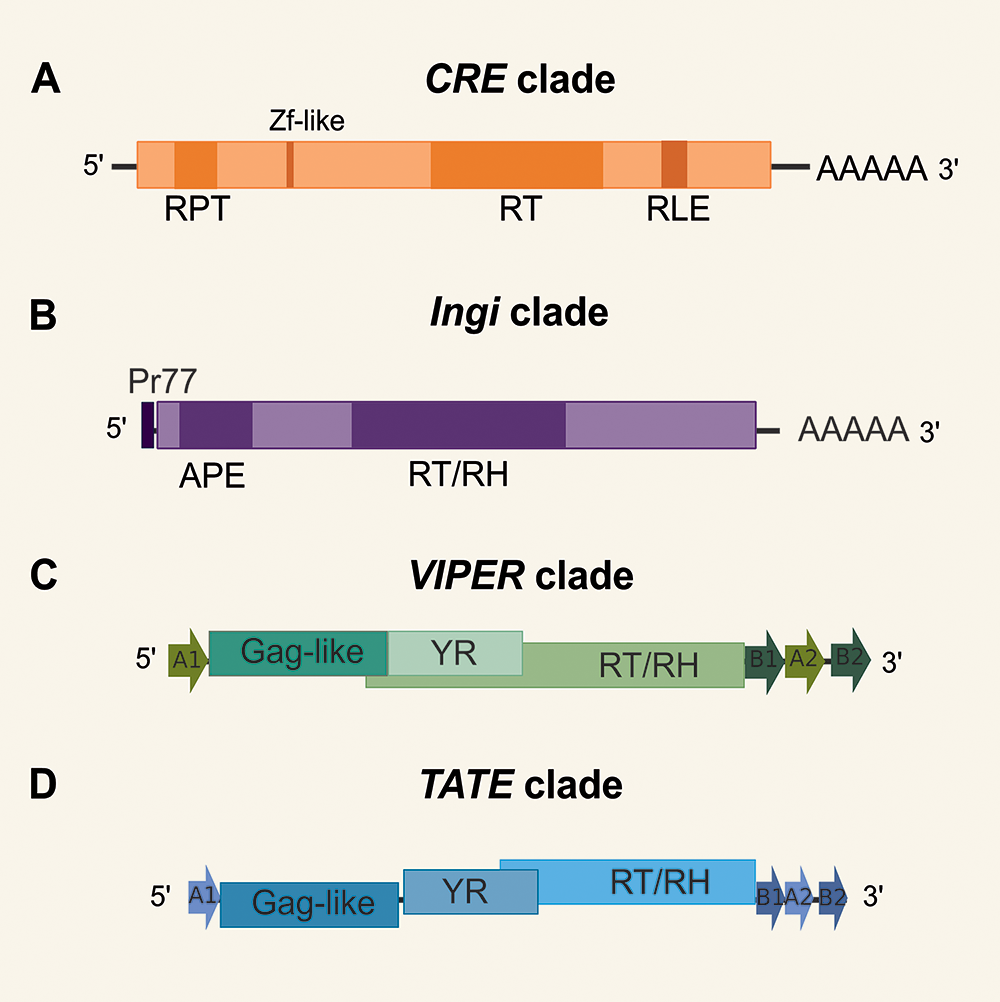

Figure 1. Schematic structure of autonomous elements from each known clade of TE in trypanosomatids. ORFs are shown as long rectangles, and the size of elements varies within clades (not drawn to scale). (A) CRE clade, containing: reverse transcriptase (RT), restriction enzyme-like endonuclease motif (RLE), a poly-A tail, 1 or 2 internal repeat regions (RPT); most copies present 1 or 2 zinc finger-like structures. (B) Autonomous INGI elements, containing: apurinic/apyrimidinic endonuclease (APE), RT and RNase h (RH), a highly conserved 77-nt sequence (pr77), a variable-length poly(A) tail. (C) VIPER (vestigial interposed retroelement) and (D) TATE (telomerase-associated transposable element) clades have similar structures, containing: a putative gag-like gene, 2 overlapped ORFs encoding for tyrosine recombinase (YR) and RT/RH, split direct repeats (SDRs), represented as arrows A1 at the 5′ end and B1, A2 and B2 at the 3′ end.
Potentially complete INGI elements were found in T. brucei (Tbingi), T. congolense (Tcoingi), T. cruzi (L1Tc) and T. vivax (Tvingi) (Bringaud et al., Reference Bringaud, Berriman and Hertz-Fowler2009), while only remnants of the complete INGI were detected in L. major (DIREs) (Bringaud et al., Reference Bringaud, Ghedin, El-Sayed and Papadopoulou2008). Autonomous INGI elements (Figure 1B) encode an apurinic/apyrimidinic endonuclease (APE), RT and RNase H (RH). In the 5ʹ end, these elements possess a highly conserved 77-nt sequence (Pr77) that works as a DNA promoter (Heras et al., Reference Heras, López, Olivares and Thomas2007) and has a ribozyme activity (Sánchez-Luque et al., Reference Sánchez-Luque, López, Macias, Alonso and Thomas2011). They have a variable-length poly(A) tail and generate TSDs (not represented in the figure). Short non-autonomous versions of INGI known as TbRIME, NARTc, LmSIDER and LbSIDER (not represented in Figure 1) are found in some species (Bringaud et al., Reference Bringaud, García-Pérez, Heras, Ghedin, El-Sayed, Andersson, Baltz and Lopez2002; Smith et al., Reference Smith, Bringaud and Papadopoulou2009).
While there were no reports of typical LTR elements in trypanosomatid genomes, VIPER (vestigial interposed retroelement) and TATE (telomerase-associated transposable element) elements of the DIRS order (Wicker et al., Reference Wicker, Sabot, Hua-Van, Bennetzen, Capy, Chalhoub and Schulman2007) were included in the LTR group in the Repbase classification (Finnegan, Reference Finnegan1989; Kojima, Reference Kojima2020). VIPER retrotransposon was initially described as a degenerated TE family in T. cruzi (Vazquez et al., Reference Vazquez, Ben-Dov, Lorenzi, Moore, Schijman and Levin2000) and more recently found in several trypanosomatid genomes, being potentially active in some species, including T. cruzi itself (Ribeiro et al., Reference Ribeiro, Robe, Veluza, Dos Santos, Lopes, Krieger and Ludwig2019). Besides, the TATE superfamily was initially discovered in Leishmania spp. of the subgenus Viannia (Peacock et al., Reference Peacock, Seeger, Harris, Murphy, Ruiz, Quail and Berriman2007; Llanes et al., Reference Llanes, Restrepo, Del Vecchio, Anguizola and Lleonart2015) and later degenerate and potentially active copies of TATE were found in other trypanosomatid genomes (Ribeiro et al., Reference Ribeiro, Robe, Veluza, Dos Santos, Lopes, Krieger and Ludwig2019). Autonomous VIPER and TATE elements have a similar structure (Figure 1C and D). They encode a first ORF considered a putative Gag-like gene and 2 additional overlapped ORFs encoding for tyrosine recombinase (YR) and RT/RH. Both clades have split direct repeats (SDRs) represented as arrows A1 at the 5′ end and B1, A2 and B2 at the 3′ end. VIPER and TATE elements do not generate TSDs upon insertion. A short version of VIPER, called SIRE (short interspersed repetitive element) was identified in T. cruzi (Vazquez et al., Reference Vazquez, Ben-Dov, Lorenzi, Moore, Schijman and Levin2000) and corresponds to the region encompassing A2 and B2 repeats (Ribeiro et al., Reference Ribeiro, Robe, Veluza, Dos Santos, Lopes, Krieger and Ludwig2019).
Currently, when genome assemblies are published, their repetitive content is often treated superficially, without any curation step, or overlooked altogether, which results in incomplete and, sometimes, inaccurate characterization of repeat elements, specifically TEs (Goubert et al., Reference Goubert, Craig, Bilat, Peona, Vogan and Protasio2022). There is little doubt that an in-depth analysis of the evolutionary history of TEs across a broad range of non-model trypanosomatid species is essential to elucidate the diversity and dynamics of these sequences within this group. The current study delves into the mobilome of 57 genomes of the members of the family Trypanosomatidae and explores the abundance, superfamily composition and evolutionary dynamics of TEs. In addition, we report the establishment of a custom expanded TE library for genome annotation of new trypanosomatid sequences that will provide a valuable resource for future studies on TEs.
Materials and methods
Acquisition, quality check and preprocessing of the genomic dataset
In this study, we have compiled 2 datasets comprising assembled and unassembled genomes utilized for the analysis of TEs across 57 species from the family Trypanosomatidae (Albanaz et al., Reference Albanaz, Carrington, Frolov, Ganyukova, Gerasimov, Kostygov and Butenko2023; Kostygov et al., Reference Kostygov, Albanaz, Butenko, Gerasimov, Lukeš and Yurchenko2024). The first dataset was constituted by genome assemblies, retrieved from the National Center for Biotechnology Information (NCBI) GenBank (Sayers et al., Reference Sayers, Cavanaugh, Clark, Pruitt, Schoch, Sherry and Karsch-Mizrachi2021) [accessed 07/15/2024] and from the TriTryp database release 58.0 (Shanmugasundram et al., Reference Shanmugasundram, Starns, Böhme, Amos, Wilkinson, Harb, Warrenfeltz, Kissinger, McDowell, Roos, Crouch and Jones2023). We assessed gene completeness by employing the ‘Benchmarking Universal Single Copy Orthologs’ (BUSCO) tool v. 5.4.3 (Seppey et al., Reference Seppey, Manni and Zdobnov2019) using mode: -genome, against the Euglenozoa database (Euglenozoa_db10), comprising 130 BUSCO orthologous genes (Kuznetsov et al., Reference Kuznetsov, Tegenfeldt, Manni, Seppey, Berkeley, Kriventseva and Zdobnov2023). Furthermore, to estimate the contiguity of the genomes, we calculated the contig N50 values (Supplementary Figure S1). To build RE models with RepeatModeler v. 1.0.8 (Flynn et al., Reference Flynn, Hubley, Goubert, Rosen, Clark, Feschotte and Smit2020), we included only high-quality assemblies (37 genomes in total), selecting only 1 genome per species based on the longest contig N50 value (Supplementary Table S1).
A second dataset comprising short-read genomic libraries from 20 trypanosomatid species was downloaded from the NCBI Sequence Read Archive (Katz et al., Reference Katz, Shutov, Lapoint, Kimelman, Brister and O’Sullivan2022). The short reads were trimmed with fastp v. 0.19.4 (Chen et al., Reference Chen, Zhou, Chen and Gu2018) using the following settings: --length-limit 50 -f 5 -t 5 -F 5 -T 5 in order to eliminate low-quality sequences and read quality was checked using fastQC v. 0.11.8 (Andrews, Reference Andrews2010) before and after the trimming step. We estimated the haploid genome size for the unassembled short-read genomes by applying k-mer frequency counting using Jellyfish v. 2.2.10 (Marçais and Kingsford, Reference Marçais and Kingsford2011) and this estimate was further used to infer the repetitive content fraction. The genome size distribution profiles were visualized using the Genoscope2 web tool (Ranallo-Benavidez et al., Reference Ranallo-Benavidez, Jaron and Schatz2020) (Supplementary Figure S2). A list of all genomes used in this study, including the source, name of isolate, contig N50 value, genome coverage, assembler and publication references is shown in Supplementary Table S1.
Identifying RE content from genome assemblies, and curation and classification of TEs
Genome assemblies were used to build a de novo repeat library for each of the 37 species using RepeatModeler v. 1.0.8 (Flynn et al., Reference Flynn, Hubley, Goubert, Rosen, Clark, Feschotte and Smit2020). To enhance the probability of finding new TEs, we additionally employed tools with a structure-based component: LTR_retriever v. 2.9.0 (Ou and Jiang, Reference Ou and Jiang2018), which uses accurate REs input from the LTR_Finder v. 1.07 (Xu and Wang, Reference Xu and Wang2007), and LTR_harvest v. 1.5.10 (Ellinghaus et al., Reference Ellinghaus, Kurtz and Willhoeft2008), to predict complete LTR retrotransposons.
For each resulting RE library, filtering steps were applied to remove spurious candidate models not associated with TEs (i.e., multicopy genes or tandem repeats). Tandem repeats were identified with Tandem Repeats Finder v. 4.09 (Benson, Reference Benson1999) with a threshold of 30%. Additionally, we used tRNAScan-SE v. 2.0.3 and cmscan (Chan et al., Reference Chan, Lin, Mak and Lowe2021) on each raw library to identify and quantify tRNA, rRNAs and snoRNAs, and the Blastx tool against Uniref-90 (UniProt Reference Clusters) (Suzek et al., Reference Suzek, Wang, Huang, McGarvey and Wu2015) and non-redundant NCBI databases [assessed 12/20/2023] to identify putative TEs and protein families (GP63, amastin, sialidases, GP46, tubulin, heat shock protein, etc.) within the raw libraries.
Sequences classified as unknown that were not eliminated in the previous filtering steps or confirmed as having some TE-related domain(s) were further screened using the web version of Censor (Kohany et al., Reference Kohany, Gentles, Hankus and Jurka2006) to analyse potential similarities to known TEs, including non-autonomous ones. TE-aid (Goubert et al., Reference Goubert, Craig, Bilat, Peona, Vogan and Protasio2022) was used to visualize the structure (potential ORFs and terminal repeats) and genomic coverage of the consensuses. Online Conserved Domain search (Wang et al., Reference Wang, Chitsaz, Derbyshire, Gonzales, Gwadz, Lu, Marchler, Song, Thanki, Yamashita, Yang, Zhang, Zheng, Lanczycki and Marchler-Bauer2023) was employed to search for protein domains in sequences with a higher potential to be TEs, such as those with a defined structure or of a larger size. Only sequences with TE domains or TE-similarity were maintained in the consensus sequence curation steps.
Next, we performed a manual curation of all the potential TEs (consensus sequences) within each library generated by RepeatModeler following the main steps outlined previously (Goubert et al., Reference Goubert, Craig, Bilat, Peona, Vogan and Protasio2022). Briefly (i) to remove redundant consensus sequences, we ran CD-HIT-EST v. 4.8.1 (Weizhong and Godzik, Reference Weizhong and Godzik2006) with the following settings: -c 0.80 -n 5 -M 0 -aS 0.80 -g 1 -G 0 over the filtered REs library expecting to meet the majority 80-80-80 rule for the classification of the TE family (Wicker et al., Reference Wicker, Sabot, Hua-Van, Bennetzen, Capy, Chalhoub and Schulman2007); (ii) next, the TE library was split into individual consensus sequences using split-fasta v. 3.6 (https://pypi.org/project/split-fasta/); (iii) to find all members of each family, the bash script ‘make_fasta_from_blast.sh’ (Goubert et al., Reference Goubert, Craig, Bilat, Peona, Vogan and Protasio2022) was used, performing a Blastn v. 2.5.0 + (Camacho et al., Reference Camacho, Coulouris, Avagyan, Ma, Papadopoulos, Bealer and Madden2009) search against the formatted genomes and retrieving extended sequences (±0.5–1.5 kbp) to include as much of the ends of the TEs as possible; (iv) all recovered sequences were aligned using MAFFT v. 7.453 (Katoh and Standley, Reference Katoh and Standley2013); (v) the resulting MAFFT alignments were manually inspected in Aliview.jar v. 2021 (Larsson, Reference Larsson2014) to delimit the elements and remove flanking sequences and indels; (vi) finally, the cons tool from the EMBOSS package v. 6.6.0.0 (Rice et al., Reference Rice, Longden and Bleasby2000) was used to obtain the consensus sequence of autonomous and non-autonomous TEs. In the aforementioned steps, we also used Bedtools v. 2.27.1 (Aaron et al., Reference Aaron, Quinlan and Hall2010; Quinlan, Reference Quinlan2014) or ‘make_fasta_from_blast.sh’ script, to extract TE copy from genome assembly and extend the length of their flanking regions. During our curation analysis, TE-trimmer, a tool to aid the manual curation of TE libraries (Qian et al., Reference Qian, Xue, Ou, Storer, Fürtauer, Wildermuth, Kusch and Panstruga2024), was published. We tested it and found it helpful in visualizing the PFAM protein domains (Mistry et al., Reference Mistry, Chuguransky, Williams, Qureshi, Salazar, Sonnhammer, Tosatto, Paladin, Raj, Richardson, Finn and Bateman2021); however, we observed that the consensus sequences were frequently incorrect, particularly shrinking the DIRS and extending the CRE elements.
To help delimit some elements, we used Blastn with the parameters ‘align 2 or more sequences’ and ‘somewhat similar sequences (blastn),’ adjusting the e-value threshold to 10 and using the same sequence as the query and subject. This strategy was used to find the target site duplications (TSDs) generated by CRE elements since their consensus is often extended due to their insertion in a repetitive region. Moreover, this was also used to identify the SDRs of VIPER and TATE.
For the purpose of classification, the consensus sequences were categorized according to their similarity to known TEs in the Repbase Database (Bao et al., Reference Bao, Kojima and Kohany2015) utilizing the web browser version of Censor (Kohany et al., Reference Kohany, Gentles, Hankus and Jurka2006). The sequences were named sequentially using a format that includes the species name abbreviation, a unique identifier, and the TE family classification with the order and clade/superfamily information (INGI, CRE, TATE or VIPER) (e.g., Tcru-1#LINE/CRE). Some known TE families were not repetitive enough in some of the genomes to be identified by RepeatModeler. To overcome this, a Tblastn search was performed against each genome. The TATE, VIPER, CRE and INGI canonical proteins from Repbase Database were used as queries using an E-value threshold of 1e-9. The sequences were retrieved using getfasta from the Bedtools package, and the steps described above were followed to retrieve the copies and make a consensus sequence, whose classification was confirmed using the Censor webtool.
Using the approach specified above, 1 accurate species-specific TE library was obtained for each genome assembly. These custom TE libraries were merged for downstream analysis by dnaPipeTE (Goubert, Reference Goubert2023). All of these procedures resulted in the creation of the custom Trypanosomatid TE DataBase v. 1.0 available on GitHub (https://github.com/percytullume/TEs_trypanosomatids).
Improving the annotation provided by RepeatMasker to infer copy number
To get the annotation of the TEs, each of the 37 curated species-specific TE libraries was mapped against its corresponding genome assembly using RepeatMasker v. 4.1.2 (Tarailo-Graovac and Chen, Reference Tarailo-Graovac and Chen2009) with the following options: -s -excln -a -gccal -norna -lib -nolow. To improve the accuracy of copy number estimation, we utilized the ‘One-code-to-find-them-all’ script (Bailly-Bechet et al., Reference Bailly-Bechet, Haudry and Lerat2014), which provides precise TE copy coordinates and accurate quantification of TE families (Table 1). There was no inference of TE copy numbers for unassembled genomes since the dnaPipeTE tool uses a low coverage genome (∼0.15 ×); therefore, the retrieved elements are frequently fragmented, generating unreliable estimates of copy number.

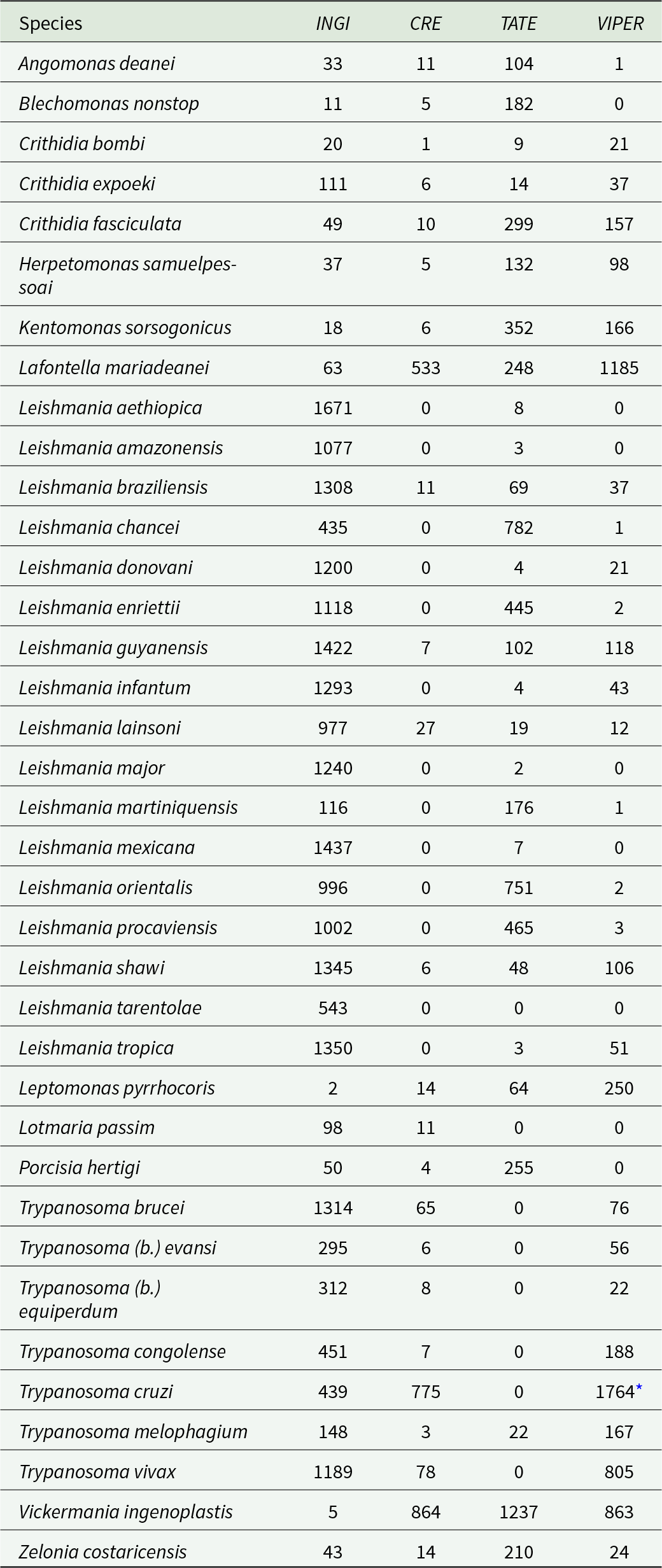

Table 1. Diversity of Class I TEs in trypanosomatid genomes
The number of copies in 4 superfamilies was assessed by RepeatMasker and the ‘one-code-to find-them-all’ script.
* The copy number of VIPER in T. cruzi also includes the short version, SIRE.
Kimura distance-based distribution analysis
From the RepeatMasker output, the .tbl file was used to estimate the TE coverage (proportions) for all trypanosomatid genomes. In addition, the .align file was used to estimate the divergence of copies and their family consensus sequence using the Kimura distance model (Kimura 2-parameter [K2P]) (Kimura, Reference Kimura1980) with the calDivergeneceFromAlign.pl script from the RepeatMasker package. We employed the Kimura distances with correction for CpG pairs for all trypanosomatid genera except Leishmania, where the parameter -noCpGMod was used, since DNA methylation has been documented for Trypanosoma sp. but not Leishmania spp. (Militello et al., Reference Militello, Wang, Jayakar, Pietrasik, Dupont, Dodd, King and Valenti2008; Cuypers et al., Reference Cuypers, Dumetz, Meysman, Laukens, De Muylder, Dujardin and Domagalska2020). We also used the ‘createRepeatLandscape.pl’ script from RepeatMasker to generate landscape bar plots illustrating the temporal activity of TEs within the genomes. Furthermore, TE families were grouped into the orders LINE (INGI and CRE) and DIRS (TATE and VIPER).
Repeat context analysis using the dnaPipeTE pipeline on the unassembled dataset
The second dataset included raw sequence read libraries from 20 trypanosomatid species. The abundance and proportion of each RE were estimated with the dnaPipeTE v. 1.4c (Goubert, Reference Goubert2023). The pipeline utilizes high-quality short-read sequencing libraries (either forward or reverse reads). Initially, to avoid overestimating REs, sequence reads aligning to the respective mitochondrial genomes were excluded for each species using the BBDuk package v. 37.62 from BBTools (Bushnell et al., Reference Bushnell, Rood and Singer2017). dnaPipeTE uses Trinity v. 2.5.1 (Grabherr et al., Reference Grabherr, Haas, Yassour, Levin, Thompson, Amit, Adiconis, Fan, Raychowdhury, Zeng, Chen, Mauceli, Hacohen, Gnirke, Rhind, Di Palma, Birren, Nusbaum, Lindblad-Toh, Friedman and Regev2011) to assemble RE contigs from low genome coverage (<1 × subsamples), enabling the identification of these sequences in species lacking high-quality genome assemblies. We performed tests of low coverage from 0.05 × to 0.21 × in intervals of 0.02 × (9 runs) on all datasets, as suggested by Goubert (Reference Goubert2023) (summarized in Supplementary Table S2), to find the highest contig N50 (optimal assembly) in the assembly step of the pipeline (best coverage species-specific). To infer genome size for dnaPipeTE, we employed Genoscope2 (Supplementary Table S4; Supplementary Figure S2). To improve the classification accuracy and annotation of TEs, we ran dnaPipeTE twice: (i) in the first run, we used the trypanosomatid RepeatModeler library (obtained in this work as described above), with the following parameter: -RM_lib (custom library). This custom RepeatModeler library gathered 37 curated TE libraries to identify potential candidate TEs; (ii) in the second run, we employed the correctly classified species-specific TE library identified in the first dnaPipeTE run to infer accurately the TE% coverage in the final dnaPipeTE library for each species. Additionally, these TE sequences were confirmed with the Censor webtool and Blastx. Gene families and satellites were removed as described above, and the classification of TEs was confirmed using the Censor webtool. The resulting TE libraries from unassembled genomes were added to the Trypanosomatid TE DataBase v. 1.0.
Estimation of the relationship between genome size and RE abundance
The abundances of RE and TEs vs genome assembly size were used for the correlation tests after the data were transformed to a logarithmic scale using tidyverse in R v. 4.2.1 (Wickham, Reference Wickham2016). To estimate correlation and the Spearman rank sum, with alpha = 0.005 (lm method), we used the Ape package in phytools 2.0 (Revell, Reference Revell2024) and ggplot2 in R (Paradis and Schliep, Reference Paradis and Schliep2019). We applied the Spearman rank correlation test as our data does not follow the normal distribution, as assessed by the Kolmogorov–Smirnov (KS) test. Additionally, using linear regression equations, we further inferred the relationship between genome size and the aforementioned traits with the Hiplot web tool (Li et al., Reference Li, Miao, Wang, Dong, Xu, Si, Wang, Duan, Lou, Bao, Zeng, Yang, Cheng, Zhao, Zeng, Liu, Wu, Shen, Chen, Chen, Wang and Consortium2022). Lastly, we also applied a phylogenetically independent contrasts (PICs) method (Felsenstein, Reference Felsenstein1985) to test a probable phylogenetic effect over the correlation among TEs/RE and genome size by using the pic function of Ape.
Phylogenetic analysis of the family Trypanosomatidae
We employed a set of genes recovered through BUSCO analysis to infer the species tree. We extracted 40 single-copy genes from all the 57 trypanosomatid species from the GenBank [accessed 07/15/2024] (Supplementary Table S1). To validate the accuracy of the orthologs, we ran OrthoFinder v. 2.5.4 with the default settings (Emms and Kelly, Reference Emms and Kelly2019). The resulting proteins from the orthologous groups were aligned using MAFFT v. 7.453 with the auto option (Katoh and Standley, Reference Katoh and Standley2013), followed by the trimming step in TrimAl v. 1.4 (Capella-Gutiérrez et al., Reference Capella-Gutiérrez, Silla-Martínez and Gabaldón2009) to remove gaps using -option ‘automated1.’ Next, the alignments were concatenated using FASconCAT v. 1.04 (Kück and Longo, Reference Kück and Longo2014) to build a supermatrix of sequences from the 57 species, resulting in an alignment of 24 659 amino acids in length and 3.7% missing data. The best substitution model was automatically selected by the ModelFinder with the MFP option (Kalyaanamoorthy et al., Reference Kalyaanamoorthy, Minh, Wong, von Haeseler and Jermiin2017). A maximum likelihood (ML) tree was inferred using IQTree2 v. 2.0.4 with 100 bootstrap samples, and later on 1000 UFBS (ultra-fast bootstrap) with default options (Minh et al., Reference Minh, Schmidt, Chernomor, Schrempf, Woodhams, von Haeseler and Lanfear2020). Additionally, we ran RAxML-NG v. 1.1.0 with 100 bootstrap samples to compare topologies (Kozlov et al., Reference Kozlov, Darriba, Flouri, Morel and Stamatakis2019). By employing 2 likelihood-based phylogenetic inference tools we aimed to uncover potential disparities in tree topologies. Finally, the phylogenetic trees were rendered in the iTOL v. 6 (Letunic and Bork, Reference Letunic and Bork2024) web server and further refined with Inkscape v. 0.92.5 to add the status (presence/absence) of each TE clade based on the analyses described above.
Results
Trypanosomatidae species representation, genome quality and TE library construction
Recently, the taxonomy of the family Trypanosomatidae has undergone a revision resulting in a system with 7 subfamilies and 24 genera (Maslov et al., Reference Maslov, Opperdoes, Kostygov, Hashimi, Lukeš and Yurchenko2019; Kostygov et al., Reference Kostygov, Albanaz, Butenko, Gerasimov, Lukeš and Yurchenko2024). In light of this, our dataset included 57 species representing 19 genera (Supplementary Figure S3; Supplementary Table S1). Highlighting 2 medically important genera, there were 25 Leishmania spp. belonging to all 4 subgenera (Leishmania, Mundinia, Sauroleishmania and Viannia), and 9 Trypanosoma spp. We also used 4 species whose genome sequences were obtained in our laboratory, namely Lafontella mariadeanei, Herpetomonas samuelpessoai, Sergeia sp. (isolate 2467) and Blechomonas sp. (isolate 303E). Most species belonging to Leishmania genus had high BUSCO values (Supplementary Figure S4), except for Leishmania lainsoni, which had 10 fragmented genes. The BUSCO scores were similar to those reported for L. major (Friedlin), which serves as a benchmark for completeness (Camacho et al., Reference Camacho, González-de la Fuente, Solana, Rastrojo, Carrasco-Ramiro, Requen and Aguado2021). Missing genes were documented in Blastocrithidia nonstop (7), Trypanosoma b. equiperdum (7), Trypanosoma congolense (5), H. samuelpessoai (5), Kentomonas sorsogonicus (4) and L. mariadeanei (1) (Supplementary Figure S4).
To provide a comprehensive overview of TEs in the family Trypanosomatidae, we ran RepeatModeler and dnaPipeTE pipelines across 37 genome assemblies and 20 unassembled short-read libraries, respectively. As a result, we obtained 12 301 consensus sequence models with RepeatModeler, while dnaPipeTE retrieved 10 484 contig models. The consensus models depicted the overview of REs. Because we focused solely on TEs, the raw repeat libraries underwent several filtering steps, to remove potential false positives (Figure 2A).

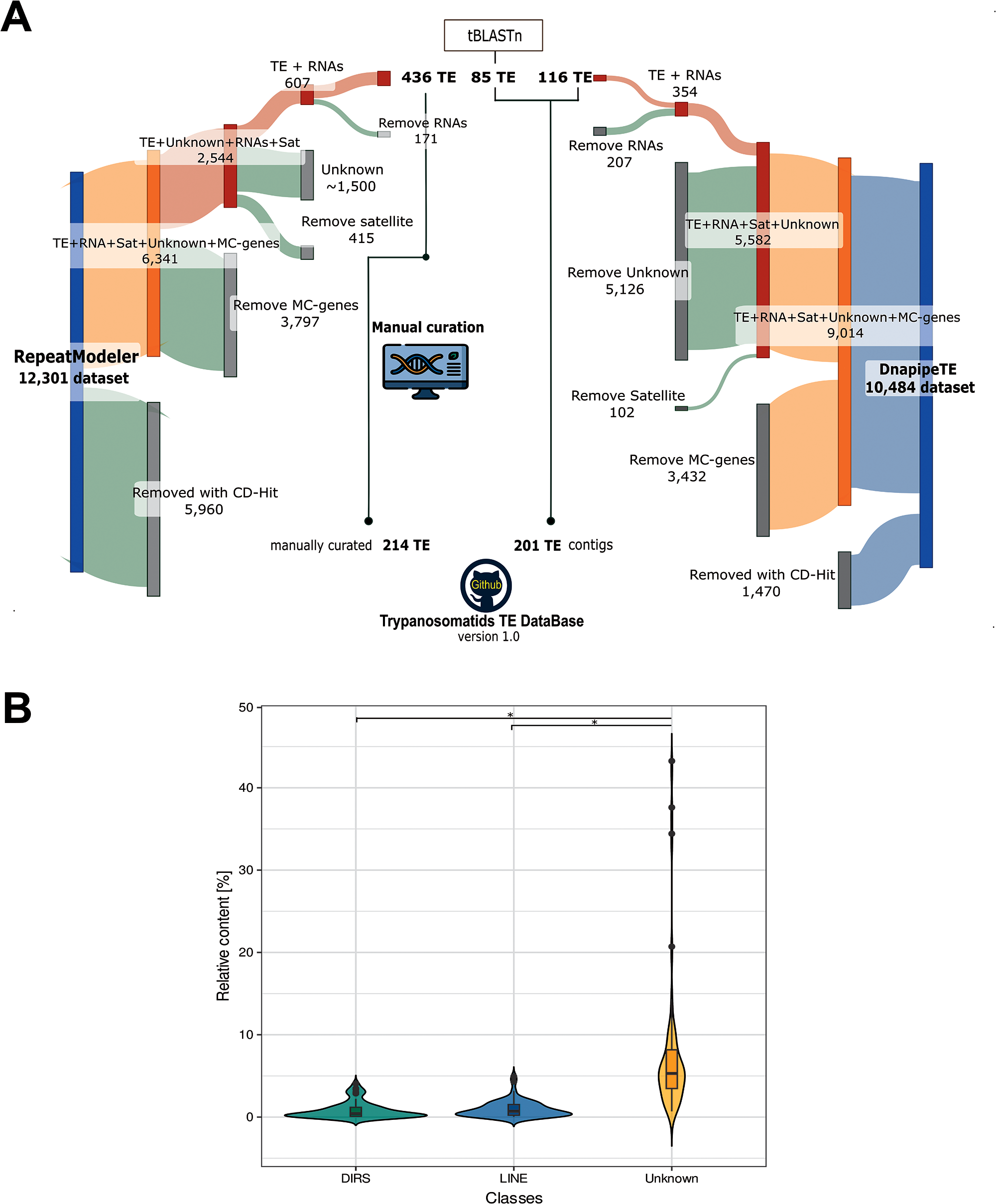

Figure 2. Overview of the steps to curate the final TE database and comparison among RE types. (A) Sankey plot displaying the raw RE libraries built by RepeatModeler (RM) and dnaPipeTe pipelines. For each phase, the grey portion indicates the number of consensus models removed by the filtering process, while the coloured segment depicts the number that continued to the next step. (1) Initial clustering reduced the number of family copies (5960 for RM and 1470 for dnaPipeTE) to streamline curation and minimize redundant TE models. (2) Multicopy genes (3797 for RM and 3432 for dnaPipeTE) were identified and removed using a homology-based approach. (3) Potential satellite sequences (415 for RM and 102 for dnaPipeTE) and ‘unknown’ sequences (1500 for RM and 5126 for dnaPipeTE) were excluded. (4) RNA-related families (171 for RM and 207 for dnaPipeTE) were detected and separated from the TE dataset. Following this pipeLINE, 436 TE sequences were manually curated, resulting in 214 canonical TE models. additionally, a small number of TEs were incorporated based on Tblastn results. (B) Violin plot representing the genome occupancy of 2 TE orders as DIRS, LINE, along with unknown from 57 assessed trypanosomatid genomes. Pairwise Wilcoxon rank test with Bonferroni correction was used for comparison among classes, where * (P-value < 0.01) indicates significance (Supplementary Table S3).
From the RepeatModeler approach, we recovered a set of 436 sequences with predicted TE-related proteins using Blastx. Additionally, some TEs were recovered using Tblastn, adding 85 model sequences. We also tried to classify the sequences annotated by RepeatModeler as ‘unknown’ (∼1500 sequences). Several of them were discarded because they represented additional multicopy genes or tandem repeats, while a few were confirmed as TEs. The remaining sequences lacked any traits of TEs or similarity to known TEs. We chose to retain only sequences with confirmed classification in the final TE library, totalling 214 TE families (Figure 2A). As expected, the sequences recovered from dnaPipeTE were TE contigs (very fragmented), and, after the filtering steps, only 116 TE contigs were confirmed.
From all REs found, we confirmed only 4 previously known trypanosomatid TE clades (INGI, CRE, VIPER and TATE). A few potential TEs classified as DNA transposon (Helitron) and LTRs (Gypsy and Copia elements) were not confirmed after the curation steps, as they were confirmed to be multicopy genes (false positives). Notably, the majority of the REs found were classified as unknown (Figure 2B).
RE and TE content of trypanosomatid genomes
The proportion of RE (multicopy genes, unknown, RNAs) and TE content was mapped onto the phylogenetic tree of trypanosomatids (Figure 3A; Supplementary Figure S5). The genome size of trypanosomatids varies widely, ranging from ∼20 Mbp in Angomonas deanei and Phytomonas françai to 67 Mbp in Trypanosoma vivax (Figure 3B; Supplementary Table S4). The genus Leishmania displays a lesser variation in length, ranging from ∼30 to ∼35 Mbp. Overall, the haploid genome size in trypanosomatids was spread around the mean of 33.0 Mbp with a standard deviation (s.d.) of 8.3 Mbp.

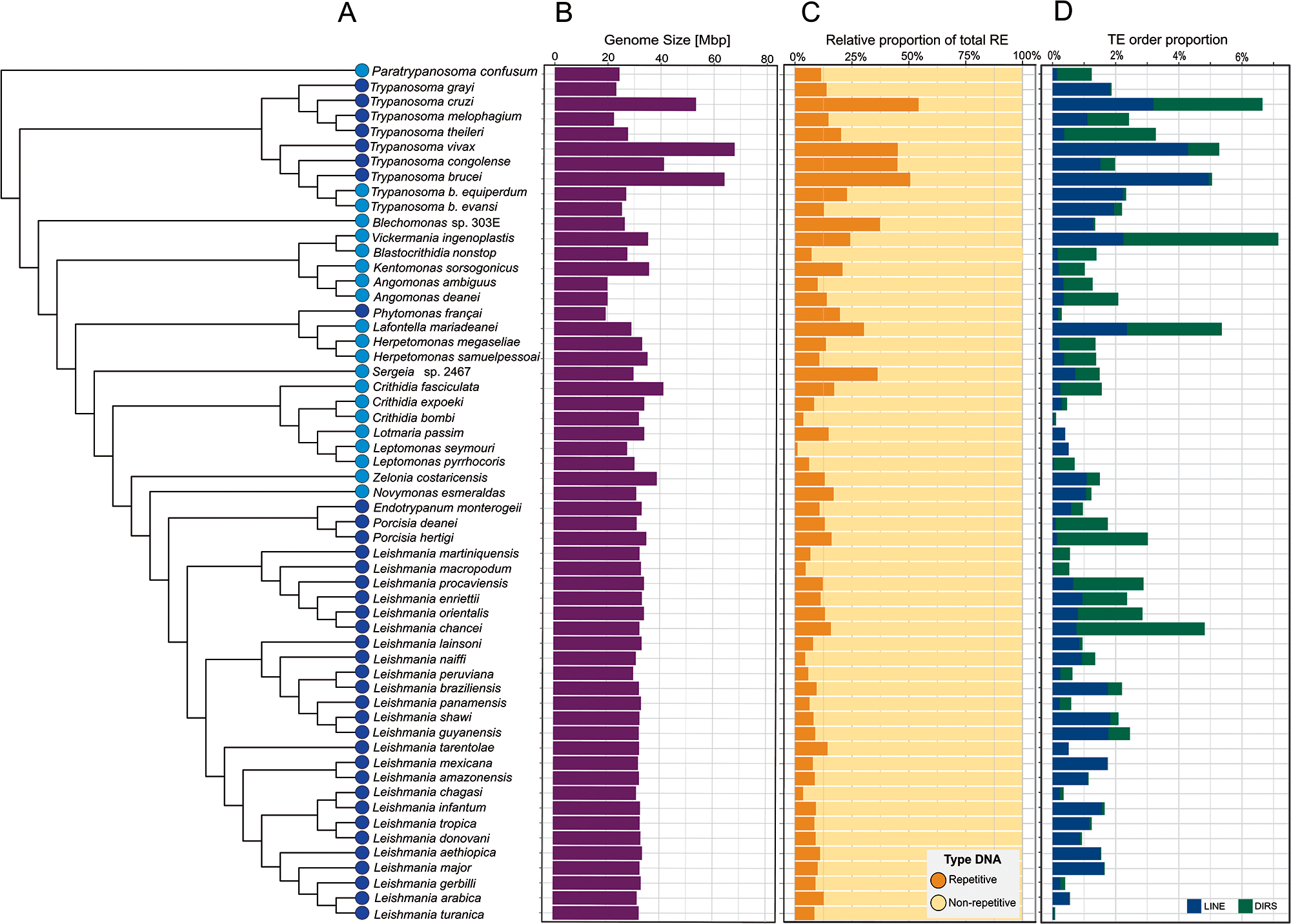

Figure 3. Contribution of REes and TEs to trypanosomatid genomes. (A) A cladogram displays the relationship of the 57 trypanosomatid species of 7 subfamilies used in this study. Monoxenous and dixenous parasites are marked by light and dark blue circles, respectively. (B) Genome sizes are shown in Mbp. (C) Proportion of repetitive and non-repetitive content in each species. (D) Total proportion of each TE order, DIRS (green) and LINE (blue).
The repetitive content also varies widely among the trypanosomatid taxa (Figure 3C, Supplementary Table S4) from 3.7% (Crithidia bombi) to 56.1% (T. cruzi) with a mean of 15.2% (s.d. of 11.9%). As expected because of their pivotal role, rRNA and snoRNAs gene families were detected among the RE across all genomes. Moreover, the multicopy gene families represent the most abundant elements in the interspersed repeats fraction of the trypanosomatid genomes, ranging from 44.1% in T. cruzi to 0.7% in C. bombi (Supplementary Figure S5; Supplementary Table S4).
In terms of TE proportions, trypanosomatids presented a mean of 1.8% (s.d. of 1.6%) with most species having less than 3% of their genomes present as TEs. Higher proportions of TEs were found in Vickermania ingenoplastis (7.2%), T. cruzi (6.7%), Lafontella mariadeanei (5.4%), T. vivax (5.4%), T. brucei (5.0%), Leishmania chancei (4.8%), Trypanosoma theileri (3.3%) and Porcisia hertigi (3.0%). Conversely, a lower proportion was documented in C. bombi with ∼0.1% (Figure 3D; Supplementary Table S4). Notably, we detected greater proportions of TEs in some species of the subgenus Mundinia, including L. chancei, Leishmania procaviensis (2.9%), Leishmania orientalis (2.9%) and Leishmania enriettii (2.3%), but with the exception of Leishmania macropodum (0.1%).
Our results show that LINEs are more widely distributed than DIRS, and their proportions vary among the genomes (Figure 3D; Supplementary Table S4) comprising up to 4.9% in T. b. brucei, 4.3% in T. vivax, and 3.2% in T. cruzi genomes. In contrast, their proportions in L. macropodum and L. martiniquensis accounted for ∼0.02%. The DIRS elements were present at a higher proportion in L. chancei (4.1%) and T. cruzi (3.5%) and were either absent or present at a low proportion (0.01%) in some Leishmania spp.
This study is the first to report the TE proportions in several trypanosomatid species, with some showing relatively high values not previously reported for trypanosomatid species: T. b. equiperdum (2.3%), T. vivax (5.4%), Trypanosoma melophagium (2.4%), L. mariadeanei (5.4%), B. nonstop (1.4%), L. guyanensis (2.5%), L. shawi (2.2%), L. lainsoni (0.9%) and V. ingenoplastis (7.2%).
Correlation test of REs and TEs vs trypanosomatid genome size
The differences in trypanosomatid genome size prompted us to inquire how much REs and TEs contribute to this trait. The linear regression model revealed that RE and TE coverages have a weak correlation with the genome sizes (R 2 = 0.14, P = 0.00484; R 2 = 0.09, P = 0.02327, respectively) (Figure 4A, B). We confirmed that our data does not follow the normal distribution based on KS statistics (KS = 0.247, P = 0.0014). Additionally, the Spearman rank correlation test revealed a significant, albeit modest, positive correlation between the abundance of all REs and genome size (Spearman’s rank sum test rho = 0.27, P = 0.042) (Figure 4C). In contrast, the correlation between genome size and TEs was not statistically significant (Spearman, rho = 0.23, P = 0.083) (Figure 4D). We further tested PICs to correct for the non-independency of traits among species. These tests revealed significative relationships of genome size with RE (R 2 = 0.5316, P = 7.639 × 10−11) and TEs (R2 = 0.4897, P = 8.367 × 10−10) (Supplementary Figure S6).

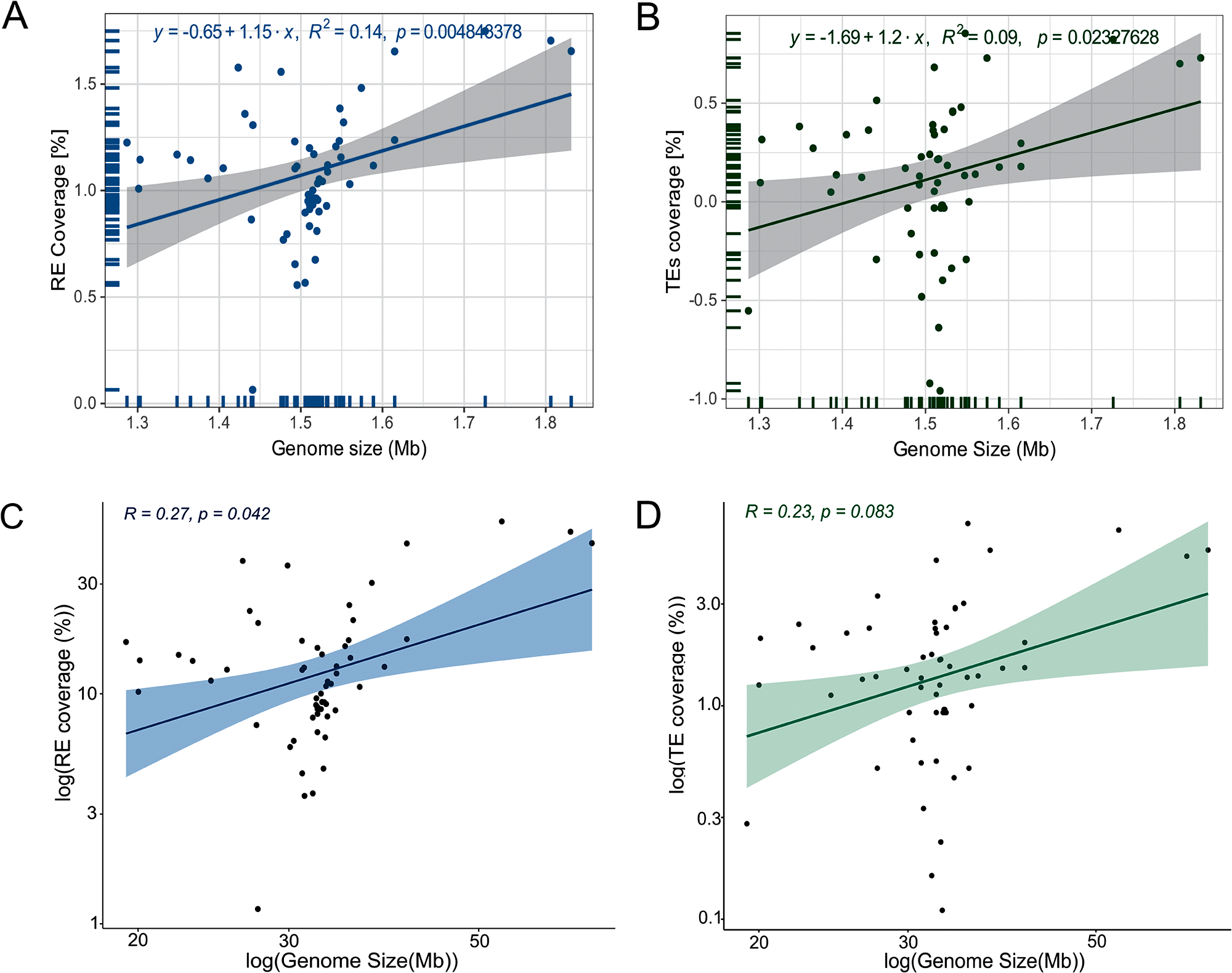

Figure 4. Scatterplots of correlation between genome size vs REs and TEs [%] across 57 trypanosomatid genomes. (A) Linear regression plot between genome size and the percentage of REs. (B) Linear regression plot between assembly genome size and the percentage of TEs. (C) Correlation plot between genome size and the percentage of REs. (D) correlation plot between genome size and the percentage of TEs. Lines: linear regression, shaded area: confidence interval.
Distribution of TEs across the family Trypanosomatidae
In the last decade, molecular phylogenetic analyses have significantly enhanced our understanding of the extended relationships within the family Trypanosomatidae, providing valuable insights into the evolutionary processes in this group (Yurchenko et al., Reference Yurchenko, Kostygov, Havlová, Grybchuk-Ieremenko, Ševčíková, Lukeš, Ševčík and Votýpka2016; Kostygov and Yurchenko, Reference Kostygov and Yurchenko2017; Espinosa et al., Reference Espinosa, Serrano, Camargo, Teixeira and Shaw2018; Kaufer et al., Reference Kaufer, Stark and Ellis2019; Kostygov et al., Reference Kostygov, Frolov, Malysheva, Ganyukova, Chistyakova, Tashyreva, Tesařová, Spodareva, Režnarová, Macedo, Butenko, d’Avila-Levy, Lukeš and Yurchenko2020). In this sense, our study contributed to extending this analysis by including newly sequenced genomes of Lafontella mariadeanei, Herpetomonas samuelpessoai, Blechomonas spp. Sergeia spp. along with L. shawi and L. guyanensis.
The ML method was applied to the supermatrix to recover the best and most robust trypanosomatid phylogenetic tree, as depicted in Figure 5. As expected, all the subfamilies formed well-supported clades (100%), but there were some exceptions, such as observed between the Leishmaniinae and Sergeia spp. clades, with a bootstrap support of 78%. Moreover, the clade that included T. cruzi and T. grayi had a low bootstrap support (51%). Additionally, the RAxML tool showed a different topology for this clade (Supplementary Figure S7).

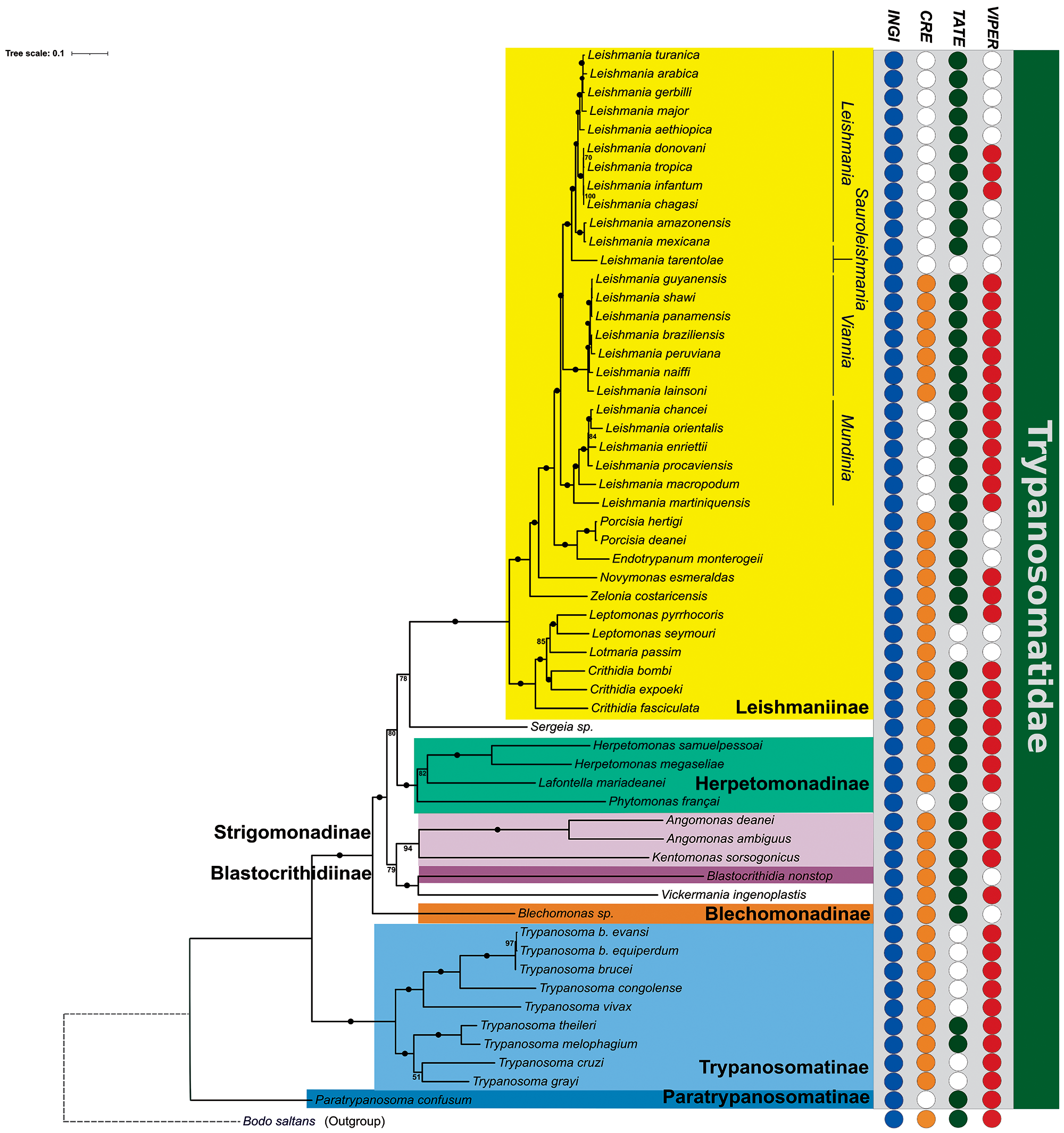

Figure 5. Phylogenetic relationships across 57 species of trypanosomatids. The bold letters show the position of the 7 subfamilies that currently constitute the family Trypanosomatidae. Bootstrap supports are shown at nodes, and maximum bootstrap support (100%) is shown with black circles. The distribution of the 4 retrotransposon clades is shown on the right, with coloured circles indicating the presence and white circles indicating the absence of a given element. Bodo saltans, a free-living phagotroph, was added as an outgroup. The scale bar indicates the number of substitutions per site.
Understanding these phylogenetic relationships is essential to visualize the evolutionary pattern of the TEs (Figure 5). Notably, Bodo saltans, a free-living kinetoplastid species, is also known to harbour the 4 TE clades (CRE, INGI, TATE and VIPER), indicating that these elements were likely present in the last common ancestor of all trypanosomatids (Jackson et al., Reference Jackson, Quail and Berriman2008, Reference Jackson, Otto, Aslett, Armstrong, Bringaud, Schlacht and Berriman2016; Ribeiro et al., Reference Ribeiro, Robe, Veluza, Dos Santos, Lopes, Krieger and Ludwig2019).
The INGI superfamily is the most widespread, found in all 57 lineages analysed with a number of copies varying from only a few in Leptomonas pyrrhocoris to 1671 in L. aethiopica. However, these abundant copies in Leishmania appear to be mostly non-autonomous (Table 1). In contrast, CRE clade showed a patchy distribution, with high numbers in V. ingenoplastis, T. cruzi and L. mariadeanei. Four independent events of loss could explain the distribution pattern of these elements: in P. confusum, in P. françai, in the ancestor of the subgenus Mundinia, and in the common ancestor of the subgenera Leishmania and Sauroleishmania.
VIPER and TATE also displayed a patchy distribution pattern. Here, we reported for the first time VIPER in multiple monoxenous genera and remnants in several Leishmania spp. High copy numbers in T. cruzi, L. mariadeanei, and V. ingenoplastis may reflect retained activity in these lineages. Moreover, we found TATE elements in all Leishmania spp. investigated (except L. tarentolae) with high loads in the Mundinia subgenus and V. inglenoplastis. In Trypanosoma spp., TATE has been previously detected only in T. theileri (Ribeiro et al., Reference Ribeiro, Robe, Veluza, Dos Santos, Lopes, Krieger and Ludwig2019). Here, we also identified this element in the genome of a closely related species, T. melophagium.
Our analysis revealed a highly variable number of TE copies across 37 assembled trypanosomatid genomes. However, it is important to recognize that these counts do not necessarily reflect complete or functional copies, as they may include remnant fragments. The copy numbers can also be influenced by the quality of the genome assemblies and TE libraries. For instance, we noticed that the TE consensus sequences from Zelonia costaricensis are fragmented due to the fragmentation of the genome itself (Tullume-Vergara et al., Reference Tullume-Vergara, Caicedo, Tantalean, Serrano, Buck, Teixeira, Shaw and Alves2023), potentially leading to overestimation of the copy numbers. On the other hand, the CRE elements could be underrepresented in certain species if the SL-RNA region, where these elements typically insert, is not well-covered in the genome assembly. Therefore, while this provides an overall view of TE load across species, these findings should be interpreted with caution.
TE transposition activity during trypanosomatid evolution
The K2P-based copy divergence analysis was performed to assess the diversity and dynamics of the trypanosomatid mobilome in detail. The TE landscapes illustrate the distribution of genome coverage of copies for LINE and DIRS sequences relative to their divergence from the consensus model sequence. The shape of a distribution landscape can be categorized as follows: (i) recent events of TE activity (transposition bursts) are characterized by low divergence scores (<5% divergence from the consensus) and are depicted with L-shaped peaks (Barrón et al., Reference Barrón, Fiston-Lavier, Petrov and González2014); (ii) bimodal (2 peaks) and (iii) ‘bell-shaped’ curves depict an equilibrium between transposition and excision events over evolutionary time (Le Rouzic and Capy, Reference Le Rouzic and Capy2005).
The TE landscape distribution for 30 trypanosomatid genomes was compared among genera and species to describe some main events (Figure 6; Supplementary Figure S8). The CRE superfamily has acquired the majority of copies relatively recently (compared to the other retrotransposons) in almost all genomes possessing these elements. Very recent activity of this superfamily (including some notable bursts) can be seen in H. samuelpessoai, L. mariadeanei, L. braziliensis, L. guyanensis, L. lainsoni, Lotmaria passim, T. brucei, T. congolense, T. cruzi, T. melophagium, T. vivax and V. ingenoplastis. The other TE families exhibit different evolutionary trajectories depending on the species.

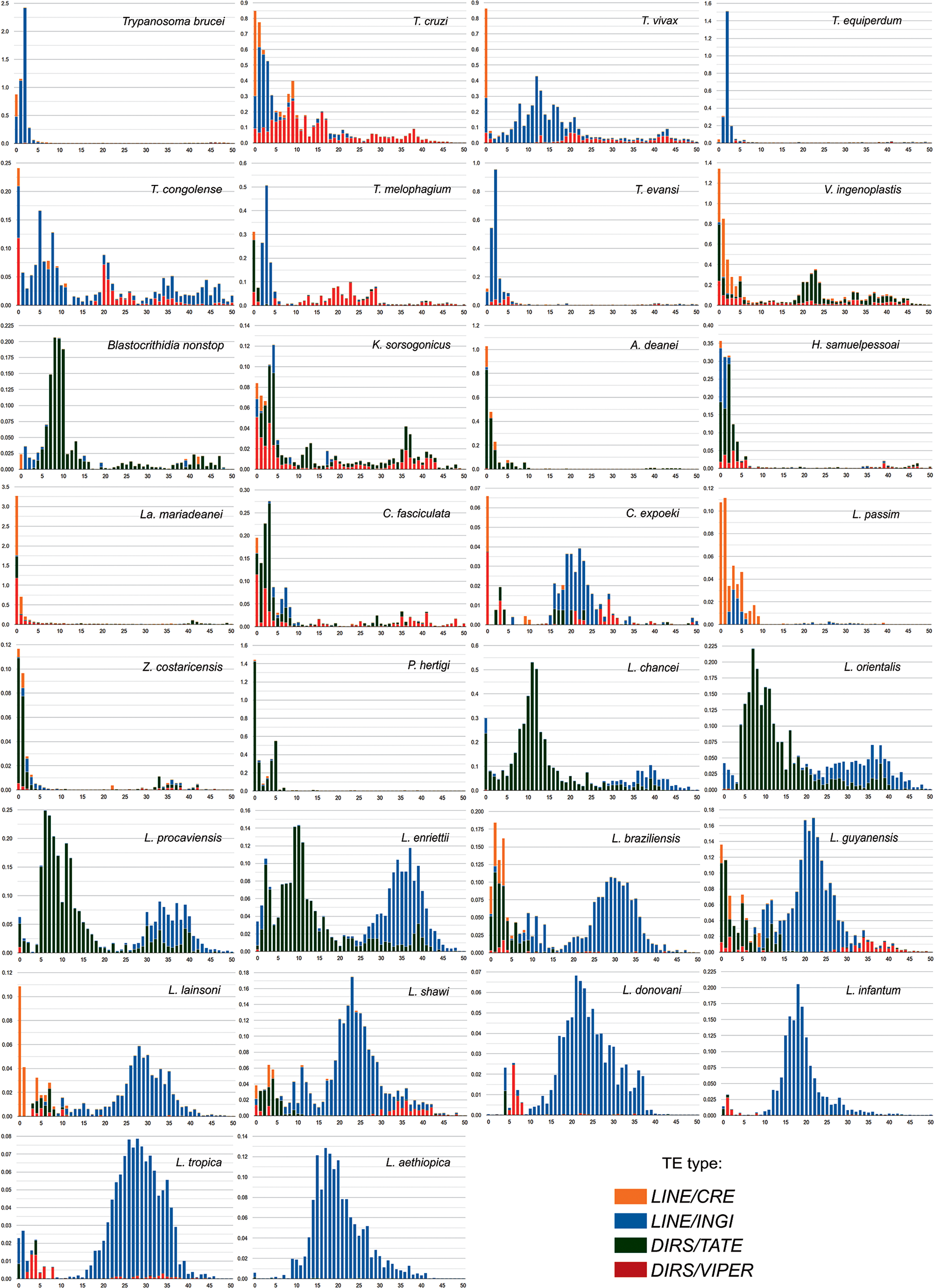

Figure 6. TE age distribution in trypanosomatid genomes based on K2P divergence analysis. The y-axis displays the percentage of the genome (abundance) for different clades of TEs, and the x-axis shows the Kimura substitution level (k-value from 0 to 50) of copies with their respective consensus sequences. Likewise, a low degree of divergence indicates recent activity (<5%), whereas higher divergence scores suggest that the copies derive from older transposition events.
Within the genus Trypanosoma, the landscape distributions generally show a multimodal shape with INGI and VIPER being well represented. As expected due to their phylogenetic proximity, T. brucei, T. b. equiperdum and T. b. evansi, show a similar pattern with a very low number of ancient insertions, and a recent activity peak of INGI (K2P of 3) and CRE (K2P 0), although the CRE peak is more prominent in T. brucei, T. congolense, T. cruzi and T. vivax have a recent activity peak of CRE, VIPER and INGI and additional, more ancient peaks (K2P 9 and 16 in T. cruzi; K2P 12 in T. vivax; K2P 5 and 20 in T. congolense). Interestingly, in contrast to other Trypanosoma spp., T. melophagium does not present a very recent peak of INGI elements. On the other hand, in this species, the TATE elements appear to be the most recently active TEs, followed by the VIPERs and CREs.
The divergence landscape for V. ingenoplastis and K. sorsogonicus displayed a multimodal distribution with a significant proportion of sequences presenting divergence below 5%, which suggests a recent activity for the CRE and VIPER clades. Blastocrithidia nonstop showed a multimodal shape, with the first peak occurring earlier (from 10 to 5 of K2P), being dominated by TATE elements. This pattern of B. nonstop is likely to be associated with the accumulation of TEs in its genome.
Strikingly, we observed an L-shape distribution for A. deanei, C. fasciculata, H. samuelpessoai, L. mariadenaei, L. passim, Porcisia hertigi and Z. costaricensis with increasing trend spanning from ∼10% to 0% of K2P divergence. This pattern indicates a more recent burst of activity with a very low quantity of older copies in some of these species. The CRE, TATE and VIPER elements were well noticeable in H. samuelpessoai and L. mariadenaei. The TATE elements are the most abundant in A. deanei, P. hertigi and Z. costaricensis genomes, while TATE and CRE stand out in L. passim.
Within the genus Leishmania, similar patterns can be observed for the species belonging to the same subgenera. In the subgenus Mundinia, which includes L. chancei, L. enriettii, L. orientalis and L. procaviensis, multipeaked distributions of TATE and INGI were observed. The TATE elements are highly abundant in this group although this expansion was primarily due to some more ancient events of transposition (highest peaks of K2P 5-10). Furthermore, in subgenus Viannia, bimodal peaks were observed in L. braziliensis, L. guyanensis, L. lainsoni and L. shawi (although less pronounced in the latter). Recent activity of CRE and TATE elements is indicated for almost all these species, while INGI elements presented more ancient activity. Lastly, the TE landscape in the Leishmania subgenus is dominated by the INGI clade exhibiting an ancient peak, similar to what is observed in the subgenera Mundinia and Viannia. This pattern is expected, given that only non-autonomous INGI-related elements (SIDERs and DIREs) are present in the genomes of Leishmania spp. Interestingly, L. donovani, L. infantum and L. tropica still contain remnants of the VIPER elements, reported for the first time in this study.
Unexpectedly, a low percentage of copies with very low divergence (K2P 0) is observed despite the absence of active TEs. Noteworthy, this could suggest that some TEs are being duplicated through mechanisms other than transposition, such as through segmental genomic duplications. This possibility could help explain the persistence of non-autonomous TEs even when active elements are absent and merits further investigation. In addition, some of these observations could result from false duplications in the assemblies. Even applying, purging steps, such artefacts are known to occur (Ko et al., Reference Ko, Lee, Kim, Rhie, Yoo, Howe, Wood, Cho, Brown, Formenti, Jarvis and Kim2022).
For several species, we observe a very low amount of ancient elements. Possible explanations include (1) loss of active TEs followed by a recent invasion of active families from other species, although no evidence of horizontal TE transfer has been documented for these species; and (2) continuous production of new copies by active TEs with rapid turnover, which may lead to the elimination of older, inactive copies.
Discussion
Trypanosomatid TE database 1.0: A curated high-quality resource for future research
In recent years, the volume of trypanosomatid genomic data has increased dramatically. While the study of TEs is crucial for understanding the evolutionary dynamics and functionality of genomes, they are often analysed superficially. Our work significantly extended the understanding of the trypanosomatid mobilome through a comparative analysis encompassing 57 genomes that included new non-model trypanosomatids. It revealed TE abundance, diversity, activity and evolution.
To ensure the reliability of outcomes, we executed 2 pipelines based on repetitiveness, RepeatModeler and dnaPipeTE. The latter prevents underestimation of the TE proportion, a common problem for genome assemblies based on short reads as they can be fragmented and present collapsed contigs (Alkan et al., Reference Alkan, Sajjadian and Eichler2011; Peona et al., Reference Peona, Weissensteiner and Suh2018; Shahid and Slotkin, Reference Shahid and Slotkin2020).
The TE prediction approach employed in this work also addressed common issues associated with similarity-based methods. Specifically, the TE databases often harbour a low representation of curated models for non-model microorganisms and, consequently, rely solely on similarity-based methods, which can limit the detection of TEs in these underrepresented or novel species (Storer et al., Reference Storer, Hubley, Rosen, Wheeler and Smit2021). On the other hand, some TEs might be missed by repetitiveness-based methods due to their insufficient repetitiveness and, therefore, we complemented our analyses with BLAST-based searches.
Confirming sequences as genuine TEs and classifying them correctly is crucial but complex, as programs like RepeatModeler can detect a wide range of repetitive DNAs and sometimes misclassify sequences (Almutairi et al., Reference Almutairi, Urbaniak, Bates, Jariyapan, Al-Salem, Dillon, Bates and Gatherer2021a). Distinguishing between the total repetitive content of the genome (RE) and the TE content is critical in any discussion concerning transposons. Moreover, since trypanosomatid genomes exhibit low diversity (Bringaud et al., Reference Bringaud, Ghedin, El-Sayed and Papadopoulou2008), new TEs identified by such programs require careful scrutiny. In this study, manual curation ensured accurate TE classification. Additionally, while we attempted to classify unknown sequences, most remained unclassified. Although some of them might be genuine TEs, the absence of typical protein domains and TE structures suggests they are unlikely to be conventional elements, making their characterization particularly challenging.
In this work, after a concerted effort to overcome the challenges in characterizing trypanosomatid TEs, we ultimately confirmed 214 consensus TE families across 37 species. These curated sequences are now part of the Trypanosomatid TE Database 1.0, presenting a valuable resource for future studies.
RE and TE content in trypanosomatid genomes
Based on the first genomic sequences of trypanosomatids, significant variation in the proportion of the repetitive genomic content has been noted, with the vast majority of it allocated to the multigenic families (Ivens et al., Reference Ivens, Peacock, Worthey, Murphy, Aggarwal, Berriman, Sisk and Myler2005; Pita et al., Reference Pita, Díaz-Viraqué, Iraola and Robello2019). Considering the total proportion of REs, our data agree with previous works for C. fasciculata (Albanaz et al., Reference Albanaz, Carrington, Frolov, Ganyukova, Gerasimov, Kostygov and Butenko2023), T. cruzi (Pita et al., Reference Pita, Díaz-Viraqué, Iraola and Robello2019), and L. major and L. martiniquensis (Almutairi et al., Reference Almutairi, Urbaniak, Bates, Jariyapan, Al-Salem, Dillon, Bates and Gatherer2021a; Albanaz et al., Reference Albanaz, Carrington, Frolov, Ganyukova, Gerasimov, Kostygov and Butenko2023). A higher proportion of REs than previously reported was found in H. samuelpessoai and T. brucei compared to previous reports (Berriman et al., Reference Berriman, Ghedin, Hertz-Fowler, Blandin, Renauld, Bartholomeu, Lennard and El-Sayed2005; Pita et al., Reference Pita, Díaz-Viraqué, Iraola and Robello2019; Albanaz et al., Reference Albanaz, Carrington, Frolov, Ganyukova, Gerasimov, Kostygov and Butenko2023). According to our results, the highest repetitive contents are reported in the genus Trypanosoma.
Earlier studies suggested that TEs comprise up to 5% of the genomic content in trypanosomatids (Bringaud et al., Reference Bringaud, Müller, Cerqueira, Smith, Rochette, El-Sayed, Papadopoulou and Ghedin2007) while later analyses elevated this number to 12% (Pita et al., Reference Pita, Díaz-Viraqué, Iraola and Robello2019). A recent work estimated that 48% of the T. cruzi genome are TEs (Hoyos Sanchez et al., Reference Hoyos Sanchez, Ospina Zapata, Suarez, Ospina, Barbosa, Carranza Martinez, Vallejo, Urrea Montes and Duitama2024). However, this estimate was obtained with raw RepeatModeler libraries that likely included other repetitive sequences, such as the large gene families or unknown sequences. In our study, we report a lower proportion for T. cruzi, which can be explained by the different TE prediction tools used and the manual curation of consensus sequences. The highest proportion of TEs in this work was ∼7%, for V. ingenoplastis. Although this proportion is much smaller than what is found in mammals and plants, it is comparable to or slightly lower than what was found in some unicellular protists, such as Entamoeba sp. (5–8% (Pritham, Reference Pritham2009)), apicomplexans (up to 5.4% (Rodríguez and Makalowski, Reference Rodríguez and Makalowski2022)) and the amoebozoan Dictyostelium discoideum (∼10%; Glöckner et al., Reference Glöckner, Szafranski, Winckler, Dingermann, Quail, Cox, Eichinger, Noegel and Rosenthal2001). Multiple interconnected factors are known to contribute to TE abundance, including transposition activity, historical accumulation of TEs, silencing mechanisms, competition between TEs, occasional positive selection for beneficial insertions (Betancourt et al., Reference Betancourt, Wei, Huang and Lee2024) and the strength of purifying selection acting against the TEs, which itself is affected by population size (Lynch and Conery, Reference Lynch and Conery2003; Betancourt et al., Reference Betancourt, Wei, Huang and Lee2024).
Phylogeny of trypanosomatid species
Our reconstructed phylogenetic tree was broadly consistent with previous reports based on various nuclear or kDNA markers (Kaufer et al., Reference Kaufer, Stark and Ellis2019; Maslov et al., Reference Maslov, Opperdoes, Kostygov, Hashimi, Lukeš and Yurchenko2019; Kostygov et al., Reference Kostygov, Karnkowska, Votýpka, Tashyreva, Maciszewski, Yurchenko and Lukeš2021). The topology of the clade encompassing T. cruzi and T. grayi (with a low support in our work) is in line with the phylogenomics analysis of Kelly et al. (Reference Kelly, Ivens, Manna, Gibson and Field2014) that relied on a supermatrix of 959 single-copy nuclear genes. Moreover, in this work, we report the first multilocus-based analysis of the subfamily Herpetomonadinae. Similarly to the previous inferences based on 18S ribosomal RNA/gGAPDH sequences (Yurchenko et al., Reference Yurchenko, Kostygov, Havlová, Grybchuk-Ieremenko, Ševčíková, Lukeš, Ševčík and Votýpka2016), it placed H. samuelpessoai and L. mariadeanei as sister taxa.
Diversity and evolution of TEs in Trypanosomatidae
To date, DNA transposons have not been reliably identified or characterized in trypanosomatid genomes; however, Merlin DNA transposons were recently discovered in the genomes of trypanosomatid-related B. saltans and Perkinsela sp. (Lopes et al., Reference Lopes, Kriegová, Lukeš, Krieger and Ludwig2021). In this work, we found no evidence of any DNA transposons across the 57 analysed nuclear genomes. Thus, we could not confirm the presence of helitrons detected in the L. martiniquensis genome (Almutairi et al., Reference Almutairi, Urbaniak, Bates, Jariyapan, Al-Salem, Dillon, Bates and Gatherer2021a) or other DNA transposons reported in T. cruzi (Hakim et al., Reference Hakim, Gutierrez Guarnizo, Málaga Machaca, Gilman and Mugnier2024; Hoyos Sanchez et al., Reference Hoyos Sanchez, Ospina Zapata, Suarez, Ospina, Barbosa, Carranza Martinez, Vallejo, Urrea Montes and Duitama2024), suggesting that they were false positives. Our findings corroborate the idea that trypanosomatid genomes are devoid of class II TEs. Considering that DNA transposons are present in the last common ancestor of kinetoplastids (Lopes et al., Reference Lopes, Kriegová, Lukeš, Krieger and Ludwig2021), we propose that these elements were eliminated very early from the genomes of trypanosomatids. Our data support the hypothesis that the mobilome of a trypanosomatid ancestor was of low diversity and limited to the INGI, CRE, TATE and VIPER. This aligns with a recent report showing low TE diversity in the Paradiplonema papillatum genome, a species from a sister group to kinetoplastids (Valach et al., Reference Valach, Moreira, Petitjean, Benz, Butenko, Flegontova, Nenarokova, Prokopchuk, Batstone, Lapébie, Lemogo, Sarrasin, Stretenowich, Tripathi, Yazaki, Nara, Henrissat, Lang, Gray, Williams, Lukeš and Burger2023).
Considering the distribution of the 4 TE clades, we conclude that these elements were generally effective in colonizing most trypanosomatid species. Nevertheless, some TEs were either ablated or degenerated during evolution. Events of complete TE loss occurred mostly independently either in single species (for example, VIPER and TATE in Lotmaria passim and Leptomonas seymouri) or in the ancestors of the species group (for example, CRE in Mundinia). The persistence of all 4 elements in several species across the family Trypanosomatidae suggests that either these elements were more active in certain species or their remnants were retained. This can be well exemplified by the INGI elements, which, despite the absence of active copies, were retained in the genomes as non-autonomous counterparts, likely due to their role in the control of gene expression (Bringaud et al., Reference Bringaud, Müller, Cerqueira, Smith, Rochette, El-Sayed, Papadopoulou and Ghedin2007; Heras et al., Reference Heras, López, Olivares and Thomas2007).
Considering the mode of TE transmission, there have been no documented cases of horizontal transfer (HT) in trypanosomatids, despite the fact that this mechanism was reported for several trypanosomatid genes, such as catalase or proline racemase (Opperdoes and Michels, Reference Opperdoes and Michels2007; Caballero et al., Reference Caballero, Costa-Martins, Ferreira, Alves, Serrano, Camargo, Buck, Minoprio and G Teixeira2015; Chmelová et al., Reference Chmelová, Bianchi, Albanaz, Režnarová, Wheeler, Kostygov, Kraeva and Yurchenko2021). In our dataset, we found no clear evidence of HT, such as the presence of unexpected elements that might represent acquisitions from non-trypanosomatid sources. Such acquisitions could be anticipated, given the ecological associations of these parasites with diverse host and vector species. HT of TEs has been observed in other systems with close ecological interactions; for example, in Rhodnius prolixus, a major vector of T. cruzi, multiple TE families have been identified as nearly identical to those found in its mammalian hosts (Gilbert et al., Reference Gilbert, Schaack, Pace, Brindley and Feschotte2010; Schaack et al., Reference Schaack, Gilbert and Feschotte2010). While the possibility of TE lateral transfer among trypanosomatid species remains an area for further investigation, the apparent absence of this process raises important questions about the mechanisms that constrain TE transmission to a vertical model.
Despite manual curation of the presented database, we recognize that trypanosomatid TEs and their posited activities must be further characterized using wet-lab methods. Furthermore, future research could benefit from detailed phylogenetic analyses of the 4 trypanosomatid TE superfamilies to better understand their evolutionary trajectories and roles within the trypanosomatid genomes.
In this work, we provided the first in-depth report on the abundance and distribution of TEs in a large array of trypanosomatid species. We generated valuable custom TE libraries that can be employed by the trypanosomatid research community to improve the annotation of the mobilome for new genome assembly. Our comparative study provided new perspectives to understanding the events of gains and loss in the TE repertoire, elucidating the dynamics in trypanosomatid genome architecture.
Supplementary material
The supplementary material for this article can be found at https://doi.org/10.1017/S0031182025100231.
Acknowledgements
The authors would like to thank Valentina Peona for all comments and suggestions to improve our work.
Author contributions
PT and JA: Conceptualization, project administration, methodology, manuscript drafting. PT and AL: wrote the first draft of the manuscript and visualization. PT and AL: Data analysis. AL: Results validation. PT, AC, and EC: Analyses. AL, VY, MT, JS, and JA: Reviewing and editing. MT, MK, JS, and AL: Resources and supervision. All authors read and approved the final manuscript.
Financial support
POTV and this study were supported by the Brazilian National Council of Scientific and Technological Development – CNPq (140430/2021-0) and Brazilian Federal Agency for Support and Evaluation of Graduate Education – CAPES from the government of Brazil. VY was supported by the European Union Operational Program ‘Just Transition’ (LERCO CZ.10.03.01/00/22_003/0000003).
Competing interests
The authors declare there are no conflicts of interest.
Ethical standards
Not applicable.
Open access
