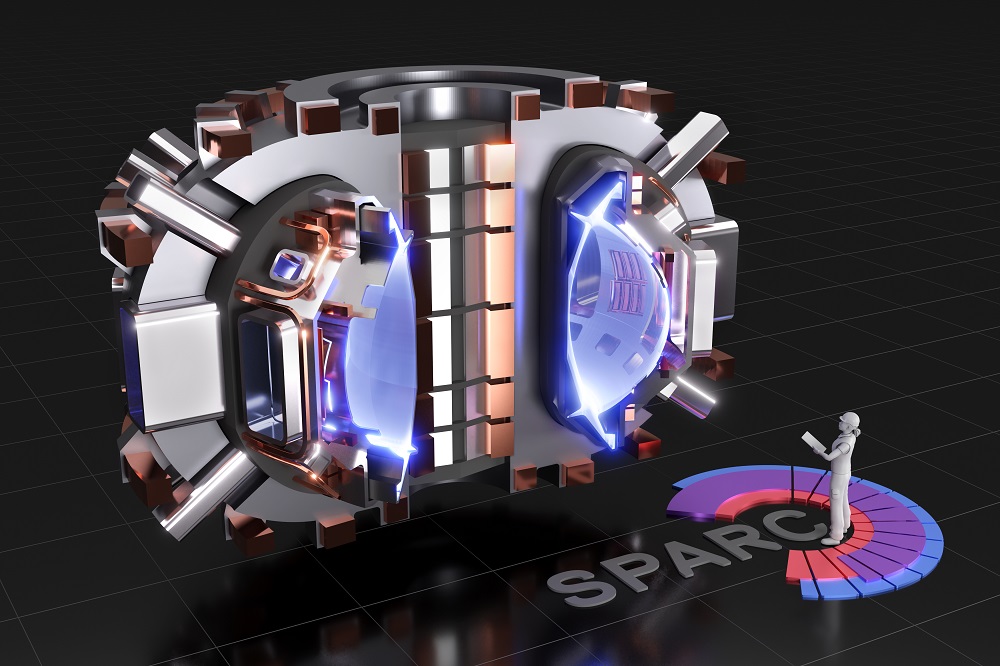

The SPARC tokamak is a critical next step towards commercial fusion energy. SPARC is designed as a high-field ($B_0 = 12.2$ T), compact ($R_0 = 1.85$ m, $a = 0.57$ m), superconducting, D-T tokamak with the goal of producing fusion gain $Q>2$ from a magnetically confined fusion plasma for the first time. Currently under design, SPARC will continue the high-field path of the Alcator series of tokamaks, utilizing new magnets based on rare earth barium copper oxide high-temperature superconductors to achieve high performance in a compact device. The goal of $Q>2$ is achievable with conservative physics assumptions ($H_{98,y2} = 0.7$) and, with the nominal assumption of $H_{98,y2} = 1$, SPARC is projected to attain $Q \approx 11$ and $P_{\textrm {fusion}} \approx 140$ MW. SPARC will therefore constitute a unique platform for burning plasma physics research with high density ($\langle n_{e} \rangle \approx 3 \times 10^{20}\ \textrm {m}^{-3}$), high temperature ($\langle T_e \rangle \approx 7$ keV) and high power density ($P_{\textrm {fusion}}/V_{\textrm {plasma}} \approx 7\ \textrm {MW}\,\textrm {m}^{-3}$) relevant to fusion power plants. SPARC's place in the path to commercial fusion energy, its parameters and the current status of SPARC design work are presented. This work also describes the basis for global performance projections and summarizes some of the physics analysis that is presented in greater detail in the companion articles of this collection.

SPARC is designed to be a high-field, medium-size tokamak aimed at achieving net energy gain with ion cyclotron range-of-frequencies (ICRF) as its primary auxiliary heating mechanism. Empirical predictions with conservative physics indicate that SPARC baseline plasmas would reach $Q\approx 11$, which is well above its mission objective of $Q>2$. To build confidence that SPARC will be successful, physics-based integrated modelling has also been performed. The TRANSP code coupled with the theory-based trapped gyro-Landau fluid (TGLF) turbulence model and EPED predictions for pedestal stability find that $Q\approx 9$ is attainable in standard H-mode operation and confirms $Q > 2$ operation is feasible even with adverse assumptions. In this analysis, ion cyclotron waves are simulated with the full wave TORIC code and alpha heating is modelled with the Monte–Carlo fast ion NUBEAM module. Detailed analysis of expected turbulence regimes with linear and nonlinear CGYRO simulations is also presented, demonstrating that profile predictions with the TGLF reduced model are in reasonable agreement.

In order to inform core performance projections and divertor design, the baseline SPARC tokamak plasma discharge is evaluated for its expected H-mode access, pedestal pressure and edge-localized mode (ELM) characteristics. A clear window for H-mode access is predicted for full field DT plasmas, with the available 25 MW of design auxiliary power. Additional alpha heating is likely needed for H-mode sustainment. Pressure pedestal predictions in the developed H-mode are surveyed using the EPED model. The projected SPARC pedestal would be limited dominantly by peeling modes and may achieve pressures in excess of 0.3 MPa at a density of approximately 3 × 1020 m−3. High pedestal pressure is partially enabled by strong equilibrium shaping, which has been increased as part of recent design iterations. Edge-localized modes (ELMs) with >1 MJ of energy are projected, and approaches for reducing the ELM size, and thus the peak energy fluence to divertor surfaces, are under consideration. The high pedestal predicted for SPARC provides ample margin to satisfy its high fusion gain (Q) mission, so that even if ELM mitigation techniques result in a 2× reduction of the pedestal pressure, Q > 2 is still predicted.

Owing to its high magnetic field, high power, and compact size, the SPARC experiment will operate with divertor conditions at or above those expected in reactor-class tokamaks. Power exhaust at this scale remains one of the key challenges for practical fusion energy. Based on empirical scalings, the peak unmitigated divertor parallel heat flux is projected to be greater than 10 GW m−2. This is nearly an order of magnitude higher than has been demonstrated to date. Furthermore, the divertor parallel Edge-Localized Mode (ELM) energy fluence projections (~11–34 MJ m−2) are comparable with those for ITER. However, the relatively short pulse length (~25 s pulse, with a ~10 s flat top) provides the opportunity to consider mitigation schemes unsuited to long-pulse devices including ITER and reactors. The baseline scenario for SPARC employs a ~1 Hz strike point sweep to spread the heat flux over a large divertor target surface area to keep tile surface temperatures within tolerable levels without the use of active divertor cooling systems. In addition, SPARC operation presents a unique opportunity to study divertor heat exhaust mitigation at reactor-level plasma densities and power fluxes. Not only will SPARC test the limits of current experimental scalings and serve for benchmarking theoretical models in reactor regimes, it is also being designed to enable the assessment of long-legged and X-point target advanced divertor magnetic configurations. Experimental results from SPARC will be crucial to reducing risk for a fusion pilot plant divertor design.

Ion cyclotron range of frequencies (ICRF) heating will be the sole auxiliary heating method on SPARC for both full-field (Bt0 ~ 12 T) D–T operation and reduced field (Bt0 ~ 8 T) D–D operation. Using the fast wave at ~120 MHz, good wave penetration and strong single-pass absorption is expected for D–T(3He), D(3He), D(H) and 4He(H) heating scenarios. The dependences of wave absorption on ${k_\parallel }$, 3He concentration, resonance location, antenna poloidal location and losses on alpha particles and ash have been studied. The antenna loading has been assessed by comparison with the Alcator C-Mod antennae. An antenna spectrum of ${k_\parallel }\sim 15\text{--}18\,{\textrm{m}^{ - 1}}$ is shown to be good for both core absorption and edge coupling. For the control of impurity sources, the antenna straps are rotated ~10° to be perpendicular to the B field and the straps can run with different power levels in order to optimize the antenna spectrum and to minimize the image current on the antenna frame. Combining the physics constraints with the SPARC port design, maintenance requirement and contingency against antenna failure during D–T operation, we plan to mount on the inner wall of the vacuum vessel a total of 12 4-strap antennae in 6 ports while keeping 3-strap antennae that are insertable and removable on port plugs as the backup option.

SPARC is being designed to operate with a normalized beta of $\beta _N=1.0$, a normalized density of $n_G=0.37$ and a safety factor of $q_{95}\approx 3.4$, providing a comfortable margin to their respective disruption limits. Further, a low beta poloidal $\beta _p=0.19$ at the safety factor $q=2$ surface reduces the drive for neoclassical tearing modes, which together with a frozen-in classically stable current profile might allow access to a robustly tearing-free operating space. Although the inherent stability is expected to reduce the frequency of disruptions, the disruption loading is comparable to and in some cases higher than that of ITER. The machine is being designed to withstand the predicted unmitigated axisymmetric halo current forces up to 50 MN and similarly large loads from eddy currents forced to flow poloidally in the vacuum vessel. Runaway electron (RE) simulations using GO+CODE show high flattop-to-RE current conversions in the absence of seed losses, although NIMROD modelling predicts losses of ${\sim }80$ %; self-consistent modelling is ongoing. A passive RE mitigation coil designed to drive stochastic RE losses is being considered and COMSOL modelling predicts peak normalized fields at the plasma of order $10^{-2}$ that rises linearly with a change in the plasma current. Massive material injection is planned to reduce the disruption loading. A data-driven approach to predict an oncoming disruption and trigger mitigation is discussed.

Potential loss of energetic ions including alphas and radio-frequency tail ions due to classical orbit effects and magnetohydrodynamic instabilities (MHD) are central physics issues in the design and experimental physics programme of the SPARC tokamak. The expected loss of fusion alpha power due to ripple-induced transport is computed for the SPARC tokamak design by the ASCOT and SPIRAL orbit-simulation codes, to assess the expected surface heating of plasma-facing components. We find good agreement between the ASCOT and SPIRAL simulation results not only in integrated quantities (fraction of alpha power loss) but also in the spatial, temporal and pitch-angle dependence of the losses. If the toroidal field (TF) coils are well-aligned, the SPARC edge ripple is small (0.15–0.30 %), the computed ripple-induced alpha power loss is small (${\sim } 0.25\,\%$) and the corresponding peak surface power density is acceptable ($244\ \textrm{kW}\ \textrm {m}^{-2}$). However, the ripple and ripple-induced losses increase strongly if the TF coils are assumed to suffer increasing magnitudes of misalignment. Surface heat loads may become problematic if the TF coil misalignment approaches the centimetre level. Ripple-induced losses of the energetic ion tail driven by ion cyclotron range of frequency (ICRF) heating are not expected to generate significant wall or limiter heating in the nominal SPARC plasma scenario. Because the expected classical fast-ion losses are small, SPARC will be able to observe and study fast-ion redistribution due to MHD including sawteeth and Alfvén eigenmodes (AEs). SPARC's parameter space for AE physics even at moderate $Q$ is shown to reasonably overlap that of the demonstration power plant ARC (Sorbom et al., Fusion Engng Des., vol. 100, 2015, p. 378), and thus measurements of AE mode amplitude, spectrum and associated fast-ion transport in SPARC would provide relevant guidance about AE behaviour expected in ARC.
